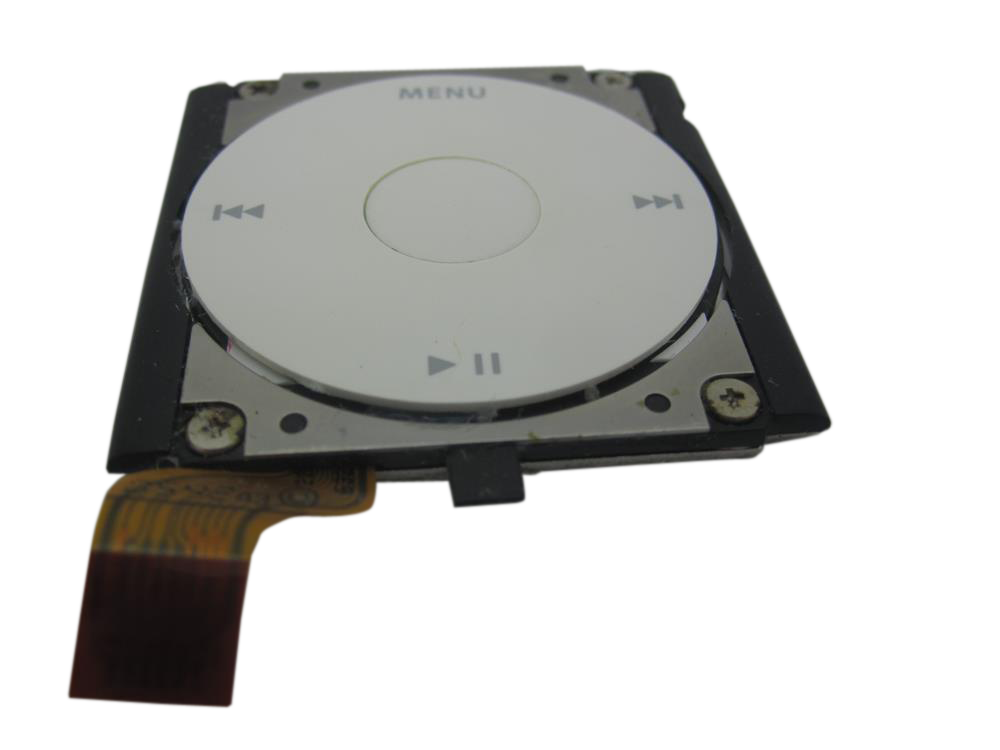

iPod Mini 2nd Generation — Replacement Click Wheel (Silver)

For the iPod Mini 2nd Gen

Used (Apple Original) · Model A1051

iPod Mini 2nd Gen (A1051), Replacement Click Wheel (Silver)

$125.90

Also for the iPod Mini 2nd Gen: Blue $125.90 installed · Green $125.90 installed · Pink $125.90 installed · See all

How do you want it fixed?
Upgrade and save
Shipping box and prepaid label

Pay at checkout by card, PayPal, Shop Pay, Apple Pay or Google Pay.

  • Used (Apple Original). Tested: installed in a working iPod and checked before it ships.
  • 1-year limited warranty · 30-day returns from delivery
  • Free pry tool in the box
  • US shipping is about $6 to $9 by USPS Ground Advantage; free on orders of $200 or more

Questions about this part? Chat with us or email sales@imods.com.

Not sure what's wrong? Get your free repair quote

Part details

About this part

Overview

Click Wheel 4GB / 6GB

Replacement control input part for iPod Mini 2nd Generation. Use it when the wheel, buttons, center Select area, or flex is physically damaged or still fails after Hold state, frozen software state, and connector seating are checked.

Fitment snapshot

FitsiPod Mini 2nd Generation
Variant matchSee Compatible Variants
ReleasedFebruary 23, 2005
TypeClick Wheel

What Is Included

✓ Replacement Click Wheel (Silver) ✓ One plastic pry tool ✓ 1-year limited warranty

What this part might fix

Help pages, step by step, for problems this part might fix:

Most likely fixed by this part

Can also be the cause

Fit and specs

Specifications & Fitment

Part Details

Detail Value
Model Number A1051
EMC EMC 2044
Condition Used — factory original Apple part. Normal cosmetic wear expected.
OEM Part 632-0303-A
Controller Developed for Apple by Synaptics
Type Capacitive click wheel
Interface Mini 2nd Generation click-wheel flex connector
Color Color-matched text to case

Compatible Variants

Order Number Capacity Color Case Compatible Notes
M9802LL/A 4GB Blue — Yes— compatible Color swap — physically fits, different color from original
M9806LL/A 4GB Green — Yes— compatible Color swap — physically fits, different color from original
M9804LL/A 4GB Pink — Yes— compatible Color swap — physically fits, different color from original
M9800LL/A 4GB Silver — Yes —
M9803LL/A 6GB Blue — Yes— compatible Color swap — physically fits, different color from original
M9807LL/A 6GB Green — Yes— compatible Color swap — physically fits, different color from original
M9805LL/A 6GB Pink — Yes— compatible Color swap — physically fits, different color from original
M9801LL/A 6GB Silver — Yes —

Not compatible with

  • iPod Mini 1st Generation click-wheel assemblies
  • Other click-wheel colors when a color-matched restoration is required
  • iPod Mini 1st Generation click wheel (632-0246-A) — seats physically, no electrical response

Install and repair

Step-by-step guide

iPod Mini 1st/2nd Gen click wheel and center button replacement

  • DifficultyModerate
  • TimeAbout 15 minutes
  • Steps13

Tools: Thin plastic pry tool, Spudger, Small snap-ring pliers or a small flat tool, Masking tape, Anti-static wrist strap or mat, Phillips #00 screwdriver, hair dryer and tweezers (only if needed)

  1. Lock itUnplug any cable, then slide Hold on and let the screen go blank. The top cap can stay on for this job.
  2. Pry off the bottom capWork the plastic pry tool into the seam of the white cap at the dock connector end and lift it off, prying at points where there are no clips. It may be glued as well as clipped.

Read the full guide: all 13 steps

Install Overview

Rather not open it? Choose We Fix It above: mail your iPod in and we fit it. Turnaround is typically 1–3 business days on our bench. 1-year limited warranty.

Questions

Frequently Asked Questions

What Replacement Click Wheel (Silver) models does this fit?

Fits every iPod Mini 2nd Generation (4GB or 6GB); the Silver one matches the Silver case.

Do I need to solder?

No, this installation does not require soldering. Difficulty: Moderate. Estimated time: 15 minutes.

How do I know if this click wheel needs replacement?

Symptoms that can point to this click wheel include: Click Wheel Not Working.

What else should I replace at the same time?

Battery and Click Wheel are both accessed during disassembly — inspect the battery while open. Click wheel removal requires case disassembly — inspect casing condition.

Is this for a full-size hard-drive iPod?

The iPod mini is a separate Apple product line from full-size hard-drive iPods. This is the iPod mini 2nd Generation.

Is this sometimes called a scroll wheel?

Some sellers use older wheel wording, but Apple's term is Click Wheel.

Is my mini a 1st or 2nd Gen?

Turn it over: 4GB or 6GB engraved on the back means a 2nd Gen (EMC 2044); nothing engraved means a 1st Gen (EMC 1984). Click Wheel lettering in a color other than gray also means a 2nd Gen, and the part number on the click wheel cable tells the two apart. The two wheels look the same but do not work in each other's iPod.
