iPod Mini 2nd Gen Headphone Jack — Replacement & Repair

Headphone Jack 4GB / 6GB

Replacement headphone jack assembly for iPod Mini 2nd Generation. Use it for damaged audio-output hardware, channel issues, or related Hold-switch hardware on models where those parts share the same assembly.

Shop iPod Mini 2nd Generation parts and services → Start a free diagnostic →

Product Overview

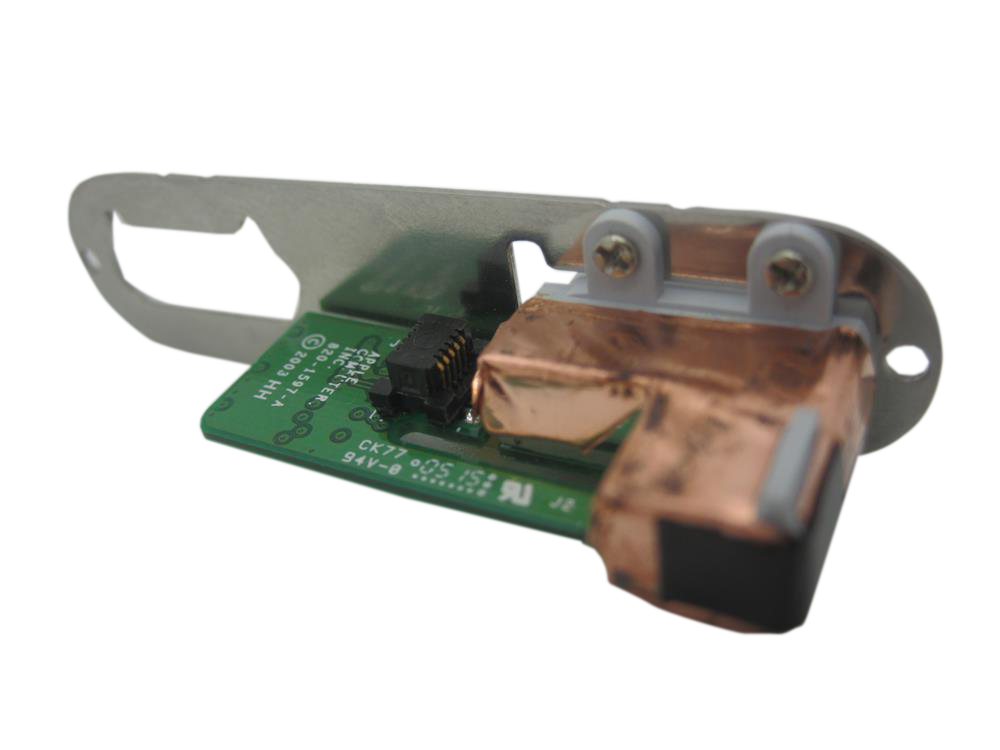

This headphone jack listing covers Headphone Jack / Hold Switch Assembly and its own connector path on the iPod Mini 2nd Generation.

Use Part Details for the confirmed part-number reference. Use the Compatible Variants table below to confirm capacity, color, or order-number fitment.

Choose this part when your iPod shows No Sound or Headphone Jack Not Working; the checks below help confirm the right part before you order.

What Is Included

✓ Headphone Jack / Hold Switch Assembly ✓ One plastic pry tool ✓ 1-year limited warranty

Condition: Used factory-original part. Quantity and exclusions: The listed part, set, pair, or configuration above is supplied with exactly one plastic pry tool. No other parts, tools, adhesives, or materials are included unless they are explicitly listed above.

Quick Buying Check

Buy this when

No Sound: Use the headphone/Hold check when headphone output or Hold-switch behavior is isolated from dock audio, board audio, and connector seating.

Diagnose first when

Try the simple power, cable, connector, or reset checks before ordering — reset is Menu + Select, held until the Apple logo appears.
If the problem started immediately after opening the iPod, inspect the parts that were disturbed first.

Do not buy for

Do not use this part for: Full-size hard-drive iPods use a different headphone jack assembly.
One-ear audio often points to the jack, but both dock and headphone audio failing together can point to the logic board.
Hold-switch symptoms may be the shared headphone/hold assembly rather than the click wheel.

Specifications & Fitment

Part Details

Detail	Value
Model Number	A1051
EMC	EMC 2044
Condition	Used — factory original Apple part. Normal cosmetic wear expected.
Part Identifiers	`820-1597-A`
Jack Size	3.5mm
Includes Hold Switch	Yes
Design	Press-fit

Compatible Variants

Order Number	Capacity	Color	Case	Compatible	Notes
M9802LL/A	4GB	Blue	—	Yes	—
M9806LL/A	4GB	Green	—	Yes	—
M9804LL/A	4GB	Pink	—	Yes	—
M9800LL/A	4GB	Silver	—	Yes	—
M9803LL/A	6GB	Blue	—	Yes	—
M9807LL/A	6GB	Green	—	Yes	—
M9805LL/A	6GB	Pink	—	Yes	—
M9801LL/A	6GB	Silver	—	Yes	—

iPod Mini 1st Generation: The headphone jack / Hold switch assembly appears to be the same part (820-1597-A) on both Minis, so this listing is the one to order for a 2nd-generation mini and it will also serve a 1st-generation one. Match the rest of your parts to the generation you actually have: the capacity engraved on the back — 4 GB or 6 GB — means this model, and no capacity printed means the first-generation mini.

Diagnostic Failure Cards

Use these model-specific failure cards to decide whether this headphone jack assembly is the right part, a nearby part needs checking first, or escalation makes more sense after simpler checks.

Symptom	What it means & what to check
Symptom remains after basic checks	What you may see: The iPod still points back to Headphone Jack / Hold Switch Assembly after cable seating, battery stability, and nearby connector checks. Check first: Retest with known-good cables or adjacent parts where practical before ordering. Check next: A nearby cable, connector, battery, storage device, display path, audio path, or board path can mimic a bad headphone jack assembly.
Symptom changes when touched or reseated	What you may see: The symptom changes after moving the part, reseating a cable, or applying light pressure near the connector path. Check first: Inspect the connector, latch, flex, solder joints, and nearby board area for damage or corrosion. Check next: This can still be a connection issue rather than a failed headphone jack assembly alone.
Problem began after another repair	What you may see: The issue started immediately after opening the iPod, replacing another part, or disturbing an internal cable. Check first: Reopen only as far as needed and inspect the exact area touched during the previous repair. Check next: Post-repair symptoms often trace to seating, latch, screw, or cable issues before Headphone Jack / Hold Switch Assembly itself is confirmed bad.
Hold switch is stuck, locked, or not reporting correctly	What you may notice People report the iPod staying locked, the lock indicator not clearing, or the Hold switch not matching the device behavior. The iPod appears locked or the Hold switch does not match the device behavior. Diagnose first when Move the Hold switch and watch whether the lock indicator changes. Check the headphone/hold ribbon if the symptom started after opening the iPod. Confirm Hold is off before judging the controls. Separate center-button-only failure from a dead scroll ring or multiple failed buttons. Inspect click-wheel ribbon seating, latch position, and ground path after reassembly. Compare headphone output, dock or line-out output, and Hold-switch behavior before replacing the headphone/hold assembly. Similar issues to separate On this model the Hold switch is part of the headphone/hold assembly. A wrong variant, loose ribbon, damaged switch, or nearby connector problem can all keep the device behaving as if Hold is active. Click-wheel assembly, button pad, or flex path. Choose this headphone/hold assembly only when the physical Hold switch or its ribbon path is the failing path. Choose this headphone jack / hold-switch assembly when the symptom remains isolated to this assembly, its ribbon, or its connector path after first checks. Check another part first Check click-wheel input only after the Hold switch path is ruled out. Check the headphone/hold assembly for confirmed Hold switch faults before blaming the click wheel.
Dock output and headphone output behave differently	What you may notice Some reports compare sound through the dock connector with sound through the headphone jack. Audio behaves differently through headphones and a dock or line-out accessory. Both headphone and dock output share the same failure. Diagnose first when Compare headphone output with dock output while the same track is playing. Use that split test only as a clue, not proof by itself. Play the same known-good track through the headphone jack, then through a dock or line-out accessory if you have one. If dock or line-out audio works but headphones do not, focus on the headphone jack, jack contacts, headphone/hold ribbon, and board connector. If both headphone and dock output are silent, pause before buying the jack and continue with logic-board or audio-circuit diagnosis. Test known-good headphones before opening the iPod. Compare headphone output with dock or line-out audio on the same track. Inspect and reseat the headphone/hold ribbon or storage connector connection if the iPod was opened. Similar issues to separate A split between dock and headphone output can help separate headphone/hold assembly trouble from broader audio circuitry. The path split matters: headphone-only failure points more toward the jack, headphone/hold ribbon, or board connector, while both headphone and dock output failing points away from the jack alone. Headphone jack contacts or headphone/hold assembly. Headphone/hold ribbon, storage connector seating, or board-side connector. Choose this headphone/hold assembly only when headphone output fails but other audio paths still behave normally. Check another part first Check the logic board or board-level audio path first when both the headphone jack and dock or line-out path are silent. If both headphone and dock or line-out audio fail, the jack alone is unlikely. Board-level audio diagnosis belongs after output-path and ribbon checks. Repair or replacement paths Replace the headphone/hold assembly when the headphone path is the clear failing path. Continue board or dock-path diagnosis when both paths fail. Use headphone/hold assembly replacement for a failure that follows only the headphone path. Do not treat the headphone jack as the first confirmed fix when every audio output path is silent. Replace the headphone/hold assembly when the failure is isolated to the headphone path. Cautions Do not treat a broad no-audio symptom as proof that the headphone jack has failed.
No sound or missing headphone audio	What you may notice People describe music playing with little or no sound from the headphone jack, or audio that disappears even though the iPod still appears to run. No sound from the headphone jack. Audio disappears while the iPod otherwise appears to run. Diagnose first when Test with known-good headphones before opening the iPod. Check whether audio behaves differently through the dock connector and the headphone jack. Inspect the headphone/hold ribbon and connector if the iPod has been opened. Similar issues to separate The headphone/hold assembly can be involved, but no-sound symptoms can also point to the jack connection, ribbon path, dock output path, or board-level audio. Choose this headphone/hold assembly only when the headphone jack or its ribbon path is the failing audio path. Repair or replacement paths Reseat the headphone/hold ribbon when the symptom began after service. Replace the headphone/hold assembly when the jack, ribbon, or hold-board assembly is the suspect path.
Ribbon, storage connector, or ground-path checks	What you may notice A symptom starts after opening the iPod or disturbing an internal flex cable. Diagnose first when Inspect for liquid, corrosion, residue, torn flex material, or connector damage. Similar issues to separate Connector seating, ribbon damage, or ground-path issues can involve this part, a nearby connector, or a board path. Check another part first Check the Replacement Click Wheel matching your iPod's color — silver, blue, pink or green — when controls, wheel, center/select, menu, hold, or unresponsive-button symptoms are the stronger pattern. Check the Replacement Logic Board when board-level behavior after replaceable parts and connectors are ruled out is the main problem.
Symptoms changed after repair or reassembly	What you may notice A new symptom appeared after battery, storage, audio, display, or control work. Similar issues to separate Check post-repair regression, connector seating, and board-side damage before ordering.
Liquid, corrosion, or residue context	What you may notice Symptoms follow liquid exposure, dirty contacts, corrosion, or residue. Similar issues to separate Liquid or corrosion can involve this part, a nearby connector, or a board path.
One headphone/Hold assembly fits every Mini 2nd Generation	Diagnose first when Confirm the iPod is a Mini 2nd Generation before using audio or Hold symptoms to choose this part — the assembly is the same across all Mini 2nd Generation capacities and colors. Similar issues to separate The headphone jack and Hold switch share one assembly, and the Mini 2nd Generation uses a single version of it across every capacity and color. Check fitment / model variant boundary, connector seating, and board-side damage before ordering. Check another part first Check the variant match before replacing another audio or input part. Repair or replacement paths Recheck variant fit before diagnosing a replacement part as defective.
Fitment and inspection notes	Full-size hard-drive iPods use a different headphone jack assembly.

Do Not Buy / Problems This Headphone Jack Assembly Does Not Fix

Situation	Start here instead
Headphone and dock or line-out audio are both silent	Start with the logic board or audio-circuit check; a headphone-only failure is a reason to buy this assembly, not avoid it.
The fault is clearly the storage, battery, or logic board — not the jack or Hold switch	Start with the hard drive, battery, or logic-board check for your model before buying this assembly.
A symptom points to a different part	Start with battery for power/runtime symptoms; hard-drive cable for folder, clicking, or restore symptoms; dock-port bracket only when the internal metal bracket that locates the port is bent or missing (the 30-pin port itself is part of the logic board on this model); click wheel for click-wheel or control symptoms; logic board for board-side damage or multi-system symptoms before buying this part.
Variant or capacity does not match this listing	Capacity and case color make no difference to this part: one headphone-jack / Hold switch assembly serves every Mini 2nd Generation, 4GB and 6GB, in all four colors. What to confirm instead is the generation and the symptom — compare known-good headphones, Hold behavior, dock or line-out audio, and the headphone/Hold ribbon before ordering.

Install Overview

Before You Start

Confirm the model and reset state

Turn Hold off, then reset: toggle Hold on and off and hold Menu + Select for about 6 seconds, until the Apple logo appears. Guides that say Menu + Play describe the older, pre-click-wheel iPods. Confirm the model and variant before opening the iPod.

Open the case slowly

Treat case opening as the highest handling risk. Work around the seams gently and stop if the shell, clips, or internal stack resist.

Protect nearby connectors

Do not pull the halves apart or side-load board sockets. Reseat nearby ribbons and connectors before blaming a replacement headphone jack assembly.

Repair steps

Documented repair-procedure steps for replacing the headphone jack assembly on this model (from teardown guides; confirm against your unit before starting):

Use a spudger to carefully pry up the headphone jack board from the logic board. Be careful to pry up near the connector to prevent unnecessary strain on the board.
Do not pull on the headphone jack board at the top of the iPod, as the connector to the logic board is fragile.

Disassembly Guide

Disassembly guide summary: iPod Mini Headphone Jack Board Replacement.

DifficultyModerate

Time7 - 25 minutes

Steps12

SolderingNo

Common toolsPhillips #00 Screwdriver, Flathead 3/32" Screwdriver, Spudger

Show all 12 installation steps

Confirm that the hold switch is locked before you open the iPod.

Carefully slide a small flathead screwdriver or Jimmy into the seam between the metal casing and white plastic top. Lever up the white top bezel, taking care not to damage the soft plastic. The top bezel is adhesive-backed, so you may need to lever it up from several spots before it releases. Heat up the adhesive for a few seconds with a hair dryer on low heat to make the job easier.

Raise the top bezel off the iPod.

Carefully slide a small flathead screwdriver or Jimmy into the seam between the metal casing and white plastic bottom. Lever up the white bottom bezel, taking care not to damage the soft plastic.

A small pair of snap-ring pliers is the best tool to take out the metal retaining bracket. You can also lever out the metal retaining bracket beneath the bottom bezel with a flathead screwdriver. Release the bracket by pressing in the corner metal arms first.

Lift the released bracket away and set it aside.

With a spudger or fingertip, carefully disconnect the orange click wheel ribbon from the logic board.

Take out the 2 #00 Phillips screws securing the headphone jack to the casing.

Carefully move the iPod out of its casing by pressing on the logic board near the click wheel's bottom edge. Do not tug on the headphone jack board at the iPod top; its logic board connector is fragile.

After the logic board has been pushed out far enough, gently grip it on either side of the display and keep sliding the iPod from its casing.

Raise the battery off the logic board and set it to the side of the iPod.

With a spudger, carefully lever up the headphone jack board from the logic board. Be cautious to lever up near the connector to prevent unnecessary strain on the board. Raise the headphone jack board off of the logic board.

Product-specific placement, reassembly, and check

Prepare and access. Confirm the exact model and listing fit first. Use the existing steps as a disassembly guide, gather the specified tools, disconnect power where applicable, and keep screws and cable positions organized.
Place Headphone Jack / Hold Switch Assembly. Align the jack and Hold-switch assembly with the housing openings and seat its cable without twisting or trapping it.
Reassemble without force. Reverse only the access steps needed for this repair, keep cables clear of case edges and screw posts, and close clips in stages.
Validate before final closure. Before final closure, test left/right audio, plug detection, and the Hold switch while the assembly remains accessible.

Stop condition: Stop if a connector, latch, screw, clip, housing edge, or the replacement part resists normal alignment. Recheck model fit, orientation, cable routing, and trapped hardware instead of forcing it.

After This Repair

Check	What to do
Test audio and Hold	Use known-good headphones and check both channels, static, plug movement, and Hold-switch behavior.
Still not working?	Compare headphone output with dock or line-out behavior when the model supports it, then inspect ribbon seating.

Worth Knowing

The headphone socket and the Hold switch are one part on this model, 820-1597-A. You cannot buy the switch on its own, and a Hold fault and an audio fault are both fixed by this same assembly.
One assembly covers the whole model: 4GB and 6GB, Silver, Blue, Pink and Green. There is no color or capacity variant of this part to get wrong.
It is a press-fit board that plugs into the logic board and is held by two #00 Phillips screws through the casing — no soldering. Its logic-board connector is the fragile part of the job: lever near the connector and never pull on the jack board itself.
The split test decides the purchase. If a dock or line-out accessory plays the same track and the headphones do not, the fault is on this assembly's path. If both are silent, this part is unlikely to be the fix — that belongs to the logic board and its audio circuitry.

Frequently Asked Questions

Use these questions to narrow the part path before ordering. They keep each answer focused on a different diagnostic or fitment decision.

How do I choose the right headphone jack assembly?

Match capacity 4GB / 6GB and color Silver, Blue, Pink, Green and confirm whether the Hold switch shares the same assembly on this model before ordering.

Can one-channel audio be because of something else?

Yes. Check headphones, the jack opening, debris, pressure on the case, ribbon seating, and board-side damage before treating the jack assembly as the only cause.

Can the Hold switch be part of the headphone-jack assembly?

Move the Hold switch and watch whether the lock indicator changes. Inspect the headphone/hold ribbon if the symptom started after opening the iPod. Choose this assembly only when Hold switch behavior is the failing path. Check click-wheel input only after the Hold path is ruled out.

Which headphone/Hold assembly fits this iPod?

Confirm the iPod is this model before using audio or Hold symptoms to choose this part — one assembly fits every capacity and color. This part is the right choice for this model's audio and Hold fitment. Check variant fit before replacing another audio or input part.

Is this for a full-size hard-drive iPod?

The iPod mini is a separate Apple product line from full-size hard-drive iPods. This is the iPod mini 2nd Generation.

Does capacity matter for this part?

Use the Specifications & Fitment table as the source of truth. Match model, capacity, connector style, and order-number family before ordering.

Why people land on this part

Some buyers search for "waterdamaged no sound"; confirm the checks above point to this same part before ordering.

Also searched as: iPod mini 2nd Generation Headphone Jack / Hold Switch Assembly, no sound comes, Headphone Jack Not Working, no audio, jack on logic, headphone/hold ribbon.

Questions people ask

iPod Mini turns off when I flip the Hold switch. On this model the Hold switch is part of this assembly, so a switch that changes the iPod's state unpredictably points here rather than at the click wheel. Move the switch slowly and watch the lock indicator: if the indicator does not follow the switch, the switch or its ribbon is the suspect. If the iPod also drops out when it is jolted or set down, check the battery connector first — a loose battery lead looks like this too, and it is the cheaper thing to rule out.

You May Also Want

Related: Replacement Battery

A fresh battery is often replaced during the same repair while the iPod is open.

Flash storage is the common upgrade path while the iPod is already open.

Headphone jack is at the top — top bezel removal required for access.

Browse all iPod Mini 2nd Generation repair parts → Start a free diagnostic →
