The Ultimate Guide to iPod Back Cover Replacement

Table of Contents

• Introduction
• I. Identifying Your iPod Back Cover
• II. Signs You Need a New Back Cover
• III. Replacement Back Cover Selection
• IV. Tools Needed for Back Cover Replacement
• V. Step-by-Step Back Cover Replacement Process
• VI. Troubleshooting After Back Cover Replacement
• VII. Back Cover Restoration Options
• VIII. Protecting Your Replacement Back
• IX. Related Back Cover Components
• X. Common Questions About iPod Back Covers
• Conclusion

<a id="intro"></a>Introduction

• An iPod's back cover is more than just a cosmetic component – it provides crucial protection for internal hardware, contributes to the device's structural integrity, and significantly impacts resale value for collectors. Whether you're restoring a vintage iPod, repairing damage, or customizing your device, this comprehensive guide will walk you through everything you need to know about iPod back cover replacement.

<a id="section-i"></a>I. Identifying Your iPod Back Cover

<a id="section-ia"></a>A. Model Identification Essentials

• How to identify which iPod back cover I need: The most reliable method is checking the model number printed on your original back cover. These typically begin with "A" followed by four digits (such as A1238). This identifier precisely determines your iPod's generation and capacity.
• Finding iPod model number on back case: Look for small text printed on the lower portion of your iPod's back cover. If it's too worn to read, check inside the case once opened, as the information is sometimes duplicated there. The model number is essential for ordering the correct replacement part.
• iPod back cover differences between generations: Each generation features unique design elements, dimensions, and attachment methods. Physical characteristics including thickness, curvature, material, and connector locations distinguish different models. Early generations used polished stainless steel while later models featured anodized aluminum.
• Physical features to identify iPod model without model number: Button layout, screen size, Click Wheel position, connector type, and overall dimensions can help identify your model even if the number is unreadable. The presence or absence of a camera lens cutout is also a distinguishing feature on later models.
• iPod back case thickness variations by model: Thickness varies significantly, with the most notable difference being between thin (80/120GB) and thick (160GB) iPod Classic models (approximately 5mm versus 6.5mm respectively). This variation accommodates different internal component configurations.
• Using Settings menu to identify iPod model for back replacement: If your iPod still functions, navigate to Settings > About (or General > About on some models) to find your model information and storage capacity. This can help confirm the exact model when the back cover information is illegible.
• Distinguishing iPod Classic back case versions: Later Classic models have subtle differences in the placement of model information, slightly different curvature, and differences in production materials. The 6th and 7th generation models look nearly identical but have different model numbers (A1238 vs A1436).

<a id="section-ib"></a>B. iPod Classic Back Cover Types

• 1st/2nd generation iPod back cover specifications: Featured polished stainless steel backs with distinct plastic top and bottom sections. The FireWire port and mechanical scroll wheel help identify these models. The back cover wraps around the sides and connects to the front bezel.

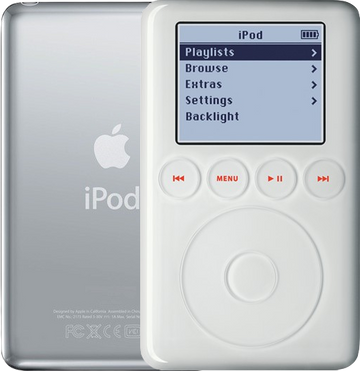

• 3rd generation iPod back design features: Introduced an all-metal design with touch-sensitive buttons above the wheel and a unique dock connector. The back is flat stainless steel with rounded edges and a slightly different curvature from later models.

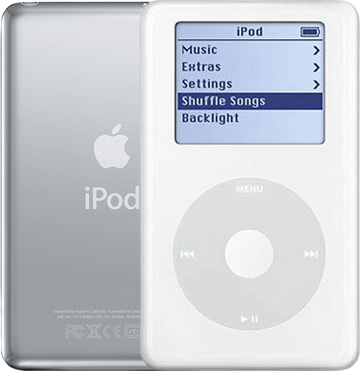

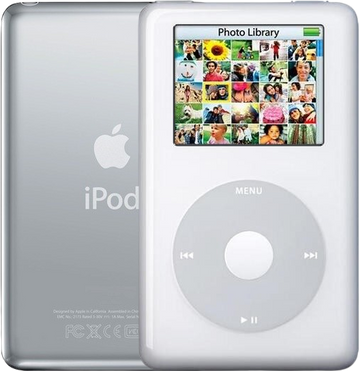

• 4th generation Click Wheel iPod back case details: Available in both monochrome and color display versions with polished stainless steel backs. The Click Wheel interface was now fully integrated into the front casing, changing how the back cover connected to the front assembly.

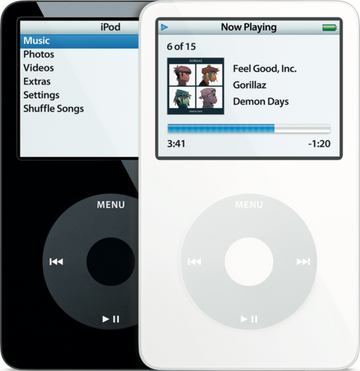

• 5th generation (Video) iPod back cover variations: The first video-capable iPod featured a slightly thinner profile and less rounded design compared to previous generations. Available in 30GB (thin) and 60/80GB (thick) versions with different back thicknesses.
• Enhanced 5th generation back case differences: Sometimes called "5.5 generation," these models look identical to standard 5th gen models externally but featured improved screen brightness and battery life. The back covers are interchangeable with regular 5th generation models of the same capacity.

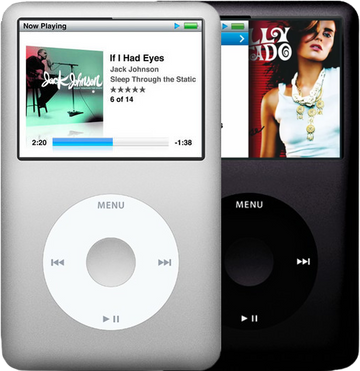

• 6th generation thin vs thick back case distinction: Released in both thin (80GB/120GB) and thick (160GB) versions with polished stainless steel backs. The thickness difference is approximately 1.5mm and these parts aren't interchangeable due to internal component spacing requirements.

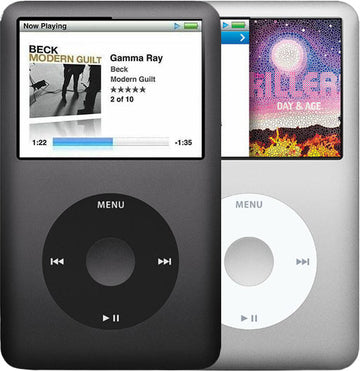

• 7th generation 160GB iPod Classic back specifications: The final Classic model featured only the thicker 160GB design with identical exterior appearance to the thick 6th generation. The backs are interchangeable but model numbers differ (A1238 vs A1436).
• Special edition iPod back cover identification (U2, Harry Potter, etc.): Special editions like the U2 iPod feature unique engravings, color schemes, or signatures on the back case. The Harry Potter edition featured a Hogwarts crest engraved on the back, while the RED edition featured distinctive coloring.

<a id="section-ic"></a>C. iPod Nano Back Cover Variations

• 1st generation Nano back cover material and design: Featured a glossy plastic front with a polished metal back in black or white. The extremely thin design was prone to scratching, and the plastic front was susceptible to cracking.
• 2nd generation Nano aluminum back specifications: Introduced an anodized aluminum body available in multiple colors (silver, blue, green, pink, and red), where the back and body formed a single aluminum tube. The anodized finish provided better scratch resistance than the 1st generation.
• 3rd generation (square) Nano back cover details: Featured a wider, squatter "fatty" design with aluminum front and polished metal back. This generation adopted a more square shape with a 2-inch screen and was the first to support video playback.
• 4th generation Nano slim aluminum back design: Returned to a tall, slim design with an aluminum unibody enclosure in nine color options. The back and sides were formed from a single piece of anodized aluminum, improving durability and aesthetic appeal.
• 5th generation Nano back with camera cutout features: Similar to the 4th generation but added a camera with a distinctive back cutout and slightly larger screen. The camera lens is positioned in the lower left corner of the back, creating a unique identification feature.
