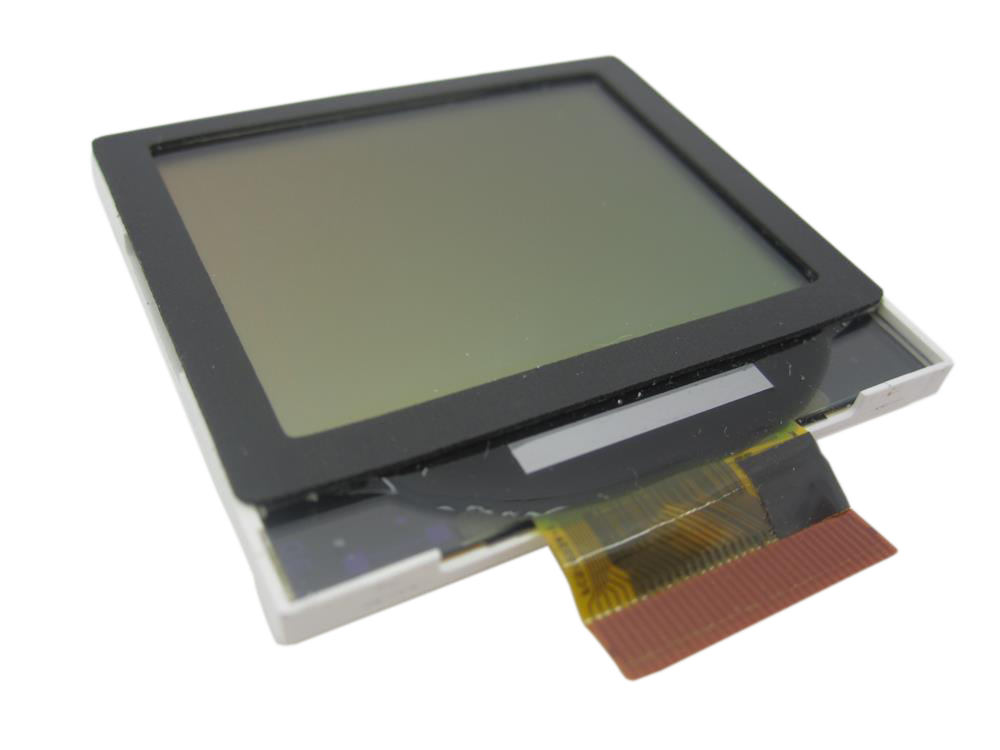

Replacement display assembly for iPod Mini 2nd Generation. Use it for cracked, blank, lined, or backlight-related display problems after separating screen damage from ribbon seating and board-side faults.
Product Overview
This screen listing covers Replacement LCD Screen (1.67" Grayscale) and its own connector path on the iPod Mini 2nd Generation.
Use the Compatible Variants table below to confirm capacity, color, or order-number fitment.
Choose this part when your iPod shows backlight not working or LCD display failure; the checks below help confirm the right part before you order.
What Is Included
Quick Buying Check
Buy this when
- LCD display failure: Use the display check when the iPod still powers, plays, charges, or syncs and the LCD ribbon or connector check remains the strongest display clue.
Diagnose first when
- Confirm the capacity match before ordering: 4GB, 6GB.
- Try the simple power, cable, connector, or reset checks before ordering.
- If the problem started immediately after opening the iPod, inspect the parts that were disturbed first.
Specifications & Fitment
Part Details
| Detail | Value |
|---|---|
| Model Number | A1051 |
| EMC | EMC 2044 |
| Condition | Used — factory original Apple part. Normal cosmetic wear expected. |
| Size | 1.67 inches |
| Resolution | 138x110 pixels |
| Type | Grayscale |
| Controller | Renesas HD66753 (COG) |
Compatible Variants
| Order Number | Capacity | Color | Case | Compatible | Notes |
|---|---|---|---|---|---|
| M9802LL/A | 4GB | Blue | — | Yes | — |
| M9806LL/A | 4GB | Green | — | Yes | — |
| M9804LL/A | 4GB | Pink | — | Yes | — |
| M9800LL/A | 4GB | Silver | — | Yes | — |
| M9803LL/A | 6GB | Blue | — | Yes | — |
| M9807LL/A | 6GB | Green | — | Yes | — |
| M9805LL/A | 6GB | Pink | — | Yes | — |
| M9801LL/A | 6GB | Silver | — | Yes | — |
Diagnostic Failure Cards
Use these model-specific failure cards to decide whether this screen is the right part, a nearby part needs checking first, or escalation makes more sense after simpler checks.
Advanced or board-level cases
Display ribbon, connector, or contact path
What you may notice
- People describe symptoms that change after opening the iPod, reseating parts, or disturbing nearby flex cables.
- A symptom starts after opening the iPod or disturbing an internal flex cable.
Diagnose first when
- Inspect the relevant ribbon and board connector before replacing the part.
- Look for lifted latches, bent contacts, debris, corrosion, creases, or torn flex material.
- Check whether the symptom changes after careful reseating.
- Inspect for liquid, corrosion, residue, torn flex material, or connector damage.
- Confirm the iPod still plays, charges, or syncs, then reseat the LCD ribbon and inspect the display connector.
Similar issues to separate
- The screen may be fine while its ribbon, connector, latch, or contact path is loose, dirty, damaged, or not fully seated.
- Connector seating, ribbon damage, or ground-path issues can involve this part, a nearby connector, or a board path.
When this screen fits
- Choose this screen only when the part's own flex or contact path is damaged.
Check another part first
- Check the board-side connector or adjacent cable first when the damage is not on the replaceable assembly.
Repair or replacement paths
- Reseat or clean only where the repair procedure supports it.
- Replace the screen when the flex, connector tail, or assembly contact path is physically damaged.
Liquid, corrosion, or residue context
What you may notice
- Symptoms follow liquid exposure, dirty contacts, corrosion, or residue.
Similar issues to separate
- Liquid or corrosion can involve this part, a nearby connector, or a board path.
Check another part first
- Check the Replacement Battery when power, charging, runtime, or swollen-battery behavior is the main problem.
- Check the Replacement Click Wheel matching your iPod's color when controls, wheel, center/select, menu, hold, or unresponsive-button symptoms are the stronger pattern.
Fitment and post-repair traps
Symptoms changed after repair or reassembly
What you may notice
- People describe a new problem appearing immediately after battery, storage, screen, audio, or control work.
- A new symptom appeared after battery, storage, audio, display, or control work.
Diagnose first when
- Reopen only as far as needed to inspect the areas touched during the repair.
- Compare the new symptom with what worked before the repair.
- Check cable seating, latch position, and part variant before replacing a second part.
Similar issues to separate
- A post-repair symptom can involve the screen, but disturbed ribbons, latches, grounding, connector seating, or the wrong variant part are common checks before ordering again.
- Check post-repair regression, connector seating, and board-side damage before ordering.
When this screen fits
- Choose this screen only when the part itself was torn, creased, or damaged during service.
Check another part first
- Check the exact connector or assembly disturbed during the repair before treating the new part as failed.
Repair or replacement paths
- Correct seating, latch, or variant problems first.
- Replace the screen when the repair damaged that assembly or its flex path.
Fitment and inspection notes
- Full-size hard-drive iPods use a different display size and connector.
Symptom remains after basic checks
What you may see: The iPod still points back to Replacement LCD Screen (1.67" Grayscale) after cable seating, battery stability, and nearby connector checks.
Check first: Retest with known-good cables or adjacent parts where practical before ordering.
Check next: A nearby cable, connector, battery, storage device, display path, audio path, or board path can mimic a bad screen.
Symptom changes when touched or reseated
What you may see: The symptom changes after moving the part, reseating a cable, or applying light pressure near the connector path.
Check first: Inspect the connector, latch, flex, solder joints, and nearby board area for damage or corrosion.
Check next: This can still be a connection issue rather than a failed screen alone.
Problem began after another repair
What you may see: The issue started immediately after opening the iPod, replacing another part, or disturbing an internal cable.
Check first: Reopen only as far as needed and inspect the exact area touched during the previous repair.
Check next: Post-repair symptoms often trace to seating, latch, screw, or cable issues before Replacement LCD Screen (1.67" Grayscale) itself is confirmed bad.
Do Not Buy / Problems This Screen Does Not Fix
| Situation | Start here instead |
|---|---|
| Variant or capacity does not match this listing | This is a different model — check your order number and generation before ordering. |
| Cable, computer, sync, or port behavior is the primary problem | Start with the dock connector, cable, host, or port checks when sync or port behavior is the main problem. |
| Charging, swelling, runtime, or power is the primary problem | Start with the battery, charger, and power checks when charging, runtime, swelling, or no-power behavior is the main problem. |
| The problem is the Hold switch or headphone jack, not this part | Verify the Hold slider, lock indicator, and shared headphone/Hold cable before replacing this part. |
| Recent service or connector disturbance is the main clue | Inspect and reseat the cable, latch, or connector path disturbed during service before buying another part. |
| A symptom points to a different part | Start with battery for power/runtime symptoms; hard-drive cable for folder, clicking, or restore symptoms; dock-port bracket for dock, sync, or charge-port symptoms; click wheel for click-wheel or control symptoms; logic board for board-side damage or multi-system symptoms before buying this part. |
Install Overview
Before You Start
Turn Hold off, use the reset sequence for this generation, and confirm the model and variant before opening the iPod.
Treat case opening as the highest handling risk. Work around the seams gently and stop if the shell, clips, or internal stack resist.
Do not pull the halves apart or side-load board sockets. Reseat nearby ribbons and connectors before blaming a replacement screen.
Open ribbon-cable latches only as described; over-lifting or side-loading the latch can damage the connector. Reseat and protect the display ribbon during reassembly before assuming the panel itself is bad.
Repair Guide
Repair guide summary: iPod Mini Display Replacement.
Show all 15 installation steps
Confirm that the hold switch is locked before you open the iPod.
Carefully slide a small flathead screwdriver or Jimmy into the seam between the metal casing and white plastic top. Lever up the white top bezel, taking care not to damage the soft plastic. The top bezel is adhesive-backed, so you may need to lever it up from several spots before it releases. Heat up the adhesive for a few seconds with a hair dryer on low heat to make the job easier.
Raise the top bezel off the iPod.
Carefully slide a small flathead screwdriver or Jimmy into the seam between the metal casing and white plastic bottom. Lever up the white bottom bezel, taking care not to damage the soft plastic.
A small pair of snap-ring pliers is the best tool to take out the metal retaining bracket. You can also lever out the metal retaining bracket beneath the bottom bezel with a flathead screwdriver. Release the bracket by pressing in the corner metal arms first.
Lift the released bracket away and set it aside.
In this step, be careful, this connector is fragile. With a spudger or fingertip, carefully disconnect the orange click wheel ribbon from the logic board.
Take out the 2 #00 Phillips screws securing the headphone jack to the casing.
Carefully move the iPod out of its casing by pressing on the logic board near the click wheel's bottom edge. Do not tug on the headphone jack board at the iPod top; its logic board connector is fragile.
After the logic board has been pushed out far enough, gently grip it on either side of the display and keep sliding the iPod from its casing.
Raise the battery off the logic board and set it to the side of the iPod.
With a spudger, flip up the black plastic tab securing the orange display ribbon in place. The black tab can rotate up 90 degrees, releasing the ribbon cable. This tab is fragile so take care not to break it.
In this step, note the location of the four white plastic clips securing the display to the logic board. These clips must be released before the display can be removed.
With a spudger or fingertip, release the four white plastic tabs.
In this step, turn the iPod over. Carefully raise the display up and move it out of its connector.
After This Repair
| Check | What to do |
|---|---|
| Test image and backlight | Check the display before closing the case fully, then confirm brightness and image stability after reassembly. |
| Watch for pressure | New spots, lines, or bowing after closing usually means the internal stack or ribbon routing needs another look. |
| Still not working? | Reseat the display ribbon and inspect the connector before treating the replacement screen as bad. |
Worth Knowing
- 1.67-inch grayscale display driven by Renesas HD66753 LCD controller (chip-on-glass inside LCD module).
- Same display fits all Mini 2nd Generation color and capacity variants.
