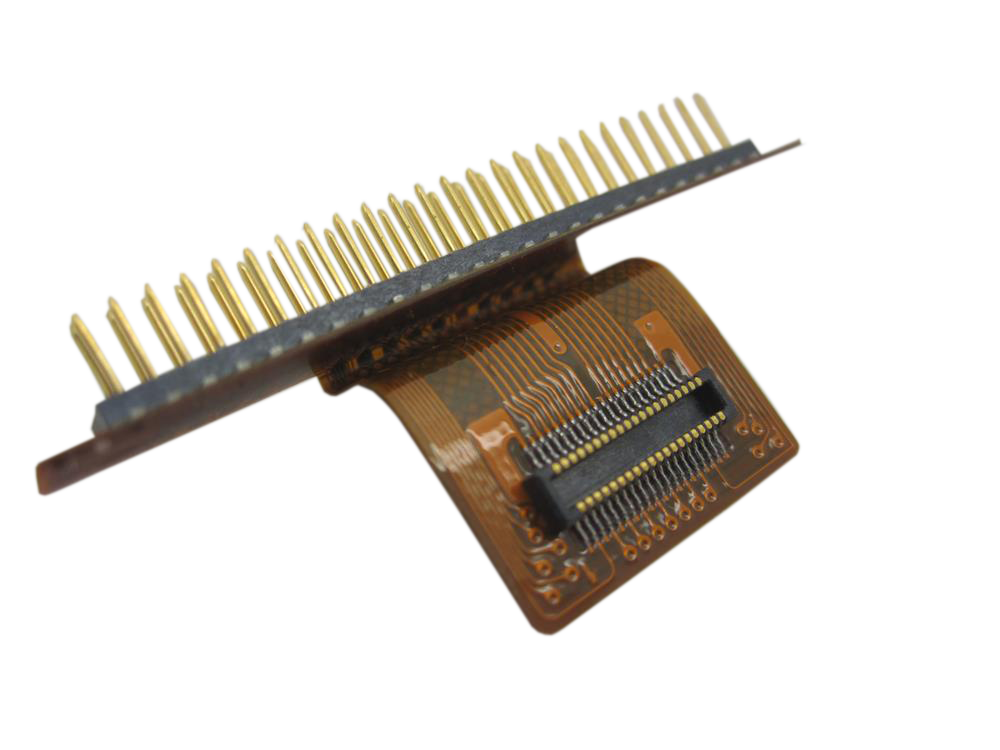

Replacement internal cable for iPod Mini 2nd Generation. Use it when the flex or ribbon is torn, creased, loose, or failing at the connector before blaming the whole attached assembly.
Product Overview
This cable listing covers Hard Drive Ribbon Cable and its own connector path on the iPod Mini 2nd Generation.
Use the Compatible Variants table below to confirm capacity, color, or order-number fitment.
Choose this part when your iPod shows Folder Icon, Sad iPod Icon, Clicking Noise, or Corrupted Data; the checks below help confirm the right part before you order.
What Is Included
Condition: Used factory-original part. Quantity and exclusions: The listed part, set, pair, or configuration above is supplied with exactly one plastic pry tool. No other parts, tools, adhesives, or materials are included unless they are explicitly listed above.
Quick Buying Check
Buy this when
- Hard Drive Failure: Use the cable check when reseating, connector inspection, or a known-good drive points to the storage ribbon instead of the drive itself.
Diagnose first when
- Listen for repeat clicking or repeated spin-up attempts before replacing storage parts.
Do not buy for
- Do not use this part for: Full-size hard-drive iPods use a different IDE/ATA storage ribbon cable path.
- Check the storage cable, adapter setup, battery power stability, and board connector when the symptom changes after reseating or swapping storage.
- Check the exact connector or assembly disturbed during the repair before treating the new part as failed.
Specifications & Fitment
Part Details
| Detail | Value |
|---|---|
| Model Number | A1051 |
| EMC | EMC 2044 |
| Condition | Used — factory original Apple part. Normal cosmetic wear expected. |
| Interface | CompactFlash Type II connector to microdrive |
| Type | Flat ribbon cable |
Compatible Variants
| Order Number | Capacity | Color | Case | Compatible | Notes |
|---|---|---|---|---|---|
| M9802LL/A | 4GB | Blue | — | Yes | — |
| M9806LL/A | 4GB | Green | — | Yes | — |
| M9804LL/A | 4GB | Pink | — | Yes | — |
| M9800LL/A | 4GB | Silver | — | Yes | — |
| M9803LL/A | 6GB | Blue | — | Yes | — |
| M9807LL/A | 6GB | Green | — | Yes | — |
| M9805LL/A | 6GB | Pink | — | Yes | — |
| M9801LL/A | 6GB | Silver | — | Yes | — |
Diagnostic Failure Cards
Use these model-specific failure cards to decide whether this cable is the right part, a nearby part needs checking first, or escalation makes more sense after simpler checks.
| Symptom | What it means & what to check |
|---|---|
| Symptom remains after basic checks |
What you may see: The iPod still points back to Hard Drive Ribbon Cable after cable seating, battery stability, and nearby connector checks. Check first: Retest with known-good cables or adjacent parts where practical before ordering. Check next: A nearby cable, connector, battery, storage device, display path, audio path, or board path can mimic a bad cable. |
| Symptom changes when touched or reseated |
What you may see: The symptom changes after moving the part, reseating a cable, or applying light pressure near the connector path. Check first: Inspect the connector, latch, flex, solder joints, and nearby board area for damage or corrosion. Check next: This can still be a connection issue rather than a failed cable alone. |
| Problem began after another repair |
What you may see: The issue started immediately after opening the iPod, replacing another part, or disturbing an internal cable. Check first: Reopen only as far as needed and inspect the exact area touched during the previous repair. Check next: Post-repair symptoms often trace to seating, latch, screw, or cable issues before Hard Drive Ribbon Cable itself is confirmed bad. |
| Sad iPod, clicking, restore, or storage trouble |
What you may notice
Diagnose first when
Similar issues to separate
Where this cable does not fit
Check another part first
Repair or replacement paths
|
| Cable ribbon, connector, or contact path |
What you may notice
Diagnose first when
Similar issues to separate
Check another part first
Repair or replacement paths
|
| Symptoms changed after repair or reassembly |
What you may notice
Diagnose first when
Similar issues to separate
Check another part first
Repair or replacement paths
|
| Fitment and inspection notes |
Repair considerations
Run these checks before replacing the cable — they confirm the cable is the right fix and not a nearby fault:
- Restore/format steps can erase data or indicate storage failure
- Treat ribbons, tabs, and connectors as fragile
- Use reset, Disk Mode, restore, or iTunes/Finder behavior as a software/storage check
- Reseat or inspect ribbon cable and connector seating
- Inspect connector latch, socket, or clamp condition
- Replace storage or convert to flash storage
Do Not Buy / Problems This Cable Does Not Fix
| Situation | Start here instead |
|---|---|
| You see a folder icon, clicking noise, or restore failure | Check the drive or flash media, storage cable, adapter seating, formatting, and restore path before replacing any part. |
| Cable, computer, sync, or port behavior is the primary problem | Check the matching drive, cable seating, and board-side connector before ordering. |
| Recent service or connector disturbance is the main clue | Inspect and reseat the cable, latch, or connector path disturbed during service before buying another part. |
| A symptom points to a different part | Start with battery for power/runtime symptoms; dock-port bracket only when the internal metal bracket that locates the port is bent or missing; click wheel for click-wheel or control symptoms; logic board for dock, sync and charge-port faults — the 30-pin port is part of the board on this model — and for board-side damage or multi-system symptoms before buying this part. |
Install Overview
Before You Start
Turn Hold off and confirm the model and variant before opening the iPod. Reset first — hold Menu + Select until the unit restarts. Guides that say Menu + Play describe the older, pre-click-wheel iPods.
Treat case opening as the highest handling risk. Work around the seams gently and stop if the shell, clips, or internal stack resist.
Do not pull the halves apart or side-load board sockets. Reseat nearby ribbons and connectors before blaming a replacement cable.
Check drive-ribbon seating and bumper placement while the iPod is open.
Repair steps
Documented repair-procedure steps for replacing the cable on this model (from teardown guides; confirm against your unit before starting):
- Carefully insert a small flathead screwdriver or Jimmy in the seam between the metal casing and white plastic bottom. Use the screwdriver to pry up the white plastic bottom bezel. Be careful not to damage the soft plastic with your screwdriver.
- Peel back the black tape securing the two blue bumpers to the hard drive near the orange ribbon cable.
- Slide the two blue bumpers off the corners of the hard drive. There is no need to remove these bumpers entirely.
Disassembly Guide
Disassembly guide summary: iPod Mini Hard Drive Cable Replacement.
Show all 16 installation steps
Confirm that the hold switch is locked before you open the iPod.
Carefully slide a small flathead screwdriver or Jimmy into the seam between the metal casing and white plastic top. Lever up the white top bezel, taking care not to damage the soft plastic. The top bezel is adhesive-backed, so you may need to lever it up from several spots before it releases. Heat up the adhesive for a few seconds with a hair dryer on low heat to make the job easier.
Raise the top bezel off the iPod.
Carefully slide a small flathead screwdriver or Jimmy into the seam between the metal casing and white plastic bottom. Lever up the white bottom bezel, taking care not to damage the soft plastic.
A small pair of snap-ring pliers is the best tool to take out the metal retaining bracket. You can also lever out the metal retaining bracket beneath the bottom bezel with a flathead screwdriver. Release the bracket by pressing in the corner metal arms first.
Lift the released bracket away and set it aside.
With a spudger or fingertip, carefully detach the orange click wheel ribbon from the logic board.
Take out the 2 #00 Phillips screws securing the headphone jack to the casing.
Carefully move the iPod out of its casing by pressing on the logic board near the click wheel's bottom edge. Do not tug on the headphone jack board at the iPod top; its logic board connector is fragile.
After the logic board has been pushed out far enough, gently grip it on either side of the display and keep sliding the iPod from its casing.
Raise the battery off the logic board and set it to the side of the iPod.
With a spudger or fingertip, carefully disconnect the orange hard drive ribbon from the logic board.
Raise the hard drive out of the iPod.
In this step, peel back the black tape holding the 2 blue bumpers to the hard drive near the orange ribbon cable.
Move the two blue bumpers off the corners of the hard drive. You will find no need to take out these bumpers entirely.
Carefully detach the orange hard drive ribbon cable from the hard drive. Apply even pulling pressure so the pins do not bend. In this step, if the cable doesn't come free readily, you may be able to released it by gently rocking the ribbon cable back and forth.
Product-specific placement, reassembly, and check
- Prepare and access. Confirm the exact model and listing fit first. Use the existing steps as a disassembly guide, gather the specified tools, disconnect power where applicable, and keep screws and cable positions organized.
- Place Hard Drive Ribbon Cable. Seat the exact storage part, cable, or adapter in the original storage path and match its orientation, case depth, and supported configuration.
- Reassemble without force. Reverse only the access steps needed for this repair, keep cables clear of case edges and screw posts, and close clips in stages.
- Validate before final closure. Before final closure, verify detection, Disk Mode or restore behavior as applicable, and stable startup without repeat clicking or a loose connection.
Stop condition: Stop if a connector, latch, screw, clip, housing edge, or the replacement part resists normal alignment. Recheck model fit, orientation, cable routing, and trapped hardware instead of forcing it.
After This Repair
| Check | What to do |
|---|---|
| Test the connected part | Confirm the assembly on both ends of the cable behaves normally before closing the iPod. |
| Still not working? | Inspect the latch, cable orientation, and board-side connector before replacing another part. |
Worth Knowing
- Cable connects the microdrive CF interface to the logic board — prone to damage during case disassembly.
- One cable serves both mini generations. The same drive flex is used on the first-generation mini and on this one, in 4GB and 6GB units alike, so this is the one storage part you do not have to match by generation. It is a wear part: unplug it by its connector, never by the flex.
- A ribbon cannot repair the other end of the connection. If the board-side socket has lifted pads, bent contacts or a broken latch, a new flex will not cure it — that is a logic board job.
- What the error screens mean. A folder with an exclamation mark means the iPod cannot find its storage — the drive, its ribbon cable, or the software on it. A sad-face iPod icon is the same message in the older style: it cannot use its hard drive. A screen pointing at Apple's iPod support page is a storage error, not a message from us — the iPod could not start from its own drive.
- A folder icon that appears right after the mini has been opened is a reason to check this connection, not proof that the cable is finished. Reseat both ends first and look along the flex for creases, tears and dark or lifted contacts.
- A new drive or card arrives blank. The iPod's software lives on its storage, so a folder icon straight after a new drive goes in is expected — there is nothing on it to start from yet. Judge a new build only after a restore has finished writing the software back.
- A failing Mini shows the Sad iPod or folder icon, not the Red X — the Red X belongs to later hard-drive iPods (Apple HT201544). A red X is that iPod's own diagnostic saying it cannot use its hard drive; if you searched "red x", run this listing's storage checks.
- The ribbon cable ships as a single part with the pry tool included — not a multi-part kit.
What Owners Report
These are anecdotal owner reports, not guarantees or authoritative proof that a particular part will fix a symptom. Use them as a troubleshooting starting point: confirm the symptom, run the quick checks, then match the fix.
Which mini is this, and which parts swap
Symptoms. An owner reads a model number off the back panel and asks which mini generation it belongs to; another, weighing the two generations, asks what actually differs and whether a battery from one fits the other.
Quick diagnosis.
- Every iPod mini carries the same model number — A1051, on both generations — so the number alone cannot answer the question. A reading like "A1050" is worth re-checking against the engraving, because A1051 is what the mini family prints.
- The reliable external tell is the capacity engraving: 4 GB or 6 GB printed on the back means this model; no capacity printed means the first-generation mini. This generation shipped in Silver, Blue, Pink and Green, with the click-wheel button text matched to the case color; the first-generation mini has gray inset wheel text on every color, no capacity engraving, and the Gold color this generation dropped.
- Backup discriminators for a worn back panel: the EMC number (EMC 2044 here, EMC 1984 on the first-generation mini), a 6 GB capacity (this generation only), or the order number (M9800LL/A, M9802LL/A, M9804LL/A, M9806LL/A — Silver, Blue, Pink, Green at 4 GB; M9801LL/A, M9803LL/A, M9805LL/A, M9807LL/A the same colors at 6 GB — an even final digit means 4 GB, odd means 6 GB).
What swaps, and what does not.
- Battery: shared — packs interchange between the two mini generations (the EC003/EC007 class); owners in this thread and the parts record agree.
- Drive flex cable and headphone jack: shared — the drive flex cable is one part for both mini generations (owner-verified), as is the headphone-jack assembly (820-1597-A).
- Click wheel: generation-matched only — wheels do not interchange between the generations in either direction. This generation's wheel is 632-0303-A, sold per case color; color-matched button text is its signature.
- Display: generation-matched by the printed-capacity rule — a screen pulled from a donor with no capacity mark on the back belongs to the first-generation mini and is the wrong part here; a donor engraved 4 GB or 6 GB matches.
- Logic board: two part numbers, both this generation — 820-1648-A and 820-1804-A are both 2nd-generation boards and either fits any 4GB or 6GB unit; the capacity lives on the drive, not the board.
Cautions.
- Never buy boards or wheels on "A1051" alone — the number is identical across both generations and identifies nothing. Insist on the capacity-engraving or EMC discriminator before paying for a generation-matched part.
Community signal. Reported by 2 owners.
Sad face on the screen and the computer no longer sees it
Symptoms. The unit boots to a sad-face icon, and no computer detects it when the cable goes in.
Quick diagnosis.
- A sad-face stop points at the drive first on this model, and loud clicking or grinding is the same story told out loud.
- Use Disk Mode as a detection test: reset by holding Menu + Select, then the moment the unit restarts, hold Select + Play until the Disk Mode screen shows. A unit that mounts in Disk Mode steers the diagnosis toward software; one that stays invisible keeps the drive in the frame.
- Check the drive flex cable and its seating while the case is open, before ordering anything — a tired flex mimics drive death.
Fixes.
- Microdrive replacement — like-for-like, matched to the unit's size: Hitachi Microdrive 3K6 (HMS360604D5CF00 at 4 GB, HMS360606D5CF00 at 6 GB) or Seagate ST1 (ST640211CF at 4 GB, ST660211CF at 6 GB).
- Drive ribbon cable — the cheaper part to rule out first, and one cable serves both mini generations.
- Flash conversion — a failed microdrive is the usual on-ramp to the CF conversion covered in the storage entry: solid-state, no moving parts, same native CF bay.
Cautions.
- Buy drive hardware generation-matched: the 6 GB size exists only on this generation.
- Unplug the ribbon by its connector, never by the flex, and treat the flex as a wear part.
- Anything that ends in a restore or a format erases the iPod, so copy anything that exists only on it first.
Community signal. Reported by 1 owner.
Replacing the microdrive with flash storage, and how far capacity goes
Symptoms. An owner of a 4 GB and a 6 GB unit suspects a dead drive in one and asks about going straight to flash; others ask which CF cards work, whether an SD card behind an adapter can stand in, and what an upgrade costs.
Quick diagnosis.
- Confirm the drive is actually the fault first: sad-face or folder-with-exclamation stops and failed restores point at storage; the drive entries on this model's pages carry that triage.
- The storage bay exposes a native CompactFlash Type II interface holding a 1-inch microdrive — the conversion swaps the microdrive for a solid-state card in the same slot, with no adapter board in between. Drive adapters built for other iPod lines' drive bays are physically incompatible here.
Fixes.
- CF-card conversion (community-standard path, repeatedly reported on this generation) — the record carries multiple firsthand successes on this generation, including a 16 GB build. The card must be a true-ATA-compatible CF card; format it FAT32 (a USB card reader will show the format), match the pin orientation on insertion, install, and finish with a restore. Community practice is to have software 1.4.1 — the final release — on the unit before the conversion, and a restore erases the iPod, so copy anything that exists only on it first.
- SD behind a CF adapter — an SD card works behind a purpose-built SD-to-CF adapter: the adapter in this kit is reported working in the 2nd-generation mini by its maker and by owners; the older failures used generic photo-card adapters that only read.
- Like-for-like microdrive — the OEM drives in this generation are the Hitachi Microdrive 3K6 (HMS360604D5CF00 at 4 GB, HMS360606D5CF00 at 6 GB) and the Seagate ST1 (ST640211CF at 4 GB, ST660211CF at 6 GB), all 1-inch, 3600 rpm. A matching microdrive is the zero-surprises replacement when flash is not the goal.
Cautions.
- Capacity: builds up to 256GB are confirmed (128GB on a plain CF card); anything larger is unproven. Cards of 64GB and up must be formatted FAT32 before they go in — the default exFAT is not supported.
- Unplug the ribbon by its connector, never by the flex, and treat the flex as a wear part. The drive flex cable is shared with the other mini generation.
- Cost questions in the record resolve to entry tooling plus the card itself — flash prices shift constantly, so treat any quoted figure as dated.
Community signal. Reported by 4 owners — the most-reported issue on this model.
Restore, sync or format trouble? See the Restore & sync questions on the microdrive pages. They are on the 4GB microdrive and 6GB microdrive pages.
Frequently Asked Questions
Use these questions to narrow the part path before ordering. They keep each answer focused on a different diagnostic or fitment decision.
How do I choose the right hard-drive cable?
There is one hard-drive ribbon for the iPod mini. The same flex serves both mini generations and both original capacities, so you do not have to match it to your generation or to the drive brand — match it to the mini. What does matter is the condition of the part you are replacing: check the flex for creases, tears and lifted contacts, and check the board-side socket too, because a new ribbon cannot repair lifted pads or a damaged socket.
When is the cable more likely than the drive?
A cable becomes more likely when it is torn, creased, loose, corroded, or fails after reseating, especially if known-good storage still behaves the same way.
When is this cable the right fix for sad iPod, clicking, or restore trouble?
Listen for repeated drive clicking and note whether the iPod reaches disk mode. Reseat the hard-drive ribbon and inspect the storage connector or retaining latch before buying another storage part. Try restore only after cable seating and power behavior are stable enough to complete the process. Compare with a known-good drive, cable, or flash adapter when available. Listen for repeat clicking or repeated spin-up attempts before replacing storage parts.
What should I check before replacing this cable?
Reseat the storage ribbon squarely and confirm the latch is closed before replacing the storage device again. Check adapter orientation, case clearance, and capacity/format expectations when using a flash path. Reopen only as far as needed to inspect the areas touched during the repair. Compare the new symptom with what worked before the repair. Check cable seating, latch position, and part variant before replacing a second part.
Is this for a full-size hard-drive iPod?
The iPod mini is a separate Apple product line from full-size hard-drive iPods. This is the iPod mini 2nd Generation.
How do I confirm this is the right part for my iPod?
Use the Quick Buying Check, Failure Signs, and Do Not Buy sections together before ordering. The symptom should still point to this cable after nearby parts and fitment are separated.
Why people land on this part
Some buyers search for "click of death" or "upgrade the hard drive with a CF to SD adapter"; confirm the checks above point to this same part before ordering.
Also searched as: iPod mini 2nd Generation Hard Drive Ribbon Cable, Folder Icon, Sad iPod Icon, Clicking Noise, Corrupted Data, Stuck in Recovery Mode, Hard Drive Failure, hard drive dead, making clicking sound, shows a folder, flash drive, broken connector, ribbon connector, won't boot.
You May Also Want
A fresh battery is often replaced during the same repair while the iPod is open.
Related: 128GB Flash Mod Kit (CF-to-SDXC Adapter + 128GB SD Card Included)Flash mod adapter connects via the same cable — verify cable integrity before modding.
Related: Replacement Microdrive (4GB)If the cable is damaged, the microdrive may also need inspection or replacement.
