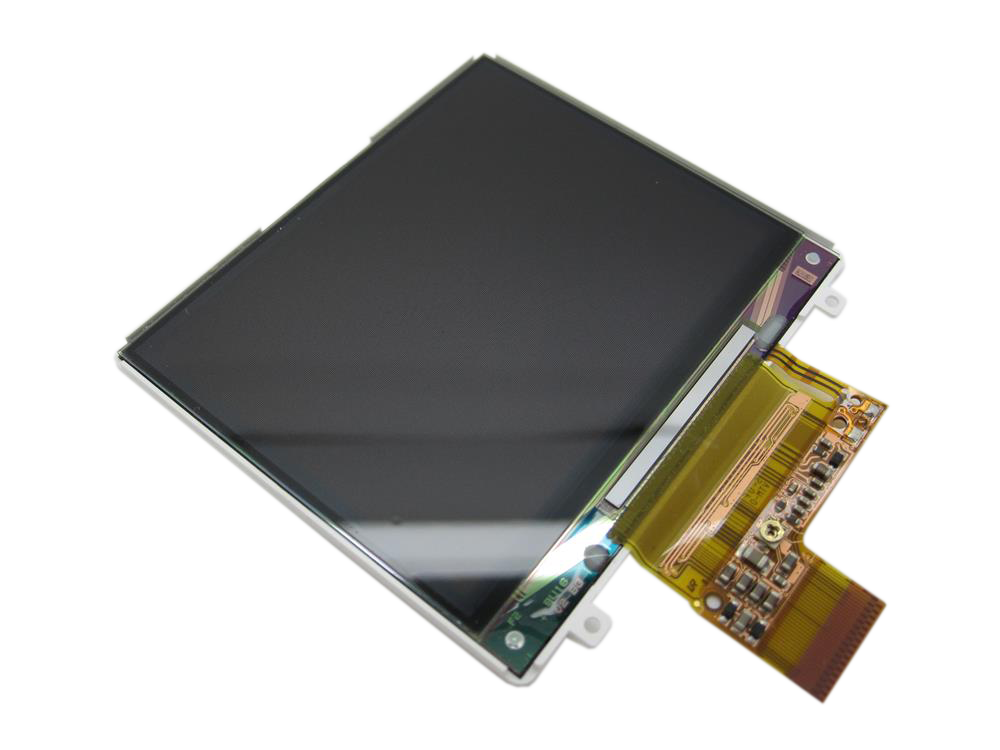

Representative photo. You receive the part named above.
iPod Classic 7G — Replacement LCD Screen
Used (Apple Original) · Model A1238
$150.90
Sold out
Not for sale right now
We are not selling this part at the moment.
- Used (Apple Original). Tested: installed in a working iPod and checked before it ships.
- 1-year limited warranty · 30-day returns from delivery
- Free pry tool in the box
- Completed repairs aren't refundable. If a part we fitted fails within a year, we repair it again.
Part details
About this part
Overview
Replacement display assembly for iPod Classic 7G. Use it for cracked, blank, lined, or backlight-related display problems after separating screen damage from ribbon seating and board-side faults.
Fitment snapshot
Confirm model, generation, part number, and fitment details before ordering.
Product Overview
This screen listing covers Replacement LCD Screen for the exact iPod Classic 7th Generation fit and physical location.
Use the Compatible Variants table below to confirm capacity, color, case, or order-number fitment.
Choose this part when your iPod shows White Screen, Black Screen, backlight not working, or Screen Flicker; the checks below help confirm the right part before you order.
What Is Included
Condition: Used factory-original part. Quantity and exclusions: The listed part, set, pair, or configuration above is supplied with exactly one plastic pry tool. No other parts, tools, adhesives, or materials are included unless they are explicitly listed above.
Quick Buying Check
Buy this when
- LCD display failure: Use the display check when the iPod still powers, plays, charges, or syncs and the LCD ribbon or connector check remains the strongest display clue.
Diagnose first when
- Confirm the capacity match before ordering: 160GB.
- Confirm the case thickness before ordering: thin.
- Confirm the iPod still plays, charges, or is recognized so the screen symptom can be separated from a dead device.
- Inspect the display ribbon and connector if the iPod has been opened or dropped.
Do not buy for
- Check ribbon seating, liquid history, and board connector damage before treating the display as a guaranteed fix. If the clue repeats after the connector and ribbon are seated, continue with board-level diagnosis.
- Check the storage cable, adapter setup, battery power stability, and board connector when the symptom changes after reseating or swapping storage.
- Check the board-side connector or adjacent cable first when the damage is not on the replaceable assembly.
Fit and specs
Specifications & Fitment
Part Details
| Detail | Value |
|---|---|
| Model Number | A1238 |
| EMC | EMC 2173 |
| Condition | Used — factory original Apple part. Normal cosmetic wear expected. |
| Display Size | 2.5" |
| Resolution | 320x240 (QVGA) |
| Type | Color TFT |
Compatible Variants
| Order Number | Capacity | Color | Case | Compatible | Notes |
|---|---|---|---|---|---|
| MC297LL/A | 160GB | Black | thin | Yes | — |
| MC293LL/A | 160GB | Silver | thin | Yes | — |
| MB147LL/A | 80GB | Black | thin | Not this listing | This listing is the panel we stock for the late-2009 thin 160GB. We do not publish a fit verdict either way for the earlier Classics — Classic-family screen listings are labeled inconsistently, so order from your own model's screen page, or send us the order number from the back of your iPod and we will match the panel to our stock; the check costs nothing. The 2007 thin 80GB unit is sold under the iPod Classic 6th Generation pages. |
| MB565LL/A | 120GB | Black | thin | Not this listing | This listing is the panel we stock for the late-2009 thin 160GB. We do not publish a fit verdict either way for the earlier Classics — Classic-family screen listings are labeled inconsistently, so order from your own model's screen page, or send us the order number from the back of your iPod and we will match the panel to our stock; the check costs nothing. The Late-2008 thin 120GB unit is sold under the iPod Classic 6th Generation pages. |
| MB150LL/A | 160GB | Black | thick | Not this listing | This listing is the panel we stock for the late-2009 thin 160GB. We do not publish a fit verdict either way for the earlier Classics — Classic-family screen listings are labeled inconsistently, so order from your own model's screen page, or send us the order number from the back of your iPod and we will match the panel to our stock; the check costs nothing. The 2007 thick 160GB unit is sold under the iPod Classic 6th Generation pages. |
| MB145LL/A | 160GB | Silver | thick | Not this listing | This listing is the panel we stock for the late-2009 thin 160GB. We do not publish a fit verdict either way for the earlier Classics — Classic-family screen listings are labeled inconsistently, so order from your own model's screen page, or send us the order number from the back of your iPod and we will match the panel to our stock; the check costs nothing. The 2007 thick 160GB unit is sold under the iPod Classic 6th Generation pages. |
Install and repair
Install Overview
Before You Start
Turn Hold off, then reset: hold Menu + Center until the Apple logo. Confirm the model and variant before opening the iPod. The iPod runs fine blind, so diagnostics (reset, then hold Previous + Center as the logo appears) and a restore are both worth doing before you open anything.
Treat case opening as the highest handling risk. Work around the seams gently and stop if the shell, clips, or internal stack resist.
Do not pull the halves apart or side-load board sockets. Reseat nearby ribbons and connectors before blaming a replacement screen.
Do not fully separate the case halves until the remaining ribbons are released; the back panel can still be connected by ribbon cables. Reseat and protect the display ribbon during reassembly before assuming the panel itself is bad.
Disassembly Guide
Disassembly guide summary: iPod Classic Display Replacement.
Show all 34 installation steps
This iPod case is unusually hard to open without damaging major components. Its metal faceplate, metal backing, and thirteen metal clips make disassembly especially demanding. Caution: this opening method can significantly damage the iPod beyond its current condition. Keep a few extra plastic opening tools nearby, since they are easy to ruin while opening the case. Confirm that the hold switch is locked before you open the iPod.
Opening this iPod is challenging, so do not get discouraged if it takes a few tries. Watch the plastic opening tool tip angle as you insert it into the iPod; keep it as vertical as possible while still clearing the rear panel edge. Guide a plastic opening tool into the seam between the front and rear of the iPod.
Slide a second plastic opening tool into the seam between the iPod front and rear, keeping the two tools at least 1.5 inches apart.
Working at an angle, carefully slide a putty knife about 1/8 inch into the gap between the two opening tools. You will find thin metal rails running along the inside of the back panel, so work very carefully when inserting the putty knife. After the putty knife clears the rear panel lip, rotate it vertical and carefully but firmly work it straight down through the opening tool gap.
Press on the rear panel behind the putty knife with your fingers to reduce bending. Slowly flex the putty knife so most metal tabs along this side of the iPod release. The idea is to control how the rear panel bends instead of trying to prevent all bending. Any side bend should draw the rear panel lip away from the iPod, not push outward on the curved surface. This also releases as many side clips as possible.
Take the putty knife out, then place it closer to the iPod corner and use the same gentle wiggle method. If possible, do not bend the rear panel corner.
Near the headphone jack, guide a plastic opening tool into the seam between the front and rear of the iPod. It may be easier to flex the putty knife downward carefully to create more room for the opening tool. Be careful not to bend the rear panel corner.
Near the display center, carefully slide a metal spudger into the gap made by the plastic opening tool. A visible bump can form here in the rear panel and is hard to repair. When levering the tab free, pivot the metal spudger on the rear panel edge instead of bending the rear panel outward. With the metal spudger, release the single clip at the iPod top edge.
Near the other top corner, guide a plastic opening tool into the seam between the front and rear of the iPod
On the other side, use the opening tool to start the same case-opening gap. It may help to angle the tool stuck in the top corner to create enough room.
Take the opening tool out of the top corner, then slide it into the seam between the iPod front and rear. Keep at least 1.5 inches between the two tools, as on the opposite side.
Working at an angle, carefully slide a putty knife about 1/8 inch into the gap between the two opening tools. Again, you will find thin metal rails running along the inside of the back panel, so work very carefully when inserting the putty knife. After the putty knife passes the rear panel lip, turn it vertical and carefully but firmly work it straight down through the gap between the plastic opening tools. Press on the rear panel behind the putty knife with your fingers to reduce bending. Flex the putty knife just enough to make sure most metal tabs along this side of the iPod release.
The metal clips near the corners grip the front panel tightly. Release these clips before opening the iPod. Carefully slide a metal spudger into the area beside the stubborn metal clip.
Gently work the metal spudger downward until it is fully seated in the rear panel.
Gently start releasing the clip from the front panel. A visible bump can form here in the rear panel and is hard to repair. When levering the tab free, pivot the metal spudger on the rear panel edge instead of bending the rear panel outward.
Use the metal spudger to apply upward pressure under the front panel until the metal clip releases.
You will find two ribbon cables connecting the rear panel to the remaining iPod assembly. In the following step, take care not to damage these ribbon cables. In this step, grasp the front-panel assembly with one hand and the back panel with the other. Pause for a moment before continuing. Very gently release the remaining rear-panel clips by pulling the tops of the front and rear panels apart, using the iPod bottom as a hinge. Take great care not to damage the ribbon cables joining the two halves.
With a spudger, slide the connector upward where it holds the orange battery ribbon. Lift the locking bar only about 2 mm to release the cable. Move the orange battery ribbon out of its connector.
Set the rear panel beside the iPod, taking care not to strain the orange headphone jack cable.
Raise the hard drive with one hand to expose the headphone jack ribbon underneath. With a spudger, flip up the plastic tab securing the headphone jack ribbon in place. The tab can rotate up 90 degrees, releasing the ribbon cable. Move the orange headphone jack ribbon out of its connector. The rear panel is now released from the iPod.
After opening, check the lower-case clips. If any clip bent upward, press it back down gently so the rear case can close cleanly.
Use the broad, flat face of the metal spudger to press the clip downward. Work carefully so the thin metal rail does not tear away from the rear panel. While shaping these clips, take care not to damage any headphone jack parts.
Set the rear panel on its side on a clean, hard surface. Carefully but firmly press it downward, rolling the full lip edge back into place. You may need to repeat this several times to straighten the sides well. Slightly overcorrecting the case edges inward is better than leaving them too far out, because reseating the front panel will bend the rear panel back into alignment. Once the rear panel is restored to good condition, continue with the iPod repair.
Rotate the hard drive out of the framework, then set it with the connector facing upward. With a spudger, lift the small black locking tab for the orange hard drive ribbon. The tab rotates upward 90 degrees and frees the ribbon cable.
Move the orange hard drive ribbon cable straight out of its connector. Keep the drive's rubber mounting brackets and foam padding in place for reassembly.
Take out the three Phillips screws that secure the front panel to the metal framework.
Rotate the iPod 180 degrees and take out the 3 Phillips screws holding the front panel to the metal framework on the other edge.
In this step, gently work around the edges of the device to separate the front panel from the gray metal framework. You may meet some resistance, as you will find a mild adhesive used to help hold the two parts together.
Lift the full framework away from the front panel; it carries the screen, logic board, and click wheel. Confirm the click wheel button is seated before reinstalling the framework in the front panel.
The front panel is now released from the iPod.
With a spudger, lift the plastic tab that holds the orange display ribbon. The tab rotates upward 90 degrees toward the display and releases the ribbon cable.
Move the orange display ribbon cable directly out of its connector.
Raise the framework assembly up, and move the display and LCD metal backplate out of the framework assembly.
Raise the LCD metal backplate up and away from the display. Remaining assembly: display remains.
Product-specific placement, reassembly, and check
- Prepare and access. Confirm the exact model and listing fit first. Use the existing steps as a disassembly guide, gather the specified tools, disconnect power where applicable, and keep screws and cable positions organized.
- Place Replacement LCD Screen. Seat the display in its original frame position and insert the display cable evenly without pressing on the image area.
- Reassemble without force. Reverse only the access steps needed for this repair, keep cables clear of case edges and screw posts, and close clips in stages.
- Validate before final closure. Before final closure, confirm image, backlight, and controls, and check that no cable or frame edge creates pressure on the panel.
Stop condition: Stop if a connector, latch, screw, clip, housing edge, or the replacement part resists normal alignment. Recheck model fit, orientation, cable routing, and trapped hardware instead of forcing it.
After This Repair
| Check | What to do |
|---|---|
| Test image and backlight | Check the display before closing the case fully, then confirm brightness and image stability after reassembly. |
| Watch for pressure | New spots, lines, or bowing after closing usually means the internal stack or ribbon routing needs another look. Bowing that appears later, on a case that will not sit flat, means checking the battery instead — stop charging and never press a lifted screen back down. |
| Still not working? | Reseat the display ribbon and inspect the connector before treating the replacement screen as bad. |
Troubleshooting
Diagnostic Failure Cards
Use these model-specific failure cards to decide whether this screen is the right part, a nearby part needs checking first, or escalation makes more sense after simpler checks.
| Symptom | What it means & what to check |
|---|---|
| Symptom remains after basic checks |
What you may see: The iPod still points back to Replacement LCD Screen after cable seating, battery stability, and nearby connector checks. Check first: Retest with known-good cables or adjacent parts where practical before ordering. Check next: A nearby cable, connector, battery, storage device, display path, audio path, or board path can mimic a bad screen. |
| Symptom changes when touched or reseated |
What you may see: The symptom changes after moving the part, reseating a cable, or applying light pressure near the connector path. Check first: Inspect the connector, latch, flex, solder joints, and nearby board area for damage or corrosion. Check next: This can still be a connection issue rather than a failed screen alone. |
| Problem began after another repair |
What you may see: The issue started immediately after opening the iPod, replacing another part, or disturbing an internal cable. Check first: Reopen only as far as needed and inspect the exact area touched during the previous repair. Check next: Post-repair symptoms often trace to seating, latch, screw, or cable issues before Replacement LCD Screen itself is confirmed bad. |
| Sad iPod, clicking, restore, or storage trouble |
What you may notice
Diagnose first when
Check another part first
Repair or replacement paths
|
| Blank, white, black, lined, or backlight display |
What you may notice
Diagnose first when
Similar issues to separate
Check another part first
Repair or replacement paths
|
| Display ribbon, connector, or contact path |
What you may notice
Diagnose first when
Similar issues to separate
Check another part first
Repair or replacement paths
|
| Fitment or model-variant mismatch |
What you may notice
Diagnose first when
Check another part first
Repair or replacement paths
|
| Liquid, corrosion, or residue context |
What you may notice
Diagnose first when
Similar issues to separate
Check another part first
|
| Symptoms changed after repair or reassembly |
What you may notice
Diagnose first when
Similar issues to separate
Check another part first
Repair or replacement paths
|
Do Not Buy / Problems This Screen Does Not Fix
| Situation | Start here instead |
|---|---|
| You see a folder icon, clicking noise, or restore failure | A folder with an exclamation mark means the iPod cannot find its storage — the drive, its ribbon cable, or the software on it. Check the drive or flash media, storage cable, adapter seating, formatting, and restore path before replacing any part. |
| Cable, computer, sync, or port behavior is the primary problem | Start with the dock connector, cable, host, or port checks when sync or port behavior is the main problem. |
| Variant or capacity does not match this listing | Confirm exact model, capacity, case, and variant fit before ordering. |
| Charging, swelling, runtime, or power is the primary problem | Start with the battery, charger, and power checks when charging, runtime, swelling, or no-power behavior is the main problem. On this generation the pack lies behind the display: a swollen cell lifts the display or stops the case sitting flat — stop charging, and never press it back down. A bowed or lifted panel is a battery case, not a new screen. |
| The problem is the Hold switch or headphone jack, not this part | Diagnose the exact-model headphone-jack/Hold assembly and its connector before choosing another part. |
| Recent service or connector disturbance is the main clue | Inspect and reseat the cable, latch, or connector path disturbed during service before buying another part. |
| A symptom points to a different part | Start with battery for power/runtime symptoms; hard-drive cable for folder, clicking, or restore symptoms; headphone jack for audio or Hold-switch symptoms; click wheel (black) or (white) for click-wheel or control symptoms; logic board for board-side damage or multi-system symptoms before buying this part. |
White Screen: What Owners Describe
On the iPod classic 7th Generation, White Screen can describe more than one observable problem. These paraphrased owner reports are anecdotal starting points for diagnosis, not proof that any single part failed.
Anecdotal owner reports (not a guarantee or authoritative proof): - One owner reported a blinking white screen at power-on, with the Apple logo flashing during a reset attempt.
Owners searching for this describe it as: iPod classic 7th Generation White Screen, iPod white screen, iPod blinking white screen.
What Owners Report
These are anecdotal owner reports, not guarantees or authoritative proof that a particular part will fix a symptom. Use them as a troubleshooting starting point: confirm the symptom, run the quick checks, then match the fix.
White, blank, lined or damaged display
Symptoms. All-white or backlight-only while music and sync still work; blank or solid-color; a dead line across the display; upside-down or split image after a drop; a black blot from a pressure point; ink or liquid in the glass; flashing white, flickering logo.
Check first. It runs fine blind: reset (Menu + Center to the logo), then diagnostics and a restore — which erases the iPod, so save what you want first; a resync brings back only what the library holds. Still plays or syncs? The fault is on the display side; check the ribbon and clip before buying. A spreading blot, or a lifted or bowed panel, means checking the battery — never press a lifted screen down.
Fix. Damage inside the glass, or a dead line, means a new panel. Buy the panel listed here against your order number: Classic listings are labeled inconsistently. Reported by 15 owners.
Questions
Frequently Asked Questions
Use these questions to narrow the part path before ordering. They keep each answer focused on a different diagnostic or fitment decision.
What iPod Classic 7th Generation models does this fit?
This Replacement LCD Screen fits: MC293LL/A (160GB Silver), MC297LL/A (160GB Black). Is this the same screen as an earlier Classic's? Order the panel this listing names for your unit rather than by the word "classic" — Classic-family screen listings are confusingly labeled, and we match the panel to our stock for this model. Earlier Classic owners: use your own model's screen page. If a panel is already fitted and the display came up white or scrambled, reseat the display ribbon and check that the connector clip is closed and intact before deciding the panel is the wrong one.
Do I need to solder?
No, this installation does not require soldering. Difficulty: Very Difficult. Estimated time: 30 minutes - 1 hour.
How do I know if this LCD screen needs replacement?
Symptoms that can point to this LCD screen include: White Screen, Black Screen, backlight not working, Screen Flicker, LCD display failure. Check fitment, connectors, and nearby parts before treating symptoms as proof.
What should I check before replacing this screen?
Reseat the display ribbon and inspect the latch before replacing the LCD. Check whether the iPod still plays or syncs so a display-only symptom stays separate from a dead-device route. Inspect the relevant ribbon and board connector before replacing the part. Look for lifted latches, bent contacts, debris, corrosion, creases, or torn flex material. Check whether the symptom changes after careful reseating.
Is this an iPod Classic?
Apple sold this model as iPod classic (Late 2009). '7th Generation' is common repair-market shorthand for the thin 160GB A1238 model, not an official Apple product name.
You May Also Want
Inspect the battery and display connector while the iPod is open.
Related: 128GB Flash Mod Kit (flash-storage adapter + 128GB SD Card Included)Flash storage is the common upgrade path while the iPod is already open.
Related: Replacement Hard Drive (160GB)Use a hard drive only when restoring original-style storage; flash adapters are also a valid upgrade path on compatible Classic builds.
Search terms
Why people land on this part
Some buyers search for "screen image upside down or split" or "fell hard and won't start with a flickering screen"; confirm the checks above point to this same part before ordering. Two screens people arrive here with are not display faults at all: a screen pointing at Apple's iPod support page is a storage error, not a message from us — the iPod could not start from its own drive; and a folder with an exclamation mark means the iPod cannot find its storage — the drive, its ribbon cable, or the software on it. Both belong on the 160GB hard drive and hard drive cable pages. And if the built-in diagnostics stop at a FireWire test that reads as waiting, treat that as an unresolved result — it does not by itself identify a bad port or drive; run the cable and computer checks and read the drive tests instead.
Also searched as: iPod classic 7th Generation LCD screen, screen is white, screen is black, backlight not working, Screen Flicker, LCD display failure, no display, no backlight, dim screen, screen goes black, replaced screen, screen replacement, buy replacement LCD screen for ipod classic seventh generation, order LCD screen for ipod classic seventh generation, shop LCD screen for ipod classic seventh generation, ipod classic seventh generation LCD screen replacement service, ipod classic seventh generation LCD screen replacement guide.
