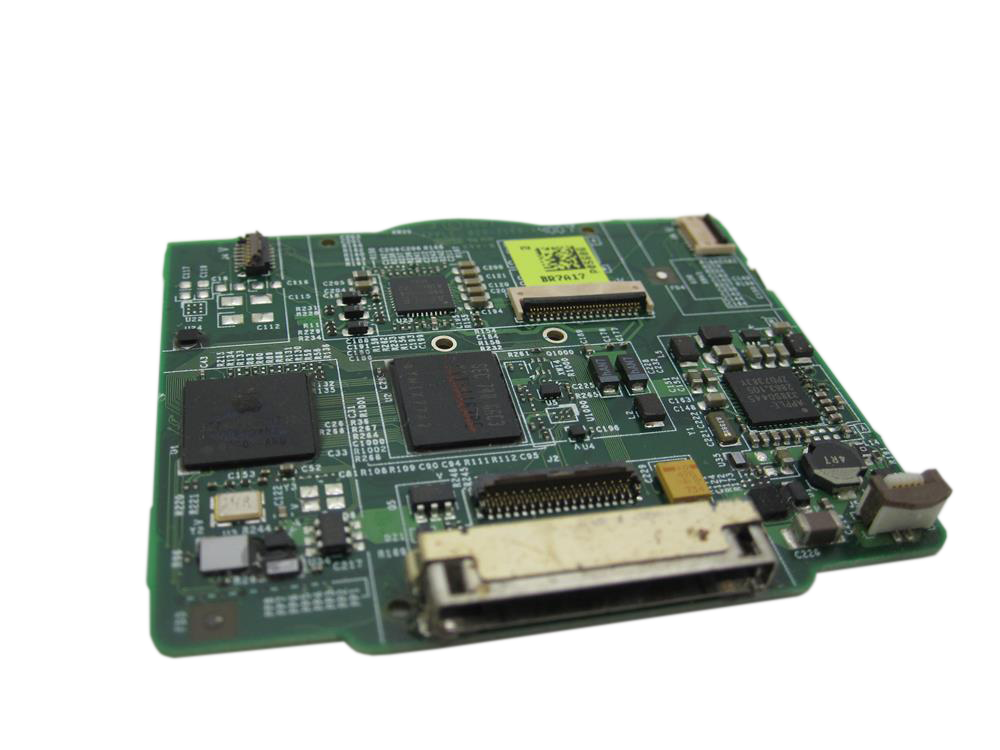

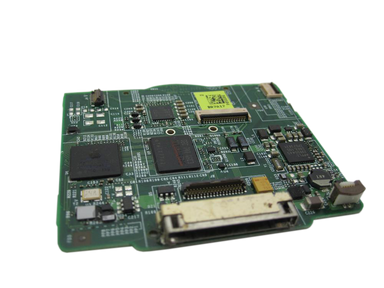

Replacement logic board for iPod Classic 7G. Use it only after battery, storage, cable, dock, display, audio, and click-wheel checks point back to the board.
Product Overview
This logic board listing covers Replacement Logic Board and its own connector path on the iPod Classic 7th Generation.
Use Part Details for the confirmed part-number reference. Use the Compatible Variants table below to confirm capacity, color, case, or order-number fitment.
Choose this part when your iPod shows Red X Icon, Water Damage, Physical Damage, or Dropped / Not Working; the checks below help confirm the right part before you order.
If known-good cable, power, storage/ribbon, connection, and restore or Disk Mode checks still fail, the logic board remains a suspect, especially when corrosion or board-side connector damage is visible.
What Is Included
Quick Diagnosis: Is It The Replacement Logic Board?
Start here before ordering. Work through the checks in order; a symptom alone does not prove this logic board is bad until nearby parts, cables, fitment, or install issues are separated.
Before you order this logic board
- Try a force restart first. Toggle Hold on and off, then hold Menu + Select/Center for 6 to 10 seconds.
- Separate Hold and input behavior. Move the Hold switch and watch whether the lock indicator changes.
- Separate Hold and input behavior. Check related input or hold-switch assemblies if the symptom began after opening the iPod.
- Separate Hold and input behavior. Confirm Hold is off before judging the controls.
- Use this listing only after the checks still point here. If the symptom still points here after those checks, compare Compatible Variants before ordering this logic board.
Specifications & Fitment
Part Details
| Detail | Value |
|---|---|
| Model Number | A1238 |
| EMC | EMC 2173 |
| Condition | Used — factory original Apple part. Normal cosmetic wear expected. |
| SoC | Samsung S5L8702 |
| RAM | 64 MB |
| Audio CODEC | Cirrus Logic CS42L55 |
| Power Management | NXP PCF50635 |
| USB Charger IC | Linear Technology LTC4066 |
| OEM Part | 820-2437-A |
Compatible Variants
| Order Number | Capacity | Color | Case | Compatible | Notes |
|---|---|---|---|---|---|
| MB150LL/A | 120GB | Black | thin | Yes— compatible | Stock match |
| MB565LL/A | 120GB | Black | thin | Yes— compatible | Stock match |
| MC040LL/A | 120GB | Silver | thin | Yes— compatible | Stock match |
| MB147LL/A | 160GB | Black | thin | Yes— compatible | Stock match |
| MC066LL/A | 160GB | Black | thin | Yes— compatible | Stock match |
| MC297LL/A | 160GB | Black | thin | Yes | — |
| MB145LL/A | 160GB | Silver | thin | Yes— compatible | Stock match |
| MC044LL/A | 160GB | Silver | thin | Yes— compatible | Stock match |
| MC062LL/A | 160GB | Silver | thin | Yes— compatible | Stock match |
| MC238LL/A | 160GB | Silver | thin | Yes— compatible | Stock match |
| MC293LL/A | 160GB | Silver | thin | Yes | — |
Failure Signs
Use these checks to decide whether this logic board is the right part, whether a nearby part should be checked first, or whether the symptom needs more diagnosis.
What you may see: People describe controls or device behavior that changes with the Hold switch, lock icon, or input state.
- The iPod appears locked or the Hold switch does not match the device behavior.
Check first: Move the Hold switch and watch whether the lock indicator changes.
- Check related input or hold-switch assemblies if the symptom began after opening the iPod.
- Confirm Hold is off before judging the controls.
- Separate center-button-only failure from a dead scroll ring or multiple failed buttons.
- Inspect click-wheel ribbon seating, latch position, and ground path after reassembly.
- Checks before ordering replaceable assemblies, connector seating, and recent repair disturbance before choosing the logic board.
Most likely cause: The symptom may be routed through the Hold/input path rather than the logic board itself.
- This logic board may help only if the symptom remains after hold/input behavior is ruled out.
- Use board 820-2437-A for Classic 7G hardware.
- Repair the hold/input path when that switch or ribbon is the confirmed fault.
- Use logic board replacement only after the hold/input path is ruled out.
- Replace the click wheel when the assembly or flex remains damaged after seating checks.
Look elsewhere when: Check the Hold switch path first when the device appears locked or ignores input.
- Check the headphone/hold assembly for confirmed Hold switch faults before blaming the click wheel.
What you may see: People describe behavior where the logic board seems dead, intermittent, or only partly responsive.
- A part or control path is dead, intermittent, or only partly responsive.
Check first: Inspect nearby connectors and flex paths if the iPod has been opened.
Most likely cause: The logic board can be involved, but connector seating, adjacent cables, power state, or board-side paths can produce similar symptoms.
- Choose this logic board only when the failing behavior follows the part or its own connection path.
- Replace the logic board when inspection or repeat testing points to that assembly.
- Continue adjacent-part diagnosis when the symptom follows a connector, cable, or board path instead.
What you may see: People describe short runtime, charging trouble, sudden shutoff, or an iPod that will not reliably power on.
- Short runtime, charging trouble, sudden shutoff, or a device that will not reliably power on.
Check first: Test with a known-good charger and cable before opening the iPod.
- Note whether the iPod shows charging, briefly powers on, shuts down under load, or never wakes at all.
- If the symptom began after service, inspect the battery connector and nearby flex paths before replacing another part.
Most likely cause: The logic board can be the cause, but charging, dock, storage, or board paths can create similar power behavior.
- Check power / charge / runtime route, connector seating, and board-side damage before ordering.
- Choose this logic board only when the power, charging, or runtime pattern is tied to this part or its connector path.
- Replace the logic board when inspection or repeat testing points to this part as the failing path.
- Keep dock connector, storage, and board diagnosis in scope when charging behavior is inconsistent or no power path is confirmed.
Look elsewhere when: Check charger/cable behavior, dock connector condition, storage startup clues, and board damage when the symptom is not isolated to battery performance.
What you may see: People describe a blank screen, white or black display, missing backlight, lines, or a display that changes after impact or repair.
- Blank screen, white or black display, missing backlight, or lines on the screen.
Check first: Confirm the iPod still plays, charges, or is recognized so the screen symptom can be separated from a dead device.
- Inspect the display ribbon and connector if the iPod has been opened or dropped.
- Look for cracks, liquid residue, display discoloration, or connector damage before ordering.
- Checks before ordering the LCD panel, display ribbon, and connector seating before treating a display-only symptom as logic-board evidence.
- If the symptom changes when the plug, cable, case, or logic board is gently moved, treat that as an intermittent-connection clue and inspect the relevant connector or ribbon before replacing parts.
Most likely cause: The logic board can be damaged, but display ribbon seating, connector condition, liquid history, or board-side display circuitry may need checking first.
- Display / Check backlight route, connector seating, and board-side damage before ordering.
- Choose this logic board only when the display symptom is tied to this part or its connection path.
- Replace the logic board when inspection or repeat testing points to this part's role in the display path.
- Use display-panel replacement when the panel, backlight, or display flex is visibly damaged; continue connector, liquid-damage, or board diagnosis when the display changes after reseating.
Look elsewhere when: Check ribbon seating, liquid history, and board connector damage before treating the display as a guaranteed fix. Check the screen and display-ribbon path first when the iPod still powers, plays, charges, or syncs. If the clue repeats after the connector and ribbon are seated, continue with board-level diagnosis.
What you may see: People describe charging, USB recognition, sync, or dock-connector behavior that is intermittent or missing.
- Charging, USB recognition, sync, or dock behavior is intermittent or missing.
Check first: Try a known-good cable, charger, and computer port before opening the iPod.
- Inspect the dock connector for debris, bent pins, corrosion, or looseness.
- Separate charging-only failure from computer-recognition or sync failure when choosing a part.
Most likely cause: The logic board can be involved, but cable condition, port contamination, battery state, storage behavior, or board damage can create overlapping symptoms.
- Check dock / usb / sync route, connector seating, and board-side damage before ordering.
- Choose this logic board only when charging, sync, or dock behavior is tied to this part or its connector path.
- Replace the logic board when inspection points to this part's role in the dock, USB, sync, or charging path.
- Continue battery, storage, or board diagnosis when the port looks healthy but power or sync still fails.
Look elsewhere when: Check cable, charger, battery, storage restore state, and board condition when the dock path is not clearly isolated.
What you may see: People ask whether a similar-looking part from another model, capacity, or generation will work.
- A similar-looking part may not match the exact capacity, generation, or color.
Check first: Match the exact model, generation, capacity, and case style shown for the product.
- Do not use a symptom to override fitment: a wrong-variant part can create new symptoms after installation.
Most likely cause: The logic board may differ by model, case style, connector, cable length, bracket, or firmware/storage expectation.
- Check fitment / model variant boundary, connector seating, and board-side damage before ordering.
- This logic board may help only when it matches the model and variant being repaired.
- Use the logic board variant matched to the exact iPod.
- Recheck fitment before diagnosing a newly installed part as defective.
Look elsewhere when: Check fitment before replacing nearby parts or ordering another copy of the same wrong variant. If the clue repeats after the connector and ribbon are seated, continue with board-level diagnosis.
What you may see: People describe symptoms after liquid exposure, dirty contacts, corrosion, or residue around internal parts.
- Symptoms follow liquid exposure, dirty contacts, corrosion, or residue.
Check first: Look for corrosion, residue, lifted contacts, or darkened connector areas.
- Check whether damage is on the replaceable part or on the board-side connector.
- Inspect for liquid, corrosion, residue, torn flex material, or connector damage.
Most likely cause: Corrosion can affect the logic board, its connector, or a nearby board path, so liquid history is a reason to inspect before assuming one part is bad.
- Liquid or corrosion can involve this part, a nearby connector, or a board path.
- Choose this logic board only when corrosion damaged the part or its flex.
- Choose this logic board when the symptom remains isolated to this assembly, its ribbon, or its connector path after first checks.
- Replace the logic board when liquid damage is on that assembly or flex path.
- Continue board or connector repair diagnosis when corrosion is outside the replaceable part.
Look elsewhere when: Check the board connector and nearby assemblies first when corrosion is not limited to this part.
What you may see: People describe symptoms that change after opening the iPod, reseating parts, or disturbing nearby flex cables.
- A symptom starts after opening the iPod or disturbing an internal flex cable.
Check first: Inspect the relevant ribbon and board connector before replacing the part.
- Look for lifted latches, bent contacts, debris, corrosion, creases, or torn flex material.
- Check whether the symptom changes after careful reseating.
Most likely cause: The logic board may be fine while its ribbon, connector, latch, or contact path is loose, dirty, damaged, or not fully seated.
- Connector seating, ribbon damage, or ground-path issues can involve this part, a nearby connector, or a board path.
- Choose this logic board only when the part's own flex or contact path is damaged.
- Reseat or clean only where the repair procedure supports it.
- Replace the logic board when the flex, connector tail, or assembly contact path is physically damaged.
Look elsewhere when: Check the board-side connector or adjacent cable first when the damage is not on the replaceable assembly.
Cautions: Keep this option as advanced or professional diagnosis unless replaceable parts have been ruled out.
What you may see: People may see a sad iPod, red X, folder icon, clicking drive, restore loop, or storage-recognition problem, especially after drive, flash, cable, or board work.
- Sad iPod, red X, clicking drive, restore loop, or disk-mode trouble.
Check first: Reseat the hard-drive or ZIF ribbon at both the logic-board end and the drive or adapter end before considering a board replacement.
- Test with known-good storage and the correct cable or adapter setup, then retry restore or disk mode when available.
- Inspect the board-side storage connector for torn pins, latch damage, corrosion, or impact damage only after the replaceable storage path has been checked.
Most likely cause: Most storage-warning symptoms start with the hard drive, hard-drive cable or ZIF seating, flash adapter setup, formatting, or battery load before they point to the logic board.
- A logic board becomes a stronger suspect only when a known-good drive or adapter and known-good cable still fail, the board-side storage connector is damaged, or the symptom began immediately after a board swap.
- Check storage / restore route, connector seating, and board-side damage before ordering.
- This logic board may help only when the board-side storage connector or storage controller path remains suspect after known-good drive, cable, adapter, power, and restore checks.
- Replace the drive, drive cable, or flash adapter first when those checks isolate the storage path.
- Use logic-board replacement or board repair only when the board-side storage path remains the isolated failure after known-good storage and cable checks.
Look elsewhere when: Check the hard drive, hard-drive cable or ZIF ribbon, flash adapter, formatting, and battery spin-up/load before treating sad iPod, red X, folder, clicking, or restore symptoms as a board failure.
What you may see: People describe a new problem appearing immediately after battery, storage, display, audio, or control work.
- A new symptom appeared after battery, storage, audio, display, or control work.
Check first: Reopen only as far as needed to inspect the areas touched during the repair.
- Compare the new symptom with what worked before the repair.
- Check cable seating, latch position, and part variant before replacing a second part.
Most likely cause: A post-repair symptom can involve the logic board, but disturbed ribbons, latches, grounding, connector seating, or the wrong variant part are common checks before ordering again.
- Check post-repair regression, connector seating, and board-side damage before ordering.
- Choose this logic board only when the part itself was torn, creased, or damaged during service.
- Correct seating, latch, or variant problems first.
- Replace the logic board when the repair damaged that assembly or its flex path.
Look elsewhere when: Check the exact connector or assembly disturbed during the repair before treating the new part as failed. If the clue repeats after the connector and ribbon are seated, continue with board-level diagnosis.
Symptom remains after basic checks
What you may see: The iPod still points back to Replacement Logic Board after cable seating, battery stability, and nearby connector checks.
Check first: Retest with known-good cables or adjacent parts where practical before ordering.
Check next: A nearby cable, connector, battery, storage device, display path, audio path, or board path can mimic a bad logic board.
Symptom changes when touched or reseated
What you may see: The symptom changes after moving the part, reseating a cable, or applying light pressure near the connector path.
Check first: Inspect the connector, latch, flex, solder joints, and nearby board area for damage or corrosion.
Check next: This can still be a connection issue rather than a failed logic board alone.
Problem began after another repair
What you may see: The issue started immediately after opening the iPod, replacing another part, or disturbing an internal cable.
Check first: Reopen only as far as needed and inspect the exact area touched during the previous repair.
Check next: Post-repair symptoms often trace to seating, latch, screw, or cable issues before Replacement Logic Board itself is confirmed bad.
Logic Board symptoms to compare before ordering
What you may see: People describe behavior that can point toward the logic board, but the symptom does not prove this part has failed
Check first: Compare the exact behavior, when it started, and whether it changed after a repair
- Inspect nearby cables and connectors before replacing major parts
- If the symptom changes when the plug, cable, case, or logic board is gently moved, treat that as an intermittent-connection clue and inspect the relevant connector or ribbon before replacing parts
Symptoms changed after repair or reassembly
What you may see: People describe a new problem appearing immediately after battery, storage, display, audio, or control work
Check first: Reopen only as far as needed to inspect the areas touched during the repair
- Compare the new symptom with what worked before the repair
- Check cable seating, latch position, and part variant before replacing a second part
- If the symptom changes when the plug, cable, case, or logic board is gently moved, treat that as an intermittent-connection clue and inspect the relevant connector or ribbon before replacing parts
Liquid, corrosion, or residue near this part
What you may see: People describe symptoms after liquid exposure, dirty contacts, corrosion, or residue around internal parts
Check first: Look for corrosion, residue, lifted contacts, or darkened connector areas
- Check whether damage is on the replaceable part or on the board-side connector
Fitment or model-variant mismatch
What you may see: People ask whether a similar-looking part from another capacity, case thickness, or generation will work
Check first: Match the exact model, generation, capacity, and case style shown for the product
- Do not use a symptom to override fitment: a wrong-variant part can create new symptoms after installation
- If the symptom changes when the plug, cable, case, or logic board is gently moved, treat that as an intermittent-connection clue and inspect the relevant connector or ribbon before replacing parts
Blank, white, black, lined, or backlight display
What you may see: People describe a blank screen, white or black display, missing backlight, lines, or a display that changes after impact or repair
Check first: Confirm the iPod still plays, charges, or is recognized so the screen symptom can be separated from a dead device
- Inspect the display ribbon and connector if the iPod has been opened or dropped
- Look for cracks, liquid residue, display discoloration, or connector damage before ordering
- Rule out the LCD panel, display ribbon, and connector seating before treating a display-only symptom as logic-board evidence
- If the symptom changes when the plug, cable, case, or logic board is gently moved, treat that as an intermittent-connection clue and inspect the relevant connector or ribbon before replacing parts
Dock, USB, sync, or charging connection trouble
What you may see: People describe charging, USB recognition, sync, or dock-connector behavior that is intermittent or missing
Check first: Try a known-good cable, charger, and computer port before opening the iPod
- Inspect the dock connector for debris, bent pins, corrosion, or looseness
- Separate charging-only failure from computer-recognition or sync failure when choosing a part
Power, charging, or runtime symptoms
What you may see: People describe short runtime, charging trouble, sudden shutoff, or an iPod that will not reliably power on
Check first: Test with a known-good charger and cable before opening the iPod
- Note whether the iPod shows charging, briefly powers on, shuts down under load, or never wakes at all
- If the symptom began after service, inspect the battery connector and nearby flex paths before replacing another part
Storage warning symptoms usually start with drive or cable checks
What you may see: People may see a sad iPod, red X, folder icon, clicking drive, restore loop, or storage-recognition problem, especially after drive, flash, cable, or board work
Check first: Reseat the hard-drive or ZIF ribbon at both the logic-board end and the drive or adapter end before considering a board replacement
- Test with known-good storage and the correct cable or adapter setup, then retry restore or disk mode when available
- Inspect the board-side storage connector for torn pins, latch damage, corrosion, or impact damage only after the replaceable storage route has been checked
Logic Board appears unresponsive or intermittent
What you may see: People describe behavior where the logic board seems dead, intermittent, or only partly responsive
Check first: Check whether the symptom is repeatable or changes with movement, pressure, charging, reset, or reassembly
- Inspect nearby connectors and flex paths if the iPod has been opened
Logic Board ribbon, connector, or contact path
What you may see: People describe symptoms that change after opening the iPod, reseating parts, or disturbing nearby flex cables
Check first: Inspect the relevant ribbon and board connector before replacing the part
- Look for lifted latches, bent contacts, debris, corrosion, creases, or torn flex material
- Check whether the symptom changes after careful reseating
Repair considerations
Repair specialists who work on this model consistently flag these checks before replacing the logic board — they help confirm the logic board is the right fix and not a nearby fault:
- Escalate board-level soldering or connector damage
- Replace or professionally rework logic board
Do Not Buy This Logic Board Yet If...
| Situation | Start here instead |
|---|---|
| A replaceable attached-part path is isolated | Test the likely battery, storage, screen, audio, cable, or connector path first. |
| Recent service or connector disturbance is the main clue | Reopen carefully, reseat the part that was disturbed, and inspect its latch before buying a board. |
| You see a folder icon, clicking noise, or restore failure | Use the matching screen, storage, audio, or control part page before replacing the logic board. |
| The problem is the Hold switch or headphone jack, not this part | Start with the headphone jack / Hold switch assembly check. |
| Only the screen is affected and everything else works | Start with the screen, display ribbon, and backlight path before replacing the logic board. |
| Variant or capacity does not match this listing | Use the nearby battery, storage, screen, audio, cable, or connector listing that matches the symptom first. |
| Cable, computer, sync, or port behavior is the primary problem | Inspect and reseat the cable, latch, or connector path disturbed during service before buying another part. |
Install Overview
Before You Start
For pre-open diagnosis, unlock Hold and use this generation's reset sequence if needed. Before opening, lock the Hold switch so the orange bar is visible, then confirm the model and variant.
Treat case opening as the highest handling risk. Work around the seams gently and stop if the shell, clips, or internal stack resist.
Do not pull the halves apart or side-load board sockets. Reseat nearby ribbons and connectors before blaming a replacement logic board.
Test known-good replaceable assemblies first so the board is not blamed for a battery, storage, cable, control, screen, or audio path.
Do not fully separate the case halves until the remaining ribbons are released; the back panel can still be connected by ribbon cables.
Repair Guide
Repair guide summary: iPod Classic Logic Board Replacement.
Show all 41 installation steps
This iPod case is unusually hard to open without damaging major components. Its metal faceplate, metal backing, and thirteen metal clips make disassembly especially demanding. Caution: this opening method can significantly damage the iPod beyond its current condition. Keep a few extra plastic opening tools nearby, since they are easy to ruin while opening the case. Confirm that the hold switch is locked before you open the iPod.
Opening this iPod is challenging, so do not get discouraged if it takes a few tries. Watch the plastic opening tool tip angle as you insert it into the iPod; keep it as vertical as possible while still clearing the rear panel edge. Guide a plastic opening tool into the seam between the front and rear of the iPod.
Slide a second plastic opening tool into the seam between the iPod front and rear, keeping the two tools at least 1.5 inches apart.
Working at an angle, carefully slide a putty knife about 1/8 inch into the gap between the two opening tools. You will find thin metal rails running along the inside of the back panel, so work very carefully when inserting the putty knife. After the putty knife clears the rear panel lip, rotate it vertical and carefully but firmly work it straight down through the opening tool gap.
Press on the rear panel behind the putty knife with your fingers to reduce bending. Slowly flex the putty knife so most metal tabs along this side of the iPod release. The idea is to control how the rear panel bends instead of trying to prevent all bending. Any side bend should draw the rear panel lip away from the iPod, not push outward on the curved surface. This also releases as many side clips as possible.
Take the putty knife out, then place it closer to the iPod corner and use the same gentle wiggle method. If possible, do not bend the rear panel corner.
Near the headphone jack, guide a plastic opening tool into the seam between the front and rear of the iPod. It may be easier to flex the putty knife downward carefully to create more room for the opening tool. Be careful not to bend the rear panel corner.
Near the display center, carefully slide a metal spudger into the gap made by the plastic opening tool. A visible bump can form here in the rear panel and is hard to repair. When levering the tab free, pivot the metal spudger on the rear panel edge instead of bending the rear panel outward. With the metal spudger, release the single clip at the iPod top edge.
Near the other top corner, guide a plastic opening tool into the seam between the front and rear of the iPod
On the other side, use the opening tool to start the same case-opening gap. It may help to angle the tool stuck in the top corner to create enough room.
Take the opening tool out of the top corner, then slide it into the seam between the iPod front and rear. Keep at least 1.5 inches between the two tools, as on the opposite side.
Working at an angle, carefully slide a putty knife about 1/8 inch into the gap between the two opening tools. Again, you will find thin metal rails running along the inside of the back panel, so work very carefully when inserting the putty knife. After the putty knife passes the rear panel lip, turn it vertical and carefully but firmly work it straight down through the gap between the plastic opening tools. Press on the rear panel behind the putty knife with your fingers to reduce bending. Flex the putty knife just enough to make sure most metal tabs along this side of the iPod release.
The metal clips near the corners grip the front panel tightly. Release these clips before opening the iPod. Carefully slide a metal spudger into the area beside the stubborn metal clip.
Gently work the metal spudger downward until it is fully seated in the rear panel.
Gently start releasing the clip from the front panel. A visible bump can form here in the rear panel and is hard to repair. When levering the tab free, pivot the metal spudger on the rear panel edge instead of bending the rear panel outward.
Use the metal spudger to apply upward pressure under the front panel until the metal clip releases.
You will find two ribbon cables connecting the rear panel to the remaining iPod assembly. In the following step, take care not to damage these ribbon cables. In this step, grasp the front-panel assembly with one hand and the back panel with the other. Pause for a moment before continuing. Very gently release the remaining rear-panel clips by pulling the tops of the front and rear panels apart, using the iPod bottom as a hinge. Take great care not to damage the ribbon cables joining the two halves.
With a spudger, slide the connector upward where it holds the orange battery ribbon. Lift the locking bar only about 2 mm to release the cable. Move the orange battery ribbon out of its connector.
Set the rear panel beside the iPod, taking care not to strain the orange headphone jack cable.
Raise the hard drive with one hand to expose the headphone jack ribbon underneath. With a spudger, flip up the plastic tab securing the headphone jack ribbon in place. The tab can rotate up 90 degrees, releasing the ribbon cable. Move the orange headphone jack ribbon out of its connector. The rear panel is now released from the iPod.
After opening, check the lower-case clips. If any clip bent upward, press it back down gently so the rear case can close cleanly.
Use the broad, flat face of the metal spudger to press the clip downward. Work carefully so the thin metal rail does not tear away from the rear panel. While shaping these clips, take care not to damage any headphone jack parts.
Set the rear panel on its side on a clean, hard surface. Carefully but firmly press it downward, rolling the full lip edge back into place. You may need to repeat this several times to straighten the sides well. Slightly overcorrecting the case edges inward is better than leaving them too far out, because reseating the front panel will bend the rear panel back into alignment. Once the rear panel is restored to good condition, continue with the iPod repair.
Rotate the hard drive out of the framework, then set it with the connector facing upward. With a spudger, lift the small black locking tab for the orange hard drive ribbon. The tab rotates upward 90 degrees and frees the ribbon cable.
Move the orange hard drive ribbon cable straight out of its connector. If the replacement hard drive did not include rubber mounting brackets or foam padding, transfer those parts from the old drive.
Take out the three Phillips screws that secure the front panel to the metal framework.
Rotate the iPod 180 degrees and take out the 3 Phillips screws holding the front panel to the metal framework on the other edge.
In this step, gently work around the edges of the device to separate the front panel from the gray metal framework. You may meet some resistance, as you will find a mild adhesive used to help hold the two parts together.
Lift the full framework away from the front panel; it carries the screen, logic board, and click wheel. Confirm the click wheel button is seated before reinstalling the framework in the front panel.
The front panel is now released from the iPod.
With a spudger, lift the plastic tab that holds the orange display ribbon. The tab rotates upward 90 degrees toward the display and releases the ribbon cable.
Move the orange display ribbon cable directly out of its connector.
Raise the framework assembly up, and move the display and LCD metal backplate out of the framework assembly.
Take out the two Phillips screws securing the logic board to the framework.
Carefully press the logic board away from the metal framework. Mild adhesive secures the logic board to the framework. Take care not to bend the logic board by pushing too hard in one spot.
Move the click wheel out from under the logic board until its icons are visible. With a spudger, flip up the plastic tab securing the orange click wheel ribbon in place. The tab can rotate up 90 degrees, releasing the ribbon cable.
With a spudger, raise the click wheel cable off the logic board. Take care not to over-bend the cable, since its electronics can be damaged. When reinstalling the click wheel, make sure the click wheel cable is fully seated in its connector.
Move the click wheel cable out of its connector. Raise the click wheel assembly away from the logic board. Do not forget the click wheel button when putting your iPod back together.
With a spudger, flip up the plastic tab securing the orange hard drive ribbon in place. The tab can rotate up 90 degrees, releasing the ribbon cable.
Move the orange hard drive ribbon cable straight out of its connector. If adhesive holds the cable to the logic board, carefully pull up on the cable to loosen it.
The logic board is the remaining assembly.
After This Repair
| Check | What to do |
|---|---|
| Run the full function check | Verify power, USB sync, storage, display, audio, controls, and charging before treating the repair as finished. |
| Still not working? | Go back through the connected battery, storage, display, dock, audio, and control paths one at a time. |
Frequently Asked Questions
Use these questions to narrow the part path before ordering. They keep each answer focused on a different diagnostic or fitment decision.
What Replacement Logic Board models does this fit?
This Replacement Logic Board fits: MC293LL/A (160GB Silver), MC297LL/A (160GB Black).
Do I need to solder?
No, this installation does not require soldering. Difficulty: Very Difficult. Estimated time: 1 - 2 hours.
How do I know if this logic board needs replacement?
Symptoms that can point to this logic board include: Red X Icon, Water Damage, Physical Damage, Dropped / Not Working, Sad iPod Icon. Check fitment, connectors, and nearby parts before treating symptoms as proof.
Can water damage, liquid, or corrosion make this logic board the right repair path?
Look for visible liquid residue, corrosion, burned parts, lifted pads, or damaged board connectors. Do not use a parts swap as the only test when liquid damage is present; clean and inspect the board path first. Look for corrosion, residue, lifted contacts, or darkened connector areas. Check whether damage is on the replaceable part or on the board-side connector. Choose this logic board only when the failure is isolated to the board path after external and replaceable-part checks. Choose this logic board only when corrosion damaged the part or its flex. Check the nearby part path first when the symptom still fits a battery, storage, display, dock, headphone/hold, or click-wheel assembly. Check the board connector and nearby assemblies first when corrosion is not limited to this part. Board-level rework and component diagnosis belong in advanced or professional repair context.
Dead iPod- NOT the battery?
Start with power and battery checks before blaming this logic board. Confirm the cable, charger, battery connection, and storage-load behavior, then use the diagnostic checks on this listing.
Why people land on this part
Use the checks above to separate this logic board from nearby parts before ordering.
Also searched as: iPod classic 7th generation logic board replacement, iPod classic 7th generation motherboard, Overheating, no power logic board, won't turn on logic board, motherboard, board assembly, board-fault lists, completely dead, iPod classic 160GB logic board, iPod classic 80GB logic board, iPod classic 80GB motherboard, main board, won't charge, Water Damage, Physical Damage, Dropped / Not Working, dead logic board.
Worth Knowing
- Cirrus Logic CS42L55 — Audio CODEC — stereo DAC with headphone amp
- NXP/Philips PCF50635 — Power management IC
- Linear Technology LTC4066 — USB power manager with Li-Ion charger
- Option 1: Replace the entire logic board (recommended)
- Replacement battery connectors are available from parts suppliers
Stuck on the Apple Logo / Boot Loop: What Owners Actually Run Into.
A 7th generation Classic frozen on the white Apple logo — or flashing it and restarting over and over in an endless boot loop — is failing partway through startup, usually because it cannot read its hard drive or cannot hold enough power to finish booting. The frustrating part on this model is that a worn-out battery, a failing drive, a loose drive ribbon cable, a flash-mod setup mistake, and even an oversized music library all end in the same looping logo. A few minutes of listening and two button combinations usually separate them — and decide whether you need a battery, a drive, an inexpensive cable, or no part at all.
What owners describe: - A 7th gen owner plugged the iPod in and found the screen stuck on the Apple logo, flickering on and off "almost like a boot loop" — the classic first sighting of this failure, before any icon or error appears. - Another 7th gen owner watched the Apple logo appear but the menu never load; from time to time the screen asked to connect to iTunes and restore, but the restore never took. That mix — logo, no menu, restore prompt that fails — points at storage the firmware can see but cannot reliably read. - An A1238 owner replaced the 160GB hard drive because the original was defective — and got a never-ending restart cycle instead: Apple logo for a few seconds, shutdown, restart, forever. Disk mode still worked and the computer could even read the new drive's contents, but iTunes could not see it. A new drive that loops like this is nearly always a seating or restore/format problem, not a second dead drive. - A 7G thin 160GB owner did a careful battery swap and the iPod came out apparently dead — except for a faint Apple logo flashing for a split second, endlessly, whenever plugged in. Reinstalling the original battery brought it straight back to life. The replacement cell, not the repair, was the problem: a bad or badly seated new battery produces a textbook boot loop. - An owner upgraded a 7th gen with a dual-slot ZIF adapter and two 250GB SSDs; afterward the Apple logo reset every 5-10 seconds and the PC could not see the iPod at all, even after reseating the adapter cable. Boot loops that begin immediately after a storage conversion are a setup problem — format, slot order, restore — far more often than failed hardware. - A buyer of a refurbished 160GB 7th gen had it run perfectly while plugged in, then crash the instant the cable came out and reboot endlessly — while the battery icon claimed a full charge and even the built-in diagnostics showed maxed battery readings. The drive's counters showed nearly 100,000 start/stop cycles. Two restores changed nothing: the cell itself was done, and the "full" reading only reflected charger power. - Another owner bought a 7th gen already stuck at the Apple logo, worked it into disk mode, and ran the drive's health check — no bad sectors. The drive behaved identically when tested in a second iPod, clearing the logic board and connector. The trail ended at drive formatting: a drive set up on the wrong system can leave the iPod booting to a logo it can never get past, with nothing physically broken.
How it usually progresses: - When the drive is the cause, it rarely fails all at once. The usual arc: songs skip or cut off and syncs stall, boots get slow or hang at the logo for minutes before succeeding, then audible clicking or whirring appears at startup, and finally the logo gives way to a red circle-with-X — this generation's replacement for the old "sad iPod" face — or the iPod simply loops. Each stage is the drive losing more of its ability to read. - When the battery is the cause, the arc is different: runtime shrinks over months, then the iPod only works plugged in, and finally — on battery — it can manage nothing but a dim Apple logo flashing every couple of seconds. In the worst stage the reboot cycle is so fast owners report being unable to even enter disk mode between restarts. - A long-stored unit adds one more stage: deeply drained cells can hold the iPod at "Charging, Please Wait" for a long time, because the iPod can only trickle-charge on that screen and cannot charge at all during the Apple-logo part of a boot attempt. A looping unit with a weak cell can stay trapped this way — which is why a long, patient session on a USB wall adapter comes before any verdict.
What typically causes it: - Startup on this iPod has one job it cannot skip: power up the drive, mount it, and read the operating system and music database off it. When any step fails, the iPod either hangs on the Apple logo or gives up and resets to try again — the boot loop you are watching is the iPod retrying the same failed startup over and over. - The most valuable tell in all of Classic repair is timing. If the Apple logo flips to a folder icon almost immediately, the hard drive ribbon cable is the usual fault — it friction-fits into its connector and works loose. If the iPod hangs on the logo for several seconds before erroring, the drive itself has failed. A repair technician cited in the research sees it constantly: a large share of iPods on the bench just need the cable reseated or replaced. Mixing these two cases up is the single most common misdiagnosis — owners buy a whole drive when a cheap cable was the fix. - A worn-out battery impersonates a dead drive almost perfectly. Spinning up the hard drive takes a surge of current; an aged cell with high internal resistance lets the voltage collapse mid-boot, the iPod resets, and the cycle repeats — a faint, flashing Apple logo every few seconds. A battery flex cable left slightly loose after a repair causes the same repeating reboot. This is why the standard advice is to charge on a USB wall adapter for a long stretch before condemning any hardware. - On big flash-upgraded builds there is a boot loop with nothing broken at all. The 7th gen loads its entire music database into 64 MB of memory at startup; past roughly 40,000-50,000 tracks the database no longer fits, the system crashes while loading it, automatically restarts, and crashes again — an endless loop on perfectly healthy hardware. The exact ceiling shifts with how much artwork and metadata your tracks carry. - Flash-storage conversions add their own boot-loop causes: shuffling SD cards between slots of a multi-slot iFlash adapter after a restore leaves duplicate boot partitions across cards, which produces hangs and spontaneous reboots; cards formatted exFAT or NTFS cannot be read by the iPod at all (it needs FAT32 with an MBR layout, or Mac HFS+) and boot-loop until reformatted; and some card families are known troublemakers in these adapters — some SD card/controller combinations/Extreme cards cause skipping and random reboots, Kingston Canvas cards near-guarantee errors or endless boot loops. - Two things this is NOT on the 7th generation: the 6th gen's well-known reboot bug with storage over 128GB does not exist here — this model handles large drives natively, so capacity alone never causes the loop. And a tired battery does not cause the red circle-with-X icon; that icon specifically means the iPod cannot communicate with its storage (drive, cable, or adapter), which keeps the battery and drive cases from being confused once an icon appears.
Handle it safely: - The battery connects through a small 5-pin connector with a brown locking latch on the board. If you open the iPod chasing a boot loop, lift the latch and withdraw the battery ribbon straight along its insertion direction — pulling it sideways or at an angle can rip the entire connector housing off the board and destroy the power traces under it, turning a battery-sized repair into a dead logic board. That damage is one of the most common ways a fixable boot loop becomes an unfixable iPod. - The hard drive cable's brown locking latch is equally unforgiving: if the latch breaks, the cable can never clamp properly again, and the iPod is left with intermittent drive detection — a permanent, maddening boot-loop generator that no new drive fixes. Flip the latch gently and never force the ribbon while the latch is closed.
Owners searching for this describe it as: ipod classic stuck on apple logo, ipod classic 7th gen boot loop, ipod classic keeps restarting apple logo, ipod classic restarts over and over, ipod classic flashing apple logo, ipod classic won't boot past apple logo, ipod classic apple logo then red x, ipod classic endless reboot, ipod classic only works when plugged in, ipod classic restore loop, ipod classic boot loop after iflash, a1238 continually restarts.
You May Also Want
A fresh battery is often replaced during the same repair while the iPod is open.
Related: Flash Storage Mod (iFlash Adapter + SD Card)Flash storage is the common upgrade path while the iPod is already open.
Related: Replacement Hard Drive (160GB)Use a hard drive only when restoring original-style storage; flash adapters are also a valid upgrade path on compatible Classic builds.
