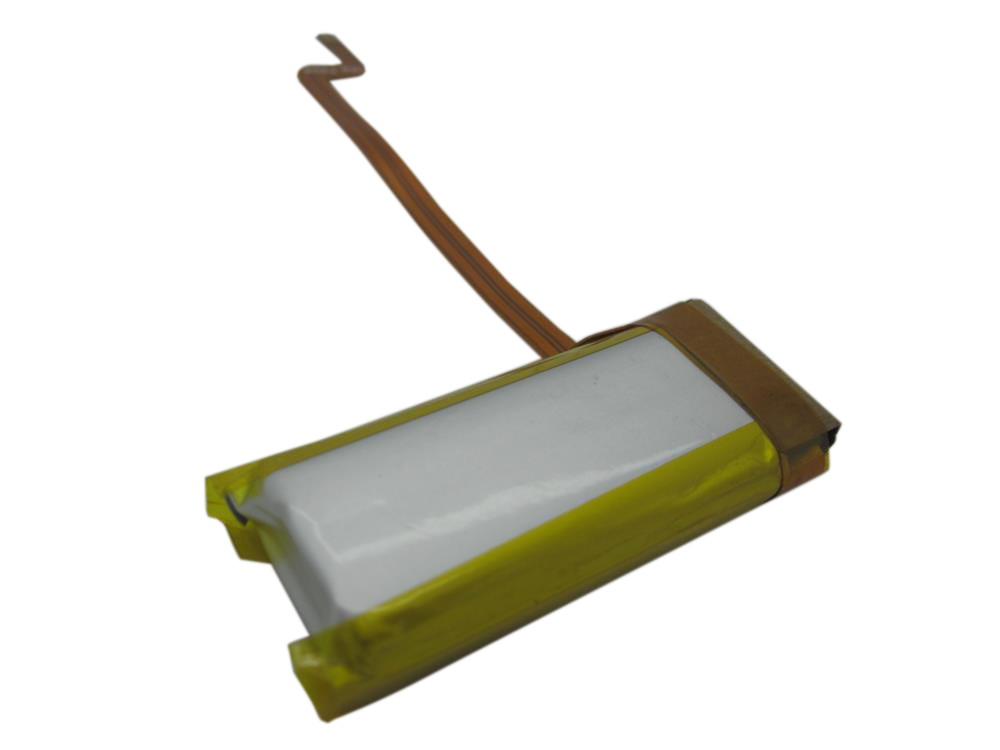

Replacement rechargeable battery for iPod Classic 7G. Use it for poor runtime, swelling, or power loss after cable and power-source checks, while remembering that bad storage or board faults can imitate battery trouble.
Product Overview
This battery listing covers Replacement Battery (160GB) and its own connector path on the iPod Classic 7th Generation.
Use Part Details for the confirmed part-number reference. Use the Compatible Variants table below to confirm capacity, color, case, or order-number fitment.
Choose this part when your iPod shows Won't Charge, Won't Turn On, Battery Drain, or Shuts Down Randomly; the checks below help confirm the right part before you order.
If a known-good battery, cable, and power source still do not restore stable power, the problem might be the dock connector, battery connector, or something on the board, not just the battery.
- Check battery voltage with a voltmeter to determine if battery is functional
- Wall charger supplies 5V; unrecognized USB port may only deliver approximately 2.6V
- Measure battery voltage with a voltmeter - a dead battery reads 0V
- LTC4066 manages USB power and Li-Ion charging, monitors charge state and temperature
- Docking stations supply higher amperage than USB ports
- A USB port will not deliver a full 5V if the device is not recognized by the computer -- in that case, the port may only supply around 2.6V, which is insufficient to charge the iPod.
What Is Included
Quick Buying Check
Buy this when
- Won't Charge: Verify the charger, cable, dock connector, and storage spin-up load first; use the battery check when runtime, no-charge, shutdown, or swelling behavior still follows the pack.
Specifications & Fitment
Part Details
| Detail | Value |
|---|---|
| Model Number | A1238 |
| EMC | EMC 2173 |
| Condition | New replacement battery |
| Capacity (Original) | 580 mAh |
| Chemistry | Li-Ion |
| Voltage (Nominal) | 3.7V |
| Charge Voltage | 4.2V |
| Shutoff Voltage | 2.7V |
| Connector | ZIF brown latch ribbon |
| Soldering Required | No |
| OEM Part |
616-0229, 820-2437-A
|
Compatible Variants
| Order Number | Capacity | Color | Case | Compatible | Notes |
|---|---|---|---|---|---|
| MB150LL/A | 120GB | Black | thin | Yes— compatible | Stock match |
| MB565LL/A | 120GB | Black | thin | Yes— compatible | Stock match |
| MC040LL/A | 120GB | Silver | thin | Yes | — |
| MC066LL/A | 160GB | Black | thin | Yes | — |
| MC297LL/A | 160GB | Black | thin | Yes | — |
| MC044LL/A | 160GB | Silver | thin | Yes | — |
| MC062LL/A | 160GB | Silver | thin | Yes | — |
| MC238LL/A | 160GB | Silver | thin | Yes | — |
| MC293LL/A | 160GB | Silver | thin | Yes | — |
| MB147LL/A | 160GB | Black | thin | No— iPod Classic 6th Generation thick 160GB models (MB145LL/A 6G, MB150LL/A 6G) — different battery form factor | iPod Classic 6th Generation thick 160GB models (MB145LL/A 6G, MB150LL/A 6G) — different battery form factor |
| MB145LL/A | 160GB | Silver | thin | No— iPod Classic 6th Generation thick 160GB models (MB145LL/A 6G, MB150LL/A 6G) — different battery form factor | iPod Classic 6th Generation thick 160GB models (MB145LL/A 6G, MB150LL/A 6G) — different battery form factor |
Diagnostic Failure Cards
Use these model-specific failure cards to decide whether this battery is the right part, a nearby part needs checking first, or escalation makes more sense after simpler checks.
Advanced or board-level cases
Dock, USB, sync, or charging connection trouble
What you may notice
- People describe charging, USB recognition, sync, or dock-connector behavior that is intermittent or missing.
- Charging, USB recognition, sync, or dock behavior is intermittent or missing.
Diagnose first when
- Try a known-good cable, charger, and computer port before opening the iPod.
- Inspect the dock connector for debris, bent pins, corrosion, or looseness.
- Separate charging-only failure from computer-recognition or sync failure when choosing a part.
- Test with a known-good charger and cable, then note whether the iPod only works while plugged in or fails again under load.
Similar issues to separate
- The battery can be involved, but cable condition, port contamination, battery state, storage behavior, or board damage can create overlapping symptoms.
- Check dock / usb / sync route, connector seating, and board-side damage before ordering.
- Choose this battery only when charging, sync, or dock behavior is tied to this part or its connector path.
Where this battery does not fit
- The iPod Classic 7th Generation uses a thin-only form factor (10.5 mm). The Late-2008 thin 120GB Classic is the same thin-Classic battery class but is sold under the iPod Classic 6th Generation pages.
Check another part first
- Check cable, charger, battery, storage restore state, and board condition when the dock path is not clearly isolated.
Repair or replacement paths
- Replace the battery when inspection points to this part's role in the dock, USB, sync, or charging path.
- Continue battery, storage, or board diagnosis when the port looks healthy but power or sync still fails.
Ribbon, ZIF, connector, or ground-path checks
What you may notice
- A symptom starts after opening the iPod or disturbing an internal flex cable.
Diagnose first when
- Inspect for liquid, corrosion, residue, torn flex material, or connector damage.
Similar issues to separate
- Connector seating, ribbon damage, or ground-path issues can involve this part, a nearby connector, or a board path.
Check another part first
- Check the Replacement Hard Drive (160GB) when storage symptoms such as clicking, sad ipod, folder icons, or restore failure are the main problem.
- Check the 30-Pin Dock Connector / Charging Port when charging, sync, usb, firewire, or dock-connection behavior is the main problem.
Fitment and post-repair traps
Fitment or model-variant mismatch
What you may notice
- People ask whether a similar-looking part from another capacity, case thickness, or generation will work.
Diagnose first when
- Match the exact model, generation, capacity, and case style shown for the product.
- Do not use a symptom to override fitment: a wrong-variant part can create new symptoms after installation.
Similar issues to separate
- This battery may help only when it matches the model and variant being repaired.
Check another part first
- Check fitment before replacing nearby parts or ordering another copy of the same wrong variant.
Repair or replacement paths
- Use the battery variant matched to the exact iPod.
- Recheck fitment before diagnosing a newly installed part as defective.
Power, charging, or runtime symptoms
What you may notice
- People describe short runtime, charging trouble, sudden shutoff, or an iPod that will not reliably power on.
- Short runtime, charging trouble, sudden shutoff, or a device that will not reliably power on.
Diagnose first when
- Test with a known-good charger and cable before opening the iPod.
- Note whether the iPod shows charging, briefly powers on, shuts down under load, or never wakes at all.
- If the symptom began after service, inspect the battery connector and nearby flex paths before replacing another part.
Similar issues to separate
- The battery can be the cause, but charging, dock, storage, or board paths can create similar power behavior.
- Check power / charge / runtime route, connector seating, and board-side damage before ordering.
- Choose this battery only when the power, charging, or runtime pattern is tied to this part or its connector path.
- Choose this battery when the symptom remains isolated to this assembly, its ribbon, or its connector path after first checks.
Check another part first
- Check charger/cable behavior, dock connector condition, storage startup clues, and board damage when the symptom is not isolated to battery performance.
Repair or replacement paths
- Replace the battery when inspection or repeat testing points to this part as the failing path.
- Keep dock connector, storage, and board diagnosis in scope when charging behavior is inconsistent or no power path is confirmed.
Symptoms changed after repair or reassembly
What you may notice
- People describe a new problem appearing immediately after battery, storage, display, audio, or control work.
- A new symptom appeared after battery, storage, audio, display, or control work.
Diagnose first when
- Reopen only as far as needed to inspect the areas touched during the repair.
- Compare the new symptom with what worked before the repair.
- Check cable seating, latch position, and part variant before replacing a second part.
Similar issues to separate
- A post-repair symptom can involve the battery, but disturbed ribbons, latches, grounding, connector seating, or the wrong variant part are common checks before ordering again.
- Check post-repair regression, connector seating, and board-side damage before ordering.
- Choose this battery only when the part itself was torn, creased, or damaged during service.
Check another part first
- Check the exact connector or assembly disturbed during the repair before treating the new part as failed.
Repair or replacement paths
- Correct seating, latch, or variant problems first.
- Replace the battery when the repair damaged that assembly or its flex path.
Fitment and inspection notes
Symptom remains after basic checks
What you may see: The iPod still points back to Replacement Battery (160GB) after cable seating, battery stability, and nearby connector checks.
Check first: Retest with known-good cables or adjacent parts where practical before ordering.
Check next: A nearby cable, connector, battery, storage device, display path, audio path, or board path can mimic a bad battery.
Symptom changes when touched or reseated
What you may see: The symptom changes after moving the part, reseating a cable, or applying light pressure near the connector path.
Check first: Inspect the connector, latch, flex, solder joints, and nearby board area for damage or corrosion.
Check next: This can still be a connection issue rather than a failed battery alone.
Problem began after another repair
What you may see: The issue started immediately after opening the iPod, replacing another part, or disturbing an internal cable.
Check first: Reopen only as far as needed and inspect the exact area touched during the previous repair.
Check next: Post-repair symptoms often trace to seating, latch, screw, or cable issues before Replacement Battery (160GB) itself is confirmed bad.
Repair considerations
Repair specialists who work on this model consistently flag these checks before replacing the battery — they help confirm the battery is the right fix and not a nearby fault:
- Let alcohol or liquid cleaning dry before power-up
- Swollen or damaged batteries require safety framing
- Try known-good cable, charger, USB port, or computer
- Replace battery
- Mid-song stopping with Apple logo indicates corrupted files or early drive degradation
- Clean the logic board with rubbing alcohol and a soft paintbrush
- Replacement battery connectors are available from parts suppliers
- Replace the battery if dock connector is clean
- If LTC4066 or fuse F1 has failed, logic board replacement is needed
- Power management IC is the LTC4066, located bottom-left of logic board opposite battery connector
- Inspect pins for corrosion, bending, or breakage
- Battery replacement is the recommended first step
- Option 1: Replace the entire logic board (recommended)
- Even new replacement batteries can be defective
- Clean logic board with 90%+ isopropyl alcohol
Do Not Buy / Problems This Battery Does Not Fix
| Situation | Start here instead |
|---|---|
| Variant or capacity does not match this listing | This is a different model — check your order number and generation before ordering. |
| You see a folder icon, clicking noise, or restore failure | Follow the remaining storage, display, audio, port, or board clue instead of replacing another battery. |
| Only the screen is affected and everything else works | Start with the screen, display ribbon, backlight path, and battery-swelling inspection. |
| Charging, swelling, runtime, or power is the primary problem | Check the charger, cable, port condition, and battery connector before replacing the battery. |
| Recent service or connector disturbance is the main clue | Inspect the disturbed connector, latch, ribbon, flex path, and corrosion signs before ordering another battery. |
| A symptom points to a different part | thin. |
- Working dock speaker but failing computer/car connection suggests dirty or damaged dock connector contacts
- If the iPod plays through a standing speaker dock but will not connect to a computer or car system, the dock connector contacts may be dirty or partially damaged.
- Check dock connector for bent or corroded pins
- Dock connector pinout available at pinouts.ru
Install Overview
Before You Start
Turn Hold off, use the reset sequence for this generation, and confirm the model and variant before opening the iPod.
Treat case opening as the highest handling risk. Work around the seams gently and stop if the shell, clips, or internal stack resist.
Do not pull the halves apart or side-load board sockets. Reseat nearby ribbons and connectors before blaming a replacement battery.
Stop charging and avoid puncturing, bending, or compressing the cell if the battery is swollen, hot, leaking, or visibly damaged.
Do not fully separate the case halves until the remaining ribbons are released; the back panel can still be connected by ribbon cables.
Repair Guide
Repair guide summary: iPod Classic Battery Replacement.
Show all 24 installation steps
For safety, completely discharge the iPod before disassembly. This reduces dangerous thermal-event risk if the battery is accidentally damaged during repair. If the battery is swollen, take appropriate precautions. This iPod case is unusually hard to open without damaging major components. Its metal faceplate, metal backing, and thirteen metal clips make disassembly especially demanding. Caution: this opening method can significantly damage the iPod beyond its current condition. Keep a few extra plastic opening tools nearby, since they are easy to ruin while opening the case. Confirm that the hold switch is locked before you open the iPod.
Opening this iPod is challenging, so do not get discouraged if it takes a few tries. Watch the plastic opening tool tip angle as you insert it into the iPod; keep it as vertical as possible while still clearing the rear panel edge. Guide a plastic opening tool into the seam between the front and rear of the iPod.
Slide a second plastic opening tool into the seam between the iPod front and rear, keeping the two tools at least 1.5 inches apart.
Working at an angle, carefully slide a putty knife about 1/8 inch into the gap between the two opening tools. You will find thin metal rails running along the inside of the back panel, so work very carefully when inserting the putty knife. After the putty knife clears the rear panel lip, rotate it vertical and carefully but firmly work it straight down through the opening tool gap.
Press on the rear panel behind the putty knife with your fingers to reduce bending. Slowly flex the putty knife so most metal tabs along this side of the iPod release. The idea is to control how the rear panel bends instead of trying to prevent all bending. Any side bend should draw the rear panel lip away from the iPod, not push outward on the curved surface. This also releases as many side clips as possible.
Take the putty knife out, then place it closer to the iPod corner and use the same gentle wiggle method. If possible, do not bend the rear panel corner.
Between the lock slider and headphone jack, guide a plastic opening tool into the seam between the front and rear of the iPod. It may be easier to flex the putty knife downward carefully to create more room for the opening tool. Be careful not to bend the rear panel corner.
Near the display center, carefully slide a metal spudger into the gap made by the plastic opening tool. A visible bump can form here in the rear panel and is hard to repair. When levering the tab free, pivot the metal spudger on the rear panel edge instead of bending the rear panel outward. With the metal spudger, release the single clip at the iPod top edge.
Near the other top corner, insert an opening tool into the gap between the front and rear of the iPod
On the other side, insert an opening tool into the gap between the front and rear of the iPod. It may help to angle the opening tool stuck in the top corner to create enough of a gap.
Take out the plastic opening tool from the top corner and slide it into the seam between the front and rear of the device, leaving at least 1.5 inches of space between the 2 tools (as done on the other side).
Working at an angle, carefully slide a putty knife about 1/8 inch into the gap between the two opening tools. Again, you will find thin metal rails running along the inside of the back panel, so work very carefully when inserting the putty knife. After the putty knife passes the rear panel lip, turn it vertical and carefully but firmly work it straight down through the gap between the plastic opening tools. Press on the rear panel behind the putty knife with your fingers to reduce bending. Flex the putty knife just enough to make sure most metal tabs along this side of the iPod release.
The metal clips near the corners grip the front panel tightly. Release these clips before opening the iPod. Carefully slide a metal spudger into the area beside the stubborn metal clip.
Gently work the metal spudger downward until it is fully seated in the rear panel.
Gently start releasing the clip from the front panel. A visible bump can form here in the rear panel and is hard to repair. When levering the tab free, pivot the metal spudger on the rear panel edge instead of bending the rear panel outward.
Use the metal spudger to apply upward pressure under the front panel until the metal clip releases.
You will find two ribbon cables connecting the rear panel to the remaining iPod assembly. In the following step, take care not to damage these ribbon cables. In this step, grasp the front-panel assembly with one hand and the back panel with the other. Pause for a moment before continuing. Very gently release the remaining rear-panel clips by pulling the tops of the front and rear panels apart, using the iPod bottom as a hinge. Take great care not to damage the ribbon cables joining the two halves.
The battery flex cable lock tab is very delicate. Pulling too far, or pulling on the connector's white portion, can tear it from the main board. If that happens, battery connector repair becomes very difficult. With angled tweezers or an opening tool, raise the brown lock latch straight up by 1 mm. Confirm you draw from both sides of the latch. Take care not to pull on the white portions extending to the connector's outer edges. Move the brown lock tab straight upward. The connector is fragile and can break if it shifts to the side. Grasp the flex cable with your fingers or tweezers and draw it straight up to detach it. If using tweezers, avoid grasping the cable too close to the socket or the cable contacts may short.
Set the rear panel beside the iPod, taking care not to strain the orange headphone jack cable.
Raise the hard drive with one hand to expose the headphone jack ribbon underneath. With a spudger, flip up the plastic tab securing the headphone jack ribbon in place. The tab can rotate up 90 degrees, releasing the ribbon cable. Move the orange headphone jack ribbon out of its connector. The rear panel is now released from the iPod.
After opening, check the rear-panel clips. If any clip bent upward, press it back down gently so the rear case can close cleanly.
Use the broad, flat face of the metal spudger to press the clip downward. Work carefully so the thin metal rail does not tear away from the rear panel. Flat pin-nosed pliers can reduce slipping and headphone jack damage risk. While shaping these clips, take care not to damage any headphone jack parts.
Set the rear panel on its side on a clean, hard surface. Carefully but firmly press it downward, rolling the full lip edge back into place. You may need to repeat this several times to straighten the sides well. Slightly overcorrecting the case edges inward is better than leaving them too far out, because reseating the front panel will bend the rear panel back into alignment. Once the rear panel is restored to good condition, continue with the iPod repair.
The battery sticks to the rear panel adhesive. As you remove it, take care not to tear the orange ribbons for the headphone jack or hold button. With a spudger, raise the battery and the attached orange cable out of the device. If you have a 160GB iPod, the battery will be thicker than thinner battery variants. If the battery is hard to remove, warm the iPod back with a hair dryer or heat gun to soften the glue holding the battery in place. Do not overheat the battery.
After This Repair
| Check | What to do |
|---|---|
| Charge and calibrate | Charge fully, let it stay on the charger a little longer, then use it through a normal discharge and charge cycle so the meter can settle. |
| Watch the internal stack | If the display shows pressure marks, dark spots, or case bowing after reassembly, reopen and check battery thickness and cable routing. |
| Still not working? | Check the dock connector, battery connector, storage load, and board power path before replacing another battery. |
Battery Safety & Shipping
⚠️ Lithium-Ion / Li-Po Battery Safety. This product contains (or is) a rechargeable lithium-ion/lithium-polymer battery. Charge only with a compatible charger; don't leave it charging unattended or overnight, and unplug once fully charged. Avoid charging or storing in direct sunlight or other high-heat environments. Stop using and stop charging immediately if the battery swells, bulges, gets unusually hot, hisses, smokes, or leaks. Do not puncture, crush, bend, short-circuit, or try to "deflate" a swollen cell, and never press a lifted screen or case back down — it can rupture the cell. If electrolyte contacts your eyes, flush with clean water for 15 minutes without rubbing and seek medical care; on skin, wash with water and soap. Battery service should be done by a trained technician. Recycle through an electronics or universal-waste recycler, not household trash.
Shipping. A refurbished iPod shipped with its battery installed ships as UN3481 (lithium-ion batteries contained in equipment); a loose replacement cell shipped on its own ships as UN3480 (lithium-ion batteries). Cells have passed UN Manual of Tests and Criteria 38.3 testing.
Stuck on the Apple Logo / Boot Loop: What Owners Actually Run Into.
A 7th generation Classic frozen on the white Apple logo — or flashing it and restarting over and over in an endless boot loop — is failing partway through startup, usually because it cannot read its hard drive or cannot hold enough power to finish booting. The frustrating part on this model is that a worn-out battery, a failing drive, a loose drive ribbon cable, a flash-mod setup mistake, and even an oversized music library all end in the same looping logo. A few minutes of listening and two button combinations usually separate them — and decide whether you need a battery, a drive, an inexpensive cable, or no part at all.
What owners describe: - A 7th gen owner plugged the iPod in and found the screen stuck on the Apple logo, flickering on and off "almost like a boot loop" — the classic first sighting of this failure, before any icon or error appears. - Another 7th gen owner watched the Apple logo appear but the menu never load; from time to time the screen asked to connect to iTunes and restore, but the restore never took. That mix — logo, no menu, restore prompt that fails — points at storage the firmware can see but cannot reliably read. - An A1238 owner replaced the 160GB hard drive because the original was defective — and got a never-ending restart cycle instead: Apple logo for a few seconds, shutdown, restart, forever. Disk mode still worked and the computer could even read the new drive's contents, but iTunes could not see it. A new drive that loops like this is nearly always a seating or restore/format problem, not a second dead drive. - A 7G thin 160GB owner did a careful battery swap and the iPod came out apparently dead — except for a faint Apple logo flashing for a split second, endlessly, whenever plugged in. Reinstalling the original battery brought it straight back to life. The replacement cell, not the repair, was the problem: a bad or badly seated new battery produces a textbook boot loop. - An owner upgraded a 7th gen with a dual-slot ZIF adapter and two 250GB SSDs; afterward the Apple logo reset every 5-10 seconds and the PC could not see the iPod at all, even after reseating the adapter cable. Boot loops that begin immediately after a storage conversion are a setup problem — format, slot order, restore — far more often than failed hardware. - A buyer of a refurbished 160GB 7th gen had it run perfectly while plugged in, then crash the instant the cable came out and reboot endlessly — while the battery icon claimed a full charge and even the built-in diagnostics showed maxed battery readings. The drive's counters showed nearly 100,000 start/stop cycles. Two restores changed nothing: the cell itself was done, and the "full" reading only reflected charger power. - Another owner bought a 7th gen already stuck at the Apple logo, worked it into disk mode, and ran the drive's health check — no bad sectors. The drive behaved identically when tested in a second iPod, clearing the logic board and connector. The trail ended at drive formatting: a drive set up on the wrong system can leave the iPod booting to a logo it can never get past, with nothing physically broken.
How it usually progresses: - When the drive is the cause, it rarely fails all at once. The usual arc: songs skip or cut off and syncs stall, boots get slow or hang at the logo for minutes before succeeding, then audible clicking or whirring appears at startup, and finally the logo gives way to a red circle-with-X — this generation's replacement for the old "sad iPod" face — or the iPod simply loops. Each stage is the drive losing more of its ability to read. - When the battery is the cause, the arc is different: runtime shrinks over months, then the iPod only works plugged in, and finally — on battery — it can manage nothing but a dim Apple logo flashing every couple of seconds. In the worst stage the reboot cycle is so fast owners report being unable to even enter disk mode between restarts. - A long-stored unit adds one more stage: deeply drained cells can hold the iPod at "Charging, Please Wait" for a long time, because the iPod can only trickle-charge on that screen and cannot charge at all during the Apple-logo part of a boot attempt. A looping unit with a weak cell can stay trapped this way — which is why a long, patient session on a USB wall adapter comes before any verdict.
What typically causes it: - Startup on this iPod has one job it cannot skip: power up the drive, mount it, and read the operating system and music database off it. When any step fails, the iPod either hangs on the Apple logo or gives up and resets to try again — the boot loop you are watching is the iPod retrying the same failed startup over and over. - The most valuable tell in all of Classic repair is timing. If the Apple logo flips to a folder icon almost immediately, the hard drive ribbon cable is the usual fault — it friction-fits into its connector and works loose. If the iPod hangs on the logo for several seconds before erroring, the drive itself has failed. A repair technician cited in the research sees it constantly: a large share of iPods on the bench just need the cable reseated or replaced. Mixing these two cases up is the single most common misdiagnosis — owners buy a whole drive when a cheap cable was the fix. - A worn-out battery impersonates a dead drive almost perfectly. Spinning up the hard drive takes a surge of current; an aged cell with high internal resistance lets the voltage collapse mid-boot, the iPod resets, and the cycle repeats — a faint, flashing Apple logo every few seconds. A battery flex cable left slightly loose after a repair causes the same repeating reboot. This is why the standard advice is to charge on a USB wall adapter for a long stretch before condemning any hardware. - On big flash-upgraded builds there is a boot loop with nothing broken at all. The 7th gen loads its entire music database into 64 MB of memory at startup; past roughly 40,000-50,000 tracks the database no longer fits, the system crashes while loading it, automatically restarts, and crashes again — an endless loop on perfectly healthy hardware. The exact ceiling shifts with how much artwork and metadata your tracks carry. - Flash-storage conversions add their own boot-loop causes: shuffling SD cards between slots of a multi-slot iFlash adapter after a restore leaves duplicate boot partitions across cards, which produces hangs and spontaneous reboots; cards formatted exFAT or NTFS cannot be read by the iPod at all (it needs FAT32 with an MBR layout, or Mac HFS+) and boot-loop until reformatted; and some card families are known troublemakers in these adapters — some SD card/controller combinations/Extreme cards cause skipping and random reboots, Kingston Canvas cards near-guarantee errors or endless boot loops. - Two things this is NOT on the 7th generation: the 6th gen's well-known reboot bug with storage over 128GB does not exist here — this model handles large drives natively, so capacity alone never causes the loop. And a tired battery does not cause the red circle-with-X icon; that icon specifically means the iPod cannot communicate with its storage (drive, cable, or adapter), which keeps the battery and drive cases from being confused once an icon appears.
Handle it safely: - The battery connects through a small 5-pin connector with a brown locking latch on the board. If you open the iPod chasing a boot loop, lift the latch and withdraw the battery ribbon straight along its insertion direction — pulling it sideways or at an angle can rip the entire connector housing off the board and destroy the power traces under it, turning a battery-sized repair into a dead logic board. That damage is one of the most common ways a fixable boot loop becomes an unfixable iPod. - The hard drive cable's brown locking latch is equally unforgiving: if the latch breaks, the cable can never clamp properly again, and the iPod is left with intermittent drive detection — a permanent, maddening boot-loop generator that no new drive fixes. Flip the latch gently and never force the ribbon while the latch is closed.
Owners searching for this describe it as: ipod classic stuck on apple logo, ipod classic 7th gen boot loop, ipod classic keeps restarting apple logo, ipod classic restarts over and over, ipod classic flashing apple logo, ipod classic won't boot past apple logo, ipod classic apple logo then red x, ipod classic endless reboot, ipod classic only works when plugged in, ipod classic restore loop, ipod classic boot loop after iflash, a1238 continually restarts.
Frequently Asked Questions
Use these questions to narrow the part path before ordering. They keep each answer focused on a different diagnostic or fitment decision.
What iPod Classic 7th Generation models does this fit?
This Replacement Battery (160GB) fits: MC293LL/A (160GB Silver), MC297LL/A (160GB Black), MC238LL/A (160GB Silver), MC066LL/A (160GB Black), MC062LL/A (160GB Silver), MC044LL/A (160GB Silver), MC040LL/A (120GB Silver), MB565LL/A (120GB Black), MB150LL/A (120GB Black), MB145LL/A (160GB Silver), MB147LL/A (160GB Black).
Do I need to solder?
No, this installation does not require soldering. Difficulty: Very Difficult. Estimated time: 30 minutes - 2 hours.
How do I know if this battery needs replacement?
Symptoms that can point to this battery include: Won't Charge, Won't Turn On, Battery Drain, Shuts Down Randomly, Swollen Battery. Check fitment, connectors, and nearby parts before treating symptoms as proof.
Can storage trouble look like a bad battery?
Listen for repeated drive clicking and compare whether the symptom changes in disk mode or during restore. Reseat the hard-drive ribbon before replacing the battery again when power symptoms began after service. This battery may still help when runtime is poor after storage symptoms are ruled out. Check the storage path first when sad iPod, clicking, or restore failure is the main event.
What should I check before replacing this battery?
Inspect the battery connector and nearby ribbon paths before ordering another battery. Look for corrosion, torn flex material, or a connector that no longer clamps the battery lead cleanly. This battery helps only when the battery itself remains the isolated failure after seating checks. Check disturbed connectors first when the symptom appeared immediately after service.
screen only shows www.apple.com/support/iPod?
Use the Quick Buying Check, Failure Signs, and Do Not Buy sections together before ordering. The symptom should still point to this battery after nearby parts and fitment are separated.
Why people land on this part
Also searched as: not charge, replaced battery, low battery, not charging, battery won't charge, dead after battery, battery dies, iPod classic 7th generation battery life, doesn't charge, battery drained, battery has been, expanded battery, battery affecting middle, anything the battery, swollen battery affecting, iPod classic 7th generation charger, iPod classic 7th gen battery upgrade, Won't Turn On, Battery Drain, Shuts Down Randomly, new battery, please wait.
You May Also Want
Flash storage is the common upgrade path while the iPod is already open.
Related: Hard Drive ZIF Ribbon CableThe ZIF ribbon cable runs near the battery — inspect during replacement.
Related: Replacement Hard Drive (160GB)Users replacing the battery often upgrade the hard drive at the same time.
