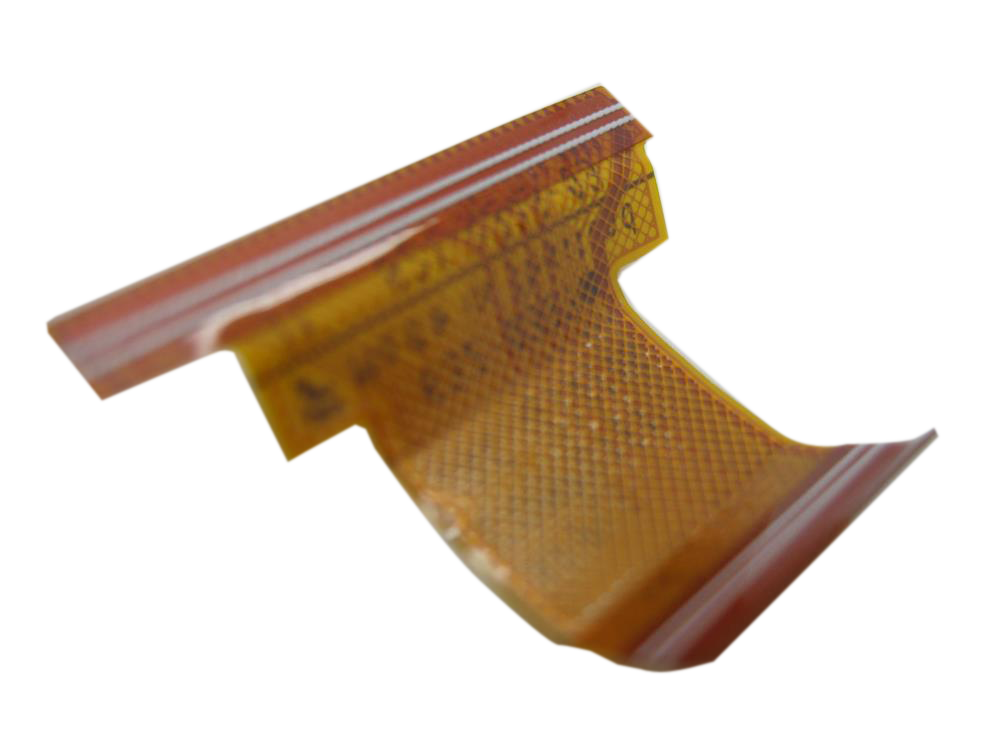

Replacement internal cable for iPod Classic 7G. Use it when the flex or ribbon is torn, creased, loose, or failing at the connector before blaming the whole attached assembly.
Product Overview
This cable listing covers Hard Drive ZIF Ribbon Cable and its own connector path on the iPod Classic 7th Generation.
Use the Compatible Variants table below to confirm capacity, color, case, or order-number fitment.
Choose this part when your iPod shows Red X Icon, Clicking Noise, Sad iPod Icon, or Folder Icon; the checks below help confirm the right part before you order.
- Forgotten passcode requires factory restore which erases all data
- iTunes restore always overwrites all data - use Disk Mode to preserve files
- Clicking hard drive requires replacement, not repair
- iPod Classic requires a single-platter drive (Number of disks = 1)
- USB-to-ZIF enclosures provide a USB interface for ZIF hard drives
- Back up files from iPod_Control/Music with hidden folders enabled
- iPod Classic 160GB uses a single-platter 5mm drive
- Unusual noises from the iPod indicate hard drive failure requiring replacement
- Tapping the iPod only temporarily frees a stuck hard drive
- That technique only works for drives with a stuck platter, and even then it is only a temporary fix.
- Stuck drive fix is temporary -- replace the drive for a permanent solution
- A clicking noise typically indicates a hard drive problem, but note that even a failed hard drive would not cause the complete power-loss symptoms described -- the iPod should still power on and display an error screen with a failing drive.
- Flashing Apple logo indicates a software or hard drive issue
- Toshiba MK1634GAL (160GB) is a confirmed compatible drive for the iPod Classic
- Apple logo hang can indicate hard drive failure preventing firmware access
- Error 1439 on Windows can be caused by unregistered system DLL files
- Red X display requires Disk Mode restore
- Logic board 820-2437-A is compatible with the 240GB HDD
- Factory restore erases all content and returns the iPod to original conditions
- If the iPod is stuck on the Apple logo and will not enter disk mode, this is likely a HDD issue.
- A disabled iPod may require a full iTunes restore which erases all content
- When most songs skip and the iPod will not sync, the hard drive is likely failing.
- Only single-platter ZIF drives are compatible with the iPod Classic.
- For iTunes error 1439 (and related error 50) on Windows, try re-registering system DLL files: 1.
- Keep away from iTunes -- automatic restore will erase all data
- Test the HDD externally with USB-to-ZIF adapter
- Hold/audio jack cable for the 160GB model -- this cable is longer and is required when using the thicker back cover The 820-2437-A logic board is confirmed compatible with the 240GB HDD.
- Songs skipping and sync failure together indicate hard drive failure
- Strange noises from the iPod that prevent restoration are almost certainly caused by the hard drive.
- Run Diagnostic Mode hard drive test to confirm
- An iPod Classic stuck in Disk Mode that iTunes does not recognize typically indicates a bad hard drive.
- Stuck on Apple logo often indicates a HDD issue
- 320GB and 250GB Toshiba drives are dual-platter; 160GB is single-platter
- Hitting the iPod only works for stuck platters, not failed drives
- While this can work temporarily for stuck drives, replacing the drive is the only reliable permanent fix.
- Strange noises from the iPod are caused by the hard drive (only mechanical component)
- Apple Support article TS1463 covers red X troubleshooting steps
- Reformatting the drive via Disk Mode may resolve the Apple logo loop
- A hard drive replacement is likely to fix restore error 1429, especially if the current drive is making noise and freezing.
- Track skipping is a symptom of hard drive failure
- Factory restore clears the lock but erases all data
- Delete all music subfolders before reconnecting for restore
- Red X in this context does not indicate logic board failure
- iPod stuck in Disk Mode with no iTunes recognition indicates a bad hard drive
- Restore erases all content and reinstalls factory firmware
- Restore erases, reformats, and reloads the Windows version of the software
What Is Included
Quick Buying Check
Buy this when
- Hard Drive Failure: Use the cable check when reseating, connector inspection, or a known-good drive points to the storage ribbon instead of the drive itself.
Do not buy for
- Check ribbon seating, liquid history, and board connector damage before treating the display as a guaranteed fix.
- Check the storage cable, adapter setup, battery power stability, and board connector when the symptom changes after reseating or swapping storage.
- Check the board-side connector or adjacent cable first when the damage is not on the replaceable assembly.
- Check nearby parts first when the symptom is tied to another assembly or appeared after unrelated work.
- A damaged storage ribbon can make a good drive look failed, while a failing drive can still produce the same sad-iPod symptoms.
Specifications & Fitment
Part Details
| Detail | Value |
|---|---|
| Model Number | A1238 |
| EMC | EMC 2173 |
| Condition | Used — factory original Apple part. Normal cosmetic wear expected. |
Compatible Variants
| Order Number | Capacity | Color | Case | Compatible | Notes |
|---|---|---|---|---|---|
| MB150LL/A | 120GB | Black | thin | Yes— compatible | Stock match |
| MB565LL/A | 120GB | Black | thin | Yes— compatible | Stock match |
| MC040LL/A | 120GB | Silver | thin | Yes— compatible | Stock match |
| MB147LL/A | 160GB | Black | thin | Yes— compatible | Stock match |
| MC066LL/A | 160GB | Black | thin | Yes— compatible | Stock match |
| MC297LL/A | 160GB | Black | thin | Yes | — |
| MB145LL/A | 160GB | Silver | thin | Yes— compatible | Stock match |
| MC044LL/A | 160GB | Silver | thin | Yes— compatible | Stock match |
| MC062LL/A | 160GB | Silver | thin | Yes— compatible | Stock match |
| MC238LL/A | 160GB | Silver | thin | Yes— compatible | Stock match |
| MC293LL/A | 160GB | Silver | thin | Yes | — |
Diagnostic Failure Cards
Use these model-specific failure cards to decide whether this cable is the right part, a nearby part needs checking first, or escalation makes more sense after simpler checks.
Check before ordering
Sad iPod, clicking, restore, or storage trouble
What you may notice
- People describe clicking, sad iPod or folder screens, restore loops, disk-mode trouble, or storage that will not behave after replacement.
- Sad iPod, red X, clicking drive, restore loop, or disk-mode trouble.
Diagnose first when
- Listen for repeat clicking or repeated spin-up attempts before replacing storage parts.
- Check whether the iPod enters disk mode, restores cleanly, and is recognized by the computer.
- If a drive or flash adapter was just installed, recheck cable seating, adapter orientation, and formatting before buying another part.
- Reseat both ends of the storage ribbon and inspect the connector or latch before replacing the cable.
Similar issues to separate
- The cable can be involved, but the drive cable, adapter formatting, power stability, or logic-board storage path may also be responsible.
- Check storage / restore route, connector seating, and board-side damage before ordering.
- Choose this cable only when clicking, restore failure, or disk errors follow this part or its connection path.
- Choose this cable when the symptom remains isolated to this assembly, its ribbon, or its connector path after first checks.
Check another part first
- Check the storage cable, adapter setup, battery power stability, and board connector when the symptom changes after reseating or swapping storage.
Repair or replacement paths
- Replace the cable only when the storage or restore symptom is tied to this part's role in the startup path.
- Use cable, adapter, or board diagnosis first when restore behavior changes with seating, formatting, or another known-good storage device.
- Advanced or board-level cases
Blank, white, black, lined, or backlight display
What you may notice
- People describe a blank screen, white or black display, missing backlight, lines, or a display that changes after impact or repair.
Diagnose first when
- Confirm the iPod still plays, charges, or is recognized so the screen symptom can be separated from a dead device.
- Inspect the display ribbon and connector if the iPod has been opened or dropped.
- Look for cracks, liquid residue, display discoloration, or connector damage before ordering.
Similar issues to separate
- Choose this cable only when the display symptom is tied to this part or its connection path.
Check another part first
- Check ribbon seating, liquid history, and board connector damage before treating the display as a guaranteed fix.
Repair or replacement paths
- Replace the cable when inspection or repeat testing points to this part's role in the display path.
- Use display-panel replacement when the panel, backlight, or display flex is visibly damaged; continue connector, liquid-damage, or board diagnosis when the display changes after reseating.
Cable ribbon, connector, or contact path
What you may notice
- People describe symptoms that change after opening the iPod, reseating parts, or disturbing nearby flex cables.
- A symptom starts after opening the iPod or disturbing an internal flex cable.
Diagnose first when
- Inspect the relevant ribbon and board connector before replacing the part.
- Look for lifted latches, bent contacts, debris, corrosion, creases, or torn flex material.
- Check whether the symptom changes after careful reseating.
Similar issues to separate
- The cable may be fine while its ribbon, connector, latch, or contact path is loose, dirty, damaged, or not fully seated.
- Connector seating, ribbon damage, or ground-path issues can involve this part, a nearby connector, or a board path.
- Choose this cable only when the part's own flex or contact path is damaged.
Check another part first
- Check the board-side connector or adjacent cable first when the damage is not on the replaceable assembly.
Repair or replacement paths
- Reseat or clean only where the repair procedure supports it.
- Replace the cable when the flex, connector tail, or assembly contact path is physically damaged.
Fitment and post-repair traps
Fitment or model-variant mismatch
What you may notice
- People ask whether a similar-looking part from another capacity, case thickness, or generation will work.
Diagnose first when
- Match the exact model, generation, capacity, and case style shown for the product.
- Do not use a symptom to override fitment: a wrong-variant part can create new symptoms after installation.
Similar issues to separate
- This cable may help only when it matches the model and variant being repaired.
Check another part first
- Check fitment before replacing nearby parts or ordering another copy of the same wrong variant.
Repair or replacement paths
- Use the cable variant matched to the exact iPod.
- Recheck fitment before diagnosing a newly installed part as defective.
Symptoms changed after repair or reassembly
What you may notice
- People describe a new problem appearing immediately after battery, storage, display, audio, or control work.
- A new symptom appeared after battery, storage, audio, display, or control work.
Diagnose first when
- Reopen only as far as needed to inspect the areas touched during the repair.
- Compare the new symptom with what worked before the repair.
- Check cable seating, latch position, and part variant before replacing a second part.
Similar issues to separate
- A post-repair symptom can involve the cable, but disturbed ribbons, latches, grounding, connector seating, or the wrong variant part are common checks before ordering again.
- Check post-repair regression, connector seating, and board-side damage before ordering.
- Choose this cable only when the part itself was torn, creased, or damaged during service.
Check another part first
- Check the exact connector or assembly disturbed during the repair before treating the new part as failed.
Repair or replacement paths
- Correct seating, latch, or variant problems first.
- Replace the cable when the repair damaged that assembly or its flex path.
Symptom remains after basic checks
What you may see: The iPod still points back to Hard Drive ZIF Ribbon Cable after cable seating, battery stability, and nearby connector checks.
Check first: Retest with known-good cables or adjacent parts where practical before ordering.
Check next: A nearby cable, connector, battery, storage device, display path, audio path, or board path can mimic a bad cable.
Symptom changes when touched or reseated
What you may see: The symptom changes after moving the part, reseating a cable, or applying light pressure near the connector path.
Check first: Inspect the connector, latch, flex, solder joints, and nearby board area for damage or corrosion.
Check next: This can still be a connection issue rather than a failed cable alone.
Problem began after another repair
What you may see: The issue started immediately after opening the iPod, replacing another part, or disturbing an internal cable.
Check first: Reopen only as far as needed and inspect the exact area touched during the previous repair.
Check next: Post-repair symptoms often trace to seating, latch, screw, or cable issues before Hard Drive ZIF Ribbon Cable itself is confirmed bad.
Repair considerations
Repair specialists who work on this model consistently flag these checks before replacing the cable — they help confirm the cable is the right fix and not a nearby fault:
- Restore/format steps can erase data or indicate storage failure
- Treat ribbons, tabs, and ZIF connectors as fragile
- Use reset, Disk Mode, restore, or iTunes/Finder behavior as a software/storage check
- Reseat or inspect ribbon cable and connector seating
- Inspect ZIF latch, socket, or clamp condition
- Check drive noise, SMART/data signs, or storage recognition
- Clean logic board with 90%+ isopropyl alcohol
- The Toshiba MK1634GAL (160GB) has been confirmed to work in the iPod Classic without issues.
- Inspect pins for corrosion, bending, or breakage
- If LTC4066 or fuse F1 has failed, logic board replacement is needed
- Power management IC is the LTC4066, located bottom-left of logic board opposite battery connector
- Serial number lookup: 'iPod Classic' = thick; 'iPod Classic (late 2009)' = thin
- Replace the battery if dock connector is clean
- MK8022GAA is the 6G 80GB drive; the Late 2009 thin 160GB uses the MK1634GAL
- Restore error 1429 can be caused by a failing hard drive
- Even new replacement batteries can be defective
- Clean the logic board with rubbing alcohol and a soft paintbrush
- Option 1: Replace the entire logic board (recommended)
- Mid-song stopping with Apple logo indicates corrupted files or early drive degradation
- Backlight may be off during Stage 2, making progress bar hard to see
Do Not Buy / Problems This Cable Does Not Fix
| Situation | Start here instead |
|---|---|
| You see a folder icon, clicking noise, or restore failure | Use the port, cable, host, or power path if the storage ribbon is not the isolated fault. |
| Only the screen is affected and everything else works | Check the display path and ribbon seating before replacing this part. |
| Cable, computer, sync, or port behavior is the primary problem | Check the matching drive, cable seating, and board-side connector before ordering. |
| Variant or capacity does not match this listing | Confirm exact model, capacity, case, and variant fit before ordering. |
| Recent service or connector disturbance is the main clue | Inspect and reseat the cable, latch, or connector path disturbed during service before buying another part. |
| A symptom points to a different part | thin. |
- The Toshiba MK1626GCB uses a CE-ATA connector -- not directly interchangeable with ZIF drives
- Toshiba MK1634GAL is a 160GB, 5mm thick (single platter) drive
- Toshiba MK3233GSG (320GB) is NOT compatible with the iPod Classic
- The longer hold/audio jack cable (160GB version) is required when using a thick back cover
- If the original drive was a Toshiba MK1626GCB, it uses a CE-ATA connector, and you cannot simply swap in a different drive type without the matching cable.
- It is a dual-platter drive (8mm thick), while the iPod's 160GB drive is a single-platter drive (5mm thick).
Install Overview
Before You Start
Turn Hold off, use the reset sequence for this generation, and confirm the model and variant before opening the iPod.
Treat case opening as the highest handling risk. Work around the seams gently and stop if the shell, clips, or internal stack resist.
Do not pull the halves apart or side-load board sockets. Reseat nearby ribbons and connectors before blaming a replacement cable.
Do not fully separate the case halves until the remaining ribbons are released; the back panel can still be connected by ribbon cables. Check drive-ribbon seating and bumper placement while the iPod is open.
Repair Guide
Repair guide summary: iPod Classic Hard Drive Cable Replacement.
Show all 27 installation steps
This iPod case is unusually hard to open without damaging major components. Its metal faceplate, metal backing, and thirteen metal clips make disassembly especially demanding. Caution: this opening method can significantly damage the iPod beyond its current condition. Keep a few extra plastic opening tools nearby, since they are easy to ruin while opening the case. Confirm that the hold switch is locked before you open the iPod.
Opening this iPod is challenging, so do not get discouraged if it takes a few tries. Watch the plastic opening tool tip angle as you insert it into the iPod; keep it as vertical as possible while still clearing the rear panel edge. Guide a plastic opening tool into the seam between the front and rear of the iPod.
Slide a second plastic opening tool into the seam between the iPod front and rear, keeping the two tools at least 1.5 inches apart.
Working at an angle, carefully slide a putty knife about 1/8 inch into the gap between the two opening tools. You will find thin metal rails running along the inside of the back panel, so work very carefully when inserting the putty knife. After the putty knife clears the rear panel lip, rotate it vertical and carefully but firmly work it straight down through the opening tool gap.
Press on the rear panel behind the putty knife with your fingers to reduce bending. Slowly flex the putty knife so most metal tabs along this side of the iPod release. The idea is to control how the rear panel bends instead of trying to prevent all bending. Any side bend should draw the rear panel lip away from the iPod, not push outward on the curved surface. This also releases as many side clips as possible.
Take the putty knife out, then place it closer to the iPod corner and use the same gentle wiggle method. If possible, do not bend the rear panel corner.
Near the headphone jack, guide a plastic opening tool into the seam between the front and rear of the iPod. It may be easier to flex the putty knife downward carefully to create more room for the opening tool. Be careful not to bend the rear panel corner.
Near the display center, carefully slide a metal spudger into the gap made by the plastic opening tool. A visible bump can form here in the rear panel and is hard to repair. When levering the tab free, pivot the metal spudger on the rear panel edge instead of bending the rear panel outward. With the metal spudger, release the single clip at the iPod top edge.
Near the other top corner, guide a plastic opening tool into the seam between the front and rear of the iPod
On the other side, use the opening tool to start the same case-opening gap. It may help to angle the tool stuck in the top corner to create enough room.
Take the opening tool out of the top corner, then slide it into the seam between the iPod front and rear. Keep at least 1.5 inches between the two tools, as on the opposite side.
Working at an angle, carefully slide a putty knife about 1/8 inch into the gap between the two opening tools. Again, you will find thin metal rails running along the inside of the back panel, so work very carefully when inserting the putty knife. After the putty knife passes the rear panel lip, turn it vertical and carefully but firmly work it straight down through the gap between the plastic opening tools. Press on the rear panel behind the putty knife with your fingers to reduce bending. Flex the putty knife just enough to make sure most metal tabs along this side of the iPod release.
The metal clips near the corners grip the front panel tightly. Release these clips before opening the iPod. Carefully slide a metal spudger into the area beside the stubborn metal clip.
Gently work the metal spudger downward until it is fully seated in the rear panel.
Gently start releasing the clip from the front panel. A visible bump can form here in the rear panel and is hard to repair. When levering the tab free, pivot the metal spudger on the rear panel edge instead of bending the rear panel outward.
Use the metal spudger to apply upward pressure under the front panel until the metal clip releases.
You will find two ribbon cables connecting the rear panel to the remaining iPod assembly. In the following step, take care not to damage these ribbon cables. In this step, grasp the front-panel assembly with one hand and the back panel with the other. Pause for a moment before continuing. Very gently release the remaining rear-panel clips by pulling the tops of the front and rear panels apart, using the iPod bottom as a hinge. Take great care not to damage the ribbon cables joining the two halves.
With a spudger, slide the connector upward where it holds the orange battery ribbon. Lift the locking bar only about 2 mm to release the cable. Move the orange battery ribbon out of its connector.
Set the rear panel beside the iPod, taking care not to strain the orange headphone jack cable.
Raise the hard drive with one hand to expose the headphone jack ribbon underneath. With a spudger, flip up the plastic tab securing the headphone jack ribbon in place. The tab can rotate up 90 degrees, releasing the ribbon cable. Move the orange headphone jack ribbon out of its connector. The rear panel is now released from the iPod.
After opening, check the lower-case clips. If any clip bent upward, press it back down gently so the rear case can close cleanly.
Use the broad, flat face of the metal spudger to press the clip downward. Work carefully so the thin metal rail does not tear away from the rear panel. While shaping these clips, take care not to damage any headphone jack parts.
Set the rear panel on its side on a clean, hard surface. Carefully but firmly press it downward, rolling the full lip edge back into place. You may need to repeat this several times to straighten the sides well. Slightly overcorrecting the case edges inward is better than leaving them too far out, because reseating the front panel will bend the rear panel back into alignment. Once the rear panel is restored to good condition, continue with the iPod repair.
Rotate the hard drive out of the framework, then set it with the connector facing upward. With a spudger, lift the small black locking tab for the orange hard drive ribbon. The tab rotates upward 90 degrees and frees the ribbon cable.
Move the orange hard drive ribbon cable straight out of its connector. If the replacement hard drive did not include rubber mounting brackets or foam padding, transfer those parts from the old drive.
With a spudger, flip up the plastic tab securing the orange hard drive ribbon in place. The tab can rotate up 90 degrees, releasing the ribbon cable. Confirm that you are freeing the tab closest to the hard drive ribbon, not the connector's black section.
Move the orange hard drive ribbon cable straight out of its connector. If adhesive holds the cable to the logic board, carefully pull up on the cable to loosen it.
After This Repair
| Check | What to do |
|---|---|
| Test the connected part | Confirm the assembly on both ends of the cable behaves normally before closing the iPod. |
| Still not working? | Inspect the latch, cable orientation, and board-side connector before replacing another part. |
Frequently Asked Questions
Use these questions to narrow the part path before ordering. They keep each answer focused on a different diagnostic or fitment decision.
How do I choose the right hard-drive cable?
Match the exact storage path for this model. Some cables depend on drive brand, case depth, or connector style, not just the iPod generation.
When is the cable more likely than the drive?
A cable becomes more likely when it is torn, creased, loose, corroded, or fails after reseating, especially if known-good storage still behaves the same way.
When is this cable the right fix for sad iPod, clicking, or restore trouble?
Listen for repeated drive clicking and note whether the iPod reaches disk mode. Reseat the hard-drive ribbon and inspect the storage connector or retaining latch before buying another storage part. Try restore only after cable seating and power behavior are stable enough to complete the process. Compare with a known-good drive, cable, or flash adapter when available. Listen for repeat clicking or repeated spin-up attempts before replacing storage parts. Check whether the iPod enters disk mode, restores cleanly, and is recognized by the computer. If a drive or flash adapter was just installed, recheck cable seating, adapter orientation, and formatting before buying another part. Choose this hard-drive cable only when clicking, sad iPod, restore, or disk-mode symptoms follow the storage path. Choose this cable only when clicking, restore failure, or disk errors follow this part or its connection path. Check battery stability, connector seating, and the hard-drive cable before treating the storage device alone as confirmed. Check the storage cable, adapter setup, battery power stability, and board connector when the symptom changes after reseating or swapping storage.
What should I check before replacing this cable?
Reseat the storage ribbon squarely and confirm the latch is closed before replacing the storage device again. Check adapter orientation, case clearance, and capacity/format expectations when using a flash path. Inspect the relevant ribbon and board connector before replacing the part. Look for lifted latches, bent contacts, debris, corrosion, creases, or torn flex material. Check whether the symptom changes after careful reseating. Choose this hard-drive cable only when the storage path remains isolated after ribbon and fitment details. Choose this cable only when the part's own flex or contact path is damaged. Check the cable and storage connector path first when the symptom started immediately after a storage swap. Check the board-side connector or adjacent cable first when the damage is not on the replaceable assembly.
Can the HDD be replaced with a SSD?
Use the Quick Buying Check, Failure Signs, and Do Not Buy sections together before ordering. The symptom should still point to this cable after nearby parts and fitment are separated.
