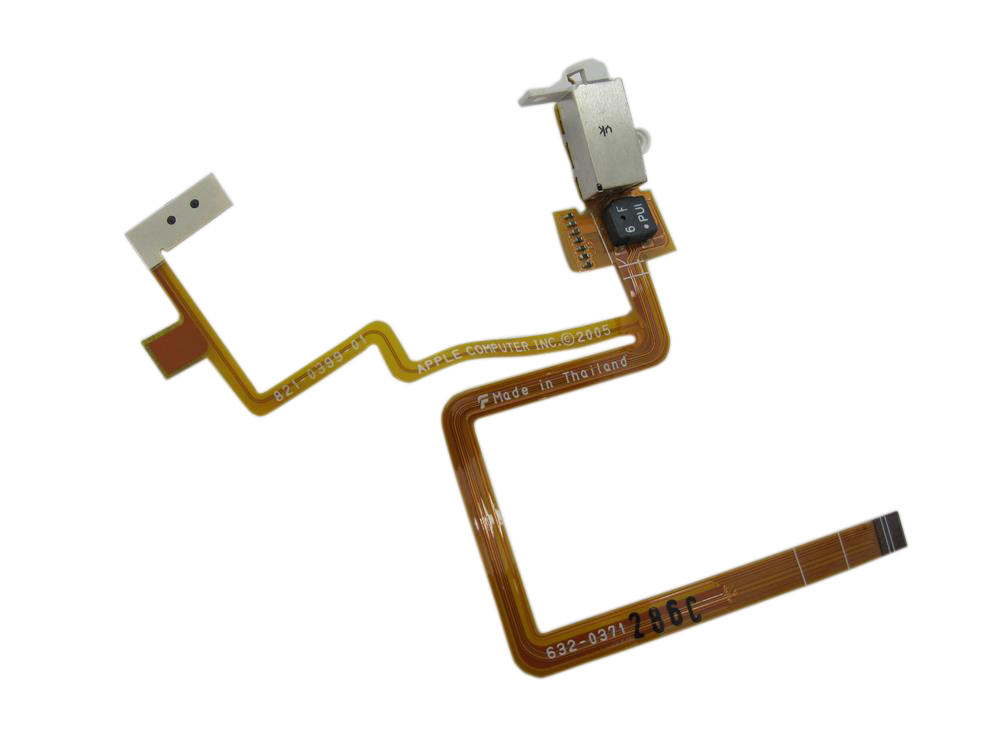

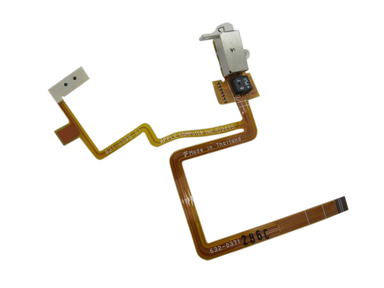

Replacement headphone jack assembly for iPod Classic 7G. Use it for damaged audio-output hardware, channel issues, or related Hold-switch hardware on models where those parts share the same assembly.
Product Overview
This headphone jack listing covers Replacement Headphone Jack and its own connector path on the iPod Classic 7th Generation.
Use Part Details for the confirmed part-number reference. Use the Compatible Variants table below to confirm capacity, color, case, or order-number fitment.
Choose this part when your iPod shows No Sound, Audio Distortion, One Ear Only, or Skipping Songs; the checks below help confirm the right part before you order.
What Is Included
Quick Buying Check
Buy this when
- Headphone Jack Not Working: Use the headphone/Hold check when headphone output or Hold-switch behavior is isolated from dock audio, board audio, and connector seating.
Diagnose first when
- Confirm the capacity match before ordering: 160GB.
- Confirm the case thickness before ordering: thin.
- Test with known-good headphones before opening the iPod.
- Check whether audio behaves differently through the dock connector and the headphone jack.
- Inspect the headphone/hold ribbon and connector if the iPod has been opened.
Do not buy for
- Check the logic board or board-level audio check first when both the headphone jack and dock or line-out check are silent. If the clue repeats after the connector and ribbon are seated, continue with board-level diagnosis.
- One-ear audio often points to the jack, but both dock and headphone audio failing together can point to the logic board.
- Hold-switch symptoms may be the shared headphone/hold assembly rather than the click wheel.
Specifications & Fitment
Part Details
| Detail | Value |
|---|---|
| Model Number | A1238 |
| EMC | EMC 2173 |
| Condition | Used — factory original Apple part. Normal cosmetic wear expected. |
| OEM Part |
632-0371, 632-0402, 632-0626, 632-0627, 821-0690
|
Compatible Variants
| Order Number | Capacity | Color | Case | Compatible | Notes |
|---|---|---|---|---|---|
| MB147LL/A | 80GB | Black | thin | Yes— compatible | Same thin-Classic part class; unit is the 2007 thin 80GB Classic — sold under the iPod Classic 6th Generation pages |
| MB565LL/A | 120GB | Black | thin | Yes— compatible | Same thin-Classic part class; unit is the Late-2008 thin 120GB Classic — sold under the iPod Classic 6th Generation pages |
| MC297LL/A | 160GB | Black | thin | Yes | — |
| MC293LL/A | 160GB | Silver | thin | Yes | — |
| MB150LL/A | 160GB | Black | thick | No— thick-case 2007 160GB part set | The 2007 thick 160GB rear case, battery, hard drive, HDD cable, bumpers and headphone jack are not compatible with thin models; sold under the iPod Classic 6th Generation pages |
| MB145LL/A | 160GB | Silver | thick | No— thick-case 2007 160GB part set | The 2007 thick 160GB rear case, battery, hard drive, HDD cable, bumpers and headphone jack are not compatible with thin models; sold under the iPod Classic 6th Generation pages |
Diagnostic Failure Cards
Use these model-specific failure cards to decide whether this headphone jack assembly is the right part, a nearby part needs checking first, or escalation makes more sense after simpler checks.
| Symptom | What it means & what to check |
|---|---|
| Symptom remains after basic checks |
What you may see: The iPod still points back to Replacement Headphone Jack after cable seating, battery stability, and nearby connector checks. Check first: Retest with known-good cables or adjacent parts where practical before ordering. Check next: A nearby cable, connector, battery, storage device, display path, audio path, or board path can mimic a bad headphone jack assembly. |
| Symptom changes when touched or reseated |
What you may see: The symptom changes after moving the part, reseating a cable, or applying light pressure near the connector path. Check first: Inspect the connector, latch, flex, solder joints, and nearby board area for damage or corrosion. Check next: This can still be a connection issue rather than a failed headphone jack assembly alone. |
| Problem began after another repair |
What you may see: The issue started immediately after opening the iPod, replacing another part, or disturbing an internal cable. Check first: Reopen only as far as needed and inspect the exact area touched during the previous repair. Check next: Post-repair symptoms often trace to seating, latch, screw, or cable issues before Replacement Headphone Jack itself is confirmed bad. |
| Hold switch is stuck, locked, or not reporting correctly |
What you may notice
Diagnose first when
Similar issues to separate
Check another part first
Repair or replacement paths
|
| Audio or Hold problems after repair |
What you may notice
Diagnose first when
Similar issues to separate
Check another part first
Repair or replacement paths
|
| Dock output and headphone output behave differently |
What you may notice
Diagnose first when
Similar issues to separate
Check another part first
Repair or replacement paths
Cautions
|
| Fitment or model-variant boundary |
What you may notice
Similar issues to separate
Check another part first
|
| Liquid, corrosion, or residue context |
What you may notice
Similar issues to separate
|
| No sound or missing headphone audio |
What you may notice
Diagnose first when
Similar issues to separate
Check another part first
Repair or replacement paths
|
| One-channel, static, or uneven headphone audio |
What you may notice
Diagnose first when
Similar issues to separate
Check another part first
Repair or replacement paths
|
| Ribbon, ZIF, connector, or ground-path checks |
What you may notice
Similar issues to separate
|
| Headphone Jack / Hold-Switch Assembly appears unresponsive or intermittent |
What you may notice
Diagnose first when
|
Repair considerations
Run these checks before replacing the headphone jack assembly — they confirm the headphone jack assembly is the right fix and not a nearby fault:
- Compare headphone output with dock or line-out output
- Replace headphone jack and hold-switch assembly
Do Not Buy / Problems This Headphone Jack Assembly Does Not Fix
| Situation | Start here instead |
|---|---|
| The fault is clearly the storage, battery, or logic board — not the jack or Hold switch | Start with the hard drive, battery, or logic-board check for your model before buying this assembly. |
| Variant or capacity does not match this listing | Compare known-good headphones, Hold behavior, dock or line-out audio, and the headphone/Hold ribbon first. |
| Headphone and dock or line-out audio are both silent | Start with the logic board or audio-circuit check; a headphone-only failure is a reason to buy this assembly, not avoid it. |
| Charging, swelling, runtime, or power is the primary problem | Confirm power, charging, and pack-condition clues before replacing this part. |
| A symptom points to a different part | thin. |
Install Overview
Before You Start
Turn Hold off, use the reset sequence for this generation, and confirm the model and variant before opening the iPod.
Treat case opening as the highest handling risk. Work around the seams gently and stop if the shell, clips, or internal stack resist.
Do not pull the halves apart or side-load board sockets. Reseat nearby ribbons and connectors before blaming a replacement headphone jack assembly.
Do not fully separate the case halves until the remaining ribbons are released; the back panel can still be connected by ribbon cables.
Repair Guide
Repair guide summary: iPod Classic Headphone Jack & Hold Switch Replacement.
Show all 31 installation steps
For safety, completely discharge the iPod before disassembly. This reduces dangerous thermal-event risk if the battery is accidentally damaged during repair. If the battery is swollen, take appropriate precautions. This iPod case is unusually hard to open without damaging major components. Its metal faceplate, metal backing, and thirteen metal clips make disassembly especially demanding. Caution: this opening method can significantly damage the iPod beyond its current condition. Keep a few extra plastic opening tools nearby, since they are easy to ruin while opening the case. Confirm that the hold switch is locked before you open the iPod.
Opening this iPod is challenging, so do not get discouraged if it takes a few tries. Watch the plastic opening tool tip angle as you insert it into the iPod; keep it as vertical as possible while still clearing the rear panel edge. Guide a plastic opening tool into the seam between the front and rear of the iPod.
Slide a second plastic opening tool into the seam between the iPod front and rear, keeping the two tools at least 1.5 inches apart.
Working at an angle, carefully slide a putty knife about 1/8 inch into the gap between the two opening tools. You will find thin metal rails running along the inside of the back panel, so work very carefully when inserting the putty knife. After the putty knife clears the rear panel lip, rotate it vertical and carefully but firmly work it straight down through the opening tool gap.
Press on the rear panel behind the putty knife with your fingers to reduce bending. Slowly flex the putty knife so most metal tabs along this side of the iPod release. The idea is to control how the rear panel bends instead of trying to prevent all bending. Any side bend should draw the rear panel lip away from the iPod, not push outward on the curved surface. This also releases as many side clips as possible.
Take the putty knife out, then place it closer to the iPod corner and use the same gentle wiggle method. If possible, do not bend the rear panel corner.
Between the lock slider and headphone jack, guide a plastic opening tool into the seam between the front and rear of the iPod. It may be easier to flex the putty knife downward carefully to create more room for the opening tool. Be careful not to bend the rear panel corner.
Near the display center, carefully slide a metal spudger into the gap made by the plastic opening tool. A visible bump can form here in the rear panel and is hard to repair. When levering the tab free, pivot the metal spudger on the rear panel edge instead of bending the rear panel outward. With the metal spudger, release the single clip at the iPod top edge.
Near the other top corner, insert an opening tool into the gap between the front and rear of the iPod
On the other side, insert an opening tool into the gap between the front and rear of the iPod. It may help to angle the opening tool stuck in the top corner to create enough of a gap.
Take out the plastic opening tool from the top corner and slide it into the seam between the front and rear of the device, leaving at least 1.5 inches of space between the 2 tools (as done on the other side).
Working at an angle, carefully slide a putty knife about 1/8 inch into the gap between the two opening tools. Again, you will find thin metal rails running along the inside of the back panel, so work very carefully when inserting the putty knife. After the putty knife passes the rear panel lip, turn it vertical and carefully but firmly work it straight down through the gap between the plastic opening tools. Press on the rear panel behind the putty knife with your fingers to reduce bending. Flex the putty knife just enough to make sure most metal tabs along this side of the iPod release.
The metal clips near the corners grip the front panel tightly. Release these clips before opening the iPod. Carefully slide a metal spudger into the area beside the stubborn metal clip.
Gently work the metal spudger downward until it is fully seated in the rear panel.
Gently start releasing the clip from the front panel. A visible bump can form here in the rear panel and is hard to repair. When levering the tab free, pivot the metal spudger on the rear panel edge instead of bending the rear panel outward.
Use the metal spudger to apply upward pressure under the front panel until the metal clip releases.
You will find two ribbon cables connecting the rear panel to the remaining iPod assembly. In the following step, take care not to damage these ribbon cables. In this step, grasp the front-panel assembly with one hand and the back panel with the other. Pause for a moment before continuing. Very gently release the remaining rear-panel clips by pulling the tops of the front and rear panels apart, using the iPod bottom as a hinge. Take great care not to damage the ribbon cables joining the two halves.
The battery flex cable lock tab is very delicate. Pulling too far, or pulling on the connector's white portion, can tear it from the main board. If that happens, battery connector repair becomes very difficult. With angled tweezers or an opening tool, raise the brown lock latch straight up by 1 mm. Confirm you draw from both sides of the latch. Take care not to pull on the white portions extending to the connector's outer edges. Move the brown lock tab straight upward. The connector is fragile and can break if it shifts to the side. Grasp the flex cable with your fingers or tweezers and draw it straight up to detach it. If using tweezers, avoid grasping the cable too close to the socket or the cable contacts may short.
Set the rear panel beside the iPod, taking care not to strain the orange headphone jack cable.
Raise the hard drive with one hand to expose the headphone jack ribbon underneath. With a spudger, flip up the plastic tab securing the headphone jack ribbon in place. The tab can rotate up 90 degrees, releasing the ribbon cable. Move the orange headphone jack ribbon out of its connector. The rear panel is now released from the iPod.
After opening, check the rear-panel clips. If any clip bent upward, press it back down gently so the rear case can close cleanly.
Use the broad, flat face of the metal spudger to press the clip downward. Work carefully so the thin metal rail does not tear away from the rear panel. Flat pin-nosed pliers can reduce slipping and headphone jack damage risk. While shaping these clips, take care not to damage any headphone jack parts.
Set the rear panel on its side on a clean, hard surface. Carefully but firmly press it downward, rolling the full lip edge back into place. You may need to repeat this several times to straighten the sides well. Slightly overcorrecting the case edges inward is better than leaving them too far out, because reseating the front panel will bend the rear panel back into alignment. Once the rear panel is restored to good condition, continue with the iPod repair.
The battery sticks to the rear panel adhesive. As you remove it, take care not to tear the orange ribbons for the headphone jack or hold button. With a spudger, raise the battery and the attached orange cable out of the device. If you have a 160GB iPod, the battery will be thicker than thinner battery variants. If the battery is hard to remove, warm the iPod back with a hair dryer or heat gun to soften the glue holding the battery in place. Do not overheat the battery.
Hold the orange ribbon cables in place with one hand, then peel up the black tape securing those cables to the rear panel with your other hand.
Take out the two black Phillips screws securing the headphone jack to the back panel. These screws are small; make sure a size 00 screwdriver is on hand.
Take out these two screws: Fastener detail: one black Phillips screw holding the hold switch near the corner of the device. Fastener detail: one silver Phillips screw securing the other edge of the hold switch.
Raise the hold switch free from its housing on the rear panel. Do not remove the hold switch completely yet because it shares the headphone jack cable.
Move the headphone jack out of its housing on the rear panel. Raise the headphone jack and hold switch assembly out of the iPod.
If you're just trying to take out the rear panel, you can skip Steps 30 and 31. If the replacement headphone jack includes the white plastic hold switch, reinstall the replacement headphone jack. When replacing the hold switch assembly, align the locating pin near the silver screw hole first; the rest then settles into place. After the screws are in, remember to peel the backing tape from the contact pad along the jack. If the replacement part lacks the plastic hold switch, use the next steps to transfer the switch to the new headphone jack. Take out the single Phillips screw nearest to the hold switch. Raise the plastic part of the Hold switch away from the orange ribbon cable. During switch reassembly, confirm that the black notch lines up with the gray slider.
With the small plastic opening tool, carefully peel up the orange ribbon cable and attached black Hold switch from the metal backing. When attaching the replacement Hold switch, align the two small rear posts on the switch with the two holes in the metal backing.
After This Repair
| Check | What to do |
|---|---|
| Test audio and Hold | Use known-good headphones and check both channels, static, plug movement, and Hold-switch behavior. |
| Still not working? | Compare headphone output with dock or line-out behavior when the model supports it, then inspect ribbon seating. |
Frequently Asked Questions
Use these questions to narrow the part path before ordering. They keep each answer focused on a different diagnostic or fitment decision.
How do I choose the right headphone jack assembly?
Match capacity 160GB and color Silver, Black, case depth, and whether the Hold switch shares the same assembly on this model before ordering.
Can one-channel audio be because of something else?
Yes. Check headphones, the jack opening, debris, pressure on the case, ribbon seating, and board-side damage before treating the jack assembly as the only cause.
Which thin or thick headphone/hold assembly fits this iPod?
Match the assembly to capacity and case thickness before using audio or Hold symptoms to choose a part. This part is the right choice for 160 GB fitment. Check variant fit before replacing another audio or input part.
Is this an iPod Classic?
Apple sold this model as iPod classic (Late 2009). '7th Generation' is common repair-market shorthand for the thin 160GB A1238 model, not an official Apple product name.
My iPod will only play through one headphone?
Compare headphone audio, dock or line-out audio, Hold-switch behavior, and jack movement before isolating the headphone/Hold assembly.
Pausing itself in lock mode?
Confirm Hold is off, reset the iPod, then inspect the control ribbon, latch, ground path, and shared Hold assembly before ordering.
Why people land on this part
Some buyers search for "beep", "wont restore", or "Folder Icon"; confirm the checks above point to this same part before ordering.
Also searched as: ipod classic 7th generation headphone jack replacement, ipod classic 7th generation sound quality, no sound comes, Audio Distortion, One Ear Only, Skipping Songs, Headphone Jack Not Working, no audio, hear static, static almost ever, audio jack, jack hold, earphone jack.
