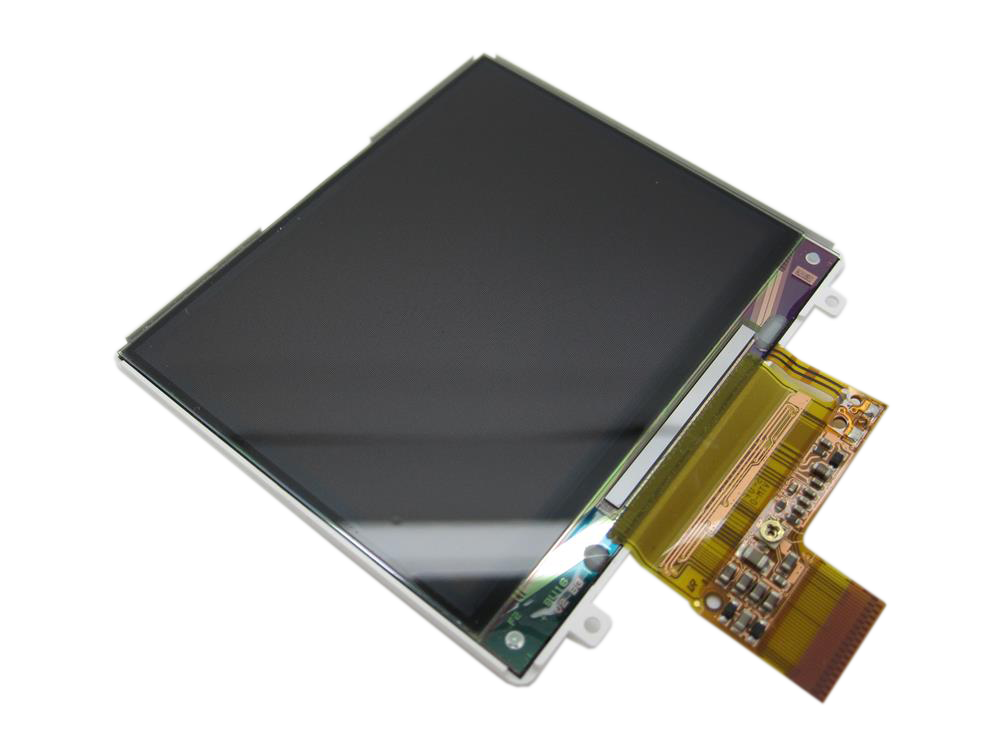

Replacement LCD display for iPod Classic 6th Generation. Buy when the screen is cracked, broken, blank, lined, or showing backlight-related problems — after confirming the iPod is otherwise alive.
Product Overview
This iPod Classic screen replacement is the internal LCD display behind the metal faceplate. Use this listing for cracked screen, broken screen, white screen, black screen, no display, no backlight, dim screen, lines on screen, screen goes black, or screen flashes behavior after basic ribbon and power checks.
The screen is an active diagnostic part: visual symptoms are valid buy signals only when the iPod is otherwise alive. If the device is completely dead, clicking, stuck in restore, or showing storage warnings, start with power or storage before replacing the LCD.
Also called the
iPod Classic LCD replacement, iPod Classic display replacement, iPod Classic 6G screen replacement, LCD screen, broken screen, iPod classic screen replacement, iPod classic 6th gen screen replacement, or iPod classic 6th generation screen replacement.
What Is Included
Quick Diagnosis
| What you see | Check first | This screen makes sense when |
|---|---|---|
| Cracked or physically damaged LCD | Visual confirmation | Visible crack, shatter, or impact damage. |
| White screen / blank display | Confirm the iPod plays audio through headphones. | The device is alive but the display shows nothing useful. |
| Black screen / no backlight | Force restart, test with charger, and listen for drive spin. | The iPod responds to controls but the screen stays dark. |
| Lines, bars, or color distortion | Reseat the display ribbon and inspect the ZIF latch. | Lines persist after ribbon reseating. |
| Dim or uneven backlight | Reseat the ribbon and check for pressure marks. | Backlight is visibly weak or uneven. |
| Screen works sometimes | Gently flex the display-ribbon area. | The symptom changes with movement, pointing to the ribbon or connector path. |
Specifications & Fitment
Part Details
| Detail | Value |
|---|---|
| Model Number | A1238 |
| EMC | EMC 2173 |
| Condition | Used — factory original Apple part. Normal cosmetic wear expected. |
| Display Size | 2.5" |
| Resolution | 320×240 (QVGA) |
| Type | Color LCD |
| Connector | 34-pin ZIF |
Compatible Variants
| Order Number | Capacity | Color | Case | Compatible | Notes |
|---|---|---|---|---|---|
| MB147LL/A | 80GB | Black | thin (0.41 in) | Yes | — |
| MB029LL/A | 80GB | Silver | thin (0.41 in) | Yes | — |
| MB565LL/A | 120GB | Black | thin (0.41 in) | Yes | — |
| MB562LL/A | 120GB | Silver | thin (0.41 in) | Yes | — |
| MB150LL/A | 160GB | Black | thick (0.53 in) | Yes | — |
| MB145LL/A | 160GB | Silver | thick (0.53 in) | Yes | — |
| MC297LL/A | 160GB (Late 2009) | Black | thin | Yes— compatible | Stock match |
| MC293LL/A | 160GB (Late 2009) | Silver | thin | Yes— compatible | Stock match |
Failure Signs
Cracked or broken screen
Visible LCD damage, cracks, dark spots, or impact damage make the display a strong candidate.
White or blank display
If the iPod still plays audio, responds to controls, or syncs, reseat the ribbon first and then consider the LCD.
Backlight problems
No backlight, dim screen, or uneven backlight can point to the LCD path after charger and ribbon checks.
Lines or color distortion
Lines, bars, or distorted colors that remain after ZIF-latch and ribbon reseating can point to the display.
Blank, white, black, lined, or backlight display
What you may see: People describe a blank screen, white or black display, missing backlight, lines, or a display that changes after impact or repair
Check first: Confirm the iPod still plays, charges, or is recognized so the screen symptom can be separated from a dead device
- Inspect the display ribbon and connector if the iPod has been opened or dropped
- Look for cracks, liquid residue, display discoloration, or connector damage before ordering
- If the symptom changes when the plug, cable, case, or display is gently moved, treat that as an intermittent-connection clue and inspect the relevant connector or ribbon before replacing parts
Display ribbon, connector, or contact path
What you may see: People describe symptoms that change after opening the iPod, reseating parts, or disturbing nearby flex cables
Check first: Inspect the relevant ribbon and board connector before replacing the part
- Look for lifted latches, bent contacts, debris, corrosion, creases, or torn flex material
- Check whether the symptom changes after careful reseating
Symptoms changed after repair or reassembly
What you may see: People describe a new problem appearing immediately after battery, storage, display, audio, or control work
Check first: Reopen only as far as needed to inspect the areas touched during the repair
- Compare the new symptom with what worked before the repair
- Check cable seating, latch position, and part variant before replacing a second part
- If the symptom changes when the plug, cable, case, or display is gently moved, treat that as an intermittent-connection clue and inspect the relevant connector or ribbon before replacing parts
Fitment or model-variant mismatch
What you may see: People ask whether a similar-looking part from another capacity, case thickness, or generation will work
Check first: Match the exact model, generation, capacity, and case style shown for the product
- Do not use a symptom to override fitment: a wrong-variant part can create new symptoms after installation
- If the symptom changes when the plug, cable, case, or display is gently moved, treat that as an intermittent-connection clue and inspect the relevant connector or ribbon before replacing parts
Other Symptoms That May Involve This Part
| Commonly described as | What to check before ordering |
|---|---|
| dead pixels | Try force restart first. If it stays dead after a known-good charge source for 30+ minutes, check battery, then dock connector, then logic board. |
Related checks
- Replacement Battery (Thin — 80GB / 120GB): check this part first when the nearby battery check matches the symptom better.
- Replacement Click Wheel (White): check this part first when the nearby click wheel check matches the symptom better.
- 30-Pin Dock Connector / Charging Port: check this part first when the nearby dock connector check matches the symptom better.
- Factory Original Logic Board (2007 80GB/160GB): check this part first when the nearby logic board check matches the symptom better.
Diagnose first when
- Listen for repeat clicking or repeated spin-up attempts before replacing storage parts.
- Confirm the iPod still plays, charges, or is recognized so the screen symptom can be separated from a dead device.
- Inspect the relevant ribbon and board connector before replacing the part.
- Match the exact model, generation, capacity, and case style shown for the product.
Do Not Buy This Screen Yet If...
| Situation | Start here instead |
|---|---|
| The iPod is completely dead with no sound, no drive spin, and no response | Start with battery and charging diagnosis before replacing the screen. |
| Clicking or ticking sounds are coming from the drive area | Hard drive or hard-drive cable, not the screen. |
| Folder icon, sad iPod, restore loop, or use iTunes to restore message appears | Storage or firmware path before screen hardware. |
| Back case is bowing or the battery looks swollen | Battery replacement first; a swollen battery can create display pressure marks. |
| Your iPod is Late 2009 thin 160GB MC293LL/A or MC297LL/A | Confirm the later 160GB fitment separately before ordering this 6G screen path. |
| The display problem began immediately after service | Reseat the display ribbon and inspect the ZIF latch before treating the LCD as failed. |
Install Overview
Before You Start
Turn Hold off, use the reset sequence for this generation, and confirm the model and variant before opening the iPod.
Treat case opening as the highest handling risk. Work around the seams gently and stop if the shell, clips, or internal stack resist.
Do not pull the halves apart or side-load board sockets. Reseat nearby ribbons and connectors before blaming a replacement screen.
If the display shows pressure marks, dark spots, bowing, or lifting after repair or battery replacement, stop reassembly and inspect internal fit before treating the display alone as failed.
If the symptom appeared after opening the iPod or replacing a part, inspect and reseat nearby ribbon cables and connectors before assuming the replacement part is bad.
Do not fully separate the case halves until the remaining ribbons are released; the back panel can still be connected by ribbon cables. Reseat and protect the display ribbon during reassembly before assuming the panel itself is bad.
Repair Guide
Repair guide summary: iPod Classic Display Replacement.
Show all 34 installation steps
This iPod case is unusually hard to open without damaging major components. Its metal faceplate, metal backing, and thirteen metal clips make disassembly especially demanding. Caution: this opening method can significantly damage the iPod beyond its current condition. Keep a few extra plastic opening tools nearby, since they are easy to ruin while opening the case. Confirm that the hold switch is locked before you open the iPod.
Opening this iPod is challenging, so do not get discouraged if it takes a few tries. Watch the plastic opening tool tip angle as you insert it into the iPod; keep it as vertical as possible while still clearing the rear panel edge. Guide a plastic opening tool into the seam between the front and rear of the iPod.
Slide a second plastic opening tool into the seam between the iPod front and rear, keeping the two tools at least 1.5 inches apart.
Working at an angle, carefully slide a putty knife about 1/8 inch into the gap between the two opening tools. You will find thin metal rails running along the inside of the back panel, so work very carefully when inserting the putty knife. After the putty knife clears the rear panel lip, rotate it vertical and carefully but firmly work it straight down through the opening tool gap.
Press on the rear panel behind the putty knife with your fingers to reduce bending. Slowly flex the putty knife so most metal tabs along this side of the iPod release. The idea is to control how the rear panel bends instead of trying to prevent all bending. Any side bend should draw the rear panel lip away from the iPod, not push outward on the curved surface. This also releases as many side clips as possible.
Take the putty knife out, then place it closer to the iPod corner and use the same gentle wiggle method. If possible, do not bend the rear panel corner.
Near the headphone jack, guide a plastic opening tool into the seam between the front and rear of the iPod. It may be easier to flex the putty knife downward carefully to create more room for the opening tool. Be careful not to bend the rear panel corner.
Near the display center, carefully slide a metal spudger into the gap made by the plastic opening tool. A visible bump can form here in the rear panel and is hard to repair. When levering the tab free, pivot the metal spudger on the rear panel edge instead of bending the rear panel outward. With the metal spudger, release the single clip at the iPod top edge.
Near the other top corner, guide a plastic opening tool into the seam between the front and rear of the iPod
On the other side, use the opening tool to start the same case-opening gap. It may help to angle the tool stuck in the top corner to create enough room.
Take the opening tool out of the top corner, then slide it into the seam between the iPod front and rear. Keep at least 1.5 inches between the two tools, as on the opposite side.
Working at an angle, carefully slide a putty knife about 1/8 inch into the gap between the two opening tools. Again, you will find thin metal rails running along the inside of the back panel, so work very carefully when inserting the putty knife. After the putty knife passes the rear panel lip, turn it vertical and carefully but firmly work it straight down through the gap between the plastic opening tools. Press on the rear panel behind the putty knife with your fingers to reduce bending. Flex the putty knife just enough to make sure most metal tabs along this side of the iPod release.
The metal clips near the corners grip the front panel tightly. Release these clips before opening the iPod. Carefully slide a metal spudger into the area beside the stubborn metal clip.
Gently work the metal spudger downward until it is fully seated in the rear panel.
Gently start releasing the clip from the front panel. A visible bump can form here in the rear panel and is hard to repair. When levering the tab free, pivot the metal spudger on the rear panel edge instead of bending the rear panel outward.
Use the metal spudger to apply upward pressure under the front panel until the metal clip releases.
You will find two ribbon cables connecting the rear panel to the remaining iPod assembly. In the following step, take care not to damage these ribbon cables. In this step, grasp the front-panel assembly with one hand and the back panel with the other. Pause for a moment before continuing. Very gently release the remaining rear-panel clips by pulling the tops of the front and rear panels apart, using the iPod bottom as a hinge. Take great care not to damage the ribbon cables joining the two halves.
With a spudger, slide the connector upward where it holds the orange battery ribbon. Lift the locking bar only about 2 mm to release the cable. Move the orange battery ribbon out of its connector.
Set the rear panel beside the iPod, taking care not to strain the orange headphone jack cable.
Raise the hard drive with one hand to expose the headphone jack ribbon underneath. With a spudger, flip up the plastic tab securing the headphone jack ribbon in place. The tab can rotate up 90 degrees, releasing the ribbon cable. Move the orange headphone jack ribbon out of its connector. The rear panel is now released from the iPod.
After opening, check the lower-case clips. If any clip bent upward, press it back down gently so the rear case can close cleanly.
Use the broad, flat face of the metal spudger to press the clip downward. Work carefully so the thin metal rail does not tear away from the rear panel. While shaping these clips, take care not to damage any headphone jack parts.
Set the rear panel on its side on a clean, hard surface. Carefully but firmly press it downward, rolling the full lip edge back into place. You may need to repeat this several times to straighten the sides well. Slightly overcorrecting the case edges inward is better than leaving them too far out, because reseating the front panel will bend the rear panel back into alignment. Once the rear panel is restored to good condition, continue with the iPod repair.
Rotate the hard drive out of the framework, then set it with the connector facing upward. With a spudger, lift the small black locking tab for the orange hard drive ribbon. The tab rotates upward 90 degrees and frees the ribbon cable.
Move the orange hard drive ribbon cable straight out of its connector. If the replacement hard drive did not include rubber mounting brackets or foam padding, transfer those parts from the old drive.
Take out the three Phillips screws that secure the front panel to the metal framework.
Rotate the iPod 180 degrees and take out the 3 Phillips screws holding the front panel to the metal framework on the other edge.
In this step, gently work around the edges of the device to separate the front panel from the gray metal framework. You may meet some resistance, as you will find a mild adhesive used to help hold the two parts together.
Lift the full framework away from the front panel; it carries the screen, logic board, and click wheel. Confirm the click wheel button is seated before reinstalling the framework in the front panel.
The front panel is now released from the iPod.
With a spudger, lift the plastic tab that holds the orange display ribbon. The tab rotates upward 90 degrees toward the display and releases the ribbon cable.
Move the orange display ribbon cable directly out of its connector.
Raise the framework assembly up, and move the display and LCD metal backplate out of the framework assembly.
Raise the LCD metal backplate up and away from the display. Remaining assembly: display remains.
Frequently Asked Questions
What causes lines on the screen?
Lines, bars, or color distortion can come from the LCD panel, display ribbon, or ZIF latch. Reseat the ribbon and inspect the latch before treating the LCD as the only failed part.
I replaced the screen and it still does not work — what should I check?
Reseat the display ribbon, inspect the ZIF latch, confirm the iPod is otherwise alive, and check for board-side connector damage before assuming the replacement display is defective.
White screen but iPod still plays — screen or connector?
Could be either. If the iPod plays audio or syncs, reseat the display ribbon first. If the white screen persists after seating checks, the LCD becomes a stronger candidate.
Is this the front glass?
No. iPod Classic has a metal faceplate. This listing is the internal LCD display behind the faceplate.
How do I tell backlight failure from a loose ribbon?
If the backlight works but the image is blank or distorted, start with ribbon seating. If the screen is completely dark, check charger, battery, ribbon, and LCD path together.
What else should I replace at the same time?
Inspect the faceplate, display ribbon, battery swelling, and internal stack before closing. Replace companion parts only when they are damaged or diagnosis points there.
Worth Knowing
- The screen uses a 34-pin ZIF connector to the logic board.
- Same screen fits both thin and thick case variants.
Why people land on this part
Some buyers search for "screen flicker" or "screen replaced"; confirm the checks above point to this same part before ordering.
Also searched as: backlight not working, screen flickers, completely white, LCD display failure, replaced screen, screen is black, screen is white, screen went, screen with flickering, iPod Classic 6G LCD screen, button the screen, holds display, iPod classic screen repair, ipod classic 6th generation screen replacement, no display, no backlight, dim screen, screen goes black, screen replacement, broken screen, screen flashes.
