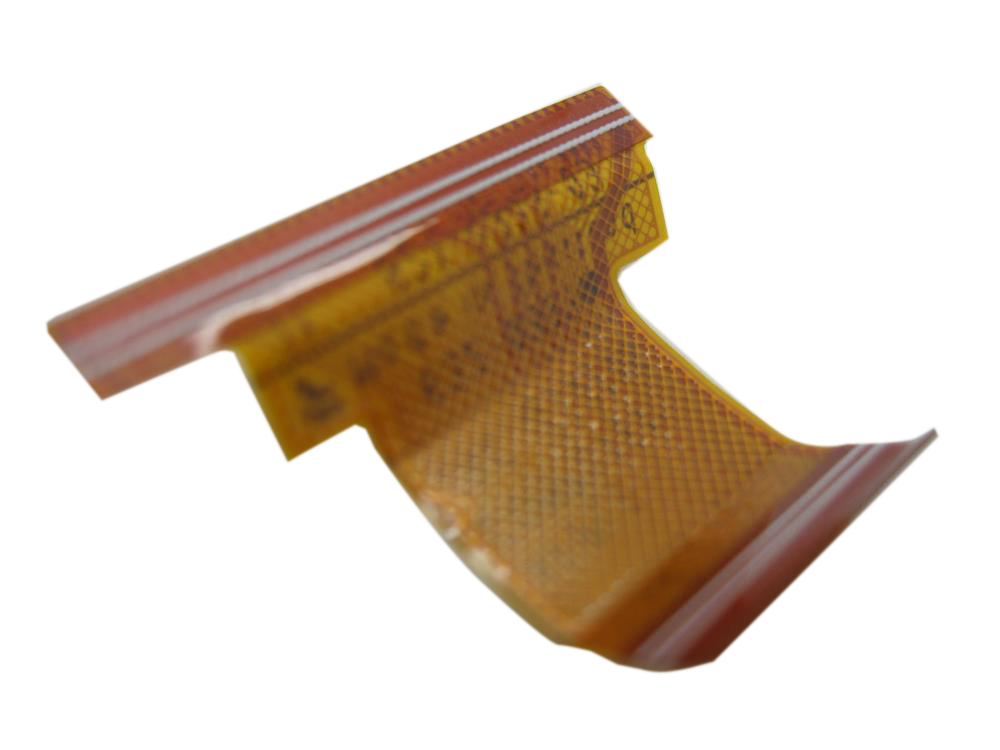

iPod Classic 6th Generation 160GB Thick Hard Drive Cable Replacement
Used (Apple Original) · Model A1238
$43.90
Sold out
Not for sale right now
We are not selling this part at the moment.
- Used (Apple Original). Tested: installed in a working iPod and checked before it ships.
- 1-year limited warranty · 30-day returns from delivery
- Free pry tool in the box
- Completed repairs aren't refundable. If a part we fitted fails within a year, we repair it again.
Part details
About this part
Overview
Replacement internal CE-ATA hard-drive ribbon cable 821-0546 for the original September 2007 thick-case iPod Classic 6th Generation 160GB. Use this listing for MB145LL/A or MB150LL/A after confirming case depth, cable marking, and storage behavior.
Fitment snapshot
A1238 / EMC 2173 are shared across Classic-family routes; verify order number, rear-case depth, and CE-ATA cable 821-0546 before ordering.
Product Overview
This internal CE-ATA hard-drive ribbon cable (821-0546 / 821-0546-A) connects the original thick 160GB hard drive to the logic board inside the thick-case iPod Classic 6th Generation 160GB. Choose it by the installed drive interface, not by the backplate engraving alone: it serves the original CE-ATA drive only. A flash build in the thick 160GB uses the thin ZIF ribbon (sold separately); the 821-0546 CE-ATA cable only fits the original drive.
This listing helps check whether the hard-drive cable is involved when you see a Red X, sad iPod, folder icon, clicking, restore errors, disk mode trouble, corrupted data, or post-flash-mod storage problems.
Choose Your Option
This part comes in multiple variants. Confirm your iPod's capacity, case depth, and order number before ordering.
Use this linked storage option only for 80GB/120GB thin-case iPods and the order numbers shown here.
View this option →Choose this listing for original 2007 160GB thick-case builds with a 13.5 mm rear case. Open the child page before ordering because thin and thick cables do not interchange.
You're viewing this optionWhat Is Included
Condition: Used factory-original part. Quantity and exclusions: The listed part, set, pair, or configuration above is supplied with exactly one plastic pry tool. No other parts, tools, adhesives, or materials are included unless they are explicitly listed above.
Fit and specs
Specifications & Fitment
Part Details
| Detail | Value |
|---|---|
| Model Number | A1238 |
| EMC | EMC 2173 |
| Condition | Used — factory original Apple part. Normal cosmetic wear expected. |
| Reference Cable Part | 821-0546 / 821-0546-A (thick 160GB CE-ATA cable) |
| Device Storage | 160GB |
| Connector | Proprietary narrow ZIF / CE-ATA-style hard-drive ribbon |
| Soldering Required | No |
Compatible Variants
| Order Number | Capacity | Color | Case | Compatible | Notes |
|---|---|---|---|---|---|
| MB150LL/A | 160GB | Black | thick (0.53 in) | Yes— stock match | — |
| MB145LL/A | 160GB | Silver | thick (0.53 in) | Yes— stock match | — |
| MB147LL/A | 80GB | Black | thin (0.41 in) | No— different connector | 80GB thin models (MB029LL/A, MB147LL/A) — requires the thin hard-drive cable. Use Hard Drive Cable (Thin — 80GB / 120GB) instead. |
| MB029LL/A | 80GB | Silver | thin (0.41 in) | No— different connector | 80GB thin models (MB029LL/A, MB147LL/A) — requires the thin hard-drive cable. Use Hard Drive Cable (Thin — 80GB / 120GB) instead. |
| MB565LL/A | 120GB | Black | thin (0.41 in) | No— different connector | 120GB thin models (MB562LL/A, MB565LL/A) — not compatible with this thick cable. Use Hard Drive Cable (Thin — 80GB / 120GB) instead. |
| MB562LL/A | 120GB | Silver | thin (0.41 in) | No— different connector | 120GB thin models (MB562LL/A, MB565LL/A) — not compatible with this thick cable. Use Hard Drive Cable (Thin — 80GB / 120GB) instead. |
| MC297LL/A | 160GB (Late 2009) | Black | thin | No— wrong 6G hard-drive cable | 6G thick hard-drive cable only fits the original 160GB thick hard-drive chassis |
| MC293LL/A | 160GB (Late 2009) | Silver | thin | No— wrong 6G hard-drive cable | 6G thick hard-drive cable only fits the original 160GB thick hard-drive chassis |
Install and repair
Repair considerations
Run these checks before replacing the cable — they confirm the cable is the right fix and not a nearby fault:
- Restore/format steps can erase data or indicate storage failure
- Treat ribbons, tabs, and ZIF connectors as fragile
- Use reset, Disk Mode, restore, or iTunes/Finder behavior as a software/storage check
- Reseat or inspect ribbon cable and connector seating
- Inspect ZIF latch, socket, or clamp condition
- Check drive noise, SMART/data signs, or storage recognition
Install Overview
Case difficulty
Very Difficult. The iPod Classic has a metal faceplate, metal rear case, and 13 metal clips. Expect scratches. Extra plastic opening tools are recommended because they break.
Cable ZIF latch
The cable connects via ZIF latch on both ends. Lift the flip-up locking tab before pulling the ribbon. Do not pry the black connector body.
Rear-panel ribbons
Two ribbon cables connect the rear panel to the rest of the iPod. Disconnect them before fully separating the halves.
Adhesive under cable
The cable may be held by adhesive. Loosen it gently and do not tear the flex.
Test before closing
Reconnect the cable and test the iPod before snapping the case shut. A failed test after closing means reopening the case.
This guide covers all iPod Classic models. This listing is for the thick 160GB chassis, so verify fitment before following the steps.
Disassembly Guide
Disassembly guide summary: iPod Classic Hard Drive Cable Replacement.
Show all 27 installation steps
This iPod case is unusually hard to open without damaging major components. Its metal faceplate, metal backing, and thirteen metal clips make disassembly especially demanding. Caution: this opening method can significantly damage the iPod beyond its current condition. Keep a few extra plastic opening tools nearby, since they are easy to ruin while opening the case. Confirm that the hold switch is locked before you open the iPod.
Opening this iPod is challenging, so do not get discouraged if it takes a few tries. Watch the plastic opening tool tip angle as you insert it into the iPod; keep it as vertical as possible while still clearing the rear panel edge. Guide a plastic opening tool into the seam between the front and rear of the iPod.
Slide a second plastic opening tool into the seam between the iPod front and rear, keeping the two tools at least 1.5 inches apart.
Working at an angle, carefully slide a putty knife about 1/8 inch into the gap between the two opening tools. You will find thin metal rails running along the inside of the back panel, so work very carefully when inserting the putty knife. After the putty knife clears the rear panel lip, rotate it vertical and carefully but firmly work it straight down through the opening tool gap.
Press on the rear panel behind the putty knife with your fingers to reduce bending. Slowly flex the putty knife so most metal tabs along this side of the iPod release. The idea is to control how the rear panel bends instead of trying to prevent all bending. Any side bend should draw the rear panel lip away from the iPod, not push outward on the curved surface. This also releases as many side clips as possible.
Take the putty knife out, then place it closer to the iPod corner and use the same gentle wiggle method. If possible, do not bend the rear panel corner.
Near the headphone jack, guide a plastic opening tool into the seam between the front and rear of the iPod. It may be easier to flex the putty knife downward carefully to create more room for the opening tool. Be careful not to bend the rear panel corner.
Near the display center, carefully slide a metal spudger into the gap made by the plastic opening tool. A visible bump can form here in the rear panel and is hard to repair. When levering the tab free, pivot the metal spudger on the rear panel edge instead of bending the rear panel outward. With the metal spudger, release the single clip at the iPod top edge.
Near the other top corner, guide a plastic opening tool into the seam between the front and rear of the iPod
On the other side, use the opening tool to start the same case-opening gap. It may help to angle the tool stuck in the top corner to create enough room.
Take the opening tool out of the top corner, then slide it into the seam between the iPod front and rear. Keep at least 1.5 inches between the two tools, as on the opposite side.
Working at an angle, carefully slide a putty knife about 1/8 inch into the gap between the two opening tools. Again, you will find thin metal rails running along the inside of the back panel, so work very carefully when inserting the putty knife. After the putty knife passes the rear panel lip, turn it vertical and carefully but firmly work it straight down through the gap between the plastic opening tools. Press on the rear panel behind the putty knife with your fingers to reduce bending. Flex the putty knife just enough to make sure most metal tabs along this side of the iPod release.
The metal clips near the corners grip the front panel tightly. Release these clips before opening the iPod. Carefully slide a metal spudger into the area beside the stubborn metal clip.
Gently work the metal spudger downward until it is fully seated in the rear panel.
Gently start releasing the clip from the front panel. A visible bump can form here in the rear panel and is hard to repair. When levering the tab free, pivot the metal spudger on the rear panel edge instead of bending the rear panel outward.
Use the metal spudger to apply upward pressure under the front panel until the metal clip releases.
You will find two ribbon cables connecting the rear panel to the remaining iPod assembly. In the following step, take care not to damage these ribbon cables. In this step, grasp the front-panel assembly with one hand and the back panel with the other. Pause for a moment before continuing. Very gently release the remaining rear-panel clips by pulling the tops of the front and rear panels apart, using the iPod bottom as a hinge. Take great care not to damage the ribbon cables joining the two halves.
With a spudger, slide the connector upward where it holds the orange battery ribbon. Lift the locking bar only about 2 mm to release the cable. Move the orange battery ribbon out of its connector.
Set the rear panel beside the iPod, taking care not to strain the orange headphone jack cable.
Raise the hard drive with one hand to expose the headphone jack ribbon underneath. With a spudger, flip up the plastic tab securing the headphone jack ribbon in place. The tab can rotate up 90 degrees, releasing the ribbon cable. Move the orange headphone jack ribbon out of its connector. The rear panel is now released from the iPod.
After opening, check the lower-case clips. If any clip bent upward, press it back down gently so the rear case can close cleanly.
Use the broad, flat face of the metal spudger to press the clip downward. Work carefully so the thin metal rail does not tear away from the rear panel. While shaping these clips, take care not to damage any headphone jack parts.
Set the rear panel on its side on a clean, hard surface. Carefully but firmly press it downward, rolling the full lip edge back into place. You may need to repeat this several times to straighten the sides well. Slightly overcorrecting the case edges inward is better than leaving them too far out, because reseating the front panel will bend the rear panel back into alignment. Once the rear panel is restored to good condition, continue with the iPod repair.
Rotate the hard drive out of the framework, then set it with the connector facing upward. With a spudger, lift the small black locking tab for the orange hard drive ribbon. The tab rotates upward 90 degrees and frees the ribbon cable.
Move the orange hard drive ribbon cable straight out of its connector. If the replacement hard drive did not include rubber mounting brackets or foam padding, transfer those parts from the old drive.
With a spudger, flip up the plastic tab securing the orange hard drive ribbon in place. The tab can rotate up 90 degrees, releasing the ribbon cable. Confirm that you are freeing the tab closest to the hard drive ribbon, not the connector's black section.
Move the orange hard drive ribbon cable straight out of its connector. If adhesive holds the cable to the logic board, carefully pull up on the cable to loosen it.
Product-specific placement, reassembly, and check
- Prepare and access. Confirm the exact model and listing fit first. Use the existing steps as a disassembly guide, gather the specified tools, disconnect power where applicable, and keep screws and cable positions organized.
- Place Hard Drive Cable (Thick — 160GB). Seat the exact storage part, cable, or adapter in the original storage path and match its orientation, case depth, and supported configuration.
- Reassemble without force. Reverse only the access steps needed for this repair, keep cables clear of case edges and screw posts, and close clips in stages.
- Validate before final closure. Before final closure, verify detection, Disk Mode or restore behavior as applicable, and stable startup without repeat clicking or a loose connection.
Stop condition: Stop if a connector, latch, screw, clip, housing edge, or the replacement part resists normal alignment. Recheck model fit, orientation, cable routing, and trapped hardware instead of forcing it.
After This Repair
| Check | What to do |
|---|---|
| Test the connected part | Confirm the assembly on both ends of the cable behaves normally before closing the iPod. |
| Still not working? | Inspect the latch, cable orientation, and board-side connector before replacing another part. |
Troubleshooting
Quick Diagnosis
Buy this when
- The iPod is MB145LL/A or MB150LL/A, 160GB, A1238 / EMC 2173, with the 13.5 mm / 0.53 in thick rear case.
- The removed hard-drive cable is marked
821-0546or821-0546-A.
Check first when
- Folder appears immediately after the Apple logo: reseat and inspect the cable first.
- The iPod will not boot at all: check battery, charging, and the power path before buying a storage cable.
Do not buy for
- 80GB or 120GB thin-case models; those require the thin hard-drive cable.
- A flash conversion in the thick 160GB shell; it uses the thin ZIF ribbon (sold separately), and this
821-0546cable only fits the original drive. - Dock-connector trouble, headphone issues, battery-connector damage, or other non-storage symptoms.
Other Symptoms That May Involve This Part
| Symptom | What it means & what to check |
|---|---|
| stuck in recovery mode, apple.com/support, Flash Mod Problems, Wont turn on after repair, 80GB hard drive in a 160GB iPod Classic, logic board failed and need data off the hard drive | Treat this as a storage-path clue, then compare cable condition, drive behavior, and fitment. |
| click noise, click sound, Clicking Noise, clicking sound | A drive can make the same sound, so reseat the cable and compare against known-good storage before buying the ribbon. |
| drive already corrupted, drive dead, drive was corrupted, hard drive dead, Hard Drive Failure, hdd connector | Drive-health language is not proof of a bad cable. Inspect the cable ends, fold line, and ZIF locks while also checking the drive or adapter itself. |
| error 1416, error 1429, error 1439, error code, error message, iTunes Error, Reboot Loop | Restore and iTunes errors can involve the storage path; reseat the cable, confirm adapter or drive format, and test known-good storage before replacing the ribbon. |
| Red X Icon, showing a folder, red X after hard drive replacement | Reseat both ZIF ends and inspect the fold line; the cable is stronger evidence when the icon appears immediately after the Apple logo. |
| Stuck on Apple Logo | Apple-logo hangs can come from storage not initializing; check the cable and storage device together before buying either part. |
Failure Signs / When This Cable Helps
Use storage behavior as a check, not proof. The thick hard-drive cable is the right part only when thick-case fitment is confirmed and the cable, drive, adapter, and board-side connector have been compared.
| Symptom | What it means & what to check |
|---|---|
| Symptom remains after basic checks |
What you may see: The iPod still points back to Hard Drive Cable (Thick — 160GB) after cable seating, battery stability, and nearby connector checks. Check first: Retest with known-good cables or adjacent parts where practical before ordering. Check next: A nearby cable, connector, battery, storage device, display path, audio path, or board path can mimic a bad cable. |
| Symptom changes when touched or reseated |
What you may see: The symptom changes after moving the part, reseating a cable, or applying light pressure near the connector path. Check first: Inspect the connector, latch, flex, solder joints, and nearby board area for damage or corrosion. Check next: This can still be a connection issue rather than a failed cable alone. |
| Red X, red circle, sad iPod, or folder icon |
Check First: Reseat the cable and inspect both ZIF ends for lifted locks, corrosion, torn flex, or poor contact. Cable Signal: Stronger when the symbol appears immediately after the Apple logo and the drive is known good. |
| Clicking, click of death, or grinding before the folder appears |
Check First: Test or swap the hard drive before blaming the cable. Cable Signal: The click of death can be the drive or the cable; if reseating the cable stops the clicking, the cable was the issue. |
| Won't restore, corrupted data, restore loop, or stuck in disk mode |
Check First: Check drive health, formatting, flash adapter seating, SD card format, and the board-side storage connector. Cable Signal: Stronger when reseating or replacing the |
| Post-flash-mod storage issue |
Check First: Confirm the adapter is seated, cards are formatted correctly, and the storage size respects the 6G stock-firmware limit of about 128GB usable. Cable Signal: For flash conversions use the separately sold thin ribbon; this thick cable is for the original CE-ATA drive. |
| No boot at all |
Check First: Start with battery, charging, dock power, and board power checks. Cable Signal: A hard-drive cable is unlikely to be the first part when the iPod shows no power signs. |
| Related checks |
|
Do Not Buy This Cable Yet If...
| Situation | Start here instead |
|---|---|
| Your iPod is an 80GB or 120GB thin-case model (10.5 mm) | You need the thin hard-drive cable. This thick cable is not compatible. |
| You are converting the thick 160GB to flash storage | A flash build in the thick 160GB uses the thin ZIF ribbon (sold separately); the 821-0546 CE-ATA cable only fits the original drive. Order the thin cable instead. |
| Your iPod is a Late 2009 thin 160GB (MC293LL/A or MC297LL/A) | That is a thin-case model despite being 160GB. Use the thin cable. |
| The iPod shows a sad iPod icon, red X, or folder but you haven't checked the hard drive yet | The drive itself may be failing. Test or swap the drive before buying a cable. |
The cable is not marked 821-0546 or 821-0546-A
|
Do not order from this listing until you have confirmed the thick 160GB cable path. |
| The symptom appeared after you reseated the cable and hasn't changed | If reseating didn't help and the cable looks undamaged, the drive or logic board may be the issue. |
| You're not sure if your iPod is thick or thin | Measure case depth: 13.5 mm (0.53 inch) = thick (this listing). 10.5 mm (0.41 inch) = thin (different cable). Or match your order number. |
What Owners Report
Anecdotal owner reports (not a guarantee or authoritative proof): these are owner reports, not guarantees or authoritative proof that a particular part will fix a symptom. Use them as a troubleshooting starting point: confirm the symptom, run the quick checks, then match the fix.
Shuts off the moment external power drops? That is the power path, not the storage — run the battery page's charging checks before buying a drive or cable.
Sad face, red X, or clicking drive
Symptoms. Red X in a circle pointing to Apple's support page; sad-face icon; rhythmic clicking or a click-then-clunk from inside; freezes partway through loading music; drive reports full with nothing on it; won't enter Disk Mode.
Usually the drive — a torn or half-seated ribbon cable mimics it. Grinding or odd noise, a long or five-minute Apple-logo hang, and files corrupted during copying can indicate trouble in the storage path; copy needed data first and test the drive and cable.
Check first. Diagnostics: read the drive test. Disk Mode: if the computer sees it, copy files off before any format, zero-write erase or restore. Bench-test on an adapter matched to the drive (ZIF thin; CE-ATA for the thick 160GB's factory drive).
Fix. Replace drive and ribbon cable together; a red X after a fresh drive is normal until the restore. Reported by 35 owners.
Which drives fit: sizes, cables, thick vs thin hardware
Symptoms. Broken drive and shopping for a replacement; new drive too thick for the case; wondering whether a bigger drive works; drive from another iPod model on hand.
- Thin 80GB and 120GB: a 5 mm drive on the ZIF connector and thin ribbon. 2007 thick 160GB: an 8 mm CE-ATA drive with its own 821-0546 cable; the two never mix. The later thin Classic is a different platform with its own drives, cables and storage rules — see its own pages.
- Fit: like-for-like with the matching cable, per the drive/cable combinations in the fitment table — sliding in is not proof of fit. SATA never fits: the 240GB and 320GB laptop drives sold at similar prices use a different connector, and no adapter makes them native.
- On stock Apple firmware any replacement shows up to about 128GB usable; a thick drive in a thin case also needs the thick rear panel, cable, bumpers and jack.
Confirm thick vs thin first: 10.5 mm case depth is thin, 13.5 mm thick. Reported by 11 owners.
Red X persists after a drive replacement
Symptoms. New drive installed, still the red X; can reach diagnostic mode but not Disk Mode; replaced drive AND cable and it's still there; iTunes error codes during the first restore.
- A red X right after a blank drive goes in is expected — no software yet: Disk Mode (reset, then Center + Play/Pause), connect, restore; judge only after a completed restore.
- Restore cannot complete: bench-test the new drive on an adapter matched to its interface (ZIF thin; CE-ATA for the thick 160GB's factory drive) — a replacement can itself be faulty; exchange it.
- Inspect the ribbon under magnification; confirm the right cable for the drive (thick-160 is not the thin cable) and a seated clip.
- Only after power, cable and a completed restore check out is the board's drive interface the remaining suspect.
Fix. Replace cable and drive as a pair. Reported by 11 owners.
Problems after battery replacement
Symptoms. Won't boot at all with the new battery in; turned on once then died; charges to half and stops; "Charging, please wait" persists after replacement; laptop powers the iPod but no longer recognizes it.
Check first.
- Original battery back in: alive on it but dead on the new one = a bad replacement — exchange it.
- Cable fully in, straight, clasp locked; lift the clip with an L-bent paperclip pulled gently straight up — prying rips the connector off.
- Connector still on the board? A loose one reads like a dead battery.
- First charge on a wall adapter; allow 15–30 minutes.
Fixes. Bad cell → exchange it. Torn connector → solder-level repair or a logic board. Drive swapped just before the trouble? Re-check its ribbon too.
Caution. Judge a new battery after a full charge-drain cycle, not the first hour.
Community signal. Reported by 9 owners.
Restore failures, errors, and Disk Mode fights
Symptoms. Restore starts then errors out; partial sync (a few GB) then failure with the library vanishing; stuck in Disk Mode with iTunes blind to it; capacity reads 127GB no matter the label; diagnostics halt at a FireWire test.
- Partial syncs dying at the same point suggest bad sectors: copy off what you need, then bench-test it on an interface-matched adapter.
- Stuck in Disk Mode: Menu + Center exits.
- A 127–128GB reading on a bigger drive is this model's stock-firmware limit, not a defect; reformatting won't change it. The later thin Classic is a different platform with its own drives, cables and storage rules — see its own pages.
- The built-in FireWire test needs a FireWire source connected; without one it stalls — skip it and read the drive tests.
Then restore from Disk Mode; replace drive and cable together if sick. Reported by 8 owners.
Corrupt filesystem after storage work
Symptoms. "0 KB free" after a sync; sad face after installing a new drive; refuses Disk Mode; iTunes claims files are in use by another application; error numbers during restore; noisy drive that freezes.
- Reset, connect to a rear USB port (never a hub or keyboard port), copy off anything you need, then let the restore run.
- New drive: confirm the cable seat, then restore; the sad face persists only if drive, cable or restore path is bad.
- "Files in use" loops: Disk Mode (reset, then Center + Play/Pause), copy first, then a plain format from the computer and a restore.
Usually: if errors persist across a known-good computer, cable and power source, look at the drive and its connection rather than reformatting again — a noisy drive that freezes during the restore is very likely failing. Replace drive and cable together. Reported by 6 owners.
Flash and SSD conversions: what actually works
Symptoms. Dead drive and deciding between another mechanical drive and flash; SSD upgrade that worked then quit; SSD reads half its size after a board swap; which cards/adapters to trust.
An SD/microSD adapter on the thin ZIF ribbon is the mainstream route. A flash build in the thick 160GB uses the thin ZIF ribbon (sold separately); the 821-0546 CE-ATA cable only fits the original drive.
On stock Apple firmware this model uses up to about 128GB of any flash build; a bigger card's excess is unavailable — also why an SSD "shrinks" after a board swap: on an older board a 256GB SSD still reports about 128GB, so match the board generation to the build. The later thin Classic is a different platform with its own drives, cables and storage rules — see its own pages.
Caution. Counterfeit cards are the top conversion killer — a card sold as 128GB that is secretly 8–32GB restores fine, then corrupts as the library grows; run a full-card write test. Reported by 5 owners.
Bigger storage: upgrades, flash conversions, and the 128GB line
Symptoms. 80GB unit full and eyeing 160GB+; found a big 240GB drive online — will it work?; planning an 80→160 conversion with thick parts; wondering why the 2007 model shipped with 160GB if the platform "caps at 128".
- On stock Apple firmware, replacement storage in this model tops out at about 128GB. The factory 2007 thick 160GB is the exception: its drive uses a CE-ATA interface and addresses its original full capacity, and so does a like-for-like CE-ATA replacement; a ZIF drive or a flash adapter in any Classic of this generation meets the ~128GB stock-firmware ceiling instead. The later thin Classic is a different platform with its own drives, cables and storage rules — see its own pages.
- A bigger thin drive (confirmed drive/cable combination) nets the cap; a thick conversion (thick rear panel, cable, bumpers, battery, jack) restores parts, not capacity; flash is the same disassembly, no moving parts.
Listings rarely mention this limit. Reported by 5 owners.
General battery diagnosis and testing
Symptoms. Battery drains abnormally fast (especially after getting wet); "low battery" appears minutes after a full charge; wanting to bench-test the board or battery before buying parts.
Check first.
- After liquid exposure, disconnect power and inspect for corrosion before charging or testing with a known-good battery.
- The reviewed sources supplied no board schematic; component substitution can help isolate the fault.
Fixes. Replace the battery to set a known-good baseline — cheapest part, commonest fault. Lift the connector's clip gently straight up (an L-bent paperclip works); prying rips it off. Match the number printed on the old cell — thin and thick differ.
Caution. Higher-capacity cells charge more slowly and the readout drifts; judge run time over a full cycle.
Community signal. Reported by 4 owners.
Computer/iTunes can't see it — drive-side causes
Symptoms. iTunes and the file explorer freeze the moment it's connected; resets fine and shows the Apple logo but never appears on the computer; restore prepares then the iPod drops off; CRC (redundancy-check) errors during transfer.
- A host freezing on connect often means sick sectors, but a damaged ribbon looks the same: run diagnostics and read the drive tests. Diagnostics: reset, then hold Previous + Center as the logo appears. The built-in FireWire test needs a FireWire source connected; without one it stalls — skip it and read the drive tests.
- CRC errors: a copy failed its integrity check — drive or ribbon; back up, then bench-test it on an interface-matched adapter.
- A replacement reading smaller than its label has met this model's stock-firmware limit; reformatting won't change it.
Replace drive and cable once tests confirm; if it mounts clean externally, check the battery side. Reported by 4 owners.
Slow access, clicking on library load, drive transplants
Symptoms. Click-click while browsing or uploading, everything takes forever; wondering if the drive can move into a 5th-gen Video body; saltwater casualty with photos aboard.
- Slow plus clicking is the drive struggling: copy your media off now and plan the replacement (drive and cable together).
- Transplants. The thick 160GB's drive never fits a Video; the 120GB drive is reported not to work there; the 80GB drive has mixed reports (it needs the Video's own ribbon, and some units still refuse) — check the drive model, not the iPod.
- Saltwater. Disconnect power at once and do not switch it on; open it, assess the corrosion, and recover the files through an adapter matched to the drive (see the recovery question) — salt finishes drives quickly.
Community signal. Reported by 4 owners.
Flash conversion misbehaving: recovery loops and phantom corruption
Symptoms. Goes into recovery mode every time it's unplugged; diagnostics can't detect the storage after a drop; freshly converted unit reports corruption again.
- Recovery mode on unplug: try a different, known-genuine card. If it behaves, the original is fake or failing; if nothing behaves, reseat the adapter, then the ribbon cable.
- Storage undetected on a computer: a volume with no drive letter never shows in the file explorer even when the hardware is fine.
- Corruption on a fresh build: run a full-card write test, confirm the restore finished, and keep the library within the usable stock-firmware capacity (about 128GB here) — a bigger card's excess is unavailable, not corrupting.
Fix. A genuine card and a seated adapter settle most of it; what remains is usually the ribbon cable.
Community signal. Reported by 3 owners.
Random pause when bumped
Symptoms. Music pauses (or the unit stumbles) the moment it's bumped or hits anything in a pocket, then resumes.
What it usually is. Owners report the drive or its ribbon cable losing contact for a moment, or a drive shifting because a bumper is missing — the bumpers are the shock isolation. A headphone-jack detection fault can pause playback on a knock too, so this check does not rule that out.
Check first. Open it, reseat the ribbon cable and inspect it for tears, and confirm both drive bumpers are present and seated. If that does not cure it, treat it as early drive failure: copy your files off, read the SMART counts in diagnostics, then replace drive and cable together. For which drives and cables fit, see the fitment card.
Community signal. Reported by 3 owners.
Worth Knowing
- This cable fits only the original September 2007 160GB thick-case Classic, MB145LL/A or MB150LL/A.
- 80GB, 120GB, and Late 2009 160GB thin-case Classics use a different hard-drive cable.
- The thick 160GB cable uses a proprietary narrow ZIF / CE-ATA-style route and is not the same as the standard 40-pin ZIF used on thin Classics.
- For flash storage installs, flash-storage adapters do not use this cable — the thick 160GB flash build takes the standard thin ZIF ribbon — and the thick 6G logic board is limited to about 128GB usable storage with SD cards on stock Apple firmware.
- Physical drive repair (opening the drive casing) is not feasible outside a clean room; mechanical damage keeps escalating — a failing drive is replaced, not repaired.
Questions
Frequently Asked Questions
How do I tell if my iPod Classic needs the thick or thin hard drive cable?
Measure case depth: 13.5 mm = thick, which is this listing; 10.5 mm = thin, which needs a different cable. Or match your order number: MB145LL/A or MB150LL/A = thick 160GB. MB029LL/A, MB147LL/A, MB562LL/A, and MB565LL/A = thin. A1238 alone is not enough. Match the installed drive interface first: this 821-0546 / 821-0546-A cable serves the original thick 160GB CE-ATA mechanical drive in MB145LL/A or MB150LL/A; a flash conversion in that same thick shell uses the standard thin ZIF ribbon instead, and original 80GB / 120GB thin drives also use the thin ZIF path, so case depth, A1238 and the rear engraving alone do not identify the cable after a storage conversion. Apple's figures are about 162 g for the thick 160GB and 140 g for the thin 80GB and 120GB; on a unit with a swapped back or new drive, trust the case depth: 10.5 mm thin, 13.5 mm thick. Refurbished units often wear swapped backplates, so trust the internals — the drive class and the code printed on the battery — over the engraving or the seller's title.
Why does my iPod show a red X in a circle?
A red X calls for storage-path checks; the symbol alone does not identify a failed drive, cable or logic board. For the original thick 160GB CE-ATA drive, inspect its 821-0546 cable and connections. A flash conversion in that shell uses the standard thin ZIF ribbon instead. Check power stability and whether the computer recognizes the iPod before considering a replacement. Preserve needed files before any Restore, which erases the iPod. A known-good cable connection alone does not prove the drive failed.
Can I replace the hard drive with an SSD or flash adapter?
Yes. flash-storage adapters work in the thick 160GB chassis, but the adapter does not include a ribbon cable — and it uses the standard thin ZIF ribbon, not this thick 821-0546 cable. Stock Apple firmware limits usable flash storage to about 128GB with SD cards. Order the thin cable from its own listing: Hard Drive Cable (Thin — 80GB / 120GB).
What generation is model A1238?
A1238 alone cannot tell you which cable you need; check the order number and case depth. Every Classic says A1238 on the back, so the model number alone cannot tell you which one you have — owners who bought the wrong part once usually matched A1238 and nothing else. Capacity narrows it: 80GB and 120GB are always thin; a 160GB is either the 2007 thick model or a later thin one. Apple's serial lookup names the release (a plain "iPod classic" is a 2007 unit), but a serial describes the unit as it left the factory. Apple's figures are about 162 g for the thick 160GB and 140 g for the thin 80GB and 120GB; on a unit with a swapped back or new drive, trust the case depth: 10.5 mm thin, 13.5 mm thick. Across the thin 80GB and 120GB, rear panels, batteries, drives, cables and headphone jacks interchange; the 2007 thick 160GB keeps its own rear panel, battery, drive, cable, bumpers and headphone jack. Faceplates, click wheels and the standard screen fit every Classic. A1238 identifies the Classic family; for the Video model, see its own pages. If the iPod froze on an unfamiliar computer's sync screen, slide Hold off and on, then hold Menu + Center until the Apple logo appears — that is the whole fix in most cases; if the library is unusable afterwards, see the Restore & sync questions on the hard-drive pages.
My iPod shows a folder or won't restore. Is it the cable?
If the folder icon appears immediately after the Apple logo, the cable is a likely suspect. If the iPod hangs, clicks, or grinds before showing the folder, the drive itself is more likely. Reseat the cable first because that check is quick.
Will restoring my iPod erase everything?
Yes. Restoring through iTunes or Finder (on Windows: iTunes for Windows, or the newer Apple Devices app) erases all content. Copy off anything that exists only on the iPod before restoring — see the recovery question below. If the iPod will not mount as a disk, data recovery may require professional tools.
What if the hard-drive cable is torn or the latch is damaged?
Replace the cable if the flex is torn, sharply creased, corroded, or the ZIF latch will not hold the ribbon. Do not keep testing with a damaged cable because poor contact can make a good drive look failed.
What if my iPod is stuck on Do Not Disconnect?
Do Not Disconnect normally appears during sync. If do not disconnect stays frozen after restart, check cable seating because this cable connects storage to the logic board.
What if it is stuck on OK to Disconnect?
OK to Disconnect usually resolves on its own after eject. If ok to disconnect is frozen, force restart with Menu + Select before ordering a cable.
Can a folder or won't restore mean the cable is bad?
A folder or won't restore can involve the cable, drive, adapter seating, battery stability, or restore path. Reseat both cable ends before ordering.
How do I get my music off a dead or dying iPod?
Owners describe it as: the drive is shot and the music isn't anywhere else; the board died but the drive is fine; a customer or family unit with irreplaceable files; photos and music trapped on the iPod; no access to the old iTunes account; a sync would wipe it.
If it still boots at all: Disk Mode first — reset (Menu + Center), then hold Center + Play/Pause. The computer mounts it like a drive with no account sign-in involved; copy everything off before any sync or restore, because a sync can replace the content and a restore erases it. Media sits renamed in hidden folders: transfer utilities reassemble titles and playlists, or copy the raw folders and re-tag later.
Board dead, drive alive: mount the bare drive on an adapter that matches its interface (ZIF for the thin 80GB and 120GB drives; the thick 160GB's factory drive is CE-ATA) and copy directly. Windows normally cannot read a Mac-formatted iPod without extra software; a Mac can read a Windows-formatted one — try the other computer before declaring it unreadable.
Clicking drive: every power-on costs data, so make one short copy attempt first; sector-recovery software sometimes gets a full pass, and clean-room recovery beyond that is a specialist service. Nothing here guarantees photo originals or complete playlists. The old sync computer usually still holds everything the iPod ever synced. Reported by 6 owners, plus one lost-account case.
You May Also Want
flash-storage adapters do not include a cable — a thick 160GB flash install uses the standard thin ZIF ribbon, not this 821-0546 cable — and stock Apple firmware limits usable flash storage to about 128GB.
Related: Replacement Hard Drive (160GB)If the iPod clicks, shows SMART errors, or will not read after cable replacement, the drive itself may need replacing.
Related: Replacement Battery (Thick — 160GB)The thick battery sits nearby during opening; inspect it while the case is open, especially if runtime is weak or the cell is swollen.
Search terms
Why people land on this part
Also searched as: 160GB thick iPod Classic hard drive cable, iPod classic 6th Generation Hard Drive Cable, restore error, A1238 hard drive cable, thick (13.5 mm) case, thick 6th gen 160GB iPod classic, external drive, hard reset, solid state drive, tried charging, Red X Icon, Clicking Noise, Sad iPod Icon, Folder Icon, Corrupted Data, Stuck in Recovery Mode, iTunes Error, Reboot Loop, Stuck on Apple Logo, Won't Restore, Stuck in Disk Mode, Flash Mod Problems, Hard Drive Failure, hard drive dead, clicking sound, showing a folder, hdd connector, hard disk, drive flex cable, drive was corrupted, hard drive ribbon cable, HDD flex cable, EMC 2173, hard drive connector cable, iPod Classic 6G, drive already corrupted, error 1416, error 1429, click noise, click sound, dock connector iPod classic, click of death, ok to disconnect, red circle, sad iPod.
Some buyers search for "HDD flex cable", "hard drive flex ribbon cable", "HDD ribbon", "drive flex cable", "hard drive connector cable", "ipod classic ribbon cable", "160gb hdd", "ipod classic 6th gen hard drive cable", "hard disk", or "hard drives"; confirm the checks above point to this same part before ordering.
Some buyers search for "ipod classic 160gb hard drive cable replacement" or "CE-ATA-style pinout"; confirm the checks above point to this same part before ordering.
Questions people ask
- Will restoring iPod erase everything
Free diagnostic
Broken iPod? We can help.
Mail us your iPod and we will test it and send you a free repair quote. If you don't like our price, we will ship your iPod back at our expense.
