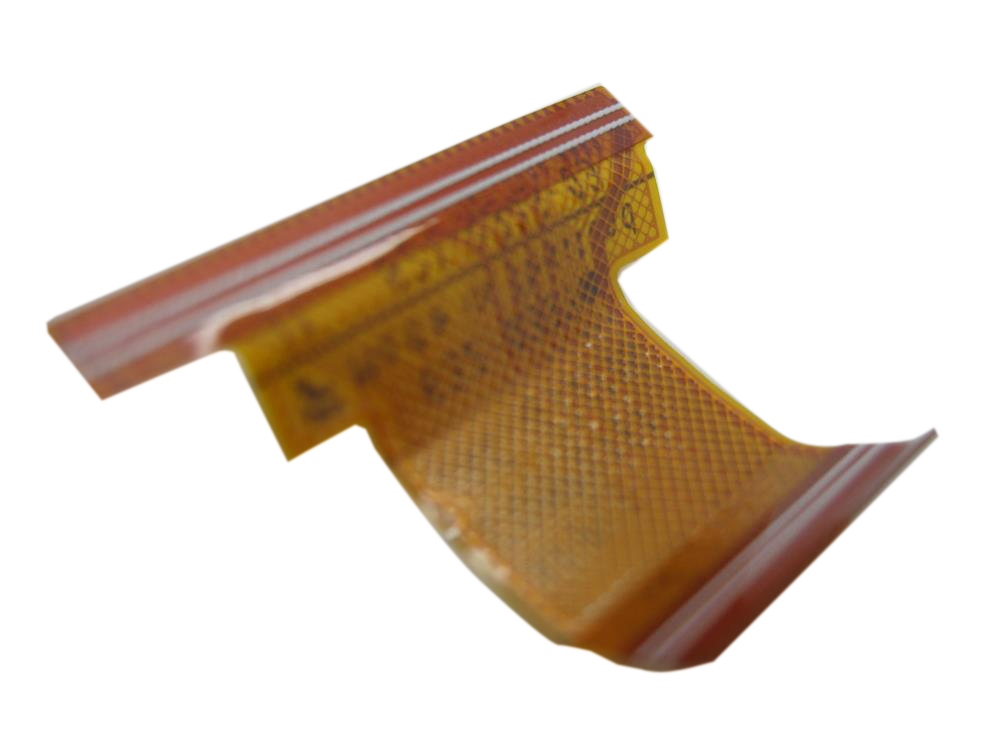

Replacement ZIF hard-drive flex cable for thin-case iPod Classic 6th Generation 80GB and 120GB models. Use this listing for MB029LL/A, MB147LL/A, MB562LL/A, or MB565LL/A after confirming 10.5 mm rear case depth, cable marking, and storage behavior.
Product Overview
This ZIF hard-drive flex cable connects the storage drive or flash adapter to the logic board inside thin-case iPod Classic 6th Generation 80GB and 120GB models.
This listing covers iPod Classic hard drive cable replacement for 6th Generation thin models: MB029LL/A, MB147LL/A, MB562LL/A, and MB565LL/A. The part is also called the hard drive ribbon cable, HDD flex cable, HDD ribbon, drive flex cable, or iPod Classic ribbon cable.
Use this listing when storage behavior points toward the cable: Red X, sad iPod, folder icon, clicking, restore errors, disk-mode trouble, corrupted data, or a flash adapter that is not recognized after seating checks.
Choose Your Option
This part comes in multiple variants. Confirm your iPod's capacity, case depth, and order number before ordering.
Choose this listing for 80GB or 120GB thin-case builds with a 10.5 mm rear case. Open the child page before ordering so the installed cable marking and case depth both match.
You're viewing this optionUse this linked storage option only for original 2007 thick 160GB thick-case iPods and the order numbers shown here.
View this option →What Is Included
Quick Diagnosis
Buy this when
- The iPod is MB029LL/A, MB147LL/A, MB562LL/A, or MB565LL/A with the 10.5 mm / 0.41 in thin rear case.
- The flex is torn, creased at the fold line, corroded, the ZIF latch is damaged, or the storage symptom persists after reseating with confirmed contact.
Check first when
- Red X icon: Apple treats this as a drive-failure warning first. Treat the cable as the secondary suspect, especially after a drop, visible cable damage, or a symptom that changes after reseating.
Do not buy for
- 2007 160GB thick MB145LL/A or MB150LL/A models; those need the
821-0546thick cable. - Dock connector, 30-pin connector, battery connector, headphone jack, or power-only repairs.
Other Symptoms That May Involve This Part
| Symptom | What it means & what to check |
|---|---|
| flash adapter not recognized | Check cable seating, ZIF locks, storage format, and USB behavior before treating the cable as failed. |
| stuck in recovery mode, apple.com/support, Flash Mod Problems, Wont turn on after repair, recovery mode stuck, storage trouble | Treat this as a storage-path clue, then compare cable condition, drive behavior, and fitment. |
| click noise, click sound, Clicking Noise, clicking sound | A drive can make the same sound, so reseat the cable and compare against known-good storage before buying the ribbon. |
| drive already corrupted, drive dead, drive was corrupted, hard drive dead, hdd connector | Drive-health language is not proof of a bad cable. Inspect the cable ends, fold line, and ZIF locks while also checking the drive or adapter itself. |
| error 1416, error 1429, error 1439, error code, error message, iTunes Error, Reboot Loop, iPod Classic 80GB Error 1303 | Restore and iTunes errors can involve the storage path; reseat the cable, confirm adapter or drive format, and test known-good storage before replacing the ribbon. |
| Sad iPod Icon, showing a folder | Reseat both ZIF ends and inspect the fold line; the cable is stronger evidence when the icon appears immediately after the Apple logo. |
| Stuck on Apple Logo | Apple-logo hangs can come from storage not initializing; check the cable and storage device together before buying either part. |
Specifications & Fitment
Part Details
| Detail | Value |
|---|---|
| Model Number | A1238 |
| EMC | EMC 2173 |
| Condition | Used — factory original Apple part. Normal cosmetic wear expected. |
| Reference Cable Numbers | Toshiba-drive thin-cable family or Hitachi-drive thin-cable family |
| Compatible Storage | 80GB / 120GB thin ZIF hard-drive path |
| Connector Type | 40-pin ZIF hard-drive cable |
| Wrong Cable Warning | The thick 160GB CE-ATA cable path is not compatible with this page |
Compatible Variants
| Order Number | Capacity | Color | Case | Compatible | Notes |
|---|---|---|---|---|---|
| MB147LL/A | 80GB | Black | thin (0.41 in) | Yes— stock match | — |
| MB029LL/A | 80GB | Silver | thin (0.41 in) | Yes— stock match | — |
| MB565LL/A | 120GB | Black | thin (0.41 in) | Yes— stock match | — |
| MB562LL/A | 120GB | Silver | thin (0.41 in) | Yes— stock match | — |
| MC297LL/A | 160GB (Late 2009) | Black | thin | Yes— fits | Fits the Late-2009 thin 160GB (MC293LL/A / MC297LL/A); that model is sold under the iPod Classic 7th Generation (Late 2009) pages. |
| MC293LL/A | 160GB (Late 2009) | Silver | thin | Yes— fits | Fits the Late-2009 thin 160GB (MC293LL/A / MC297LL/A); that model is sold under the iPod Classic 7th Generation (Late 2009) pages. |
| MB150LL/A | 160GB | Black | thick (0.53 in) | No— 2007 160GB thick models (MB145LL/A, MB150LL/A, 13.5 mm case) — requires the thick the thick 160GB CE-ATA cable | 2007 160GB thick models (MB145LL/A, MB150LL/A, 13.5 mm case) — requires the thick the thick 160GB CE-ATA cable cable |
| MB145LL/A | 160GB | Silver | thick (0.53 in) | No— 2007 160GB thick models (MB145LL/A, MB150LL/A, 13.5 mm case) — requires the thick the thick 160GB CE-ATA cable | 2007 160GB thick models (MB145LL/A, MB150LL/A, 13.5 mm case) — requires the thick the thick 160GB CE-ATA cable cable |
Failure Signs / When This Cable Helps
Use storage behavior as a check, not proof. The cable is most plausible when thin-case fitment is confirmed and the symptom changes after reseating, fold-line inspection, or known-good storage checks.
| Symptom | What it means & what to check |
|---|---|
| Symptom remains after basic checks |
What you may see: The iPod still points back to Hard Drive Cable (Thin — 80GB / 120GB) after cable seating, battery stability, and nearby connector checks. Check first: Retest with known-good cables or adjacent parts where practical before ordering. Check next: A nearby cable, connector, battery, storage device, display path, audio path, or board path can mimic a bad cable. |
| Symptom changes when touched or reseated |
What you may see: The symptom changes after moving the part, reseating a cable, or applying light pressure near the connector path. Check first: Inspect the connector, latch, flex, solder joints, and nearby board area for damage or corrosion. Check next: This can still be a connection issue rather than a failed cable alone. |
| Red X, red circle, sad iPod, or folder icon |
Check First: Treat the drive as the first suspect, then reseat the cable and inspect both ZIF ends for lifted locks, corrosion, torn flex, or poor contact. Cable Signal: Stronger when the symbol appears immediately after the Apple logo, after a drop, or after the cable fold line was disturbed. |
| Folder icon immediately after the Apple logo |
Check First: Reseat the logic-board and drive-side ZIF ends before ordering parts. Cable Signal: Stronger cable signal than a delayed folder after clicking or grinding. |
| Clicking, click of death, or grinding before the folder appears |
Check First: Test or swap the drive before blaming the cable. Cable Signal: The click of death can be the drive or the cable; if reseating the cable stops the clicking, the cable was the issue. |
| Won't restore, corrupted data, restore loop, or stuck in disk mode |
Check First: Check drive health, formatting, flash adapter seating, SD card format, and the board-side storage connector. Cable Signal: Stronger when reseating or replacing the thin cable changes restore behavior. |
| Storage stopped working after a flash adapter install |
Check First: Confirm cable orientation, contact side, ZIF tabs, card format, and the 128GB usable limit on 6G logic boards. Cable Signal: Stronger when reversing orientation or reseating the cable changes recognition. |
| ZIF lock or fold-line damage |
Check First: Inspect the flip-up locking bars and the crease where the flex bends around the drive. Cable Signal: Strong cable signal when the lock will not clamp, the flex is torn, or reseating temporarily fixes the issue. |
| Related checks |
|
Repair considerations
Run these checks before replacing the cable — they confirm the cable is the right fix and not a nearby fault:
- Restore/format steps can erase data or indicate storage failure
- Treat ribbons, tabs, and ZIF connectors as fragile
- Use reset, Disk Mode, restore, or iTunes/Finder behavior as a software/storage check
- Reseat or inspect ribbon cable and connector seating
- Inspect ZIF latch, socket, or clamp condition
- Check drive noise, SMART/data signs, or storage recognition
Do Not Buy This Cable Yet If...
| Situation | Start here instead |
|---|---|
| Your iPod is a 2007 160GB thick model (MB145LL/A or MB150LL/A, 13.5 mm case) | You need the thick hard-drive cable marked 821-0546. This thin ZIF cable is not compatible. |
| You're not sure if your iPod is thin or thick | Measure case depth: 10.5 mm = thin, which is this listing. 13.5 mm = thick, which uses a different cable. Or match your order number in the fitment table. |
| The iPod shows a red X, sad iPod, or folder icon but you haven't tried reseating the cable | Reseat the existing cable first because that check is quick. Buy only when the cable is torn, creased, corroded, or the symptom persists after reseating with confirmed contact. |
The removed cable is marked 821-0546 or 821-0546-A
|
That marking points to the thick CE-ATA cable path, not this thin 80GB / 120GB ZIF route. |
| The symptom appeared after a storage swap or flash adapter install | Recheck cable seating, adapter orientation, formatting, and battery stability before ordering another cable. |
| You need the 30-pin dock connector, battery connector, or headphone jack cable | This is the internal hard-drive ribbon. It is not for dock, USB, battery, or headphone assemblies. |
Install Overview
Case difficulty
Very Difficult. 13 metal clips hold the case together. This is one of the toughest iPods to disassemble. Have extra plastic opening tools because they break.
Discharge before opening
Fully discharge the iPod before disassembly to reduce thermal event risk if the battery is accidentally punctured.
Rear-panel ribbons
Two ribbon cables connect the rear panel. Do not fully separate the halves until both are disconnected.
ZIF locking tabs
Both ends of the cable have ZIF connectors with flip-up locking tabs. Rotate 90 degrees straight up; never force sideways or the tab can snap.
Cable orientation
When reinstalling, confirm the cable contact side faces the correct direction. An upside-down cable is a documented cause of post-install Red X symptoms.
This guide covers iPod Classic hard-drive cable replacement steps. These steps are for thin 80GB / 120GB fitment, so verify the cable path before following them.
Repair Guide
Repair guide summary: iPod Classic Hard Drive Cable Replacement.
Show all 27 installation steps
This iPod case is unusually hard to open without damaging major components. Its metal faceplate, metal backing, and thirteen metal clips make disassembly especially demanding. Caution: this opening method can significantly damage the iPod beyond its current condition. Keep a few extra plastic opening tools nearby, since they are easy to ruin while opening the case. Confirm that the hold switch is locked before you open the iPod.
Opening this iPod is challenging, so do not get discouraged if it takes a few tries. Watch the plastic opening tool tip angle as you insert it into the iPod; keep it as vertical as possible while still clearing the rear panel edge. Guide a plastic opening tool into the seam between the front and rear of the iPod.
Slide a second plastic opening tool into the seam between the iPod front and rear, keeping the two tools at least 1.5 inches apart.
Working at an angle, carefully slide a putty knife about 1/8 inch into the gap between the two opening tools. You will find thin metal rails running along the inside of the back panel, so work very carefully when inserting the putty knife. After the putty knife clears the rear panel lip, rotate it vertical and carefully but firmly work it straight down through the opening tool gap.
Press on the rear panel behind the putty knife with your fingers to reduce bending. Slowly flex the putty knife so most metal tabs along this side of the iPod release. The idea is to control how the rear panel bends instead of trying to prevent all bending. Any side bend should draw the rear panel lip away from the iPod, not push outward on the curved surface. This also releases as many side clips as possible.
Take the putty knife out, then place it closer to the iPod corner and use the same gentle wiggle method. If possible, do not bend the rear panel corner.
Near the headphone jack, guide a plastic opening tool into the seam between the front and rear of the iPod. It may be easier to flex the putty knife downward carefully to create more room for the opening tool. Be careful not to bend the rear panel corner.
Near the display center, carefully slide a metal spudger into the gap made by the plastic opening tool. A visible bump can form here in the rear panel and is hard to repair. When levering the tab free, pivot the metal spudger on the rear panel edge instead of bending the rear panel outward. With the metal spudger, release the single clip at the iPod top edge.
Near the other top corner, guide a plastic opening tool into the seam between the front and rear of the iPod
On the other side, use the opening tool to start the same case-opening gap. It may help to angle the tool stuck in the top corner to create enough room.
Take the opening tool out of the top corner, then slide it into the seam between the iPod front and rear. Keep at least 1.5 inches between the two tools, as on the opposite side.
Working at an angle, carefully slide a putty knife about 1/8 inch into the gap between the two opening tools. Again, you will find thin metal rails running along the inside of the back panel, so work very carefully when inserting the putty knife. After the putty knife passes the rear panel lip, turn it vertical and carefully but firmly work it straight down through the gap between the plastic opening tools. Press on the rear panel behind the putty knife with your fingers to reduce bending. Flex the putty knife just enough to make sure most metal tabs along this side of the iPod release.
The metal clips near the corners grip the front panel tightly. Release these clips before opening the iPod. Carefully slide a metal spudger into the area beside the stubborn metal clip.
Gently work the metal spudger downward until it is fully seated in the rear panel.
Gently start releasing the clip from the front panel. A visible bump can form here in the rear panel and is hard to repair. When levering the tab free, pivot the metal spudger on the rear panel edge instead of bending the rear panel outward.
Use the metal spudger to apply upward pressure under the front panel until the metal clip releases.
You will find two ribbon cables connecting the rear panel to the remaining iPod assembly. In the following step, take care not to damage these ribbon cables. In this step, grasp the front-panel assembly with one hand and the back panel with the other. Pause for a moment before continuing. Very gently release the remaining rear-panel clips by pulling the tops of the front and rear panels apart, using the iPod bottom as a hinge. Take great care not to damage the ribbon cables joining the two halves.
With a spudger, slide the connector upward where it holds the orange battery ribbon. Lift the locking bar only about 2 mm to release the cable. Move the orange battery ribbon out of its connector.
Set the rear panel beside the iPod, taking care not to strain the orange headphone jack cable.
Raise the hard drive with one hand to expose the headphone jack ribbon underneath. With a spudger, flip up the plastic tab securing the headphone jack ribbon in place. The tab can rotate up 90 degrees, releasing the ribbon cable. Move the orange headphone jack ribbon out of its connector. The rear panel is now released from the iPod.
After opening, check the lower-case clips. If any clip bent upward, press it back down gently so the rear case can close cleanly.
Use the broad, flat face of the metal spudger to press the clip downward. Work carefully so the thin metal rail does not tear away from the rear panel. While shaping these clips, take care not to damage any headphone jack parts.
Set the rear panel on its side on a clean, hard surface. Carefully but firmly press it downward, rolling the full lip edge back into place. You may need to repeat this several times to straighten the sides well. Slightly overcorrecting the case edges inward is better than leaving them too far out, because reseating the front panel will bend the rear panel back into alignment. Once the rear panel is restored to good condition, continue with the iPod repair.
Rotate the hard drive out of the framework, then set it with the connector facing upward. With a spudger, lift the small black locking tab for the orange hard drive ribbon. The tab rotates upward 90 degrees and frees the ribbon cable.
Move the orange hard drive ribbon cable straight out of its connector. If the replacement hard drive did not include rubber mounting brackets or foam padding, transfer those parts from the old drive.
With a spudger, flip up the plastic tab securing the orange hard drive ribbon in place. The tab can rotate up 90 degrees, releasing the ribbon cable. Confirm that you are freeing the tab closest to the hard drive ribbon, not the connector's black section.
Move the orange hard drive ribbon cable straight out of its connector. If adhesive holds the cable to the logic board, carefully pull up on the cable to loosen it.
After This Repair
| Check | What to do |
|---|---|
| Test the connected part | Confirm the assembly on both ends of the cable behaves normally before closing the iPod. |
| Still not working? | Inspect the latch, cable orientation, and board-side connector before replacing another part. |
Frequently Asked Questions
How do I tell if I need the thin or thick hard drive cable?
Measure case depth: 10.5 mm (0.41 inch) is thin, which is this listing. 13.5 mm (0.53 inch) is thick and uses the 821-0546 cable. Or match your order number: MB029LL/A and MB147LL/A are 80GB thin; MB562LL/A and MB565LL/A are 120GB thin; MB145LL/A and MB150LL/A are 160GB thick.
Why does my iPod show a Red X in a circle?
A Red X is Apple's hard-drive failure indicator. Check the drive first, then inspect the cable if the iPod was dropped or the flex is visibly creased. Reseat the cable first. If the Red X persists with a known-good cable connection, the drive is more likely.
Can I replace the hard drive with an SSD or flash adapter?
Yes. flash-storage adapters use the same ZIF cable path as the original drive. This thin cable works for HDD and flash-adapter installs on 80GB / 120GB models. Stock Apple firmware limits usable flash storage to about 128GB with SD cards.
How do I tell if it's the cable or the drive?
If the iPod goes from the Apple logo to a folder icon almost immediately, the cable is the more likely suspect. If the iPod hangs on the Apple logo for several seconds before showing the folder, or makes clicking or grinding sounds, the drive itself is more likely failing.
My iPod won't recognize the flash-storage adapter. Is it the cable?
Cable seating is one of the first checks for flash adapter recognition failures. Check that the cable is fully seated at both ends, the ZIF locking tabs are engaged, and the cable contact side faces the correct direction. An upside-down cable can cause a Red X.
Will restoring my iPod erase everything?
Yes. Restoring through iTunes or Finder erases all content. Back up any recoverable data before using restore as a check.
What if my iPod is stuck on Do Not Disconnect?
Do Not Disconnect normally appears during sync. If do not disconnect stays frozen after restart, check cable seating because this cable connects storage to the logic board.
What if it is stuck on OK to Disconnect?
OK to Disconnect usually resolves on its own after eject. If ok to disconnect is frozen, force restart with Menu + Select before ordering a cable.
Worth Knowing
- Confirm whether the original cable is the thin Toshiba-drive or Hitachi-drive family before ordering; do not route by cable markings alone.
- The the thick 160GB CE-ATA cable thick cable uses a different CE-ATA path and is not compatible with this thin 80GB / 120GB route.
- For flash adapter installs on 6G logic boards, the ZIF cable path is the same, but usable SD-card storage is limited by the 6G stock-firmware storage limit.
- Physical drive repair (opening the drive casing) is not feasible outside a clean room; mechanical damage keeps escalating — a failing drive is replaced, not repaired.
Why people land on this part
Also searched as: iPod classic 6th Generation Hard Drive Cable, Hard Drive Failure, restore error, hard drive connector cable ribbon, A1238 hard drive cable, iPod 6g Classic 80GB, iPod Classic 6th Generation thin models, external drive, 160GB HDD, hard reset, tried charging, Hard Drive Cable (Thin — 80GB / 120GB) replacement, Red X Icon, Clicking Noise, Sad iPod Icon, Folder Icon, Corrupted Data, Stuck in Recovery Mode, iTunes Error, Reboot Loop, Stuck on Apple Logo, Won't Restore, Stuck in Disk Mode, Flash Mod Problems, hard drive dead, clicking sound, showing a folder, hdd connector, hard disk, battery connector, drive already corrupted, drive was corrupted, drive flex cable, solid state drive, error 1416, error 1429, click noise, click sound, click of death, iPod Classic 80GB Error 1303, ok to disconnect, red circle, Sad iPod, storage trouble.
Some buyers search for "ZIF hard drive cable", "hard drive connector cable", "hard drive flex ribbon cable", "ZIF 40-pin", "broken", "solid state drive", "hard disk", "hard drives", or "Cable installed upside-down causes red X"; confirm the checks above point to this same part before ordering.
Questions people ask
- Does this fit a Late 2008 6.5G or 7th Gen iPod Classic.
- My iPod won't recognize the flash-storage adapter — is it the cable.
You May Also Want
flash-storage adapters use the same thin ZIF cable path; stock Apple firmware limits usable flash storage to about 128GB.
Related: Hard drive options (80GB / 120GB thin)Choose the drive capacity that matches your thin iPod before ordering.
Related: Replacement Battery (Thin — 80GB / 120GB)The thin battery is checked during storage service during opening; inspect it while the case is open, especially if runtime is weak or the cell is swollen.
