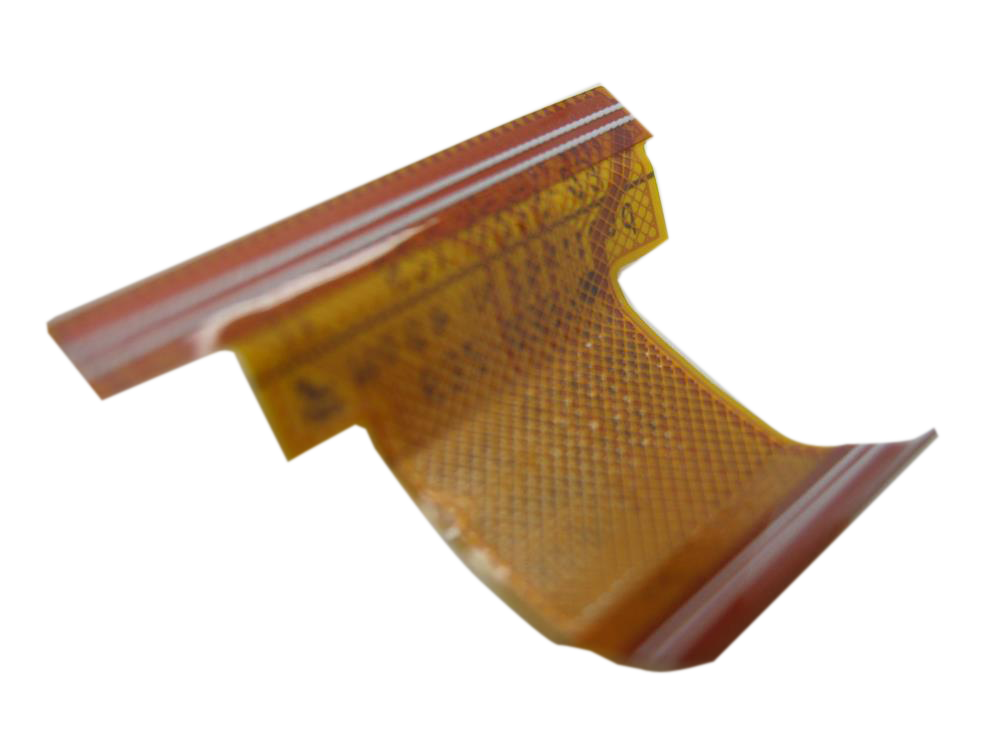

Replacement internal CE-ATA hard-drive ribbon cable 821-0546 for the original September 2007 thick-case iPod Classic 6th Generation 160GB. Use this listing for MB145LL/A or MB150LL/A after confirming case depth, cable marking, and storage behavior.
Product Overview
This internal ZIF hard drive ribbon cable connects the hard drive or storage adapter to the logic board inside the thick-case iPod Classic 6th Generation 160GB.
This listing helps check whether the hard-drive cable is involved when you see a Red X, sad iPod, folder icon, clicking, restore errors, disk mode trouble, corrupted data, or post-flash-mod storage problems.
Choose Your Option
This part comes in multiple variants. Confirm your iPod's capacity, case depth, and order number before ordering.
Use this linked storage option only for 80GB/120GB thin-case iPods and the order numbers shown here.
View this option →Choose this listing for original 2007 160GB thick-case builds with a 13.5 mm rear case. Open the child page before ordering because thin and thick cables do not interchange.
You're viewing this optionWhat Is Included
Quick Diagnosis
Buy this when
- The iPod is MB145LL/A or MB150LL/A, 160GB, A1238 / EMC 2173, with the 13.5 mm / 0.53 in thick rear case.
- The removed hard-drive cable is marked
821-0546or821-0546-A.
Check first when
- Folder appears immediately after the Apple logo: reseat and inspect the cable first.
- The iPod will not boot at all: check battery, charging, and the power path before buying a storage cable.
Do not buy for
- 80GB or 120GB thin-case models; those require the thin hard-drive cable.
- Dock-connector trouble, headphone issues, battery-connector damage, or other non-storage symptoms.
Other Symptoms That May Involve This Part
| Symptom | What it means & what to check |
|---|---|
| stuck in recovery mode, apple.com/support, Flash Mod Problems, Wont turn on after repair | Treat this as a storage-path clue, then compare cable condition, drive behavior, and fitment. |
| click noise, click sound, Clicking Noise, clicking sound | A drive can make the same sound, so reseat the cable and compare against known-good storage before buying the ribbon. |
| drive already corrupted, drive dead, drive was corrupted, hard drive dead, Hard Drive Failure, hdd connector | Drive-health language is not proof of a bad cable. Inspect the cable ends, fold line, and ZIF locks while also checking the drive or adapter itself. |
| error 1416, error 1429, error 1439, error code, error message, iTunes Error, Reboot Loop | Restore and iTunes errors can involve the storage path; reseat the cable, confirm adapter or drive format, and test known-good storage before replacing the ribbon. |
| Red X Icon, showing a folder | Reseat both ZIF ends and inspect the fold line; the cable is stronger evidence when the icon appears immediately after the Apple logo. |
| Stuck on Apple Logo | Apple-logo hangs can come from storage not initializing; check the cable and storage device together before buying either part. |
Specifications & Fitment
Part Details
| Detail | Value |
|---|---|
| Model Number | A1238 |
| EMC | EMC 2173 |
| Condition | Used — factory original Apple part. Normal cosmetic wear expected. |
| Reference Cable Part | the thick 160GB CE-ATA cable |
| Device Storage | 160GB |
| Connector | Proprietary narrow ZIF / CE-ATA-style hard-drive ribbon |
| Soldering Required | No |
Compatible Variants
| Order Number | Capacity | Color | Case | Compatible | Notes |
|---|---|---|---|---|---|
| MB150LL/A | 160GB | Black | thick (0.53 in) | Yes— stock match | — |
| MB145LL/A | 160GB | Silver | thick (0.53 in) | Yes— stock match | — |
| MB147LL/A | 80GB | Black | thin (0.41 in) | No— different connector | 80GB thin models (MB029LL/A, MB147LL/A) — requires the thin hard-drive cable Use Hard Drive Cable (Thin — 80GB / 120GB) instead. |
| MB029LL/A | 80GB | Silver | thin (0.41 in) | No— different connector | 80GB thin models (MB029LL/A, MB147LL/A) — requires the thin hard-drive cable Use Hard Drive Cable (Thin — 80GB / 120GB) instead. |
| MB565LL/A | 120GB | Black | thin (0.41 in) | No— different connector | 120GB thin models (MB562LL/A, MB565LL/A) — not compatible with this thick cable Use Hard Drive Cable (Thin — 80GB / 120GB) instead. |
| MB562LL/A | 120GB | Silver | thin (0.41 in) | No— different connector | 120GB thin models (MB562LL/A, MB565LL/A) — not compatible with this thick cable Use Hard Drive Cable (Thin — 80GB / 120GB) instead. |
| MC297LL/A | 160GB (Late 2009) | Black | thin | No— wrong 6G hard-drive cable | 6G thick hard-drive cable only fits the original 160GB thick hard-drive chassis |
| MC293LL/A | 160GB (Late 2009) | Silver | thin | No— wrong 6G hard-drive cable | 6G thick hard-drive cable only fits the original 160GB thick hard-drive chassis |
Fitment wording buyers compare
| Wording | What it means on this page |
|---|---|
| 160GB thick models | Wording buyers compare when confirming fitment for this part. |
Failure Signs / When This Cable Helps
Use storage behavior as a check, not proof. The thick hard-drive cable is the right part only when thick-case fitment is confirmed and the cable, drive, adapter, and board-side connector have been compared.
| Symptom | What it means & what to check |
|---|---|
| Symptom remains after basic checks |
What you may see: The iPod still points back to Hard Drive Cable (Thick — 160GB) after cable seating, battery stability, and nearby connector checks. Check first: Retest with known-good cables or adjacent parts where practical before ordering. Check next: A nearby cable, connector, battery, storage device, display path, audio path, or board path can mimic a bad cable. |
| Symptom changes when touched or reseated |
What you may see: The symptom changes after moving the part, reseating a cable, or applying light pressure near the connector path. Check first: Inspect the connector, latch, flex, solder joints, and nearby board area for damage or corrosion. Check next: This can still be a connection issue rather than a failed cable alone. |
| Red X, red circle, sad iPod, or folder icon |
Check First: Reseat the cable and inspect both ZIF ends for lifted locks, corrosion, torn flex, or poor contact. Cable Signal: Stronger when the symbol appears immediately after the Apple logo and the drive is known good. |
| Clicking, click of death, or grinding before the folder appears |
Check First: Test or swap the hard drive before blaming the cable. Cable Signal: The click of death can be the drive or the cable; if reseating the cable stops the clicking, the cable was the issue. |
| Won't restore, corrupted data, restore loop, or stuck in disk mode |
Check First: Check drive health, formatting, flash adapter seating, SD card format, and the board-side storage connector. Cable Signal: Stronger when reseating or replacing the `821-0546` cable changes the restore behavior. |
| Post-flash-mod storage issue |
Check First: Confirm the adapter is seated, cards are formatted correctly, and the storage size respects the 6G stock-firmware limit of about 128GB usable. Cable Signal: Stronger when the adapter works with a known-good thick cable. |
| No boot at all |
Check First: Start with battery, charging, dock power, and board power checks. Cable Signal: A hard-drive cable is unlikely to be the first part when the iPod shows no power signs. |
| Related checks |
|
Repair considerations
Run these checks before replacing the cable — they confirm the cable is the right fix and not a nearby fault:
- Restore/format steps can erase data or indicate storage failure
- Treat ribbons, tabs, and ZIF connectors as fragile
- Use reset, Disk Mode, restore, or iTunes/Finder behavior as a software/storage check
- Reseat or inspect ribbon cable and connector seating
- Inspect ZIF latch, socket, or clamp condition
- Check drive noise, SMART/data signs, or storage recognition
Do Not Buy This Cable Yet If...
| Situation | Start here instead |
|---|---|
| Your iPod is an 80GB or 120GB thin-case model (10.5 mm) | You need the thin hard-drive cable. This thick cable is not compatible. |
| Your iPod is a Late 2009 thin 160GB (MC293LL/A or MC297LL/A) | That is a thin-case model despite being 160GB. Use the thin cable. |
| The iPod shows a sad iPod icon, red X, or folder but you haven't checked the hard drive yet | The drive itself may be failing. Test or swap the drive before buying a cable. |
The cable is not marked 821-0546 or 821-0546-A
|
Do not order from this listing until you have confirmed the thick 160GB cable path. |
| The symptom appeared after you reseated the cable and hasn't changed | If reseating didn't help and the cable looks undamaged, the drive or logic board may be the issue. |
| You're not sure if your iPod is thick or thin | Measure case depth: 13.5 mm (0.53 inch) = thick (this listing). 10.5 mm (0.41 inch) = thin (different cable). Or match your order number. |
Install Overview
Case difficulty
Very Difficult. The iPod Classic has a metal faceplate, metal rear case, and 13 metal clips. Expect scratches. Extra plastic opening tools are recommended because they break.
Cable ZIF latch
The cable connects via ZIF latch on both ends. Lift the flip-up locking tab before pulling the ribbon. Do not pry the black connector body.
Rear-panel ribbons
Two ribbon cables connect the rear panel to the rest of the iPod. Disconnect them before fully separating the halves.
Adhesive under cable
The cable may be held by adhesive. Loosen it gently and do not tear the flex.
Test before closing
Reconnect the cable and test the iPod before snapping the case shut. A failed test after closing means reopening the case.
This guide covers all iPod Classic models. This listing is for the thick 160GB chassis, so verify fitment before following the steps.
Repair Guide
Repair guide summary: iPod Classic Hard Drive Cable Replacement.
Show all 27 installation steps
This iPod case is unusually hard to open without damaging major components. Its metal faceplate, metal backing, and thirteen metal clips make disassembly especially demanding. Caution: this opening method can significantly damage the iPod beyond its current condition. Keep a few extra plastic opening tools nearby, since they are easy to ruin while opening the case. Confirm that the hold switch is locked before you open the iPod.
Opening this iPod is challenging, so do not get discouraged if it takes a few tries. Watch the plastic opening tool tip angle as you insert it into the iPod; keep it as vertical as possible while still clearing the rear panel edge. Guide a plastic opening tool into the seam between the front and rear of the iPod.
Slide a second plastic opening tool into the seam between the iPod front and rear, keeping the two tools at least 1.5 inches apart.
Working at an angle, carefully slide a putty knife about 1/8 inch into the gap between the two opening tools. You will find thin metal rails running along the inside of the back panel, so work very carefully when inserting the putty knife. After the putty knife clears the rear panel lip, rotate it vertical and carefully but firmly work it straight down through the opening tool gap.
Press on the rear panel behind the putty knife with your fingers to reduce bending. Slowly flex the putty knife so most metal tabs along this side of the iPod release. The idea is to control how the rear panel bends instead of trying to prevent all bending. Any side bend should draw the rear panel lip away from the iPod, not push outward on the curved surface. This also releases as many side clips as possible.
Take the putty knife out, then place it closer to the iPod corner and use the same gentle wiggle method. If possible, do not bend the rear panel corner.
Near the headphone jack, guide a plastic opening tool into the seam between the front and rear of the iPod. It may be easier to flex the putty knife downward carefully to create more room for the opening tool. Be careful not to bend the rear panel corner.
Near the display center, carefully slide a metal spudger into the gap made by the plastic opening tool. A visible bump can form here in the rear panel and is hard to repair. When levering the tab free, pivot the metal spudger on the rear panel edge instead of bending the rear panel outward. With the metal spudger, release the single clip at the iPod top edge.
Near the other top corner, guide a plastic opening tool into the seam between the front and rear of the iPod
On the other side, use the opening tool to start the same case-opening gap. It may help to angle the tool stuck in the top corner to create enough room.
Take the opening tool out of the top corner, then slide it into the seam between the iPod front and rear. Keep at least 1.5 inches between the two tools, as on the opposite side.
Working at an angle, carefully slide a putty knife about 1/8 inch into the gap between the two opening tools. Again, you will find thin metal rails running along the inside of the back panel, so work very carefully when inserting the putty knife. After the putty knife passes the rear panel lip, turn it vertical and carefully but firmly work it straight down through the gap between the plastic opening tools. Press on the rear panel behind the putty knife with your fingers to reduce bending. Flex the putty knife just enough to make sure most metal tabs along this side of the iPod release.
The metal clips near the corners grip the front panel tightly. Release these clips before opening the iPod. Carefully slide a metal spudger into the area beside the stubborn metal clip.
Gently work the metal spudger downward until it is fully seated in the rear panel.
Gently start releasing the clip from the front panel. A visible bump can form here in the rear panel and is hard to repair. When levering the tab free, pivot the metal spudger on the rear panel edge instead of bending the rear panel outward.
Use the metal spudger to apply upward pressure under the front panel until the metal clip releases.
You will find two ribbon cables connecting the rear panel to the remaining iPod assembly. In the following step, take care not to damage these ribbon cables. In this step, grasp the front-panel assembly with one hand and the back panel with the other. Pause for a moment before continuing. Very gently release the remaining rear-panel clips by pulling the tops of the front and rear panels apart, using the iPod bottom as a hinge. Take great care not to damage the ribbon cables joining the two halves.
With a spudger, slide the connector upward where it holds the orange battery ribbon. Lift the locking bar only about 2 mm to release the cable. Move the orange battery ribbon out of its connector.
Set the rear panel beside the iPod, taking care not to strain the orange headphone jack cable.
Raise the hard drive with one hand to expose the headphone jack ribbon underneath. With a spudger, flip up the plastic tab securing the headphone jack ribbon in place. The tab can rotate up 90 degrees, releasing the ribbon cable. Move the orange headphone jack ribbon out of its connector. The rear panel is now released from the iPod.
After opening, check the lower-case clips. If any clip bent upward, press it back down gently so the rear case can close cleanly.
Use the broad, flat face of the metal spudger to press the clip downward. Work carefully so the thin metal rail does not tear away from the rear panel. While shaping these clips, take care not to damage any headphone jack parts.
Set the rear panel on its side on a clean, hard surface. Carefully but firmly press it downward, rolling the full lip edge back into place. You may need to repeat this several times to straighten the sides well. Slightly overcorrecting the case edges inward is better than leaving them too far out, because reseating the front panel will bend the rear panel back into alignment. Once the rear panel is restored to good condition, continue with the iPod repair.
Rotate the hard drive out of the framework, then set it with the connector facing upward. With a spudger, lift the small black locking tab for the orange hard drive ribbon. The tab rotates upward 90 degrees and frees the ribbon cable.
Move the orange hard drive ribbon cable straight out of its connector. If the replacement hard drive did not include rubber mounting brackets or foam padding, transfer those parts from the old drive.
With a spudger, flip up the plastic tab securing the orange hard drive ribbon in place. The tab can rotate up 90 degrees, releasing the ribbon cable. Confirm that you are freeing the tab closest to the hard drive ribbon, not the connector's black section.
Move the orange hard drive ribbon cable straight out of its connector. If adhesive holds the cable to the logic board, carefully pull up on the cable to loosen it.
After This Repair
| Check | What to do |
|---|---|
| Test the connected part | Confirm the assembly on both ends of the cable behaves normally before closing the iPod. |
| Still not working? | Inspect the latch, cable orientation, and board-side connector before replacing another part. |
Frequently Asked Questions
How do I tell if my iPod Classic needs the thick or thin hard drive cable?
Measure case depth: 13.5 mm = thick, which is this listing; 10.5 mm = thin, which needs a different cable. Or match your order number: MB145LL/A or MB150LL/A = thick 160GB. MB029LL/A, MB147LL/A, MB562LL/A, and MB565LL/A = thin. A1238 alone is not enough.
Why does my iPod show a red X in a circle?
A red X usually means the iPod cannot read the hard drive. The cause can be the drive itself, the cable, or the cable's ZIF connector. Reseat the cable first. If the red X persists with a known-good cable connection, the drive may be failing.
Can I replace the hard drive with an SSD or flash adapter?
Yes. flash-storage adapters work in the thick 160GB chassis, but the adapter does not include a ribbon cable. You need this thick 821-0546 cable to connect the adapter to the logic board. Stock Apple firmware limits usable flash storage to about 128GB with SD cards.
What generation is model A1238?
A1238 covers iPod Classic models from 2007 through 2009: the original 80GB and 160GB, the 2008 120GB, and the 2009 thin 160GB. A1238 alone cannot tell you which cable you need. Check order number and case depth.
My iPod shows a folder or won't restore. Is it the cable?
If the folder icon appears immediately after the Apple logo, the cable is a likely suspect. If the iPod hangs, clicks, or grinds before showing the folder, the drive itself is more likely. Reseat the cable first because that check is quick.
Will restoring my iPod erase everything?
Yes. Restoring through iTunes or Finder erases all content. Back up any recoverable data before restoring. If the iPod will not mount as a disk, data recovery may require professional tools.
What if the hard-drive cable is torn or the latch is damaged?
Replace the cable if the flex is torn, sharply creased, corroded, or the ZIF latch will not hold the ribbon. Do not keep testing with a damaged cable because poor contact can make a good drive look failed.
What if my iPod is stuck on Do Not Disconnect?
Do Not Disconnect normally appears during sync. If do not disconnect stays frozen after restart, check cable seating because this cable connects storage to the logic board.
What if it is stuck on OK to Disconnect?
OK to Disconnect usually resolves on its own after eject. If ok to disconnect is frozen, force restart with Menu + Select before ordering a cable.
Can a folder or won't restore mean the cable is bad?
A folder or won't restore can involve the cable, drive, adapter seating, battery stability, or restore path. Reseat both cable ends before ordering.
Worth Knowing
- This cable fits only the original September 2007 160GB thick-case Classic, MB145LL/A or MB150LL/A.
- 80GB, 120GB, and Late 2009 160GB thin-case Classics use a different hard-drive cable.
- The thick 160GB cable uses a proprietary narrow ZIF / CE-ATA-style route and is not the same as the standard 40-pin ZIF used on thin Classics.
- For flash storage installs, flash-storage adapters do not include this cable and the thick 6G logic board is limited to 128GB usable storage with SD cards on stock Apple firmware.
- Physical drive repair (opening the drive casing) is not feasible outside a clean room; mechanical damage keeps escalating — a failing drive is replaced, not repaired.
Why people land on this part
Also searched as: 160GB thick iPod Classic hard drive cable, iPod classic 6th Generation Hard Drive Cable, restore error, A1238 hard drive cable, thick (13.5 mm) case, thick 6th gen 160GB iPod classic, external drive, hard reset, solid state drive, tried charging, Red X Icon, Clicking Noise, Sad iPod Icon, Folder Icon, Corrupted Data, Stuck in Recovery Mode, iTunes Error, Reboot Loop, Stuck on Apple Logo, Won't Restore, Stuck in Disk Mode, Flash Mod Problems, Hard Drive Failure, hard drive dead, clicking sound, showing a folder, hdd connector, hard disk, drive flex cable, drive was corrupted, hard drive ribbon cable, HDD flex cable, EMC 2173, hard drive connector cable, iPod Classic 6G, drive already corrupted, error 1416, error 1429, click noise, click sound, dock connector iPod classic, click of death, ok to disconnect, red circle, sad iPod.
Some buyers search for "HDD flex cable", "hard drive flex ribbon cable", "HDD ribbon", "drive flex cable", "hard drive connector cable", "ipod classic ribbon cable", "160gb hdd", "ipod classic 6th gen hard drive cable", "hard disk", or "hard drives"; confirm the checks above point to this same part before ordering.
Some buyers search for "ipod classic 160gb hard drive cable replacement" or "CE-ATA-style pinout"; confirm the checks above point to this same part before ordering.
Questions people ask
- Will restoring iPod erase everything
You May Also Want
flash-storage adapters do not include a cable; thick 160GB flash installations need the 821-0546 ribbon, and stock Apple firmware limits usable flash storage to about 128GB.
Related: Replacement Hard Drive (160GB)If the iPod clicks, shows SMART errors, or will not read after cable replacement, the drive itself may need replacing.
Related: Replacement Battery (Thick — 160GB)The thick battery sits nearby during opening; inspect it while the case is open, especially if runtime is weak or the cell is swollen.
