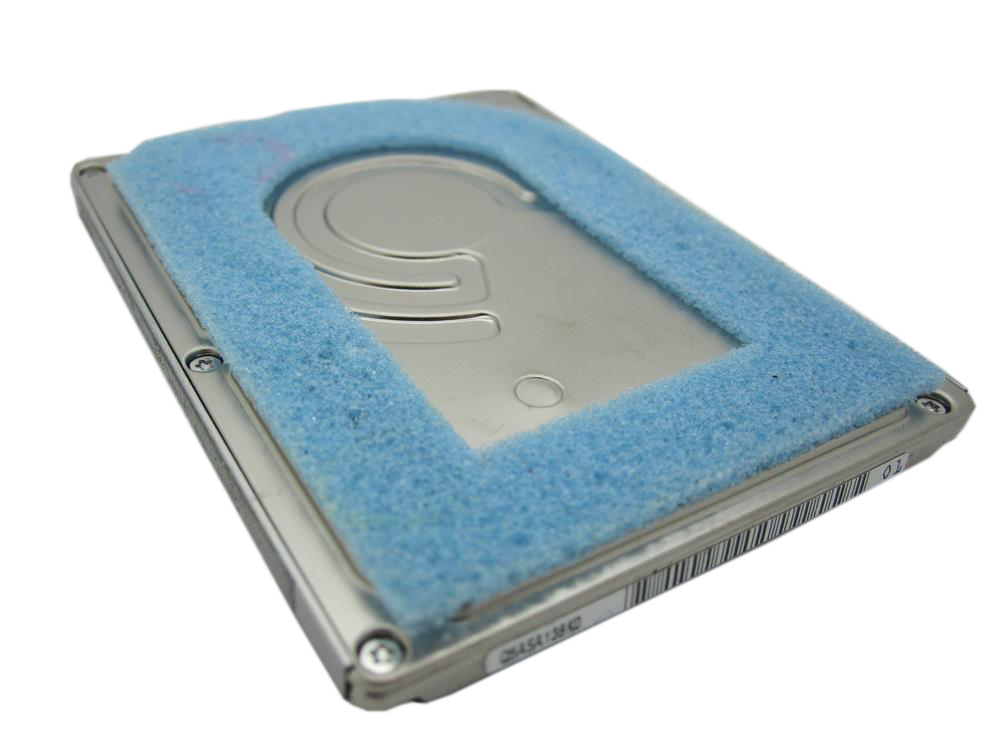

Original-style Toshiba MK1626GCB 160GB replacement hard drive for the September 2007 thick-case iPod Classic 6th Generation. Use this listing for MB145LL/A or MB150LL/A after confirming 13.5 mm rear case depth, the matching CE-ATA cable path, and storage behavior.
Product Overview
This is the iPod Classic 160GB hard drive replacement route for the original 2007 thick-case 6th Generation model.
The standard PATA/ZIF cable used by the 80GB and 120GB thin models will not work with this drive.
Do not rely on 160GB capacity alone.
Choose Your Option
This part comes in multiple variants. Confirm your iPod's capacity, case depth, and order number before ordering.
Use this linked storage option only for 80GB thin-case iPods and the order numbers shown here.
View this option → 120GB / Thin Replacement Hard Drive (120GB)Use this linked storage option only for 120GB thin-case iPods and the order numbers shown here.
View this option →For MB145LL/A or MB150LL/A original 2007 thick 160GB Classics. Uses Toshiba MK1626GCB, 13.5 mm case depth, CE-ATA, and the thick 160GB CE-ATA cable.
You're viewing this optionWhat Is Included
Condition: Used factory-original part. Quantity and exclusions: The listed part, set, pair, or configuration above is supplied with exactly one plastic pry tool. No other parts, tools, adhesives, or materials are included unless they are explicitly listed above.
Quick Diagnosis
Start with fitment and cable routing. The 160GB thick drive, its 13.5 mm case, and the 821-0546 CE-ATA cable are one storage path.
| What you see | Check first | Hard drive makes sense when |
|---|---|---|
| 160GB thick 2007 Classic | Confirm MB145LL/A or MB150LL/A and 13.5 mm rear case depth. | This MK1626GCB drive fits the original thick 160GB route only. |
| Red X, red circle, sad iPod, folder icon, or apple.com/support warning | Reseat and inspect the CE-ATA flex cable first, especially part 821-0546 at the logic-board and drive ends. |
The drive becomes more likely when the CE-ATA cable seats cleanly and the iPod still cannot detect usable storage. |
| Clicking, grinding, failed restore, or stuck on Apple logo | Check battery stability, cable seating, disk mode, and restore behavior before ordering. | Repeated spin-up attempts or failed restore after cable checks can point toward the MK1626GCB drive. |
| 160GB but thin Late 2009 model | If the order number is MC293LL/A or MC297LL/A, stop here. | That Late 2009 thin 160GB route uses a different drive and cable, not this CE-ATA thick drive. |
Specifications & Fitment
Part Details
| Detail | Value |
|---|---|
| Model Number | A1238 |
| EMC | EMC 2173 |
| Condition | Used — factory original Apple part. Normal cosmetic wear expected. |
| Drive Model | MK1626GCB |
| Capacity | 160GB |
| Form Factor | 1.8" CE-ATA/ZIF |
| Manufacturer | Toshiba |
| Interface | CE-ATA |
| Drive Height | 8mm |
| Platters | 2 |
| Compatible Alternative | Samsung HS161JQ
|
| Rotational Speed | 3600 RPM |
Compatible Variants
| Order Number | Capacity | Color | Case | Compatible | Notes |
|---|---|---|---|---|---|
| MB150LL/A | 160GB | Black | thick (0.53 in) | Yes— stock match | — |
| MB145LL/A | 160GB | Silver | thick (0.53 in) | Yes— stock match | — |
| MB147LL/A | 80GB | Black | thin (0.41 in) | No— different connector | 80GB thin models (MB029LL/A, MB147LL/A) - different drive, thin case, and different cable Use Replacement Hard Drive (80GB) instead. |
| MB029LL/A | 80GB | Silver | thin (0.41 in) | No— different connector | 80GB thin models (MB029LL/A, MB147LL/A) - different drive, thin case, and different cable Use Replacement Hard Drive (80GB) instead. |
| MB565LL/A | 120GB | Black | thin (0.41 in) | No— different connector | 120GB thin models (MB562LL/A, MB565LL/A) - different drive, thin case, and different cable Use Replacement Hard Drive (120GB) instead. |
| MB562LL/A | 120GB | Silver | thin (0.41 in) | No— different connector | 120GB thin models (MB562LL/A, MB565LL/A) - different drive, thin case, and different cable Use Replacement Hard Drive (120GB) instead. |
| MC297LL/A | 160GB (Late 2009) | Black | thin | No— thick CE-ATA drive | 8mm CE-ATA drive from the 2007 thick 160GB — the Late-2009 thin 160GB (MC293LL/A / MC297LL/A) uses a 5mm ZIF bay; sold under the iPod Classic 7th Generation (Late 2009) pages |
| MC293LL/A | 160GB (Late 2009) | Silver | thin | No— thick CE-ATA drive | 8mm CE-ATA drive from the 2007 thick 160GB — the Late-2009 thin 160GB (MC293LL/A / MC297LL/A) uses a 5mm ZIF bay; sold under the iPod Classic 7th Generation (Late 2009) pages |
is not compatible with
- 80GB thin models (MB029LL/A, MB147LL/A) - different drive, thin case, and different cable
- 120GB thin models (MB562LL/A, MB565LL/A) - different drive, thin case, and different cable
- Late 2009 thin 160GB models (MC293LL/A, MC297LL/A) - different drive and thin storage path
- iPod 5th / 5.5 Generation Video models - different generation and storage-fitment path
- Standard thin PATA/ZIF hard-drive cable - this drive requires the thick 160GB CE-ATA cable (821-0546 / 821-0546-A)
When This Hard Drive Helps
| Symptom | What it means & what to check |
|---|---|
| The CE-ATA path still fails after reseating | A damaged or unseated 821-0546 cable can mimic drive failure. Replace the MK1626GCB only after the CE-ATA cable path has been checked. |
| The drive clicks or cannot mount | Repeated clicking - sometimes called the click of death - usually means the drive head can no longer access the platters. Grinding or scraping noises during spin-up also point toward mechanical drive failure after CE-ATA cable checks. |
| The iPod reports Red X, sad iPod, folder icon, red circle, or apple.com/support | Those warnings mean the Classic cannot reach a usable storage path. Check the CE-ATA cable first, then replace the drive when the storage path still fails. |
| Playback skips or the iPod freezes | Songs skipping, stuttering, or cutting out can indicate failing drive sectors. A frozen iPod points toward this drive only when it freezes while accessing music or syncing. |
| You want original 160GB mechanical storage | this listing keeps the 2007 thick 160GB model on its original-style Toshiba MK1626GCB drive rather than a flash adapter. |
| won't restore, error 1416, error 1429, error 1439, error code, error message, iTunes Error, Reboot Loop, restore error, restore option, restore process | Treat this as a restore or storage-path symptom, not proof of a bad drive; the drive becomes more likely when cable, USB, formatting, and restore checks still lead back to storage warnings. |
| Clicking Noise, clicking sound | Mechanical clicking or grinding points toward the drive after the hard-drive cable has been reseated and checked. |
| drive already corrupted, drive was corrupted | Playback skips, freezes, or corrupted data become drive clues when they happen during storage access or sync. |
| Red X Icon, Sad iPod Icon, showing a folder | These warnings mean the iPod cannot reach a usable storage path; check the cable first, then the drive. |
Diagnose first when
- Check the capacity engraved on the back case: 80GB or 120GB means thin. An original 2007 160GB is thick; the Late 2009 160GB (MC293LL/A, MC297LL/A) is thin — identify by order number. Order parts matching that case thickness.
- Match the exact model, generation, capacity, and case style shown for the product.
- Inspect for liquid, corrosion, residue, torn flex material, or connector damage.
- Reopen only as far as needed to inspect the areas touched during the repair.
Repair considerations
Run these checks before replacing the drive — they confirm the drive is the right fix and not a nearby fault:
- Restore/format steps can erase data or indicate storage failure
- Treat ribbons, tabs, and ZIF connectors as fragile
- Use reset, Disk Mode, restore, or iTunes/Finder behavior as a software/storage check
- Reseat or inspect ribbon cable and connector seating
- Inspect ZIF latch, socket, or clamp condition
- Check drive noise, SMART/data signs, or storage recognition
Do Not Buy This Hard Drive Yet If...
| Situation | Start here instead |
|---|---|
| Your iPod is an 80GB or 120GB thin model (10.5 mm case) | This 8 mm dual-platter CE-ATA drive is not compatible with the thin case. Use the 80GB or 120GB hard drive page. |
| Your iPod is a Late 2009 thin 160GB (MC293LL/A or MC297LL/A) | Despite the same capacity, that model uses a thin case, MK1634GAL-style storage path, and different cable. This CE-ATA thick drive is not compatible. |
| You have the right iPod but need the cable too | This drive requires the CE-ATA flex cable 821-0546. If your cable is damaged, order the thick cable separately because the thin PATA/ZIF cable will not work. |
| The iPod shows a Red X, sad iPod, or folder icon and you have not checked the cable | Reseat or inspect the CE-ATA cable first. A damaged or unseated cable can produce the same storage warning as a bad drive. |
| The symptom started after a flash adapter install | Flash adapters in the thick 160GB chassis still require the CE-ATA cable and correct adapter orientation. Recheck those before ordering another HDD. |
| The iPod is stuck in recovery mode | Try a USB restore first. If recovery mode returns with clicking, failed restore, Red X, or apple.com/support, the drive or CE-ATA cable becomes more likely. |
| The iPod keeps restarting in a boot loop | Charge the battery and try restore before ordering. A boot loop can involve battery sag, firmware, or storage. |
| You are choosing by A1238 or 160GB capacity alone | A1238 spans multiple Classic revisions, and Late 2009 160GB is thin. Match MB145LL/A or MB150LL/A plus the 13.5 mm case before buying. |
Consider Flash Storage
Flash adapters can replace the mechanical HDD, but this listing is the original-style MK1626GCB hard-drive path. For iPod classic 6th generation hard drive upgrade planning, use the flash path when the goal is an adapter or SD-card build. Thick 160GB flash-adapter installs still require the CE-ATA flex cable 821-0546; the adapter does not replace that cable.
With original Apple firmware, usable flash-adapter storage on this 6G model is limited to about 128GB regardless of the card's printed capacity. Third-party firmware such as Rockbox can bypass that limit, but that path is unsupported here.
See the Flash Storage Mod Kit (flash-storage adapter) page for the full flash-storage path.
Install Overview
This is a very difficult no-solder hard drive replacement. The Repair Guide below carries the install summary and the 25 hard-drive steps.
Case difficulty
Very Difficult. The Classic shell has 13 metal clips, so keep extra plastic opening tools ready and work slowly.
Hold switch
Lock the Hold switch before opening so the switch position is known during reassembly.
Rear-panel ribbons
Two ribbon cables connect the rear panel. Open the case like a hinge and disconnect both before separating the halves.
CE-ATA cable
This drive uses the CE-ATA flex cable, not the standard thin PATA/ZIF cable. If replacing the cable, order part 821-0546.
Drive mounting
Transfer rubber bumpers and foam padding from the old drive to the replacement if those parts are not included.
Test before closing
Connect and test the drive before snapping the case shut so cable seating or restore problems can be corrected while the iPod is open.
Disassembly Guide
Disassembly guide summary: iPod Classic Hard Drive Replacement.
Show all 25 installation steps
This iPod case is unusually hard to open without damaging major components. Its metal faceplate, metal backing, and thirteen metal clips make disassembly especially demanding. Caution: this opening method can significantly damage the iPod beyond its current condition. Keep a few extra plastic opening tools nearby, since they are easy to ruin while opening the case. Confirm that the hold switch is locked before you open the iPod.
Opening this iPod is challenging, so do not get discouraged if it takes a few tries. Watch the plastic opening tool tip angle as you insert it into the iPod; keep it as vertical as possible while still clearing the rear panel edge. Guide a plastic opening tool into the seam between the front and rear of the iPod.
Slide a second plastic opening tool into the seam between the iPod front and rear, keeping the two tools at least 1.5 inches apart.
Working at an angle, carefully slide a putty knife about 1/8 inch into the gap between the two opening tools. You will find thin metal rails running along the inside of the back panel, so work very carefully when inserting the putty knife. After the putty knife clears the rear panel lip, rotate it vertical and carefully but firmly work it straight down through the opening tool gap.
Press on the rear panel behind the putty knife with your fingers to reduce bending. Slowly flex the putty knife so most metal tabs along this side of the iPod release. The idea is to control how the rear panel bends instead of trying to prevent all bending. Any side bend should draw the rear panel lip away from the iPod, not push outward on the curved surface. This also releases as many side clips as possible.
Take the putty knife out, then place it closer to the iPod corner and use the same gentle wiggle method. If possible, do not bend the rear panel corner.
Near the headphone jack, guide a plastic opening tool into the seam between the front and rear of the iPod. It may be easier to flex the putty knife downward carefully to create more room for the opening tool. Be careful not to bend the rear panel corner.
Near the display center, carefully slide a metal spudger into the gap made by the plastic opening tool. A visible bump can form here in the rear panel and is hard to repair. When levering the tab free, pivot the metal spudger on the rear panel edge instead of bending the rear panel outward. With the metal spudger, release the single clip at the iPod top edge.
Near the other top corner, guide a plastic opening tool into the seam between the front and rear of the iPod
On the other side, use the opening tool to start the same case-opening gap. It may help to angle the tool stuck in the top corner to create enough room.
Take the opening tool out of the top corner, then slide it into the seam between the iPod front and rear. Keep at least 1.5 inches between the two tools, as on the opposite side.
Working at an angle, carefully slide a putty knife about 1/8 inch into the gap between the two opening tools. Again, you will find thin metal rails running along the inside of the back panel, so work very carefully when inserting the putty knife. After the putty knife passes the rear panel lip, turn it vertical and carefully but firmly work it straight down through the gap between the plastic opening tools. Press on the rear panel behind the putty knife with your fingers to reduce bending. Flex the putty knife just enough to make sure most metal tabs along this side of the iPod release.
The metal clips near the corners grip the front panel tightly. Release these clips before opening the iPod. Carefully slide a metal spudger into the area beside the stubborn metal clip.
Gently work the metal spudger downward until it is fully seated in the rear panel.
Gently start releasing the clip from the front panel. A visible bump can form here in the rear panel and is hard to repair. When levering the tab free, pivot the metal spudger on the rear panel edge instead of bending the rear panel outward.
Use the metal spudger to apply upward pressure under the front panel until the metal clip releases.
You will find two ribbon cables connecting the rear panel to the remaining iPod assembly. In the following step, take care not to damage these ribbon cables. In this step, grasp the front-panel assembly with one hand and the back panel with the other. Pause for a moment before continuing. Very gently release the remaining rear-panel clips by pulling the tops of the front and rear panels apart, using the iPod bottom as a hinge. Take great care not to damage the ribbon cables joining the two halves.
With a spudger, slide the connector upward where it holds the orange battery ribbon. Lift the locking bar only about 2 mm to release the cable. Move the orange battery ribbon out of its connector.
Set the rear panel beside the iPod, taking care not to strain the orange headphone jack cable.
Raise the hard drive with one hand to expose the headphone jack ribbon underneath. With a spudger, flip up the plastic tab securing the headphone jack ribbon in place. The tab can rotate up 90 degrees, releasing the ribbon cable. Move the orange headphone jack ribbon out of its connector. The rear panel is now released from the iPod.
After opening, check the lower-case clips. If any clip bent upward, press it back down gently so the rear case can close cleanly.
Use the broad, flat face of the metal spudger to press the clip downward. Work carefully so the thin metal rail does not tear away from the rear panel. While shaping these clips, take care not to damage any headphone jack parts.
Set the rear panel on its side on a clean, hard surface. Carefully but firmly press it downward, rolling the full lip edge back into place. You may need to repeat this several times to straighten the sides well. Slightly overcorrecting the case edges inward is better than leaving them too far out, because reseating the front panel will bend the rear panel back into alignment. Once the rear panel is restored to good condition, continue with the iPod repair.
Rotate the hard drive out of the framework, then set it with the connector facing upward. With a spudger, lift the small black locking tab for the orange hard drive ribbon. The tab rotates upward 90 degrees and frees the ribbon cable.
Move the orange hard drive ribbon cable straight out of its connector. If the replacement hard drive did not include rubber mounting brackets or foam padding, transfer those parts from the old drive.
Product-specific placement, reassembly, and check
- Prepare and access. Confirm the exact model and listing fit first. Use the existing steps as a disassembly guide, gather the specified tools, disconnect power where applicable, and keep screws and cable positions organized.
- Place Replacement Hard Drive (160GB). Seat the exact storage part, cable, or adapter in the original storage path and match its orientation, case depth, and supported configuration.
- Reassemble without force. Reverse only the access steps needed for this repair, keep cables clear of case edges and screw posts, and close clips in stages.
- Validate before final closure. Before final closure, verify detection, Disk Mode or restore behavior as applicable, and stable startup without repeat clicking or a loose connection.
Stop condition: Stop if a connector, latch, screw, clip, housing edge, or the replacement part resists normal alignment. Recheck model fit, orientation, cable routing, and trapped hardware instead of forcing it.
Common Questions
Can I replace this with flash storage?
Yes. flash-storage adapters can replace the mechanical drive, but the thick 160GB chassis still needs the CE-ATA cable 821-0546. On stock Apple firmware, usable flash storage is limited to about 128GB.
Why does my iPod show a Red X in a circle?
A Red X is Apple's hard-drive failure indicator. Check the CE-ATA cable 821-0546 first because a damaged or unseated cable can produce the same symptom. If the cable is good, the drive is the likely storage suspect.
Do I need the thick or thin hard drive?
Measure case depth: 13.5 mm / 0.53 inch is thick and fits this listing. 10.5 mm / 0.41 inch is thin and uses a different drive and cable. MB145LL/A or MB150LL/A identify the original thick 160GB route.
What generation is model A1238?
A1238 covers iPod Classic models from 2007 through 2009. Match your order number and case depth because A1238 alone does not identify capacity, thickness, or cable path.
My iPod is 160GB - is it definitely the thick model?
No. The original 2007 160GB 6th Generation model is thick, but the Late 2009 iPod Classic 160GB (MC293LL/A or MC297LL/A) is thin and uses a different drive and cable.
What is the max storage for this iPod?
The original hard drive capacity is 160GB. Flash adapters on stock Apple firmware are limited to about 128GB usable flash storage.
My iPod says Do Not Disconnect and will not eject. Is the drive bad?
Do Not Disconnect normally appears during sync. If it is stuck, force restart with Menu + Select. If it returns with clicking, failed restore, Red X, or apple.com/support warnings, the drive or CE-ATA cable may be involved.
Can I check the hard drive before ordering?
You can try disk mode and restore after checking battery stability and the CE-ATA cable. If the iPod repeatedly clicks, fails restore, or cannot detect storage after those checks, replacement becomes more reasonable.
My computer does not recognize my iPod. Is this the right page?
Check the USB cable, port, and dock connector first. If the iPod is still not recognized and also clicks, shows a Red X, or fails restore, the drive or CE-ATA cable may be involved.
Worth Knowing
- OEM drive: MK1626GCB (160GB)
- 8mm height — fits thick case only
- Hard Drive Failure is a commonly reported failure on this model; the usual first check is the hard drive / storage path.
- Red X Icon is a commonly reported failure on this model; the usual first check is the general troubleshooting path.
- Sync requires iTunes 7.4 or later — any Windows PC or Mac that can run it works. iTunes 12.6.5 (Windows) is the last version with full click-wheel iPod support — iTunes 12.7 and later removed click-wheel games.
Disk Mode on the iPod Classic: Stuck In It, or Can't Get Into It.
Disk mode is the iPod Classic 6th generation's built-in fallback: a bare USB-drive mode that loads before the normal software, so a computer can reach the hard drive even when the iPod itself won't boot. That is why it shows up in two opposite complaints — iPods that get stuck living in disk mode (the "Do Not Disconnect" / "OK to Disconnect" screens), and iPods with a red X that refuse to enter disk mode at all. On this hard-drive-based model, what disk mode does or doesn't do is the single most telling at-home test of whether the drive, the ribbon cable, or the logic board is your problem.
Anecdotal owner reports (not a guarantee or authoritative proof): - An owner's 80GB Classic got stuck in disk mode: the computer saw it as a drive, but iTunes never recognized it, and the PC could not format it no matter what. That half-alive state — visible as a disk, but unable to complete a format — is the classic signature of a drive with failing sectors rather than a software glitch. - A 2008 6th generation worked fine until it was plugged into a Windows laptop, then dropped into what the owner called permanent disk mode — no button combination would get it out. After converting to an SD-card flash board, iTunes would finish a restore and then immediately ask to restore again, looping forever. - Another owner's 80GB Classic showed the red X in a circle and would not go into disk mode at all, asking if that meant the hard drive was bad. The expert answer: on the 6th generation classics, red X plus no disk mode is usually exactly that — a hard drive failure; if it still charges you already know the battery isn't the issue. - A thick 2007 160GB owner isolated a suspected drive failure before buying: Apple logo, then red X; disk mode refused, but diagnostic mode opened and the drive-health test (HDSMARTData) hung at 'Open Device'. The reliable way to split drive vs cable vs board: connect the drive to a computer with a USB-to-ZIF adapter. If the drive works there, shop for a cable or board; if it doesn't, start with the drive. - A 160GB thick owner replaced his hard drive ribbon cable with what he thought was the right 160GB part — and got the red X with diagnostics reporting no hard drive at all. He had hit the trap on this model: the original 2007 thick 160GB takes its own longer cable, made for its CE-ATA drive and not interchangeable with the thin 80GB/120GB ribbon, and the wrong one leaves the drive completely undetected. - One 80GB owner went all the way down the rabbit hole: restores completed in Disk Mode and then the iPod demanded restoring again, the original drive would not format even when removed and tested on a computer directly — and a known-good drive also refused to restore, throwing errors 1430/1431. Every other diagnostic test passed. When a working drive still won't restore, the logic board moves to the top of the suspect list. - One owner reported an iPod stuck in disk mode: the computer saw it, but iTunes did not, and the computer could not format it.
How it usually progresses: - The won't-enter-disk-mode track usually builds in stages: songs start skipping or freezing mid-track, the drive gets audibly noisy or clicky, iTunes begins freezing when the iPod is plugged in — then one day the boot stops at a red X, and disk mode won't take. End stage is diagnostic mode reporting it cannot open the drive at all ('Can't Open Device' or an 'Open Device' hang on the drive-health screen). - The stuck-in-disk-mode track often starts with an interrupted or failed sync, format, or restore: the iPod retreats to the 'Do Not Disconnect' / restore screen and stays there through resets. Restores may appear to finish and then loop right back — a sign the drive is no longer committing what iTunes writes to it. - A flat battery can mimic the worst stage: an iPod that reboots every couple of seconds resets too fast to hold any button combination, so disk mode and diagnostic mode both seem broken. Apple's own disk-mode procedure starts with verifying the iPod is charged — owners who charge 20–60 minutes first often find the modes work again.
What typically causes it: - Why an iPod gets stuck in disk mode: disk mode lives in the early boot stage, before the normal iPod software loads from the hard drive. When the software can't load — failing drive sectors, corrupted files from an interrupted sync, or a restore that never actually commits — the iPod keeps falling back to disk mode or the restore screen every time it starts. - Why 'won't enter disk mode' points at the drive: even disk mode needs to reach the storage. A red X means the iPod cannot reach a usable storage path, and when disk mode refuses on top of it, the path itself — drive, ribbon cable, or its connector — is down. Repair veterans confirm the drive by plugging it into a computer with a ZIF-to-USB adapter before buying anything. - The two-cable trap: thin 80GB and 120GB Classics use one ribbon cable; the original 2007 thick 160GB uses a different, longer cable built for its CE-ATA drive. The two are not interchangeable — install the wrong one and the drive simply never appears: no disk mode, no drive in diagnostics, red X at boot. - Restore loops aren't always hardware: error 1439 is the most common restore failure on this generation, and its documented causes include third-party USB cables, USB hubs, USB 3.0 ports, and security software — alongside a genuinely failing drive. Before condemning parts, retry with an original Apple 30-pin cable on a direct rear USB 2.0 port, and force disk mode for the restore. - On flash-converted iPods, disk-mode loops and red X errors are frequently the SD card, not the iPod: certain some SD card/controller combinations models are documented troublemakers on the 6th generation, and incompatible cards produce exactly the restore-then-back-to-disk-mode loop owners describe. Also know that the drive-health (SMART) screen in diagnostics is meaningless on a flash board — it was built to question a mechanical hard drive; use the drive-specs screen instead to confirm the adapter is seen.
Handle it safely: - Restoring wipes the iPod completely. If your music exists only on the iPod, get into disk mode first and copy your files to a computer — the music folder is hidden but can be unhidden from the computer side — before you let iTunes restore anything. And if a stuck drive starts responding again after a reset or a tap, copy immediately: a drive that revives that way is on borrowed time, not fixed. - If the iPod is resetting every few seconds, don't fight the buttons — charge it on a wall adapter or computer for 20–60 minutes first. The disk-mode and diagnostic combos need the iPod to stay up long enough to register the hold, and Apple's procedure starts with a charged iPod for exactly that reason.
Corrupted: What Owners Describe
On the iPod classic 6th Generation, Corrupted can describe more than one observable problem. These paraphrased owner reports are anecdotal starting points for diagnosis, not proof that any single part failed.
- One owner reported a corrupted file system, zero free space, lost settings after restarts, and failed formatting attempts.
- Another owner reported that a computer refused a music transfer because the files appeared corrupted.
Hard Drive Failure: What Owners Describe
On the iPod classic 6th Generation, Hard Drive Failure can describe more than one observable problem. These paraphrased owner reports are anecdotal starting points for diagnosis, not proof that any single part failed.
- One owner reported an unusual drive noise, failed restores, and startup stopping at the Apple logo.
Not Recognized: What Owners Describe
On the iPod classic 6th Generation, Not Recognized can describe more than one observable problem. These paraphrased owner reports are anecdotal starting points for diagnosis, not proof that any single part failed.
- One owner reported that the iPod stopped appearing on a computer and barely charged, even after trying several cables and disk mode.
Red-X Icon: What Owners Describe
On the iPod classic 6th Generation, Red-X Icon can describe more than one observable problem. These paraphrased owner reports are anecdotal starting points for diagnosis, not proof that any single part failed.
- One owner reported a repeating red-X screen after a drop; diagnostic mode also failed to detect the replacement storage.
What Owners Report
These are anecdotal owner reports, not guarantees or authoritative proof that a particular part will fix a symptom. Use them as a troubleshooting starting point: confirm the symptom, run the quick checks, then match the fix.
Sad face, red X, or clicking drive
Symptoms. Red X in a circle pointing to Apple's support page; sad-face icon; rhythmic clicking or a click-then-clunk from inside; freezes partway through loading music; drive reports full with nothing on it; won't enter Disk Mode.
Quick diagnosis.
- The red X / sad face means the iPod can't use its hard drive. Drive failure is by far the most common cause — but cable and connector faults mimic it, so diagnose before buying.
- Run the built-in diagnostics: reset (Menu + Center ~6 seconds), and the moment the screen blanks, hold Back (|◀◀) + Center. In the diagnostic menu, the drive's SMART data (reallocated and pending sector counts) tells you directly how sick the drive is. A hang on the drive test is itself an answer.
- Try Disk Mode (reset, then Center + Play). If the computer can see the drive there, format and restore from iTunes; if it can't, the drive side is dead.
- The definitive bench check: a ZIF-to-USB adapter lets you mount the bare drive on any computer and separates "dead drive" from "bad cable or board" before you spend on parts.
- Audible clicking is the drive's heads striking their stop — mechanical failure. It only gets worse.
Fixes.
- Replace the drive — and replace the drive ribbon cable with it; frayed or half-seated cables cause repeat red X after an otherwise good swap.
- After a fresh drive goes in, a red X is normal until iTunes restores the firmware: enter Disk Mode, connect, and let iTunes download and install it. No separate drivers or software are needed.
- Drives that "work but corrupt": bad sectors show up as partial syncs, random freezes at the same point, or a library that half-vanishes. A zero-writing erase can map sectors out and buy time, but escalating corruption means mechanics are failing — replace.
- Water or sticky-liquid exposure: clean the board and connectors (90%+ isopropyl alcohol; sterile water first for sugary residue), replace the battery, and expect the drive to be a casualty too.
Cautions.
- The folk remedy of slapping the iPod occasionally frees a stuck platter — temporarily, and only for that one failure mode. It is not a repair, and repeated impacts crush other parts.
- Magnets on dashboards and keyboard sleeves are usually too weak to kill a drive, but a drive that died around one still needs the same diagnosis path above.
- If your files matter, minimize power-on time and copy data off first (see E07): a clicking drive's data is on borrowed time, and once it fully fails, recovery is effectively gone.
Community signal. Reported by 35 owners — the most-reported hard-drive issue on this model.
Which drives fit: sizes, cables, thick vs thin hardware
Symptoms. Broken drive and shopping for a replacement; new drive too thick for the case; wondering whether a bigger drive works; drive from another iPod model on hand.
Quick diagnosis.
- Two physical drive classes live in this family: 5mm single-platter (thin) — the 80GB and 120GB, plus the late-2009 thin 160 — and 8mm dual-platter (thick) — the 2007 160GB. Model families ending -GAL are generally the 5mm class, -GAH the 8mm class.
- The connector question: thin-class classics use the widely shared standard ZIF drive connector and cable; the 2007 thick 160GB uses its own half-size connector and unique cable — its drive and cable travel together and don't interchange with thin parts.
- Replacement drives must be 1.8" ZIF PATA. SATA drives of the same size (the 240/320GB laptop families) do not fit electrically — the connector is different, and no adapter makes them native.
Fixes.
- Like-for-like swap (80→80, 120→120, thin-160→thin-160): drop-in — drive + cable, done.
- Capacity upgrades — the honest matrix: a 6G-era unit (80GB, 120GB, or 2007 thick 160GB — Apple 1.1.x/2.0.1 firmware family) tops out at ~128GB usable for any replacement storage, whatever the label says. A thin 160GB drive physically drops into an 80/120 chassis (same 5mm size, same battery and back) and works — it will simply format to the cap. Only the late-2009 generation (2.0.4/2.0.5 firmware) addresses beyond 128GB.
- Fitting a thick 8mm drive into a thin chassis requires the thick rear panel, thick drive cable, thick bumpers, and thick-case headphone-jack assembly — the thin faceplate, display, click wheel, and board stay.
- A thin drive in a thick case works with an extra layer of padding so the drive can't bounce — unlike a PC there is no frame anchoring it.
Cautions.
- Buying "the 160GB drive" blind is the classic mistake: confirm thick vs thin first (E04), because their drives, cables, rear panels, and jacks all differ.
- Drives salvaged from other players of the same size class often work if they are ZIF PATA and 5mm — but check the donor's platter count and thickness before assuming.
Community signal. Reported by 11 owners.
Red X persists after a drive replacement
Symptoms. New drive installed, still the red X; can reach diagnostic mode but not Disk Mode; replaced drive AND cable and it's still there; iTunes error codes during the first restore.
Quick diagnosis.
- First: a red X immediately after installing a blank drive is expected — the drive has no firmware yet. Disk Mode → iTunes restore clears it. Judge only after a restore attempt.
- If restore can't complete: bench-test the new drive on a ZIF-USB adapter. Replacement drives are dead on arrival often enough that this single check saves most wasted part-swapping.
- Inspect the drive ribbon cable under magnification — hairline tears are invisible at arm's length. Confirm it's the right cable for the drive class (thick-160 cable ≠ thin cable) and that the retaining clip is seated.
- Drive tests fine + cable new + still red X → the board's drive interface is the remaining suspect.
Fixes.
- Restore from Disk Mode per Apple's canonical sequence: disconnect, enter Disk Mode manually, open iTunes, restore.
- Exchange DOA replacement drives rather than troubleshooting around them.
- Replace the cable with the drive as a pair — the cost is small and it removes the second-most-common culprit.
- Sticky-liquid or water incidents: full board clean before condemning electronics (sterile water for residue, then 90%+ isopropyl).
Cautions.
- Match the replacement to your original drive's family where possible; mixed-family swaps are where cable/connector mismatches bite.
- Repair-cost math: a drive swap is a DIY-priced job, while out-of-warranty service quotes often exceed the value of the player — pricing details vary, so compare before committing either way.
Why people land on this part
Also searched as: 1.8-inch drive, iPod classic thick, plugged computer, solid state drive, tried charging, Samsung HS161JQ, ipod classic 160gb hard drive replacement, replace hard drive ipod classic 6th gen, ipod classic 6th gen max storage, Red X Icon, Clicking Noise, Sad iPod Icon, Folder Icon, Corrupted Data, Stuck in Recovery Mode, iTunes Error, Reboot Loop, Stuck on Apple Logo, Won't Restore, Stuck in Disk Mode, Flash Mod Problems, Hard Drive Failure, hard drive dead, clicking sound, restore error, showing a folder, restore process, restore option, Consider Flash Storage, drive already corrupted, drive was corrupted, ipod classic 6g, error 1416, error 1429, click noise, click sound, iPod classic 6th generation 160GB hard drive, iPod classic 6th generation hard drive upgrade, boot loop, click of death, not recognized, red circle.
Some buyers search for "ipod classic 6th gen max storage", "ipod classic 6th generation hard drive replacement", "ipod classic 6th gen hard drive replacement", "replace hard drive ipod classic 6th gen", "ipod classic 6th gen hard drive", "ipod storage", "Samsung HS161JQ", "hard drives", "click noise", "click sound", "drive dead", "Flash Mod Problems", "hard drive dead", "hdd connector", or "serial suffix Y5N/YMU/YMV/YMX"; confirm the checks above point to this same part before ordering.
Some buyers search for "1.8-inch"; confirm the checks above point to this same part before ordering.
Owners searching for this describe it as: iPod classic 6th Generation Disk Mode Stuck, iPod stuck in disk mode, iTunes not recognizing disk mode, ipod classic 6th gen disk mode boot loop, ipod classic diagnostic mode hard drive test, ipod classic disk mode itunes not recognizing, ipod classic do not disconnect screen stuck, ipod classic ok to disconnect stuck, ipod classic red x disk mode, ipod classic restore loop disk mode, ipod classic stuck in disk mode, ipod classic won't go into disk mode.
Owners searching for this describe it as: iPod classic 6th Generation Corrupted, iPod corrupted, iPod file system corrupted.
Owners searching for this describe it as: iPod classic 6th Generation Hard Drive Failure, iPod hard drive failure, iPod drive making noise.
Owners searching for this describe it as: iPod classic 6th Generation Not Recognized, iPod not recognized by computer, iPod not showing in iTunes.
Owners searching for this describe it as: iPod classic 6th Generation Red-X Icon, iPod red X icon, iPod red-X screen.
Questions people ask
- Can I check if my hard drive is failing before ordering.
You May Also Want
This drive requires the CE-ATA flex cable. If the 821-0546 cable is damaged, the new drive will not work until that cable is replaced.
Related: 128GB Flash Mod Kit (flash-storage adapter + 128GB SD Card Included)Flash adapters in the thick 160GB chassis still require the CE-ATA cable, and stock Apple firmware limits usable flash storage to about 128GB.
Related: Replacement Battery (Thick — 160GB)The thick battery is checked during storage service while the case is open; inspect it if runtime is weak or power drops interrupt restore.
