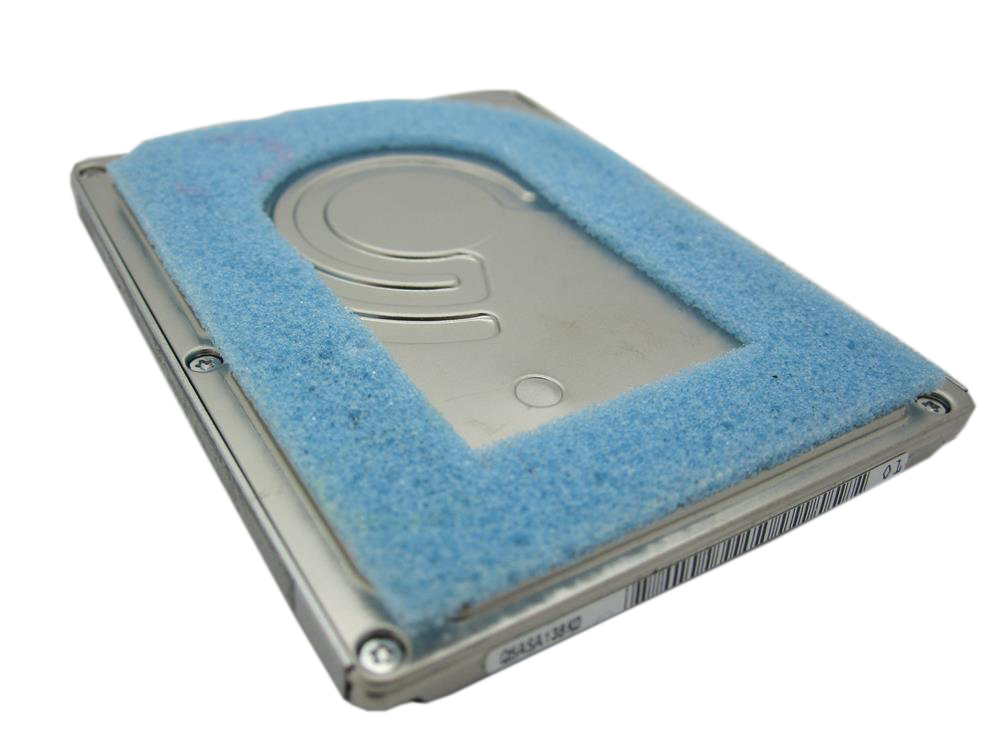

iPod Classic 6th Generation 80GB Hard Drive Replacement

Disk Mode on the iPod Classic: Stuck In It, or Can't Get Into It.

Disk mode is the iPod Classic 6th generation's built-in fallback: a bare USB-drive mode that loads before the normal software, so a computer can reach the hard drive even when the iPod itself won't boot. That is why it shows up in two opposite complaints — iPods that get stuck living in disk mode (the "Do Not Disconnect" / "OK to Disconnect" screens), and iPods with a red X that refuse to enter disk mode at all. On this hard-drive-based model, what disk mode does or doesn't do is the single most telling at-home test of whether the drive, the ribbon cable, or the logic board is your problem.

What owners describe: - An owner's 80GB Classic got stuck in disk mode: the computer saw it as a drive, but iTunes never recognized it, and the PC could not format it no matter what. That half-alive state — visible as a disk, but unable to complete a format — is the classic signature of a drive with failing sectors rather than a software glitch. - A 2008 6th generation worked fine until it was plugged into a Windows laptop, then dropped into what the owner called permanent disk mode — no button combination would get it out. After converting to an SD-card flash board, iTunes would finish a restore and then immediately ask to restore again, looping forever. - Another owner's 80GB Classic showed the red X in a circle and would not go into disk mode at all, asking if that meant the hard drive was bad. The expert answer: on the 6th generation classics, red X plus no disk mode is usually exactly that — a hard drive failure; if it still charges you already know the battery isn't the issue. - A thick 2007 160GB owner did the homework before buying: Apple logo, then red X, disk mode refused, but diagnostic mode opened — and the drive-health test (HDSMARTData) hung forever at 'Open Device'. The reliable way to split drive vs cable vs board before buying anything: plug the drive into a computer with a USB-to-ZIF adapter. If the drive works there, you're shopping for a cable or a board; if it doesn't, start with the drive. - A 160GB thick owner replaced his hard drive ribbon cable with what he thought was the right 160GB part — and got the red X with diagnostics reporting no hard drive at all. He had hit the trap on this model: the original 2007 thick 160GB takes its own longer cable, made for its CE-ATA drive and not interchangeable with the thin 80GB/120GB ribbon, and the wrong one leaves the drive completely undetected. - One 80GB owner went all the way down the rabbit hole: restores completed in Disk Mode and then the iPod demanded restoring again, the original drive would not format even when removed and tested on a computer directly — and a known-good drive also refused to restore, throwing errors 1430/1431. Every other diagnostic test passed. When a working drive still won't restore, the logic board moves to the top of the suspect list. - A cautionary one: an owner set his iPod down on a laptop keyboard cover's magnetic closure and it instantly shut off, started clicking, and booted to a red X from then on. It still entered diagnostic mode and held a charge — the magnet had taken out the spinning hard drive, nothing else.

How it usually progresses: - The won't-enter-disk-mode track usually builds in stages: songs start skipping or freezing mid-track, the drive gets audibly noisy or clicky, iTunes begins freezing when the iPod is plugged in — then one day the boot stops at a red X, and disk mode won't take. End stage is diagnostic mode reporting it cannot open the drive at all ('Can't Open Device' or an 'Open Device' hang on the drive-health screen). - The stuck-in-disk-mode track often starts with an interrupted or failed sync, format, or restore: the iPod retreats to the 'Do Not Disconnect' / restore screen and stays there through resets. Restores may appear to finish and then loop right back — a sign the drive is no longer committing what iTunes writes to it. - A flat battery can mimic the worst stage: an iPod that reboots every couple of seconds resets too fast to hold any button combination, so disk mode and diagnostic mode both seem broken. Apple's own disk-mode procedure starts with verifying the iPod is charged — owners who charge 20–60 minutes first often find the modes work again.

What typically causes it: - Why an iPod gets stuck in disk mode: disk mode lives in the early boot stage, before the normal iPod software loads from the hard drive. When the software can't load — failing drive sectors, corrupted files from an interrupted sync, or a restore that never actually commits — the iPod keeps falling back to disk mode or the restore screen every time it starts. - Why 'won't enter disk mode' points at the drive: even disk mode needs to reach the storage. A red X means the iPod cannot reach a usable storage path, and when disk mode refuses on top of it, the path itself — drive, ribbon cable, or its connector — is down. Repair veterans confirm the drive by plugging it into a computer with a ZIF-to-USB adapter before buying anything. - The two-cable trap: thin 80GB and 120GB Classics use one ribbon cable; the original 2007 thick 160GB uses a different, longer cable built for its CE-ATA drive. The two are not interchangeable — install the wrong one and the drive simply never appears: no disk mode, no drive in diagnostics, red X at boot. - Restore loops aren't always hardware: error 1439 is the most common restore failure on this generation, and its documented causes include third-party USB cables, USB hubs, USB 3.0 ports, and security software — alongside a genuinely failing drive. Before condemning parts, retry with an original Apple 30-pin cable on a direct rear USB 2.0 port, and force disk mode for the restore. - On flash-converted iPods, disk-mode loops and red X errors are frequently the SD card, not the iPod: certain some SD card/controller combinations models are documented troublemakers on the 6th generation, and incompatible cards produce exactly the restore-then-back-to-disk-mode loop owners describe. Also know that the drive-health (SMART) screen in diagnostics is meaningless on a flash board — it was built to question a mechanical hard drive; use the drive-specs screen instead to confirm the adapter is seen.

Handle it safely: - Restoring wipes the iPod completely. If your music exists only on the iPod, get into disk mode first and copy your files to a computer — the music folder is hidden but can be unhidden from the computer side — before you let iTunes restore anything. And if a stuck drive starts responding again after a reset or a tap, copy immediately: experts who see drives revive that way call it temporary, not fixed. - Keep this iPod away from magnets — laptop and tablet magnetic closures included. One owner's unit went from working to clicking with a red X the moment it touched a magnetic keyboard cover. The spinning hard drive is the casualty; the rest of the iPod usually survives. - If the iPod is resetting every few seconds, don't fight the buttons — charge it on a wall adapter or computer for 20–60 minutes first. The disk-mode and diagnostic combos need the iPod to stay up long enough to register the hold, and Apple's procedure starts with a charged iPod for exactly that reason.

Owners searching for this describe it as: ipod classic stuck in disk mode, ipod classic won't go into disk mode, ipod classic disk mode itunes not recognizing, ipod classic 6th gen disk mode boot loop, ipod classic do not disconnect screen stuck, ipod classic ok to disconnect stuck, ipod classic red x disk mode, ipod classic diagnostic mode hard drive test, ipod classic restore loop disk mode.
