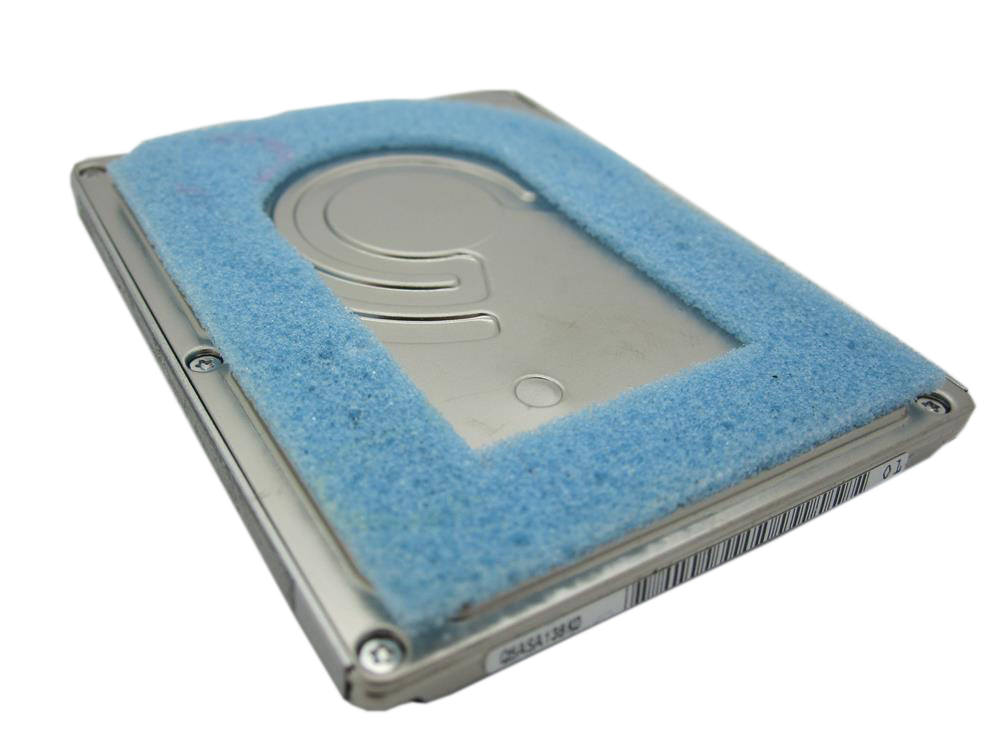

Original-style 120GB replacement hard drive for the September 2008 thin iPod Classic 6th Generation. Use this listing for MB562LL/A or MB565LL/A after confirming 10.5 mm rear case depth, PATA ATA-100 / ZIF fitment, cable seating, and storage behavior.
Product Overview
Use this iPod Classic 120GB hard drive replacement route to replace the original thin-case drive in the Late 2008 iPod Classic 6th Generation.
Use this original-style mechanical route only after checking the thin hard-drive cable, power stability, and restore behavior. If you are planning an iPod Classic 6th gen hard drive upgrade with flash storage, use the flash notes below and keep the 6G stock-firmware limit in mind.
Choose Your Option
This part comes in multiple variants. Confirm your iPod's capacity, case depth, and order number before ordering.
Use this linked storage option only for 80GB thin-case iPods and the order numbers shown here.
View this option →Use this linked storage option only for original 2007 thick 160GB thick-case iPods and the order numbers shown here.
View this option →What Is Included
Condition: Used factory-original part. Quantity and exclusions: The listed part, set, pair, or configuration above is supplied with exactly one plastic pry tool. No other parts, tools, adhesives, or materials are included unless they are explicitly listed above.
Quick Diagnosis
Start by separating drive failure from the thin storage cable, flash-adapter setup, and weak battery load. Storage icons are useful clues, not proof by themselves.
| What you see | Check first | Hard drive makes sense when |
|---|---|---|
| Red X, sad iPod, folder icon, or apple.com/support warning | Check the thin hard-drive cable first. A torn, creased, reversed, or poorly seated cable can produce the same storage warning as a bad drive. | The MK1231GAL drive is more likely when the cable seats cleanly and the iPod still cannot detect usable storage. |
| Clicking, grinding, or failed restore | Listen for repeated spin-up attempts, then try disk mode and restore after confirming battery stability. | Clicking before the folder icon points more toward the drive; a folder immediately after the Apple logo points more toward the cable. |
| Symptoms began after flash-adapter work | Recheck adapter orientation, cable seating, SD-card formatting, and battery load before ordering another HDD. | Use this mechanical drive only when you are returning the 120GB thin Late 2008 model to original-style storage. |
Specifications & Fitment
Part Details
| Detail | Value |
|---|---|
| Model Number | A1238 |
| EMC | EMC 2173 |
| Condition | Used — factory original Apple part. Normal cosmetic wear expected. |
| Drive Model | MK1231GAL |
| Capacity | 120GB |
| Form Factor | 1.8" PATA ATA-100 / ZIF |
| Manufacturer | Toshiba |
| Interface | PATA ATA-100, ZIF connector |
| Drive Height | 5mm |
| Platters | 1 |
| Rotational Speed | 4200 RPM |
Compatible Variants
| Order Number | Capacity | Color | Case | Compatible | Notes |
|---|---|---|---|---|---|
| MB147LL/A | 80GB | Black | thin (0.41 in) | Yes— fits (capacity upgrade) | The thin ZIF drive bay is the same; this drive fits the 80GB thin models and upgrades capacity to 120GB after restore. |
| MB029LL/A | 80GB | Silver | thin (0.41 in) | Yes— fits (capacity upgrade) | The thin ZIF drive bay is the same; this drive fits the 80GB thin models and upgrades capacity to 120GB after restore. |
| MB565LL/A | 120GB | Black | thin (0.41 in) | Yes | — |
| MB562LL/A | 120GB | Silver | thin (0.41 in) | Yes | — |
| MC297LL/A | 160GB (Late 2009) | Black | thin | Yes— fits (holds 120GB) | Fits the Late-2009 thin 160GB (MC293LL/A / MC297LL/A) through the thin ZIF path; capacity becomes 120GB after restore. That model is sold under the iPod Classic 7th Generation (Late 2009) pages. |
| MC293LL/A | 160GB (Late 2009) | Silver | thin | Yes— fits (holds 120GB) | Fits the Late-2009 thin 160GB (MC293LL/A / MC297LL/A) through the thin ZIF path; capacity becomes 120GB after restore. That model is sold under the iPod Classic 7th Generation (Late 2009) pages. |
| MB150LL/A | 160GB | Black | thick (0.53 in) |
No— 160GB thick models (MB145LL/A, MB150LL/A, 13.5 mm case) - different MK1626GCB drive, CE-ATA storage path, and |
160GB thick models (MB145LL/A, MB150LL/A, 13.5 mm case) - different MK1626GCB drive, CE-ATA storage path, and 8 mm height |
| MB145LL/A | 160GB | Silver | thick (0.53 in) |
No— 160GB thick models (MB145LL/A, MB150LL/A, 13.5 mm case) - different MK1626GCB drive, CE-ATA storage path, and |
160GB thick models (MB145LL/A, MB150LL/A, 13.5 mm case) - different MK1626GCB drive, CE-ATA storage path, and 8 mm height |
is not compatible with
- 160GB thick models (MB145LL/A, MB150LL/A, 13.5 mm case) - different MK1626GCB drive, CE-ATA storage path, and 8 mm height
When This Hard Drive Helps
| Symptom | What it means & what to check |
|---|---|
| The drive clicks or cannot mount | Repeated clicking - sometimes called the click of death - usually means the drive head can no longer access the platters. Grinding or scraping noises during spin-up also point toward mechanical drive failure after cable checks. |
| Restore fails after cable and battery checks | If the iPod will not restore after disk mode, cable seating, and power checks, the 120GB HDD is a reasonable storage suspect. |
| The iPod reports Red X, sad iPod, folder icon, red circle, or apple.com/support | Those warnings mean the Classic cannot reach a usable storage path. Reseat the cable first, then replace the drive when the storage path still fails. |
| Playback skips or the iPod freezes | Songs skipping, stuttering, or cutting out can indicate failing drive sectors. A frozen iPod points toward this drive only when it freezes while accessing music or syncing. |
| You want original 120GB mechanical storage | this listing keeps the Late 2008 120GB model on its original-style mechanical hard drive rather than an SSD or flash adapter. |
| won't restore, error 1416, error 1429, error 1439, error code, error message, iTunes Error, Reboot Loop, restore error, restore option, restore process, need to format but not recognized by the computer | Treat this as a restore or storage-path symptom, not proof of a bad drive; the drive becomes more likely when cable, USB, formatting, and restore checks still lead back to storage warnings. |
| Clicking Noise, clicking sound, clicking sounds on start and red cross in circle | Mechanical clicking or grinding points toward the drive after the hard-drive cable has been reseated and checked. |
| drive already corrupted, drive was corrupted, brand new hard drive already corrupted | Playback skips, freezes, or corrupted data become drive clues when they happen during storage access or sync. |
| Red X Icon, Sad iPod Icon, showing a folder, red X after hard drive replacement | These warnings mean the iPod cannot reach a usable storage path; check the cable first, then the drive. |
Diagnose first when
- Check the capacity engraved on the back case: 80GB or 120GB means thin. An original 2007 160GB is thick; the Late 2009 160GB (MC293LL/A, MC297LL/A) is thin — identify by order number. Order parts matching that case thickness.
- Match the exact model, generation, capacity, and case style shown for the product.
- Inspect for liquid, corrosion, residue, torn flex material, or connector damage.
- Reopen only as far as needed to inspect the areas touched during the repair.
Repair considerations
Run these checks before replacing the drive — they confirm the drive is the right fix and not a nearby fault:
- Restore/format steps can erase data or indicate storage failure
- Treat ribbons, tabs, and ZIF connectors as fragile
- Use reset, Disk Mode, restore, or iTunes/Finder behavior as a software/storage check
- Reseat or inspect ribbon cable and connector seating
- Inspect ZIF latch, socket, or clamp condition
- Check drive noise, SMART/data signs, or storage recognition
Do Not Buy This Hard Drive Yet If...
| Situation | Start here instead |
|---|---|
| Your iPod is an 80GB model (MB029LL/A or MB147LL/A) and you want the stock capacity | The 80GB thin model shipped with the MK8022GAA drive — use the 80GB hard drive page for a stock rebuild. This 120GB thin drive also fits those models as a same-depth capacity upgrade (owner ruling R032). |
| You need an iPod classic 6th generation 160GB hard drive for a thick model (MB145LL/A or MB150LL/A, 13.5 mm case) | The 160GB thick drive is physically larger, uses a different thick-case storage path, and is not compatible with the thin 120GB case. Use the thick 160GB storage path. |
| The iPod shows a Red X, sad iPod, or folder icon and you have not checked the cable | Reseat or inspect the hard-drive cable first. A bad cable can produce the same symptoms as a bad drive. |
| The symptom started after a flash adapter install | Recheck adapter orientation, cable seating, SD-card formatting, and battery stability before ordering a replacement HDD. |
| The iPod is stuck in recovery mode | Try a USB restore first. If recovery mode returns with clicking, failed restore, Red X, or apple.com/support, the drive or cable becomes more likely. |
| The iPod keeps restarting in a boot loop | Charge the battery and try restore before ordering. A boot loop can involve battery sag, firmware, or storage. |
| You are choosing by A1238 alone | A1238 spans multiple Classic revisions. Match MB562LL/A or MB565LL/A, 120GB capacity, and the 10.5 mm thin rear case before buying this drive. |
Consider Flash Storage
Flash adapters can replace the mechanical HDD through the same thin ZIF cable path, but this listing is not a maximum-storage solution. For iPod classic 6th generation hard drive upgrade planning, use the flash path when the goal is an adapter or SD-card upgrade.
With stock Apple firmware, usable flash storage on this 6G model tops out at about 128GB regardless of the SD card's printed capacity. Third-party firmware such as Rockbox or emCore can bypass that limit, but that path is unsupported here.
See the Flash Storage Mod Kit (flash-storage adapter) page for the full flash-storage path.
Install Overview
This is a very difficult no-solder hard drive replacement. The Repair Guide below carries the install summary and the 25 hard-drive steps.
Case difficulty
Very Difficult. The Classic shell has 13 metal clips, so keep extra plastic opening tools ready and work slowly.
Hold switch
Lock the Hold switch before opening so the switch position is known during reassembly.
Rear-panel ribbons
Two ribbon cables connect the rear panel. Disconnect them before separating the case halves.
Drive mounting
Transfer rubber bumpers and foam padding from the old drive to the replacement if those parts are not included.
Test before closing
Connect and test the drive before snapping the case shut so cable seating or restore problems can be corrected while the iPod is open.
Disassembly Guide
Disassembly guide summary: iPod Classic Hard Drive Replacement.
Show all 25 installation steps
This iPod case is unusually hard to open without damaging major components. Its metal faceplate, metal backing, and thirteen metal clips make disassembly especially demanding. Caution: this opening method can significantly damage the iPod beyond its current condition. Keep a few extra plastic opening tools nearby, since they are easy to ruin while opening the case. Confirm that the hold switch is locked before you open the iPod.
Opening this iPod is challenging, so do not get discouraged if it takes a few tries. Watch the plastic opening tool tip angle as you insert it into the iPod; keep it as vertical as possible while still clearing the rear panel edge. Guide a plastic opening tool into the seam between the front and rear of the iPod.
Slide a second plastic opening tool into the seam between the iPod front and rear, keeping the two tools at least 1.5 inches apart.
Working at an angle, carefully slide a putty knife about 1/8 inch into the gap between the two opening tools. You will find thin metal rails running along the inside of the back panel, so work very carefully when inserting the putty knife. After the putty knife clears the rear panel lip, rotate it vertical and carefully but firmly work it straight down through the opening tool gap.
Press on the rear panel behind the putty knife with your fingers to reduce bending. Slowly flex the putty knife so most metal tabs along this side of the iPod release. The idea is to control how the rear panel bends instead of trying to prevent all bending. Any side bend should draw the rear panel lip away from the iPod, not push outward on the curved surface. This also releases as many side clips as possible.
Take the putty knife out, then place it closer to the iPod corner and use the same gentle wiggle method. If possible, do not bend the rear panel corner.
Near the headphone jack, guide a plastic opening tool into the seam between the front and rear of the iPod. It may be easier to flex the putty knife downward carefully to create more room for the opening tool. Be careful not to bend the rear panel corner.
Near the display center, carefully slide a metal spudger into the gap made by the plastic opening tool. A visible bump can form here in the rear panel and is hard to repair. When levering the tab free, pivot the metal spudger on the rear panel edge instead of bending the rear panel outward. With the metal spudger, release the single clip at the iPod top edge.
Near the other top corner, guide a plastic opening tool into the seam between the front and rear of the iPod
On the other side, use the opening tool to start the same case-opening gap. It may help to angle the tool stuck in the top corner to create enough room.
Take the opening tool out of the top corner, then slide it into the seam between the iPod front and rear. Keep at least 1.5 inches between the two tools, as on the opposite side.
Working at an angle, carefully slide a putty knife about 1/8 inch into the gap between the two opening tools. Again, you will find thin metal rails running along the inside of the back panel, so work very carefully when inserting the putty knife. After the putty knife passes the rear panel lip, turn it vertical and carefully but firmly work it straight down through the gap between the plastic opening tools. Press on the rear panel behind the putty knife with your fingers to reduce bending. Flex the putty knife just enough to make sure most metal tabs along this side of the iPod release.
The metal clips near the corners grip the front panel tightly. Release these clips before opening the iPod. Carefully slide a metal spudger into the area beside the stubborn metal clip.
Gently work the metal spudger downward until it is fully seated in the rear panel.
Gently start releasing the clip from the front panel. A visible bump can form here in the rear panel and is hard to repair. When levering the tab free, pivot the metal spudger on the rear panel edge instead of bending the rear panel outward.
Use the metal spudger to apply upward pressure under the front panel until the metal clip releases.
You will find two ribbon cables connecting the rear panel to the remaining iPod assembly. In the following step, take care not to damage these ribbon cables. In this step, grasp the front-panel assembly with one hand and the back panel with the other. Pause for a moment before continuing. Very gently release the remaining rear-panel clips by pulling the tops of the front and rear panels apart, using the iPod bottom as a hinge. Take great care not to damage the ribbon cables joining the two halves.
With a spudger, slide the connector upward where it holds the orange battery ribbon. Lift the locking bar only about 2 mm to release the cable. Move the orange battery ribbon out of its connector.
Set the rear panel beside the iPod, taking care not to strain the orange headphone jack cable.
Raise the hard drive with one hand to expose the headphone jack ribbon underneath. With a spudger, flip up the plastic tab securing the headphone jack ribbon in place. The tab can rotate up 90 degrees, releasing the ribbon cable. Move the orange headphone jack ribbon out of its connector. The rear panel is now released from the iPod.
After opening, check the lower-case clips. If any clip bent upward, press it back down gently so the rear case can close cleanly.
Use the broad, flat face of the metal spudger to press the clip downward. Work carefully so the thin metal rail does not tear away from the rear panel. While shaping these clips, take care not to damage any headphone jack parts.
Set the rear panel on its side on a clean, hard surface. Carefully but firmly press it downward, rolling the full lip edge back into place. You may need to repeat this several times to straighten the sides well. Slightly overcorrecting the case edges inward is better than leaving them too far out, because reseating the front panel will bend the rear panel back into alignment. Once the rear panel is restored to good condition, continue with the iPod repair.
Rotate the hard drive out of the framework, then set it with the connector facing upward. With a spudger, lift the small black locking tab for the orange hard drive ribbon. The tab rotates upward 90 degrees and frees the ribbon cable.
Move the orange hard drive ribbon cable straight out of its connector. If the replacement hard drive did not include rubber mounting brackets or foam padding, transfer those parts from the old drive.
Product-specific placement, reassembly, and check
- Prepare and access. Confirm the exact model and listing fit first. Use the existing steps as a disassembly guide, gather the specified tools, disconnect power where applicable, and keep screws and cable positions organized.
- Place Replacement Hard Drive (120GB). Seat the exact storage part, cable, or adapter in the original storage path and match its orientation, case depth, and supported configuration.
- Reassemble without force. Reverse only the access steps needed for this repair, keep cables clear of case edges and screw posts, and close clips in stages.
- Validate before final closure. Before final closure, verify detection, Disk Mode or restore behavior as applicable, and stable startup without repeat clicking or a loose connection.
Stop condition: Stop if a connector, latch, screw, clip, housing edge, or the replacement part resists normal alignment. Recheck model fit, orientation, cable routing, and trapped hardware instead of forcing it.
Common Questions
Can the HDD be replaced with an SSD or flash adapter?
Yes. flash-storage adapters use the same ZIF cable path and replace the mechanical HDD with solid-state storage. Stock Apple firmware limits usable flash storage to about 128GB.
Why does my iPod show a Red X in a circle?
A Red X means the iPod cannot reach a usable storage path. The drive is a recurring repair association, but a damaged or unseated hard-drive cable, poor seating, or a flash adapter can produce the same symptom — check those too.
Why does my iPod show apple.com/support?
The apple.com/support storage warning means the iPod cannot reach a usable storage path. Reseat the cable, try disk mode, then replace the drive only if the path still fails.
What is the max storage for an iPod Classic 6th gen?
For iPod classic 6th gen max storage questions, keep the original drive and flash paths separate. With the original hard drive, 120GB is this model's capacity. Flash adapters can physically hold more, but stock Apple firmware limits usable flash storage to about 128GB. Third-party firmware can remove that limit, but that path is unsupported here.
How do I tell if my iPod Classic is thick or thin?
Measure case depth: 10.5 mm / 0.41 inch is thin and fits this 120GB route. 13.5 mm / 0.53 inch is thick and uses a different drive. You can also match the order number in the fitment table.
Should I check the hard-drive cable before buying a drive?
Yes. Reseat or inspect the cable before buying a drive. If the folder icon appears immediately after the Apple logo, the cable is more likely. If the iPod clicks or grinds before showing the folder, the drive is more likely.
My iPod is stuck on Do Not Disconnect. Is the drive bad?
Do Not Disconnect normally appears during sync. If do not disconnect stays frozen with clicking, failed restore, Red X, or apple.com/support, storage may be involved after cable and battery checks.
My computer does not recognize my iPod. Is this the right page?
Check the USB cable, port, and dock connector first. If the iPod is still not recognized and also clicks, shows a Red X, or fails restore, the drive or hard-drive cable may be involved.
Worth Knowing
- Uses PATA ATA-100 interface — PATA ATA-100, ZIF connector
- 5mm height — fits thin case only
- The 120GB model was a late 2008 revision using the thin case.
- Hard Drive Failure is a commonly reported failure on this model; the usual first check is the hard drive / storage path.
- Red X Icon is a commonly reported failure on this model; the usual first check is the general troubleshooting path.
- Sync requires iTunes 7.4 or later — any Windows PC or Mac that can run it works. iTunes 12.6.5 (Windows) is the last version with full click-wheel iPod support — iTunes 12.7 and later removed click-wheel games.
Disk Mode on the iPod Classic: Stuck In It, or Can't Get Into It
Disk mode is the iPod Classic 6th generation's built-in fallback: a bare USB-drive mode that loads before the normal software, so a computer can reach the hard drive even when the iPod itself won't boot. That is why it shows up in two opposite complaints — iPods that get stuck living in disk mode (the "Do Not Disconnect" / "OK to Disconnect" screens), and iPods with a red X that refuse to enter disk mode at all. On this hard-drive-based model, what disk mode does or doesn't do is the single most telling at-home test of whether the drive, the ribbon cable, or the logic board is your problem.
Anecdotal owner reports (not a guarantee or authoritative proof): - An owner's 80GB Classic got stuck in disk mode: the computer saw it as a drive, but iTunes never recognized it, and the PC could not format it no matter what. That half-alive state — visible as a disk, but unable to complete a format — is the classic signature of a drive with failing sectors rather than a software glitch. - A 160GB thick owner replaced his hard drive ribbon cable with what he thought was the right 160GB part — and got the red X with diagnostics reporting no hard drive at all. He had hit the trap on this model: the original 2007 thick 160GB takes its own longer cable, made for its CE-ATA drive and not interchangeable with the thin 80GB/120GB ribbon, and the wrong one leaves the drive completely undetected. - One 80GB owner went all the way down the rabbit hole: restores completed in Disk Mode and then the iPod demanded restoring again, the original drive would not format even when removed and tested on a computer directly — and a known-good drive also refused to restore, throwing errors 1430/1431. Every other diagnostic test passed. When a working drive still won't restore, the logic board moves to the top of the suspect list. - Another owner fitted a brand-new drive and still got the red X with no disk mode; diagnostics reported a drive present, but the computer's disk utility never showed it. The advice that settled it: a cheap ZIF-to-USB adapter lets a computer test the drive directly — if the computer detects it, the drive is good and the fault is elsewhere. - One owner's Classic froze on the Do Not Disconnect screen in both restore mode and disk mode: iTunes saw it and prepared a restore, then the iPod dropped off the computer, and the drive showed up as a volume that could not be formatted and failed its cyclic redundancy check. A drive that fails that check is most likely failing, and replacing it is the fix.
How it usually progresses: - The won't-enter-disk-mode track usually builds in stages: songs start skipping or freezing mid-track, the drive gets audibly noisy or clicky, iTunes begins freezing when the iPod is plugged in — then one day the boot stops at a red X, and disk mode won't take. - The stuck-in-disk-mode track often starts with an interrupted or failed sync, format, or restore: the iPod retreats to the 'Do Not Disconnect' / restore screen and stays there through resets. Restores may appear to finish and then loop right back — a sign the drive is no longer committing what iTunes writes to it. - A flat battery can mimic the worst stage: an iPod that reboots every couple of seconds resets too fast to hold any button combination, so disk mode and diagnostic mode both seem broken. Apple's own disk-mode procedure starts with verifying the iPod is charged — owners who charge 20–60 minutes first often find the modes work again.
What typically causes it: - Why 'won't enter disk mode' points at the drive: even disk mode needs to reach the storage. A red X means the iPod cannot reach a usable storage path, and when disk mode refuses on top of it, the path itself — drive, ribbon cable, or its connector — is down. Repair veterans confirm the drive by plugging it into a computer with a ZIF-to-USB adapter before buying anything. - The two-cable trap: thin 80GB and 120GB Classics use one ribbon cable; the original 2007 thick 160GB uses a different, longer cable built for its CE-ATA drive. The two are not interchangeable — install the wrong one and the drive simply never appears: no disk mode, no drive in diagnostics, red X at boot. - Restore loops aren't always hardware: restore failures such as error 1439 are also produced by third-party cables, USB hubs and other USB devices on the computer, alongside a genuinely failing drive. Before condemning parts, retry with the Apple cable on a USB 2.0 port at the back of the computer with other USB devices unplugged, and force disk mode for the restore. - On flash-converted iPods, a restore-then-back-to-disk-mode loop is often the card or the adapter rather than the iPod: card compatibility varies by exact adapter and media batch, so try a known-compatible card before buying anything else.
Handle it safely: - Restoring wipes the iPod completely. If your music exists only on the iPod, get into disk mode first and copy your files to a computer — the music folder is hidden but can be unhidden from the computer side — before you let iTunes restore anything. - If the iPod is resetting every few seconds, don't fight the buttons — charge it on a wall adapter or computer for 20–60 minutes first. The disk-mode and diagnostic combos need the iPod to stay up long enough to register the hold, and Apple's procedure starts with a charged iPod for exactly that reason.
Red X in a Circle on the iPod Classic 6th Generation: What Owners Describe
On this generation the red X is the storage warning: the iPod started, could not load its software from the drive, and stopped there. Owners of the 6th Generation Classic report it after drops, after drive swaps, and out of nowhere. The reports below are paraphrased and anecdotal; they are not proof that any single part has failed.
- One owner reported a repeating red-X screen after a drop; diagnostic mode also failed to detect the replacement storage.
- One owner's iPod came up with the red X and a clicking noise together.
- One owner fitted a brand-new drive and a fresh battery and got exactly the red X the old drive had shown; the iPod would not go into disk mode either, and the replies pointed at the drive cable or a drive that was not compatible.
- Another owner replaced the logic board in a 2007 160GB, charged it overnight, and still had the red X with disk mode refusing; the advice was to hold the iPod to an ear and listen for grinding or clicking from the drive.
- One owner swapped the hard drive, left the case open to test, and still saw the red X within seconds; some two dozen disk-mode attempts did nothing, and the follow-up questions were all about the ribbon cable's condition and seating.
- A dropped iPod froze, and after a reset the Apple logo was followed by the red X.
How it usually progresses: - Owners often hear the drive first: a repeating click or tick from inside the case and songs that stall or freeze more and more often, and then a start-up that ends at the red X instead of the menu. - When the red X appears right after a drive or board swap the sequence is the same every time: Apple logo for a few seconds, then the X, with disk mode refusing; the first checks are whether the ribbon cable is fully home in its connector with the latch closed, and whether it is the cable for this case, thin or thick.
What typically causes it: - The red X is this generation's cannot-read-the-drive screen: the iPod started but could not load its software from storage. On a hard-drive Classic that almost always traces to the drive, and a damaged or loose drive cable produces the identical screen. - The drive's ribbon cable is a known weak link on this model: it links the drive to the logic board, it tears or works loose easily, and a bad one gives the same red X as a dead drive, which is why repairers replace the cable together with the drive.
Handle it safely: - Match the cable to the case before a drive swap: the 2007 thick 160GB uses a CE-ATA drive with its own factory cable (821-0546), the thin 80GB and 120GB use the shared thin ZIF cable, and a swap done with the wrong cable leaves the drive undetected and the iPod at the red X. - Before buying a drive, open the iPod and look at the ribbon cable and its connector: a cable that slipped under the connector, a torn ribbon, or an open latch will show the red X on a perfectly good drive. - If you can, test the suspect drive outside the iPod with a USB-to-ZIF adapter: a drive that a computer will not mount is confirmed dead, while one that reads and writes normally sends you back to the cable or the board.
Hard Drive Failure on the iPod Classic 6th Generation: What Owners Describe
The 1.8-inch mechanical drive is the part of the 6th Generation Classic that owners most often hear failing before they see it fail. The reports below are paraphrased and anecdotal; the drive is the usual suspect but not the only one.
- One owner reported an unusual drive noise, failed restores, and startup stopping at the Apple logo.
- One owner's 160GB clicked audibly from the drive whenever it was connected to load music, and reading the drive took a very long time.
- Another owner's fully charged iPod turned on but played a steady tick, like a clock, instead of a song.
- A year-old iPod that iTunes called corrupted would sometimes connect and sync, then fail again, with a loud whirring and small clicks from the drive area.
- One owner's 160GB would take music up to roughly the 137GB mark and then start wiping everything.
- A 2007 thick 160GB owner restored the iPod, got a month of use, then saw only the Apple logo; iTunes rarely noticed the iPod and a clicking sound had started.
How it usually progresses: - Skips and freezes that become more frequent, a drive you can hear ticking or clicking, then restores that fail with an error, and finally an iPod that never gets past the Apple logo or shows the red X.
What typically causes it: - The click is the drive itself: clicking or grinding from inside the case is the sign of a failing or failed hard drive, usually a damaged read/write head, and the drive is replaced rather than repaired.
Handle it safely: - Before condemning the drive, open the iPod, check that the drive ribbon is seated at both ends, and, adapter permitting, test the drive on a computer through a USB-to-ZIF adapter; a drive that mounts and copies there has just told you the fault is elsewhere, and it has also given you a chance to copy your music off. - A click is not always the drive dying: on this model the drive sits in rubber bumpers, and a drive that has shifted because a bumper is missing or misplaced can knock in the case, so confirm the noise with the diagnostics before buying a drive.
What Owners Report
These are anecdotal owner reports, not guarantees or authoritative proof that a particular part will fix a symptom. Use them as a troubleshooting starting point: confirm the symptom, run the quick checks, then match the fix.
Sad face, red X, or clicking drive
Symptoms. Red X in a circle pointing to Apple's support page; sad-face icon; rhythmic clicking or a click-then-clunk from inside; freezes partway through loading music; drive reports full with nothing on it; won't enter Disk Mode.
Quick diagnosis.
- The red X / sad face means the iPod can't use its hard drive. Drive failure is by far the most common cause — but cable and connector faults mimic it, so diagnose before buying.
- Run the built-in diagnostics: reset (Menu + Center ~6 seconds), and the moment the screen blanks, hold Back (|◀◀) + Center. In the diagnostic menu, the drive's SMART data (reallocated and pending sector counts) tells you directly how sick the drive is. A hang on the drive test is itself an answer.
- Try Disk Mode (reset, then Center + Play). If the computer can see the drive there, format and restore from iTunes; if it can't, the drive side is dead.
- The definitive bench check: a ZIF-to-USB adapter lets you mount the bare drive on any computer and separates "dead drive" from "bad cable or board" before you spend on parts.
- Audible clicking is the drive's heads striking their stop — mechanical failure. It only gets worse.
Fixes.
- Replace the drive — and replace the drive ribbon cable with it; frayed or half-seated cables cause repeat red X after an otherwise good swap.
- After a fresh drive goes in, a red X is normal until iTunes restores the firmware: enter Disk Mode, connect, and let iTunes download and install it. No separate drivers or software are needed.
- Drives that "work but corrupt": bad sectors show up as partial syncs, random freezes at the same point, or a library that half-vanishes. A zero-writing erase can map sectors out and buy time, but escalating corruption means mechanics are failing — replace.
- Water or sticky-liquid exposure: clean the board and connectors (90%+ isopropyl alcohol; sterile water first for sugary residue), replace the battery, and expect the drive to be a casualty too.
Cautions.
- The folk remedy of slapping the iPod occasionally frees a stuck platter — temporarily, and only for that one failure mode. It is not a repair, and repeated impacts crush other parts.
- Magnets on dashboards and keyboard sleeves are usually too weak to kill a drive, but a drive that died around one still needs the same diagnosis path above.
- If your files matter, minimize power-on time and copy data off first (see E07): a clicking drive's data is on borrowed time, and once it fully fails, recovery is effectively gone.
Community signal. Reported by 35 owners — the most-reported hard-drive issue on this model.
Which drives fit: sizes, cables, thick vs thin hardware
Symptoms. Broken drive and shopping for a replacement; new drive too thick for the case; wondering whether a bigger drive works; drive from another iPod model on hand.
Quick diagnosis.
- Two physical drive classes live in this family: 5mm single-platter (thin) — the 80GB and 120GB, plus the late-2009 thin 160 — and 8mm dual-platter (thick) — the 2007 160GB. Model families ending -GAL are generally the 5mm class, -GAH the 8mm class.
- The connector question: thin-class classics use the widely shared standard ZIF drive connector and cable; the 2007 thick 160GB uses its own half-size connector and unique cable — its drive and cable travel together and don't interchange with thin parts.
- Replacement drives must be 1.8" ZIF PATA. SATA drives of the same size (the 240/320GB laptop families) do not fit electrically — the connector is different, and no adapter makes them native.
Fixes.
- Like-for-like swap (80→80, 120→120, thin-160→thin-160): drop-in — drive + cable, done.
- Capacity upgrades — the honest matrix: a 6G-era unit (80GB, 120GB, or 2007 thick 160GB — Apple 1.1.x/2.0.1 firmware family) tops out at ~128GB usable for any replacement storage, whatever the label says. A thin 160GB drive physically drops into an 80/120 chassis (same 5mm size, same battery and back) and works — it will simply format to the cap. Only the late-2009 generation (2.0.4/2.0.5 firmware) addresses beyond 128GB.
- Fitting a thick 8mm drive into a thin chassis requires the thick rear panel, thick drive cable, thick bumpers, and thick-case headphone-jack assembly — the thin faceplate, display, click wheel, and board stay.
- A thin drive in a thick case works with an extra layer of padding so the drive can't bounce — unlike a PC there is no frame anchoring it.
Cautions.
- Buying "the 160GB drive" blind is the classic mistake: confirm thick vs thin first (E04), because their drives, cables, rear panels, and jacks all differ.
- Drives salvaged from other players of the same size class often work if they are ZIF PATA and 5mm — but check the donor's platter count and thickness before assuming.
Community signal. Reported by 11 owners.
Red X persists after a drive replacement
Symptoms. New drive installed, still the red X; can reach diagnostic mode but not Disk Mode; replaced drive AND cable and it's still there; iTunes error codes during the first restore.
Quick diagnosis.
- First: a red X immediately after installing a blank drive is expected — the drive has no firmware yet. Disk Mode → iTunes restore clears it. Judge only after a restore attempt.
- If restore can't complete: bench-test the new drive on a ZIF-USB adapter. Replacement drives are dead on arrival often enough that this single check saves most wasted part-swapping.
- Inspect the drive ribbon cable under magnification — hairline tears are invisible at arm's length. Confirm it's the right cable for the drive class (thick-160 cable ≠ thin cable) and that the retaining clip is seated.
- Drive tests fine + cable new + still red X → the board's drive interface is the remaining suspect.
Fixes.
- Restore from Disk Mode per Apple's canonical sequence: disconnect, enter Disk Mode manually, open iTunes, restore.
- Exchange DOA replacement drives rather than troubleshooting around them.
- Replace the cable with the drive as a pair — the cost is small and it removes the second-most-common culprit.
- Sticky-liquid or water incidents: full board clean before condemning electronics (sterile water for residue, then 90%+ isopropyl).
Cautions.
- Match the replacement to your original drive's family where possible; mixed-family swaps are where cable/connector mismatches bite.
- Repair-cost math: a drive swap is a DIY-priced job, while out-of-warranty service quotes often exceed the value of the player — pricing details vary, so compare before committing either way.
Why people land on this part
Also searched as: 1.8-inch drive, Hard-drive ribbon, hard disk, plugged computer, solid state drive, tried charging, ipod classic 120gb hard drive replacement, replace hard drive ipod classic 6th gen, ipod classic 6th gen max storage, Red X Icon, Clicking Noise, Sad iPod Icon, Folder Icon, Corrupted Data, Stuck in Recovery Mode, iTunes Error, Reboot Loop, Stuck on Apple Logo, Won't Restore, Stuck in Disk Mode, Flash Mod Problems, Hard Drive Failure, hard drive dead, clicking sound, restore error, showing a folder, restore process, restore option, Consider Flash Storage, hard drive cable, drive was corrupted, drive already corrupted, error 1416, error 1429, click noise, click sound, iPod classic 6th generation 160GB hard drive, iPod classic 6th generation hard drive upgrade, boot loop, not recognized, red circle.
Some buyers search for "6.5G" or "Toshiba MK1231GAL"; confirm the checks above point to this same part before ordering.
Some buyers search for "ipod classic 6th gen hard drive replacement", "ipod classic 6th generation hard drive replacement", "replace hard drive ipod classic 6th gen", "ZIF-40", "hard drives", "click noise", "click sound", "drive dead", "Flash Mod Problems", "hard drive dead", "hdd connector", "Stuck on Apple Logo", "80GB hard drive in a 160GB iPod Classic", "difference between thick and thin", "unfreeze my iPod Classic", "reformat to use with Windows instead of iTunes", "logic board failed and need data off the hard drive", "skips songs or plays the wrong artist", "not syncing properly", "only loads 8GB of media", "freezes iTunes and won't go into disk mode", "doesn't start up when connected", or "a 1.8-inch HDD"; confirm the checks above point to this same part before ordering.
Some buyers search for "hard drive (HDD)"; confirm the checks above point to this same part before ordering.
Owners searching for this describe it as: iPod classic 6th Generation Disk Mode Stuck, iPod stuck in disk mode, iTunes not recognizing disk mode, ipod classic 6th gen disk mode boot loop, ipod classic diagnostic mode hard drive test, ipod classic disk mode itunes not recognizing, ipod classic do not disconnect screen stuck, ipod classic ok to disconnect stuck, ipod classic red x disk mode, ipod classic restore loop disk mode, ipod classic stuck in disk mode, ipod classic won't go into disk mode.
Owners searching for this describe it as: iPod classic 6th Generation Red-X Icon, iPod red X icon, iPod red-X screen, ipod classic red x circle, ipod classic red x after drop, ipod classic red x new hard drive.
Owners searching for this describe it as: iPod classic 6th Generation Hard Drive Failure, iPod hard drive failure, iPod drive making noise, ipod classic clicking sound won't play, ipod classic hard drive ticking, ipod classic drive whirring skipping songs.
Questions people ask
- What is the max storage for this iPod Classic model.
- How do I tell if iPod Classic is thick or thin.
- What are the signs of a failing hard drive.
You May Also Want
The thin hard-drive cable can cause identical Red X, folder icon, restore, or clicking symptoms; inspect it during drive replacement.
Related: 128GB Flash Mod Kit (flash-storage adapter + 128GB SD Card Included)Flash storage uses the same thin ZIF path, but stock Apple firmware limits usable flash storage to about 128GB.
Related: Replacement Battery (Thin — 80GB / 120GB)The thin battery is checked during storage service while the case is open; inspect it if runtime is weak or power drops interrupt restore.
