Representative photo. You receive the part named above.
Is this the right part?
For the iPod Photo 40GBModel A1099
Also for the iPod Photo: 20GB $36.95 · 30GB $30.95 · 60GB $120.95 · See all
Doing it yourself?

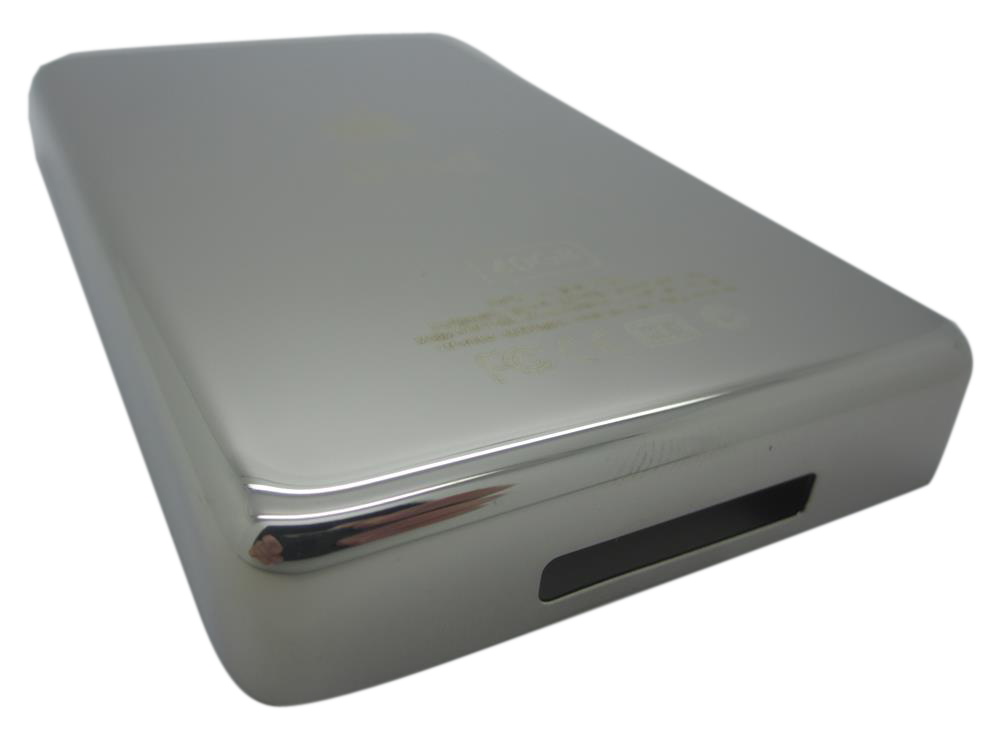

iPod 4th Gen and iPod Photo back panel replacement guide ›iPod Photo (4th Generation) — Replacement Backplate (40GB)
For the iPod Photo 40GB
Used (Apple Original) · Model A1099
$45.95
Also for the iPod Photo: 20GB $36.95 · 30GB $30.95 · 60GB $120.95 · See all
Sold out
Not for sale right now
We are not selling this part at the moment.
- Used (Apple Original). Tested: installed in a working iPod and checked before it ships.
- 1-year limited warranty · 30-day returns from delivery
- Free pry tool in the box
- Completed repairs aren't refundable. If a part we fitted fails within a year, we repair it again.
Questions about this part? Chat with us or email sales@imods.com.
Not sure what's wrong? Get your free repair quotePart details
About this part
Overview
Replacement housing or trim part for iPod Photo (4th Generation). Use it to restore fit, finish, color, case alignment, or visible damage rather than to fix an internal electronics fault.
Fitment snapshot
What Is Included
In the box: the rear backplate shell and a plastic pry tool. Not in the box: the headphone-jack assembly and its Hold switch, the orange flex cable, and the three silver Phillips screws that hold that assembly to the rear panel. All of those transfer from your original back.
Fit and specs
Specifications & Fitment
Also known as iPod with color display (Apple's official name after June 2005).
Part Details
| Detail | Value |
|---|---|
| Model Number | A1099 |
| EMC | EMC 2022 |
| Condition | Used — factory original Apple part. Normal cosmetic wear expected. |
| Case depth | Thick — about 0.75 in |
Compatible Variants
| Order Number | Capacity | Color | Case | Compatible | Notes |
|---|---|---|---|---|---|
| M9585LL/A | 40GB | White | thick | Yes— stock match | Stock match |
| M9586LL/A | 60GB | White | thick | Yes— capacity engraving mismatch | Physically fits the same case depth; rear capacity engraving will not match the original. |
| M9830LL/A | 60GB | White | thick | Yes— capacity engraving mismatch | Physically fits the same case depth; rear capacity engraving will not match the original. |
| PS493AA | 60GB | White (HP) | thick | Yes— capacity engraving mismatch | Physically fits the same case depth; rear capacity engraving will not match the original. |
| MA127LL/A | 20GB | Black/Red (U2) | thin | No— wrong case depth | Wrong case depth — choose the matching thin or thick iPod Photo backplate. Use Replacement Backplate (20GB) instead. |
| MA079LL/A | 20GB | White | thin | No— wrong case depth | Wrong case depth — choose the matching thin or thick iPod Photo backplate. Use Replacement Backplate (20GB) instead. |
| MA215LL/A | 20GB | White (Harry Potter Collector's Edition) | thin | No— wrong case depth | Wrong case depth — choose the matching thin or thick iPod Photo backplate. Use Replacement Backplate (20GB) instead. |
| M9829LL/A | 30GB | White | thin | No— wrong case depth | Wrong case depth — choose the matching thin or thick iPod Photo backplate. Use Replacement Backplate (30GB) instead. |
| PS492AA | 30GB | White (HP) | thin | No— wrong case depth | Wrong case depth — choose the matching thin or thick iPod Photo backplate. Use Replacement Backplate (30GB) instead. |
Install and repair
Step-by-step guide
iPod 4th Gen and iPod Photo back panel replacement
Tools: Plastic opening tools, one wide and one thin, Plastic spudger, T6 Torx screwdriver, Fine Phillips screwdriver (#00 or PH-000), Anti-static wrist strap or mat, Soft cloth and a small tray, Wall charger and headphones you know work
- Unplug it, switch it off and lock HoldDisconnect any cable, charger or computer first. Switch the iPod off by holding Play/Pause until the screen goes dark, then slide the Hold switch to locked, so its orange bar shows.
- Release the case clipsOur opening guide has the detail. In short: with the screen up and the dock connector toward you, start on the right-hand long side with the wide plastic tool, its edge tilted toward the steel back, and free the five tabs on that side. Then the two clips beside the dock connector (lightly past the thin steel there), the five tabs on the left-hand side, and the top edge.
Install Overview
Rather not open it? Choose We Fix It above: mail your iPod in and we fit it. Turnaround is typically 1–3 business days on our bench. 1-year limited warranty.
Questions
Frequently Asked Questions
Will this fix charging, audio, storage, or screen problems?
No. A backplate is passive rear housing. Use it for dented, scratched, bent, missing, or custom rear-case work, not as an electronics diagnosis.
Is this an iPod Classic?
Apple's 'Classic' branding started with the 6th Generation (2007). This is the color-screen iPod photo / iPod with color display generation, not a Classic-branded model.
Should I choose by capacity or by thin/thick case?
Measure the case depth first, then pick the engraving. A thin 20GB or 30GB iPod photo is about 0.63 in (16 mm) front to back; a thick 40GB or 60GB one is about 0.75 in (19 mm) — one step you can feel with a ruler or by standing the two side by side. Depth outranks the engraving, because a rear shell swapped by a previous owner carries whatever capacity was engraved on it rather than the drive now inside, and a back of the wrong depth will not close. With the depth settled, choose the listing engraved with the capacity you want to read on the back.
Does this include the headphone jack, Hold switch, or cable?
No. This is the rear backplate shell. Transfer the headphone jack, Hold switch hardware, and cable from your original rear case, or replace those parts separately if they are damaged.
What changes if I fit a bigger drive?
The case depth changes, and that is a set of parts rather than one. A 40/60GB drive is 8 mm tall and a thin 20/30GB body is built for a 5 mm drive, so the conversion needs a thick backplate like this one, the thick hard-drive bumpers and the thick headphone-jack assembly. The headphone-jack flex cable is the same part for every capacity, so that one you keep. Forcing an 8 mm drive under a thin back presses the case onto the drive stack and marks or breaks the LCD. The simpler route is to keep every thin part and fit a 5 mm 50-pin drive, or flash storage we fit by mail (our flash mod service).
Will a monochrome fourth-generation front panel fit this iPod?
The monochrome fourth-generation front panel is not a verified swap — buy the Photo faceplate. The two bodies look alike from outside but differ inside: this model's panel takes five logic-board screws to the monochrome's six, and the display connector sits elsewhere on the board.
