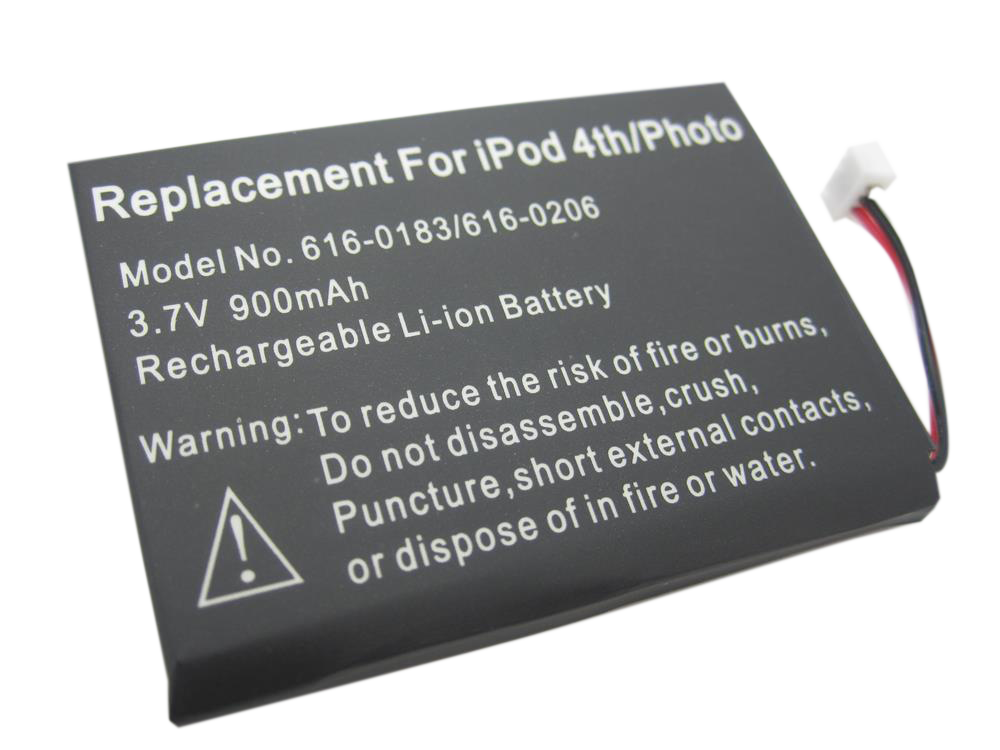

Replacement rechargeable battery for iPod Photo (4th Generation). Use it for poor runtime, swelling, or power loss after cable and power-source checks, while remembering that bad storage or board faults can imitate battery trouble.
Product Overview
This battery listing covers Replacement Battery and its own connector path on the iPod Photo (4th Generation).
Use Part Details for the confirmed part-number reference. Use the Compatible Variants table below to confirm capacity, color, case, or order-number fitment.
Choose this part when your iPod shows Won't Charge, Won't Turn On, Battery Drain, or Shuts Down Randomly; the checks below help confirm the right part before you order.
If a known-good battery, cable, and power source still do not restore stable power, the problem might be the dock connector, battery connector, or something on the board, not just the battery.
What Is Included
Condition: New replacement part. Quantity and exclusions: The listed part, set, pair, or configuration above is supplied with exactly one plastic pry tool. No other parts, tools, adhesives, or materials are included unless they are explicitly listed above.
Quick Diagnosis: Is It The Replacement Battery?
Start here before ordering. Work through the checks in order; a symptom alone does not prove this battery is bad until nearby parts, cables, fitment, or install issues are separated.
Before you order this battery
- Try a force restart first. Toggle Hold on and off, then hold Menu + Select/Center for 6 to 10 seconds.
- Check for liquid or connector damage. Inspect for liquid, corrosion, residue, torn flex material, or connector damage.
- Check battery and power stability. Try a known-good charger and cable.
- Check battery and power stability. Test with a known-good charger and cable, then note whether the iPod only works while plugged in or fails again under load.
- Use this listing only after the checks still point here. If the symptom still points here after those checks, compare Compatible Variants before ordering this battery.
Other Symptoms That May Involve This Part
| Symptom | What it means & what to check |
|---|---|
| drive spin-up causes shutdown or reboot, storage diagnosis changes after charging the battery, Won't Restore, no battery, not charging | Use this as a battery clue only after the iPod matches this listing's battery fitment. |
| boot loop | Charge from a known-good source long enough to separate deep discharge from a failed cell, then confirm the case-depth battery path. |
| new battery charges but still not recognized in iTunes | Check the USB cable, charger, dock connector, and storage spin-up load before ordering a replacement battery. |
Specifications & Fitment
Also known as iPod with color display (Apple's official name after June 2005).
Part Details
| Detail | Value |
|---|---|
| Model Number | A1099 |
| EMC | EMC 2022 |
| Condition | New replacement battery |
| Capacity (Original) | 630 mAh — Apple's original reference. Replacement cells vary: buy by the 616-0206 part number, not by an mAh claim. |
| Chemistry | Li-Ion |
| Voltage (Nominal) | 3.7V |
| Connector | Wired plug-in |
| Soldering Required | No |
| OEM Part | 616-0206 |
Compatible Variants
| Order Number | Capacity | Color | Case | Compatible | Notes |
|---|---|---|---|---|---|
| MA127LL/A | 20GB | Black/Red (U2) | thin | Yes— compatible | Owner-verified: Compatible 20GB U2 Special Edition / black-red thin variant |
| MA079LL/A | 20GB | White | thin | Yes | Owner-verified: fits all iPod Photo / Color Display variants, thin and thick. |
| MA215LL/A | 20GB | White (Harry Potter Collector's Edition) | thin | Yes | Owner-verified: fits all iPod Photo / Color Display variants, thin and thick. |
| M9829LL/A | 30GB | White | thin | Yes | Owner-verified: fits all iPod Photo / Color Display variants, thin and thick. |
| PS492AA | 30GB | White (HP) | thin | Yes— compatible | Owner-verified: Stock match |
| M9585LL/A | 40GB | White | thick | Yes | Owner-verified: fits all iPod Photo / Color Display variants, thin and thick. |
| M9586LL/A | 60GB | White | thick | Yes | Owner-verified: fits all iPod Photo / Color Display variants, thin and thick. |
| M9830LL/A | 60GB | White | thick | Yes | Owner-verified: fits all iPod Photo / Color Display variants, thin and thick. |
| PS493AA | 60GB | White (HP) | thick | Yes— compatible | Owner-verified: Stock match |
Failure Signs
Use these checks to decide whether this battery is the right part, whether a nearby part should be checked first, or whether the symptom needs more diagnosis.
| Symptom | What it means & what to check |
|---|---|
| Ribbon, connector, or ground-path checks |
What you may see: A symptom starts after opening the iPod or disturbing an internal flex cable. Most likely cause: Connector seating, ribbon damage, or ground-path issues can involve this part, a nearby connector, or a board path. |
| Fitment or model-variant mismatch |
What you may see: People ask whether a similar-looking part from another model, capacity, or generation will work. Check first: Confirm the model and capacity before ordering hard drive, rear case, or headphone-jack assembly parts.
Most likely cause: This battery may help only when it matches the model and variant being repaired.
Look elsewhere when: Check fitment before replacing nearby parts or ordering another copy of the same wrong variant. |
| Power, charging, or runtime symptoms |
What you may see: People describe short runtime, charging trouble, sudden shutoff, or an iPod that will not reliably power on.
Check first: Test with a known-good charger and cable before opening the iPod.
Most likely cause: The iPod Photo has thin 20GB/30GB and thick 40GB/60GB case variants. Battery, hard drive, and rear-case fitment can differ by thickness.
Look elsewhere when: Check power-source behavior, dock connector condition, storage startup clues, and board damage when the symptom is not isolated to battery performance. |
| Symptoms changed after repair or reassembly |
What you may see: People describe a new problem appearing immediately after battery, storage, display, audio, or control work.
Check first: Reopen only as far as needed to inspect the areas touched during the repair.
Most likely cause: A post-repair symptom can involve the battery, but disturbed ribbons, latches, grounding, connector seating, or the wrong variant part are common checks before ordering again.
Look elsewhere when: Check the exact connector or assembly disturbed during the repair before treating the new part as failed. |
Repair considerations
Run these checks before replacing the battery — they confirm the battery is the right fix and not a nearby fault:
- Check for swelling first: a stiff center button, a bulging pack or a case that will not close flush. Stop charging a swollen cell and do not press the case back down.
- Try known-good cable, charger, USB port, or computer
- Replace battery
Do Not Buy This Battery Yet If...
| Situation | Start here instead |
|---|---|
| You see a folder icon, clicking noise, or restore failure | Check the drive or flash media, storage cable, adapter seating, formatting, and restore path before replacing any part. A folder with an exclamation mark means the iPod cannot find its storage — the drive, its ribbon cable, or the software on it. A sad-face iPod icon is the same message in the older style: it cannot use its hard drive. |
| Only the screen is affected and everything else works | Start with the screen, display ribbon and backlight path — a picture fault with everything else working is a display-path problem, not a battery one. On this iPod the pack lies behind the click wheel, so swelling shows up in the center button, not as a mark on the screen. |
| A symptom points to a different part | Start with hard-drive cable for folder, clicking, or restore symptoms; LCD screen for display-only symptoms; headphone jack for audio or Hold-switch symptoms; click wheel for click-wheel or control symptoms; logic board for board-side damage or multi-system symptoms before buying this part. |
| Variant or capacity does not match this listing | Confirm the exact model, capacity, and battery connector before ordering. |
| Recent service or connector disturbance is the main clue | Inspect and reseat the cable, latch, or connector path disturbed during service before buying another part. |
| Charging, swelling, runtime, or power is the primary problem | Confirm power, charging, and pack-condition clues before replacing this part. |
Install Overview
Before You Start
For pre-open diagnosis, unlock Hold and use this generation's reset sequence if needed. Before opening, lock the Hold switch so the orange bar is visible, then confirm the model and variant.
Treat case opening as the highest handling risk. Work around the seams gently and stop if the shell, clips, or internal stack resist.
Do not pull the halves apart or side-load board sockets. Reseat nearby ribbons and connectors before blaming a replacement battery.
Stop charging and avoid puncturing, bending, or compressing the cell if the battery is swollen, hot, leaking, or visibly damaged.
Disassembly Guide
Show all 8 installation steps
Before you open the iPod, confirm that the hold switch is in the locked setting. The orange bar should be showing, indicating hold is active.
Move an opening pick as far as possible into the gap between the plastic front and the metal back panel, on the right edge of the iPod. You may have to rock the pick back and forth to move it in farther. With the opening pick, lever up against the plastic front panel and release 5 retaining tabs. Slide the pick along the iPod edge and keep levering gently until the remaining retaining tabs release. In this step, after all five tabs along the right edge are free, the case should easily open.
The iPod case is now open, but do not separate the two halves yet. An orange ribbon cable still connects the headphone jack to the logic board. With the dock connector edge at the top, open the case like a book and set the rear panel beside the iPod front half.
With a plastic tool or your fingernails, carefully detach the orange headphone jack cable. Make sure to draw straight up on the connector, not the cable itself. This fragile ribbon cable can stay connected for a battery replacement. Prop and tape the rear case against a box so the headphone jack remains connected to the motherboard without straining its cable while you work.
Carefully detach the white battery connector from the logic board. Pull only on the connector housing, not the cables.
Take out the 2 black T6 Torx screws from the left edge of the logic board.
Use one hand to raise the hard drive up in order to access the battery beneath. Carefully thread the battery cable around the logic board end. While freeing the cable, avoid pulling upward too far on the logic board.
Free the battery from the front housing. Work a plastic spudger under the edge of the cell and lever it up off its adhesive a little at a time, then lift it out. Never pull on the battery leads, and never bend, crease or puncture the cell. If the pack is swollen, stop: do not lever it, and have it handled and recycled as a damaged lithium cell.
Product-specific placement, reassembly, and check
- Prepare and access. Confirm the exact model and listing fit first. Use the existing steps as a disassembly guide, gather the specified tools, disconnect power where applicable, and keep screws and cable positions organized.
- Place Replacement Battery. Seat the battery in the original battery location, route its lead or ribbon without a pinch, and reconnect it squarely.
- Reassemble without force. Reverse only the access steps needed for this repair, keep cables clear of case edges and screw posts, and close clips in stages.
- Validate before final closure. Before final closure, confirm boot and charging behavior and stop immediately for swelling, heat, odor, hissing, smoke, or leakage.
Stop condition: Stop if a connector, latch, screw, clip, housing edge, or the replacement part resists normal alignment. Recheck model fit, orientation, cable routing, and trapped hardware instead of forcing it.
After This Repair
| Check | What to do |
|---|---|
| Charge and calibrate | Charge fully, let it stay on the charger a little longer, then use it through a normal discharge and charge cycle so the meter can settle. |
| Watch the internal stack | If the center button goes stiff, the wheel stops clicking, or the case bows or will not sit flush after reassembly, reopen and check the pack's thickness and the cable routing. The pack sits behind the click wheel on this iPod, so a thick or swollen cell presses the wheel from behind. |
| Still not working? | Check the dock connector, battery connector, storage load, and board power path before replacing another battery. |
Frequently Asked Questions
Use these questions to narrow the part path before ordering. They keep each answer focused on a different diagnostic or fitment decision.
What Replacement Battery models does this fit?
This Replacement Battery fits: M9585LL/A (40GB White), M9586LL/A (60GB White), M9829LL/A (30GB White), MA079LL/A (20GB White), M9830LL/A (60GB White), MA127LL/A (20GB Black/Red (U2)), MA215LL/A (20GB White).
Do I need to solder?
No, this installation does not require soldering. Difficulty: Moderate. Estimated time: 15 minutes - 1 hour.
How do I know if this battery needs replacement?
Symptoms that can point to this battery include: Won't Charge, Won't Turn On, Battery Drain, Shuts Down Randomly, Swollen Battery. Check fitment, connectors, and nearby parts before treating symptoms as proof.
Can storage trouble look like a bad battery?
Listen for repeated drive clicking and compare whether the symptom changes in disk mode or during restore. Reseat the hard-drive ribbon before replacing the battery again when power symptoms began after service. Confirm the model and capacity before ordering hard drive, rear case, or headphone-jack assembly parts. Listen for repeat clicking or repeated spin-up attempts before replacing storage parts. Check whether the iPod enters disk mode, restores cleanly, and is recognized by the computer.
What should I check before replacing this battery?
Inspect the battery connector and nearby ribbon paths before ordering another battery. Look for corrosion, torn flex material, or a connector that no longer clamps the battery lead cleanly. This battery helps only when the battery itself remains the isolated failure after seating checks. Check disturbed connectors first when the symptom appeared immediately after service.
Is this an iPod Classic?
Apple's 'Classic' branding started with the 6th Generation (2007). This is the color-screen iPod photo / iPod with color display generation, not a Classic-branded model.
Why people land on this part
Use the checks above to separate this battery from nearby parts before ordering.
Some buyers search for "sad ipod, clicking, or restore failure appears while power is unstable"; confirm the checks above point to this same part before ordering.
Some buyers search for "charging behavior is intermittent", "charging, usb recognition, sync, or dock behavior is intermittent or missing", "computer recognition changes when battery charge level changes", or "ipod does not appear to charge from a known-good cable"; confirm the checks above point to this same part before ordering.
Also searched as: iPod photo battery life, iPod photo charger, iPod photo 60GB battery replacement, iPod color battery, battery won't charge, battery drain now, won't charge completely, battery dies, replaced battery, not charge, order battery, A1099 battery, After replacing the battery, battery affecting middle/center button, battery drained, expanded battery, iPod Photo battery cost, iPod battery replacement near me, iPod Photo battery power, iPod Photo battery repair guide, iPod Photo battery replacement kit, where to buy iPod Photo battery online, 20GB Color Display, iPod Colour Display, iPod Photo battery replacement service, iPod Photo battery for sale, iPod Photo battery parts store, iPod Photo battery health check instructions, iPod Photo battery exclamation mark at boot, MA127LL/A (U2 Special Edition Color 20GB), iPod Classic 4th Gen Photo battery, OEM 630 mAh, dead battery, battery black, battery bought, doesn't charge, battery has been, issues with battery, swollen battery affecting, iPod with color display, A1099, won't hold a charge, Won't Turn On, Shuts Down Randomly, new battery, battery replacement, battery connector, 30, 40, 60 GB), not charging, Battery Drain, Swollen Battery, standard iPod Photo 4G battery (20, 30, 40, and 60GB), iPod 4G/Photo, boot loop, Color Display MA127, no battery, won't restore.
Battery Safety & Shipping
⚠️ Lithium-Ion / Li-Po Battery Safety. This product contains (or is) a rechargeable lithium-ion/lithium-polymer battery. Charge only with a compatible charger and unplug once fully charged. Avoid charging or storing in direct sunlight or other high-heat environments. Stop using and stop charging immediately if the battery swells, bulges, gets unusually hot, hisses, smokes, or leaks. Do not puncture, crush, bend, short-circuit, or try to "deflate" a swollen cell, and never press a lifted screen or case back down — it can rupture the cell. If electrolyte contacts your eyes, flush with clean water for 15 minutes without rubbing and seek medical care; on skin, wash with water and soap. Battery service should be done by a trained technician. Recycle through an electronics or universal-waste recycler, not household trash.
Shipping. A refurbished iPod shipped with its battery installed is handled as lithium-ion batteries contained in equipment (UN3481); a loose replacement cell is handled as a lithium-ion battery (UN3480). Carrier, packaging, and destination restrictions can vary, so follow the current checkout and shipping instructions for the offered route.
Worth Knowing
- Wired plug-in battery connector for iPod Photo color-display models.
- Owner-verified: one battery (OEM 616-0206) fits both thin (20/30GB) and thick (40/60GB) iPod Photo / Color Display models.
- Cross-reference supplier listings against the Photo battery family reference; do not rely on alternate cross-listed battery IDs without model-specific confirmation.
- A single shared battery fits both the thin and thick models.
What Owners Report
These are anecdotal owner reports, not guarantees or authoritative proof that a particular part will fix a symptom. Use them as a troubleshooting starting point: confirm the symptom, run the quick checks, then match the fix.
Won't charge, strange charging icon, or only charges from some sources
Symptoms. A strange battery icon with a zig-zag line; a picture of a wall outlet with a charger that locks the screen; charge graphic blinks but never fills; dead after running the battery down; works plugged in but dies the instant it's unplugged; shows a full charge yet won't turn on unplugged; charges in the car but not in the house; stuck on the charge/battery screen.
Quick diagnosis.
- Identify the icon first. A wall-outlet-with-charger picture after an update or restore is the iPod asking for an external power source to finish installing — normal firmware behavior on this model, not a brick and not a charging fault. Put it on a wall adapter and let it finish.
- A monochrome, non-animated battery icon on the color screen means the pack is fully or nearly discharged; the iPod can't talk to the computer in that state. Charge first — preferably from a wall adapter — before judging anything else.
- On a used or unknown-history unit, fit a known-good battery before chasing the dock connector, drive, or board: battery-first is the strongest community consensus on this model.
- Reset before hardware conclusions: toggle Hold, then Menu + Select about 10 seconds until the Apple logo. Then retry on a high-power USB 2.0 port — never an unpowered hub. Low-power USB ports (many laptop ports included) may deliver no charge current at all.
- Inspect the dock connector for lint, debris, and bent or corroded pins. One owner's multimeter procedure: with the unit plugged in, the battery-connector side should read roughly 4.2–4.6V; no reading points at the dock/power path rather than the pack.
Fixes.
- Battery replacement — one battery family (Apple 616-0206) serves every A1099 capacity; the thick 40/60GB back does NOT hold a bigger battery. Search by the part number rather than by capacity claims.
- External power to finish a stalled restore — when the wall-outlet icon appears, move the iPod to wall power. A real wall adapter is what finishes a restore: a FireWire wall adapter is the surest route, an iPod-era USB wall adapter works for some owners and not for others, and a modern phone charger or a computer USB port often does not. Copy anything you want to keep off the iPod first — a restore erases it.
- Dock-connector cleaning — 90%+ isopropyl alcohol, soft brush, compressed air; straighten nothing by force.
Cautions.
- If a sad face or clicking rides along with the charge symptoms, test the hard drive path too — drive and battery failures share several presentations on this model.
- Never revive a pack by rapid plug/unplug cycling ("bump charging") — community-flagged as board risk on this family.
- One community troubleshooting page gives Menu + Play/Pause as the reset for this iPod. That is the older scroll-wheel combination; Apple's reset for a click-wheel iPod is Menu + Select.
Community signal. Reported by 13 owners — the model's most-reported issue.
New battery fitted — still won't charge or show up in iTunes
Symptoms. Same low-battery signs after a fresh battery; new pack charges but the iPod is never recognized by the computer; charge logo stays lit but the gauge never moves; overnight charge stops at ~75%; battery icon shows a black end; reads charged but dies unplugged.
Quick diagnosis.
- If it syncs but won't take a charge, move it to a wall adapter: a low-power USB port can run the electronics yet feed a deeply discharged pack too little current, and iTunes for Windows, or the newer Apple Devices app, will not recognize an iPod whose battery is too low.
- Question the new pack itself. "New" marketplace batteries are sometimes aged cells behind a fresh gauge chip showing 0 cycles — a pack that won't complete a charge out of the box is suspect; pursue a replacement or return from a source that stands behind it.
- After any battery job, re-seat the hard-drive cable — it only fits one way but can be forced wrong — and check for straight pins and corrosion at the dock connector and board-side power connector.
- Inspect the dock connector inside and out for fluid damage, lint, and corrosion; clean with >90% isopropyl alcohol and a soft brush. Check the board for white/greenish residue while open.
- Leave the unit on a wall charger overnight before the final verdict — a deeply depleted pack can take hours to show life.
Fixes.
- Battery replacement from a verified source — pack quality is the dominant variable in this issue; the 616-0206 family fits all capacities (don't shop by mAh figures — published capacities for this model conflict).
- Battery health readout (Mac) — one owner reads pack state through the dock connection with a battery utility to separate a battery fault from a board fault before buying more parts.
Cautions.
- A restore is the last step, not the first, and it erases the iPod — copy anything you want to keep off it first.
- The monochrome fourth-generation iPod (same body, gray screen), the iPod mini and the later iPod with video are different platforms with their own parts — see their own pages.
Community signal. Reported by 7 owners.
Problems right after a battery replacement
Symptoms. Won't turn on at all after the swap; Apple logo flashes then a battery warning icon cycles every ~10 seconds; new pack holds 45 minutes; unit cycles logo → sad face → low battery; totally unresponsive with old and new pack alike.
Quick diagnosis.
- Plug into the computer. If the iPod is seen but the screen stays dark, the display path was likely disturbed — not the battery. If nothing is recognized, suspect what was just touched: battery seating and pack quality first, then the drive and its cable.
- Inspect the battery receptacle on the board: it must not move or lift. The plug pulls straight UP off a fragile surface-mount socket; verify it is fully seated and correctly oriented. Solder work there is micro-scale — do not improvise repairs on it.
- Verify the replacement matches the original's size and rating, then reset with Menu + Select before concluding anything.
- Expect a long first charge on a WALL adapter — one owner logged over a day before a higher-capacity replacement pack settled in.
Fixes.
- Re-replace the replacement — defective new packs are a real class: two independent reporters went through a second replacement battery (one via vendor exchange), and a pack-on-pack failure doesn't rule out a deeper fault underneath. Buy from a source with a return path, and keep the drive on the suspect list if a second good pack changes nothing.
- Restore after the swap — a firmware restore is the standard cleanup when charging behavior stays odd after a battery job. Copy anything you want to keep off the iPod first — a restore erases it — and use iTunes for Windows, or the newer Apple Devices app, on a PC.
Cautions.
- The widely-circulated post-swap recovery sequence in these threads came from a monochrome-sibling unit; the mechanics are shared, but nothing in it is claimed as this model's own procedure.
- The battery lead is 3-wire; do not probe or remap the wiring — pin-level details for this model are unverified.
Community signal. Reported by 5 owners.
Dead iPod — sad face, a wall-outlet icon, or nothing at all
Symptoms. Apple logo → sad iPod → battery symbol, looping on power; a wall-outlet icon that never clears on any computer; a screen that stays dead while the computer still tries to sync.
What it usually is. A unit out of a drawer is normally just flat. Give it an hour on a wall adapter first: a deeply discharged pack cannot talk to a computer, and the wall-outlet picture is a restore waiting for power, not a dead iPod.
What to check first. Wall power, then reset with Menu + Select, then listen at the drive. A paid battery swap that did not revive a dead unit usually points at the drive next — test it before a second battery.
Cautions. Never short the battery terminals to "wake" a pack. Stop charging a swollen one, and never press a lifted case back down.
Community signal. Reported by 4 owners, plus one paid-swap case.
The case won't open — clips, tools, and technique
Symptoms. The pry tool raises a tiny crack and no clip ever springs; the tool pops back out at the corners; the side gap never appears. Repairers call this body a bear to open.
What works. Start the pick at the right-hand edge and work the five tabs along it, then along the top and bottom — steady leverage, not force, and a wide plastic opening tool rather than a screwdriver.
The part that catches people out. The halves stay joined by the orange headphone-jack ribbon. Open the case like a book with the dock-connector edge at the top and lay the back panel beside the front — never lift the back away. Pulled hard, that ribbon tears, and it can take the jack socket off the board with it.
Community signal. Reported by 2 owners.
