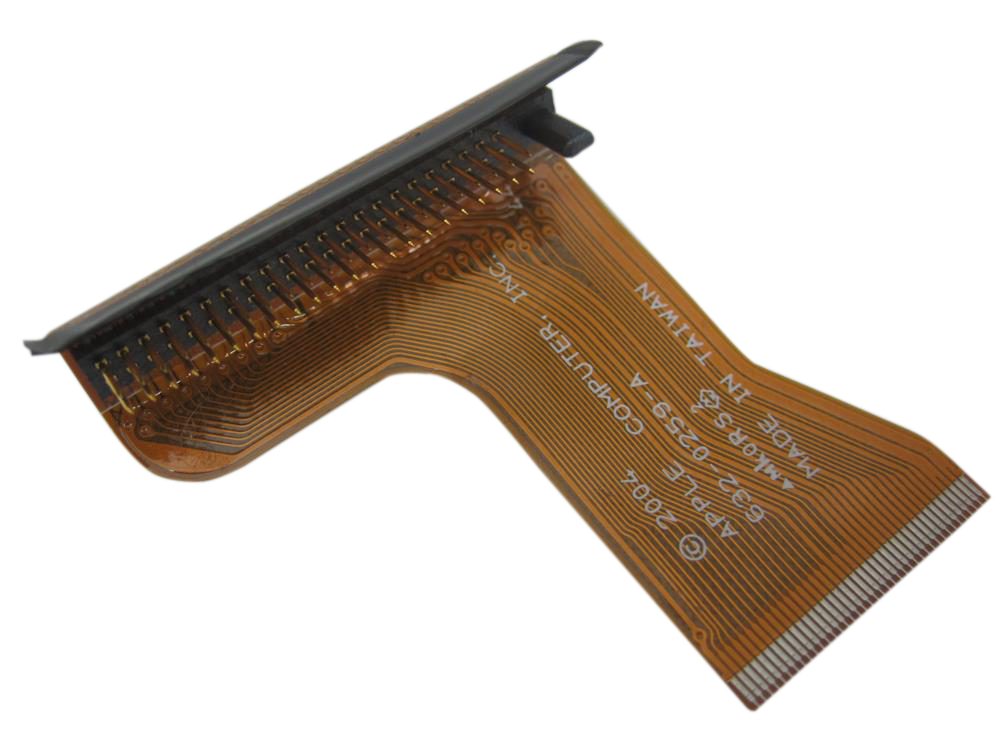

Replacement internal cable for iPod Photo (4th Generation). Use it when the flex or ribbon is torn, creased, loose, or failing at the connector before blaming the whole attached assembly.
Product Overview
This cable listing covers Hard Drive IDE Ribbon Cable and its own connector path on the iPod Photo (4th Generation).
Use Part Details for the confirmed part-number reference. Use the Compatible Variants table below to confirm capacity, color, case, or order-number fitment.
Choose this cable when sad iPod, folder icon, clicking, or red X symptoms remain after reseating both ends, inspecting the latch and connector, and checking the drive or flash adapter.
- Use a ZIF adapter to connect the iPod hard drive directly to a computer for external reformatting and diagnosis
- Error 1429 indicates a hard drive problem
- The larger drive requires a thicker rear panel to physically fit
- A Toshiba MK8007GAH (80GB) is a compatible upgrade option for this model, as it uses the correct ATA-6 pin interface.
- Compatible Toshiba drives end in 004 or 006 (e.g., MK4004GAH, MK2006GAL, MK3006GAL, MK4006GAL)
- USB will not complete the restore process.
- A USB-to-ZIF adapter allows external testing of the hard drive
- Toshiba MK8007GAH 80GB is a compatible upgrade drive for this model
- The issue is not only the thickness of the drive assembly but also the length: with the adapter attached, a ZIF drive becomes too long for the iPod Photo's internal cavity.
- The sad iPod icon indicates a hard drive issue.
What Is Included
Quick Buying Check
Buy this when
- Hard Drive Failure: Use the cable check when reseating, connector inspection, or a known-good drive points to the storage ribbon instead of the drive itself.
Diagnose first when
- Confirm the capacity and case thickness before ordering battery, hard drive, cable, or rear case parts.
- Use the matching iPod Photo 20GB, 30GB, 40GB, or 60GB storage listing shown in Choose Your Option or Compatible Variants.
- Try a known-good cable, charger, and computer port before opening the iPod.
- Inspect the dock connector for debris, bent pins, corrosion, or looseness.
- Separate charging-only failure from computer-recognition or sync failure when choosing a part.
Do not buy for
- Check cable, charger, battery, storage restore state, and board condition when the dock check is not clearly isolated.
- Check the board-side connector or adjacent cable first when the damage is not on the replaceable assembly.
- Check nearby parts first when the symptom is tied to another assembly or appeared after unrelated work.
- A damaged storage ribbon can make a good drive look failed, while a failing drive can still produce the same sad-iPod symptoms.
Specifications & Fitment
Also known as iPod with color display (Apple's official name after June 2005).
Part Details
| Detail | Value |
|---|---|
| Model Number | A1099 |
| EMC | EMC 2022 |
| Condition | Used — factory original Apple part. Normal cosmetic wear expected. |
| OEM Part |
632-0259, 632-0259-A
|
Compatible Variants
| Order Number | Capacity | Color | Case | Compatible | Notes |
|---|---|---|---|---|---|
| MA127LL/A | 20GB | Black/Red (U2) | thin | Yes— compatible | Compatible 20GB U2 Special Edition / black-red thin variant |
| MA079LL/A | 20GB | White | thin | Yes | — |
| MA215LL/A | 20GB | White (Harry Potter Collector's Edition) | thin | Yes— compatible | Stock match |
| M9829LL/A | 30GB | White | thin | Yes | — |
| PS492AA | 30GB | White (HP) | thin | Yes | — |
| M9585LL/A | 40GB | White | thick | Yes | — |
| M9586LL/A | 60GB | White | thick | Yes | — |
| M9830LL/A | 60GB | White | thick | Yes | — |
| PS493AA | 60GB | White (HP) | thick | Yes | — |
Failure Signs
Use these checks to decide whether this cable is the right part, whether a nearby part should be checked first, or whether the symptom needs more diagnosis.
Ribbon seating
Reseat both ends of the 50-pin storage ribbon and inspect the board-side latch before replacing it.
Drive comparison
Compare behavior with known-good storage so a failed drive is not mistaken for a failed cable.
Post-service changes
If symptoms began after opening the iPod, inspect the exact cable and connector path that was disturbed.
50-pin cable ribbon, connector, or contact path
What you may see: Sad iPod, folder icon, or restore failure changes after reseating the hard-drive cable.
- Drive or flash adapter is detected only intermittently.
- Cable is creased, torn, loose, or has bent contacts.
Check first: Reseat both ends of the 50-pin hard-drive cable.
- Inspect the board connector and drive connector for bent contacts or debris.
- Compare behavior with a known-good drive or flash adapter when available.
- Reseat both ends of the storage ribbon and inspect the connector or latch before replacing the cable.
Most likely cause: Choose this cable only when the part's own flex or contact path is damaged.
- Reseat or clean only where the repair procedure supports it.
- Replace the cable when the flex, connector tail, or assembly contact path is physically damaged.
Look elsewhere when: Check the board-side connector or adjacent cable first when the damage is not on the replaceable assembly.
Restore, sync, setup, or frozen-state symptoms
What you may see: Restore starts but does not complete after storage work.
- iPod is not recognized consistently during restore.
- Boot loop appears after drive, flash, or cable service.
Check first: Try Disk Mode before restore.
- Reseat the drive cable at both ends.
- Inspect adapter orientation and card format if a flash mod is installed.
Most likely cause: Choose this cable only when the same hardware symptom repeats outside the temporary device state.
- Replace the cable when the symptom follows that part across normal use and restore/setup states.
- Continue software, storage, power, or input diagnosis when the symptom appears only during setup or restore.
Look elsewhere when: Check storage, battery power, input state, and connector seating first when the symptom is tied to restore or setup.
Sad iPod, clicking, restore, or storage trouble
What you may see: People describe clicking, sad iPod or folder screens, restore loops, disk-mode trouble, or storage that will not behave after replacement.
- Sad iPod, red X, clicking drive, restore loop, or disk-mode trouble.
- Sad iPod icon remains after a known-good drive or flash adapter is installed.
- Folder icon or red X changes when the cable is moved or reseated.
- Restore fails even though the storage device itself tests good.
Check first: Confirm the capacity and case thickness before ordering battery, hard drive, cable, or rear case parts.
- Listen for repeat clicking or repeated spin-up attempts before replacing storage parts.
- Check whether the iPod enters disk mode, restores cleanly, and is recognized by the computer.
- If a drive or flash adapter was just installed, recheck cable seating, adapter orientation, and formatting before buying another part.
Most likely cause: The iPod Photo has thin 20GB/30GB and thick 40GB or 60GB case variants. Battery, hard drive, and rear-case fitment can differ by thickness.
- The cable can be involved, but the drive cable, adapter formatting, power stability, or logic-board storage path may also be responsible.
- Check storage / restore route, connector seating, and board-side damage before ordering.
- Choose this cable only when clicking, restore failure, or disk errors follow this part or its connection path.
- Choose this cable when the symptom remains isolated to this assembly, its ribbon, or its connector path after first checks.
- Replace the cable only when the storage or restore symptom is tied to this part's role in the startup path.
- Use cable, adapter, or board diagnosis first when restore behavior changes with seating, formatting, or another known-good storage device.
Look elsewhere when: Check the storage cable, adapter setup, battery power stability, and board connector when the symptom changes after reseating or swapping storage.
Cable ribbon, connector, or contact path
What you may see: People describe symptoms that change after opening the iPod, reseating parts, or disturbing nearby flex cables.
- A symptom starts after opening the iPod or disturbing an internal flex cable.
Check first: Inspect the relevant ribbon and board connector before replacing the part.
- Look for lifted latches, bent contacts, debris, corrosion, creases, or torn flex material.
- Check whether the symptom changes after careful reseating.
Most likely cause: The cable may be fine while its ribbon, connector, latch, or contact path is loose, dirty, damaged, or not fully seated.
- Connector seating, ribbon damage, or ground-path issues can involve this part, a nearby connector, or a board path.
Symptoms changed after repair or reassembly
What you may see: People describe a new problem appearing immediately after battery, storage, display, audio, or control work.
- A new symptom appeared after battery, storage, audio, display, or control work.
- Storage symptom appeared immediately after opening the iPod.
- Cable was disturbed during battery, drive, or flash-adapter work.
- Symptom changes after reassembly pressure or cable movement.
Check first: Reopen only as far as needed to inspect the areas touched during the repair.
- Compare the new symptom with what worked before the repair.
- Check cable seating, latch position, and part variant before replacing a second part.
Most likely cause: A post-repair symptom can involve the cable, but disturbed ribbons, latches, grounding, connector seating, or the wrong variant part are common checks before ordering again.
- Check post-repair regression, connector seating, and board-side damage before ordering.
- Choose this cable only when the part itself was torn, creased, or damaged during service.
- Correct seating, latch, or variant problems first.
- Replace the cable when the repair damaged that assembly or its flex path.
Look elsewhere when: Check the exact connector or assembly disturbed during the repair before treating the new part as failed.
Fitment or model-variant mismatch
What you may see: A similar cable is being compared across thin and thick Photo storage layouts.
- Cable length or bend path does not match the installed drive stack.
- The cable was ordered for a different capacity or case-depth build.
Check first: Match the cable to the iPod Photo storage layout and case depth.
- Confirm the connector style and routing path before closing the case.
- Do not use a wrong-depth cable path to force a storage upgrade.
Most likely cause: This cable may help only when it matches the model and variant being repaired.
- Use the cable variant matched to the exact iPod.
- Recheck fitment before diagnosing a newly installed part as defective.
Look elsewhere when: Check fitment before replacing nearby parts or ordering another copy of the same wrong variant.
Cable symptoms to compare before ordering
What you may see: People describe behavior that can point toward the cable, but the symptom does not prove this part has failed
Check first: Compare the exact behavior, when it started, and whether it changed after a repair
- Inspect nearby cables and connectors before replacing major parts
Other Symptoms That May Involve This Part
| Commonly described as | What to check before ordering |
|---|---|
| drive drops out when the ipod is under load | Treat this as a storage-path clue, then compare cable condition, drive behavior, and fitment. |
Repair considerations
Repair specialists who work on this model consistently flag these checks before replacing the cable — they help confirm the cable is the right fix and not a nearby fault:
- Restore/format steps can erase data or indicate storage failure
- Treat ribbons, tabs, and connectors as fragile
- Use reset, Disk Mode, restore, or iTunes/Finder behavior as a software/storage check
- Inspect connector latch, socket, or clamp condition
- Reseat or inspect ribbon cable and connector seating
- Check drive noise, SMART/data signs, or storage recognition
- Wait 30 minutes while the iPod is charging.
- The drive connector is believed to be DDKLtd MCD-D50SA-3
- The iPod 4th Generation or Photo Hard Drive Replacement guide covers installation
Do Not Buy This Cable Yet If...
| Situation | Start here instead |
|---|---|
| Cable, computer, sync, or port behavior is the primary problem | Check the matching drive, cable seating, and board-side connector before ordering. |
| The problem is the Hold switch or headphone jack, not this part | Use the port, cable, host, or power path if the storage ribbon is not the isolated fault. |
| You see a folder icon, clicking noise, or restore failure | Confirm restore behavior, storage fit, and setup state before ordering this part. |
| Recent service or connector disturbance is the main clue | Inspect and reseat the cable, latch, or connector path disturbed during service before buying another part. |
| Variant or capacity does not match this listing | Confirm exact model, capacity, case, and variant fit before ordering. |
| A symptom points to a different part | thick, thin. |
| Charging, swelling, runtime, or power is the primary problem | Confirm power, charging, and pack-condition clues before replacing this part. |
- Compatible Toshiba drive models include any ending in 004 or 006, such as: - MK4004GAH - MK2006GAL - MK2006GALC - MK3006GAL - MK4006GAL The 4th Gen hard drive connector is believed to be a DDKLtd MCD-D50SA-3.
- A plastic opening tool alone may not suffice; supplement with a small jeweler's screwdriver or thin putty knife.
- Most USB-to-ZIF cables come with multiple adapters for different connector types
- Test the original hard drive externally with a USB-to-ZIF connector to isolate the problem
Install Overview
Before You Start
Lock the Hold switch so the orange bar is visible before opening the iPod.
Treat case opening as the highest handling risk. Work around the seams gently and stop if the shell, clips, or internal stack resist.
Do not pull the halves apart or side-load board sockets. Reseat nearby ribbons and connectors before blaming a replacement cable.
Check drive-ribbon seating and bumper placement while the iPod is open.
Repair Guide
Show all 8 installation steps
Before you open the iPod, confirm that the hold switch is in the locked setting. The orange bar should be showing, indicating hold is active.
Move an opening pick as far as possible into the gap between the plastic front and the metal back panel, on the right edge of the iPod. You may have to rock the pick back and forth to move it in farther. With the opening pick, lever up against the plastic front panel and release 5 retaining tabs. Slide the pick along the iPod edge and keep levering gently until the remaining retaining tabs release. In this step, after all five tabs along the right edge are free, the case should easily open.
The iPod case is now open, but do not separate the two halves yet. An orange ribbon cable still connects the headphone jack to the logic board. With the dock connector edge at the top, open the case like a book and set the rear panel beside the iPod front half.
With a plastic tool or your fingernails, carefully detach the orange headphone jack cable. Make sure to draw straight up on the connector, not the cable itself. This fragile ribbon cable can stay connected for a battery replacement. Prop and tape the rear case against a box so the headphone jack remains connected to the motherboard without straining its cable while you work.
Grasp the hard drive with one hand and carefully detach the orange ribbon cable from the hard drive with your other hand. In this step, if the cable doesn't come free easily, it may be useful to gently wiggle the cable from side to side.
Peel up and back the black adhesive strip covering the hard drive ribbon cable.
With a fingertip or spudger, carefully flip up the black hard drive cable connector on the logic board. The black retaining clip rotates 90 degrees toward vertical in the cable direction.
Draw the orange hard drive cable directly out of its connector.
After This Repair
| Check | What to do |
|---|---|
| Test the connected part | Confirm the assembly on both ends of the cable behaves normally before closing the iPod. |
| Still not working? | Inspect the latch, cable orientation, and board-side connector before replacing another part. |
Frequently Asked Questions
Use these questions to narrow the part path before ordering. They keep each answer focused on a different diagnostic or fitment decision.
How do I choose the right hard-drive cable?
Match the exact storage path for this model. Some cables depend on drive brand, case depth, or connector style, not just the iPod generation.
When is the cable more likely than the drive?
A cable becomes more likely when it is torn, creased, loose, corroded, or fails after reseating, especially if known-good storage still behaves the same way.
When is this cable the right fix for sad iPod, clicking, or restore trouble?
Listen for repeated drive clicking and note whether the iPod reaches disk mode. Reseat the hard-drive ribbon and inspect the storage connector or retaining latch before buying another storage part. Try restore only after cable seating and power behavior are stable enough to complete the process. Compare with a known-good drive, cable, or flash adapter when available. Confirm the capacity and case thickness before ordering battery, hard drive, cable, or rear case parts. Listen for repeat clicking or repeated spin-up attempts before replacing storage parts. Check whether the iPod enters disk mode, restores cleanly, and is recognized by the computer. If a drive or flash adapter was just installed, recheck cable seating, adapter orientation, and formatting before buying another part. Choose this part only when clicking, sad iPod, restore failure, or disk-mode symptoms remain tied to the storage path after cable seating and power checks. Check battery stability, connector seating, and the hard-drive cable before treating the storage device alone as confirmed. Check the storage cable, adapter setup, battery power stability, and board connector when the symptom changes after reseating or swapping storage.
What should I check before replacing this cable?
Reseat the storage ribbon squarely and confirm the latch is closed before replacing the storage device again. Check adapter orientation, case clearance, and capacity/format expectations when using a flash path. Inspect the relevant ribbon and board connector before replacing the part. Look for lifted latches, bent contacts, debris, corrosion, creases, or torn flex material. Check whether the symptom changes after careful reseating. Choose this hard-drive cable only when the storage path remains isolated after ribbon and fitment details. Choose this cable only when the part's own flex or contact path is damaged. Check the cable and storage connector path first when the symptom started immediately after a storage swap. Check the board-side connector or adjacent cable first when the damage is not on the replaceable assembly.
Can a bad drive mimic a hard-drive cable failure?
Yes. A failing drive, loose 50-pin connector, or unstable flash adapter can look like a cable issue. Reseat both cable ends and compare with known-good storage before replacing the ribbon.
Why people land on this part
Use the checks above to separate this cable from nearby parts before ordering.
Some buyers search for "power instability appears before a repeatable cable symptom", "short runtime, charging trouble, sudden shutoff, or a device that will not reliably power on", or "storage diagnosis changes when battery charge changes"; confirm the checks above point to this same part before ordering.
Also searched as: iPod photo Hard Drive IDE Ribbon Cable, iTunes Error, Stuck on Apple Logo, Corrupted Data, hard drive dead, showing a folder, gig drive, removed toshiba, drive logic, 5th Generation, later storage part, solid state drive, drive was corrupted, drive already corrupted, error 10, error 45, error 1429, click sound, malfunctioning with error, iPod Photo storage ribbon cable, A1099 hard drive cable, 50-pin IDE iPod Photo cable, iPod with color display, Reboot Loop, Won't Restore, click noise, iPod Classic Photo, Sad iPod Icon, Folder Icon, Clicking Noise, Red X Icon, Hard Drive Failure, clicking sound.
You May Also Want
A fresh battery is often replaced during the same repair while the iPod is open.
Related: Flash Storage Mod (iFlash IDE Adapter + SD Card)Flash storage is the common upgrade path while the iPod is already open.
Related: Replacement Hard Drive (30GB)Often replaced together with the hard drive.
