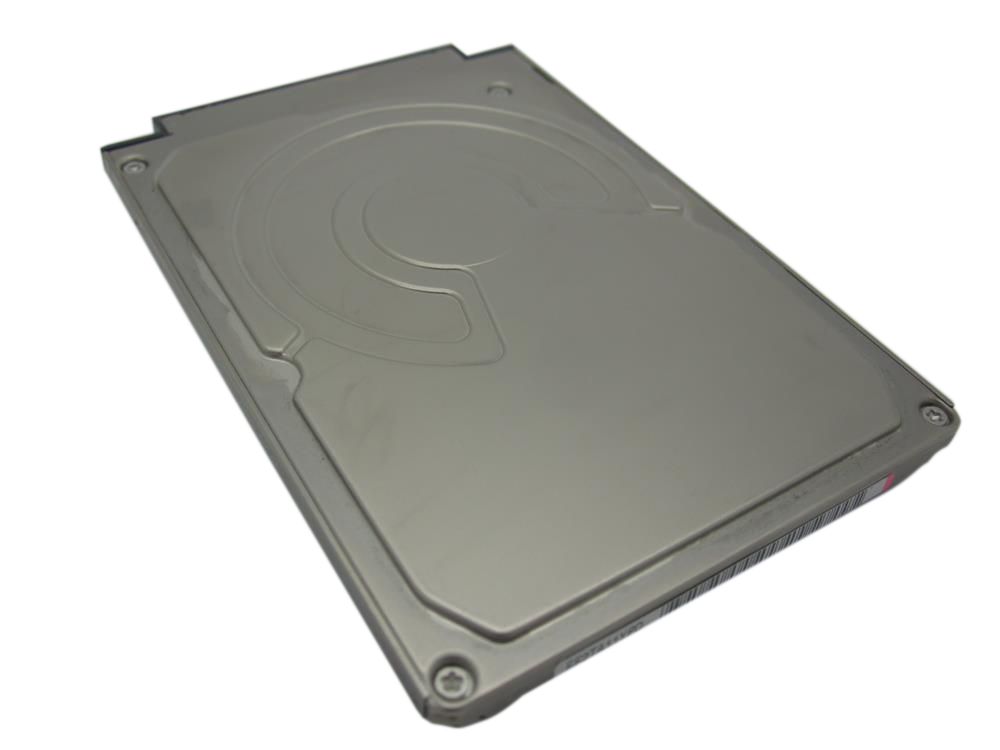

iPod Photo (4th Generation) — Replacement Hard Drive (30GB)

Symptoms. Dead 60GB drive and wondering whether a cheaper 30GB or 20GB substitutes; a modern ZIF drive bought by mistake; cracked board-side drive connector; asking whether the sibling monochrome model's drive transplants into the color unit; a ZIF-to-pins adapter that "mentions the iPod" in its listing.

Quick diagnosis.

1. Match the CASE CLASS before anything else: the 20/30GB builds are thin and take 5 mm single-platter drives; the 40/60GB builds are thick and take 8 mm drives. A thick drive will not close inside a thin case — forcing it presses the screen onto the drive stack — and a thin drive in a thick case needs the right bumpers. Compare exact drive dimensions before ordering.
2. Identify the interface before ordering: this model's drive connects by a 50-pin, pin-style ATA interface — it is NOT a ZIF socket. Modern ZIF drives do not plug in, and ZIF-with-adapter stacks usually fail on LENGTH: one owner with a disassembled unit found the assembled stack too long for the chassis, thickness aside.
3. Capacity mixing across the sizes this model shipped is the community's working assumption, with dimension-checking as the guard — a smaller drive in a bigger case is the easy direction.

Fixes.

• Like-for-like drive replacement — a 50-pin drive of the correct height for your case, with the matching bumpers and a fresh drive cable if the old ribbon has been flexed.
• 50-pin SSD or flash conversion — owner builds that worked: a 64GB 50-pin IDE SSD in a thin 20GB unit at the same size as the original drive (no thick parts needed), and a CompactFlash conversion in another. After any storage swap expect a restore, and the wall-power step to finish it — copy anything you want to keep off the iPod first, because a restore erases it.
• Bigger mechanical drives — the 80GB Toshiba MK8007GAH is an 8 mm drive: thick 40/60GB cases only, or a thin unit converted with the thick backplate, the thick bumpers and the thick headphone-jack assembly. Check the height of any bigger drive before ordering, and confirm the connector is the 50-pin Toshiba type rather than ZIF.
• Drive cable replacement — the board-side ribbon (Apple 632-0259-A) is a real part with a real failure mode; a cracked or torn ribbon mimics drive death. Pull the ribbon straight up out of its latch socket — never lever or slide it sideways.

Cautions.

• Drives from the monochrome sibling swap electrically — the supplier lists the same 50-pin drives for both models — but plan on a full restore afterwards, and treat "it just booted" stories as luck rather than the rule.
• The monochrome fourth-generation iPod (same body, gray screen), the iPod mini and the later iPod with video are different platforms with their own parts — see their own pages.

Community signal. Reported by 6 owners.

Related on this family: hard drive (20GB · 30GB · 40GB · 60GB) · hard drive cable · hard drive bumpers (thin · thick)

Symptoms. After a drive replacement: folder-with-exclamation, boot cycling through logo → folder → "do not disconnect"; a 60GB unit with a detached drive connector and a burned component near the 30-pin connector that still won't start after part swaps; a sad face that persisted through battery, drive AND board replacements; stuck on the Apple logo, no disk mode; a drive that whirs, swells in volume, cuts off and retries before finally reaching the menu.

Quick diagnosis.

1. After any drive swap, verify the work first: enter the diagnostic screen — reset with Menu + Select, then hold Previous + Select as the Apple logo appears — confirm the drive is seen, and re-check the drive cable seating. A boot cycle with the folder icon usually means the iPod cannot read its software off the drive — drive, cable, or an unfinished restore.
2. Use your ears. Loud clicking or grinding points at a failing drive; silence points at a drive getting no power, and the community's first move there is the drive cable, not the drive.
3. Inspect the ribbon for tears and bent pins, and test the drive itself through a 50-pin USB adapter before condemning anything else.
4. When symptoms survive battery + drive + board swaps, revisit the simplest links: cable seating and connector orientation are the classic misses — and remember the restore may need wall power to finish. Copy anything you want to keep off the iPod first — a restore erases it — and use iTunes for Windows, or the newer Apple Devices app, on a PC.
5. Board-level burn damage: there are no public schematics for this model, so component-level diagnosis is guesswork even for professionals. The community path is whole-board replacement.

Fixes.

• Hard drive replacement (with a restore afterwards) — the standard answer to sad-face and clicking presentations; a flash conversion is the popular modernisation at the same step.
• Drive cable replacement — cheap insurance when boot cycling follows a drive swap, and the first part to change when the drive is silent.
• Logic board replacement — for burned or board-level failures; match the board revision to your unit (late-2004 or mid-2005).

Cautions.

• One thread in this family is a monochrome-sibling unit — shared mechanics, not color-model evidence.
• Don't chase burned components with a soldering iron on this model — no schematics means no reliable repair map.

Community signal. Reported by 4 owners, plus one owner's whirring-and-retrying boot.

Related on this family: hard drive (20GB · 30GB · 40GB · 60GB) · hard drive cable · logic board (late 2004 · mid 2005)

Symptoms. A sad iPod face with a support address at power-on; the drive audibly tries to spin, clicks, spins down and tries again.

What it usually is. A drive that cannot be read. Use your ears: clicking or grinding points at the drive itself; silence points at a drive getting no power, and the first part to change there is the cable.

What to check first. Reseat the drive and its cable first, straight up out of the latch, then try disk mode (Menu + Select to reset, then Select + Play). Hitting a clicking iPod is a folk remedy, not a repair, and it can finish off a drive that still holds your music.

Which part. Cable first when the drive is silent; a drive or a flash conversion when it clicks. Either needs a restore afterwards; copy anything you want to keep off the iPod first — a restore erases it.

Community signal. Reported by 2 owners.

Related on this family: hard drive (20GB · 30GB · 40GB · 60GB) · hard drive cable

Symptoms. Folder-with-exclamation error; the logic board has already been replaced; the original hard drive has already been swapped for a flash adapter with an SD card — and the folder icon is still there; the computer won't recognize the iPod.

Quick diagnosis / fixes.

1. A freshly converted iPod has NO firmware on its new storage — the folder icon and non-recognition at this stage are expected, not a failed mod. It needs a full restore to put the software onto the card before it can boot: use iTunes for Windows, or the newer Apple Devices app, on a PC, and Finder on recent macOS.
2. If the restore won't start or the computer never sees the iPod, refit a known-good hard drive for a moment and watch what the iPod reports — that separates an adapter or card problem from a board or cable problem.
3. Expect the wall-power step at the end. A real wall adapter is what finishes a restore: a FireWire wall adapter is the surest route, an iPod-era USB wall adapter works for some owners and not for others, and a modern phone charger or a computer USB port often does not.
4. Card and adapter: the adapter maker lists this iPod by its order numbers and specifies the ribbon it uses, so buy the conversion kit sold for this model rather than a generic listing. Format the card as the adapter maker directs before fitting it.

Cautions.

• This report came from a monochrome-family unit mid-conversion; the firmware-must-be-restored mechanic is shared across this body, but card and adapter fitment is model-specific.
• Copy anything you want to keep off the iPod first — a restore erases it.

Community signal. Reported by 1 owner.

Related on this family: flash storage kit · hard drive (20GB · 30GB · 40GB · 60GB) · hard drive cable

Symptoms. A strange battery icon with a zig-zag line; a picture of a wall outlet with a charger that locks the screen; charge graphic blinks but never fills; dead after running the battery down; works plugged in but dies the instant it's unplugged; shows a full charge yet won't turn on unplugged; charges in the car but not in the house; stuck on the charge/battery screen.

Quick diagnosis.

1. Identify the icon first. A wall-outlet-with-charger picture after an update or restore is the iPod asking for an external power source to finish installing — normal firmware behavior on this model, not a brick and not a charging fault. Put it on a wall adapter and let it finish.
2. A monochrome, non-animated battery icon on the color screen means the pack is fully or nearly discharged; the iPod can't talk to the computer in that state. Charge first — preferably from a wall adapter — before judging anything else.
3. On a used or unknown-history unit, fit a known-good battery before chasing the dock connector, drive, or board: battery-first is the strongest community consensus on this model.
4. Reset before hardware conclusions: toggle Hold, then Menu + Select about 10 seconds until the Apple logo. Then retry on a high-power USB 2.0 port — never an unpowered hub. Low-power USB ports (many laptop ports included) may deliver no charge current at all.
5. Inspect the dock connector for lint, debris, and bent or corroded pins. One owner's multimeter procedure: with the unit plugged in, the battery-connector side should read roughly 4.2–4.6V; no reading points at the dock/power path rather than the pack.

Fixes.

• Battery replacement — one battery family (Apple 616-0206) serves every A1099 capacity; the thick 40/60GB back does NOT hold a bigger battery. Search by the part number rather than by capacity claims.
• External power to finish a stalled restore — when the wall-outlet icon appears, move the iPod to wall power. A real wall adapter is what finishes a restore: a FireWire wall adapter is the surest route, an iPod-era USB wall adapter works for some owners and not for others, and a modern phone charger or a computer USB port often does not. Copy anything you want to keep off the iPod first — a restore erases it.
• Dock-connector cleaning — 90%+ isopropyl alcohol, soft brush, compressed air; straighten nothing by force.

Cautions.

• If a sad face or clicking rides along with the charge symptoms, test the hard drive path too — drive and battery failures share several presentations on this model.
• Never revive a pack by rapid plug/unplug cycling ("bump charging") — community-flagged as board risk on this family.
• One community troubleshooting page gives Menu + Play/Pause as the reset for this iPod. That is the older scroll-wheel combination; Apple's reset for a click-wheel iPod is Menu + Select.

Community signal. Reported by 13 owners — the model's most-reported issue.

Related on this family: battery · hard drive (20GB · 30GB · 40GB · 60GB) · hard drive cable

Symptoms. Same low-battery signs after a fresh battery; new pack charges but the iPod is never recognized by the computer; charge logo stays lit but the gauge never moves; overnight charge stops at ~75%; battery icon shows a black end; reads charged but dies unplugged.

Quick diagnosis.

1. If it syncs but won't take a charge, move it to a wall adapter: a low-power USB port can run the electronics yet feed a deeply discharged pack too little current, and iTunes for Windows, or the newer Apple Devices app, will not recognize an iPod whose battery is too low.
2. Question the new pack itself. "New" marketplace batteries are sometimes aged cells behind a fresh gauge chip showing 0 cycles — a pack that won't complete a charge out of the box is suspect; pursue a replacement or return from a source that stands behind it.
3. After any battery job, re-seat the hard-drive cable — it only fits one way but can be forced wrong — and check for straight pins and corrosion at the dock connector and board-side power connector.
4. Inspect the dock connector inside and out for fluid damage, lint, and corrosion; clean with >90% isopropyl alcohol and a soft brush. Check the board for white/greenish residue while open.
5. Leave the unit on a wall charger overnight before the final verdict — a deeply depleted pack can take hours to show life.

Fixes.

• Battery replacement from a verified source — pack quality is the dominant variable in this issue; the 616-0206 family fits all capacities (don't shop by mAh figures — published capacities for this model conflict).
• Battery health readout (Mac) — one owner reads pack state through the dock connection with a battery utility to separate a battery fault from a board fault before buying more parts.

Cautions.

• A restore is the last step, not the first, and it erases the iPod — copy anything you want to keep off it first.
• The monochrome fourth-generation iPod (same body, gray screen), the iPod mini and the later iPod with video are different platforms with their own parts — see their own pages.

Community signal. Reported by 7 owners.

Related on this family: battery · hard drive (20GB · 30GB · 40GB · 60GB) · hard drive cable

Symptoms. Won't turn on at all after the swap; Apple logo flashes then a battery warning icon cycles every ~10 seconds; new pack holds 45 minutes; unit cycles logo → sad face → low battery; totally unresponsive with old and new pack alike.

Quick diagnosis.

1. Plug into the computer. If the iPod is seen but the screen stays dark, the display path was likely disturbed — not the battery. If nothing is recognized, suspect what was just touched: battery seating and pack quality first, then the drive and its cable.
2. Inspect the battery receptacle on the board: it must not move or lift. The plug pulls straight UP off a fragile surface-mount socket; verify it is fully seated and correctly oriented. Solder work there is micro-scale — do not improvise repairs on it.
3. Verify the replacement matches the original's size and rating, then reset with Menu + Select before concluding anything.
4. Expect a long first charge on a WALL adapter — one owner logged over a day before a higher-capacity replacement pack settled in.

Fixes.

• Re-replace the replacement — defective new packs are a real class: two independent reporters went through a second replacement battery (one via vendor exchange), and a pack-on-pack failure doesn't rule out a deeper fault underneath. Buy from a source with a return path, and keep the drive on the suspect list if a second good pack changes nothing.
• Restore after the swap — a firmware restore is the standard cleanup when charging behavior stays odd after a battery job. Copy anything you want to keep off the iPod first — a restore erases it — and use iTunes for Windows, or the newer Apple Devices app, on a PC.

Cautions.

• The widely-circulated post-swap recovery sequence in these threads came from a monochrome-sibling unit; the mechanics are shared, but nothing in it is claimed as this model's own procedure.
• The battery lead is 3-wire; do not probe or remap the wiring — pin-level details for this model are unverified.

Community signal. Reported by 5 owners.

Related on this family: battery · hard drive (20GB · 30GB · 40GB · 60GB) · hard drive cable · flash storage kit

Symptoms. Apple logo → sad iPod → battery symbol, looping on power; a wall-outlet icon that never clears on any computer; a screen that stays dead while the computer still tries to sync.

What it usually is. A unit out of a drawer is normally just flat. Give it an hour on a wall adapter first: a deeply discharged pack cannot talk to a computer, and the wall-outlet picture is a restore waiting for power, not a dead iPod.

What to check first. Wall power, then reset with Menu + Select, then listen at the drive. A paid battery swap that did not revive a dead unit usually points at the drive next — test it before a second battery.

Cautions. Never short the battery terminals to "wake" a pack. Stop charging a swollen one, and never press a lifted case back down.

Community signal. Reported by 4 owners, plus one paid-swap case.

Related on this family: battery · hard drive (20GB · 30GB · 40GB · 60GB) · hard drive cable

Symptoms. The pry tool raises a tiny crack and no clip ever springs; the tool pops back out at the corners; the side gap never appears. Repairers call this body a bear to open.

What works. Start the pick at the right-hand edge and work the five tabs along it, then along the top and bottom — steady leverage, not force, and a wide plastic opening tool rather than a screwdriver.

The part that catches people out. The halves stay joined by the orange headphone-jack ribbon. Open the case like a book with the dock-connector edge at the top and lay the back panel beside the front — never lift the back away. Pulled hard, that ribbon tears, and it can take the jack socket off the board with it.

Community signal. Reported by 2 owners.

Related on this family: battery · hard drive (20GB · 30GB · 40GB · 60GB) · hard drive cable · headphone jack cable
