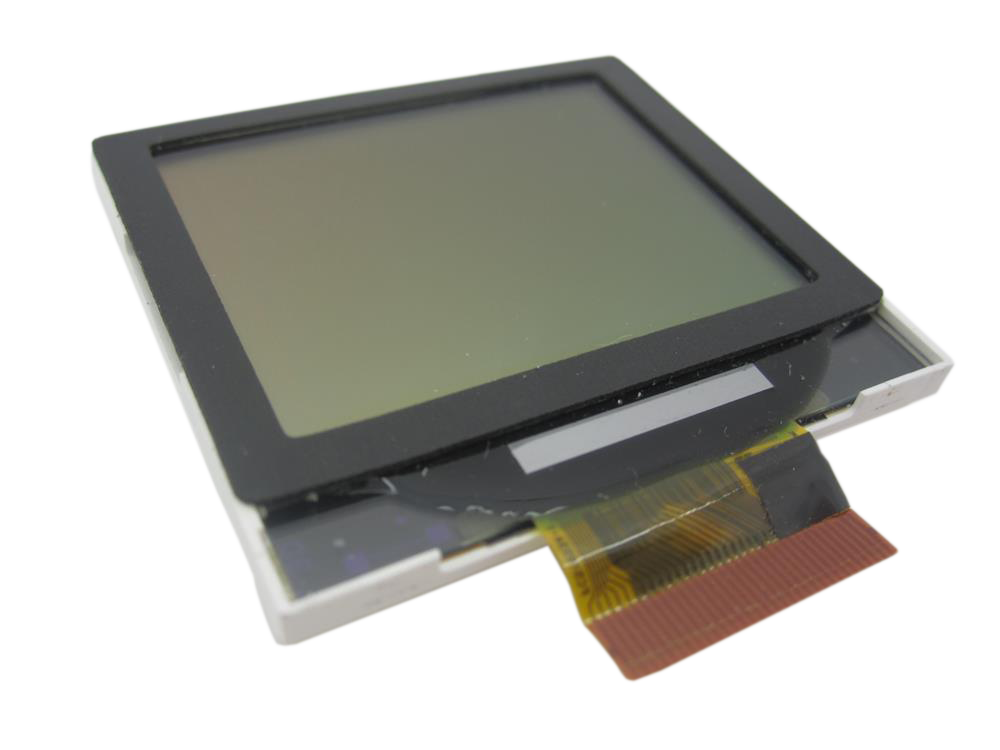

Representative photo. You receive the part named above.
iPod Mini 1G — Replacement LCD Screen (1.67" Grayscale)
Used (Apple Original) · Model A1051
$35.90
Sold out
Not for sale right now
We are not selling this part at the moment.
- Used (Apple Original). Tested: installed in a working iPod and checked before it ships.
- 1-year limited warranty · 30-day returns from delivery
- Free pry tool in the box
- Completed repairs aren't refundable. If a part we fitted fails within a year, we repair it again.
Part details
About this part
Overview
Replacement display assembly for iPod Mini 1G. Use it for cracked, blank, lined, or backlight-related display problems after separating screen damage from ribbon seating and board-side faults.
Fitment snapshot
Confirm model, generation, part number, and fitment details before ordering.
Product Overview
This screen listing covers Replacement LCD Screen (1.67" Grayscale) for the exact iPod Mini 1st Generation fit and physical location.
Use the Compatible Variants table below to confirm capacity, color, or order-number fitment.
Choose this part when your iPod shows backlight not working or LCD display failure; the checks below help confirm the right part before you order.
What Is Included
Condition: Used factory-original part. Quantity and exclusions: The listed part, set, pair, or configuration above is supplied with exactly one plastic pry tool. No other parts, tools, adhesives, or materials are included unless they are explicitly listed above.
Fit and specs
Specifications & Fitment
Part Details
| Detail | Value |
|---|---|
| Model Number | A1051 |
| EMC | EMC 1984 |
| Condition | Used — factory original Apple part. Normal cosmetic wear expected. |
| Size | 1.67 inches |
| Resolution | 138x110 pixels |
| Type | Grayscale |
| Controller | Renesas HD66753 |
Compatible Variants
| Order Number | Capacity | Color | Case | Compatible | Notes |
|---|---|---|---|---|---|
| M9436LL/A | 4GB | Blue | — | Yes | — |
| M9437LL/A | 4GB | Gold | — | Yes | — |
| M9434LL/A | 4GB | Green | — | Yes | — |
| M9435LL/A | 4GB | Pink | — | Yes | — |
| M9160LL/A | 4GB | Silver | — | Yes | — |
Fitment wording buyers compare
blue-white LED backlight, iPod mini a1051 screen, iPod mini first generation display, iPod mini Gen 1 Display, iPod mini inner display, iPod mini LCD panel, iPod mini LCD screen, iPod mini monochrome LCD, iPod mini screen module, iPod mini screen replacement
Install and repair
Install Overview
Before You Start
Turn Hold off and reset first: toggle Hold on and off, then hold Menu + Select (the center button) for about six seconds, until the Apple logo appears. Guides that say Menu + Play describe the older, pre-click-wheel iPods. Then confirm the model and variant before opening the iPod.
Treat case opening as the highest handling risk. Work around the seams gently and stop if the shell, clips, or internal stack resist.
Do not pull the halves apart or side-load board sockets. Reseat nearby ribbons and connectors before blaming a replacement screen.
Open ribbon-cable latches only as described; over-lifting or side-loading the latch can damage the connector. Reseat and protect the display ribbon during reassembly before assuming the panel itself is bad.
Disassembly Guide
Disassembly guide summary: iPod Mini Display Replacement.
Show all 15 installation steps
Confirm that the hold switch is locked before you open the iPod.
Carefully slide a small flathead screwdriver or Jimmy into the seam between the metal casing and white plastic top. Lever up the white top bezel, taking care not to damage the soft plastic. The top bezel is adhesive-backed, so you may need to lever it up from several spots before it releases. Heat up the adhesive for a few seconds with a hair dryer on low heat to make the job easier.
Raise the top bezel off the iPod.
Carefully slide a small flathead screwdriver or Jimmy into the seam between the metal casing and white plastic bottom. Lever up the white bottom bezel, taking care not to damage the soft plastic.
A small pair of snap-ring pliers is the best tool to take out the metal retaining bracket. You can also lever out the metal retaining bracket beneath the bottom bezel with a flathead screwdriver. Release the bracket by pressing in the corner metal arms first.
Lift the released bracket away and set it aside.
In this step, be careful, this connector is fragile. With a spudger or fingertip, carefully disconnect the orange click wheel ribbon from the logic board.
Take out the 2 #00 Phillips screws securing the headphone jack to the casing.
Carefully move the iPod out of its casing by pressing on the logic board near the click wheel's bottom edge. Do not tug on the headphone jack board at the iPod top; its logic board connector is fragile.
After the logic board has been pushed out far enough, gently grip it on either side of the display and keep sliding the iPod from its casing.
Raise the battery off the logic board and set it to the side of the iPod.
With a spudger, flip up the black plastic tab securing the orange display ribbon in place. The black tab can rotate up 90 degrees, releasing the ribbon cable. This tab is fragile so take care not to break it.
In this step, note the location of the four white plastic clips securing the display to the logic board. These clips must be released before the display can be removed.
With a spudger or fingertip, release the four white plastic tabs.
In this step, turn the iPod over. Carefully raise the display up and move it out of its connector.
Product-specific placement, reassembly, and check
- Prepare and access. Confirm the exact model and listing fit first. Use the existing steps as a disassembly guide, gather the specified tools, disconnect power where applicable, and keep screws and cable positions organized.
- Place Replacement LCD Screen (1.67" Grayscale). Seat the display in its original frame position and insert the display cable evenly without pressing on the image area.
- Reassemble without force. Reverse only the access steps needed for this repair, keep cables clear of case edges and screw posts, and close clips in stages.
- Validate before final closure. Before final closure, confirm image, backlight, and controls, and check that no cable or frame edge creates pressure on the panel.
Stop condition: Stop if a connector, latch, screw, clip, housing edge, or the replacement part resists normal alignment. Recheck model fit, orientation, cable routing, and trapped hardware instead of forcing it.
After This Repair
| Check | What to do |
|---|---|
| Test image and backlight | Check the display before closing the case fully, then confirm brightness and image stability after reassembly. |
| Watch for pressure | New spots, lines, or bowing after closing usually means the internal stack or ribbon routing needs another look. |
| Still not working? | Reseat the display ribbon and inspect the connector before treating the replacement screen as bad. |
Troubleshooting
Quick Diagnosis: Is It The Replacement LCD Screen (1.67" Grayscale)?
Start here before ordering. Work through the checks in order; a symptom alone does not prove this screen is bad until nearby parts, cables, fitment, or install issues are separated.
Before you order this screen
- Try a force restart first. Toggle Hold on and off, then hold Menu + Select/Center for 6 to 10 seconds.
- Reseat and inspect the connector path. Inspect the relevant ribbon and board connector before replacing the part.
- Check for liquid or connector damage. Look for lifted latches, bent contacts, debris, corrosion, creases, or torn flex material.
- Check the next listed clue. Check whether the symptom changes after careful reseating.
- Use this listing only after the checks still point here. If the symptom still points here after those checks, compare Compatible Variants before ordering this screen.
Failure Signs
Use these checks to decide whether this screen is the right part, whether a nearby part should be checked first, or whether the symptom needs more diagnosis.
| Symptom | What it means & what to check |
|---|---|
| Display ribbon, connector, or contact path |
What you may see: People describe symptoms that change after opening the iPod, reseating parts, or disturbing nearby flex cables.
Check first: Inspect the relevant ribbon and board connector before replacing the part.
Most likely cause: The screen may be fine while its ribbon, connector, latch, or contact path is loose, dirty, damaged, or not fully seated.
Look elsewhere when: Check the board-side connector or adjacent cable first when the damage is not on the replaceable assembly. |
| Liquid, corrosion, or residue context |
What you may see: Symptoms follow liquid exposure, dirty contacts, corrosion, or residue. Most likely cause: Liquid or corrosion can involve this part, a nearby connector, or a board path. Look elsewhere when: Check the Replacement Battery when power, charging, runtime, or swollen-battery behavior is the main problem.
|
| Symptoms changed after repair or reassembly |
What you may see: People describe a new problem appearing immediately after battery, storage, screen, audio, or control work.
Check first: Reopen only as far as needed to inspect the areas touched during the repair.
Most likely cause: A post-repair symptom can involve the screen, but disturbed ribbons, latches, grounding, connector seating, or the wrong variant part are common checks before ordering again.
Look elsewhere when: Check the exact connector or assembly disturbed during the repair before treating the new part as failed. |
Do Not Buy This Screen Yet If...
| Situation | Start here instead |
|---|---|
| Variant or capacity does not match this listing | All iPod Mini 1G variants are 4GB and use the same screen; confirm this is a 1st-generation Mini (order number M9160LL/A or M9434LL/A-M9437LL/A), not a Mini 2nd Generation, before ordering. The quickest external tell is the back panel: no capacity engraved on the back means this generation. The screen is one of the parts that does not cross the two minis — the display ribbon connectors are different sizes, so a panel from the other generation will not fit. |
| Cable, computer, sync, or port behavior is the primary problem | Start with the dock connector, cable, host, or port checks when sync or port behavior is the main problem. |
| Charging, swelling, runtime, or power is the primary problem | Start with the battery, charger, and power checks when charging, runtime, swelling, or no-power behavior is the main problem. On this mini the pack lies directly behind the display, so a swollen cell presses on the panel: a dark blot or pressure mark spreading across the picture, a bowed panel, a bezel starting to lift, or a case that will not sit flat. Replace the pack before the screen — a new panel fitted against a swollen cell is marked again. |
| The problem is the Hold switch or headphone jack, not this part | Diagnose the exact-model headphone-jack/Hold assembly and its connector before choosing another part. |
| Recent service or connector disturbance is the main clue | Inspect and reseat the cable, latch, or connector path disturbed during service before buying another part. |
| A symptom points to a different part | Start with battery for power/runtime symptoms; hard-drive cable for folder, clicking, or restore symptoms; dock-port bracket when the dock area itself is loose or shifted — bent or corroded pins are on the 30-pin port, which is part of the logic board on this model, and the bracket only locates it; click wheel for click-wheel or control symptoms; logic board for board-side damage or multi-system symptoms before buying this part. |
Worth Knowing
- Grayscale display driven by Renesas HD66753 LCD controller (chip-on-glass, inside LCD module).
- The two mini generations use different display ribbon connectors — this generation's is the larger one — so the panels do not interchange. Match the generation before ordering: no capacity engraved on the back panel means this one.
- The panel is a fragile stack held to the logic board by four white plastic clips and released by a black locking tab on the ribbon; open the tab only as far as it rotates, and never press on the image area when seating the replacement.
Questions
Frequently Asked Questions
Use these questions to narrow the part path before ordering. They keep each answer focused on a different diagnostic or fitment decision.
What Replacement LCD Screen (1.67" Grayscale) models does this fit?
This Replacement LCD Screen (1.67" Grayscale) fits: M9160LL/A (4GB Silver), M9434LL/A (4GB Green), M9435LL/A (4GB Pink), M9436LL/A (4GB Blue), M9437LL/A (4GB Gold).
Do I need to solder?
No, this installation does not require soldering. Difficulty: Moderate. Estimated time: 30 minutes - 1 hour.
How do I know if this LCD screen needs replacement?
Symptoms that can point to this LCD screen include: backlight not working, LCD display failure. Check fitment, connectors, and nearby parts before treating symptoms as proof.
Is this for a full-size hard-drive iPod?
The iPod mini is a separate Apple product line from full-size hard-drive iPods. This is the iPod mini 1st Generation.
You May Also Want
Inspect the battery and display connector while the iPod is open.
Related: 128GB Flash Mod Kit (CF-to-SDXC Adapter + 128GB SD Card Included)Flash storage is the common upgrade path while the iPod is already open.
Related: Replacement Logic BoardIf the display connector on the logic board is damaged, both parts may need replacement.
Search terms
Why people land on this part
Use the checks above to separate this screen from nearby parts before ordering.
Also searched as: ipod mini blank screen or ipod mini white screen, iPod mini 1st generation LCD screen replacement, no backlight, display not lighting up, shop iPod mini first generation LCD screen 1.67" grayscale, buy iPod mini first generation LCD screen 1.67" grayscale, iPod mini first generation LCD screen 1.67" grayscale installation, backlight not working, LCD display failure, ribbon cable, iPod mini no backlight, iPod mini screen blank but plays music, display ribbon, a blurred screen are signs that the LCD needs to be replaced, black horizontal lines on screen, dark spots and lines, dark spots on screen, Inner Display, iPod mini screen fading, iPod mini screen goes white, iPod mini screen not working, iPod screen repair, monochrome LCD display, white stripe through it.
Questions people ask
- Can I use diagnostic mode to check the screen? Yes — the mini has a built-in test mode. Reset it first (toggle Hold on and off, then hold Menu + Select for about six seconds); the moment the Apple logo appears, hold Previous + Select until the logo shows reversed. The 5 In 1 run tests the backlight among other things, and the CONTRAST screen redraws the panel, so a display that reacts there is alive and the fault is more likely the ribbon or its seating than the panel.
- iPod turns on but screen is black. If it still plays, charges or is seen by a computer, the fault is on the display path rather than the iPod: reseat the orange display ribbon and its black locking tab first, then check the four white plastic clips that hold the panel to the logic board. A backlight that never lights on a panel that otherwise shows nothing is the case for this screen.
- My iPod mini's display is blank. Same route, in this order: reset, reseat the display ribbon, then look for pressure marks or bowing — the battery sits behind the display on this model, so a swollen pack can mark or kill a panel. Order the screen once the ribbon and the pack are ruled out.
