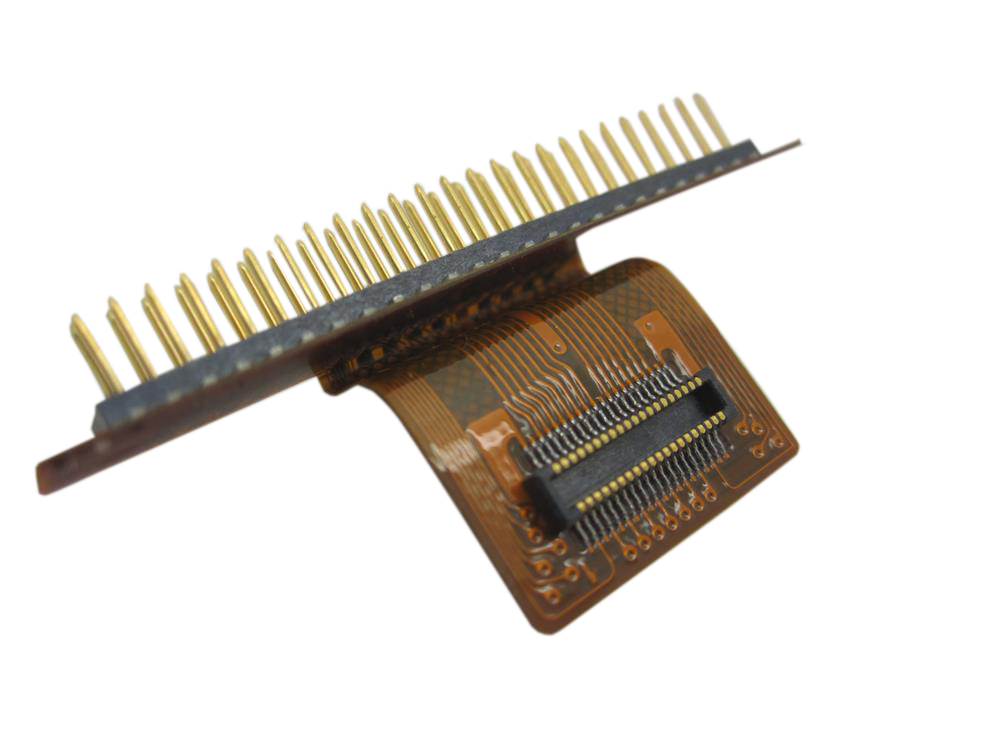

Replacement internal cable for iPod Mini 1st Generation. Use it when the flex or ribbon is torn, creased, loose, or failing at the connector before blaming the whole attached assembly.
Product Overview
This cable listing covers Hard Drive Cable and its own connector path on the iPod Mini 1st Generation.
Use the Compatible Variants table below to confirm capacity, color, or order-number fitment.
Choose this part when your iPod shows folder icon, sad iPod icon, clicking noise, or corrupted data; the checks below help confirm the right part before you order.
What Is Included
Condition: Used factory-original part. Quantity and exclusions: The listed part, set, pair, or configuration above is supplied with exactly one plastic pry tool. No other parts, tools, adhesives, or materials are included unless they are explicitly listed above.
Quick Buying Check
Buy this when
- Hard Drive Failure: Use the cable check when reseating, connector inspection, or a known-good drive points to the storage ribbon instead of the drive itself.
Diagnose first when
- Confirm the capacity match before ordering: 4GB.
- Listen for repeat clicking or repeated spin-up attempts before replacing storage parts.
Do not buy for
- If a drive or flash adapter was just installed, recheck cable seating, adapter orientation, and formatting before buying another part.
- Check the storage cable, adapter setup, battery power stability, and board connector when the symptom changes after reseating or swapping storage.
- Check the exact connector or assembly disturbed during the repair before treating the new part as failed.
Specifications & Fitment
Part Details
| Detail | Value |
|---|---|
| Model Number | A1051 |
| EMC | EMC 1984 |
| Condition | Used — factory original Apple part. Normal cosmetic wear expected. |
| Interface | CompactFlash Type II connector to microdrive |
| Type | Flat ribbon cable |
Compatible Variants
| Order Number | Capacity | Color | Case | Compatible | Notes |
|---|---|---|---|---|---|
| M9436LL/A | 4GB | Blue | — | Yes | — |
| M9437LL/A | 4GB | Gold | — | Yes | — |
| M9434LL/A | 4GB | Green | — | Yes | — |
| M9435LL/A | 4GB | Pink | — | Yes | — |
| M9160LL/A | 4GB | Silver | — | Yes | — |
Fitment wording buyers compare
| Wording | What it means on this page |
|---|---|
| microdrive to logic board | Boundary wording — helps separate this part from lookalike listings. |
| hard-drive size is engraved on back | Boundary wording — helps separate this part from lookalike listings. |
| Not for full-size iPod IDE | Belongs to a different iPod family — not the part this page sells. |
| 40-pin | Names a different connector path — not the part this page sells. |
| 50-pin | Names a different connector path — not the part this page sells. |
| 1.8-inch hard-drive cables | Belongs to a different iPod family — not the part this page sells. |
| iPod Mini HD Ribbon Flex Cable 1st 2nd Gen | Marketplace wording for this part — and it is accurate: one ribbon serves both mini generations. |
| Microdrive hard disk drive ATA connector cable A1051 | Marketplace wording for this part — confirm the connector/interface before relying on it. |
| CF connector | Describes the storage/connector path this part belongs to. |
Diagnostic Failure Cards
Use these model-specific failure cards to decide whether this cable is the right part, a nearby part needs checking first, or escalation makes more sense after simpler checks.
| Symptom | What it means & what to check |
|---|---|
| Symptom remains after basic checks |
What you may see: The iPod still points back to Hard Drive Cable after cable seating, battery stability, and nearby connector checks. Check first: Retest with known-good cables or adjacent parts where practical before ordering. Check next: A nearby cable, connector, battery, storage device, display path, audio path, or board path can mimic a bad cable. |
| Symptom changes when touched or reseated |
What you may see: The symptom changes after moving the part, reseating a cable, or applying light pressure near the connector path. Check first: Inspect the connector, latch, flex, solder joints, and nearby board area for damage or corrosion. Check next: This can still be a connection issue rather than a failed cable alone. |
| Problem began after another repair |
What you may see: The issue started immediately after opening the iPod, replacing another part, or disturbing an internal cable. Check first: Reopen only as far as needed and inspect the exact area touched during the previous repair. Check next: Post-repair symptoms often trace to seating, latch, screw, or cable issues before Hard Drive Cable itself is confirmed bad. |
| Sad iPod, clicking, restore, or storage trouble |
What you may notice
Diagnose first when
Similar issues to separate
Check another part first
Repair or replacement paths
|
| Cable ribbon, connector, or contact path |
What you may notice
Diagnose first when
Similar issues to separate
Check another part first
Repair or replacement paths
|
| Symptoms changed after repair or reassembly |
What you may notice
Diagnose first when
Similar issues to separate
Check another part first
Repair or replacement paths
|
Repair considerations
Run these checks before replacing the cable — they confirm the cable is the right fix and not a nearby fault:
- Restore/format steps can erase data or indicate storage failure
- Treat ribbons, tabs, and connectors as fragile
- Use reset, Disk Mode, restore, or iTunes/Finder behavior as a software/storage check
- Reseat or inspect ribbon cable and connector seating
- Inspect connector latch, socket, or clamp condition
- Replace storage or convert to flash storage
Do Not Buy / Problems This Cable Does Not Fix
| Situation | Start here instead |
|---|---|
| You see a folder icon, clicking noise, or restore failure | Check the drive or flash media, storage cable, adapter seating, formatting, and restore path before replacing any part. |
| Cable, computer, sync, or port behavior is the primary problem | Check the matching drive, cable seating, and board-side connector before ordering. On this mini the 30-pin dock port is part of the logic board — charging and sync faults are diagnosed there, not on this ribbon. |
| Recent service or connector disturbance is the main clue | Inspect and reseat the cable, latch, or connector path disturbed during service before buying another part. |
Install Overview
Before You Start
Turn Hold on and off again, then hold Menu + Select for at least six seconds, until the Apple logo appears — that is the reset on this mini. Guides that say Menu + Play describe the older, pre-click-wheel iPods. Confirm the model and variant before opening the iPod.
Treat case opening as the highest handling risk. Work around the seams gently and stop if the shell, clips, or internal stack resist.
Do not pull the halves apart or side-load board sockets. Reseat nearby ribbons and connectors before blaming a replacement cable.
Check drive-ribbon seating and bumper placement while the iPod is open.
Repair steps
Documented repair-procedure steps for replacing the cable on this model (from teardown guides; confirm against your unit before starting):
- Carefully insert a small flathead screwdriver or Jimmy in the seam between the metal casing and white plastic bottom. Use the screwdriver to pry up the white plastic bottom bezel. Be careful not to damage the soft plastic with your screwdriver.
- Peel back the black tape securing the two blue bumpers to the hard drive near the orange ribbon cable.
- Slide the two blue bumpers off the corners of the hard drive. There is no need to remove these bumpers entirely.
Disassembly Guide
Disassembly guide summary: iPod Mini Hard Drive Cable Replacement.
Show all 16 installation steps
Confirm that the hold switch is locked before you open the iPod.
Carefully slide a small flathead screwdriver or Jimmy into the seam between the metal casing and white plastic top. Lever up the white top bezel, taking care not to damage the soft plastic. The top bezel is adhesive-backed, so you may need to lever it up from several spots before it releases. Heat up the adhesive for a few seconds with a hair dryer on low heat to make the job easier.
Raise the top bezel off the iPod.
Carefully slide a small flathead screwdriver or Jimmy into the seam between the metal casing and white plastic bottom. Lever up the white bottom bezel, taking care not to damage the soft plastic.
A small pair of snap-ring pliers is the best tool to take out the metal retaining bracket. You can also lever out the metal retaining bracket beneath the bottom bezel with a flathead screwdriver. Release the bracket by pressing in the corner metal arms first.
Lift the released bracket away and set it aside.
With a spudger or fingertip, carefully detach the orange click wheel ribbon from the logic board.
Take out the 2 #00 Phillips screws securing the headphone jack to the casing.
Carefully move the iPod out of its casing by pressing on the logic board near the click wheel's bottom edge. Do not tug on the headphone jack board at the iPod top; its logic board connector is fragile.
After the logic board has been pushed out far enough, gently grip it on either side of the display and keep sliding the iPod from its casing.
Raise the battery off the logic board and set it to the side of the iPod.
With a spudger or fingertip, carefully disconnect the orange hard drive ribbon from the logic board.
Raise the hard drive out of the iPod.
In this step, peel back the black tape holding the 2 blue bumpers to the hard drive near the orange ribbon cable.
Move the two blue bumpers off the corners of the hard drive. You will find no need to take out these bumpers entirely.
Carefully detach the orange hard drive ribbon cable from the hard drive. Apply even pulling pressure so the pins do not bend. In this step, if the cable doesn't come free readily, you may be able to released it by gently rocking the ribbon cable back and forth.
Product-specific placement, reassembly, and check
- Prepare and access. Confirm the exact model and listing fit first. Use the existing steps as a disassembly guide, gather the specified tools, disconnect power where applicable, and keep screws and cable positions organized.
- Place Hard Drive Cable. Seat the exact storage part, cable, or adapter in the original storage path and match its orientation, case depth, and supported configuration.
- Reassemble without force. Reverse only the access steps needed for this repair, keep cables clear of case edges and screw posts, and close clips in stages.
- Validate before final closure. Before final closure, verify detection, Disk Mode or restore behavior as applicable, and stable startup without repeat clicking or a loose connection.
Stop condition: Stop if a connector, latch, screw, clip, housing edge, or the replacement part resists normal alignment. Recheck model fit, orientation, cable routing, and trapped hardware instead of forcing it.
After This Repair
| Check | What to do |
|---|---|
| Test the connected part | Confirm the assembly on both ends of the cable behaves normally before closing the iPod. |
| Still not working? | Inspect the latch, cable orientation, and board-side connector before replacing another part. |
Worth Knowing
- Cable connects between logic board and CF Type II microdrive slot.
- One cable serves both mini generations. The same drive flex is used on the first-generation mini and on the second, and it is stocked and sold here as one part, and it is a separate part from the drive. Fit the same ribbon back when you reassemble after a CF flash mod.
- Unplug the ribbon by its connector, never by the flex — the solder joints on the flex are the wear point; either end can be unplugged with care.
- A ribbon cannot repair the other end of the connection. If the board-side socket has lifted pads, bent contacts or a broken latch, a new flex will not cure it — that is a logic board job.
- What the error screens mean. A folder with an exclamation mark means the iPod cannot find its storage — the drive, its ribbon cable, or the software on it. A sad-face iPod icon is the same message in the older style: it cannot use its hard drive. A screen pointing at Apple's iPod support page is a storage error, not a message from us — the iPod could not start from its own drive.
- A folder icon that appears right after the mini has been opened is a reason to check this connection, not proof that the cable is finished. Reseat both ends first, then look along the flex for creases, tears and dark or lifted contacts.
- A new drive or card arrives blank. The iPod's software lives on its storage, so a folder icon straight after a new drive goes in is expected — there is nothing on it to start from yet. Judge a new build only after a restore has finished writing the software back.
- A failing Mini shows the Sad iPod or folder icon, not the Red X — the Red X belongs to later hard-drive iPods (Apple HT201544). A red X is that iPod's own diagnostic saying it cannot use its hard drive; if you searched "red x", run this listing's storage checks.
- Generation check: on the Mini 2nd Gen the click wheel text color matches the color of the device; the Mini 1st Gen uses gray Click Wheel text on all five colors — a quick way to confirm which Mini you have before ordering.
- The ribbon ships as a single cable with one plastic pry tool — not a multi-part kit. No drive, bumpers, adhesive or screws are included.
What Owners Report
These are anecdotal owner reports, not guarantees or authoritative proof that a particular part will fix a symptom. Use them as a troubleshooting starting point: confirm the symptom, run the quick checks, then match the fix.
Which mini is this, and which parts swap
Symptoms. An owner weighing the two mini generations asks what actually differs, and whether a battery from one fits the other; another reads a model number off the back panel and asks which generation it belongs to.
Quick diagnosis.
- The model number on the back does not settle it: every iPod mini carries A1051. A reading like "A1050" is worth re-checking against the engraving, because A1051 is what the mini family prints.
- The reliable external tell is the capacity engraving: a capacity printed on the back panel means the later mini generation; no capacity printed means this model. This one shipped in a single 4 GB size, in five colors including Gold — and Gold exists only on this generation.
- Backup discriminators for a worn back panel: the EMC number (EMC 1984 here, EMC 2044 on the later one), the click-wheel button text (gray inset on every color here, matched to the case color on the later one), or the order number (M9160LL/A Silver, M9434LL/A Green, M9435LL/A Pink, M9436LL/A Blue, M9437LL/A Gold).
What swaps, and what does not.
- Battery: shared — packs interchange between the two mini generations (the EC003/EC007 class); owners in this thread and the parts record agree.
- Aluminum tube: shared — the aluminum tube is shared by both mini generations, so choose it by color and condition; what differs is the wheel, the screen and the logic board.
- Drive flex cable: shared — one flex cable serves both mini generations, and it is stocked and sold here as one part.
- Headphone jack: shared — the headphone jack and Hold switch share one assembly, and the same assembly serves both mini generations.
- Click wheel: generation-matched only — wheels do not interchange between the generations in either direction. Buy the wheel sold for this generation; gray button text on every color is its signature.
- Display: generation-matched by the printed-capacity rule — a screen pulled from a donor with a capacity printed on the back belongs to the later generation and is the wrong part here; a donor with no capacity mark matches.
Cautions.
- Never buy boards or wheels on "A1051" alone — the number is identical across both generations and identifies nothing. Insist on the capacity-engraving or EMC discriminator before paying for a generation-matched part.
Community signal. Reported by 2 owners.
Sad face on the screen and the computer no longer sees it
Symptoms. The unit boots to a sad-face icon, and no computer detects it when the cable goes in.
Quick diagnosis.
- A sad-face stop points at the drive first on this model, and loud clicking or grinding is the same story told out loud.
- Diagnostics mode (repair-community-documented): reset by holding Menu + Select about six seconds, then the moment the screen restarts, hold Rewind + Select — the logo appears reversed with a chirp, and the built-in tests run from there.
- Use Disk Mode as a detection test (reset, then hold Select + Play): a unit that mounts in Disk Mode steers the diagnosis toward software; one that stays invisible keeps the drive in the frame.
- Before ordering anything, check the drive flex cable and its seating while the case is open — a tired flex mimics drive death.
Fixes.
- Microdrive replacement — like-for-like: Hitachi Microdrive 3K4 HMS360404D5CF00 or Seagate ST1 ST640211CF, both 4 GB.
- Drive flex cable — the cheaper part to rule out first, and one cable serves both mini generations.
- Flash conversion — a failed microdrive is the usual on-ramp to the CF conversion covered in the storage entry: solid-state, no moving parts, same bay.
- Logic board — if a known-good drive, its cable and a restore or Disk Mode test all fail, the board is what is left.
Cautions.
- Unplug the ribbon by its connector, never by the flex — the solder joints on the flex are the wear point; either end can be unplugged with care.
- Anything that ends in a restore or a format erases the iPod, so copy anything that exists only on it first.
Community signal. Reported by 1 owner.
Replacing the microdrive with flash storage, and how far capacity goes
Symptoms. A suspected dead drive prompts an owner to skip a like-for-like disk and go straight to flash; others ask which CF cards work, whether an SD card behind an adapter can stand in, and what an upgrade costs.
Quick diagnosis.
- Confirm the drive is actually the fault first: sad-face or folder-with-exclamation stops and failed restores point at storage; the drive entries on this model's pages carry that triage.
- The storage bay takes a 1-inch microdrive in CompactFlash form — the conversion swaps the microdrive for a solid-state card in the same slot, with no adapter board in between.
Fixes.
- CF-card conversion (community-standard path) — the widely used drive replacement across the mini family, with published guides and repeated firsthand reports behind it. The card must be a true-ATA-compatible CF card; format it FAT32 (a USB card reader will show the format), match the pin orientation on insertion, install, and finish with a restore. Community practice is to have software 1.4.1 on the unit before the conversion, and a restore erases the iPod, so copy anything that exists only on it first.
- SD behind a CF adapter — the SD-to-CF adapter is the kit we sell for this model, and it is what we fit; one repairer's failed attempt used a different adapter that could not write. The adapter's maker names the second-generation mini in its own note, and the one first-hand report that names both mini generations tested it to 128GB — so check the adapter is the purpose-built SD-to-CF type, not a generic photo-card adapter.
- Like-for-like microdrive — the OEM drives in this generation are the Hitachi Microdrive 3K4 HMS360404D5CF00 and the Seagate ST1 ST640211CF, both 4 GB, 1-inch, 3600 rpm. A matching microdrive is the zero-surprises replacement when flash is not the goal.
Cautions.
- Capacity: up to 128GB on Apple's own software (the card in the kit); 256GB only with Rockbox installed.
- Post-conversion failure catalog: a folder-with-exclamation after the mod usually traces to software other than 1.4.1, a damaged drive flex cable, or a card that is not true-ATA; restore loops trace to cards arriving exFAT-formatted — reformat to FAT32 before install.
- Unplug the ribbon by its connector, never by the flex — the solder joints on the flex are the wear point; either end can be unplugged with care. One flex cable serves both mini generations.
- Cost questions in the record resolve to entry tooling plus the card itself — flash prices shift constantly, so treat any quoted figure as dated.
Community signal. Reported by 4 owners — the most-reported issue on this model.
Restore, sync or format trouble? See the Restore & sync questions on the microdrive page. They are on the 4GB microdrive page, and on every refurbished iPod mini page.
Frequently Asked Questions
Use these questions to narrow the part path before ordering. They keep each answer focused on a different diagnostic or fitment decision.
How do I choose the right hard-drive cable?
There is one hard-drive ribbon for the iPod mini. It serves both mini generations and is stocked and sold here as one part, so match it to the mini rather than to a generation, a drive brand or a connector style. What does matter is condition: check the flex for creases and tears, check both connectors, and check the board-side socket — a new ribbon cannot repair that.
When is the cable more likely than the drive?
A cable becomes more likely when it is torn, creased, loose, corroded, or fails after reseating, especially if known-good storage still behaves the same way.
When is this cable the right fix for sad iPod, clicking, or restore trouble?
Listen for repeated drive clicking and note whether the iPod reaches disk mode. Reseat the hard-drive ribbon and inspect the storage connector or retaining latch before buying another storage part. Try restore only after cable seating and power behavior are stable enough to complete the process. Compare with a known-good drive, cable, or flash adapter when available. Listen for repeat clicking or repeated spin-up attempts before replacing storage parts.
What should I check before replacing this cable?
Reseat the storage ribbon squarely and confirm the latch is closed before replacing the storage device again. Check adapter orientation, case clearance, and capacity/format expectations when using a flash path. Reopen only as far as needed to inspect the areas touched during the repair. Compare the new symptom with what worked before the repair. Check cable seating, latch position, and part variant before replacing a second part.
Is this for a full-size hard-drive iPod?
The iPod mini is a separate Apple product line from full-size hard-drive iPods. This is the iPod mini 1st Generation.
How do I confirm this is the right part for my iPod?
Use the Quick Buying Check, Failure Signs, and Do Not Buy sections together before ordering. The symptom should still point to this cable after nearby parts and fitment are separated.
Why people land on this part
Some buyers search for "not for ipod classic video ide" or "upgrade the hard drive with a CF to SD adapter"; confirm the checks above point to this same part before ordering.
Also searched as: ipod mini 1st generation hard drive cable, folder icon, sad iPod icon, clicking noise, corrupted data, stuck in recovery mode, hard drive failure, hard drive dead, making clicking sound, shows a folder, flash drive, broken connector, switch harddrive, iPod mini folder icon, flash mod problems, microdrive hard drive flex cable, iPod mini microdrive cable, HDD ribbon, iPod mini click of death, HD ribbon flex cable, CF cable, compact flash cable, iPod mini clicking, iPod mini sad iPod, sad face of death/folder error, the drive was clicking and it wouldn't go into disk mode, broken/torn ribbon cable.
Questions people ask
- Restore tests can erase the iPod.
- apple logo
- iPod folder icon displayed-not visible by iTunes nor computer?
- iPod mini not recognized by iTunes
- iPod mini stuck on apple logo
