Replacement storage path for iPod Mini 1G. Use it for failed hard-drive behavior, restore trouble, or storage upgrades after the battery is stable and the drive cable or adapter seating has been checked.
Product Overview

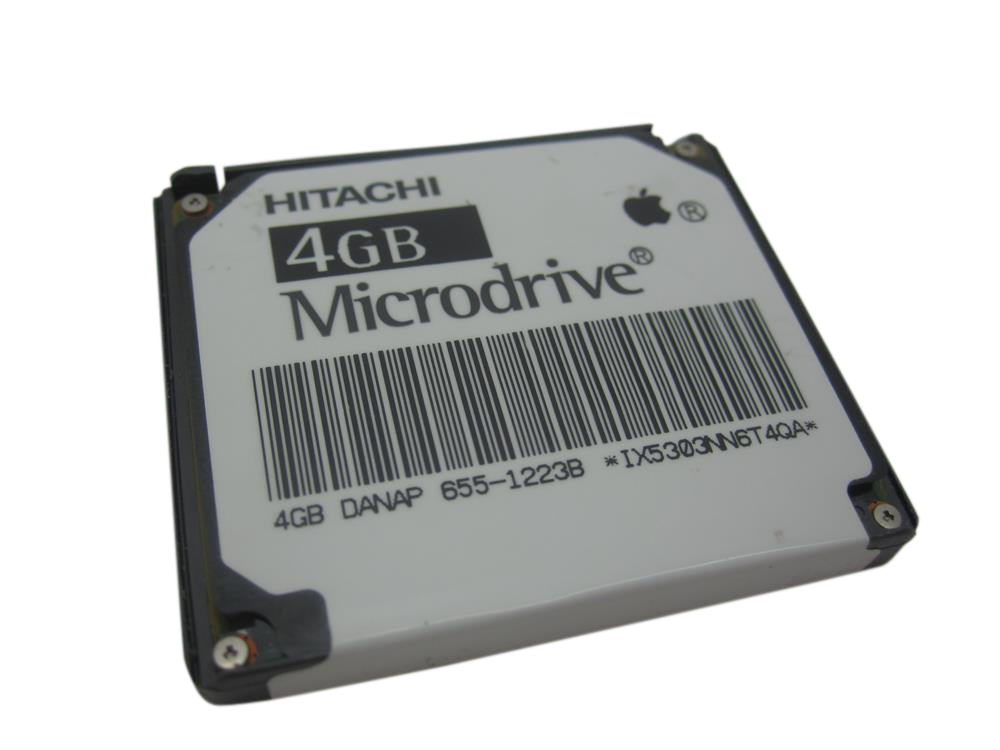

This hard drive listing covers Replacement Microdrive (4GB) and its own connector path on the iPod Mini 1st Generation.
Use Part Details for the confirmed part-number reference. Use the Compatible Variants table below to confirm capacity, color, or order-number fitment.
Choose this part when your iPod shows Folder Icon, Sad iPod Icon, Clicking Noise, or Corrupted Data; the checks below help confirm the right part before you order.
Storage failure symptoms such as a sad iPod, folder icon, restore loop, or the audible click of death should still be checked against the drive cable and connector seating before replacing the drive.
What Is Included
Condition: Used factory-original part. Quantity and exclusions: The listed part, set, pair, or configuration above is supplied with exactly one plastic pry tool. No other parts, tools, adhesives, or materials are included unless they are explicitly listed above.
Quick Buying Check
Buy this when
- Hard Drive Failure: Use the drive check when disk mode, restore behavior, clicking, sad-iPod, or folder symptoms remain after cable seating and battery stability checks.
Diagnose first when
- Confirm the capacity match before ordering: 4GB.
- Listen for repeat clicking or repeated spin-up attempts before replacing storage parts.
Do not buy for
- Do not use this part for: Full-size hard-drive iPods use 1.8-inch IDE/ATA or storage-connector drives, not the Mini CF Type II microdrive.
- Check the storage cable, adapter setup, battery power stability, and board connector when the symptom changes after reseating or swapping storage.
- Check the exact connector or assembly disturbed during the repair before treating the new part as failed.
Other Symptoms That May Involve This Part
| Symptom | What it means & what to check |
|---|---|
| not recognized, can't restore with error 1429 | Treat this as a restore or storage-path symptom, not proof of a bad drive; the drive becomes more likely when cable, USB, formatting, and restore checks still lead back to storage warnings. |
| grinding | Mechanical clicking or grinding points toward the drive after the hard-drive cable has been reseated and checked. |
| frozen | Playback skips, freezes, or corrupted data become drive clues when they happen during storage access or sync. |
Specifications & Fitment
Part Details
| Detail | Value |
|---|---|
| Model Number | A1051 |
| EMC | EMC 1984 |
| Condition | Used — factory original Apple part. Normal cosmetic wear expected. |
| Interface | 1" CF Type II |
| Capacity | 4GB |
| RPM | 3600 |
| Manufacturer | Hitachi / Seagate |
| OEM Part |
HMS360404D5CF00, ST640211CF
|
Compatible Variants
| Order Number | Capacity | Color | Case | Compatible | Notes |
|---|---|---|---|---|---|
| M9436LL/A | 4GB | Blue | — | Yes | — |
| M9437LL/A | 4GB | Gold | — | Yes | — |
| M9434LL/A | 4GB | Green | — | Yes | — |
| M9435LL/A | 4GB | Pink | — | Yes | — |
| M9160LL/A | 4GB | Silver | — | Yes | — |
is not compatible with
- Full-size hard-drive iPods use 1.8-inch IDE/ATA or storage-connector drives, not the Mini CF Type II microdrive.
Diagnostic Failure Cards
Use these model-specific failure cards to decide whether this drive is the right part, a nearby part needs checking first, or escalation makes more sense after simpler checks.
| Symptom | What it means & what to check |
|---|---|
| Symptom remains after basic checks |
What you may see: The iPod still points back to Replacement Microdrive (4GB) after cable seating, battery stability, and nearby connector checks. Check first: Retest with known-good cables or adjacent parts where practical before ordering. Check next: A nearby cable, connector, battery, storage device, display path, audio path, or board path can mimic a bad drive. |
| Symptom changes when touched or reseated |
What you may see: The symptom changes after moving the part, reseating a cable, or applying light pressure near the connector path. Check first: Inspect the connector, latch, flex, solder joints, and nearby board area for damage or corrosion. Check next: This can still be a connection issue rather than a failed drive alone. |
| Problem began after another repair |
What you may see: The issue started immediately after opening the iPod, replacing another part, or disturbing an internal cable. Check first: Reopen only as far as needed and inspect the exact area touched during the previous repair. Check next: Post-repair symptoms often trace to seating, latch, screw, or cable issues before Replacement Microdrive (4GB) itself is confirmed bad. |
| Sad iPod, clicking, restore, or storage trouble |
What you may notice
Diagnose first when
Similar issues to separate
Where this drive does not fit
Check another part first
Repair or replacement paths
|
| Ribbon, storage connector, or ground-path checks |
What you may notice
Diagnose first when
Similar issues to separate
Check another part first
|
| Symptoms changed after repair or reassembly |
What you may notice
Diagnose first when
Similar issues to separate
Check another part first
Repair or replacement paths
|
Repair considerations
Run these checks before replacing the drive — they confirm the drive is the right fix and not a nearby fault:
- Restore/format steps can erase data or indicate storage failure
- Treat ribbons, tabs, and connectors as fragile
- Use reset, Disk Mode, restore, or iTunes/Finder behavior as a software/storage check
- Reseat or inspect ribbon cable and connector seating
- Inspect connector latch, socket, or clamp condition
- Replace storage or convert to flash storage
Do Not Buy / Problems This Drive Does Not Fix
| Situation | Start here instead |
|---|---|
| You see a folder icon, clicking noise, or restore failure | Check the drive or flash media, storage cable, adapter seating, formatting, and restore path before replacing any part. |
| Charging, swelling, runtime, or power is the primary problem | Start with battery health, charger behavior, and spin-up load before buying storage. |
| Recent service or connector disturbance is the main clue | Inspect and reseat the storage cable, storage connector latch, and board connector before replacing storage. |
| Variant or capacity does not match this listing | Use the correct capacity-specific listing before ordering. |
| A symptom points to a different part | Start with battery for power/runtime symptoms; hard-drive cable for folder, clicking, or restore symptoms; dock-port bracket when the dock area itself is loose or shifted — bent or corroded pins are on the 30-pin port, which is part of the logic board on this model, and the bracket only locates it; click wheel for click-wheel or control symptoms; logic board for board-side damage or multi-system symptoms before buying this part. |
Install Overview
Before You Start
Turn Hold on and off again, then hold Menu + Select for at least six seconds, until the Apple logo appears — that is the reset on this mini. Guides that say Menu + Play describe the older, pre-click-wheel iPods. Confirm the model and variant before opening the iPod.
Treat case opening as the highest handling risk. Work around the seams gently and stop if the shell, clips, or internal stack resist.
Do not pull the halves apart or side-load board sockets. Reseat nearby ribbons and connectors before blaming a replacement drive.
Check drive-ribbon seating and bumper placement while the iPod is open.
Repair steps
Documented repair-procedure steps for replacing the drive on this model (from teardown guides; confirm against your unit before starting):
- Carefully insert a small flathead screwdriver or Jimmy in the seam between the metal casing and white plastic bottom. Use the screwdriver to pry up the white plastic bottom bezel. Be careful not to damage the soft plastic with your screwdriver.
- Peel back the black tape securing the two blue bumpers to the hard drive near the orange ribbon cable.
- Slide the two blue bumpers off the corners of the hard drive. There is no need to remove these bumpers entirely.
Disassembly Guide
Disassembly guide summary: iPod Mini Hard Drive Replacement.
Show all 13 installation steps
Confirm that the hold switch is locked before you open the iPod.
Carefully slide a small flathead screwdriver or Jimmy into the seam between the metal casing and white plastic top. Lever up the white top bezel, taking care not to damage the soft plastic. The top bezel is adhesive-backed, so you may need to lever it up from several spots before it releases. Heat up the adhesive for a few seconds with a hair dryer on low heat to make the job easier.
Raise the top bezel off the iPod.
Carefully slide a small flathead screwdriver or Jimmy into the seam between the metal casing and white plastic bottom. Lever up the white bottom bezel, taking care not to damage the soft plastic.
A small pair of snap-ring pliers is the best tool to take out the metal retaining bracket. You can also lever out the metal retaining bracket beneath the bottom bezel with a flathead screwdriver. Release the bracket by pressing in the corner metal arms first.
Lift the released bracket away and set it aside.
With a spudger or fingertip, carefully detach the orange click wheel ribbon from the logic board.
Take out the 2 #00 Phillips screws securing the headphone jack to the casing.
Carefully move the iPod out of its casing by pressing on the logic board near the click wheel's bottom edge. Do not tug on the headphone jack board at the iPod top; its logic board connector is fragile.
After the logic board has been pushed out far enough, gently grip it on either side of the display and keep sliding the iPod from its casing.
Raise the battery off the logic board and set it to the side of the iPod.
With a spudger or fingertip, carefully disconnect the orange hard drive ribbon from the logic board.
Raise the hard drive out of the iPod.
Product-specific placement, reassembly, and check
- Prepare and access. Confirm the exact model and listing fit first. Use the existing steps as a disassembly guide, gather the specified tools, disconnect power where applicable, and keep screws and cable positions organized.
- Place Replacement Microdrive (4GB). Seat the exact storage part, cable, or adapter in the original storage path and match its orientation, case depth, and supported configuration.
- Reassemble without force. Reverse only the access steps needed for this repair, keep cables clear of case edges and screw posts, and close clips in stages.
- Validate before final closure. Before final closure, verify detection, Disk Mode or restore behavior as applicable, and stable startup without repeat clicking or a loose connection.
Stop condition: Stop if a connector, latch, screw, clip, housing edge, or the replacement part resists normal alignment. Recheck model fit, orientation, cable routing, and trapped hardware instead of forcing it.
After This Repair
| Check | What to do |
|---|---|
| Restore and sync | Confirm the iPod restores cleanly and mounts with the computer and cable you plan to use. |
| Check under load | Listen for repeated spin-up, adapter resets, or restore loops that can point back to cable seating, formatting, or battery stability. |
| Still not working? | Reseat the storage cable and verify formatting or adapter setup before blaming the logic board. |
Consider Flash Storage
Instead of replacing the mechanical hard drive, this model can also use a flash-storage upgrade path for better shock resistance and lower power draw.
Format note: SDXC cards (64GB+) must be pre-formatted to FAT32 before use — default exFAT not supported
Upgrade option: flash mod kit for this iPod
Worth Knowing
- OEM drives: Hitachi HMS360404D5CF00 (3K4 series) or Seagate ST640211CF (ST1 series, Apple OEM). Both 4GB, 3600 RPM.
- Native CF Type II slot — CF flash cards can be used as direct drop-in replacements without adapter.
- Consider a CF-to-SDXC adapter for a capacity upgrade: up to 128GB on Apple's own software (the card in the kit); 256GB only with Rockbox installed.
- This generation shipped in a single 4GB size, so the like-for-like replacement is a 4GB 1-inch Microdrive in the CompactFlash Type II slot — chosen by capacity and physical fit.
- The hard-drive flex cable is a separate part, and one flex cable serves both mini generations: it is stocked and sold here as one part. Unplug the ribbon by its connector, never by the flex.
- What the error screens mean. A folder with an exclamation mark means the iPod cannot find its storage — the drive, its ribbon cable, or the software on it. A sad-face iPod icon is the same message in the older style: it cannot use its hard drive. A screen pointing at Apple's iPod support page is a storage error, not a message from us — the iPod could not start from its own drive.
- A failing Mini shows the Sad iPod or folder icon, not the Red X — the Red X belongs to later hard-drive iPods (Apple HT201544). A red X is that iPod's own diagnostic saying it cannot use its hard drive; if you searched "red x", run this listing's storage checks.
Sad iPod Icon: What Owners Describe
On the iPod mini 1st Generation, Sad iPod Icon can describe more than one observable problem. These paraphrased owner reports are anecdotal starting points for diagnosis, not proof that any single part failed.
Anecdotal owner reports (not a guarantee or authoritative proof): - One owner reported a sad-face icon and an iPod that the computer did not detect.
Owners searching for this describe it as: iPod mini 1st Generation Sad iPod Icon, iPod sad-face icon, iPod sad icon.
What Owners Report
These are anecdotal owner reports, not guarantees or authoritative proof that a particular part will fix a symptom. Use them as a troubleshooting starting point: confirm the symptom, run the quick checks, then match the fix.
Which mini is this, and which parts swap
Symptoms. An owner weighing the two mini generations asks what actually differs, and whether a battery from one fits the other; another reads a model number off the back panel and asks which generation it belongs to.
Quick diagnosis.
- The model number on the back does not settle it: every iPod mini carries A1051. A reading like "A1050" is worth re-checking against the engraving, because A1051 is what the mini family prints.
- The reliable external tell is the capacity engraving: a capacity printed on the back panel means the later mini generation; no capacity printed means this model. This one shipped in a single 4 GB size, in five colors including Gold — and Gold exists only on this generation.
- Backup discriminators for a worn back panel: the EMC number (EMC 1984 here, EMC 2044 on the later one), the click-wheel button text (gray inset on every color here, matched to the case color on the later one), or the order number (M9160LL/A Silver, M9434LL/A Green, M9435LL/A Pink, M9436LL/A Blue, M9437LL/A Gold).
What swaps, and what does not.
- Battery: shared — packs interchange between the two mini generations (the EC003/EC007 class); owners in this thread and the parts record agree.
- Aluminum tube: shared — the aluminum tube is shared by both mini generations, so choose it by color and condition; what differs is the wheel, the screen and the logic board.
- Drive flex cable: shared — one flex cable serves both mini generations, and it is stocked and sold here as one part.
- Headphone jack: shared — the headphone jack and Hold switch share one assembly, and the same assembly serves both mini generations.
- Click wheel: generation-matched only — wheels do not interchange between the generations in either direction. Buy the wheel sold for this generation; gray button text on every color is its signature.
- Display: generation-matched by the printed-capacity rule — a screen pulled from a donor with a capacity printed on the back belongs to the later generation and is the wrong part here; a donor with no capacity mark matches.
Cautions.
- Never buy boards or wheels on "A1051" alone — the number is identical across both generations and identifies nothing. Insist on the capacity-engraving or EMC discriminator before paying for a generation-matched part.
Community signal. Reported by 2 owners.
Sad face on the screen and the computer no longer sees it
Symptoms. The unit boots to a sad-face icon, and no computer detects it when the cable goes in.
Quick diagnosis.
- A sad-face stop points at the drive first on this model, and loud clicking or grinding is the same story told out loud.
- Diagnostics mode (repair-community-documented): reset by holding Menu + Select about six seconds, then the moment the screen restarts, hold Rewind + Select — the logo appears reversed with a chirp, and the built-in tests run from there.
- Use Disk Mode as a detection test (reset, then hold Select + Play): a unit that mounts in Disk Mode steers the diagnosis toward software; one that stays invisible keeps the drive in the frame.
- Before ordering anything, check the drive flex cable and its seating while the case is open — a tired flex mimics drive death.
Fixes.
- Microdrive replacement — like-for-like: Hitachi Microdrive 3K4 HMS360404D5CF00 or Seagate ST1 ST640211CF, both 4 GB.
- Drive flex cable — the cheaper part to rule out first, and one cable serves both mini generations.
- Flash conversion — a failed microdrive is the usual on-ramp to the CF conversion covered in the storage entry: solid-state, no moving parts, same bay.
- Logic board — if a known-good drive, its cable and a restore or Disk Mode test all fail, the board is what is left.
Cautions.
- Unplug the ribbon by its connector, never by the flex — the solder joints on the flex are the wear point; either end can be unplugged with care.
- Anything that ends in a restore or a format erases the iPod, so copy anything that exists only on it first.
Community signal. Reported by 1 owner.
Replacing the microdrive with flash storage, and how far capacity goes
Symptoms. A suspected dead drive prompts an owner to skip a like-for-like disk and go straight to flash; others ask which CF cards work, whether an SD card behind an adapter can stand in, and what an upgrade costs.
Quick diagnosis.
- Confirm the drive is actually the fault first: sad-face or folder-with-exclamation stops and failed restores point at storage; the drive entries on this model's pages carry that triage.
- The storage bay takes a 1-inch microdrive in CompactFlash form — the conversion swaps the microdrive for a solid-state card in the same slot, with no adapter board in between.
Fixes.
- CF-card conversion (community-standard path) — the widely used drive replacement across the mini family, with published guides and repeated firsthand reports behind it. The card must be a true-ATA-compatible CF card; format it FAT32 (a USB card reader will show the format), match the pin orientation on insertion, install, and finish with a restore. Community practice is to have software 1.4.1 on the unit before the conversion, and a restore erases the iPod, so copy anything that exists only on it first.
- SD behind a CF adapter — the SD-to-CF adapter is the kit we sell for this model, and it is what we fit; one repairer's failed attempt used a different adapter that could not write. The adapter's maker names the second-generation mini in its own note, and the one first-hand report that names both mini generations tested it to 128GB — so check the adapter is the purpose-built SD-to-CF type, not a generic photo-card adapter.
- Like-for-like microdrive — the OEM drives in this generation are the Hitachi Microdrive 3K4 HMS360404D5CF00 and the Seagate ST1 ST640211CF, both 4 GB, 1-inch, 3600 rpm. A matching microdrive is the zero-surprises replacement when flash is not the goal.
Cautions.
- Capacity: up to 128GB on Apple's own software (the card in the kit); 256GB only with Rockbox installed.
- Post-conversion failure catalog: a folder-with-exclamation after the mod usually traces to software other than 1.4.1, a damaged drive flex cable, or a card that is not true-ATA; restore loops trace to cards arriving exFAT-formatted — reformat to FAT32 before install.
- Unplug the ribbon by its connector, never by the flex — the solder joints on the flex are the wear point; either end can be unplugged with care. One flex cable serves both mini generations.
- Cost questions in the record resolve to entry tooling plus the card itself — flash prices shift constantly, so treat any quoted figure as dated.
Community signal. Reported by 4 owners — the most-reported issue on this model.
Restore & sync
A restore erases the iPod, so copy anything that exists only on it first. On Windows use iTunes for Windows, or the newer Apple Devices app.
My mini stops at the Apple logo and then shows a folder with an exclamation mark. Is that the battery?
No — that pair of icons is the software-fault class, and the giveaway is that the behavior was identical before and after a new, charged pack went in. Owners report exactly that: a dark Apple logo, then a folder icon with an exclamation point in a triangle, then nothing.
Reset first: hold Menu + Select until the unit restarts, and watch whether the boot sequence changes. The combination that reboots the FireWire-era iPods is the wrong one on the mini.
If it still stops there, restore it — on Windows that is iTunes for Windows, or the newer Apple Devices app. A restore erases the iPod, so copy anything that exists only on it first. Apple still hosts the 2006 iPod Updater with mini software 1.4.1, but it needs a Windows XP or Mac OS X 10.3-era computer; on today's computers restore through iTunes for Windows, or the newer Apple Devices app.
If the restore will not complete and the folder icon comes back, the fault class moves to the storage: the sad-face and storage entries on the drive pages carry that path. Reported by 1 owner.
iTunes and the file manager freeze whenever the mini is plugged in. What now?
One owner reports the sequence exactly: a restore was interrupted mid-write, the unit rebooted itself several times, showed the sad-face icon once, and now looks normal on its own screen — but the moment it is plugged in, iTunes takes many minutes to open and then stops responding, and the file manager hangs with it. A unit that started life Mac-formatted can also start reporting itself Windows-formatted.
An interrupted restore is the reported route: the firmware image and the disk format can disagree while the unit still looks alive on its own screen. Corrupted storage produces the same hang, so neither is proven until a restore is tried.
The recovery lever is a manual restore with a chosen firmware file: hold Shift (Windows) or Option (Mac) while clicking Restore and point it at the file — the final software issued for this model is 1.4.1. On Windows use iTunes for Windows, or the newer Apple Devices app. A restore erases the iPod, so copy anything that exists only on it first.
For Windows use after a Mac-formatted history, put the unit in Disk Mode first and let the restore lay down the FAT32 format: reset by holding Menu + Select about six seconds, then the instant the Apple logo appears hold Select + Play until the Disk Mode screen comes up — the combination that reboots the FireWire-era iPods is the wrong one here. If the drive took damage in the interruption the hang can outlive a clean restore; the sad-face and storage entries on the drive pages carry that path. Reported by 1 owner.
Frequently Asked Questions
Use these questions to narrow the part path before ordering. They keep each answer focused on a different diagnostic or fitment decision.
How do I choose the right hard drive capacity?
Match capacity 4GB, connector/interface, and order number before ordering.
Can I use flash storage instead of this hard drive?
Usually yes on models with a supported flash-mod route, but adapter, formatting, and case-clearance checks still matter. Use the flash-mod page when you want solid-state storage instead of another mechanical drive.
When is this drive the right fix for sad iPod, clicking, or restore trouble?
Listen for repeated drive clicking and note whether the iPod reaches disk mode. Reseat the hard-drive ribbon and inspect the storage connector or retaining latch before buying another storage part. Try restore only after cable seating and power behavior are stable enough to complete the process. Compare with a known-good drive, cable, or flash adapter when available. Listen for repeat clicking or repeated spin-up attempts before replacing storage parts.
What should I check before replacing this drive?
Reseat the storage ribbon squarely and confirm the latch is closed before replacing the storage device again. Check adapter orientation, case clearance, and capacity/format expectations when using a flash path. Reopen only as far as needed to inspect the areas touched during the repair. Compare the new symptom with what worked before the repair. Check cable seating, latch position, and part variant before replacing a second part.
Is this for a full-size hard-drive iPod?
The iPod mini is a separate Apple product line from full-size hard-drive iPods. This is the iPod mini 1st Generation.
Some buyers search for "upgrade the hard drive with a CF to SD adapter"; confirm the checks above point to this same part before ordering.
Why people land on this part
Also searched as: ipod mini 1st generation microdrive replacement, Folder Icon, Sad iPod Icon, Clicking Noise, Corrupted Data, Stuck in Recovery Mode, Flash Mod Problems, Hard Drive Failure, hard drive dead, making clicking sound, shows a folder, flash drive, restore error, itunes library, switch harddrive, drive adapter.
You May Also Want
Users replacing the hard drive often upgrade the battery at the same time.
Related: 128GB Flash Mod Kit (CF-to-SDXC Adapter + 128GB SD Card Included)Flash storage mod eliminates mechanical failure risk entirely.
Related: Hard Drive CableHard-drive cable should be inspected during hard drive replacement.
