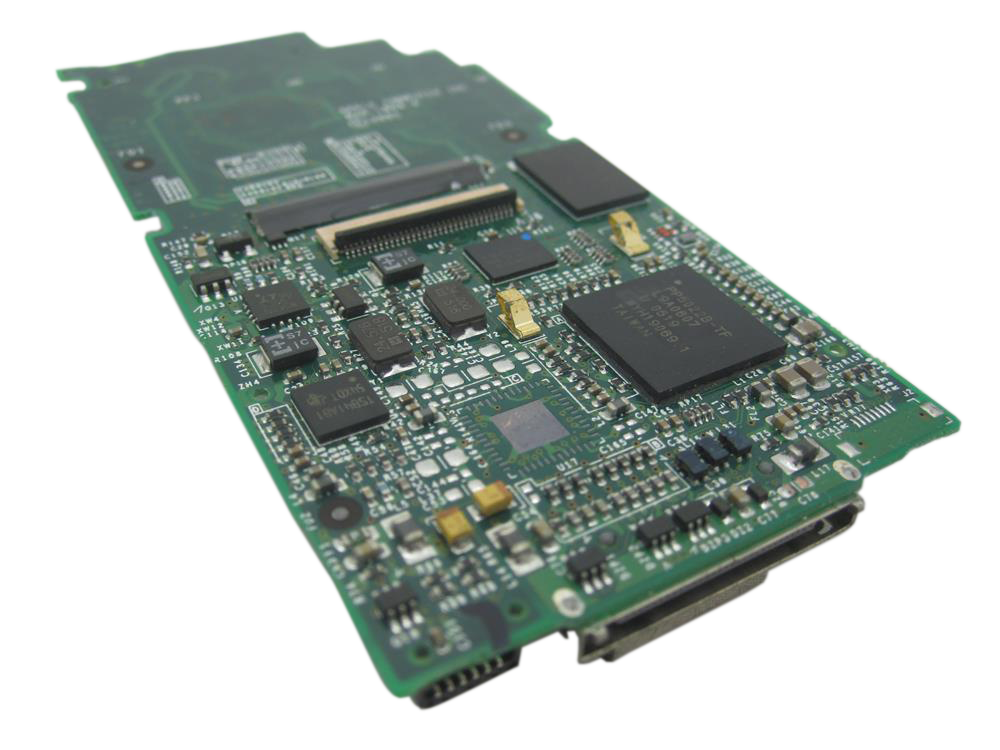

iPod Mini 1G — Replacement Logic Board

What Is Included

Quick Buying Check

Specifications & Fitment

Part Details

Detail	Value
Model Number	A1051
EMC	EMC 1984
Condition	Used — factory original Apple part. Normal cosmetic wear expected.
SoC	PortalPlayer PP5020
CPU	Dual ARM7TDMI, 80 MHz
RAM	32 MB (Samsung K4S56163PF)
Audio Codec	Wolfson WM8731 (marked WM8731L)
Charger IC	Linear Tech LTC4055 (USB power manager)
FireWire Controller	TI TSB43AA82 (OHCI)
LCD Controller	Renesas HD66753 (on LCD module)
OEM Part	820-1626-A

Compatible Variants

Order Number	Capacity	Color	Case	Compatible	Notes
M9436LL/A	4GB	Blue	—	Yes	—
M9437LL/A	4GB	Gold	—	Yes	—
M9434LL/A	4GB	Green	—	Yes	—
M9435LL/A	4GB	Pink	—	Yes	—
M9160LL/A	4GB	Silver	—	Yes	—

Diagnostic Failure Cards

Use these model-specific failure cards to decide whether this logic board is the right part, a nearby part needs checking first, or escalation makes more sense after simpler checks.

Check before ordering

Logic Board appears unresponsive or intermittent

What you may notice

• People describe behavior where the logic board seems dead, intermittent, or only partly responsive.
• A part or control path is dead, intermittent, or only partly responsive.

Diagnose first when

• Inspect nearby connectors and flex paths if the iPod has been opened.
• Confirm Hold is off before judging the controls.
• Separate center-button-only failure from a dead scroll ring or multiple failed buttons.
• Inspect click-wheel ribbon seating, latch position, and ground path after reassembly.
• Checks before ordering replaceable assemblies, connector seating, and recent repair disturbance before choosing the logic board.

Similar issues to separate

• The logic board can be involved, but connector seating, adjacent cables, power state, or board-side paths can produce similar symptoms.
• Click-wheel assembly, button pad, or flex path.
• Choose this logic board only when the failing behavior follows the part or its own connection path.

Where this logic board does not fit

• Full-size hard-drive iPods use a different board layout.

Check another part first

• Check the headphone/hold assembly for confirmed Hold switch faults before blaming the click wheel.

Repair or replacement paths

• Replace the logic board when inspection or repeat testing points to that assembly.
• Continue adjacent-part diagnosis when the symptom follows a connector, cable, or board path instead.
• Replace the click wheel when the assembly or flex remains damaged after seating checks.

Hold, lock, or input state can mimic another failure

What you may notice

• People describe controls or device behavior that changes with the Hold switch, lock icon, or input state.
• The iPod appears locked or the Hold switch does not match the device behavior.

Diagnose first when

• Move the Hold switch and watch whether the lock indicator changes.
• Check related input or hold-switch assemblies if the symptom began after opening the iPod.

Similar issues to separate

• The symptom may be routed through the Hold/input path rather than the logic board itself.
• This logic board may help only if the symptom remains after hold/input behavior is ruled out.

Check another part first

• Check the Hold switch path first when the device appears locked or ignores input.

Advanced or board-level cases

Blank, white, black, lined, or backlight display

What you may notice

• People describe a blank screen, white or black display, missing backlight, lines, or a display that changes after impact or repair.
• Blank screen, white or black display, missing backlight, or lines on the screen.

Diagnose first when

• Confirm the iPod still plays, charges, or is recognized so the screen symptom can be separated from a dead device.
• Inspect the display ribbon and connector if the iPod has been opened or dropped.
• Look for cracks, liquid residue, display discoloration, or connector damage before ordering.
• Checks before ordering the LCD panel, display ribbon, and connector seating before treating a display-only symptom as logic-board evidence.

Similar issues to separate

• The logic board can be damaged, but display ribbon seating, connector condition, liquid history, or board-side display circuitry may need checking first.
• Display / Check backlight route, connector seating, and board-side damage before ordering.
• Choose this logic board only when the display symptom is tied to this part or its connection path.

Check another part first

• Check ribbon seating, liquid history, and board connector damage before treating the display as a guaranteed fix. Check the screen and display-ribbon path first when the iPod still powers, plays, charges, or syncs.

Repair or replacement paths

• Replace the logic board when inspection or repeat testing points to this part's role in the display path.
• Use display-panel replacement when the panel, backlight, or display flex is visibly damaged; continue connector, liquid-damage, or board diagnosis when the display changes after reseating.

Dock, USB, sync, or charging connection trouble

What you may notice

• Charging, USB recognition, sync, or dock behavior is intermittent or missing.

Diagnose first when

• Inspect for liquid, corrosion, residue, torn flex material, or connector damage.

Similar issues to separate

• Check dock / usb / sync route, connector seating, and board-side damage before ordering.

Check another part first

• Check the Replacement Battery when power, charging, runtime, or swollen-battery behavior is the main problem.
• Check the Replacement Microdrive (4GB) when storage symptoms such as clicking, sad ipod, folder icons, or restore failure are the main problem.

Fitment or model-variant mismatch

What you may notice

• People ask whether a similar-looking part from another capacity, generation, or connector layout will work.
• A similar-looking part may not match the exact capacity, generation, connector layout, or color.

Diagnose first when

• Match the exact model, generation, capacity, and model-specific fit shown for the product.
• Do not use a symptom to override fitment: a wrong-variant part can create new symptoms after installation.

Similar issues to separate

• The logic board may differ by model, model-specific fit, connector, cable length, bracket, or firmware/storage expectation.
• Check fitment / model variant boundary, connector seating, and board-side damage before ordering.
• This logic board may help only when it matches the model and variant being repaired.

Check another part first

• Check fitment before replacing nearby parts or ordering another copy of the same wrong variant.

Repair or replacement paths

• Use the logic board variant matched to the exact iPod.
• Recheck fitment before diagnosing a newly installed part as defective.

Headphone output compared with dock or line-out audio

What you may notice

• Audio behaves differently through headphones and a dock or line-out accessory.
• Both headphone and dock output share the same failure.

Diagnose first when

• Test known-good headphones before opening the iPod.
• Compare headphone output with dock or line-out audio on the same track.
• Inspect and reseat the headphone/hold ribbon or storage connector connection if the iPod was opened.

Similar issues to separate

• Headphone jack contacts or headphone/hold assembly.
• Headphone/hold ribbon, storage connector seating, or board-side connector.

Check another part first

• If both headphone and dock or line-out audio fail, the jack alone is unlikely.
• Board-level audio diagnosis belongs after output-path and ribbon checks.

Repair or replacement paths

• Replace the headphone/hold assembly when the failure is isolated to the headphone path.

Cautions

• Do not treat a broad no-audio symptom as proof that the headphone jack has failed.
• Keep this option as advanced or professional diagnosis unless replaceable parts have been ruled out.

Liquid, corrosion, or residue context

What you may notice

• Symptoms follow liquid exposure, dirty contacts, corrosion, or residue.

Similar issues to separate

• Liquid or corrosion can involve this part, a nearby connector, or a board path.
• Choose this logic board when the symptom remains isolated to this assembly, its ribbon, or its connector path after first checks.

Power, charging, or runtime symptoms

What you may notice

• People describe short runtime, charging trouble, sudden shutoff, or an iPod that will not reliably power on.
• Short runtime, charging trouble, sudden shutoff, or a device that will not reliably power on.

Diagnose first when

• Test with a known-good charger and cable before opening the iPod.
• Note whether the iPod shows charging, briefly powers on, shuts down under load, or never wakes at all.
• If the symptom began after service, inspect the battery connector and nearby flex paths before replacing another part.

Similar issues to separate

• The logic board can be the cause, but charging, dock, storage, or board paths can create similar power behavior.
• Check power / charge / runtime route, connector seating, and board-side damage before ordering.
• Choose this logic board only when the power, charging, or runtime pattern is tied to this part or its connector path.

Check another part first

• Check charger/cable behavior, dock connector condition, storage startup clues, and board damage when the symptom is not isolated to battery performance.

Repair or replacement paths

• Replace the logic board when inspection or repeat testing points to this part as the failing path.
• Keep dock connector, storage, and board diagnosis in scope when charging behavior is inconsistent or no power path is confirmed.

Ribbon, storage connector, or ground-path checks

What you may notice

• A symptom starts after opening the iPod or disturbing an internal flex cable.

Similar issues to separate

• Connector seating, ribbon damage, or ground-path issues can involve this part, a nearby connector, or a board path.

Storage warning symptoms usually start with drive or cable checks

What you may notice

• People may see a sad iPod, red X, folder icon, clicking drive, restore loop, or storage-recognition problem, especially after drive, flash, cable, or board work.
• Sad iPod, red X, clicking drive, restore loop, or disk-mode trouble.

Diagnose first when

• Reseat the hard-drive ribbon at both the logic-board end and the drive or adapter end before considering a board replacement.
• Test with known-good storage and the correct cable or adapter setup, then retry restore or disk mode when available.
• Inspect the board-side storage connector for torn pins, latch damage, corrosion, or impact damage only after the replaceable storage path has been checked.

Similar issues to separate

• Most storage-warning symptoms start with the hard drive, hard-drive cable seating, flash adapter setup, formatting, or battery load before they point to the logic board.
• A logic board becomes a stronger suspect only when a known-good drive or adapter and known-good cable still fail, the board-side storage connector is damaged, or the symptom began immediately after a board swap.
• Check storage / restore route, connector seating, and board-side damage before ordering.
• This logic board may help only when the board-side storage connector or storage controller path remains suspect after known-good drive, cable, adapter, power, and restore checks.

Check another part first

• Check the hard drive, hard-drive cable, flash adapter, formatting, and battery spin-up/load before treating sad iPod, red X, folder, clicking, or restore symptoms as a board failure.
• Check the hard drive, hard-drive cable or storage connector ribbon, flash adapter, formatting, and battery spin-up/load before treating sad iPod, red X, folder, clicking, or restore symptoms as a board failure.

Repair or replacement paths

• Replace the drive, drive cable, or flash adapter first when those checks isolate the storage path.
• Use logic-board replacement or board repair only when the board-side storage path remains the isolated failure after known-good storage and cable checks.

Symptoms changed after repair or reassembly

What you may notice

• People describe a new problem appearing immediately after battery, storage, display, audio, or control work.
• A new symptom appeared after battery, storage, audio, display, or control work.

Diagnose first when

• Reopen only as far as needed to inspect the areas touched during the repair.
• Compare the new symptom with what worked before the repair.
• Check cable seating, latch position, and part variant before replacing a second part.

Similar issues to separate

• A post-repair symptom can involve the logic board, but disturbed ribbons, latches, grounding, connector seating, or the wrong variant part are common checks before ordering again.
• Check post-repair regression, connector seating, and board-side damage before ordering.
• Choose this logic board only when the part itself was torn, creased, or damaged during service.

Check another part first

• Check the exact connector or assembly disturbed during the repair before treating the new part as failed.

Repair or replacement paths

• Correct seating, latch, or variant problems first.
• Replace the logic board when the repair damaged that assembly or its flex path.

Fitment and post-repair traps

Fitment and inspection notes

Do Not Buy / Problems This Logic Board Does Not Fix

Situation	Start here instead
Variant or capacity does not match this listing	This is a different model — check your order number and generation before ordering.
A replaceable attached-part path is isolated	This is a different model — check your order number and generation before ordering after matching the exact symptom and part family.
Recent service or connector disturbance is the main clue	Reopen carefully, reseat the part that was disturbed, and inspect its latch before buying a board.
You see a folder icon, clicking noise, or restore failure	Use the matching screen, storage, audio, or control part page before replacing the logic board.
The problem is the Hold switch or headphone jack, not this part	Start with the headphone jack / Hold switch assembly check.
Only the screen is affected and everything else works	Start with the screen, display ribbon, and backlight path before replacing the logic board.
Charging, swelling, runtime, or power is the primary problem	Start with the battery, charger, port, and power-connector checks before replacing the logic board.
Sound is the only problem	Start with the headphone jack / Hold switch assembly check after matching the exact symptom and part family.

Install Overview

Repair steps

Documented repair-procedure steps for replacing the logic board on this model (from teardown guides; confirm against your unit before starting):

• Carefully disconnect the battery from the logic board. Make sure to pull only on the connector and not on the battery wires.
• Carefully slide the iPod out of its casing by pushing on the logic board near the bottom edge of the click wheel.
• Use a spudger to carefully pry up the headphone jack board from the logic board. Be careful to pry up near the connector to prevent unnecessary strain on the board.
• [NOTE] Do not pull on the headphone jack board at the top of the iPod, as the connector to the logic board is fragile.

Repair Guide

Repair guide summary: iPod Mini Logic Board Replacement.

Show all 19 installation steps

1

Confirm that the hold switch is locked before you open the iPod.

2

Carefully slide a small flathead screwdriver or Jimmy into the seam between the metal casing and white plastic top. Lever up the white top bezel, taking care not to damage the soft plastic. The top bezel is adhesive-backed, so you may need to lever it up from several spots before it releases. Heat up the adhesive for a few seconds with a hair dryer on low heat to make the job easier.

3

Raise the top bezel off the iPod.

4

Carefully slide a small flathead screwdriver or Jimmy into the seam between the metal casing and white plastic bottom. Lever up the white bottom bezel, taking care not to damage the soft plastic.

5

A small pair of snap-ring pliers is the best tool to take out the metal retaining bracket. You can also lever out the metal retaining bracket beneath the bottom bezel with a flathead screwdriver. Release the bracket by pressing in the corner metal arms first.

6

Lift the released bracket away and set it aside.

7

In this step, be careful, this connector is fragile. With a spudger or fingertip, carefully disconnect the orange click wheel ribbon from the logic board.

8

Take out the 2 #00 Phillips screws securing the headphone jack to the casing.

9

Carefully move the iPod out of its casing by pressing on the logic board near the click wheel's bottom edge. Do not tug on the headphone jack board at the iPod top; its logic board connector is fragile.

10

After the logic board has been pushed out far enough, gently grip it on either side of the display and keep sliding the iPod from its casing.

11

Raise the battery off the logic board and set it to the side of the iPod.

12

With a spudger, flip up the black plastic tab securing the orange display ribbon in place. The black tab can rotate up 90 degrees, releasing the ribbon cable. This tab is fragile so take care not to break it.

13

In this step, note the location of the four white plastic clips securing the display to the logic board. These clips must be released before the display can be removed.

14

With a spudger or fingertip, release the four white plastic tabs.

15

In this step, turn the iPod over. Carefully raise the display up and move it out of its connector.

16

With a spudger, carefully lever up the headphone jack board from the logic board. Be cautious to lever up near the connector to prevent unnecessary strain on the board.

17

Carefully detach the battery from the logic board. Make sure to draw only on the connector and not on the battery wires.

18

With a spudger or fingertip, carefully disconnect the orange hard drive ribbon from the logic board. Raise the hard drive out of the iPod.

19

The logic board is the remaining assembly.

After This Repair

Check	What to do
Run the full function check	Verify power, USB sync, storage, display, audio, controls, and charging before treating the repair as finished.
Still not working?	Go back through the connected battery, storage, display, dock, audio, and control paths one at a time.

Worth Knowing

• PortalPlayer PP5020 — SoC — dual ARM7TDMI, 80 MHz, 0.18 um process
• Wolfson WM8731 (marked WM8731L) — Stereo audio codec in the Mini audio path; exact analog-path details should remain board-inspection/datasheet-gated.
• Linear Technology LTC4055 — USB power manager with integrated Li-Ion charger — 2-wire charge (no thermistor required). Trickle threshold 2.85V for deep-discharge recovery. Input UVLO 3.8V with 125mV hysteresis.
• Texas Instruments TSB43AA82 — IEEE 1394a (FireWire 400) single-port OHCI controller
• Samsung K4S56163PF — 32 MB SDRAM
• Renesas HD66753 — Grayscale LCD controller/driver for 138x110 pixel display
• Synaptics T1005 — Capacitive click wheel ASIC, SPI interface. Located on flex cable, not main logic board.
• A reflow or replacement of the affected IC may be required to restore audio
• This issue could be caused by a fault in the PortalPlayer PP5020 processor IC or the Wolfson WM8721 audio codec chip.

Frequently Asked Questions

Use these questions to narrow the part path before ordering. They keep each answer focused on a different diagnostic or fitment decision.

Why people land on this part

You May Also Want
