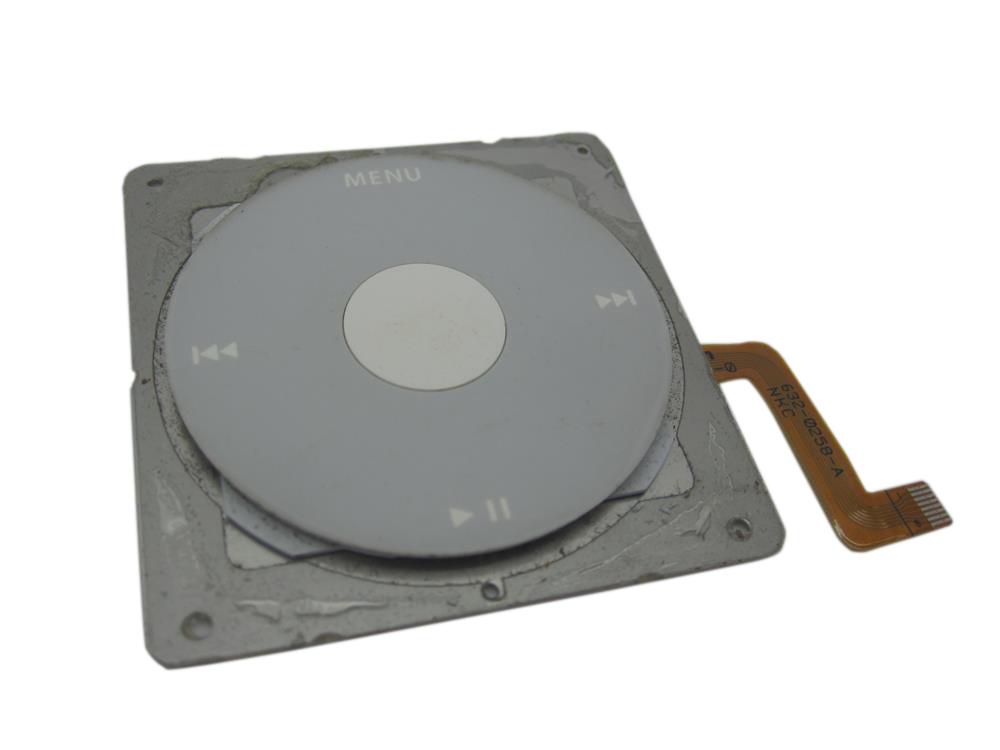

iPod Photo (4th Generation) — Replacement Click Wheel

What you may see: People describe the center, middle, or Select button as no longer clicking, selecting, or responding.

• This can happen even when the scroll ring still responds.
• The center, middle, or Select button feels stuck, sits low, or stops selecting.
• Center, middle, or Select button no longer clicks or selects.
• Center button feels stuck, sits low, or responds intermittently.
• Scroll ring still responds but Select does not.

Check first: Open the iPod and inspect the battery. If it is visibly swollen, bulging, or pushing the case outward, replace the battery first and retest the center button.

• Confirm Hold is off before judging the controls.
• Separate center-button-only behavior from a dead scroll ring or multiple failed buttons.
• If the iPod has been opened, inspect the click-wheel ribbon, seating, and ground path before ordering another part.
• Inspect click-wheel ribbon seating, latch position, and ground path after reassembly.
• Confirm Hold is off before judging the center button.
• Inspect the center-button cap, contact path, and click-wheel ribbon seating.

Most likely cause: On this model, a swollen battery can press against the back of the click wheel assembly and prevent the center button dome switch from actuating.

• A button-only symptom can involve the click-wheel assembly, contact path, board-side switch, or how the assembly is seated.
• If several controls are dead, treat it as a whole click-wheel or connection problem instead of a center-button-only problem.
• Choose this click wheel only when the assembly, flex, or button path is damaged or no longer making reliable contact.
• Choose this click wheel when the symptom remains isolated to this assembly, its ribbon, or its connector path after first checks.
• If the battery is swollen, replace the battery first and retest before buying a click wheel.
• Button-only work may involve reseating or replacing the click-wheel path, while board-side switch work belongs in escalation context.
• Replace the full click wheel when inspection points to the assembly, flex, contact path, or ribbon rather than only the board-side switch.
• Replace the click wheel when the assembly or flex remains damaged after seating checks.

Look elsewhere when: Check the battery for swelling first when the center button is the main complaint If the lock symbol is active or the Hold slider is not behaving correctly, check the headphone jack / hold-switch assembly before blaming the click wheel.

• Check the headphone/hold assembly for confirmed Hold switch faults before blaming the click wheel.

What you may see: The iPod may appear locked, ignore controls, or behave differently when the Hold switch position changes.

• The iPod appears locked or the Hold switch does not match the device behavior.
• iPod appears locked or ignores controls because Hold is active.
• Lock indicator does not match the Hold switch position.
• Controls change behavior when the Hold switch moves.

Check first: Check whether the lock indicator changes when the Hold switch moves.

• Inspect the headphone/hold ribbon if the symptom began after opening the iPod.
• Move the Hold switch and watch whether the lock indicator changes.
• Route confirmed Hold-switch faults to the headphone/hold assembly.
• Turn Hold off and separate wheel, center/select, Menu, and ribbon-seat behavior before replacing the controls.
• Check whether the outer Hold slider actually moves the internal switch before replacing the headphone-jack and switch board.

Most likely cause: On this model the Hold switch belongs to the headphone jack / hold-switch assembly, not the click wheel.

• This click wheel may help only after the Hold switch path is ruled out.
• Use the headphone jack / hold-switch assembly for confirmed Hold switch faults. Match it to your case depth: the thin 20/30GB build takes the thin headphone-jack assembly and the thick 40/60GB build takes the thick one.
• Continue click-wheel checks only if the Hold path is working and the wheel still fails.

Look elsewhere when: Check the headphone jack / hold-switch assembly first when the device is locked or the Hold slider is suspect.

What you may see: People describe the scroll ring, buttons, or the whole control area as intermittent, partly responsive, or completely dead.

• A part or control path is dead, intermittent, or only partly responsive.
• Click wheel is partly or fully unresponsive.
• Scroll ring, Menu, Play/Pause, Forward, or Back input fails.
• Controls work intermittently after reassembly.

Check first: Confirm Hold is off.

• Check whether any buttons work, whether scrolling works, and whether the center button fails separately.
• Inspect ribbon seating, connector cleanliness, and the ground path if the iPod was opened.
• Check whether any buttons work and whether scrolling works separately.

Most likely cause: Whole-wheel symptoms can involve the click-wheel assembly, ribbon seating, ground path, or contamination on contacts.

• Liquid exposure or corrosion should be treated as context to inspect, not proof that the click wheel alone is the failed part.
• Choose this click wheel only when the scroll ring, flex, or control assembly is the failing path.
• Reseat and inspect before replacing if the issue began after service.
• Replace the click wheel when the assembly or flex is damaged, corroded, or still unresponsive after connection checks.

Look elsewhere when: Check the battery for swelling first when the center button is the main complaint Check Hold switch, logic-board connector damage, and liquid/corrosion evidence before treating the click wheel as a guaranteed fix.

• Check Hold switch, logic-board connector damage, and liquid/corrosion evidence before treating the click wheel as a guaranteed fix.

What you may see: A symptom starts after opening the iPod or disturbing an internal flex cable.

Check first: Inspect for liquid, corrosion, residue, torn flex material, or connector damage.

Most likely cause: Connector seating, ribbon damage, or ground-path issues can involve this part, a nearby connector, or a board path.

Look elsewhere when: Check the Replacement Headphone Jack (Thin - 20/30GB) when headphone audio, one-ear sound, crackling, or hold-switch behavior is the main problem.

• Check the Replacement Battery when power, charging, runtime, or swollen-battery behavior is the main problem.

What you may see: A common repair pattern is that the iPod powers up after battery, hold-switch, or click-wheel work, but the controls no longer move or select normally.

• A new symptom appeared after battery, storage, audio, display, or control work.
• Controls stopped responding immediately after battery, hold-switch, or click-wheel work.
• iPod powers up after repair but will not scroll or select normally.
• Control behavior changes after reassembly pressure.

Check first: Reopen only as far as needed to inspect ribbon seating and latch position.

• Verify the ground strap or ground tab has clean frame contact.
• Check Hold state again after reassembly before buying a second click wheel.

Most likely cause: Post-repair control failure can point to a disturbed click-wheel ribbon, loose latch, missing ground path, or nearby hold-switch ribbon issue.

• Check post-repair regression, connector seating, and board-side damage before ordering.
• Choose this click wheel only when the repair damaged the flex, contact path, or assembly rather than only loosening a connection.
• Reseat the click-wheel ribbon and correct the ground path first.
• Replace the click wheel if the flex or assembly was torn, creased, corroded, or still fails after seating checks.

Look elsewhere when: If the symptom began during battery or headphone/hold work, inspect those disturbed ribbons before ordering another click wheel.

A red X is the iPod's own diagnostic saying it cannot use its hard drive. It is a storage-path symptom, not a control one: check the hard drive, the hard-drive cable, and the flash-mod storage path. A new click wheel cannot clear it.
