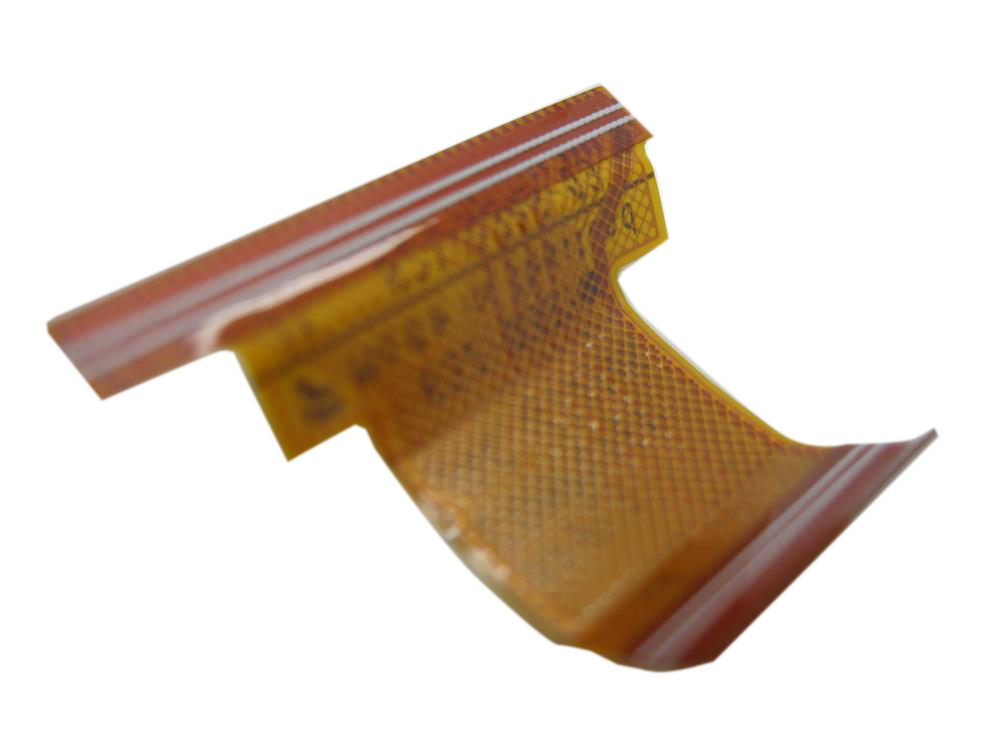

iPod Classic 7G — Hard Drive ZIF Ribbon Cable
Used (Apple Original) · Model A1238
$39.90
Sold out
Not for sale right now
We are not selling this part at the moment.
- Used (Apple Original). Tested: installed in a working iPod and checked before it ships.
- 1-year limited warranty · 30-day returns from delivery
- Free pry tool in the box
- Completed repairs aren't refundable. If a part we fitted fails within a year, we repair it again.
Part details
About this part
Overview
Replacement internal cable for iPod Classic 7G. Use it when the flex or ribbon is torn, creased, loose, or failing at the connector before blaming the whole attached assembly.
Fitment snapshot
Confirm model, generation, part number, and fitment details before ordering.
Product Overview
This cable listing covers Hard Drive ZIF Ribbon Cable and its own connector path on the iPod Classic 7th Generation.
Use the Compatible Variants table below to confirm capacity, color, case, or order-number fitment.
Choose this part when your iPod shows Red X Icon, Clicking Noise, Sad iPod Icon, or Folder Icon; the checks below help confirm the right part before you order.
What Is Included
Condition: Used factory-original part. Quantity and exclusions: The listed part, set, pair, or configuration above is supplied with exactly one plastic pry tool. No other parts, tools, adhesives, or materials are included unless they are explicitly listed above.
Quick Buying Check
Buy this when
- Hard Drive Failure: Use the cable check when reseating, connector inspection, or a known-good drive points to the storage ribbon instead of the drive itself.
Do not buy for
- Check ribbon seating, liquid history, and board connector damage before treating the display as a guaranteed fix.
- Check the storage cable, adapter setup, battery power stability, and board connector when the symptom changes after reseating or swapping storage.
- Check the board-side connector or adjacent cable first when the damage is not on the replaceable assembly.
- Check nearby parts first when the symptom is tied to another assembly or appeared after unrelated work.
- A damaged storage ribbon can make a good drive look failed, while a failing drive can still produce the same sad-iPod symptoms.
Fit and specs
Specifications & Fitment
Part Details
| Detail | Value |
|---|---|
| Model Number | A1238 |
| EMC | EMC 2173 |
| Condition | Used — factory original Apple part. Normal cosmetic wear expected. |
Compatible Variants
| Order Number | Capacity | Color | Case | Compatible | Notes |
|---|---|---|---|---|---|
| MB147LL/A | 80GB | Black | thin | Yes— compatible | Same thin-Classic part class; unit is the 2007 thin 80GB Classic — sold under the iPod Classic 6th Generation pages |
| MB565LL/A | 120GB | Black | thin | Yes— compatible | Same thin-Classic part class; unit is the Late-2008 thin 120GB Classic — sold under the iPod Classic 6th Generation pages |
| MC297LL/A | 160GB | Black | thin | Yes | — |
| MC293LL/A | 160GB | Silver | thin | Yes | — |
| MB150LL/A | 160GB | Black | thick | No— thick-case 2007 160GB part set | The 2007 thick 160GB rear case, battery, hard drive, HDD cable, bumpers and headphone jack are not compatible with thin models; sold under the iPod Classic 6th Generation pages |
| MB145LL/A | 160GB | Silver | thick | No— thick-case 2007 160GB part set | The 2007 thick 160GB rear case, battery, hard drive, HDD cable, bumpers and headphone jack are not compatible with thin models; sold under the iPod Classic 6th Generation pages |
Install and repair
Repair considerations
Run these checks before replacing the cable — they confirm the cable is the right fix and not a nearby fault:
- Restore/format steps can erase data or indicate storage failure
- Treat ribbons, tabs, and ZIF connectors as fragile
- Use reset, Disk Mode, restore, or iTunes/Finder behavior as a software/storage check — on Windows that is iTunes for Windows, or the newer Apple Devices app
- Reseat or inspect ribbon cable and connector seating
- Inspect ZIF latch, socket, or clamp condition
- Check drive noise, SMART/data signs, or storage recognition
Install Overview
Before You Start
Turn Hold off, then reset: hold Menu + Center until the Apple logo. Confirm the model and variant before opening the iPod. Diagnostics: reset, then hold Previous + Center as the logo appears. Disk Mode: reset, then hold Center + Play/Pause.
Treat case opening as the highest handling risk. Work around the seams gently and stop if the shell, clips, or internal stack resist.
Do not pull the halves apart or side-load board sockets. Reseat nearby ribbons and connectors before blaming a replacement cable.
Do not fully separate the case halves until the remaining ribbons are released; the back panel can still be connected by ribbon cables. Check drive-ribbon seating and bumper placement while the iPod is open.
Disassembly Guide
Disassembly guide summary: iPod Classic Hard Drive Cable Replacement.
Show all 27 installation steps
This iPod case is unusually hard to open without damaging major components. Its metal faceplate, metal backing, and thirteen metal clips make disassembly especially demanding. Caution: this opening method can significantly damage the iPod beyond its current condition. Keep a few extra plastic opening tools nearby, since they are easy to ruin while opening the case. Confirm that the hold switch is locked before you open the iPod.
Opening this iPod is challenging, so do not get discouraged if it takes a few tries. Watch the plastic opening tool tip angle as you insert it into the iPod; keep it as vertical as possible while still clearing the rear panel edge. Guide a plastic opening tool into the seam between the front and rear of the iPod.
Slide a second plastic opening tool into the seam between the iPod front and rear, keeping the two tools at least 1.5 inches apart.
Working at an angle, carefully slide a putty knife about 1/8 inch into the gap between the two opening tools. You will find thin metal rails running along the inside of the back panel, so work very carefully when inserting the putty knife. After the putty knife clears the rear panel lip, rotate it vertical and carefully but firmly work it straight down through the opening tool gap.
Press on the rear panel behind the putty knife with your fingers to reduce bending. Slowly flex the putty knife so most metal tabs along this side of the iPod release. The idea is to control how the rear panel bends instead of trying to prevent all bending. Any side bend should draw the rear panel lip away from the iPod, not push outward on the curved surface. This also releases as many side clips as possible.
Take the putty knife out, then place it closer to the iPod corner and use the same gentle wiggle method. If possible, do not bend the rear panel corner.
Near the headphone jack, guide a plastic opening tool into the seam between the front and rear of the iPod. It may be easier to flex the putty knife downward carefully to create more room for the opening tool. Be careful not to bend the rear panel corner.
Near the display center, carefully slide a metal spudger into the gap made by the plastic opening tool. A visible bump can form here in the rear panel and is hard to repair. When levering the tab free, pivot the metal spudger on the rear panel edge instead of bending the rear panel outward. With the metal spudger, release the single clip at the iPod top edge.
Near the other top corner, guide a plastic opening tool into the seam between the front and rear of the iPod
On the other side, use the opening tool to start the same case-opening gap. It may help to angle the tool stuck in the top corner to create enough room.
Take the opening tool out of the top corner, then slide it into the seam between the iPod front and rear. Keep at least 1.5 inches between the two tools, as on the opposite side.
Working at an angle, carefully slide a putty knife about 1/8 inch into the gap between the two opening tools. Again, you will find thin metal rails running along the inside of the back panel, so work very carefully when inserting the putty knife. After the putty knife passes the rear panel lip, turn it vertical and carefully but firmly work it straight down through the gap between the plastic opening tools. Press on the rear panel behind the putty knife with your fingers to reduce bending. Flex the putty knife just enough to make sure most metal tabs along this side of the iPod release.
The metal clips near the corners grip the front panel tightly. Release these clips before opening the iPod. Carefully slide a metal spudger into the area beside the stubborn metal clip.
Gently work the metal spudger downward until it is fully seated in the rear panel.
Gently start releasing the clip from the front panel. A visible bump can form here in the rear panel and is hard to repair. When levering the tab free, pivot the metal spudger on the rear panel edge instead of bending the rear panel outward.
Use the metal spudger to apply upward pressure under the front panel until the metal clip releases.
You will find two ribbon cables connecting the rear panel to the remaining iPod assembly. In the following step, take care not to damage these ribbon cables. In this step, grasp the front-panel assembly with one hand and the back panel with the other. Pause for a moment before continuing. Very gently release the remaining rear-panel clips by pulling the tops of the front and rear panels apart, using the iPod bottom as a hinge. Take great care not to damage the ribbon cables joining the two halves.
With a spudger, slide the connector upward where it holds the orange battery ribbon. Lift the locking bar only about 2 mm to release the cable. Move the orange battery ribbon out of its connector.
Set the rear panel beside the iPod, taking care not to strain the orange headphone jack cable.
Raise the hard drive with one hand to expose the headphone jack ribbon underneath. With a spudger, flip up the plastic tab securing the headphone jack ribbon in place. The tab can rotate up 90 degrees, releasing the ribbon cable. Move the orange headphone jack ribbon out of its connector. The rear panel is now released from the iPod.
After opening, check the lower-case clips. If any clip bent upward, press it back down gently so the rear case can close cleanly.
Use the broad, flat face of the metal spudger to press the clip downward. Work carefully so the thin metal rail does not tear away from the rear panel. While shaping these clips, take care not to damage any headphone jack parts.
Set the rear panel on its side on a clean, hard surface. Carefully but firmly press it downward, rolling the full lip edge back into place. You may need to repeat this several times to straighten the sides well. Slightly overcorrecting the case edges inward is better than leaving them too far out, because reseating the front panel will bend the rear panel back into alignment. Once the rear panel is restored to good condition, continue with the iPod repair.
Rotate the hard drive out of the framework, then set it with the connector facing upward. With a spudger, lift the small black locking tab for the orange hard drive ribbon. The tab rotates upward 90 degrees and frees the ribbon cable.
Move the orange hard drive ribbon cable straight out of its connector. If the replacement hard drive did not include rubber mounting brackets or foam padding, transfer those parts from the old drive.
With a spudger, flip up the plastic tab securing the orange hard drive ribbon in place. The tab can rotate up 90 degrees, releasing the ribbon cable. Confirm that you are freeing the tab closest to the hard drive ribbon, not the connector's black section.
Move the orange hard drive ribbon cable straight out of its connector. If adhesive holds the cable to the logic board, carefully pull up on the cable to loosen it.
Product-specific placement, reassembly, and check
- Prepare and access. Confirm the exact model and listing fit first. Use the existing steps as a disassembly guide, gather the specified tools, disconnect power where applicable, and keep screws and cable positions organized.
- Place Hard Drive ZIF Ribbon Cable. Seat the exact storage part, cable, or adapter in the original storage path and match its orientation, case depth, and supported configuration.
- Reassemble without force. Reverse only the access steps needed for this repair, keep cables clear of case edges and screw posts, and close clips in stages.
- Validate before final closure. Before final closure, verify detection, Disk Mode or restore behavior as applicable, and stable startup without repeat clicking or a loose connection.
Stop condition: Stop if a connector, latch, screw, clip, housing edge, or the replacement part resists normal alignment. Recheck model fit, orientation, cable routing, and trapped hardware instead of forcing it.
After This Repair
| Check | What to do |
|---|---|
| Test the connected part | Confirm the assembly on both ends of the cable behaves normally before closing the iPod. |
| Still not working? | Inspect the latch, cable orientation, and board-side connector before replacing another part. |
Troubleshooting
Diagnostic Failure Cards
Use these model-specific failure cards to decide whether this cable is the right part, a nearby part needs checking first, or escalation makes more sense after simpler checks.
| Symptom | What it means & what to check |
|---|---|
| Symptom remains after basic checks |
What you may see: The iPod still points back to Hard Drive ZIF Ribbon Cable after cable seating, battery stability, and nearby connector checks. Check first: Retest with known-good cables or adjacent parts where practical before ordering. Check next: A nearby cable, connector, battery, storage device, display path, audio path, or board path can mimic a bad cable. |
| Symptom changes when touched or reseated |
What you may see: The symptom changes after moving the part, reseating a cable, or applying light pressure near the connector path. Check first: Inspect the connector, latch, flex, solder joints, and nearby board area for damage or corrosion. Check next: This can still be a connection issue rather than a failed cable alone. |
| Problem began after another repair |
What you may see: The issue started immediately after opening the iPod, replacing another part, or disturbing an internal cable. Check first: Reopen only as far as needed and inspect the exact area touched during the previous repair. Check next: Post-repair symptoms often trace to seating, latch, screw, or cable issues before Hard Drive ZIF Ribbon Cable itself is confirmed bad. |
| Sad iPod, clicking, restore, or storage trouble |
What you may notice
Diagnose first when
Similar issues to separate
Check another part first
Repair or replacement paths
|
| Blank, white, black, lined, or backlight display |
What you may notice
Diagnose first when
Check another part first
Repair or replacement paths
|
| Cable ribbon, connector, or contact path |
What you may notice
Diagnose first when
Similar issues to separate
Check another part first
Repair or replacement paths
|
| Fitment or model-variant mismatch |
What you may notice
Diagnose first when
Check another part first
Repair or replacement paths
|
| Symptoms changed after repair or reassembly |
What you may notice
Diagnose first when
Similar issues to separate
Check another part first
Repair or replacement paths
|
Do Not Buy / Problems This Cable Does Not Fix
| Situation | Start here instead |
|---|---|
| You see a folder icon, clicking noise, or restore failure | Check the drive or flash media, storage cable, adapter seating, formatting, and restore path before replacing any part. |
| Only the screen is affected and everything else works | Check the display path and ribbon seating before replacing this part. |
| Cable, computer, sync, or port behavior is the primary problem | Check the matching drive, cable seating, and board-side connector before ordering. |
| Variant or capacity does not match this listing | Confirm exact model, capacity, case, and variant fit before ordering. |
| Recent service or connector disturbance is the main clue | Inspect and reseat the cable, latch, or connector path disturbed during service before buying another part. |
| A symptom points to a different part | Start with battery for power/runtime symptoms; 160GB hard drive for folder, clicking, or restore symptoms; LCD screen for display-only symptoms; headphone jack for audio or Hold-switch symptoms; click wheel (black) or (white) for click-wheel or control symptoms; logic board for board-side damage or multi-system symptoms before buying this part. |
What Owners Report
These are anecdotal owner reports, not guarantees or authoritative proof that a particular part will fix a symptom. Use them as a troubleshooting starting point: confirm the symptom, run the quick checks, then match the fix.
Sad face, red X, or clicking — the drive-failure playbook
Symptoms. Red X in a circle pointing at the support site; sad-face icon; rhythmic clicking or tap-tap-clunk from inside; freezes at 1,500 songs then iTunes locks; lights up but won't play; died after a drop, a dunk, or sitting on a strong magnet.
What it is. The iPod cannot read its storage — the drive, its ribbon or, on a converted unit, the adapter. Red X with clicking is the pattern owners most often traced to the drive; a silent red X can still be the ribbon or its seating.
Check first. Copy off anything that exists only on it while it still mounts (Disk Mode). Charge fully, reseat and inspect the ribbon, then read the diagnostics' drive tests: rising sector counts across two runs point at the drive, but no single reading or bench test is a verdict — compare a known-good drive, cable or adapter if you can. Still playing but clicking and crawling: copy your music off now and have the drive looked at — no one can say how long it has. Soaked: stop powering it and have it inspected before any test.
Fix. Drive and ribbon together, or a flash conversion (same disassembly). Reported by 35 owners — the most-reported issue on this model.
Still a red X after replacing the drive
Symptoms. Brand-new drive fitted and the red X is back; loads only a few gigabytes then clicks and resets; new drive won't enter Disk Mode; replaced everything and it still fails.
- A blank drive shows a red X until it is restored: Disk Mode (reset, then Center + Play/Pause), connect, restore — judge only after a completed restore.
- Ribbon fully in at both ends with the clip flipped (more than one white line of the cable end showing means not seated) and no creases.
- Cable matched to the drive fitted — drive makers use different cables, and the code is printed on the cable.
- The replacement itself can be faulty: test it on a bare-drive adapter before returning anything or buying a board.
- Flash build: the adapter's seating and the cards as well.
Only after power, cable and a completed restore check out is the board's drive connector the remaining suspect. Loading a few gigabytes, then a click and a reset, is a drive-or-cable signature, not a capacity setting. Reported by 11 owners.
Restore, Disk Mode, and format behavior after storage work
Symptoms. Partial sync then an error and an empty iPod; won't restore, red X returns mid-restore; stuck in Disk Mode with iTunes blind to it; restore completes then hangs at the logo on reboot; CRC (redundancy-check) errors; "0 KB free" after a sync; a sad face after a fresh drive; a noisy drive that freezes during every restore; iTunes claiming files are "in use".
- Reset (Hold toggle, then Menu + Center), a rear USB port — never a hub or keyboard port — and a charged battery; copy off anything that exists only on the iPod, then follow the Restore & sync steps once.
- Syncs die at the same point, or CRC errors while copying: bench-test the drive on a bare-drive adapter before formatting again.
- Restore succeeds but every reboot hangs at the logo: if it stays up unplugged in Disk Mode, suspect the software; if it dies unplugged, suspect the battery.
- Stuck in Disk Mode: Menu + Center exits it.
"0 KB free" after a sync, iTunes saying files are "in use", a sad face on a fresh drive, or a format that never sticks: copy off what you need, put the iPod on a rear USB port with a charged battery, then follow Restore & sync once; if the same error returns on a known-good computer, cable and power source, have the drive and its ribbon tested rather than formatting again. On a flash build, test the cards separately. Errors that follow one computer and vanish on another are host-side. Reported by 8 owners, plus 5 corruption cases.
Computer won't recognize it — drive-side cases
Symptoms. iTunes and the file explorer freeze the moment it connects; resets fine and shows the logo but no computer sees it; the restore prepares, then the iPod disconnects itself; "selected device could not be found" after an interrupted restore.
Check first. The cable (no corroded or bent contacts), a different USB port on the computer itself, and enough charge to turn on — a flat battery is never recognized; then a second computer. A host that freezes on connect can be a drive struggling to read, but a damaged ribbon looks the same: copy off what you can, reseat the ribbon, read the diagnostics' drive tests, then bench-test on a bare-drive adapter. If the built-in diagnostics stop at a FireWire test that reads as waiting, treat that as an unresolved result — it does not by itself identify a bad port or drive; run the cable and computer checks and read the drive tests instead.
Self-ejecting mid-restore: same list — cable and port, then power, then drive and ribbon; the diagnostics' drive counters are a pointer, not a verdict.
Fix. Drive and cable together once the tests say so; if the drive mounts clean externally, look at the battery and board side instead. Reported by 4 owners.
Strange noises with corrupt transfers
Symptoms. "Corrupted" verdicts when copying files off; a strange noise and a restore that does nothing, stuck at the logo; boots slowly (minutes at the logo) and then iTunes still can't see it.
What it is. Odd noises, long logo hangs and files that arrive corrupted are warning signs in the storage path — a same-model repairer's read of that description was a failing drive, given "without actually hearing/seeing it". Copy off what you still can, first.
Check first. Connection and power before any drive decision: a weak battery can collapse when the drive spins up and mimic a dead drive, so charge fully and use a rear USB port; then reseat the ribbon and read the diagnostics' drive tests. On Windows, an iPod that mounts but never appears may lack a drive letter — look in Disk Management before condemning parts.
Fix. Drive and ribbon together when the tests point there. Reported by 3 owners.
Pauses when bumped — drive shock and data rescue
Symptoms. Pauses (but doesn't shut off) at the slightest pocket bump; needs data off a drive that no longer talks to the board; wondering about oversized replacement drives.
What it usually is. Two different things pause a Classic on a knock: the headphone plug — pulling it, or a worn jack losing contact for an instant, pauses playback by design — and the storage losing contact for a moment (the drive, its ribbon or a missing bumper). Owners report both; the pause alone does not say which part.
Check first. Another pair of headphones, plug pressed fully home. Then open it, reseat the drive ribbon, and confirm both drive bumpers are present and seated. Foam padding is the adapter maker's advice for a flash board, not a proven cure for a spinning drive.
Data off a drive the board no longer talks to: see the recovery question. Oversized drives: see the bigger-drives card. Reported by 3 owners.
Bigger drives in this generation — what actually works
Symptoms. Eyeing a 240GB-class 1.8" drive; asking whether big drives that confuse earlier Classics work here; wanting an upgrade from the stock drive.
What works. This page's route is the original thin 160GB drive class. The 240GB drive owners find online is listed by its seller as a thick drive for the thick case — not a drop-in part for this thin case. A thicker conversion needs an explicitly matched thick rear case and parts — check every part before attempting it.
More than 160GB. The route with same-model evidence behind it is flash — a card adapter on the drive ribbon (a flash-mod kit). On stock Apple firmware this late-2009 Classic addresses large flash builds: the adapter maker's guidance for this model is 256GB to 1TB on its dual- or quad-card adapters, with a library ceiling of roughly 50,000 tracks; bigger builds, SSD variants and each card combination need their own confirmation. The earlier Classics and the iPod with video are a different platform with their own drives, cables and storage rules — see their own pages. Reported by 3 owners.
Choosing a compatible replacement drive
Symptoms. Broken drive, shopping for a replacement; unsure which capacities and models fit; adapter or flex-cable mismatch worries.
What fits. Match the drive and the cable to this exact build: this page's route is the late-2009 thin Classic and its 1.8-inch ZIF drive class. Taller drives sold for the earlier thick case are not drop-in parts here.
Cables. Pair the cable with the drive you fit — cables made for different drive brands differ, and the identifying code is printed on the cable. No blanket rule says every earlier cable is wrong, and none fits everything: check the cable page's fitment list first.
The earlier Classics and the iPod with video are a different platform with their own drives, cables and storage rules — see their own pages. Seat the ribbon fully at both ends and close the clip before judging a new drive. Reported by 4 owners.
Salvaged and parts-bin drives — what to check first
Symptoms. Upgrading with a parts-bin drive from another unit; aftermarket connector doubts; wondering why one particular 160GB drive won't swap.
Treat it as a fit question: check the donor drive, its cable and the case it is going into against this page's fitment list before committing. One earlier Classic shipped its drive on a different interface class with its own ribbon, answered on that model's page: a salvaged drive that refuses where others work may simply be from the wrong family.
Owners also report aged salvage drives failing their first sync. Reported by 2 owners.
Flash and SSD storage upgrades — what works on this generation
Symptoms. Aging hard drive racking up reallocated sectors and sync failures; wants silence, battery life, or more capacity; asking which flash route fits; capacity halved after a board swap on an already-converted unit.
What works. An SD/microSD card adapter on the drive ribbon — the route the adapter maker recommends for this model. On stock Apple firmware this late-2009 Classic addresses large flash builds: the adapter maker's guidance for this model is 256GB to 1TB on its dual- or quad-card adapters, with a library ceiling of roughly 50,000 tracks; bigger builds, SSD variants and each card combination need their own confirmation. Four 256GB cards make 1TB, not 2TB.
Halved after a board swap. Confirm the replacement board is a late-2009 board before blaming the cards. The earlier Classics and the iPod with video are a different platform with their own drives, cables and storage rules — see their own pages.
Caution. Bad or fake cards are the maker's most common cause of a library that vanishes or needs restoring again — run a full-capacity write test before installing, and prepare the card for the computer you restore on (FAT32 for Windows, Mac OS Extended for the maker's Mac route). Reported by 5 owners.
Red X, zero capacity, or recovery loops after a flash conversion
Symptoms. Red X at boot and diagnostics can't detect the storage after a conversion; available memory reads zero kilobytes and extras won't run; drops into recovery mode every time it's unplugged; recurring corruption on brand-new flash media.
Check first (the adapter maker's own list): the adapter seated the right way round; the drive ribbon fully inserted at both the adapter and iPod ends and not damaged; the cards — pull them and see whether the screen changes; then stable power (charged battery, rear USB port). A working replacement card narrows the fault but does not by itself prove the first card was counterfeit — test it in a card reader with a full-capacity write test.
Recovery mode on unplug, or "needs restoring again" after a sync: the maker names two causes — bad or fake cards, or a library too large for the iPod. Corrupt characters on the diagnostics' storage screen point at the ribbon. On Windows, an iPod that mounts but never appears may lack a drive letter — look in Disk Management before condemning parts. Prepare the card for the computer you restore on: FAT32 for a Windows restore, or Mac OS Extended (Journaled) for the adapter maker's documented Mac route; third-party firmware has its own requirements — check them separately. Reported by 3 owners.
Problems after battery replacement
Symptoms. Will not boot with the new battery in; turned on once then died; charges to half and stops; "Charging, please wait" persists after the swap; runtime or the percentage looks wrong on the new cell.
Check first. Put the old battery back as a test: if it comes straight back to life, the new cell or its seating is the problem, not the repair. Re-seat every ribbon the repair disturbed — battery, drive, display, wheel — lifting each brown lock tab straight up; a small L-bent paperclip does it without side-loading the frail connector.
Then. Give a new cell 30 minutes on a wall adapter before judging, and judge runtime over a full charge and drain — backlight, volume and bitrate move the first hour a long way. If the trouble began with the case open and the drive ribbon is creased, torn or loose, the ribbon is its own fix. Reported by 9 owners.
Questions
Frequently Asked Questions
Use these questions to narrow the part path before ordering. They keep each answer focused on a different diagnostic or fitment decision.
How do I choose the right hard-drive cable?
Match the exact storage path for this model. Some cables depend on drive brand, case depth, or connector style, not just the iPod generation.
When is the cable more likely than the drive?
A cable becomes more likely when it is torn, creased, loose, corroded, or fails after reseating, especially if known-good storage still behaves the same way.
When is this cable the right fix for sad iPod, clicking, or restore trouble?
Listen for repeated drive clicking and note whether the iPod reaches disk mode. Reseat the hard-drive ribbon and inspect the storage connector or retaining latch before buying another storage part. Try restore only after cable seating and power behavior are stable enough to complete the process. Compare with a known-good drive, cable, or flash adapter when available. Listen for repeat clicking or repeated spin-up attempts before replacing storage parts.
What should I check before replacing this cable?
Reseat the storage ribbon squarely and confirm the latch is closed before replacing the storage device again. Check adapter orientation, case clearance, and capacity/format expectations when using a flash path. Inspect the relevant ribbon and board connector before replacing the part. Look for lifted latches, bent contacts, debris, corrosion, creases, or torn flex material. Check whether the symptom changes after careful reseating.
How do I get my music and files off a dying or dead iPod?
Owners describe it as: the drive is failing and the music isn't backed up anywhere; the drive reports full but lists nothing; the board is dead but the drive may be fine; a damaged unit holds a customer's irreplaceable songs.
If it still boots at all: turn automatic sync off before you plug it in, then Disk Mode (reset, then hold Center + Play/Pause) — the computer mounts it like a drive, with no account sign-in involved. Copy everything off before any sync or restore: a sync can replace what is on it, and a restore erases all data, songs, photos and settings included. Media sits renamed in hidden folders; transfer utilities reassemble titles and playlists, or copy the raw folders and re-tag later.
Board dead, drive alive: a bare-drive adapter for this drive's ZIF connector lets a computer read it directly. That can help, but nothing here guarantees songs, photos or playlists come back — and reading some files does not prove the drive is healthy. A clicking drive may fail during the copy, so make one short attempt first; beyond that is specialist recovery. The old sync computer usually still holds everything the iPod ever synced. Reported by 6 owners.
Is this an iPod Classic?
Apple sold this model as iPod classic (Late 2009). '7th Generation' is common repair-market shorthand for the thin 160GB A1238 model, not an official Apple product name. Every metal-front Classic says A1238, so the model number alone cannot tell you which one you have. This page is for the late-2009 thin 160GB (MC293LL/A silver, MC297LL/A black). Apple's figures for it are 140 g and 10.5 mm deep — supporting checks, not proof: a replaced case, drive or battery changes the weight, so on a modified or refurbished unit ask for the order number or a look at the board before ordering. Which parts carry over from the earlier thin Classics varies part by part — trust each part page's fitment list, not the A1238 marking. The earlier Classics and the iPod with video are a different platform with their own drives, cables and storage rules — see their own pages. Whether an earlier Classic's screen fits is answered on the screen page.
Can the HDD be replaced with a SSD?
Yes — the route with same-model evidence behind it is a card adapter on this same drive ribbon, fitted with the same disassembly (see the flash storage page). Whichever storage goes in, it hangs off this cable: pair the cable with the drive you fit, because cables made for different drive brands differ and the identifying code is printed on the cable. The symptom should still point to this cable after nearby parts and fitment are separated.
You May Also Want
A fresh battery is often replaced during the same repair while the iPod is open.
Related: 128GB Flash Mod Kit (flash-storage adapter + 128GB SD Card Included)Flash storage is the common upgrade path while the iPod is already open.
Related: Replacement Hard Drive (160GB)Often replaced together with the hard drive.
Search terms
Why people land on this part
Some buyers search for "click of death", "80GB hard drive in a 160GB iPod Classic", "logic board failed and need data off the hard drive", or "red X after hard drive replacement"; confirm the checks above point to this same part before ordering.
Also searched as: ipod classic 7th generation hard drive cable, ipod classic 7th generation connector, Red X Icon, Clicking Noise, Sad iPod Icon, Folder Icon, Corrupted Data, Stuck in Recovery Mode, iTunes Error, Reboot Loop, Stuck on Apple Logo, Stuck in Disk Mode, Won't Restore, Hard Drive Failure, hard drive dead, clicking sound, restore error, showing a folder, hdd connector, hard disk.
Free diagnostic
Broken iPod? We can help.
Mail us your iPod and we will test it and send you a free repair quote. If you don't like our price, we will ship your iPod back at our expense.
