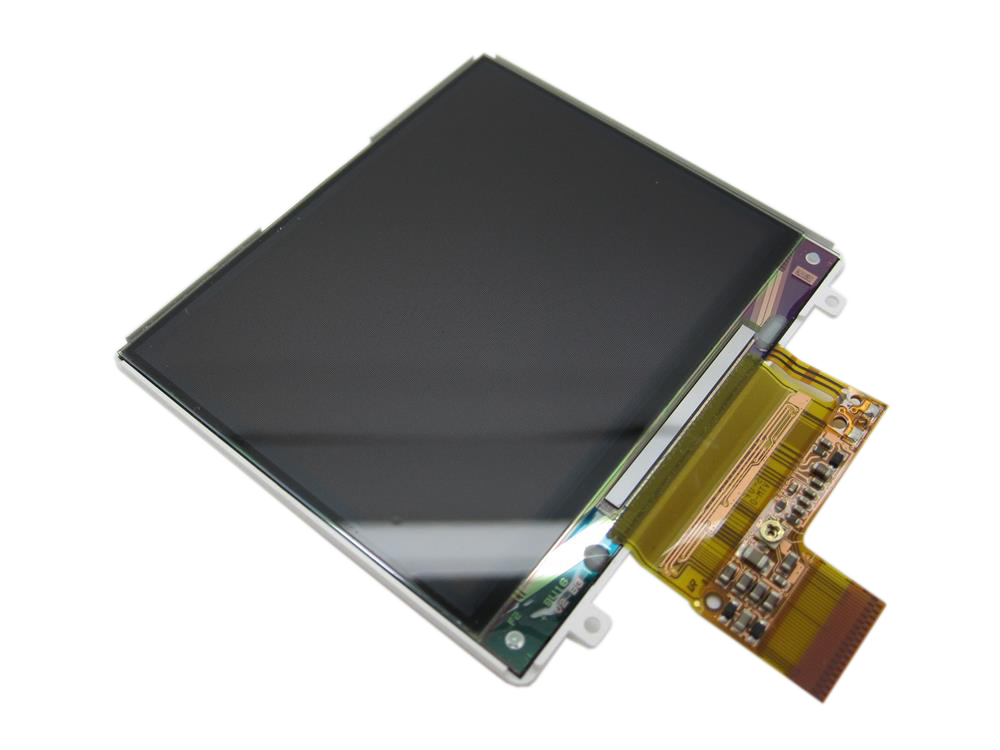

Representative photo. You receive the part named above.
iPod Classic 6G — Replacement Screen (LCD Display)
Used (Apple Original) · Model A1238
$150.90
Sold out
Not for sale right now
We are not selling this part at the moment.
- Used (Apple Original). Tested: installed in a working iPod and checked before it ships.
- 1-year limited warranty · 30-day returns from delivery
- Free pry tool in the box
- Completed repairs aren't refundable. If a part we fitted fails within a year, we repair it again.
Part details
About this part
Overview
Replacement LCD display for iPod Classic 6th Generation. Buy when the screen is cracked, broken, blank, lined, or showing backlight-related problems — after confirming the iPod is otherwise alive.
Fitment snapshot
Product Overview
This iPod Classic screen replacement is the internal LCD display behind the metal faceplate. Use this listing for cracked screen, broken screen, white screen, black screen, no display, no backlight, dim screen, lines on screen, screen goes black, or screen flashes behavior after basic ribbon and power checks.
The screen is an active diagnostic part: visual symptoms are valid buy signals only when the iPod is otherwise alive. If the device is completely dead, clicking, stuck in restore, or showing storage warnings, start with power or storage before replacing the LCD.
Also called the
iPod Classic LCD replacement, iPod Classic display replacement, iPod Classic 6G screen replacement, LCD screen, broken screen, iPod classic screen replacement, iPod classic 6th gen screen replacement, or iPod classic 6th generation screen replacement.
What Is Included
Condition: Used factory-original part. Quantity and exclusions: The listed part, set, pair, or configuration above is supplied with exactly one plastic pry tool. No other parts, tools, adhesives, or materials are included unless they are explicitly listed above.
Fit and specs
Specifications & Fitment
Part Details
| Detail | Value |
|---|---|
| Model Number | A1238 |
| EMC | EMC 2173 |
| Condition | Used — factory original Apple part. Normal cosmetic wear expected. |
| Display Size | 2.5" |
| Resolution | 320×240 (QVGA) |
| Type | Color LCD |
| Connector | ZIF ribbon |
Compatible Variants
| Order Number | Capacity | Color | Case | Compatible | Notes |
|---|---|---|---|---|---|
| MB147LL/A | 80GB | Black | thin (0.41 in) | Yes | — |
| MB029LL/A | 80GB | Silver | thin (0.41 in) | Yes | — |
| MB565LL/A | 120GB | Black | thin (0.41 in) | Yes | — |
| MB562LL/A | 120GB | Silver | thin (0.41 in) | Yes | — |
| MB150LL/A | 160GB | Black | thick (0.53 in) | Yes | — |
| MB145LL/A | 160GB | Silver | thick (0.53 in) | Yes | — |
| MC297LL/A | 160GB (Late 2009) | Black | thin | Not this listing | This listing is the standard 6G Classic panel. We do not publish a fit verdict either way for the later Classic — Classic-family screen listings are labeled inconsistently, so order from your own model's screen page, or send us the order number from the back of your iPod and we will match the panel to our stock; the check costs nothing. That model is sold under the iPod Classic 7th Generation (Late 2009) pages. |
| MC293LL/A | 160GB (Late 2009) | Silver | thin | Not this listing | This listing is the standard 6G Classic panel. We do not publish a fit verdict either way for the later Classic — Classic-family screen listings are labeled inconsistently, so order from your own model's screen page, or send us the order number from the back of your iPod and we will match the panel to our stock; the check costs nothing. That model is sold under the iPod Classic 7th Generation (Late 2009) pages. |
Install and repair
Install Overview
Before You Start
Turn Hold off, then force restart: put the Hold switch firmly in the unlocked position and hold Menu and the Center (Select) button together for about 8 seconds, until the Apple logo appears. Confirm the model and variant before opening the iPod.
Treat case opening as the highest handling risk. Work around the seams gently and stop if the shell, clips, or internal stack resist.
Do not pull the halves apart or side-load board sockets. Reseat nearby ribbons and connectors before blaming a replacement screen.
If the display shows pressure marks, dark spots, bowing, or lifting after repair or battery replacement, stop reassembly and inspect internal fit before treating the display alone as failed.
If the symptom appeared after opening the iPod or replacing a part, inspect and reseat nearby ribbon cables and connectors before assuming the replacement part is bad.
Do not fully separate the case halves until the remaining ribbons are released; the back panel can still be connected by ribbon cables. Reseat and protect the display ribbon during reassembly before assuming the panel itself is bad.
Disassembly Guide
Disassembly guide summary: iPod Classic Display Replacement.
Show all 34 installation steps
This iPod case is unusually hard to open without damaging major components. Its metal faceplate, metal backing, and thirteen metal clips make disassembly especially demanding. Caution: this opening method can significantly damage the iPod beyond its current condition. Keep a few extra plastic opening tools nearby, since they are easy to ruin while opening the case. Confirm that the hold switch is locked before you open the iPod.
Opening this iPod is challenging, so do not get discouraged if it takes a few tries. Watch the plastic opening tool tip angle as you insert it into the iPod; keep it as vertical as possible while still clearing the rear panel edge. Guide a plastic opening tool into the seam between the front and rear of the iPod.
Slide a second plastic opening tool into the seam between the iPod front and rear, keeping the two tools at least 1.5 inches apart.
Working at an angle, carefully slide a putty knife about 1/8 inch into the gap between the two opening tools. You will find thin metal rails running along the inside of the back panel, so work very carefully when inserting the putty knife. After the putty knife clears the rear panel lip, rotate it vertical and carefully but firmly work it straight down through the opening tool gap.
Press on the rear panel behind the putty knife with your fingers to reduce bending. Slowly flex the putty knife so most metal tabs along this side of the iPod release. The idea is to control how the rear panel bends instead of trying to prevent all bending. Any side bend should draw the rear panel lip away from the iPod, not push outward on the curved surface. This also releases as many side clips as possible.
Take the putty knife out, then place it closer to the iPod corner and use the same gentle wiggle method. If possible, do not bend the rear panel corner.
Near the headphone jack, guide a plastic opening tool into the seam between the front and rear of the iPod. It may be easier to flex the putty knife downward carefully to create more room for the opening tool. Be careful not to bend the rear panel corner.
Near the display center, carefully slide a metal spudger into the gap made by the plastic opening tool. A visible bump can form here in the rear panel and is hard to repair. When levering the tab free, pivot the metal spudger on the rear panel edge instead of bending the rear panel outward. With the metal spudger, release the single clip at the iPod top edge.
Near the other top corner, guide a plastic opening tool into the seam between the front and rear of the iPod
On the other side, use the opening tool to start the same case-opening gap. It may help to angle the tool stuck in the top corner to create enough room.
Take the opening tool out of the top corner, then slide it into the seam between the iPod front and rear. Keep at least 1.5 inches between the two tools, as on the opposite side.
Working at an angle, carefully slide a putty knife about 1/8 inch into the gap between the two opening tools. Again, you will find thin metal rails running along the inside of the back panel, so work very carefully when inserting the putty knife. After the putty knife passes the rear panel lip, turn it vertical and carefully but firmly work it straight down through the gap between the plastic opening tools. Press on the rear panel behind the putty knife with your fingers to reduce bending. Flex the putty knife just enough to make sure most metal tabs along this side of the iPod release.
The metal clips near the corners grip the front panel tightly. Release these clips before opening the iPod. Carefully slide a metal spudger into the area beside the stubborn metal clip.
Gently work the metal spudger downward until it is fully seated in the rear panel.
Gently start releasing the clip from the front panel. A visible bump can form here in the rear panel and is hard to repair. When levering the tab free, pivot the metal spudger on the rear panel edge instead of bending the rear panel outward.
Use the metal spudger to apply upward pressure under the front panel until the metal clip releases.
You will find two ribbon cables connecting the rear panel to the remaining iPod assembly. In the following step, take care not to damage these ribbon cables. In this step, grasp the front-panel assembly with one hand and the back panel with the other. Pause for a moment before continuing. Very gently release the remaining rear-panel clips by pulling the tops of the front and rear panels apart, using the iPod bottom as a hinge. Take great care not to damage the ribbon cables joining the two halves.
With a spudger, slide the connector upward where it holds the orange battery ribbon. Lift the locking bar only about 2 mm to release the cable. Move the orange battery ribbon out of its connector.
Set the rear panel beside the iPod, taking care not to strain the orange headphone jack cable.
Raise the hard drive with one hand to expose the headphone jack ribbon underneath. With a spudger, flip up the plastic tab securing the headphone jack ribbon in place. The tab can rotate up 90 degrees, releasing the ribbon cable. Move the orange headphone jack ribbon out of its connector. The rear panel is now released from the iPod.
After opening, check the lower-case clips. If any clip bent upward, press it back down gently so the rear case can close cleanly.
Use the broad, flat face of the metal spudger to press the clip downward. Work carefully so the thin metal rail does not tear away from the rear panel. While shaping these clips, take care not to damage any headphone jack parts.
Set the rear panel on its side on a clean, hard surface. Carefully but firmly press it downward, rolling the full lip edge back into place. You may need to repeat this several times to straighten the sides well. Slightly overcorrecting the case edges inward is better than leaving them too far out, because reseating the front panel will bend the rear panel back into alignment. Once the rear panel is restored to good condition, continue with the iPod repair.
Rotate the hard drive out of the framework, then set it with the connector facing upward. With a spudger, lift the small black locking tab for the orange hard drive ribbon. The tab rotates upward 90 degrees and frees the ribbon cable.
Move the orange hard drive ribbon cable straight out of its connector. Keep the drive's rubber mounting brackets and foam padding in place for reassembly.
Take out the three Phillips screws that secure the front panel to the metal framework.
Rotate the iPod 180 degrees and take out the 3 Phillips screws holding the front panel to the metal framework on the other edge.
In this step, gently work around the edges of the device to separate the front panel from the gray metal framework. You may meet some resistance, as you will find a mild adhesive used to help hold the two parts together.
Lift the full framework away from the front panel; it carries the screen, logic board, and click wheel. Confirm the click wheel button is seated before reinstalling the framework in the front panel.
The front panel is now released from the iPod.
With a spudger, lift the plastic tab that holds the orange display ribbon. The tab rotates upward 90 degrees toward the display and releases the ribbon cable.
Move the orange display ribbon cable directly out of its connector.
Raise the framework assembly up, and move the display and LCD metal backplate out of the framework assembly.
Raise the LCD metal backplate up and away from the display. Remaining assembly: display remains.
Product-specific placement, reassembly, and check
- Prepare and access. Confirm the exact model and listing fit first. Use the existing steps as a disassembly guide, gather the specified tools, disconnect power where applicable, and keep screws and cable positions organized.
- Place Replacement Screen (LCD Display). Seat the display in its original frame position and insert the display cable evenly without pressing on the image area.
- Reassemble without force. Reverse only the access steps needed for this repair, keep cables clear of case edges and screw posts, and close clips in stages.
- Validate before final closure. Before final closure, confirm image, backlight, and controls, and check that no cable or frame edge creates pressure on the panel.
Stop condition: Stop if a connector, latch, screw, clip, housing edge, or the replacement part resists normal alignment. Recheck model fit, orientation, cable routing, and trapped hardware instead of forcing it.
Troubleshooting
Quick Diagnosis
| What you see | Check first | This screen makes sense when |
|---|---|---|
| Cracked or physically damaged LCD | Visual confirmation | Visible crack, shatter, or impact damage. |
| White screen / blank display | Confirm the iPod plays audio through headphones. | The device is alive but the display shows nothing useful. |
| Black screen / no backlight | Force restart (Hold switch firmly unlocked, then Menu + Center held about 8 seconds), test with charger, and listen for drive spin. | The iPod responds to controls but the screen stays dark. |
| Lines, bars, or color distortion | Reseat the display ribbon and inspect the ZIF latch. | Lines persist after ribbon reseating. |
| Dim or uneven backlight | Reseat the ribbon and check for pressure marks. | Backlight is visibly weak or uneven. |
| Screen works sometimes | Gently flex the display-ribbon area. | The symptom changes with movement, pointing to the ribbon or connector path. |
Failure Signs
| Symptom | What it means & what to check |
|---|---|
| Cracked or broken screen | Visible LCD damage, cracks, dark spots, or impact damage make the display a strong candidate. |
| White or blank display | If the iPod still plays audio, responds to controls, or syncs, reseat the ribbon first and then consider the LCD. |
| Backlight problems | No backlight, dim screen, or uneven backlight can point to the LCD path after charger and ribbon checks. |
| Lines or color distortion | Lines, bars, or distorted colors that remain after ZIF-latch and ribbon reseating can point to the display. |
| Screen flickers or blinks | Flicker that comes and goes when you move the iPod or press on the case is the display ribbon or its board connector — reseat both before ordering a panel. A screen that blinks in step with an Apple logo appearing and disappearing is not a display fault at all: the iPod is restarting, so take the power and storage path first. |
| dead pixels | Static dead or stuck pixels are a panel fault, not a power fault. Check the display ribbon seating and view a full-white and full-black image; pixels that stay fixed point to the LCD panel itself. |
| Related checks |
|
Diagnose first when
- Listen for repeat clicking or repeated spin-up attempts before replacing storage parts.
- Confirm the iPod still plays, charges, or is recognized so the screen symptom can be separated from a dead device.
- Inspect the relevant ribbon and board connector before replacing the part.
- Match the exact model, generation, capacity, and case style shown for the product.
Do Not Buy This Screen Yet If...
| Situation | Start here instead |
|---|---|
| The iPod is completely dead with no sound, no drive spin, and no response | Start with battery and charging diagnosis before replacing the screen. |
| Clicking or ticking sounds are coming from the drive area | Hard drive or hard-drive cable, not the screen. |
Folder icon, sad iPod, red X, a screen showing only www.apple.com/support/ipod, or a use iTunes to restore message appears |
Your screen is working — it is drawing the iPod's own error screen. That screen means the iPod could not start from its storage, most often the hard drive on this model. Take the storage or firmware path before screen hardware. |
| Back case is bowing or the battery looks swollen | Battery replacement first; a swollen battery can create display pressure marks. A mark that is already in the panel will not clear when the pressure is removed, so replace the battery first and judge the display afterwards — you may need both. The battery page describes what a swollen cell looks like on this iPod. |
| Your iPod is Late 2009 thin 160GB MC293LL/A or MC297LL/A | That model is sold under the iPod Classic 7th Generation (Late 2009) pages — order from there. We do not publish a fit verdict either way for the later Classic; send us the order number from the back of your iPod and we will match the panel to our stock, and the check costs nothing. |
| The display problem began immediately after service | Reseat the display ribbon and inspect the ZIF latch before treating the LCD as failed. |
Worth Knowing
- The screen connects to the logic board with a ZIF ribbon connector.
- This listing is the standard 6G Classic panel, for the 80GB, 120GB and thick 160GB builds. We do not publish a fit verdict either way for the later Classic — Classic-family screen listings are labeled inconsistently, so order from your own model's screen page, or send us the order number from the back of your iPod and we will match the panel to our stock; the check costs nothing.
- Sync requires iTunes 7.4 or later — on a PC use iTunes for Windows, or the newer Apple Devices app; any Mac that can run iTunes (or Finder sync) works. iTunes 12.6.5 (Windows) is the last version with full click-wheel iPod support — iTunes 12.7 and later removed click-wheel games.
Lines, Spots, or a Dark Screen on the iPod Classic 6th Generation: What Owners Describe
Black blots, fixed lines and splatter patterns are physical damage inside the 6th Generation Classic's display, and owners describe them after knocks, after pressure on the case, and after closing the iPod up from a repair. The reports below are paraphrased and anecdotal.
Anecdotal owner reports (not a guarantee or authoritative proof):
- One owner's screen developed black spots and lines until nothing could be read; the reply called it a bad LCD.
- Another owner's iPod took a knock inside a bag and has shown a black line across the screen ever since; there is no trick to cure it, only a replacement.
- One owner found a black circle in the display without any drop; from a photo the reply confirmed a broken display, most likely from something pressing on the iPod.
- After a battery swap that tested fine with the case open, one 120GB owner closed the case and found the display corrupted: a chunk of the picture gone and the remainder shredded into lines with spatter-like marks.
- An iPod run over by a truck showed only lines; a new display worked with the case apart but not once reassembled, which the reply read as a short, something in the mid-frame or a connector touching, since a drive fault would fail either way.
What typically causes it:
- Black blots, ink-like spots and fixed lines (lines that stay after a ribbon reseat) are damage inside the panel, usually from pressure on the back or front of the iPod; none of it is repairable, and the display is replaced as a unit.
Handle it safely:
- If spots, bowing or a broken image appear while you are closing the case after a battery or drive swap, stop: a thick 160GB battery or an 8 mm drive does not belong in a thin 80GB or 120GB case, the back will not seat, and forcing it puts pressure on the panel.
- There is no software or reset that clears physical LCD damage; if the marks are in the glass, the only repair is a replacement display.
White or Gray Screen on the iPod Classic 6th Generation: What Owners Describe
A screen that lights up white or gray with no image is one of the most common post-repair complaints on the 6th Generation Classic, and it is not always the panel. Owners' paraphrased reports below are anecdotal.
Anecdotal owner reports (not a guarantee or authoritative proof):
- One owner replaced an 80GB's LCD after its backlight died and got a white-gray screen from the new part; resets, an iTunes restore and careful reseating changed nothing, and the old screen still worked when reconnected, which the reply took as proof that the iPod was fine and the new display was bad.
- Another owner had no backlight and a dark, inverted-looking image after a screen swap; the reply asked whether the display was really the part for this generation, since a look-alike from an earlier generation does not work here, and to check the cable seating.
- One owner's month-old replacement screen went gray while music kept playing and the iPod still synced; a loose or damaged display cable or connector was the suggested first look.
What typically causes it:
- A white or gray screen that still lights up means the backlight is alive and the panel is not being driven: either the LCD itself has failed, or its ribbon is not seated with the connector's tab closed, or the connector tab is broken and the ribbon is loose.
Handle it safely:
- Check the part before you fit it: a 5th-generation (Video) display looks almost identical and is not the same part as the Classic's; the wrong screen stays white or shows wrong colors. This listing is the standard 6G Classic panel, for the 80GB, 120GB and thick 160GB builds. We do not publish a fit verdict either way for the later Classic — Classic-family screen listings are labeled inconsistently, so order from your own model's screen page, or send us the order number from the back of your iPod and we will match the panel to our stock; the check costs nothing.
- Before ordering an LCD, open the iPod and confirm the display ribbon is fully inserted and the connector's clip is closed; a clip that has opened is a reseat, while one that has broken off needs a connector repair or a board.
What Owners Report
These are anecdotal owner reports, not guarantees or authoritative proof that a particular part will fix a symptom. Use them as a troubleshooting starting point: confirm the symptom, run the quick checks, then match the fix.
Blank, white, black, lined, or damaged display
Symptoms. All-white screen (music still plays, computer still syncs); white screen right after a screen replacement; gray or colored lines across the display; a black blot spreading from one point; upside-down/split image after a drop; solid blue screen; ink or liquid visibly inside the glass; blinking white with a flashing logo on reset.
Quick diagnosis.
- If it syncs and plays, check the display path: panel, ribbon and board connector; working playback does not rule out damage in that path.
- White screen immediately after a screen replacement = the LCD ribbon seated at a slight angle, or a late-2009-only panel fitted to a 2007/2008 board. Reseat square and flat first.
- After a drop: an upside-down, split, or garbled image usually means the display ribbon partially dislodged — reseat before buying anything.
- Check the connector's flip-clip: the small rotating clip holds the cable's contacts down. An open clip = white screen with everything else working; a broken clip = the connector can't hold pressure, which takes micro-soldering (or a board swap) to fix properly — some owners limp on shimmed tape pressure, but it isn't a repair.
- Lines, blots, and bleeding: a one-pixel gray line across the display is failed LCD row-driver hardware; a black blot is physical LCD damage (it can happen without a visible drop); ink or liquid inside the glass never comes out. All three = replace the LCD.
- Blinking white screen with a flashing logo: run a restore first (copy your files off first — it erases the iPod), then boot-time diagnostics — if the display test draws correctly, the panel is fine and the fault is upstream.
Fixes.
- LCD replacement — straightforward once the case is open (the shell is the hard part on a Classic). Owners report heat exposure (car dashboards, direct sun) killing these panels on its own — Apple's guide gives 0–35 °C as the operating range; a heat-killed screen with a healthy board is a satisfying fix.
- Which screen fits. This listing is the standard 6G Classic panel, for the 80GB, 120GB and thick 160GB builds. We do not publish a fit verdict either way for the later Classic — Classic-family screen listings are labeled inconsistently, so order from your own model's screen page, or send us the order number from the back of your iPod and we will match the panel to our stock; the check costs nothing. The Classic's LCD is also not the earlier iPod-with-video part despite endless mislabeled listings.
- Reseat-and-retest is free: a large share of "dead screens," especially post-drop and post-repair, are cable seating, not panels.
Cautions.
- Bare logic boards don't enumerate over USB — you can't bench-test a board (or a screen) meaningfully outside a minimally assembled unit; don't condemn parts from a bare-board test.
- Buying a screen "for iPod classic" elsewhere without checking it is the standard panel (not the late-2009-only one) is the most common wasted purchase on this repair.
Community signal. Reported by 15 owners.
Restore failures, errors, and Disk Mode fights
Symptoms. Restore starts then errors out; partial sync (a few GB) then failure with the library vanishing; stuck in Disk Mode with iTunes blind to it; capacity reads 127GB no matter the label; diagnostics halt at a FireWire test.
- Partial syncs dying at the same point suggest bad sectors: copy off what you need, then bench-test it on an interface-matched adapter.
- Stuck in Disk Mode: Menu + Center exits.
- A 127–128GB reading on a bigger drive is this model's stock-firmware limit, not a defect; reformatting won't change it. The later thin Classic is a different platform with its own drives, cables and storage rules — see its own pages.
- The built-in FireWire test needs a FireWire source connected; without one it stalls — skip it and read the drive tests.
Then restore from Disk Mode; replace drive and cable together if sick. Reported by 8 owners.
No sound at all
Symptoms. Plays and scrolls but silence in the headphones; the connect "pop" is audible but no music; sound over USB/dock but not the jack; no sound anywhere, even docked.
Quick diagnosis.
- Split the problem at the dock: play the same track through a known-compatible dock or line-out path. Sound through the dock but silence from the jack suggests checking the jack assembly, its ribbon and the board connection; silence everywhere warrants software checks first and then the board's audio path.
- Try a second set of headphones before opening anything.
- A restore rules out the software layer — copy anything you need off the iPod first, because a restore erases it; if silence survives a restore, it's hardware.
Fixes.
- Jack assembly replacement — the jack and hold switch ride one assembly (thin or thick per your case). Contacts inside the jack wear out with years of plug cycles; this is the usual fix for jack-only silence once the ribbon and board connection check out.
- Board-side audio fault — this model has a known weakness where the audio chip's solder joints develop micro-cracks and the chip loses contact with the board. That presents as silence (or sound that comes and goes with case pressure) regardless of output path — silence alone does not prove it; sound that returns with gentle pressure near the lower-right corner is the tell owners describe. It is board-level rework or a board swap — no jack part will fix it.
- Audio that died in association with a magnet incident carries no special mechanism — run the same restore-then-hardware ladder; consumer magnets don't erase these drives.
Community signal. Reported by 6 owners.
Recognized by the computer but not by docks — or vice versa
Symptoms. Works and syncs on the computer but a HiFi/speaker dock ignores it; syncs then self-ejects seconds later; "USB device not recognized"; plays on a dock but won't run on battery or sync over USB; partial sync then errors.
Checks — none proves the cause for every unit.
- Dock ignores it but USB is fine: try another device on the dock, and the iPod on another dock.
- Sync-then-eject: turn off automatic syncing and retry; wall-charge first (a near-empty battery can brown out on connect); then cable or storage.
- Runs on a powered dock but not on battery or USB: battery first. Partial sync then errors: cable and port, then the drive pages.
Fixes. Clean the port (alcohol, compressed air). Still deaf on the dock side: the port is soldered to the board (solder-level work); board-side damage means this board, matched to your unit.
Community signal. Reported by 5 owners.
Questions
Frequently Asked Questions
What causes lines on the screen?
Lines, bars, or color distortion can come from the LCD panel, display ribbon, or ZIF latch. Reseat the ribbon and inspect the latch before treating the LCD as the only failed part.
I replaced the screen and it still does not work — what should I check?
Reseat the display ribbon, inspect the ZIF latch, confirm the iPod is otherwise alive, and check for board-side connector damage before assuming the replacement display is defective.
White screen but iPod still plays — screen or connector?
Could be either. If the iPod plays audio or syncs, reseat the display ribbon first. If the white screen persists after seating checks, the LCD becomes a stronger candidate.
My screen is stuck on a test screen (for example HP Detect: 0) — is the screen broken?
No. That is the iPod's built-in diagnostic mode, and a panel that draws the diagnostic text cleanly is a working panel. If the on-screen prompt stops responding, force restart out of it: put the Hold switch firmly in the unlocked position and hold Menu and the Center (Select) button together for about 8 seconds, until the Apple logo appears. If the iPod is too flat to hold a reset, charge it first and try again.
Is this the front glass?
No. iPod Classic has a metal faceplate. This listing is the internal LCD display behind the faceplate.
How do I tell backlight failure from a loose ribbon?
If the backlight works but the image is blank or distorted, start with ribbon seating. If the screen is completely dark, check charger, battery, ribbon, and LCD path together. There is no separate backlight part for this iPod: the backlight belongs to the display module and is not sold or replaced on its own, so a backlight that is genuinely dead is fixed by replacing the display — after the ribbon and its board-side connector have been ruled out.
What else should I replace at the same time?
Inspect the faceplate, display ribbon, battery swelling, and internal stack before closing. Replace companion parts only when they are damaged or diagnosis points there.
What should I check after liquid exposure?
Unplug every cable, turn the iPod off and slide the Hold switch on before anything else — do not keep trying to charge it. Open it, disconnect the battery, and inspect the logic board and every connector for white or green residue; clean with high-percentage isopropyl alcohol and a soft brush, keep the hard drive out of any liquid, let everything dry fully, and only then reconnect power and test with a known-good battery (lithium cells react badly to moisture). Corrosion that survives cleaning is board-level work; liquid visibly inside the display glass never comes out and means a new panel.
You May Also Want
Choose the thin or thick battery by your iPod's case depth before ordering.
Related: 128GB Flash Mod Kit (flash-storage adapter + 128GB SD Card Included)Flash storage is a common while-open upgrade when storage service is also planned.
Related: Replacement Faceplate (Black)The faceplate is removed around the display path; replace it if it is bent or damaged during disassembly.
Search terms
Why people land on this part
Also searched as: backlight not working, screen flickers, completely white, replaced screen, screen is black, screen is white, screen with flickering, Disk Mode, washed out, fell hard and won't start with a flickering screen, horizontal line across the screen, ipod classic 6th generation screen replacement, iPod Classic 6G LCD screen, LCD display failure, no display, no backlight, dim screen, screen goes black, screen replacement, broken screen, button the screen, holds display, ipod classic screen repair, shop screen lcd display for ipod classic sixth generation, buy ipod classic sixth generation screen lcd display, ipod classic sixth generation screen lcd display replacement service, ipod classic sixth generation screen lcd display replacement guide, EMC 2173, screen went, screen flashes, Screen Flicker, display ribbon, screen is cracked, Folder Icon, physically damaged.
Some buyers search for "screen flicker" or "screen replaced"; confirm the checks above point to this same part before ordering.
Owners searching for this describe it as: iPod classic 6th Generation LCD display failure, ipod classic black spot on screen, ipod classic lines on display, ipod classic screen broken after reassembly.
Owners searching for this describe it as: iPod classic 6th Generation White Screen, ipod classic white screen after screen replacement, ipod classic backlight on no image, ipod classic gray screen music plays.
Free diagnostic
Broken iPod? We can help.
Mail us your iPod and we will test it and send you a free repair quote. If you don't like our price, we will ship your iPod back at our expense.
