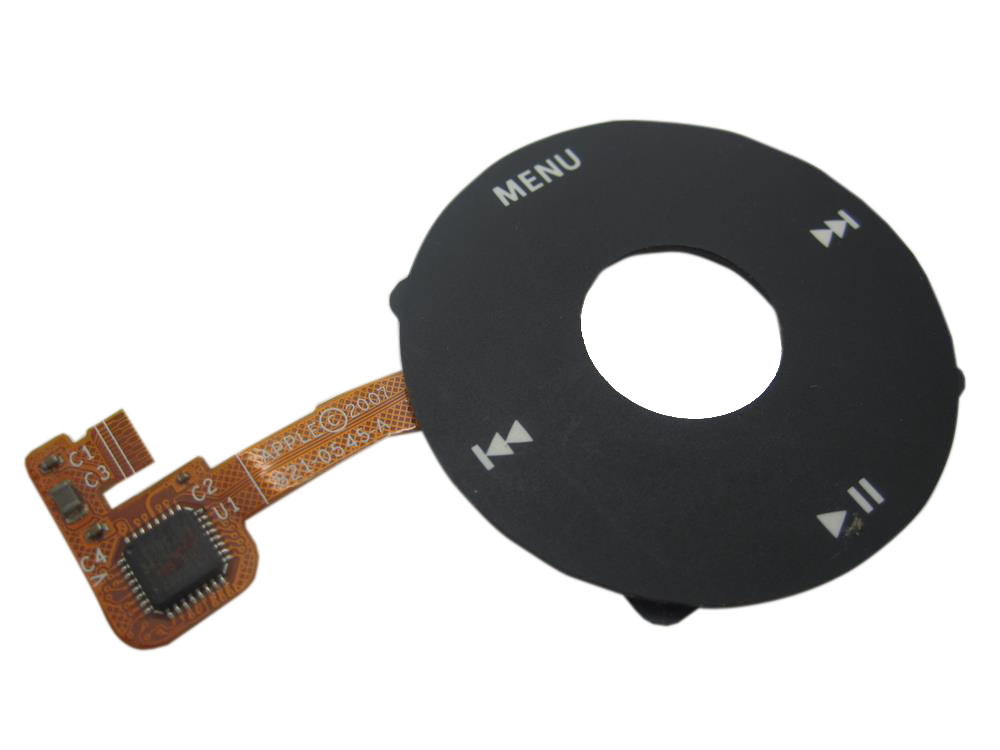

Replacement control input part for iPod Classic 6G. Use it when the wheel, buttons, center Select area, or flex is physically damaged or still fails after Hold state, frozen software state, and connector seating are checked.
Product Overview
Choose this click wheel listing to restore wheel, button, and center-Select input on the iPod Classic 6th Generation when the control assembly or its flex is damaged or unresponsive.
Use Part Details for the confirmed part-number reference. Use the Compatible Variants table below to confirm capacity, color, case, or order-number fitment.
Use the fitment and inspection checks below before ordering, especially when the same model family has thin/thick case or connector variants.
This can also be a customization choice. Click wheels and center buttons may be offered in custom non-OEM finishes, so buyers may replace working controls for a coordinated custom build as long as the control fitment matches the model.
What Is Included
Condition: New custom replacement part. Quantity and exclusions: The listed part, set, pair, or configuration above is supplied with exactly one plastic pry tool. No other parts, tools, adhesives, or materials are included unless they are explicitly listed above.
Quick Buying Check
Buy this when
- Frozen / Unresponsive: Use the controls check after checking Hold state, force-restart behavior, ribbon seating, and whether the issue affects the whole wheel or just one button.
Diagnose first when
- Confirm the color or finish you want before ordering; wheels are device-color-independent.
- Confirm Hold is off.
- Try the simple power, cable, connector, or reset checks before ordering.
- If the problem started immediately after opening the iPod, inspect the parts that were disturbed first.
Specifications & Fitment
Part Details
| Detail | Value |
|---|---|
| Model Number | A1238 |
| EMC | EMC 2173 |
| Condition | New custom click wheel |
| Options | All colors and finishes are ordered from this page; each option is available separately |
| Available color/finish options | black, blue, green, purple, red, white, yellow, clear, gray |
| OEM Part | 631-0457-A |
Compatible Variants
| Order Number | Capacity | Case | Compatible | Notes |
|---|---|---|---|---|
| MB147LL/A | 80GB | thin (0.41 in) | Yes | — |
| MB029LL/A | 80GB | thin (0.41 in) | Yes | — |
| MB565LL/A | 120GB | thin (0.41 in) | Yes | — |
| MB562LL/A | 120GB | thin (0.41 in) | Yes | — |
| MB150LL/A | 160GB | thick (0.53 in) | Yes | — |
| MB145LL/A | 160GB | thick (0.53 in) | Yes | — |
| MC297LL/A | 160GB (Late 2009) | thin | Yes— color swap | Fits the Late-2009 thin 160GB (MC293LL/A / MC297LL/A); that model is sold under the iPod Classic 7th Generation (Late 2009) pages. |
| MC293LL/A | 160GB (Late 2009) | thin | Yes— color swap | Fits the Late-2009 thin 160GB (MC293LL/A / MC297LL/A); that model is sold under the iPod Classic 7th Generation (Late 2009) pages. |
is not compatible with
- iPod Video 5th Generation / 5.5G A1136 click wheel, part 821-0372-A — wrong part for this model; the Classic wheel is 821-0545-A
Failure Signs
Use these checks to decide whether this click wheel is the right part, whether a nearby part should be checked first, or whether the symptom needs more diagnosis.
| Symptom | What it means & what to check |
|---|---|
| Hold switch can look like click-wheel failure |
What you may see: The iPod may appear locked, ignore controls, or behave differently when the Hold switch position changes.
Check first: Check whether the lock indicator changes when the Hold switch moves.
Most likely cause: On this model the Hold switch belongs to the headphone jack / hold-switch assembly, not the click wheel.
Look elsewhere when: Check the headphone jack / hold-switch assembly first when the device is locked or the Hold slider is suspect. |
| Click wheel is partly or fully unresponsive |
What you may see: People describe the scroll ring, buttons, or the whole control area as intermittent, partly responsive, or completely dead.
Check first: Confirm Hold is off.
Most likely cause: Whole-wheel symptoms can involve the click-wheel assembly, ribbon seating, ground path, or contamination on contacts.
Look elsewhere when: Check Hold switch, logic-board connector damage, and liquid/corrosion evidence before treating the click wheel as a guaranteed fix. |
| Ribbon, ZIF, connector, or ground-path checks |
What you may see: A symptom starts after opening the iPod or disturbing an internal flex cable. Check first: Inspect for liquid, corrosion, residue, torn flex material, or connector damage. Most likely cause: Connector seating, ribbon damage, or ground-path issues can involve this part, a nearby connector, or a board path. Look elsewhere when: Check the headphone jack / Hold-switch assembly that matches your case depth — thin (80GB / 120GB) or thick (160GB) — when headphone audio, one-ear sound, crackling or Hold-switch behavior is the main problem.
|
| Symptoms changed after repair or reassembly |
What you may see: A new symptom appeared after battery, storage, audio, display, or control work. Most likely cause: Check post-repair regression, connector seating, and board-side damage before ordering. |
Repair considerations
Run these checks before replacing the click wheel — they confirm the click wheel is the right fix and not a nearby fault:
- Avoid over-gluing or blocking button travel
- Confirm Hold switch state before replacing controls
- Press the underlying switch directly to isolate button path
- Replace Click Wheel or control assembly
- Recenter or sparingly reattach a shifted rubber button pad
Do Not Buy This Click Wheel Yet If...
| Situation | Start here instead |
|---|---|
| Variant or capacity does not match this listing | This is a different model — check your order number and generation before ordering. |
| You see a folder icon, clicking noise, or restore failure | A folder with an exclamation mark means the iPod cannot find its storage — the drive, its ribbon cable, or the software on it. Check the drive or flash media, storage cable, adapter seating, formatting, and restore path before replacing any part. |
| Charging, swelling, runtime, or power is the primary problem | If the battery is swollen, replace it for safety before ordering control parts. |
| The problem is the Hold switch or headphone jack, not this part | Diagnose the exact-model headphone-jack/Hold assembly and its connector before choosing another part. |
| A symptom points to a different part | Start with battery for power/runtime symptoms; hard-drive cable for folder, clicking, or restore symptoms; LCD screen for display-only symptoms; headphone jack for audio or Hold-switch symptoms; click wheel for click-wheel or control symptoms; logic board for board-side damage or multi-system symptoms before buying this part. |
Install Overview
Before You Start
Turn Hold off, use the reset sequence for this generation (hold Menu + Center until the Apple logo), and confirm the model and variant before opening the iPod.
Treat case opening as the highest handling risk. Work around the seams gently and stop if the shell, clips, or internal stack resist.
Do not pull the halves apart or side-load board sockets. Reseat nearby ribbons and connectors before blaming a replacement click wheel.
Confirm the click-wheel button is seated before reinstalling the framework. Avoid over-bending the click-wheel cable during removal. Do not fully separate the case halves until the remaining ribbons are released; the back panel can still be connected by ribbon cables.
Disassembly Guide
Disassembly guide summary: iPod Classic Click Wheel Replacement.
Show all 38 installation steps
This iPod case is unusually hard to open without damaging major components. Its metal faceplate, metal backing, and thirteen metal clips make disassembly especially demanding. Caution: this opening method can significantly damage the iPod beyond its current condition. Keep a few extra plastic opening tools nearby, since they are easy to ruin while opening the case. Confirm that the hold switch is locked before you open the iPod.
Opening this iPod is challenging, so do not get discouraged if it takes a few tries. Watch the plastic opening tool tip angle as you insert it into the iPod; keep it as vertical as possible while still clearing the rear panel edge. Guide a plastic opening tool into the seam between the front and rear of the iPod.
Slide a second plastic opening tool into the seam between the iPod front and rear, keeping the two tools at least 1.5 inches apart.
Working at an angle, carefully slide a putty knife about 1/8 inch into the gap between the two opening tools. You will find thin metal rails running along the inside of the back panel, so work very carefully when inserting the putty knife. After the putty knife clears the rear panel lip, rotate it vertical and carefully but firmly work it straight down through the opening tool gap.
Press on the rear panel behind the putty knife with your fingers to reduce bending. Slowly flex the putty knife so most metal tabs along this side of the iPod release. The idea is to control how the rear panel bends instead of trying to prevent all bending. Any side bend should draw the rear panel lip away from the iPod, not push outward on the curved surface. This also releases as many side clips as possible.
Take the putty knife out, then place it closer to the iPod corner and use the same gentle wiggle method. If possible, do not bend the rear panel corner.
Near the headphone jack, guide a plastic opening tool into the seam between the front and rear of the iPod. It may be easier to flex the putty knife downward carefully to create more room for the opening tool. Be careful not to bend the rear panel corner.
Near the display center, carefully slide a metal spudger into the gap made by the plastic opening tool. A visible bump can form here in the rear panel and is hard to repair. When levering the tab free, pivot the metal spudger on the rear panel edge instead of bending the rear panel outward. With the metal spudger, release the single clip at the iPod top edge.
Near the other top corner, guide a plastic opening tool into the seam between the front and rear of the iPod
On the other side, use the opening tool to start the same case-opening gap. It may help to angle the tool stuck in the top corner to create enough room.
Take the opening tool out of the top corner, then slide it into the seam between the iPod front and rear. Keep at least 1.5 inches between the two tools, as on the opposite side.
Working at an angle, carefully slide a putty knife about 1/8 inch into the gap between the two opening tools. Again, you will find thin metal rails running along the inside of the back panel, so work very carefully when inserting the putty knife. After the putty knife passes the rear panel lip, turn it vertical and carefully but firmly work it straight down through the gap between the plastic opening tools. Press on the rear panel behind the putty knife with your fingers to reduce bending. Flex the putty knife just enough to make sure most metal tabs along this side of the iPod release.
The metal clips near the corners grip the front panel tightly. Release these clips before opening the iPod. Carefully slide a metal spudger into the area beside the stubborn metal clip.
Gently work the metal spudger downward until it is fully seated in the rear panel.
Gently start releasing the clip from the front panel. A visible bump can form here in the rear panel and is hard to repair. When levering the tab free, pivot the metal spudger on the rear panel edge instead of bending the rear panel outward.
Use the metal spudger to apply upward pressure under the front panel until the metal clip releases.
You will find two ribbon cables connecting the rear panel to the remaining iPod assembly. In the following step, take care not to damage these ribbon cables. In this step, grasp the front-panel assembly with one hand and the back panel with the other. Pause for a moment before continuing. Very gently release the remaining rear-panel clips by pulling the tops of the front and rear panels apart, using the iPod bottom as a hinge. Take great care not to damage the ribbon cables joining the two halves.
With a spudger, slide the connector upward where it holds the orange battery ribbon. Lift the locking bar only about 2 mm to release the cable. Move the orange battery ribbon out of its connector.
Set the rear panel beside the iPod, taking care not to strain the orange headphone jack cable.
Raise the hard drive with one hand to expose the headphone jack ribbon underneath. With a spudger, flip up the plastic tab securing the headphone jack ribbon in place. The tab can rotate up 90 degrees, releasing the ribbon cable. Move the orange headphone jack ribbon out of its connector. The rear panel is now released from the iPod.
After opening, check the lower-case clips. If any clip bent upward, press it back down gently so the rear case can close cleanly.
Use the broad, flat face of the metal spudger to press the clip downward. Work carefully so the thin metal rail does not tear away from the rear panel. While shaping these clips, take care not to damage any headphone jack parts.
Set the rear panel on its side on a clean, hard surface. Carefully but firmly press it downward, rolling the full lip edge back into place. You may need to repeat this several times to straighten the sides well. Slightly overcorrecting the case edges inward is better than leaving them too far out, because reseating the front panel will bend the rear panel back into alignment. Once the rear panel is restored to good condition, continue with the iPod repair.
Rotate the hard drive out of the framework, then set it with the connector facing upward. With a spudger, lift the small black locking tab for the orange hard drive ribbon. The tab rotates upward 90 degrees and frees the ribbon cable.
Move the orange hard drive ribbon cable straight out of its connector. Keep the drive's rubber mounting brackets and foam padding in place for reassembly.
Take out the three Phillips screws that secure the front panel to the metal framework.
Rotate the iPod 180 degrees and take out the 3 Phillips screws holding the front panel to the metal framework on the other edge.
In this step, gently work around the edges of the device to separate the front panel from the gray metal framework. You may meet some resistance, as you will find a mild adhesive used to help hold the two parts together.
Lift the full framework away from the front panel; it carries the screen, logic board, and click wheel. Confirm the click wheel button is seated before reinstalling the framework in the front panel.
The front panel is now released from the iPod.
With a spudger, lift the plastic tab that holds the orange display ribbon. The tab rotates upward 90 degrees toward the display and releases the ribbon cable.
Move the orange display ribbon cable directly out of its connector.
Raise the framework assembly up, and move the display and LCD metal backplate out of the framework assembly.
Take out the two Phillips screws securing the logic board to the framework.
Carefully press the logic board away from the metal framework. Mild adhesive secures the logic board to the framework. Take care not to bend the logic board by pushing too hard in one spot.
Move the click wheel out from under the logic board until its icons are visible. With a spudger, flip up the plastic tab securing the orange click wheel ribbon in place. The tab can rotate up 90 degrees, releasing the ribbon cable.
With a spudger, raise the click wheel cable off the logic board. Take care not to over-bend the cable, since its electronics can be damaged. When reinstalling the click wheel, make sure the click wheel cable is fully seated in its connector.
Move the click wheel cable out of its connector. Raise the click wheel assembly away from the logic board. Do not forget the click wheel button when putting your iPod back together.
Product-specific placement, reassembly, and check
- Prepare and access. Confirm the exact model and listing fit first. Use the existing steps as a disassembly guide, gather the specified tools, disconnect power where applicable, and keep screws and cable positions organized.
- Place New Custom Click Wheel. Align the control part with its locating features and seat only the matching ribbon or mechanical interface for this listing.
- Reassemble without force. Reverse only the access steps needed for this repair, keep cables clear of case edges and screw posts, and close clips in stages.
- Validate before final closure. Before final closure, test navigation and every affected button; reopen the fit if a control binds, sits low, or does not register consistently.
Stop condition: Stop if a connector, latch, screw, clip, housing edge, or the replacement part resists normal alignment. Recheck model fit, orientation, cable routing, and trapped hardware instead of forcing it.
After This Repair
| Check | What to do |
|---|---|
| Test every control | Check Menu, Select, Play/Pause, Previous, Next, scrolling, and Hold behavior before closing the case fully. |
| If controls are still odd | Reseat the control ribbon, confirm the Hold switch is off, and inspect any ground strap or latch touched during service. |
Frequently Asked Questions
Use these questions to narrow the part path before ordering. They keep each answer focused on a different diagnostic or fitment decision.
What New Custom Click Wheel models does this fit?
This New Custom Click Wheel fits: MB029LL/A (80GB Silver), MB145LL/A (160GB Silver), MB562LL/A (120GB Silver), MB147LL/A (80GB Black), MB150LL/A (160GB Black), MB565LL/A (120GB Black).
What if only the center or Select button fails?
Confirm Hold is off before judging the controls. Separate center-button-only behavior from a dead scroll ring or multiple failed buttons. If the iPod has been opened, inspect the click-wheel ribbon, its seating and the ground path before ordering another part.
It Wont turn off?
Press and hold Play/Pause to power down; if that does nothing, reset with Menu + Center and try again. An iPod that cannot be switched off is an early warning of a failing unit and worth a diagnostic pass, and the wheel is only one suspect. Use the Quick Buying Check, Failure Signs, and Do Not Buy sections together before ordering. The symptom should still point to this click wheel after nearby parts and fitment are separated.
Why people land on this part
Use the checks above to separate this click wheel from nearby parts before ordering.
Some buyers search for "people describe the center, middle, or select button as no longer clicking, selecting, or responding" or "the center, middle, or select button feels stuck, sits low, or stops selecting"; confirm the checks above point to this same part before ordering.
Also searched as: click wheel not playing or pausing, water damage then plugged in and maybe fried, spin wheel and all functions not working, select button does not register, iPod classic 6th gen new custom click wheel replacement, click wheel unresponsive, scroll wheel stuck, clickwheel, locked up, click wheel connector, stuck disk, enter button, screen frozen, stuck apple, stuck charging, stuck on charging please wait, center button, Folder Icon.
Owners searching for this describe it as: iPod classic 6th Generation Click Wheel Not Working, ipod classic click wheel not scrolling, ipod classic buttons not responding, ipod classic click wheel intermittent.
Owners searching for this describe it as: iPod classic 6th Generation Hold Switch Stuck, ipod classic hold switch stuck, ipod classic lock icon won't go away, ipod classic pauses by itself.
Owners searching for this describe it as: iPod classic 6th Generation Liquid Damage, ipod classic water damage won't turn on, ipod classic got wet intermittent, ipod classic corrosion logic board.
Worth Knowing
- The click wheel is retained by four small tabs — a wheel falling out of the faceplate usually means bent tabs; check them during reassembly.
- The owner-confirmed cosmetic wheel swap also fits the later Classic; see that model’s page for its own fit details.
Click Wheel Not Responding on the iPod Classic 6th Generation: What Owners Describe
A wheel that will not scroll, buttons that do nothing, or controls that drop out for seconds at a time are the complaints owners bring to the 6th Generation Classic click wheel. The reports below are paraphrased and anecdotal; the wheel is the usual cause but a drive cable can imitate it.
Anecdotal owner reports (not a guarantee or authoritative proof):
- One 80GB owner cleaned the logic board with alcohol and afterwards none of the four buttons or the wheel responded, although the iPod still synced and powered up; the reply ruled out the battery and pointed at the click wheel, since all four switches failing at once is unlikely.
- After fitting a new logic board and click wheel, one owner found the scroll ring dropping out for a few seconds at a time, mostly while the drive was spinning; the advice was to reseat every connector, the wheel's cable clip and above all the drive cable, whose faults can imitate wheel trouble.
- One owner replaced the battery and the iPod came on but ignored every press and scroll, sometimes refusing to wake until the power cable went in.
- Another owner's wheel and every other function were dead and the iPod would not reset, though it still played through the car's own controls.
- One owner who used the iPod on a dock in a steamy bathroom lost the play/pause button and with it the ability to switch the iPod off.
What typically causes it:
- The wheel's touch ring and its buttons fail separately: a ring that will not scroll is checked at the wheel's ribbon connector first and is then the wheel itself. If several buttons fail together, inspect wheel seating, the ribbon and board connections before selecting a replacement; the symptom alone does not identify the faulty part.
- Controls that drop out for a few seconds at a time are checked at the connectors before the wheel is replaced: the wheel's own ribbon clip, and the drive ribbon, whose faults on this model can imitate an intermittent wheel.
Hold Switch Stuck or Misbehaving on the iPod Classic 6th Generation: What Owners Describe
On the 6th Generation Classic the hold switch lives on the headphone-jack flex assembly, so a switch that sticks, reads locked, or lets the player pause itself points at that one part. The reports below are paraphrased and anecdotal.
Anecdotal owner reports (not a guarantee or authoritative proof):
- One owner's player kept pausing itself even with the controls locked, which made pocket use impossible; the reply suspected the hold switch and described the built-in diagnostics for confirming it.
- Another owner's screen was on but the lock icon would not clear and nothing would play; if a restore did not fix it, the advice was the hold-switch and headphone-jack ribbon assembly.
- One owner had dipped the hold-switch end of the iPod in a sugary drink years earlier and watched the switch get steadily worse; cleaning was judged unlikely to help that much corrosion.
What typically causes it:
- The hold switch is part of the headphone-jack flex assembly, not a separate part, so a switch that sticks, reads locked or lets the player pause itself usually points at that assembly — confirm it with the built-in diagnostics first, because pauses that come with movement or bumps can also be the drive or its ribbon — and the replacement has to be the thin or thick version that matches the case.
After Liquid Exposure on the iPod Classic 6th Generation: What Owners Describe
A 6th Generation Classic that has been wet may work, work intermittently, or die weeks later, because corrosion keeps working after the iPod has dried. Owners' paraphrased reports below are anecdotal.
Anecdotal owner reports (not a guarantee or authoritative proof):
- One 120GB owner's iPod fell in a sink; after weeks of drying it gave nothing at all, on its own or on a Mac.
- One owner's iPod was soaked twice and went intermittent, dead for days, then weeks, then for good; opening it showed only a little corrosion, on the frame rather than the board.
- A water-damaged 120GB passed every built-in diagnostic test except the hard drive.
What Owners Report
These are anecdotal owner reports, not guarantees or authoritative proof that a particular part will fix a symptom. Use them as a troubleshooting starting point: confirm the symptom, run the quick checks, then match the fix.
Click wheel, center button, or buttons stuck / unresponsive
Symptoms. Scrolling works but Center never registers; one button dead (play/pause or fast-forward) while the rest work; the whole wheel and all buttons dead but the Hold switch still responds; volume won't change; wheel lifted and falls into the case; won't turn off; frozen on one song and iTunes can't see it.
Quick diagnosis.
- Reset first: toggle Hold, then Menu + Center 6–10 seconds. For resets, keep the pressing finger off the wheel's touch surface — a stray touch on the ring blocks the button combo.
- The wheel has a built-in test: enter diagnostic mode (reset with Menu + Center, then immediately hold Previous + Center) and run the wheel test to see exactly which inputs register.
- Sort wheel from board: the four outer buttons are just plastic pressing microswitches on the logic board. Reassemble without the center button and press the switch directly with a pencil eraser — if the switch works bare, the wheel assembly is the problem; if not, the board switch is.
- With a multimeter, power disconnected: each microswitch should show continuity when pressed. A dead switch on a working wheel = board-side fault.
- After any repair, "everything dead" is almost always the wheel's ribbon connector not seated flush on the board — scrolling can even work while all buttons don't. Reseat and re-test before replacing anything.
Fixes.
- Cleaning — a wheel that mis-registers after shower steam, pocket lint, or spills often revives with 70%+ isopropyl alcohol worked around the wheel's edge and switch contacts, with power disconnected. Cheap, first.
- Click wheel replacement — the wheel plugs into the board by a connector (no soldering); it is held by four small tabs, so a wheel that lifted out of the faceplate needs a new wheel, not glue. If several buttons fail together, inspect wheel seating, the ribbon and board connections before selecting a replacement; the symptom alone does not identify the faulty part.
- Board-side switch failure — one stubborn button with a proven-good wheel is often a worn microswitch or its rubber actuator tip: a lost tip can be rebuilt with a small adhesive pad; a dead switch means board-level work (harvesting a switch from a donor board is possible but fiddly) or a logic-board swap.
- Won't turn off: press and hold Play/Pause to power down (after a reset if needed). Difficulty turning off is an early warning of a failing unit — worth a diagnostic pass.
- Volume stuck low: clockwise on the wheel raises volume during playback, and check the volume-limit setting before suspecting hardware.
Cautions.
- A drop or crush that pushed the wheel inward can damage the board underneath and even the drive — a post-impact red X belongs to the hard-drive pages, not the wheel.
- When replacing the wheel, match the Classic part — wheels from the earlier iPod with video are frequently mislabeled "classic" and don't belong here.
Community signal. Reported by 22 owners.
Hold switch stuck, or pauses itself in your pocket
Symptoms. Player pauses itself even with controls locked in play mode; Hold state seems wrong or flickers.
Quick diagnosis.
- Confirm what the hardware thinks: diagnostic mode (reset with Menu + Center, then immediately Previous + Center — you'll hear a beep) includes a status readout where you can watch the Hold switch's reported state as you flick it. A switch that flickers or reads wrong is faulty.
- If Hold reads clean, one next check is the headphone jack's unplug-detection path: the automatic pause when a plug is pulled can fire falsely — wiggle the plug and watch for spontaneous pauses. Pauses that come with movement or bumps can also warrant the drive and ribbon checks on the hard-drive pages.
Fixes.
- Faulty Hold switch: the switch rides on the headphone-jack/hold-switch assembly — replace that assembly (thin or thick per your case; see the headphone-jack pages).
- False unplug-sensing: the durable fix is the jack/Hold assembly replacement.
Community signal. Reported by 1 owner.
