Representative photo. You receive the part named above.

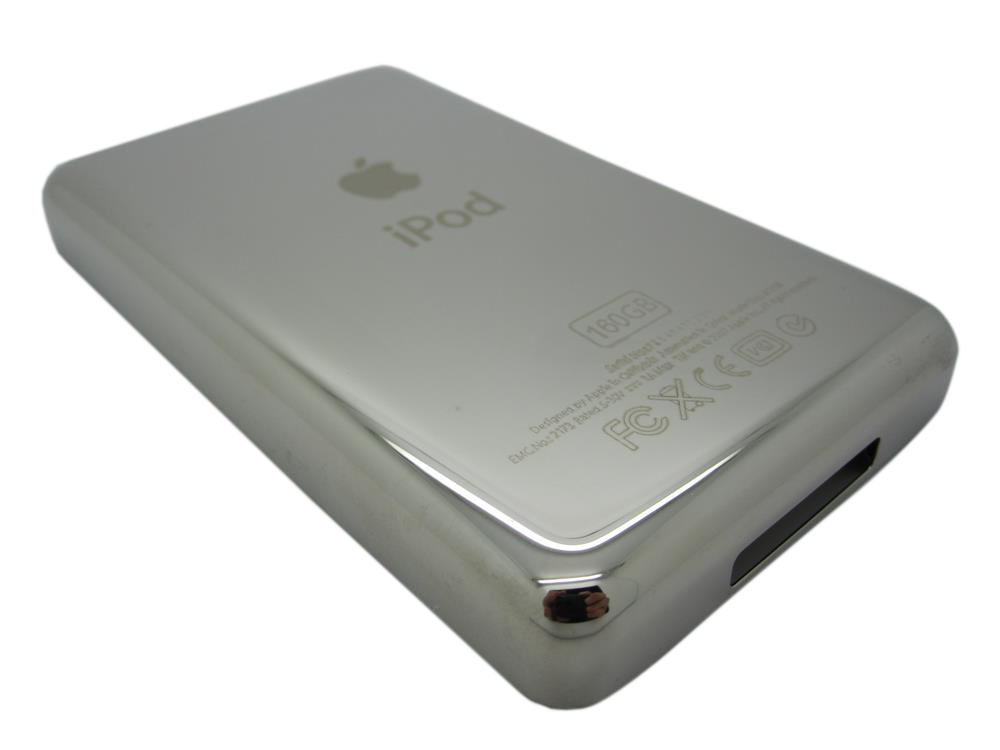

New iPod Classic 6G - 160GB Polished Stainless Steel Backplate
New · Model A1238
$36.95
Also for the iPod Classic 6th Gen: 80GB (Polished stainless steel) $36.95 · 120GB (Polished stainless steel) $36.95 · Custom color, thin (New) $36.95 · Custom color, thick (New) $36.95 · See all
Sold out
Not for sale right now
We are not selling this part at the moment.
- Condition: new replacement part
- 1-year limited warranty · 30-day returns from delivery
- Free pry tool in the box
- Completed repairs aren't refundable. If a part we fitted fails within a year, we repair it again.
Questions about this part? Chat with us or email sales@imods.com.
Not sure what's wrong? Get your free repair quotePart details
About this part
Overview
Replacement polished stainless steel rear backplate for iPod Classic 6th Generation 160GB models. Use it for scratched, dented, bent, worn, missing, or custom rear-housing work after matching capacity engraving, case depth, and order number.
Fitment snapshot
What Is Included
Fit and specs
Specifications & Fitment
Part Details
| Detail | Value |
|---|---|
| Model Number | A1238 |
| EMC | EMC 2173 |
| Condition | New replacement backplate |
Compatible Variants
| Order Number | Capacity | Case | Compatible | Notes |
|---|---|---|---|---|
| MB150LL/A | 160GB | thick (0.53 in) | Yes | — |
| MB145LL/A | 160GB | thick (0.53 in) | Yes | — |
| MB147LL/A | 80GB | thin (0.41 in) | No— thick-case housing | This is the thick 13.5 mm rear housing: it will not close on a thin 10.5 mm iPod. Use New Custom Thin Backplate instead. |
| MB029LL/A | 80GB | thin (0.41 in) | No— thick-case housing | This is the thick 13.5 mm rear housing: it will not close on a thin 10.5 mm iPod. Use New Custom Thin Backplate instead. |
| MB565LL/A | 120GB | thin (0.41 in) | No— thick-case housing | This is the thick 13.5 mm rear housing: it will not close on a thin 10.5 mm iPod. Use New Custom Thin Backplate instead. |
| MB562LL/A | 120GB | thin (0.41 in) | No— thick-case housing | This is the thick 13.5 mm rear housing: it will not close on a thin 10.5 mm iPod. Use New Custom Thin Backplate instead. |
| MC297LL/A | 160GB (Late 2009) | thin | No— wrong case depth | Thick 13.5 mm housing: it will not close on a thin 10.5 mm iPod. |
| MC293LL/A | 160GB (Late 2009) | thin | No— wrong case depth | Thick 13.5 mm housing: it will not close on a thin 10.5 mm iPod. |
Install and repair
Install Overview
Rather not open it? Choose We Fix It above: mail your iPod in and we fit it. Turnaround is typically 3 to 5 business days. 1-year limited warranty.
Rear-panel replacement is a very difficult no-solder housing job. The important checks are opening damage, transferred rear-panel parts, and dry-fit alignment before the shell is snapped shut.
Case opening risk
The Classic shell uses tight metal clips and the polished rear case scratches easily. Work slowly with thin tools and expect cosmetic risk during opening.
Rear-panel ribbons
The headphone jack and Hold switch ribbons stay attached to the rear panel during opening. Disconnect them before separating the halves fully.
Headphone jack / Hold switch transfer
This backplate does not include the headphone jack or Hold switch assembly. Move the original assembly over or order the matching assembly separately.
Dock bezel transfer
The dock-port bezel is a separate two-screw trim part. Inspect it before reassembly and replace it separately if it is cracked, missing, or mismatched.
Questions
Frequently Asked Questions
Is this the right backplate for my 160GB iPod Classic?
Use this listing when the rear engraving is 160GB, the order number is MB145LL/A or MB150LL/A, and the case depth is 13.5 mm / 0.53 in thick. The rear housing is polished stainless steel for both silver-front and black-front iPod Classic models. A1238 / EMC 2173 alone is not enough.
Do I need to match silver or black?
No. The rear backplate is polished stainless steel on the original thick 160GB 6G models. Match the 160GB rear engraving, 13.5 mm thick case depth, and order number; the silver or black front color does not create a separate rear-backplate option.
Are the headphone jack and Hold switch included?
No. This is the rear metal housing only. The headphone jack and Hold switch assembly transfers from the old rear case, or order the headphone jack / Hold switch assembly separately.
Is the dock-port bezel part of the backplate?
No. The dock-port bezel is a separate replaceable trim piece held by two screws. Use the dock connector bezel listing if that trim piece is cracked, missing, or mismatched.
Will this fix non-cosmetic problems?
No. A backplate is a passive cosmetic housing part. Use it for physical rear-case damage, cosmetic refresh, or engraving work, not as a fix for other parts.
How do I tell thin from thick?
Measure the rear case. The thin 80GB / 120GB models are 10.5 mm / 0.41 in; the original 2007 160GB is 13.5 mm / 0.53 in thick. Match the physical case depth and the installed assembly before ordering: the capacity engraving and the serial identify the iPod as it left the factory, so on a player whose rear housing or storage was changed before you owned it they can point at the wrong part.
