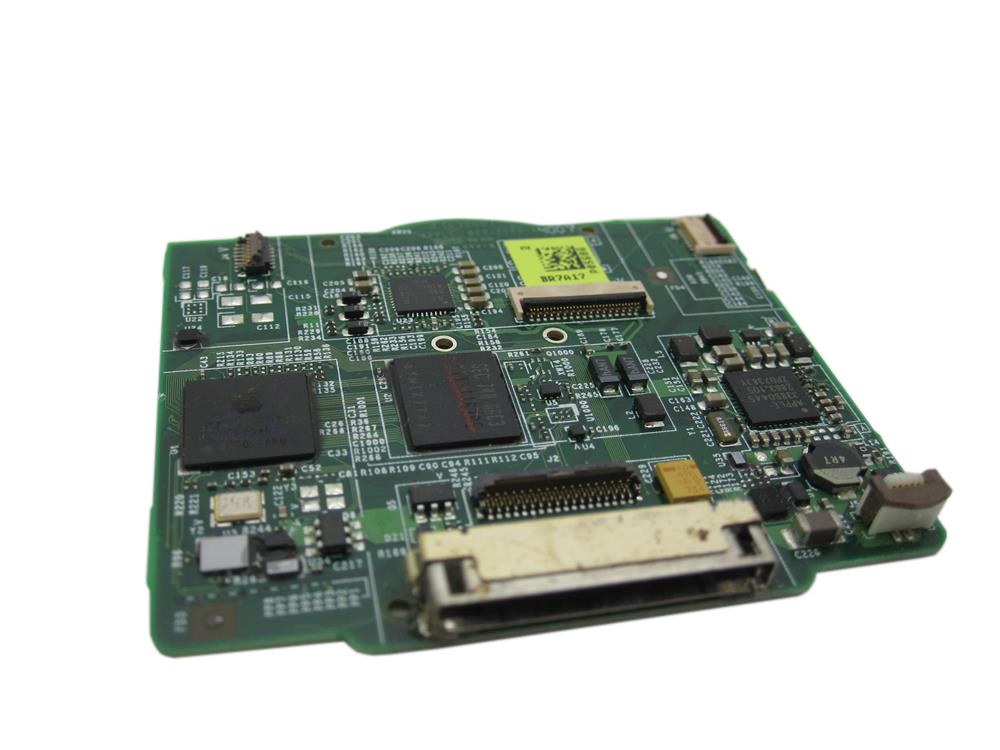

Representative photo. You receive the part named above.
iPod Classic 7G — Replacement Logic Board
Used (Apple Original) · Model A1238
$255.90
Sold out
Not for sale right now
We are not selling this part at the moment.
- Used (Apple Original). Tested: installed in a working iPod and checked before it ships.
- 1-year limited warranty · 30-day returns from delivery
- Free pry tool in the box
- Completed repairs aren't refundable. If a part we fitted fails within a year, we repair it again.
Part details
About this part
Overview
Replacement 820-2437-A logic board for the 160GB (2009) iPod Classic — the board this generation shipped with. The same 820-2437-A number is printed on the earlier 120GB board, so check the capacity and order number before you choose. Use it only after battery, storage, cable, dock, display, audio, and click-wheel checks point back to the board.
Fitment snapshot
Confirm model, generation, part number, and fitment details before ordering.
Product Overview
This listing is the 820-2437-A logic board for the 160GB (2009) iPod Classic — the board this generation shipped with — and its own connector path.
The printed number identifies nothing on its own. 820-2437-A is stamped on the 160GB (2009) board and on the earlier 120GB board alike, so reading it off your old board does not tell you which one you are holding. Capacity and order number decide it. This page is the 160GB one. If your Classic is the 120GB build, its board is a different listing — start on the Late-2008 120GB logic board page instead of ordering here.
Use Part Details for the confirmed part-number reference. Use the Compatible Variants table below to confirm capacity, color, case, or order-number fitment.
Choose this part when your iPod shows Red X Icon, Water Damage, Physical Damage, or Dropped / Not Working; the checks below help confirm the right part before you order.
If known-good cable, power, storage/ribbon, connection, and restore or Disk Mode checks still fail, the logic board remains a suspect, especially when corrosion or board-side connector damage is visible.
What Is Included
Condition: Used factory-original part. Quantity and exclusions: The listed part, set, pair, or configuration above is supplied with exactly one plastic pry tool. No other parts, tools, adhesives, or materials are included unless they are explicitly listed above.
Fit and specs
Specifications & Fitment
Part Details
| Detail | Value |
|---|---|
| Model Number | A1238 |
| EMC | EMC 2173 |
| Condition | Used — factory original Apple part. Normal cosmetic wear expected. |
| SoC | Samsung S5L8702 |
| Audio CODEC | Cirrus Logic CS42L55 |
| Power Management | NXP PCF50635 |
| USB Charger IC | Linear Technology LTC4066 |
| OEM Part |
820-2437-A (160GB / 2009 build — the same number is printed on the earlier 120GB board, which is a separate listing) |
Compatible Variants
| Order Number | Capacity | Color | Case | Compatible | Notes |
|---|---|---|---|---|---|
| MB147LL/A | 80GB | Black | thin | Not this listing | The 2007 thin 80GB shipped the 820-2168-A board, which is its own listing under the iPod Classic 6th Generation pages. Ask us before treating this board as a substitute for it. |
| MB565LL/A | 120GB | Black | thin | Not this listing | Carries the same 820-2437-A print but is the earlier 120GB build (silver is MB562LL/A). Its board is the Late-2008 120GB logic board listing. |
| MC297LL/A | 160GB | Black | thin | Yes— this listing | The 160GB (2009) build this board comes from |
| MC293LL/A | 160GB | Silver | thin | Yes— this listing | The 160GB (2009) build this board comes from |
| MB150LL/A | 160GB | Black | thick | No— thick-case 2007 160GB part set | The 2007 thick 160GB rear case, battery, hard drive, HDD cable, bumpers and headphone jack are not compatible with thin models; sold under the iPod Classic 6th Generation pages |
| MB145LL/A | 160GB | Silver | thick | No— thick-case 2007 160GB part set | The 2007 thick 160GB rear case, battery, hard drive, HDD cable, bumpers and headphone jack are not compatible with thin models; sold under the iPod Classic 6th Generation pages |
Install and repair
Repair considerations
Run these checks before replacing the logic board — they confirm the logic board is the right fix and not a nearby fault:
- Escalate board-level soldering or connector damage
- Replace or professionally rework logic board
Install Overview
Before You Start
For pre-open diagnosis, unlock Hold and use this generation's reset sequence if needed. Before opening, lock the Hold switch so the orange bar is visible, then confirm the model and variant.
Treat case opening as the highest handling risk. Work around the seams gently and stop if the shell, clips, or internal stack resist.
Do not pull the halves apart or side-load board sockets. Reseat nearby ribbons and connectors before blaming a replacement logic board.
Test known-good replaceable assemblies first so the board is not blamed for a battery, storage, cable, control, screen, or audio path.
Do not fully separate the case halves until the remaining ribbons are released; the back panel can still be connected by ribbon cables.
Disassembly Guide
Disassembly guide summary: iPod Classic Logic Board Replacement.
Show all 41 installation steps
This iPod case is unusually hard to open without damaging major components. Its metal faceplate, metal backing, and thirteen metal clips make disassembly especially demanding. Caution: this opening method can significantly damage the iPod beyond its current condition. Keep a few extra plastic opening tools nearby, since they are easy to ruin while opening the case. Confirm that the hold switch is locked before you open the iPod.
Opening this iPod is challenging, so do not get discouraged if it takes a few tries. Watch the plastic opening tool tip angle as you insert it into the iPod; keep it as vertical as possible while still clearing the rear panel edge. Guide a plastic opening tool into the seam between the front and rear of the iPod.
Slide a second plastic opening tool into the seam between the iPod front and rear, keeping the two tools at least 1.5 inches apart.
Working at an angle, carefully slide a putty knife about 1/8 inch into the gap between the two opening tools. You will find thin metal rails running along the inside of the back panel, so work very carefully when inserting the putty knife. After the putty knife clears the rear panel lip, rotate it vertical and carefully but firmly work it straight down through the opening tool gap.
Press on the rear panel behind the putty knife with your fingers to reduce bending. Slowly flex the putty knife so most metal tabs along this side of the iPod release. The idea is to control how the rear panel bends instead of trying to prevent all bending. Any side bend should draw the rear panel lip away from the iPod, not push outward on the curved surface. This also releases as many side clips as possible.
Take the putty knife out, then place it closer to the iPod corner and use the same gentle wiggle method. If possible, do not bend the rear panel corner.
Near the headphone jack, guide a plastic opening tool into the seam between the front and rear of the iPod. It may be easier to flex the putty knife downward carefully to create more room for the opening tool. Be careful not to bend the rear panel corner.
Near the display center, carefully slide a metal spudger into the gap made by the plastic opening tool. A visible bump can form here in the rear panel and is hard to repair. When levering the tab free, pivot the metal spudger on the rear panel edge instead of bending the rear panel outward. With the metal spudger, release the single clip at the iPod top edge.
Near the other top corner, guide a plastic opening tool into the seam between the front and rear of the iPod
On the other side, use the opening tool to start the same case-opening gap. It may help to angle the tool stuck in the top corner to create enough room.
Take the opening tool out of the top corner, then slide it into the seam between the iPod front and rear. Keep at least 1.5 inches between the two tools, as on the opposite side.
Working at an angle, carefully slide a putty knife about 1/8 inch into the gap between the two opening tools. Again, you will find thin metal rails running along the inside of the back panel, so work very carefully when inserting the putty knife. After the putty knife passes the rear panel lip, turn it vertical and carefully but firmly work it straight down through the gap between the plastic opening tools. Press on the rear panel behind the putty knife with your fingers to reduce bending. Flex the putty knife just enough to make sure most metal tabs along this side of the iPod release.
The metal clips near the corners grip the front panel tightly. Release these clips before opening the iPod. Carefully slide a metal spudger into the area beside the stubborn metal clip.
Gently work the metal spudger downward until it is fully seated in the rear panel.
Gently start releasing the clip from the front panel. A visible bump can form here in the rear panel and is hard to repair. When levering the tab free, pivot the metal spudger on the rear panel edge instead of bending the rear panel outward.
Use the metal spudger to apply upward pressure under the front panel until the metal clip releases.
You will find two ribbon cables connecting the rear panel to the remaining iPod assembly. In the following step, take care not to damage these ribbon cables. In this step, grasp the front-panel assembly with one hand and the back panel with the other. Pause for a moment before continuing. Very gently release the remaining rear-panel clips by pulling the tops of the front and rear panels apart, using the iPod bottom as a hinge. Take great care not to damage the ribbon cables joining the two halves.
With a spudger, slide the connector upward where it holds the orange battery ribbon. Lift the locking bar only about 2 mm to release the cable. Move the orange battery ribbon out of its connector.
Set the rear panel beside the iPod, taking care not to strain the orange headphone jack cable.
Raise the hard drive with one hand to expose the headphone jack ribbon underneath. With a spudger, flip up the plastic tab securing the headphone jack ribbon in place. The tab can rotate up 90 degrees, releasing the ribbon cable. Move the orange headphone jack ribbon out of its connector. The rear panel is now released from the iPod.
After opening, check the lower-case clips. If any clip bent upward, press it back down gently so the rear case can close cleanly.
Use the broad, flat face of the metal spudger to press the clip downward. Work carefully so the thin metal rail does not tear away from the rear panel. While shaping these clips, take care not to damage any headphone jack parts.
Set the rear panel on its side on a clean, hard surface. Carefully but firmly press it downward, rolling the full lip edge back into place. You may need to repeat this several times to straighten the sides well. Slightly overcorrecting the case edges inward is better than leaving them too far out, because reseating the front panel will bend the rear panel back into alignment. Once the rear panel is restored to good condition, continue with the iPod repair.
Rotate the hard drive out of the framework, then set it with the connector facing upward. With a spudger, lift the small black locking tab for the orange hard drive ribbon. The tab rotates upward 90 degrees and frees the ribbon cable.
Move the orange hard drive ribbon cable straight out of its connector. Keep the drive's rubber mounting brackets and foam padding in place for reassembly.
Take out the three Phillips screws that secure the front panel to the metal framework.
Rotate the iPod 180 degrees and take out the 3 Phillips screws holding the front panel to the metal framework on the other edge.
In this step, gently work around the edges of the device to separate the front panel from the gray metal framework. You may meet some resistance, as you will find a mild adhesive used to help hold the two parts together.
Lift the full framework away from the front panel; it carries the screen, logic board, and click wheel. Confirm the click wheel button is seated before reinstalling the framework in the front panel.
The front panel is now released from the iPod.
With a spudger, lift the plastic tab that holds the orange display ribbon. The tab rotates upward 90 degrees toward the display and releases the ribbon cable.
Move the orange display ribbon cable directly out of its connector.
Raise the framework assembly up, and move the display and LCD metal backplate out of the framework assembly.
Take out the two Phillips screws securing the logic board to the framework.
Carefully press the logic board away from the metal framework. Mild adhesive secures the logic board to the framework. Take care not to bend the logic board by pushing too hard in one spot.
Move the click wheel out from under the logic board until its icons are visible. With a spudger, flip up the plastic tab securing the orange click wheel ribbon in place. The tab can rotate up 90 degrees, releasing the ribbon cable.
With a spudger, raise the click wheel cable off the logic board. Take care not to over-bend the cable, since its electronics can be damaged. When reinstalling the click wheel, make sure the click wheel cable is fully seated in its connector.
Move the click wheel cable out of its connector. Raise the click wheel assembly away from the logic board. Do not forget the click wheel button when putting your iPod back together.
With a spudger, flip up the plastic tab securing the orange hard drive ribbon in place. The tab can rotate up 90 degrees, releasing the ribbon cable.
Move the orange hard drive ribbon cable straight out of its connector. If adhesive holds the cable to the logic board, carefully pull up on the cable to loosen it.
The logic board is the remaining assembly.
Product-specific placement, reassembly, and check
- Prepare and access. Confirm the exact model and listing fit first. Use the existing steps as a disassembly guide, gather the specified tools, disconnect power where applicable, and keep screws and cable positions organized.
- Place Replacement Logic Board. Install only the exact board variant after every adjacent cable and assembly has been isolated, then reconnect each interface in its original position.
- Reassemble without force. Reverse only the access steps needed for this repair, keep cables clear of case edges and screw posts, and close clips in stages.
- Validate before final closure. Before final closure, validate startup, charging, storage recognition, display, audio, and controls; a generic symptom alone is not proof of a board fault.
Stop condition: Stop if a connector, latch, screw, clip, housing edge, or the replacement part resists normal alignment. Recheck model fit, orientation, cable routing, and trapped hardware instead of forcing it.
After This Repair
| Check | What to do |
|---|---|
| Run the full function check | Verify power, USB sync, storage, display, audio, controls, and charging before treating the repair as finished. |
| Still not working? | Go back through the connected battery, storage, display, dock, audio, and control paths one at a time. |
Troubleshooting
Quick Diagnosis: Is It The Replacement Logic Board?
Start here before ordering. Work through the checks in order; a symptom alone does not prove this logic board is bad until nearby parts, cables, fitment, or install issues are separated.
Which board is in your iPod? Check this first
-
The board number will not tell you.
820-2437-Ais printed on this 160GB (2009) board and on the earlier 120GB board. It is the one check most buyers try and the one check that cannot work. - Read the capacity the iPod reports. Settings > About shows the capacity and the serial. A thin-case Classic that reports about 160GB is the 2009 build — this listing.
- Check the order number. MC293LL/A (silver) and MC297LL/A (black) are the 160GB (2009) builds this board came from.
- 120GB instead? MB562LL/A and MB565LL/A are the earlier 120GB builds, and they take a different board — see the Late-2008 120GB logic board page.
-
The 2007 thin 80GB is a different board again —
820-2168-A, sold under the iPod Classic 6th Generation pages. - If it will not start and you cannot read the capacity, send us the order number from the back of the case, or the serial, and we will match the board before anything ships.

Before you order this logic board
- Try a force restart first. Reset: hold Menu + Center until the Apple logo. Diagnostics: reset, then hold Previous + Center as the logo appears. Disk Mode: reset, then hold Center + Play/Pause.
- Separate Hold and input behavior. Move the Hold switch and watch whether the lock indicator changes.
- Separate Hold and input behavior. Check related input or hold-switch assemblies if the symptom began after opening the iPod.
- Separate Hold and input behavior. Confirm Hold is off before judging the controls.
- Use this listing only after the checks still point here. If the symptom still points here after those checks, compare Compatible Variants before ordering this logic board.
Other Symptoms That May Involve This Part
| Symptom | What it means & what to check |
|---|---|
| Wont turn on after repair, overheating, won't charge | Check battery, dock power, storage load, and connector seating before moving to the board. |
| wont sync, white screen, beep, Won't Restore, white screen with sound, computer does not detect the iPod, reformat to use with Windows instead of iTunes, need to format but not recognized by the computer, not syncing properly, clip that holds the display ribbon in place is broken, doesn't start up when connected | Use this as a board-level clue only after adjacent assemblies and ribbons have been checked. |
| Swollen Battery, water damage then plugged in and maybe fried | Inspect and clean corrosion first; board replacement only makes sense when damage remains on board-side circuits or connectors. |
| No Sound | Compare headphones, dock audio, and the headphone/Hold assembly before treating the logic board as the cause. |
Failure Signs
Use these checks to decide whether this logic board is the right part, whether a nearby part should be checked first, or whether the symptom needs more diagnosis.
| Symptom | What it means & what to check |
|---|---|
| Hold, lock, or input state can mimic another failure |
What you may see: People describe controls or device behavior that changes with the Hold switch, lock icon, or input state.
Check first: Move the Hold switch and watch whether the lock indicator changes.
Most likely cause: The symptom may be routed through the Hold/input path rather than the logic board itself.
Look elsewhere when: Check the Hold switch path first when the device appears locked or ignores input.
|
| Logic Board appears unresponsive or intermittent |
What you may see: People describe behavior where the logic board seems dead, intermittent, or only partly responsive.
Check first: Inspect nearby connectors and flex paths if the iPod has been opened. Most likely cause: The logic board can be involved, but connector seating, adjacent cables, power state, or board-side paths can produce similar symptoms.
|
| Power, charging, or runtime symptoms |
What you may see: People describe short runtime, charging trouble, sudden shutoff, or an iPod that will not reliably power on. Check first: Test with a known-good charger and cable before opening the iPod.
Most likely cause: The logic board can be the cause, but charging, dock, storage, or board paths can create similar power behavior.
Look elsewhere when: Check charger/cable behavior, dock connector condition, storage startup clues, and board damage when the symptom is not isolated to battery performance. |
| Blank, white, black, lined, or backlight display |
What you may see: People describe a blank screen, white or black display, missing backlight, lines, or a display that changes after impact or repair.
Check first: Confirm the iPod still plays, charges, or is recognized so the screen symptom can be separated from a dead device.
Most likely cause: The logic board can be damaged, but display ribbon seating, connector condition, liquid history, or board-side display circuitry may need checking first.
Look elsewhere when: Check ribbon seating, liquid history, and board connector damage before treating the display as a guaranteed fix. Check the screen and display-ribbon path first when the iPod still powers, plays, charges, or syncs. If the clue repeats after the connector and ribbon are seated, continue with board-level diagnosis. |
| Dock, USB, sync, or charging connection trouble |
What you may see: People describe charging, USB recognition, sync, or dock-connector behavior that is intermittent or missing.
Check first: Try a known-good cable, charger, and computer port before opening the iPod.
Most likely cause: The logic board can be involved, but cable condition, port contamination, battery state, storage behavior, or board damage can create overlapping symptoms.
Look elsewhere when: Check cable, charger, battery, storage restore state, and board condition when the dock path is not clearly isolated. |
| Fitment or model-variant mismatch |
What you may see: People ask whether a similar-looking part from another model, capacity, or generation will work.
Check first: Match the exact model, generation, capacity, and case style shown for the product.
Most likely cause: The logic board may differ by model, case style, connector, cable length, bracket, or firmware/storage expectation.
Look elsewhere when: Check fitment before replacing nearby parts or ordering another copy of the same wrong variant. If the clue repeats after the connector and ribbon are seated, continue with board-level diagnosis. |
| Liquid, corrosion, or residue near this part |
What you may see: People describe symptoms after liquid exposure, dirty contacts, corrosion, or residue around internal parts.
Check first: Look for corrosion, residue, lifted contacts, or darkened connector areas.
Most likely cause: Corrosion can affect the logic board, its connector, or a nearby board path, so liquid history is a reason to inspect before assuming one part is bad.
Look elsewhere when: Check the board connector and nearby assemblies first when corrosion is not limited to this part. |
| Logic Board ribbon, connector, or contact path |
What you may see: People describe symptoms that change after opening the iPod, reseating parts, or disturbing nearby flex cables.
Check first: Inspect the relevant ribbon and board connector before replacing the part.
Most likely cause: The logic board may be fine while its ribbon, connector, latch, or contact path is loose, dirty, damaged, or not fully seated.
Look elsewhere when: Check the board-side connector or adjacent cable first when the damage is not on the replaceable assembly. Cautions: Keep this option as advanced or professional diagnosis unless replaceable parts have been ruled out. |
| Storage warning symptoms usually start with drive or cable checks |
What you may see: People may see a sad iPod, red X, folder icon, clicking drive, restore loop, or storage-recognition problem, especially after drive, flash, cable, or board work.
Check first: Reseat the hard-drive or ZIF ribbon at both the logic-board end and the drive or adapter end before considering a board replacement.
Most likely cause: Most storage-warning symptoms start with the hard drive, hard-drive cable or ZIF seating, flash adapter setup, formatting, or battery load before they point to the logic board.
Look elsewhere when: Check the hard drive, hard-drive cable or ZIF ribbon, flash adapter, formatting, and battery spin-up/load before treating sad iPod, red X, folder, clicking, or restore symptoms as a board failure. |
| Symptoms changed after repair or reassembly |
What you may see: People describe a new problem appearing immediately after battery, storage, display, audio, or control work.
Check first: Reopen only as far as needed to inspect the areas touched during the repair.
Most likely cause: A post-repair symptom can involve the logic board, but disturbed ribbons, latches, grounding, connector seating, or the wrong variant part are common checks before ordering again.
Look elsewhere when: Check the exact connector or assembly disturbed during the repair before treating the new part as failed. If the clue repeats after the connector and ribbon are seated, continue with board-level diagnosis. |
| Symptom remains after basic checks |
What you may see: The iPod still points back to Replacement Logic Board after cable seating, battery stability, and nearby connector checks. Check first: Retest with known-good cables or adjacent parts where practical before ordering. Check next: A nearby cable, connector, battery, storage device, display path, audio path, or board path can mimic a bad logic board. |
| Symptom changes when touched or reseated |
What you may see: The symptom changes after moving the part, reseating a cable, or applying light pressure near the connector path. Check first: Inspect the connector, latch, flex, solder joints, and nearby board area for damage or corrosion. Check next: This can still be a connection issue rather than a failed logic board alone. |
| Problem began after another repair |
What you may see: The issue started immediately after opening the iPod, replacing another part, or disturbing an internal cable. Check first: Reopen only as far as needed and inspect the exact area touched during the previous repair. Check next: Post-repair symptoms often trace to seating, latch, screw, or cable issues before Replacement Logic Board itself is confirmed bad. |
Do Not Buy This Logic Board Yet If...
| Situation | Start here instead |
|---|---|
| A replaceable attached-part path is isolated | Test the likely battery, storage, screen, audio, cable, or connector path first. |
| Recent service or connector disturbance is the main clue | Reopen carefully, reseat the part that was disturbed, and inspect its latch before buying a board. |
| You see a folder icon, clicking noise, or restore failure | Check the drive or flash media, storage cable, adapter seating, formatting, and restore path before replacing any part. |
| The problem is the Hold switch or headphone jack, not this part | Diagnose the exact-model headphone-jack/Hold assembly and its connector before choosing another part. |
| Only the screen is affected and everything else works | Start with the screen, display ribbon, and backlight path before replacing the logic board. |
| Variant or capacity does not match this listing | Use the nearby battery, storage, screen, audio, cable, or connector listing that matches the symptom first. |
| Cable, computer, sync, or port behavior is the primary problem | Inspect and reseat the cable, latch, or connector path disturbed during service before buying another part. |
What Owners Report
These are anecdotal owner reports, not guarantees or authoritative proof that a particular part will fix a symptom. Use them as a troubleshooting starting point: confirm the symptom, run the quick checks, then match the fix. Every one of them is a reason to check something else before a board.
Will not charge, odd charging icon, or charger-dependent behavior
Symptoms. No charging screen; "Charging, please wait" with a warning triangle; the icon never fills; plays only on a dock, car kit or wall adapter; a white "OK to disconnect" screen that will not clear.
Check first. Toggle Hold, hold Menu + Center until the Apple logo, then give it 30 minutes on a wall adapter — a flat cell cannot answer a computer. Keyboard and hub ports do not charge it. A FireWire-wired 30-pin cable powers it but never syncs it, so check the cable generation.
Fix. Dies the moment it is unplugged: check the battery first — a bigger drive or flash conversion is a separate choice, answered on the storage pages. This model takes the thin cell (see the battery-identification entry). No charge with a good battery, cable and clean connector, or a worn port: that is board-level work. Reported by 52 owners.
Dead device or will not turn on
Symptoms. Screen black mid-use and never comes back; unresponsive to buttons or cable; shows only the Apple logo; reboots every couple of seconds on power; runs only while connected to power; "please wait — low battery" that never clears.
Check first. Hold off, then Menu + Center until the Apple logo. Nothing? An hour on a wall adapter, then try again — a deeply drained cell will not charge from a weak port. Stuck on "please wait — low battery": toggle Hold, enter Disk Mode (reset, then Center + Play/Pause), plug in, charge, reset again.
Fix. Runs plugged in but dies when unplugged: the cell is the usual answer. A looping logo can equally be storage or a loose drive ribbon — listen for clicking and read the drive cards first. Owners report car adapters and docks overheating a unit before it died; check the adapter before reusing it. Reported by 18 owners.
Computer won't recognize it — power-side cases
Symptoms. Does not start and the computer sees nothing; flashes the Apple logo when plugged in; works in the car but shuts off the instant it is unplugged; the wall-charger light flips off the moment the iPod is connected; whirring or clicking, then it drops off iTunes.
What it often is. Power, not data: the battery must hold enough charge for the iPod to turn on before any computer can see it. Give it 30 minutes on a wall adapter, then unplug the cable at both ends, check for debris and use a rear USB port on the computer.
Then. Inspect the dock connector for lint, corrosion and bent pins; owners report the charger light going out the instant the iPod is connected when pins are shorted. Wet: stop powering it and have it inspected first. Whirring or clicking before it disappears points at storage — read the drive cards. Reported by 9 owners.
Stuck on the Apple logo, or invisible to the computer — the Disk Mode steps
Symptoms. Frozen on the Apple logo and resetting straight back to it; plays music but iTunes never sees it; "restore with iTunes" on screen while nothing appears in iTunes or the file explorer.
The steps. Reset first: Hold off, then Menu + Center until the Apple logo. Still nothing? Disk Mode: reset, then hold Center + Play/Pause until the disk screen appears. Apple gives Disk Mode as the route when an iPod cannot be restored or is not recognized; a computer often mounts it there when iTunes cannot.
Before you restore. Any restore, format or initialize erases everything on the iPod, so copy off anything that exists only on it first. Coming back through Disk Mode does not say what failed: a loop that returns after a full charge and a clean restore still needs the battery and storage checked. Reported by 5 owners.
Docks, 30-pin cables, car kits and a broken port
Symptoms. Blinks on and off with a faint click when plugged in, nothing when unplugged; boots only on a powered dock; a dock with a built-in display gets audio but no picture; a new car won't recognize it over USB-C; the 30-pin connector is physically broken.
Power first. Blinking on cable power with nothing on battery is a power question: check the battery, its connector and another cable before the port. The faint click is usually the drive spinning up.
Separate the paths. Over FireWire this iPod charges only; USB carries sync as well. Tell us the exact dock or car accessory — owners report old docks giving sound but no picture, and a plug adapter cannot add video or a protocol an accessory needs.
Fix. A broken 30-pin connector is soldered to the board: it needs a board-level assessment, not a bezel. Reported by 5 owners.
No sound at all — jack or audio circuit
Symptoms. Plays on screen (the progress bar moves) but silence in any headphones; an audible "pop" on plug-in but no music; sound over the dock path but not the jack — or no sound anywhere; silence after sitting on a magnet.
Split the paths. Known-good headphones pushed all the way in — Apple's own check — then play through a dock or line-out. Sound there but silence in the headphones points at the jack assembly. Silence on both outputs is a reason for board-level diagnosis, not proof of a chip fault, and not a repair we can promise will cure it.
Also worth doing. A restore before opening anything — software mix-ups do produce phantom silence. Silence after a magnet: reset and restore first, then the storage checks if it persists.
Fix. The jack and Hold switch come as one assembly; opening the case is the hard part of the job. Reported by 6 owners.
Worth Knowing
- Cirrus Logic CS42L55 — Audio CODEC — stereo DAC with headphone amp
- NXP/Philips PCF50635 — Power management IC
- Linear Technology LTC4066 — USB power manager with Li-Ion charger
Stuck on the Apple Logo / Boot Loop: What Owners Actually Run Into
A 7th generation Classic frozen on the white Apple logo — or flashing it and restarting over and over in an endless boot loop — is failing partway through startup, usually because it cannot read its hard drive or cannot hold enough power to finish booting. The frustrating part on this model is that a worn-out battery, a failing drive, a loose drive ribbon cable, a flash-mod setup mistake, and even an oversized music library all end in the same looping logo. A few minutes of listening and two button combinations usually separate them — and decide whether you need a battery, a drive, an inexpensive cable, or no part at all.
Anecdotal owner reports (not a guarantee or authoritative proof): - A 7th gen owner plugged the iPod in and found the screen stuck on the Apple logo, flickering on and off "almost like a boot loop" — the classic first sighting of this failure, before any icon or error appears. - Another 7th gen owner watched the Apple logo appear but the menu never load; from time to time the screen asked to connect to iTunes and restore, but the restore never took. That mix — logo, no menu, restore prompt that fails — points at storage the firmware can see but cannot reliably read. - An A1238 owner replaced the 160GB hard drive because the original was defective — and got a never-ending restart cycle instead: Apple logo for a few seconds, shutdown, restart, forever. Disk mode still worked and the computer could even read the new drive's contents, but iTunes could not see it. A new drive that loops like this is nearly always a seating or restore/format problem, not a second dead drive. - A 7G thin 160GB owner did a careful battery swap and the iPod came out apparently dead — except for a faint Apple logo flashing for a split second, endlessly, whenever plugged in. Reinstalling the original battery brought it straight back to life. The replacement cell, not the repair, was the problem: a bad or badly seated new battery produces a textbook boot loop. - An owner upgraded a 7th gen with a dual-slot ZIF adapter and two 250GB SSDs; afterward the Apple logo reset every 5-10 seconds and the PC could not see the iPod at all, even after reseating the adapter cable. Boot loops that begin immediately after a storage conversion are a setup problem — format, slot order, restore — far more often than failed hardware. - A buyer of a refurbished 160GB 7th gen had it run perfectly while plugged in, then crash the instant the cable came out and reboot endlessly — while the battery icon claimed a full charge and even the built-in diagnostics showed maxed battery readings. The drive's counters showed nearly 100,000 start/stop cycles. Two restores changed nothing: the cell itself was done, and the "full" reading only reflected charger power. - Another owner bought a 7th gen already stuck at the Apple logo, worked it into disk mode, and ran the drive's health check — no bad sectors. The drive behaved identically when tested in a second iPod, clearing the logic board and connector. The trail ended at drive formatting: a drive set up on the wrong system can leave the iPod booting to a logo it can never get past, with nothing physically broken.
How it usually progresses: - When the drive is the cause, it rarely fails all at once. The usual arc: songs skip or cut off and syncs stall, boots get slow or hang at the logo for minutes before succeeding, then audible clicking or whirring appears at startup, and finally the logo gives way to a red circle-with-X — this generation's replacement for the old "sad iPod" face — or the iPod simply loops. Each stage is the drive losing more of its ability to read. - When the battery is the cause, the arc is different: runtime shrinks over months, then the iPod only works plugged in, and finally — on battery — it can manage nothing but a dim Apple logo flashing every couple of seconds. In the worst stage the reboot cycle is so fast owners report being unable to even enter disk mode between restarts. - A long-stored unit adds one more stage: deeply drained cells can hold the iPod at "Charging, Please Wait" for a long time, because the iPod can only trickle-charge on that screen and cannot charge at all during the Apple-logo part of a boot attempt. A looping unit with a weak cell can stay trapped this way — which is why a long, patient session on a USB wall adapter comes before any verdict.
What typically causes it: - Startup on this iPod has one job it cannot skip: power up the drive, mount it, and read the operating system and music database off it. When any step fails, the iPod either hangs on the Apple logo or gives up and resets to try again — the boot loop you are watching is the iPod retrying the same failed startup over and over. - The most valuable tell in all of Classic repair is timing. If the Apple logo flips to a folder icon almost immediately, the hard drive ribbon cable is the usual fault — it friction-fits into its connector and works loose. If the iPod hangs on the logo for several seconds before erroring, the drive itself has failed. A repair technician cited in the research sees it constantly: a large share of iPods on the bench just need the cable reseated or replaced. Mixing these two cases up is the single most common misdiagnosis — owners buy a whole drive when a cheap cable was the fix. - A worn-out battery impersonates a dead drive almost perfectly. Spinning up the hard drive takes a surge of current; an aged cell with high internal resistance lets the voltage collapse mid-boot, the iPod resets, and the cycle repeats — a faint, flashing Apple logo every few seconds. A battery flex cable left slightly loose after a repair causes the same repeating reboot. This is why the standard advice is to charge on a USB wall adapter for a long stretch before condemning any hardware. - On big flash-upgraded builds there is a boot loop with nothing broken at all. The 7th gen loads its entire music database into memory at startup; past roughly 40,000-50,000 tracks the database no longer fits, the system crashes while loading it, automatically restarts, and crashes again — an endless loop on perfectly healthy hardware. The exact ceiling shifts with how much artwork and metadata your tracks carry. - Flash-storage conversions add their own boot-loop causes: shuffling SD cards between slots of a multi-slot flash-storage adapter after a restore leaves duplicate boot partitions across cards, which produces hangs and spontaneous reboots; cards formatted exFAT or NTFS cannot be read by the iPod at all (it needs FAT32 with an MBR layout, or Mac HFS+) and boot-loop until reformatted; and some card families are known troublemakers in these adapters — some SD card/controller combinations/Extreme cards cause skipping and random reboots, Kingston Canvas cards near-guarantee errors or endless boot loops. - Two things this is NOT on the 7th generation: the 6th gen's well-known reboot bug with storage over 128GB does not exist here — this model handles large drives natively, so capacity alone never causes the loop. And a tired battery does not cause the red circle-with-X icon; that icon specifically means the iPod cannot communicate with its storage (drive, cable, or adapter), which keeps the battery and drive cases from being confused once an icon appears.
Handle it safely: - The battery connects through a small 5-pin connector with a brown locking latch on the board. If you open the iPod chasing a boot loop, lift the latch and withdraw the battery ribbon straight along its insertion direction — pulling it sideways or at an angle can rip the entire connector housing off the board and destroy the power traces under it, turning a battery-sized repair into a dead logic board. That damage is one of the most common ways a fixable boot loop becomes an unfixable iPod. - The hard drive cable's brown locking latch is equally unforgiving: if the latch breaks, the cable can never clamp properly again, and the iPod is left with intermittent drive detection — a permanent, maddening boot-loop generator that no new drive fixes. Flip the latch gently and never force the ribbon while the latch is closed.
Owners searching for this describe it as: ipod classic stuck on apple logo, ipod classic 7th gen boot loop, ipod classic keeps restarting apple logo, ipod classic restarts over and over, ipod classic flashing apple logo, ipod classic won't boot past apple logo, ipod classic apple logo then red x, ipod classic endless reboot, ipod classic only works when plugged in, ipod classic restore loop, ipod classic boot loop after flash adapter, a1238 continually restarts.
Questions
Frequently Asked Questions
Use these questions to narrow the part path before ordering. They keep each answer focused on a different diagnostic or fitment decision.
What Replacement Logic Board models does this fit?
This is the 820-2437-A board for the 160GB (2009) build: MC293LL/A (160GB Silver) and MC297LL/A (160GB Black). The earlier 120GB builds MB562LL/A and MB565LL/A carry the same 820-2437-A print but take a different board — see the Late-2008 120GB logic board page. Because the printed number is the same on both, go by the capacity your iPod reports or its order number, and ask us if it will not start and you cannot read either.
Do I need to solder?
No, this installation does not require soldering. Difficulty: Very Difficult. Estimated time: 1 - 2 hours.
How do I know if this logic board needs replacement?
These symptoms require exact-model diagnosis first; consider the logic board only after power, storage, cable, display, audio, and control checks isolate a board fault. Check fitment, connectors, and nearby parts before treating symptoms as proof.
Can water damage, liquid, or corrosion make this logic board the right repair path?
Look for visible liquid residue, corrosion, burned parts, lifted pads, or damaged board connectors. Do not use a parts swap as the only test when liquid damage is present; clean and inspect the board path first. Look for corrosion, residue, lifted contacts, or darkened connector areas. Check whether damage is on the replaceable part or on the board-side connector. Choose this logic board only when the failure is isolated to the board path after external and replaceable-part checks.
My dock won't see the iPod, or it connects then ejects itself. What should I check?
Owners describe: syncs on the computer but a speaker dock or hi-fi won't see it; connects then self-ejects seconds into a sync; "USB device not recognized"; works on a dock but not from the battery or the computer; sync stops partway with read/write errors.
Start outside the iPod: a known-good Apple cable, a different USB port on the computer itself, the dock tried with another device — one accessory refusing it while everything else works points at the accessory. A flat battery is never recognized: charge it first.
A dock that works while the battery does not points at the battery. A sync that dies partway with read/write errors is a storage question. Non-recognition alone does not prove a failed 30-pin port; board-level work comes last, after cable, port, power and storage. Reported by 6 owners.
The battery connector broke off the board — can I just run it on the cable?
Owners describe it as: the battery cable or its connector came off the logic board during a repair, and the question is whether the iPod can still be used plugged in.
Owners disagree — some report a 12V FireWire-type supply runs it, one owner of this model reports it did not; treat cable-only running as unreliable and fix the connector.
Once the socket has left the board, no battery fixes it: the connector has to be re-soldered, or the board replaced — board-level work, see the logic-board page. Suppliers do sell the plastic battery-terminal part, but a part being available does not mean the repair needs no soldering.
Prevention, for the next time the case is open: lift the brown lock tab straight up and pull the ribbon straight out. The connector is frail and breaks if it is shifted sideways.
Is this an iPod Classic?
Apple sold this model as iPod classic (Late 2009). '7th Generation' is common repair-market shorthand for the thin 160GB A1238 model, not an official Apple product name.
Dead iPod- NOT the battery?
Start with power and battery checks before blaming this logic board. Confirm the cable, charger, battery connection, and storage-load behavior, then run the built-in diagnostics (reset with Menu + Center, then hold Previous + Center as the logo appears). If the trouble is that a computer cannot see it, rule the computer out first: a known-good cable in a rear USB port, then a second computer — on Windows, iTunes for Windows, or the newer Apple Devices app.
