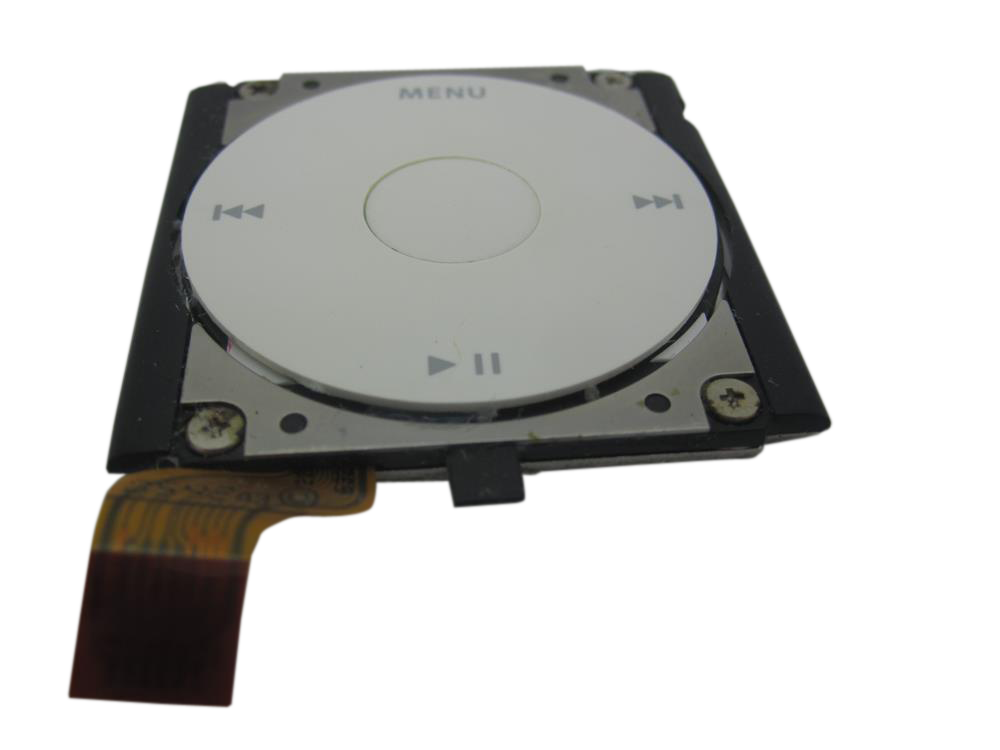

Replacement control input part for iPod Mini 2nd Generation. Use it when the wheel, buttons, center Select area, or flex is physically damaged or still fails after Hold state, frozen software state, and connector seating are checked.
Product Overview
Choose this click wheel listing to restore wheel, button, and center-Select input on the iPod Mini 2nd Generation when the control assembly or its flex is damaged or unresponsive.
Use Part Details for the confirmed part-number reference. Use the Compatible Variants table below to confirm capacity, color, or order-number fitment.
Choose this part when your iPod shows Frozen / Unresponsive or Click Wheel Not Working; the checks below help confirm the right part before you order.
Choose Your Option
This part comes in multiple variants. Confirm your iPod's generation, color, and order number before ordering.
Used factory original Apple blue click wheel for iPod Mini 2nd Gen. Match by Mini generation and color.
You're viewing this optionWhat Is Included
Quick Buying Check
Buy this when
- Click Wheel Not Working: Use the controls check after checking Hold state, force-restart behavior, ribbon seating, and whether the issue affects the whole wheel or just one button.
Diagnose first when
- Do not substitute Mini click wheels across generations. Match the click wheel to Mini 2nd Generation specifically.
- Confirm the capacity match before ordering: 4GB, 6GB.
- Try the simple power, cable, connector, or reset checks before ordering.
- If the problem started immediately after opening the iPod, inspect the parts that were disturbed first.
Specifications & Fitment
Part Details
| Detail | Value |
|---|---|
| Model Number | A1051 |
| EMC | EMC 2044 |
| Condition | Used — factory original Apple part. Normal cosmetic wear expected. |
| OEM Part | 632-0303-A |
| Controller | Developed for Apple by Synaptics |
| Type | Capacitive click wheel |
| Interface | Mini 2nd Generation click-wheel flex connector |
| Color | Color-matched text to case |
Compatible Variants
| Order Number | Capacity | Color | Case | Compatible | Notes |
|---|---|---|---|---|---|
| M9802LL/A | 4GB | Blue | — | Yes | — |
| M9806LL/A | 4GB | Green | — | Yes— compatible | Color swap — physically fits, different color from original |
| M9804LL/A | 4GB | Pink | — | Yes— compatible | Color swap — physically fits, different color from original |
| M9800LL/A | 4GB | Silver | — | Yes— compatible | Color swap — physically fits, different color from original |
| M9803LL/A | 6GB | Blue | — | Yes | — |
| M9807LL/A | 6GB | Green | — | Yes— compatible | Color swap — physically fits, different color from original |
| M9805LL/A | 6GB | Pink | — | Yes— compatible | Color swap — physically fits, different color from original |
| M9801LL/A | 6GB | Silver | — | Yes— compatible | Color swap — physically fits, different color from original |
is not compatible with
- iPod Mini 1st Generation click-wheel assemblies
- Other click-wheel colors when a color-matched restoration is required
- Housing, top bezel, bottom bezel, battery, or storage drive
- iPod Mini 1st Generation click wheel (632-0246-A) — seats physically, no electrical response (Tier-0 verified)
Failure Signs
Use these checks to decide whether this click wheel is the right part, whether a nearby part should be checked first, or whether the symptom needs more diagnosis.
Center / Select button does not respond or stops clicking
What you may see: People describe the center, middle, or Select button as no longer clicking, selecting, or responding.
- This can happen even when the scroll ring still responds.
- The center, middle, or Select button feels stuck, sits low, or stops selecting.
Check first: Confirm Hold is off before judging the controls.
- Separate center-button-only behavior from a dead scroll ring or multiple failed buttons.
- If the iPod has been opened, inspect the click-wheel ribbon, seating, and ground path before ordering another part.
- Separate center-button-only failure from a dead scroll ring or multiple failed buttons.
- Inspect click-wheel ribbon seating, latch position, and ground path after reassembly.
- Unlock Hold for pre-open testing, then separate wheel, center/select, Menu, and ribbon-seat behavior before replacing the controls.
Most likely cause: A button-only symptom can involve the click-wheel assembly, contact path, board-side switch, or how the assembly is seated.
- If several controls are dead, treat it as a whole click-wheel or connection problem instead of a center-button-only problem.
- Choose this click wheel only when the assembly, flex, or button path is damaged or no longer making reliable contact.
- Choose this click wheel when the symptom remains isolated to this assembly, its ribbon, or its connector path after first checks.
- This click wheel is Mini 2nd Generation ONLY (part 632-0303-A). Installing the wrong one will not work.
- Do not mix iPod mini 1st-gen and 2nd-gen click wheels. The connectors are identical and the wrong wheel seats normally — it just gives no response (owner-verified).
- iPod Classic (any generation) — different click wheel assembly and connector.
- Button-only work may involve reseating or replacing the click-wheel path, while board-side switch work belongs in escalation context.
- Replace the full click wheel when inspection points to the assembly, flex, contact path, or ribbon rather than only the board-side switch.
- Replace the click wheel when the assembly or flex remains damaged after seating checks.
Look elsewhere when: If the lock symbol is active or the Hold slider is not behaving correctly, check the headphone jack / hold-switch assembly before blaming the click wheel.
- Check the headphone/hold assembly for confirmed Hold switch faults before blaming the click wheel.
Repair considerations
Repair specialists who work on this model consistently flag these checks before replacing the click wheel — they help confirm the click wheel is the right fix and not a nearby fault:
- Replace Click Wheel or control assembly
- Recenter or sparingly reattach a shifted rubber button pad
Do Not Buy This Click Wheel Yet If...
| Situation | Start here instead |
|---|---|
| Variant or capacity does not match this listing | Use the iPod Mini 1st Generation click wheel (632-0246-A); it looks identical and the connector seats, but it gives no electrical response across Mini generations — match the generation. |
| A symptom points to a different part | Start with battery for power/runtime symptoms; hard-drive cable for folder, clicking, or restore symptoms; dock-port bracket for dock, sync, or charge-port symptoms; logic board for board-side damage or multi-system symptoms before buying this part. |
| You see a folder icon, clicking noise, or restore failure | Start with the storage drive, drive cable, or flash-storage check for your model before buying this part. |
| Charging, swelling, runtime, or power is the primary problem | A swollen battery can press on the LCD in this model. Replace the battery first if the case is bulging, then check whether display symptoms remain. |
| The problem is the Hold switch or headphone jack, not this part | Start with the headphone/Hold assembly when the lock state or Hold slider is suspect. |
Install Overview
Before You Start
For pre-open diagnosis, unlock Hold and hold Menu + Select for about 8 seconds if needed. Before opening, lock Hold so the orange bar is visible, then confirm the model and variant.
Treat case opening as the highest handling risk. Work around the seams gently and stop if the shell, clips, or internal stack resist.
Do not pull the halves apart or side-load board sockets. Reseat nearby ribbons and connectors before blaming a replacement click wheel.
Repair steps
Documented repair-procedure steps for replacing the click wheel on this model (from teardown guides; confirm against your unit before starting):
- Carefully slide the iPod out of its casing by pushing on the logic board near the bottom edge of the click wheel.
- Continue to pull back on the black plastic tab and use your other hand to press down on the click wheel and begin to slide it out of the iPod.
- Continue to pull back on the black plastic tab, use your other hand to press down on the click wheel, and begin to slide it out of the iPod.
- Use a spudger to pull back on the small black plastic tab holding the click wheel in place.
- [NOTE] It's important to press down on the click wheel as you slide it out, otherwise the click wheel could be scratched by the iPod's metal casing.
Repair Guide
Repair guide summary: iPod Mini Click Wheel Replacement.
Show all 7 installation steps
Carefully slide a small flathead screwdriver or Jimmy into the seam between the metal casing and white plastic bottom. Lever up the white bottom bezel, taking care not to damage the soft plastic.
A small pair of snap-ring pliers is the best tool to take out the metal retaining bracket. You can also lever out the metal retaining bracket beneath the bottom bezel with a flathead screwdriver. Release the bracket by pressing in the corner metal arms first.
Lift the released bracket away and set it aside.
With a spudger or fingertip, carefully disconnect the orange click wheel ribbon from the logic board.
With a spudger, draw back on the small black plastic tab securing the click wheel in place.
Keep pulling back the black plastic tab while pressing down on the click wheel with your other hand, then start sliding the wheel out of the iPod. Press down on the click wheel while sliding it out so the iPod metal casing does not scratch it. To protect the click wheel during removal or installation, cover it with blue painter's masking tape; the tape removes cleanly when the work is finished.
Keep sliding the click wheel outward until it releases from the iPod.
After This Repair
| Check | What to do |
|---|---|
| Test every control | Check Menu, Select, Play/Pause, Previous, Next, scrolling, and Hold behavior before closing the case fully. |
| If controls are still odd | Reseat the control ribbon, confirm the Hold switch is off, and inspect any ground strap or latch touched during service. |
Frequently Asked Questions
Use these questions to narrow the part path before ordering. They keep each answer focused on a different diagnostic or fitment decision.
What Replacement Click Wheel (Blue) models does this fit?
This Replacement Click Wheel (Blue) fits: M9802LL/A (4GB Blue), M9803LL/A (6GB Blue).
Do I need to solder?
No, this installation does not require soldering. Difficulty: Moderate. Estimated time: 15 minutes.
How do I know if this click wheel needs replacement?
Symptoms that can point to this click wheel include: Frozen / Unresponsive, Click Wheel Not Working. Check fitment, connectors, and nearby parts before treating symptoms as proof.
What else should I replace at the same time?
Battery and Click Wheel are both accessed during disassembly — inspect the battery while open. Click wheel removal requires case disassembly — inspect casing condition.
How do I confirm this is the right part for my iPod?
Use the Quick Buying Check, Failure Signs, and Do Not Buy sections together before ordering. The symptom should still point to this click wheel after nearby parts and fitment are separated.
Is this sometimes called a scroll wheel?
Some marketplace listings use older wheel wording, but Apple's official term is Click Wheel.
Why people land on this part
Use the checks above to separate this click wheel from nearby parts before ordering.
Some buyers search for "engraved"; confirm the checks above point to this same part before ordering.
Also searched as: iPod mini 2nd gen blue click wheel, click wheel unresponsive, click wheel connector, ribbon cable, seat connector, click wheel plugged, click wheel work, clickwheel, iPod mini 2nd gen scroll wheel, Frozen / Unresponsive, Click Wheel Not Working, click wheel ribbon, center button, hold button.
Worth Knowing
- Mini 2nd Generation exclusive — colored text matching case.
