Replacement storage path for iPod Mini 2nd Generation. Use it for failed hard-drive behavior, restore trouble, or storage upgrades after the battery is stable and the drive cable or adapter seating has been checked.
Product Overview

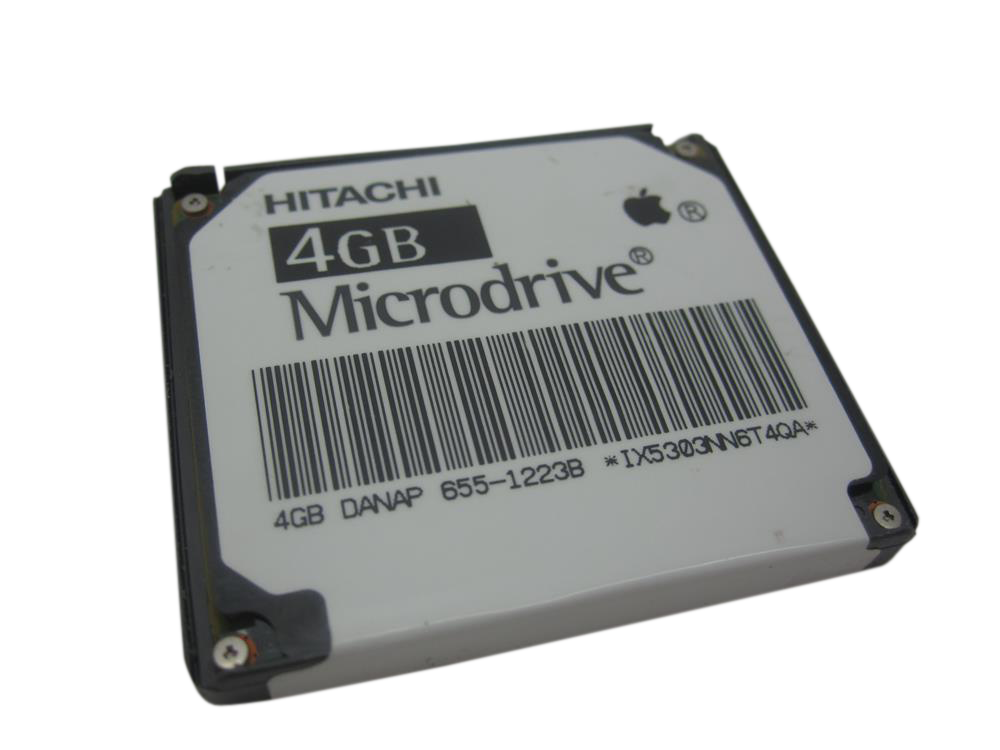

This hard drive listing covers Replacement Microdrive (4GB) and its own connector path on the iPod Mini 2nd Generation.
Use Part Details for the confirmed part-number reference. Use the Compatible Variants table below to confirm capacity, color, or order-number fitment.
Choose this part when your iPod shows Folder Icon, Sad iPod Icon, Clicking Noise, or Corrupted Data; the checks below help confirm the right part before you order.
Storage failure symptoms such as a sad iPod, folder icon, restore loop, or the audible click of death should still be checked against the drive cable and connector seating before replacing the drive.
Choose Your Option
This part comes in multiple variants. Confirm your iPod's capacity and order number before ordering.
Match the Mini 2nd Generation 4GB model/variant when replacing with an original-capacity microdrive.
You're viewing this optionUse this linked storage option only for 6GB iPods and the order numbers shown here.
View this option →What Is Included
Condition: Used factory-original part. Quantity and exclusions: The listed part, set, pair, or configuration above is supplied with exactly one plastic pry tool. No other parts, tools, adhesives, or materials are included unless they are explicitly listed above.
Quick Diagnosis: Is It The Replacement Microdrive (4GB)?
Start here before ordering. Work through the checks in order; a symptom alone does not prove this drive is bad until nearby parts, cables, fitment, or install issues are separated.
Before you order this drive
- Try a force restart first. Toggle Hold on and off, then hold Menu + Select (the center button) for 6 to 10 seconds, until the Apple logo appears. Guides that say Menu + Play describe the older, pre-click-wheel iPods.
- Check the next listed clue. Listen for repeat clicking or repeated spin-up attempts before replacing storage parts.
- Try Disk Mode or restore isolation. Check whether the iPod enters disk mode, restores cleanly, and is recognized by the computer.
- Reseat and inspect the connector path. If a drive or flash adapter was just installed, recheck cable seating, adapter orientation, and formatting before buying another part.
- Use this listing only after the checks still point here. If the symptom still points here after those checks, compare Compatible Variants before ordering this drive.
Other Symptoms That May Involve This Part
| Symptom | What it means & what to check |
|---|---|
| red x, sad face | These warnings mean the iPod cannot reach a usable storage path; check the cable first, then the drive. |
| sad ipod, red x, clicking drive, restore loop, or disk-mode trouble, grinding noise, grinding sounds, grinding | Mechanical clicking or grinding points toward the drive after the hard-drive cable has been reseated and checked. |
| not recognized, recovery mode, can't restore with error 1429 | Treat this as a restore or storage-path symptom, not proof of a bad drive; the drive becomes more likely when cable, USB, formatting, and restore checks still lead back to storage warnings. |
| frozen | Playback skips, freezes, or corrupted data become drive clues when they happen during storage access or sync. |
Specifications & Fitment
Part Details
| Detail | Value |
|---|---|
| Model Number | A1051 |
| EMC | EMC 2044 |
| Condition | Used — factory original Apple part. Normal cosmetic wear expected. |
| Interface | CompactFlash Type II |
| Form Factor | 1-inch microdrive |
| Capacity (4GB models) | 4GB |
| RPM | 3600 |
| Manufacturer | Hitachi / Seagate |
| OEM Part |
HMS360604D5CF00 — Hitachi, 4GB · HMS360606D5CF00 — Hitachi, 6GB · ST640211CF — Seagate, 4GB · ST660211CF — Seagate, 6GB. This listing supplies a 4GB drive. |
Compatible Variants
| Order Number | Capacity | Color | Case | Compatible | Notes |
|---|---|---|---|---|---|
| M9802LL/A | 4GB | Blue | — | Yes | — |
| M9806LL/A | 4GB | Green | — | Yes | — |
| M9804LL/A | 4GB | Pink | — | Yes | — |
| M9800LL/A | 4GB | Silver | — | Yes | — |
| M9803LL/A | 6GB | Blue | — | Yes | Fits physically, but a 4GB drive downgrades a 6GB iPod to 4GB — choose the 6GB Microdrive to keep the original capacity. |
| M9807LL/A | 6GB | Green | — | Yes | Fits physically, but a 4GB drive downgrades a 6GB iPod to 4GB — choose the 6GB Microdrive to keep the original capacity. |
| M9805LL/A | 6GB | Pink | — | Yes | Fits physically, but a 4GB drive downgrades a 6GB iPod to 4GB — choose the 6GB Microdrive to keep the original capacity. |
| M9801LL/A | 6GB | Silver | — | Yes | Fits physically, but a 4GB drive downgrades a 6GB iPod to 4GB — choose the 6GB Microdrive to keep the original capacity. |
is not compatible with
- Not this 4GB option - choose the Mini 2nd Generation 6GB Microdrive if matching original 6GB capacity is required
- Full-size iPod storage drives
Failure Signs
Use these checks to decide whether this drive is the right part, whether a nearby part should be checked first, or whether the symptom needs more diagnosis.
| Symptom | What it means & what to check |
|---|---|
| Sad iPod, clicking, restore, or storage trouble |
What you may see: People describe clicking, sad iPod or folder screens, restore loops, disk-mode trouble, or storage that will not behave after replacement.
Check first: Listen for repeat clicking or repeated spin-up attempts before replacing storage parts.
Most likely cause: The Mini 2nd Generation uses a 1-inch Microdrive in a CompactFlash Type II slot. That tiny mechanical drive is one of the recurring failure points on this model.
Look elsewhere when: Check the storage cable, adapter setup, battery power stability, and board connector when the symptom changes after reseating or swapping storage. |
| Ribbon, storage connector, or ground-path checks |
What you may see: A symptom starts after opening the iPod or disturbing an internal flex cable. Check first: Inspect for liquid, corrosion, residue, torn flex material, or connector damage. Most likely cause: Connector seating, ribbon damage, or ground-path issues can involve this part, a nearby connector, or a board path. Look elsewhere when: Check the Hard Drive Ribbon Cable when storage-cable symptoms after drive replacement, reseating, or adapter work are the main problem.
|
| Symptoms changed after repair or reassembly |
What you may see: People describe a new problem appearing immediately after battery, storage, display, audio, or control work.
Check first: Reopen only as far as needed to inspect the areas touched during the repair.
Most likely cause: A post-repair symptom can involve the storage drive, but disturbed ribbons, latches, grounding, connector seating, or the wrong variant part are common checks before ordering again.
Look elsewhere when: Check the exact connector or assembly disturbed during the repair before treating the new part as failed. |
| Symptom remains after basic checks |
What you may see: The iPod still points back to Replacement Microdrive (4GB) after cable seating, battery stability, and nearby connector checks. Check first: Retest with known-good cables or adjacent parts where practical before ordering. Check next: A nearby cable, connector, battery, storage device, display path, audio path, or board path can mimic a bad drive. |
| Symptom changes when touched or reseated |
What you may see: The symptom changes after moving the part, reseating a cable, or applying light pressure near the connector path. Check first: Inspect the connector, latch, flex, solder joints, and nearby board area for damage or corrosion. Check next: This can still be a connection issue rather than a failed drive alone. |
| Problem began after another repair |
What you may see: The issue started immediately after opening the iPod, replacing another part, or disturbing an internal cable. Check first: Reopen only as far as needed and inspect the exact area touched during the previous repair. Check next: Post-repair symptoms often trace to seating, latch, screw, or cable issues before Replacement Microdrive (4GB) itself is confirmed bad. |
Repair considerations
Run these checks before replacing the drive — they confirm the drive is the right fix and not a nearby fault:
- Restore/format steps can erase data or indicate storage failure
- Treat ribbons, tabs, and connectors as fragile
- Use reset, Disk Mode, restore, or iTunes/Finder behavior as a software/storage check
- Reseat or inspect ribbon cable and connector seating
- Inspect connector latch, socket, or clamp condition
- Replace storage or convert to flash storage
Do Not Buy This Drive Yet If...
| Situation | Start here instead |
|---|---|
| Variant or capacity does not match this listing | Use the correct capacity or model-specific listing instead. |
| You see a folder icon, clicking noise, or restore failure | Check the drive or flash media, storage cable, adapter seating, formatting, and restore path before replacing any part. |
| Charging, swelling, runtime, or power is the primary problem | Start with battery health, charger behavior, and spin-up load before buying storage. On the mini the battery lies behind the display, so a swelling pack shows as a lifted or bowed screen, a dark blotch spreading across the panel, or a case that will not sit flat — not as a stiff center button. |
| Recent service or connector disturbance is the main clue | Inspect and reseat the storage cable, storage connector latch, and board connector before replacing storage. |
| A symptom points to a different part | Start with battery for power/runtime symptoms; hard-drive cable for folder, clicking, or restore symptoms; dock-port bracket only when the internal metal bracket that locates the port is bent or missing; click wheel for click-wheel or control symptoms; logic board for dock, sync and charge-port faults — the 30-pin port is part of the board on this model — and for board-side damage or multi-system symptoms before buying this part. |
Install Overview
Before You Start
For pre-open diagnosis, unlock Hold and use this generation's reset sequence if needed. Before opening, lock the Hold switch so the orange bar is visible, then confirm the model and variant.
Treat case opening as the highest handling risk. Work around the seams gently and stop if the shell, clips, or internal stack resist.
Do not pull the halves apart or side-load board sockets. Reseat nearby ribbons and connectors before blaming a replacement drive.
Check drive-ribbon seating and bumper placement while the iPod is open.
Repair steps
Documented repair-procedure steps for replacing the drive on this model (from teardown guides; confirm against your unit before starting):
- Carefully insert a small flathead screwdriver or Jimmy in the seam between the metal casing and white plastic bottom. Use the screwdriver to pry up the white plastic bottom bezel. Be careful not to damage the soft plastic with your screwdriver.
- Peel back the black tape securing the two blue bumpers to the hard drive near the orange ribbon cable.
- Slide the two blue bumpers off the corners of the hard drive. There is no need to remove these bumpers entirely.
Disassembly Guide
Disassembly guide summary: iPod Mini Hard Drive Replacement.
Show all 13 installation steps
Confirm that the hold switch is locked before you open the iPod.
Carefully slide a small flathead screwdriver or Jimmy into the seam between the metal casing and white plastic top. Lever up the white top bezel, taking care not to damage the soft plastic. The top bezel is adhesive-backed, so you may need to lever it up from several spots before it releases. Heat up the adhesive for a few seconds with a hair dryer on low heat to make the job easier.
Raise the top bezel off the iPod.
Carefully slide a small flathead screwdriver or Jimmy into the seam between the metal casing and white plastic bottom. Lever up the white bottom bezel, taking care not to damage the soft plastic.
A small pair of snap-ring pliers is the best tool to take out the metal retaining bracket. You can also lever out the metal retaining bracket beneath the bottom bezel with a flathead screwdriver. Release the bracket by pressing in the corner metal arms first.
Lift the released bracket away and set it aside.
With a spudger or fingertip, carefully detach the orange click wheel ribbon from the logic board.
Take out the 2 #00 Phillips screws securing the headphone jack to the casing.
Carefully move the iPod out of its casing by pressing on the logic board near the click wheel's bottom edge. Do not tug on the headphone jack board at the iPod top; its logic board connector is fragile.
After the logic board has been pushed out far enough, gently grip it on either side of the display and keep sliding the iPod from its casing.
Raise the battery off the logic board and set it to the side of the iPod.
With a spudger or fingertip, carefully disconnect the orange hard drive ribbon from the logic board.
Raise the hard drive out of the iPod.
Product-specific placement, reassembly, and check
- Prepare and access. Confirm the exact model and listing fit first. Use the existing steps as a disassembly guide, gather the specified tools, disconnect power where applicable, and keep screws and cable positions organized.
- Place Replacement Microdrive (4GB). Seat the exact storage part, cable, or adapter in the original storage path and match its orientation, case depth, and supported configuration.
- Reassemble without force. Reverse only the access steps needed for this repair, keep cables clear of case edges and screw posts, and close clips in stages.
- Validate before final closure. Before final closure, verify detection, Disk Mode or restore behavior as applicable, and stable startup without repeat clicking or a loose connection.
Stop condition: Stop if a connector, latch, screw, clip, housing edge, or the replacement part resists normal alignment. Recheck model fit, orientation, cable routing, and trapped hardware instead of forcing it.
After This Repair
| Check | What to do |
|---|---|
| Restore and sync | Confirm the iPod restores cleanly and mounts with the computer and cable you plan to use. |
| Check under load | Listen for repeated spin-up, adapter resets, or restore loops that can point back to cable seating, formatting, or battery stability. |
| Still not working? | Reseat the storage cable and verify formatting or adapter setup before blaming the logic board. |
Frequently Asked Questions
Use these questions to narrow the part path before ordering. They keep each answer focused on a different diagnostic or fitment decision.
How do I choose the right hard drive capacity?
Match capacity 4GB and color Silver, Blue, Pink, Green, connector/interface, and order number before ordering.
Can I use flash storage instead of this hard drive?
Usually yes on models with a supported flash-mod route, but adapter, formatting, and case-clearance checks still matter. Use the flash-mod page when you want solid-state storage instead of another mechanical drive.
When is this drive the right fix for sad iPod, clicking, or restore trouble?
Listen for repeated drive clicking and note whether the iPod reaches disk mode. Reseat the hard-drive ribbon and inspect the storage connector or retaining latch before buying another storage part. Try restore only after cable seating and power behavior are stable enough to complete the process. Compare with a known-good drive, cable, or flash adapter when available. Listen for repeat clicking or repeated spin-up attempts before replacing storage parts.
What should I check before replacing this drive?
Reseat the storage ribbon squarely and confirm the latch is closed before replacing the storage device again. Check adapter orientation, case clearance, and capacity/format expectations when using a flash path. Reopen only as far as needed to inspect the areas touched during the repair. Compare the new symptom with what worked before the repair. Check cable seating, latch position, and part variant before replacing a second part.
Is this for a full-size hard-drive iPod?
The iPod mini is a separate Apple product line from full-size hard-drive iPods. This is the iPod mini 2nd Generation.
Restore & sync
Is my mini a 4GB or a 6GB — and which drive do I need?
Turn the iPod over: this generation has its capacity engraved on the back, 4 GB or 6 GB. Nothing engraved at all means a first-generation mini, which is a different model with its own pages. The order number settles it too — M9800LL/A, M9802LL/A, M9804LL/A and M9806LL/A are the 4GB units, M9801LL/A, M9803LL/A, M9805LL/A and M9807LL/A the 6GB ones, so an even final digit means 4GB and an odd one means 6GB. This listing supplies a 4GB drive: it fits a 6GB mini physically but leaves it a 4GB iPod, so choose the 6GB Microdrive to keep the original capacity. The capacity lives on the drive, not on the board, so nothing else has to change either way.
I fitted the new drive and it still shows the folder with an exclamation mark. What now?
That is the expected first screen. A new drive is blank, and the iPod's software lives on the storage, so there is nothing for it to start from until a restore puts the software back. Connect it and let the restore run — a restore erases the iPod, so copy off anything that exists only on it first. If a folder icon survives a restore that actually completed, go back to the physical path: reseat the drive ribbon at both ends, look along the flex for creases or tears, and confirm the drive is seated square and the right way round. If the restore will not complete at all, put the unit in Disk Mode first — reset by holding Menu + Select, then the moment it restarts hold Select + Play until the Disk Mode screen shows.
How long should a restore take, and why does it still say "Do not disconnect"?
On a drive this size the restore itself is a job of minutes, not hours. "Do not disconnect" is not a progress bar: it stays on the screen until the iPod is ejected, so a unit still showing it long after the computer has finished has usually just not been ejected. Eject the iPod first — in iTunes for Windows, or the newer Apple Devices app, or in the Finder on a Mac — and wait for the screen to change. If it never changes, reset by holding Menu + Select until the Apple logo and start the restore again.
iTunes and the file manager freeze whenever the iPod is plugged in. What now?
The unit can look completely normal on its own screen, and then the moment it is plugged in iTunes takes many minutes to open and stops responding, with the file manager hanging alongside it.
On this generation the reading that fits is corrupted storage: the computer hangs while it tries to mount the iPod's disk and read it. Nothing is proven until a restore is tried, so work in that order.
Put the unit into Disk Mode first, which shows the drive to the computer without booting the iPod's own software: reset by holding Menu + Select, then the instant the unit restarts hold Select + Play until the Disk Mode screen comes up.
Then restore it, naming the software file yourself rather than letting a hanging session choose: hold Shift (Windows) or Option (Mac) while clicking Restore and point it at Apple's 1.4.1 file, the final software issued for this model. On Windows use iTunes for Windows, or the newer Apple Devices app. A restore erases the iPod, so copy anything that exists only on it first, and a restore run from a PC lays down the Windows (FAT32) format.
If the hang outlives a clean restore, the storage itself is the suspect — the sad-face and storage entries on the microdrive pages carry that path. Reported by 1 owner.
My Windows PC does not see the iPod. What do I check?
One owner reports the iPod invisible to Windows: nothing appears in iTunes and nothing shows in the file manager when the cable goes in. Nearly all of the checks are free.
Strip the USB bus back to basics: disconnect other USB devices (printers, cameras, flash drives) and try the iPod on each port in turn — a single dead port is common on older machines. Swap in a second known-good cable if you have one, and make sure it seats firmly at both ends. Look at the dock connector itself: dust, lint or corrosion across the pins breaks the data path before software gets a say.
Then the computer side: restart it, bring Windows and the sync software up to date — on Windows that is iTunes for Windows, or the newer Apple Devices app — and in Device Manager, under Universal Serial Bus controllers, enable a device entry that shows a disabled marker, or uninstall and reinstall the entry to force Windows to re-detect the hardware. Recognition on the newest macOS is reported unreliable for this era of iPod, so an older Mac or a Windows machine is the more predictable sync host.
Test the iPod's own side with Disk Mode: reset by holding Menu + Select, then the moment the unit restarts hold Select + Play until the Disk Mode screen shows. A unit that mounts in Disk Mode but not in a normal boot moves the suspicion from the cable toward software or the drive. This generation syncs and charges over USB 2.0, with FireWire 400 as the second supported interface, so if the same iPod and cable work on another computer the iPod side is proven.
Bent or corroded pins are on the 30-pin port itself, which is part of the logic board on this model — the metal bracket only locates it; a damaged port is a logic-board or mail-in repair. Reported by 1 owner.
Why people land on this part
Use the checks above to separate this hard drive from nearby parts before ordering.
Some buyers search for "corroded", "engraved", "loose", "people describe short runtime, charging trouble, sudden shutoff, or an ipod that will not reliably power on", "power, charging, or runtime symptoms", "short runtime, charging trouble, sudden shutoff, or a device that will not reliably power on", "click sound", "hard drive failure", "wont sync", or "upgrade the hard drive with a CF to SD adapter"; confirm the checks above point to this same part before ordering.
Also searched as: Stuck in Recovery Mode, Flash Mod Problems, hard drive dead, making clicking sound, shows a folder, flash drive, iTunes library, 1-inch drive, compact flash, drive already corrupted, folder + exclamation, solid state drive, drive was corrupted, click noise, imods.com/products/ipod-mini-2nd-generation-hard-drive-replacement, hard drive 4GB replacement, ipod mini 2nd generation microdrive replacement, Folder Icon, Sad iPod Icon, Clicking Noise, Corrupted Data, Hard Drive Failure, restore error, drive cable, cf card, compactflash type ii, click sound.
Worth Knowing
- iPod Mini 2nd Generation 4GB microdrive option.
- OEM 4GB drive references include Hitachi HMS360604D5CF00 and Seagate ST640211CF; the 6GB references are Hitachi HMS360606D5CF00 and Seagate ST660211CF.
- The storage on this model is a 1-inch Microdrive on a CompactFlash Type II interface. It is not the ZIF or 50-pin drive the full-size iPods use, so their drives, cables and flash adapter boards do not fit here.
- The Mini's CF slot accepts CompactFlash cards directly; SD or microSD builds still need a compatible CF-to-SD adapter.
- Buy drives generation-matched — displays follow the printed-capacity rule when picking donor parts. A donor with no capacity engraved on the back is a first-generation mini.
- Buy drive hardware generation-matched: the 6 GB size exists only on this generation; the drive flex cable is shared with the first-generation mini (owner-verified). One hard-drive cable serves both mini generations, so the ribbon is the one storage part you do not have to match by generation.
- What the error screens mean. A folder with an exclamation mark means the iPod cannot find its storage — the drive, its ribbon cable, or the software on it. A sad-face iPod icon is the same message in the older style: it cannot use its hard drive. A screen pointing at Apple's iPod support page is a storage error, not a message from us — the iPod could not start from its own drive.
- A new drive or card arrives blank. The iPod's software lives on its storage, so a folder icon straight after a new drive goes in is expected — there is nothing on it to start from yet. Judge a new build only after a restore has finished writing the software back.
- Restoring erases songs and data. Back up before restoring or testing a replacement drive.
- Apple still hosts the January 2006 iPod Updater, but it only runs on Windows XP-era or Mac OS X 10.3.9-era computers; on anything current, restore through iTunes for Windows, or the newer Apple Devices app.
- A failing Mini shows the Sad iPod or folder icon, not the Red X — the Red X belongs to later hard-drive iPods (Apple HT201544). A red X is that iPod's own diagnostic saying it cannot use its hard drive; if you searched "red x", run this listing's storage checks.
- The Microdrive ships as a single drive with the pry tool included — no kit required; for flash storage see the flash mod kit page.
What Owners Report
These are anecdotal owner reports, not guarantees or authoritative proof that a particular part will fix a symptom. Use them as a troubleshooting starting point: confirm the symptom, run the quick checks, then match the fix.
Which mini is this, and which parts swap
Symptoms. An owner reads a model number off the back panel and asks which mini generation it belongs to; another, weighing the two generations, asks what actually differs and whether a battery from one fits the other.
Quick diagnosis.
- Every iPod mini carries the same model number — A1051, on both generations — so the number alone cannot answer the question. A reading like "A1050" is worth re-checking against the engraving, because A1051 is what the mini family prints.
- The reliable external tell is the capacity engraving: 4 GB or 6 GB printed on the back means this model; no capacity printed means the first-generation mini. This generation shipped in Silver, Blue, Pink and Green, with the click-wheel button text matched to the case color; the first-generation mini has gray inset wheel text on every color, no capacity engraving, and the Gold color this generation dropped.
- Backup discriminators for a worn back panel: the EMC number (EMC 2044 here, EMC 1984 on the first-generation mini), a 6 GB capacity (this generation only), or the order number (M9800LL/A, M9802LL/A, M9804LL/A, M9806LL/A — Silver, Blue, Pink, Green at 4 GB; M9801LL/A, M9803LL/A, M9805LL/A, M9807LL/A the same colors at 6 GB — an even final digit means 4 GB, odd means 6 GB).
What swaps, and what does not.
- Battery: shared — packs interchange between the two mini generations (the EC003/EC007 class); owners in this thread and the parts record agree.
- Drive flex cable and headphone jack: shared — the drive flex cable is one part for both mini generations (owner-verified), as is the headphone-jack assembly (820-1597-A).
- Click wheel: generation-matched only — wheels do not interchange between the generations in either direction. This generation's wheel is 632-0303-A, sold per case color; color-matched button text is its signature.
- Display: generation-matched by the printed-capacity rule — a screen pulled from a donor with no capacity mark on the back belongs to the first-generation mini and is the wrong part here; a donor engraved 4 GB or 6 GB matches.
- Logic board: two part numbers, both this generation — 820-1648-A and 820-1804-A are both 2nd-generation boards and either fits any 4GB or 6GB unit; the capacity lives on the drive, not the board.
Cautions.
- Never buy boards or wheels on "A1051" alone — the number is identical across both generations and identifies nothing. Insist on the capacity-engraving or EMC discriminator before paying for a generation-matched part.
Community signal. Reported by 2 owners.
Sad face on the screen and the computer no longer sees it
Symptoms. The unit boots to a sad-face icon, and no computer detects it when the cable goes in.
Quick diagnosis.
- A sad-face stop points at the drive first on this model, and loud clicking or grinding is the same story told out loud.
- Use Disk Mode as a detection test: reset by holding Menu + Select, then the moment the unit restarts, hold Select + Play until the Disk Mode screen shows. A unit that mounts in Disk Mode steers the diagnosis toward software; one that stays invisible keeps the drive in the frame.
- Check the drive flex cable and its seating while the case is open, before ordering anything — a tired flex mimics drive death.
Fixes.
- Microdrive replacement — like-for-like, matched to the unit's size: Hitachi Microdrive 3K6 (HMS360604D5CF00 at 4 GB, HMS360606D5CF00 at 6 GB) or Seagate ST1 (ST640211CF at 4 GB, ST660211CF at 6 GB).
- Drive ribbon cable — the cheaper part to rule out first, and one cable serves both mini generations.
- Flash conversion — a failed microdrive is the usual on-ramp to the CF conversion covered in the storage entry: solid-state, no moving parts, same native CF bay.
Cautions.
- Buy drive hardware generation-matched: the 6 GB size exists only on this generation.
- Unplug the ribbon by its connector, never by the flex, and treat the flex as a wear part.
- Anything that ends in a restore or a format erases the iPod, so copy anything that exists only on it first.
Community signal. Reported by 1 owner.
Replacing the microdrive with flash storage, and how far capacity goes
Symptoms. An owner of a 4 GB and a 6 GB unit suspects a dead drive in one and asks about going straight to flash; others ask which CF cards work, whether an SD card behind an adapter can stand in, and what an upgrade costs.
Quick diagnosis.
- Confirm the drive is actually the fault first: sad-face or folder-with-exclamation stops and failed restores point at storage; the drive entries on this model's pages carry that triage.
- The storage bay exposes a native CompactFlash Type II interface holding a 1-inch microdrive — the conversion swaps the microdrive for a solid-state card in the same slot, with no adapter board in between. Drive adapters built for other iPod lines' drive bays are physically incompatible here.
Fixes.
- CF-card conversion (community-standard path, repeatedly reported on this generation) — the record carries multiple firsthand successes on this generation, including a 16 GB build. The card must be a true-ATA-compatible CF card; format it FAT32 (a USB card reader will show the format), match the pin orientation on insertion, install, and finish with a restore. Community practice is to have software 1.4.1 — the final release — on the unit before the conversion, and a restore erases the iPod, so copy anything that exists only on it first.
- SD behind a CF adapter — an SD card works behind a purpose-built SD-to-CF adapter: the adapter in this kit is reported working in the 2nd-generation mini by its maker and by owners; the older failures used generic photo-card adapters that only read.
- Like-for-like microdrive — the OEM drives in this generation are the Hitachi Microdrive 3K6 (HMS360604D5CF00 at 4 GB, HMS360606D5CF00 at 6 GB) and the Seagate ST1 (ST640211CF at 4 GB, ST660211CF at 6 GB), all 1-inch, 3600 rpm. A matching microdrive is the zero-surprises replacement when flash is not the goal.
Cautions.
- Capacity: builds up to 256GB are confirmed (128GB on a plain CF card); anything larger is unproven. Cards of 64GB and up must be formatted FAT32 before they go in — the default exFAT is not supported.
- Unplug the ribbon by its connector, never by the flex, and treat the flex as a wear part. The drive flex cable is shared with the other mini generation.
- Cost questions in the record resolve to entry tooling plus the card itself — flash prices shift constantly, so treat any quoted figure as dated.
Community signal. Reported by 4 owners — the most-reported issue on this model.
You May Also Want
Users replacing the hard drive often upgrade the battery at the same time.
Related: 128GB Flash Mod Kit (CF-to-SDXC Adapter + 128GB SD Card Included)Flash storage avoids the original mechanical Microdrive; check adapter and card compatibility.
Related: Hard Drive Ribbon CableMini 2nd Generation hard-drive cable should be inspected during drive replacement.
