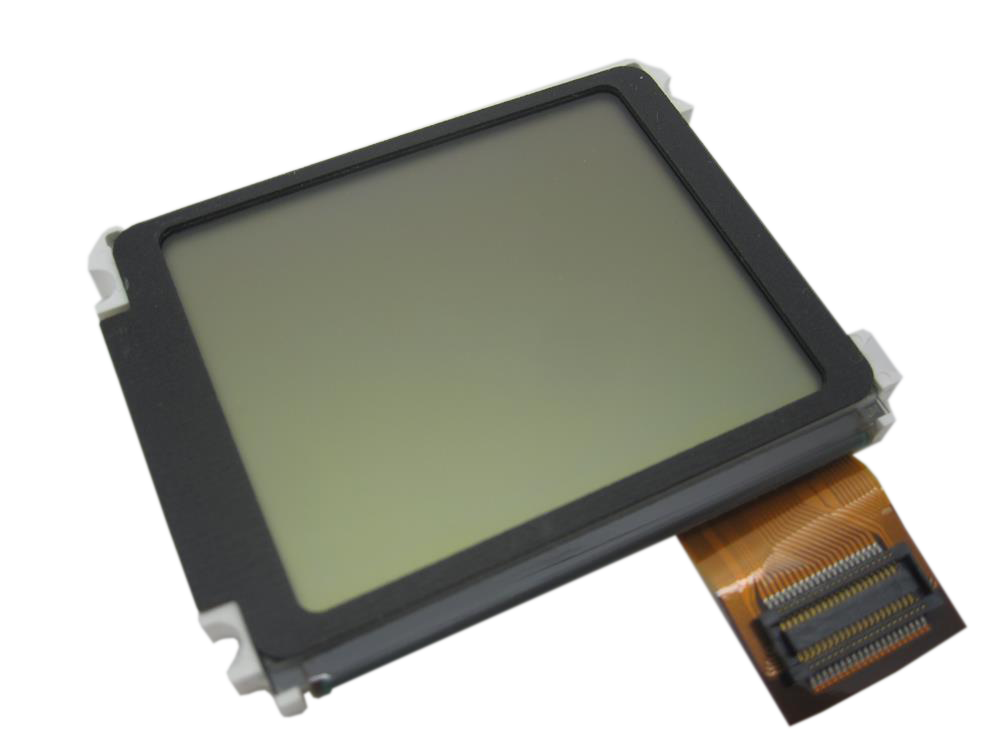

Replacement display assembly for iPod 3G. Use it for cracked, blank, lined, or backlight-related display problems after separating screen damage from ribbon seating and board-side faults.
Product Overview
This screen listing covers Replacement LCD Screen (2" Monochrome) and its own connector path on the iPod 3rd Generation.
Use the Compatible Variants table below to confirm capacity, color, case, or order-number fitment.
Choose this part when your iPod shows White Screen, Black Screen, or LCD display failure; the checks below help confirm the right part before you order.
What Is Included
Quick Buying Check
Buy this when
- White Screen: Use the display check when the iPod still powers, plays, charges, or syncs and the LCD ribbon or connector check remains the strongest display clue.
Diagnose first when
- Confirm the iPod still plays, charges, or is recognized so the screen symptom can be separated from a dead device.
- Inspect the display ribbon and connector if the iPod has been opened or dropped.
Specifications & Fitment
Part Details
| Detail | Value |
|---|---|
| Model Number | A1040 |
| EMC | EMC 1961 |
| Condition | Used — factory original Apple part. Normal cosmetic wear expected. |
| Size | 2 inches |
| Resolution | 160x128 pixels |
| Type | Monochrome |
| Controller | Renesas HD66753 |
Compatible Variants
| Order Number | Capacity | Color | Case | Compatible | Notes |
|---|---|---|---|---|---|
| M8976LL/A | 10GB | White | thin | Yes | — |
| M8946LL/A | 15GB | White | thin | Yes | — |
| M9460LL/A | 15GB | White | thin | Yes | — |
| M9244LL/A | 20GB | White | thin | Yes | — |
| M8948LL/A | 30GB | White | thick | Yes | — |
| M9245LL/A | 40GB | White | thick | Yes | — |
Diagnostic Failure Cards
Use these model-specific failure cards to decide whether this screen is the right part, a nearby part needs checking first, or escalation makes more sense after simpler checks.
Advanced or board-level cases
Blank, white, black, lined, or backlight display
What you may notice
- People describe a blank screen, white or black display, missing backlight, lines, or a display that changes after impact or repair.
- Blank screen, white or black display, missing backlight, or lines on the screen.
Diagnose first when
- Confirm the iPod still plays, charges, or is recognized so the screen symptom can be separated from a dead device.
- Inspect the display ribbon and connector if the iPod has been opened or dropped.
- Look for cracks, liquid residue, display discoloration, or connector damage before ordering.
- Inspect for liquid, corrosion, residue, torn flex material, or connector damage.
- Confirm the iPod still plays, charges, or syncs, then reseat the LCD ribbon and inspect the display connector.
Similar issues to separate
- The display can be damaged, but display ribbon seating, connector condition, liquid history, or board-side display circuitry may need checking first.
- Check display / backlight route, connector seating, and board-side damage before ordering.
When this screen fits
- Choose this display only when the display symptom is tied to this part or its connection path.
- Choose this screen when the symptom remains isolated to this assembly, its ribbon, or its connector path after first checks.
Check another part first
- Check ribbon seating, liquid history, and board connector damage before treating the display as a guaranteed fix.
Repair or replacement paths
- Replace the display only after seating, fitment, and adjacent-part checks still point to that assembly. - Use display-panel replacement when the panel, backlight, or display flex is visibly damaged; continue connector, liquid-damage, or board diagnosis when the display changes after reseating.
Liquid, corrosion, or residue context
What you may notice
- Symptoms follow liquid exposure, dirty contacts, corrosion, or residue.
Similar issues to separate
- Liquid or corrosion can involve this part, a nearby connector, or a board path.
Check another part first
- Check the Replacement Battery (All Capacities) when power, charging, runtime, or swollen-battery behavior is the main problem.
- Check the Touch Wheel / Button Row Assembly when controls, wheel, center/select, menu, hold, or unresponsive-button symptoms are the main problem.
Ribbon, connector, or ground-path checks
What you may notice
- A symptom starts after opening the iPod or disturbing an internal flex cable.
Similar issues to separate
- Connector seating, ribbon damage, or ground-path issues can involve this part, a nearby connector, or a board path.
Fitment and post-repair traps
Symptoms changed after repair or reassembly
What you may notice
- People describe a new problem appearing immediately after battery, storage, display, audio, or control work.
- A new symptom appeared after battery, storage, audio, display, or control work.
Diagnose first when
- Reopen only as far as needed to inspect the areas touched during the repair.
- Compare the new symptom with what worked before the repair.
- Check cable seating, latch position, and part variant before replacing a second part.
Similar issues to separate
- A post-repair symptom can involve the display, but disturbed ribbons, latches, grounding, connector seating, or the wrong variant part are common checks before ordering again.
- Check post-repair regression, connector seating, and board-side damage before ordering.
When this screen fits
- Choose this display only when the part itself was torn, creased, or damaged during service.
Check another part first
- Check the exact connector or assembly disturbed during the repair before treating the new part as failed.
Repair or replacement paths
- Correct seating, latch, or variant problems first.
- Replace the display when the repair damaged that assembly or its flex path.
Fitment and inspection notes
- iPod 1st/2nd Generation — different display ribbon cable.
Symptom remains after basic checks
What you may see: The iPod still points back to Replacement LCD Screen (2" Monochrome) after cable seating, battery stability, and nearby connector checks.
Check first: Retest with known-good cables or adjacent parts where practical before ordering.
Check next: A nearby cable, connector, battery, storage device, display path, audio path, or board path can mimic a bad screen.
Symptom changes when touched or reseated
What you may see: The symptom changes after moving the part, reseating a cable, or applying light pressure near the connector path.
Check first: Inspect the connector, latch, flex, solder joints, and nearby board area for damage or corrosion.
Check next: This can still be a connection issue rather than a failed screen alone.
Problem began after another repair
What you may see: The issue started immediately after opening the iPod, replacing another part, or disturbing an internal cable.
Check first: Reopen only as far as needed and inspect the exact area touched during the previous repair.
Check next: Post-repair symptoms often trace to seating, latch, screw, or cable issues before Replacement LCD Screen (2" Monochrome) itself is confirmed bad.
Do Not Buy / Problems This Screen Does Not Fix
| Situation | Start here instead |
|---|---|
| Variant or capacity does not match this listing | This is a different model — check your order number and generation before ordering. |
| Charging, swelling, runtime, or power is the primary problem | Start with the battery, charger, and power checks when charging, runtime, swelling, or no-power behavior is the main problem. |
| The problem is the Hold switch or headphone jack, not this part | Verify the Hold slider, lock indicator, and shared headphone/Hold cable before replacing this part. |
| Recent service or connector disturbance is the main clue | Inspect the connector, latch, ribbon, or assembly disturbed during service before buying another part. |
| A symptom points to a different part | iPod 4th Gen Monochrome / Photo — different display assembly connector. |
Install Overview
Before You Start
Turn Hold off, use the reset sequence for this generation, and confirm the model and variant before opening the iPod.
Treat case opening as the highest handling risk. Work around the seams gently and stop if the shell, clips, or internal stack resist.
Do not pull the halves apart or side-load board sockets. Reseat nearby ribbons and connectors before blaming a replacement screen.
Reseat and protect the display ribbon during reassembly before assuming the panel itself is bad.
Repair Guide
Repair guide summary: iPod 3rd Generation Display Replacement.
Show all 11 installation steps
Before you open the iPod, confirm that the hold switch is in the locked setting. The orange bar should be showing, indicating hold is active.
Move an opening pick as far as possible into the gap between the plastic front and the metal back panel, on the right edge of the iPod. You may have to rock the pick back and forth to move it in farther. With the opening pick, lever up against the plastic front panel and release 5 retaining tabs. Slide the pick along the iPod edge and keep levering gently until the remaining retaining tabs release. In this step, after all five tabs along the right edge are free, the case should open easily.
The iPod case is now open, but do not separate the two halves yet. An orange ribbon cable still connects the headphone jack to the logic board. With the dock connector at the top, open the case like a book and set the rear panel beside the iPod front half.
With a plastic tool or your fingernails, carefully detach the orange headphone jack cable. Make sure to draw straight up on the connector, not the cable itself. The headphone jack connector is unusually tall. When levering, keep the lower plastic connector body attached to the ribbon cable. Lever between the connector and socket, not between the connector halves.
Raise the hard drive with one hand while carefully detaching the hard drive ribbon from the logic board. Raise the hard drive out of the iPod.
Carefully detach the white battery connector from the logic board. Pull only on the connector housing, not the cables.
With a spudger, carefully detach the orange touch wheel cable from the logic board.
Take out the 6 black T6 Torx screws holding the logic board to the front panel.
Raise the logic board out of the iPod. During reassembly, confirm that the plastic hold switch mechanism lines up with the logic board hold switch. The board switch is a small black nub that fits into a slot on the hold switch mechanism.
With a spudger, carefully detach the orange display ribbon from the front panel.
Raise the display panel out of the iPod.
After This Repair
| Check | What to do |
|---|---|
| Test image and backlight | Check the display before closing the case fully, then confirm brightness and image stability after reassembly. |
| Watch for pressure | New spots, lines, or bowing after closing usually means the internal stack or ribbon routing needs another look. |
| Still not working? | Reseat the display ribbon and inspect the connector before treating the replacement screen as bad. |
Worth Knowing
- Display: 2" Monochrome 160x128
Frequently Asked Questions
Use these questions to narrow the part path before ordering. They keep each answer focused on a different diagnostic or fitment decision.
What iPod 3rd Generation models does this fit?
This Replacement LCD Screen (2" Monochrome) fits: M8976LL/A (10GB White), M8946LL/A (15GB White), M9460LL/A (15GB White), M9244LL/A (20GB White), M8948LL/A (30GB White), M9245LL/A (40GB White).
Do I need to solder?
No, this installation does not require soldering. Difficulty: Moderate. Estimated time: 30 - 45 minutes.
How do I know if this LCD screen needs replacement?
Symptoms that can point to this LCD screen include: White Screen, Black Screen, LCD display failure. Check fitment, connectors, and nearby parts before treating symptoms as proof.
What should I check before replacing this screen?
Reseat the display ribbon and inspect the latch before replacing the LCD. Check whether the iPod still plays or syncs so a display-only symptom stays separate from a dead-device route. Choose this screen only when the display panel or flex remains the isolated failure. Check disturbed ribbon and connector paths first when the symptom began after service.
Can water damage, liquid, or corrosion make this screen the right repair path?
Inspect the display connector and nearby board area before replacing the screen. Do not treat a new LCD as confirmed when corrosion remains active on the connector or board. This screen may help only after the display connector and board-side corrosion risk are controlled. Check corrosion and connector damage first when liquid history is present. Liquid-damage work may require professional cleaning or board repair before parts replacement is reliable.
