Replacement housing or trim part for iPod 3G. Use it to restore fit, finish, color, case alignment, or visible damage rather than to fix an internal electronics fault.
Product Overview

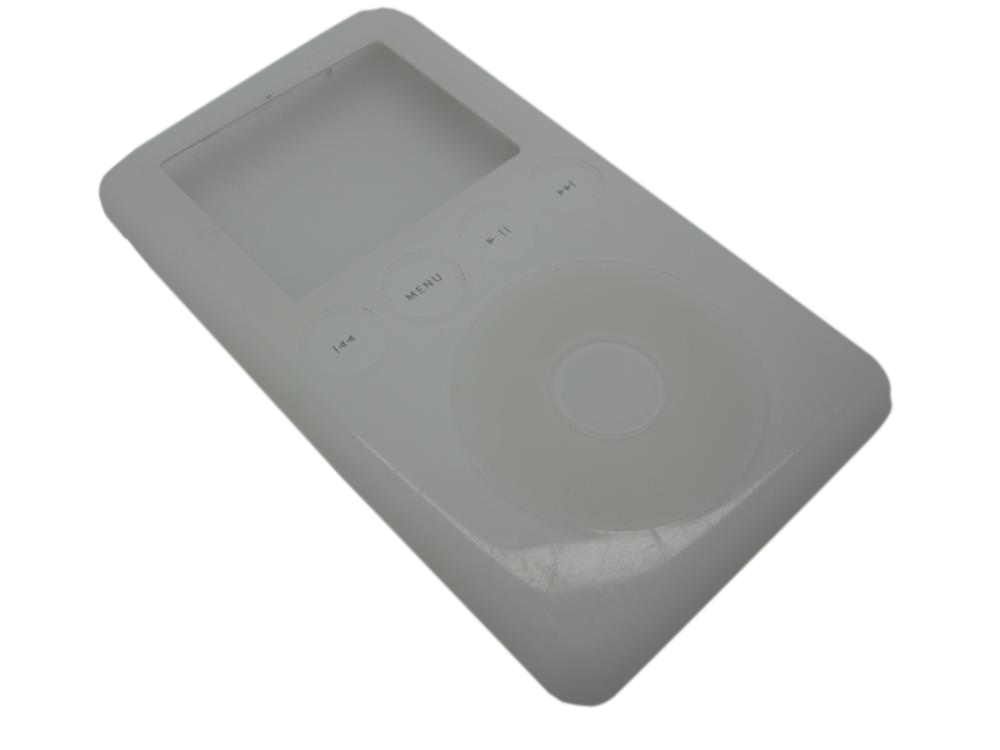

Choose this front panel listing to restore the visible fit, finish, or mounting hardware on the iPod 3rd Generation.
Use the Compatible Variants table below to confirm capacity, color, case, or order-number fitment.
This is a fit-and-finish part, so choose it by physical damage, color, case thickness, and missing hardware rather than by an electrical symptom.
What Is Included
Quick Buying Check
Buy this when
- Use this listing when the original front panel with touch wheel (white) is damaged, missing, mismatched, or physically worn; diagnose internal symptoms separately.
- The original front housing is cracked, broken, scratched, yellowed, brittle, missing, or cosmetically worn.
- The model, color, order number, and front-panel openings match this listing.
Diagnose first when
- Confirm the color variant before ordering: White.
- The problem is power, storage, sync, dock, audio, or display behavior rather than visible physical damage.
- The symptom started after opening the iPod and may be a disturbed internal cable or connector.
Specifications & Fitment
Part Details
| Detail | Value |
|---|---|
| Model Number | A1040 |
| EMC | EMC 1961 |
| Condition | Used — factory original Apple part. Normal cosmetic wear expected. |
| Color | White |
Compatible Variants
| Order Number | Capacity | Color | Case | Compatible | Notes |
|---|---|---|---|---|---|
| M8976LL/A | 10GB | White | thin | Yes | — |
| M8946LL/A | 15GB | White | thin | Yes | — |
| M9460LL/A | 15GB | White | thin | Yes | — |
| M9244LL/A | 20GB | White | thin | Yes | — |
| M8948LL/A | 30GB | White | thick | Yes | — |
| M9245LL/A | 40GB | White | thick | Yes | — |
is not compatible with
- iPod 4th Gen Monochrome — different front panel design (click wheel cutout vs button row)
- iPod 1st/2nd Generation — different front panel layout
Cosmetic Failure Signs — When to Replace
This front panel is a cosmetic part — it does not change how the iPod plays, charges, or syncs. Replace it when the damage is physical:
Not every buyer here is fixing damage: matching the original white finish after another repair, restoring a gift or keepsake iPod to clean condition, and finishing a refreshed shell while the case is already open are just as common.
Do Not Buy / Problems This front panel Does Not Fix
| Situation | Start here instead |
|---|---|
| You have an iPod 4th Gen Monochrome — different front panel design (click wheel cutout vs button row) | This is a different model — check your order number and generation before ordering. |
| You have an iPod 1st/2nd Generation — different front panel layout | This is a 1st/2nd Generation iPod — use the matching part listing for that model; parts are not interchangeable across generations. |
| The only problem is an internal electronic symptom with no physical damage to this part | Start with the relevant power, storage, audio, display, or control diagnosis instead of a housing part. |
| The issue is charging, audio, storage, display, or controls rather than fit, finish, or visible housing damage | Start with the hard drive, flash storage, or drive cable check. |
| The replacement would not match the case depth, color, or capacity family you are repairing | Confirm the exact model, capacity, connector, and case variant before ordering. |
Install Overview
Before You Start
Turn Hold off, use the reset sequence for this generation, and confirm the model and variant before opening the iPod.
Treat case opening as the highest handling risk. Work around the seams gently and stop if the shell, clips, or internal stack resist.
Do not pull the halves apart or side-load board sockets. Reseat nearby ribbons and connectors before blaming a replacement front panel.
Confirm thickness, color, screw points, and nearby hardware alignment before pressing the case fully closed.
Repair steps
Documented repair-procedure steps for replacing the front panel on this model (from teardown guides; confirm against your unit before starting):
- Insert an opening pick as far as possible into the seam between the plastic front and the metal rear panel, on the right edge of the iPod.
- Open the case like a book with the dock connector at the top, and lay the rear panel next to the front half of the iPod.
- Remove the 3 silver Philips screws securing the headphone jack to the rear panel.
- Slide a spudger beneath the orange headphone jack cable and use it to pry the cable up from the rear panel.
- Use a spudger to carefully disconnect the orange display ribbon from the front panel.
- Use the opening pick to pry up against the plastic front panel and release five retaining tabs (seen in the third photo).
Repair Guide
Repair guide summary: iPod 3rd Generation Front Panel Replacement.
Show all 14 installation steps
Before you open the iPod, confirm that the hold switch is in the locked setting. The orange bar should be showing, indicating hold is active.
Move an opening pick as far as possible into the gap between the plastic front and the metal back panel, on the right edge of the iPod. You may have to rock the pick back and forth to move it in farther. With the opening pick, lever up against the plastic front panel and release 5 retaining tabs. Slide the pick along the iPod edge and keep levering gently until the remaining retaining tabs release. In this step, after all five tabs along the right edge are free, the case should open easily.
The iPod case is now open, but do not separate the two halves yet. An orange ribbon cable still connects the headphone jack to the logic board. With the dock connector at the top, open the case like a book and set the rear panel beside the iPod front half.
With a plastic tool or your fingernails, carefully detach the orange headphone jack cable. Make sure to draw straight up on the connector, not the cable itself. The headphone jack connector is unusually tall. When levering, keep the lower plastic connector body attached to the ribbon cable. Lever between the connector and socket, not between the connector halves.
Raise the hard drive with one hand while carefully detaching the hard drive ribbon from the logic board. Raise the hard drive out of the iPod.
Carefully detach the white battery connector from the logic board. Pull only on the connector housing, not the cables.
With a spudger, carefully detach the orange touch wheel cable from the logic board.
Take out the 6 black T6 Torx screws holding the logic board to the front panel.
Raise the logic board out of the iPod. During reassembly, confirm that the plastic hold switch mechanism lines up with the logic board hold switch. The board switch is a small black nub that fits into a slot on the hold switch mechanism.
With a spudger, carefully detach the orange display ribbon from the front panel.
Raise the display panel out of the iPod.
Raise the battery out of the iPod.
With a spudger, carefully detach the orange display ribbon from the front panel.
Only the front panel remains.
After This Repair
| Check | What to do |
|---|---|
| Check front fit | Confirm the front housing sits flush and the display, wheel, and button openings are aligned. |
| Watch nearby parts | Close the case without forcing tabs or pinching the display, control, battery, or storage stack. |
Worth Knowing
- White only — no color variants for the 3G.
- Front panel is the same for both thin and thick case variants.
- The touch wheel and 4-separate-button row are integrated into this front panel — there is no separate touch-wheel assembly for the 3G.
Frequently Asked Questions
How do I choose the right cosmetic part?
Match the model generation first, then confirm capacity 10GB / 15GB / 20GB / 30GB / 40GB and color White, clip layout, and nearby hardware before ordering.
Will this fix internal electronics symptoms?
No. Housing and trim parts are for fit, finish, color, alignment, or visible damage. Diagnose power, storage, audio, screen, and control faults separately.
How do I confirm this is the right exterior part?
Match the exact iPod 3rd Generation model, visible part shape, color or finish goal, and any capacity or case-depth note before ordering Replacement Front Panel with Touch Wheel (White).
Does color change physical fitment?
Color alone does not block fitment when the same model, generation, and part shape match. It will only change the visible finish.
