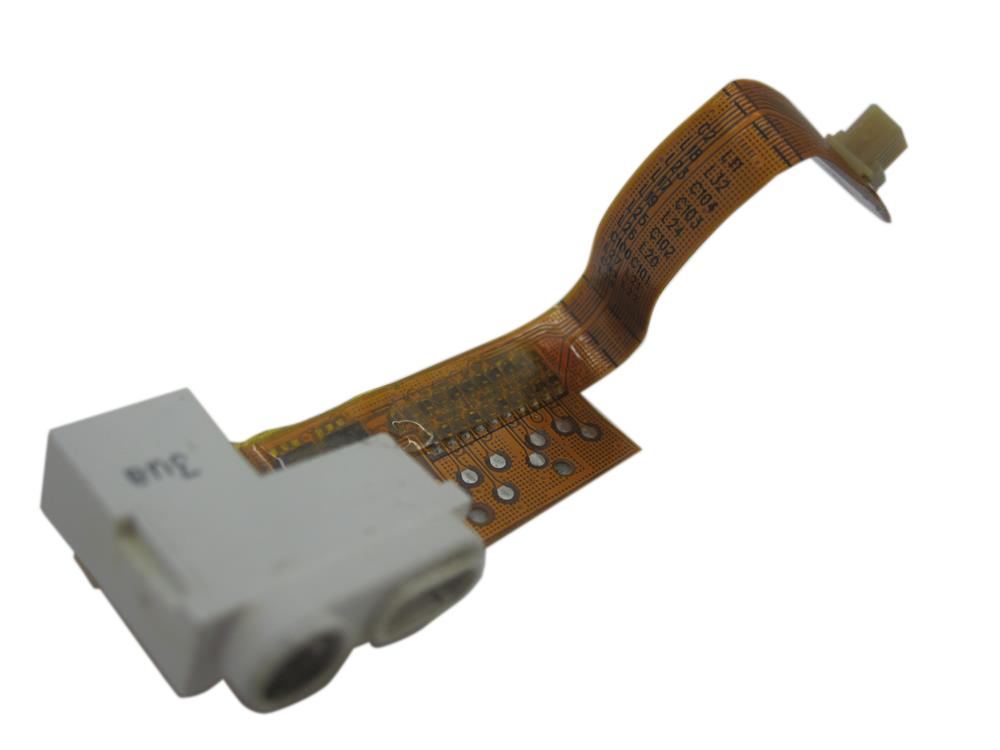

iPod 3rd Generation Headphone Jack / Hold Switch Assembly Replacement & Repair

Headphone Jack 30GB / 40GB

Replacement headphone jack assembly for iPod 3G. Use it for damaged audio-output hardware, channel issues, or related Hold-switch hardware on models where those parts share the same assembly.

Shop iPod 3G parts and services → Start a free diagnostic →

Product Overview

This headphone jack listing covers Headphone Jack / Hold Switch Assembly (Thick - 30/40GB) and its own connector path on the iPod 3rd Generation.

Use Part Details for the confirmed part-number reference. Use the Compatible Variants table below to confirm capacity, color, case, or order-number fitment.

Choose this part when your iPod shows Audio Distortion, One Ear Only, Skipping Songs, or Headphone Jack Not Working; the checks below help confirm the right part before you order.

Choose Your Option

This part comes in multiple variants. Confirm your iPod's capacity, case depth, and order number before ordering.

10GB/15GB/20GB / White / Thin Headphone Jack / Hold Switch Assembly (Thin - 10/15/20GB) Capacity: 10GB/15GB/20GB · Color: White · Case: thin View this option →

30GB/40GB / White / Thick Headphone Jack / Hold Switch Assembly (Thick - 30/40GB) Capacity: 30GB/40GB · Color: White · Case: thick

Thin and thick 3G headphone jack / Hold switch assemblies are separate fitment paths.

You're viewing this option

What Is Included

Included

✓ Headphone Jack / Hold Switch Assembly (Thick - 30/40GB) ✓ One plastic pry tool ✓ 1-year limited warranty

Before You Discard The Original

The assembly we sell is the headphone jack, the wired-remote port and the Hold switch on one flex, so a new assembly brings a new switch with it. Even so, keep your original until the new one is fitted and you have watched the lock indicator change as you move the slider — the white plastic slider that shows on the outside of the case is the one piece worth having a spare of if anything snaps during reassembly.

Condition: Used factory-original part. Quantity and exclusions: The listed part, set, pair, or configuration above is supplied with exactly one plastic pry tool. No other parts, tools, adhesives, or materials are included unless they are explicitly listed above.

Quick Buying Check

Buy this when

Headphone Jack Not Working: Use the headphone/Hold check when headphone output or Hold-switch behavior is isolated from dock audio, board audio, and connector seating.

Diagnose first when

Match thin/thick case depth before ordering the headphone/hold assembly.
Confirm the capacity match before ordering: 30GB, 40GB.

Specifications & Fitment

Part Details

Detail	Value
Model Number	A1040
EMC	EMC 1961
Condition	Used — factory original Apple part. Normal cosmetic wear expected.
Part Identifiers	`632-0218-A`
Jack Size	3.5mm
Includes Hold Switch	Yes

Compatible Variants

Order Number	Capacity	Color	Case	Compatible	Notes
M8948LL/A	30GB	White	thick	Yes	—
M9245LL/A	40GB	White	thick	Yes	—
M8976LL/A	10GB	White	thin	No— wrong case depth	Owner-verified: the thick part is not compatible with a thin case — risk of LCD damage. Use the Headphone Jack / Hold Switch Assembly (Thin - 10/15/20GB) instead.
M8946LL/A	15GB	White	thin	No— wrong case depth	Owner-verified: the thick part is not compatible with a thin case — risk of LCD damage. Use the Headphone Jack / Hold Switch Assembly (Thin - 10/15/20GB) instead.
M9460LL/A	15GB	White	thin	No— wrong case depth	Owner-verified: the thick part is not compatible with a thin case — risk of LCD damage. Use the Headphone Jack / Hold Switch Assembly (Thin - 10/15/20GB) instead.
M9244LL/A	20GB	White	thin	No— wrong case depth	Owner-verified: this thick assembly does not fit a thin 10/15/20GB case. Use the Headphone Jack / Hold Switch Assembly (Thin - 10/15/20GB) instead.

Diagnostic Failure Cards

Use these model-specific failure cards to decide whether this headphone jack assembly is the right part, a nearby part needs checking first, or escalation makes more sense after simpler checks.

Symptom	What it means & what to check
Symptom remains after basic checks	What you may see: The iPod still points back to Headphone Jack / Hold Switch Assembly (Thick - 30/40GB) after cable seating, battery stability, and nearby connector checks. Check first: Retest with known-good cables or adjacent parts where practical before ordering. Check next: A nearby cable, connector, battery, storage device, display path, audio path, or board path can mimic a bad headphone jack assembly.
Symptom changes when touched or reseated	What you may see: The symptom changes after moving the part, reseating a cable, or applying light pressure near the connector path. Check first: Inspect the connector, latch, flex, solder joints, and nearby board area for damage or corrosion. Check next: This can still be a connection issue rather than a failed headphone jack assembly alone.
Problem began after another repair	What you may see: The issue started immediately after opening the iPod, replacing another part, or disturbing an internal cable. Check first: Reopen only as far as needed and inspect the exact area touched during the previous repair. Check next: Post-repair symptoms often trace to seating, latch, screw, or cable issues before Headphone Jack / Hold Switch Assembly (Thick - 30/40GB) itself is confirmed bad.
Hold switch is stuck, locked, or not reporting correctly	What you may notice People report the iPod staying locked, the lock indicator not clearing, or the Hold switch not matching the device behavior. The iPod appears locked or the Hold switch does not match the device behavior. Diagnose first when Move the Hold switch and watch whether the lock indicator changes. Check the headphone/hold ribbon if the symptom started after opening the iPod. This thick 40 GB assembly is not interchangeable with the other case thickness. Confirm Hold is off before judging the controls. Separate center-button-only failure from a dead scroll ring or multiple failed buttons. Inspect touch wheel ribbon seating, latch position, and ground path after reassembly. Match the headphone/hold assembly to the exact case thickness before ordering. Compare headphone output, dock or line-out output, and Hold-switch behavior before replacing the headphone/hold assembly. Similar issues to separate On this model the Hold switch is part of the headphone/hold assembly. A wrong variant, loose ribbon, damaged switch, or nearby connector problem can all keep the device behaving as if Hold is active. Touch Wheel assembly, button pad, or flex path. Choose this headphone/hold assembly only when the physical Hold switch or its ribbon path is the failing path. Choose this headphone jack / hold-switch assembly when the symptom remains isolated to this assembly, its ribbon, or its connector path after first checks. Check another part first Check touch wheel input only after the Hold switch path is ruled out. Check the headphone/hold assembly for confirmed Hold switch faults before blaming the touch wheel. Repair or replacement paths Replace the headphone/hold assembly when the switch or its flex path is damaged. Reseat or inspect the connector first when the switch changed behavior after service. Replace the touch wheel when the assembly or flex remains damaged after seating checks.
Audio or Hold problems after repair	What you may notice People report headphone audio, Hold behavior, or both changing after battery, headphone/hold, or internal service. A new symptom appeared after battery, storage, audio, display, or control work. Diagnose first when Confirm the replacement assembly matches the thin or thick case. Inspect the headphone/hold ribbon and connector before ordering a second part. Inspect for liquid, corrosion, residue, torn flex material, or connector damage. Similar issues to separate Post-repair symptoms can point to a disturbed headphone/hold ribbon, wrong variant part, or nearby connector damage. Check post-repair regression, connector seating, and board-side damage before ordering. Choose this headphone/hold assembly only when repair work damaged the jack, switch, or ribbon. Check another part first Check the connector and the part variant first when the symptom began immediately after service. Repair or replacement paths Reseat the ribbon and correct the part variant first. Replace the assembly when the flex, switch, or jack-board is damaged.
Dock output and headphone output behave differently	What you may notice Some reports compare sound through the dock connector with sound through the headphone jack. Audio behaves differently through headphones and a dock or line-out accessory. Both headphone and dock output share the same failure. Diagnose first when Compare headphone output with dock output while the same track is playing. Use that split test only as a clue, not proof by itself. Play the same known-good track through the headphone jack, then through a dock or line-out accessory if you have one. If dock or line-out audio works but headphones do not, focus on the headphone jack, jack contacts, headphone/hold ribbon, and board connector. If both headphone and dock output are silent, pause before buying the jack and continue with logic-board or audio-circuit diagnosis. Test known-good headphones before opening the iPod. Compare headphone output with dock or line-out audio on the same track. Inspect and reseat the headphone/hold ribbon or connector connection if the iPod was opened. Similar issues to separate A split between dock and headphone output can help separate headphone/hold assembly trouble from broader audio circuitry. The path split matters: headphone-only failure points more toward the jack, headphone/hold ribbon, or board connector, while both headphone and dock output failing points away from the jack alone. Headphone jack contacts or headphone/hold assembly. Headphone/hold ribbon, storage-ribbon seating, or board-side connector. Choose this headphone/hold assembly only when headphone output fails but other audio paths still behave normally. Check another part first Check the logic board or board-level audio path first when both the headphone jack and dock or line-out path are silent. If both headphone and dock or line-out audio fail, the jack alone is unlikely. Board-level audio diagnosis belongs after output-path and ribbon checks. Repair or replacement paths Replace the headphone/hold assembly when the headphone path is the clear failing path. Continue board or dock-path diagnosis when both paths fail. Use headphone/hold assembly replacement for a failure that follows only the headphone path. Do not treat the headphone jack as the first confirmed fix when every audio output path is silent. Replace the headphone/hold assembly when the failure is isolated to the headphone path. Cautions Do not treat a broad no-audio symptom as proof that the headphone jack has failed.
Fitment or model-variant boundary	What you may notice A similar-looking part may not match the exact capacity, case thickness, generation, or color. Similar issues to separate Check fitment / model variant boundary, connector seating, and board-side damage before ordering. Check another part first Check the Touch Wheel / Button Row Assembly when controls, wheel, center/select, menu, hold, or unresponsive-button symptoms are the main problem. Check the Replacement Logic Board when board-level behavior after replaceable parts and connectors are ruled out is the main problem.
Liquid, corrosion, or residue context	What you may notice Symptoms follow liquid exposure, dirty contacts, corrosion, or residue. Similar issues to separate Liquid or corrosion can involve this part, a nearby connector, or a board path.
No sound or missing headphone audio	What you may notice People describe music playing with little or no sound from the headphone jack, or audio that disappears even though the iPod still appears to run. No sound from the headphone jack. Audio disappears while the iPod otherwise appears to run. Diagnose first when Test with known-good headphones before opening the iPod. Check whether audio behaves differently through the dock connector and the headphone jack. Inspect the headphone/hold ribbon and connector if the iPod has been opened. Similar issues to separate The headphone/hold assembly can be involved, but no-sound symptoms can also point to the jack connection, ribbon path, dock output path, or board-level audio. Choose this headphone/hold assembly only when the headphone jack or its ribbon path is the failing audio path. Repair or replacement paths Reseat the headphone/hold ribbon when the symptom began after service. Replace the headphone/hold assembly when the jack, ribbon, or hold-board assembly is the suspect path.
Ribbon, connector, or ground-path checks	What you may notice A symptom starts after opening the iPod or disturbing an internal flex cable. Similar issues to separate Connector seating, ribbon damage, or ground-path issues can involve this part, a nearby connector, or a board path.
Headphone Jack / Hold-Switch Assembly appears unresponsive or intermittent	What you may notice People describe behavior where the headphone jack / hold-switch assembly seems dead, intermittent, or only partly responsive. Diagnose first when Inspect nearby connectors and flex paths if the iPod has been opened. Similar issues to separate Choose this headphone jack / hold-switch assembly only when the failing behavior follows the part or its own connection path.
One-channel, static, or uneven headphone audio	What you may notice People report sound from only one side, static, uneven output, or audio that changes when the plug or case is moved. Sound plays in only one ear or one channel. Static, uneven volume, buzzing, or distortion through headphones. Diagnose first when Try another known-good headphone plug before ordering. Check whether light plug movement changes the channel or static behavior. If the iPod was recently opened, inspect the headphone/hold ribbon seating. Inspect and reseat the headphone/hold ribbon or connector if the iPod was opened. Similar issues to separate This pattern can involve worn jack contacts, a poor headphone plug fit, a disturbed ribbon, or damage beyond the jack. Choose this headphone/hold assembly only when the one-channel or static symptom follows the jack or ribbon. Check another part first Check headphones and board-level audio first when the symptom does not react to the jack or ribbon path.
Fitment and inspection notes	This listing is the 30/40GB thick assembly; the 10/15/20GB thin assembly is a separate listing.

Repair considerations

Run these checks before replacing the headphone jack assembly — they confirm the headphone jack assembly is the right fix and not a nearby fault:

Compare headphone output with dock or line-out output
Replace headphone jack and hold-switch assembly

Do Not Buy / Problems This Headphone Jack Assembly Does Not Fix

Situation	Start here instead
Variant or capacity does not match this listing	Use the Headphone Jack / Hold Switch Assembly (Thin - 10/15/20GB) listing instead.
The fault is clearly the storage, battery, or logic board — not the jack or Hold switch	Start with the hard drive, battery, or logic-board check for your model before buying this assembly.
Headphone and dock or line-out audio are both silent	Start with the logic board or audio-circuit check; a headphone-only failure is a reason to buy this assembly, not avoid it.
A symptom points to a different part	Start with battery for power/runtime symptoms; hard-drive cable for folder, clicking, or restore symptoms; LCD screen for display-only symptoms; headphone jack for audio or Hold-switch symptoms; touch-wheel cable for touch-wheel or control symptoms; logic board for board-side damage or multi-system symptoms before buying this part.

Install Overview

Before You Start

Confirm the model and reset state

Turn Hold off and confirm the model and variant before opening the iPod. Reset it the way this generation resets: slide Hold on and then off, then hold Menu + Play/Pause until the Apple logo appears. This is a touch-wheel iPod, one generation before the click wheel, so Menu + Play/Pause is its reset — the Menu + Select combination belongs to the later click-wheel iPods and is not the reset on this model.

Open the case slowly

Treat case opening as the highest handling risk. Work around the seams gently and stop if the shell, clips, or internal stack resist.

Protect nearby connectors

Do not pull the halves apart or side-load board sockets. Reseat nearby ribbons and connectors before blaming a replacement headphone jack assembly.

Repair steps

Documented repair-procedure steps for replacing the headphone jack assembly on this model (from teardown guides; confirm against your unit before starting):

Carefully disconnect the white battery connector from the logic board. Be sure to pull only on the connector itself and not on the cables.
Remove the 3 silver Philips screws securing the headphone jack to the rear panel.
Slide a spudger beneath the orange headphone jack cable and use it to pry the cable up from the rear panel.

Disassembly Guide

Disassembly guide summary: iPod 3rd Generation Headphone Jack Replacement.

DifficultyModerate

Steps7

SolderingNo

Common toolsplastic opening tool, Spudger

Show all 7 installation steps

Before you open the iPod, confirm that the hold switch is in the locked setting. The orange bar should be showing, indicating hold is active.

Move an opening pick as far as possible into the gap between the plastic front and the metal back panel, on the right edge of the iPod. You may have to rock the pick back and forth to move it in farther. With the opening pick, lever up against the plastic front panel and release 5 retaining tabs. Slide the pick along the iPod edge and keep levering gently until the remaining retaining tabs release. In this step, after all five tabs along the right edge are free, the case should open easily.

The iPod case is now open, but do not separate the two halves yet. An orange ribbon cable still connects the headphone jack to the logic board. With the dock connector at the top, open the case like a book and set the rear panel beside the iPod front half.

With a plastic tool or your fingernails, carefully detach the orange headphone jack cable. Make sure to draw straight up on the connector, not the cable itself. The headphone jack connector is unusually tall. When levering, keep the lower plastic connector body attached to the ribbon cable. Lever between the connector and socket, not between the connector halves.

Take out the 3 silver Philips screws securing the headphone jack to the back panel.

Guide a spudger beneath the orange headphone jack cable, then lever the cable up from the rear panel.

Grasp the headphone jack board and raise it out of the iPod. During reassembly, confirm that the plastic hold switch mechanism lines up with the logic board hold switch. The board switch is a small black nub that fits into the slot on the hold switch mechanism.

Product-specific placement, reassembly, and check

Prepare and access. Confirm the exact model and listing fit first. Use the existing steps as a disassembly guide, gather the specified tools, disconnect power where applicable, and keep screws and cable positions organized.
Place Headphone Jack / Hold Switch Assembly (Thick - 30/40GB). Align the jack and Hold-switch assembly with the housing openings and seat its cable without twisting or trapping it.
Reassemble without force. Reverse only the access steps needed for this repair, keep cables clear of case edges and screw posts, and close clips in stages.
Validate before final closure. Before final closure, test left/right audio, plug detection, and the Hold switch while the assembly remains accessible.

Stop condition: Stop if a connector, latch, screw, clip, housing edge, or the replacement part resists normal alignment. Recheck model fit, orientation, cable routing, and trapped hardware instead of forcing it.

After This Repair

Check	What to do
Test audio and Hold	Use known-good headphones and check both channels, static, plug movement, and Hold-switch behavior.
Still not working?	Compare headphone output with dock or line-out behavior when the model supports it, then inspect ribbon seating.

Worth Knowing

Headphone jack / hold switch cable — thin 10/15/20GB and thick 30/40GB use separate assemblies; match case depth. The Mini headphone-jack assembly must not be used here.

Hold Switch Stuck: What Owners Describe

On the iPod 3rd Generation, Hold Switch Stuck can describe more than one observable problem. These paraphrased owner reports are anecdotal starting points for diagnosis, not proof that any single part failed.

Anecdotal owner reports (not a guarantee or authoritative proof): - One owner reported that the Hold slider became loose and stopped working after a battery replacement.

Owners searching for this describe it as: iPod 3rd Generation Hold Switch Stuck, iPod Hold switch stuck, iPod stuck in Hold mode.

Frequently Asked Questions

Use these questions to narrow the part path before ordering. They keep each answer focused on a different diagnostic or fitment decision.

How do I choose the right headphone jack assembly?

Match capacity 30GB / 40GB and color White, case depth, and whether the Hold switch shares the same assembly on this model before ordering.

Can one-channel audio be because of something else?

Yes. Check headphones, the jack opening, debris, pressure on the case, ribbon seating, and board-side damage before treating the jack assembly as the only cause.

Can the Hold switch be part of the headphone-jack assembly?

Yes. The assembly sold here is the headphone jack, wired-remote port and Hold switch on one flex (Apple 632-0218-A), so replacing it replaces the switch. Match the case depth: thin for 10/15/20 GB, thick for 30/40 GB. If a new assembly still leaves Hold dead, the fault is the internal switch on the board side, which is a board repair. To check before you order, move the Hold switch and watch whether the lock indicator changes, and inspect the headphone/hold ribbon if the symptom started after opening the iPod. This thick 40 GB assembly is not interchangeable with the other case thickness.

Is this an iPod Classic?

Apple's 'Classic' branding started with the 6th Generation (2007). This is the iPod 3rd Generation (2003), model A1040. Apple's official name for this model is iPod (Dock Connector).

Does capacity matter for this part?

Use the Specifications & Fitment table as the source of truth. Match model, capacity, case depth, connector style, and order-number family before ordering.

Some buyers search for "iPod 3rd Gen 30GB 40GB Headphone Jack", "dock connector iPod", "audio-out jack", "lock switch", "lock slider", "iPod with dock connector", or "ipod classic 3rd generation headphone jack"; confirm the checks above point to this same part before ordering.

Why people land on this part

Some buyers search for "White Screen" or "won't charge after replacing the battery"; confirm the checks above point to this same part before ordering.

Also searched as: ipod 3rd generation headphone jack / hold switch assembly replacement, ipod 3g headphone jack, Audio Distortion, One Ear Only, Headphone Jack Not Working, buzzing sound, headphone jack thick replacement, repair the headphone, ipod third generation.

What Owners Report

These are anecdotal owner reports, not guarantees or authoritative proof that a particular part will fix a symptom. Use them as a troubleshooting starting point: confirm the symptom, run the quick checks, then match the fix.

Hold slider loose or dead after a battery swap

Symptoms. After a battery replacement the Hold slider is completely loose and no longer locks or unlocks the controls; in a purchased unit the same story — "battery was replaced, then the hold switch stopped working."

Quick diagnosis. The assembly we sell carries the Hold switch; the checks below are for a unit where a new assembly still leaves Hold dead.

Open the case and look at the top edge of the board near the corner: the Hold mechanism is a small switch whose internal actuator must engage the slider button in the top plate. If the actuator tab has snapped off the switch body, the outside slider has nothing to move.
If the switch is intact but misaligned, the toggle may simply be bent out of position from reassembly. On reassembly the outside slider and the small internal switch must sit the same way round — a mismatch reads as a dead Hold switch.

Fixes.

Headphone-jack assembly replacement — the assembly we sell carries the Hold switch. On this model the headphone jack, the wired-remote port and the Hold switch are one flex assembly (Apple 632-0218-A), so fitting a new assembly fits a new switch. Keep the second half in view before you order: one repair guide instead describes the plastic slider being synced with a small black switch on the logic board, so if a new assembly still leaves Hold dead, the fault is board-side and that is a board repair rather than a parts swap. The assembly comes in thin-case and thick-case variants that are not interchangeable — match the part sold for your capacity's case depth (10/15/20 GB thin vs 30/40 GB thick).
Careful re-bend — a bent-but-unbroken toggle can be eased back into position; owners who have done it stress going very gently, since a snapped toggle turns a free fix into a parts order.
Board-side damage — one owner found the broken piece was the switch's attachment at the board connection; damage at that level can put the repair beyond the flex assembly.

Cautions.

Work the slider mechanism only with the case open and the mechanism visible — forcing a loose slider from outside risks breaking the actuator clean off.

Community signal. Reported by 1 owner; three contributors describe the same failure anatomy.

You May Also Want

A fresh battery is often replaced during the same repair while the iPod is open.

Flash storage is the common upgrade path while the iPod is already open.

Headphone jack and dock connector are often serviced together.
