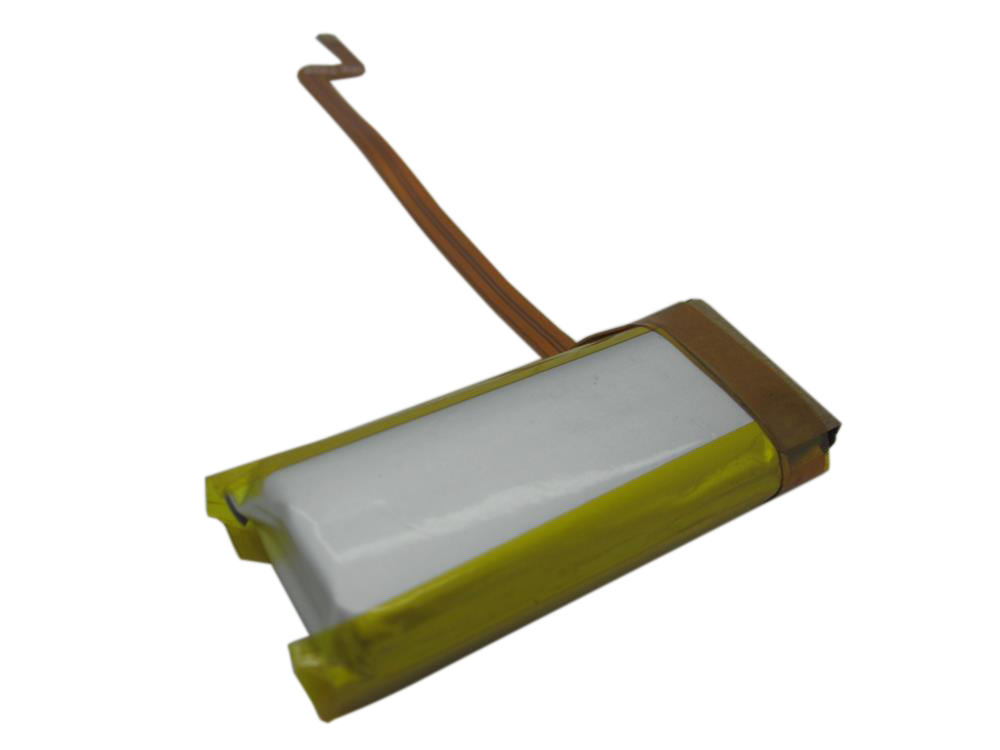

Replacement rechargeable battery for iPod Classic 6G. Use it only after confirming thin-case clearance, installed storage stack height, and supplier battery dimensions.
Product Overview
This battery listing covers New Custom Thin 3000mAh Battery and its own connector path on the iPod Classic 6th Generation.
Use the Compatible Variants table below to confirm capacity, color, case, or order-number fitment.
Choose this part when your iPod shows Won't Charge, Won't Turn On, Battery Drain, or Shuts Down Randomly; the checks below help confirm the right part before you order.
If a known-good battery, cable, and power source still do not restore stable power, the problem might be the dock connector, battery connector, or something on the board, not just the battery.
Choose Your Option
This part comes in multiple variants. Confirm your iPod's capacity, case depth, and order number before ordering.
Use this linked battery option only for 80GB/120GB thin-case iPods and the order numbers shown here.
View this option → 160GB / Thick Replacement Battery (Thick — 160GB)Use this linked battery option only for 160GB thick-case iPods and the order numbers shown here.
View this option →Fits thin 80GB / 120GB iPod Classic 6G builds when the installed storage stack and rear case leave enough clearance. This is a custom high-capacity option, not an Apple OEM capacity.
You're viewing this optionWhat Is Included
Condition: New custom replacement part. Quantity and exclusions: The listed part, set, pair, or configuration above is supplied with exactly one plastic pry tool. No other parts, tools, adhesives, or materials are included unless they are explicitly listed above.
Quick Diagnosis: Is It The New Custom Thin 3000Mah Battery?
Start here before ordering. Work through the checks in order; a symptom alone does not prove this battery is bad until nearby parts, cables, fitment, or install issues are separated.
Before you order this battery
- Try a force restart first. Toggle Hold on and off, then hold Menu + Select/Center for 6 to 10 seconds.
- Check battery and power stability. Try a known-good cable, charger, and computer port before opening the iPod.
- Check for liquid or connector damage. Inspect the dock connector for debris, bent pins, corrosion, or looseness.
- Try Disk Mode or restore isolation. Separate charging-only failure from computer-recognition or sync failure when choosing a part.
- Use this listing only after the checks still point here. If the symptom still points here after those checks, compare Compatible Variants before ordering this battery.
Other Symptoms That May Involve This Part
| Symptom | What it means & what to check |
|---|---|
| a new symptom appeared after battery, storage, audio, display, or control work, people describe a new problem appearing immediately after battery, storage, display, audio, or control work, black spot on iPod Classic screen, ipod classic shuts off randomly | Use this as a battery clue only after the iPod matches this listing's battery fitment. |
| dead ipod | Charge from a known-good source long enough to separate deep discharge from a failed cell, then confirm the case-depth battery path. |
Specifications & Fitment
Part Details
| Detail | Value |
|---|---|
| Model Number | A1238 |
| EMC | EMC 2173 |
| Condition | New custom battery |
| Battery Capacity | 3000mAh custom aftermarket (not Apple OEM) |
| Device Storage | Flash-storage builds on any A1238 Classic (80GB/120GB thin, thick 160GB, Late-2009 thin 160GB) |
| Chemistry | Li-Ion |
| Voltage (Nominal) | 3.7V |
| Charge Voltage | 4.2V |
| Connector | Brown latch battery ribbon |
| Soldering Required | No |
Compatible Variants
| Order Number | Capacity | Color | Case | Compatible | Notes |
|---|---|---|---|---|---|
| MB147LL/A | 80GB | Black | thin (0.41 in) | Yes— flash-storage builds only | Requires a flash-storage board: the 3000mAh pack does not clear a stock hard drive (owner A8). |
| MB029LL/A | 80GB | Silver | thin (0.41 in) | Yes— flash-storage builds only | Requires a flash-storage board: the 3000mAh pack does not clear a stock hard drive (owner A8). |
| MB565LL/A | 120GB | Black | thin (0.41 in) | Yes— flash-storage builds only | Requires a flash-storage board: the 3000mAh pack does not clear a stock hard drive (owner A8). |
| MB562LL/A | 120GB | Silver | thin (0.41 in) | Yes— flash-storage builds only | Requires a flash-storage board: the 3000mAh pack does not clear a stock hard drive (owner A8). |
| MB150LL/A | 160GB | Black | thick (0.53 in) | Yes— fits | Owner-attested: the high-capacity custom pack fits the thick 160GB case. Verify the battery path for your build before ordering. |
| MB145LL/A | 160GB | Silver | thick (0.53 in) | Yes— fits | Owner-attested: the high-capacity custom pack fits the thick 160GB case. Verify the battery path for your build before ordering. |
| MC297LL/A | 160GB (Late 2009) | Black | thin | Yes— fits | Fits the Late-2009 thin 160GB (MC293LL/A / MC297LL/A); that model is sold under the iPod Classic 7th Generation (Late 2009) pages. |
| MC293LL/A | 160GB (Late 2009) | Silver | thin | Yes— fits | Fits the Late-2009 thin 160GB (MC293LL/A / MC297LL/A); that model is sold under the iPod Classic 7th Generation (Late 2009) pages. |
Failure Signs
Use these checks to decide whether this battery is the right part, whether a nearby part should be checked first, or whether the symptom needs more diagnosis.
| Symptom | What it means & what to check |
|---|---|
| Ribbon, ZIF, connector, or ground-path checks |
What you may see: A symptom starts after opening the iPod or disturbing an internal flex cable. Check first: Inspect for liquid, corrosion, residue, torn flex material, or connector damage. Most likely cause: Connector seating, ribbon damage, or ground-path issues can involve this part, a nearby connector, or a board path. Look elsewhere when: Check the replacement hard drive that matches your model (80GB/120GB thin or 160GB thick) when storage symptoms such as clicking, sad ipod, folder icons, or restore failure are the main problem.
|
| Fitment or model-variant mismatch |
What you may see: People ask whether a similar-looking part from another model, capacity, or generation will work. Check first: Check the capacity engraved on the back case: 80GB or 120GB means thin. An original 2007 160GB is thick; the Late 2009 160GB (MC293LL/A, MC297LL/A) is thin — identify by order number. Order parts matching that capacity.
Most likely cause: This battery may help only when it matches the model and variant being repaired.
Look elsewhere when: Check fitment before replacing nearby parts or ordering another copy of the same wrong variant. |
| Power, charging, or runtime symptoms |
What you may see: People describe short runtime, charging trouble, sudden shutoff, or an iPod that will not reliably power on.
Check first: Test with a known-good charger and cable before opening the iPod.
Most likely cause: The 6G comes in thin 80GB/120GB 10.5mm cases and thick 160GB 13.5mm cases. Hard drives, backplates, and headphone-jack assemblies are depth-specific; batteries follow the depth rule too, except the custom thin 3000mAh pack, which is owner-approved for thick 160GB flash-storage builds (R034).
Look elsewhere when: Check charger/cable behavior, dock connector condition, storage startup clues, and board damage when the symptom is not isolated to battery performance. |
| Symptoms changed after repair or reassembly |
What you may see: People describe a new problem appearing immediately after battery, storage, display, audio, or control work.
Check first: Reopen only as far as needed to inspect the areas touched during the repair.
Most likely cause: A post-repair symptom can involve the battery, but disturbed ribbons, latches, grounding, connector seating, or the wrong variant part are common checks before ordering again.
Look elsewhere when: Check the exact connector or assembly disturbed during the repair before treating the new part as failed. |
Repair considerations
Run these checks before replacing the battery — they confirm the battery is the right fix and not a nearby fault:
- Let alcohol or liquid cleaning dry before power-up
- Swollen or damaged batteries require safety framing
- Try known-good cable, charger, USB port, or computer
- Replace battery
Do Not Buy This Battery Yet If...
| Situation | Start here instead |
|---|---|
| Variant or capacity does not match this listing | Use the 5G Video 3000mAh custom thin battery path. |
| You see a folder icon, clicking noise, or restore failure | Check the drive or flash media, storage cable, adapter seating, formatting, and restore path before replacing any part. |
| Only the screen is affected and everything else works | Start with the screen, display ribbon, backlight path, and battery-swelling inspection. |
| Charging, swelling, runtime, or power is the primary problem | Check the charger, cable, port condition, and battery connector before replacing the battery. |
| Recent service or connector disturbance is the main clue | Inspect the disturbed connector, latch, ribbon, flex path, and corrosion signs before ordering another battery. |
| A symptom points to a different part | Identify the symptom's part family first; case depth alone is not a destination or diagnosis. |
Install Overview
Before You Start
For pre-open diagnosis, unlock Hold and use this generation's reset sequence if needed. Before opening, lock the Hold switch so the orange bar is visible, then confirm the model and variant.
Treat case opening as the highest handling risk. Work around the seams gently and stop if the shell, clips, or internal stack resist.
Do not pull the halves apart or side-load board sockets. Reseat nearby ribbons and connectors before blaming a replacement battery.
Stop charging and avoid puncturing, bending, or compressing the cell if the battery is swollen, hot, leaking, or visibly damaged.
If the symptom appeared after opening the iPod or replacing a part, inspect and reseat nearby ribbon cables and connectors before assuming the replacement part is bad.
Do not fully separate the case halves until the remaining ribbons are released; the back panel can still be connected by ribbon cables.
Disassembly Guide
Disassembly guide summary: iPod Classic Battery Replacement.
Show all 24 installation steps
For safety, completely discharge the iPod before disassembly. This reduces dangerous thermal-event risk if the battery is accidentally damaged during repair. If the battery is swollen, take appropriate precautions. This iPod case is unusually hard to open without damaging major components. Its metal faceplate, metal backing, and thirteen metal clips make disassembly especially demanding. Caution: this opening method can significantly damage the iPod beyond its current condition. Keep a few extra plastic opening tools nearby, since they are easy to ruin while opening the case. Confirm that the hold switch is locked before you open the iPod.
Opening this iPod is challenging, so do not get discouraged if it takes a few tries. Watch the plastic opening tool tip angle as you insert it into the iPod; keep it as vertical as possible while still clearing the rear panel edge. Guide a plastic opening tool into the seam between the front and rear of the iPod.
Slide a second plastic opening tool into the seam between the iPod front and rear, keeping the two tools at least 1.5 inches apart.
Working at an angle, carefully slide a putty knife about 1/8 inch into the gap between the two opening tools. You will find thin metal rails running along the inside of the back panel, so work very carefully when inserting the putty knife. After the putty knife clears the rear panel lip, rotate it vertical and carefully but firmly work it straight down through the opening tool gap.
Press on the rear panel behind the putty knife with your fingers to reduce bending. Slowly flex the putty knife so most metal tabs along this side of the iPod release. The idea is to control how the rear panel bends instead of trying to prevent all bending. Any side bend should draw the rear panel lip away from the iPod, not push outward on the curved surface. This also releases as many side clips as possible.
Take the putty knife out, then place it closer to the iPod corner and use the same gentle wiggle method. If possible, do not bend the rear panel corner.
Between the lock slider and headphone jack, guide a plastic opening tool into the seam between the front and rear of the iPod. It may be easier to flex the putty knife downward carefully to create more room for the opening tool. Be careful not to bend the rear panel corner.
Near the display center, carefully slide a metal spudger into the gap made by the plastic opening tool. A visible bump can form here in the rear panel and is hard to repair. When levering the tab free, pivot the metal spudger on the rear panel edge instead of bending the rear panel outward. With the metal spudger, release the single clip at the iPod top edge.
Near the other top corner, insert an opening tool into the gap between the front and rear of the iPod
On the other side, insert an opening tool into the gap between the front and rear of the iPod. It may help to angle the opening tool stuck in the top corner to create enough of a gap.
Take out the plastic opening tool from the top corner and slide it into the seam between the front and rear of the device, leaving at least 1.5 inches of space between the 2 tools (as done on the other side).
Working at an angle, carefully slide a putty knife about 1/8 inch into the gap between the two opening tools. Again, you will find thin metal rails running along the inside of the back panel, so work very carefully when inserting the putty knife. After the putty knife passes the rear panel lip, turn it vertical and carefully but firmly work it straight down through the gap between the plastic opening tools. Press on the rear panel behind the putty knife with your fingers to reduce bending. Flex the putty knife just enough to make sure most metal tabs along this side of the iPod release.
The metal clips near the corners grip the front panel tightly. Release these clips before opening the iPod. Carefully slide a metal spudger into the area beside the stubborn metal clip.
Gently work the metal spudger downward until it is fully seated in the rear panel.
Gently start releasing the clip from the front panel. A visible bump can form here in the rear panel and is hard to repair. When levering the tab free, pivot the metal spudger on the rear panel edge instead of bending the rear panel outward.
Use the metal spudger to apply upward pressure under the front panel until the metal clip releases.
You will find two ribbon cables connecting the rear panel to the remaining iPod assembly. In the following step, take care not to damage these ribbon cables. In this step, grasp the front-panel assembly with one hand and the back panel with the other. Pause for a moment before continuing. Very gently release the remaining rear-panel clips by pulling the tops of the front and rear panels apart, using the iPod bottom as a hinge. Take great care not to damage the ribbon cables joining the two halves.
The battery flex cable lock tab is very delicate. Pulling too far, or pulling on the connector's white portion, can tear it from the main board. If that happens, battery connector repair becomes very difficult. With angled tweezers or an opening tool, raise the brown lock latch straight up by 1 mm. Confirm you draw from both sides of the latch. Take care not to pull on the white portions extending to the connector's outer edges. Move the brown lock tab straight upward. The connector is fragile and can break if it shifts to the side. Grasp the flex cable with your fingers or tweezers and draw it straight up to detach it. If using tweezers, avoid grasping the cable too close to the socket or the cable contacts may short.
Set the rear panel beside the iPod, taking care not to strain the orange headphone jack cable.
Raise the hard drive with one hand to expose the headphone jack ribbon underneath. With a spudger, flip up the plastic tab securing the headphone jack ribbon in place. The tab can rotate up 90 degrees, releasing the ribbon cable. Move the orange headphone jack ribbon out of its connector. The rear panel is now released from the iPod.
After opening, check the rear-panel clips. If any clip bent upward, press it back down gently so the rear case can close cleanly.
Use the broad, flat face of the metal spudger to press the clip downward. Work carefully so the thin metal rail does not tear away from the rear panel. Flat pin-nosed pliers can reduce slipping and headphone jack damage risk. While shaping these clips, take care not to damage any headphone jack parts.
Set the rear panel on its side on a clean, hard surface. Carefully but firmly press it downward, rolling the full lip edge back into place. You may need to repeat this several times to straighten the sides well. Slightly overcorrecting the case edges inward is better than leaving them too far out, because reseating the front panel will bend the rear panel back into alignment. Once the rear panel is restored to good condition, continue with the iPod repair.
The battery sticks to the rear panel adhesive. As you remove it, take care not to tear the orange ribbons for the headphone jack or hold button. With a spudger, raise the battery and the attached orange cable out of the device. If the battery is hard to remove, warm the iPod back with a hair dryer or heat gun to soften the glue holding the battery in place. Do not overheat the battery.
Product-specific placement, reassembly, and check
- Prepare and access. Confirm the exact model and listing fit first. Use the existing steps as a disassembly guide, gather the specified tools, disconnect power where applicable, and keep screws and cable positions organized.
- Place New Custom Thin 3000mAh Battery. Seat the battery in the original battery location, route its lead or ribbon without a pinch, and reconnect it squarely.
- Reassemble without force. Reverse only the access steps needed for this repair, keep cables clear of case edges and screw posts, and close clips in stages.
- Validate before final closure. Before final closure, confirm boot and charging behavior and stop immediately for swelling, heat, odor, hissing, smoke, or leakage.
Stop condition: Stop if a connector, latch, screw, clip, housing edge, or the replacement part resists normal alignment. Recheck model fit, orientation, cable routing, and trapped hardware instead of forcing it.
After This Repair
| Check | What to do |
|---|---|
| Charge and calibrate | Charge fully, let it stay on the charger a little longer, then use it through a normal discharge and charge cycle so the meter can settle. |
| Watch the internal stack | If the display shows pressure marks, dark spots, or case bowing after reassembly, reopen and check battery thickness and cable routing. |
| Still not working? | Check the dock connector, battery connector, storage load, and board power path before replacing another battery. |
Frequently Asked Questions
Use these questions to narrow the part path before ordering. They keep each answer focused on a different diagnostic or fitment decision.
Can storage trouble look like a bad battery?
Yes. A failing drive or unstable flash setup can draw power, loop boot, or stall restore in ways that look like weak battery behavior.
Should I keep using a swollen battery?
No. Stop charging and avoid puncturing, bending, or compressing a swollen, hot, leaking, or visibly damaged lithium battery.
When is this battery the right fix for power or runtime symptoms?
Confirm this is the correct battery for the model and capacity before using symptoms to choose the part. Try a known-good USB cable or power source and note whether the iPod stays on only while connected. If the iPod was opened recently, inspect and reseat the battery connector before ordering another battery. If the drive clicks, shows a sad iPod, or fails restore under load, keep the storage path in the comparison before blaming only the battery. Check the capacity engraved on the back case: 80GB or 120GB means thin. An original 2007 160GB is thick; the Late 2009 160GB (MC293LL/A, MC297LL/A) is thin — identify by order number. Order parts matching that capacity. Test with a known-good charger and cable before opening the iPod. Note whether the iPod shows charging, briefly powers on, shuts down under load, or never wakes at all. If the symptom began after service, inspect the battery connector and nearby flex paths before replacing another part. This thin 80 GB / 120 GB battery is the right choice when runtime or charge retention is isolated to the battery path. Choose this battery only when the power, charging, or runtime pattern is tied to this part or its connector path. Check cable and power-source behavior, connector seating, swelling, corrosion, and storage symptoms before treating the battery as confirmed. Check charger/cable behavior, dock connector condition, storage startup clues, and board damage when the symptom is not isolated to battery performance. A swollen or damaged lithium battery should be handled as a safety issue, not a normal quick fix.
What should I check before replacing this battery?
Inspect the battery connector and nearby ribbon paths before ordering another battery. Look for corrosion, torn flex material, or a connector that no longer clamps the battery lead cleanly. Reopen only as far as needed to inspect the areas touched during the repair. Compare the new symptom with what worked before the repair. Check cable seating, latch position, and part variant before replacing a second part. This battery helps only when the battery itself remains the isolated failure after seating checks. Choose this battery only when the part itself was torn, creased, or damaged during service. Check disturbed connectors first when the symptom appeared immediately after service. Check the exact connector or assembly disturbed during the repair before treating the new part as failed.
Why people land on this part
Use the checks above to separate this battery from nearby parts before ordering.
Some buyers search for "sad ipod, red x, clicking drive, restore loop, or disk-mode trouble"; confirm the checks above point to this same part before ordering.
Some buyers search for "charging, usb recognition, sync, or dock behavior is intermittent or missing" or "people describe charging, usb recognition, sync, or dock-connector behavior that is intermittent or missing"; confirm the checks above point to this same part before ordering.
Also searched as: iPod classic 6th Generation New Custom Thin 3000mAh Battery, Problems This Battery Does Not Fix, replace battery iPod classic 6th generation, iPod classic 6g battery replacement, iPod classic 6th generation 80GB battery replacement, dead after battery, battery dies, iPod classic 6th gen battery life, replaced battery, 1900mah iPod battery, 2000mAh battery iPod classic, 2200mah iPod classic battery, 3000mAh battery replacement iPod classic, 3000mAh thin battery, A1238 3000mAh battery, battery replacement option for the iPod Classic 6th Generation, 3000mah iPod thin case flash adapter, quad-card flash adapter 3000mAh, restomod iPod, not charging, doesn't charge, battery has been, expanded battery, battery affecting middle, anything the battery, swollen battery affecting, battery won't charge, Won't Turn On, Battery Drain, Shuts Down Randomly, new battery, please wait, not charge, battery drained, Swollen Battery, black spot on iPod Classic screen, iPod classic shuts off randomly.
Owners searching for this describe it as: iPod classic 6th Generation Won't Charge, iPod won't charge, replacement battery won't charge.
Owners searching for this describe it as: iPod classic 6th Generation Won't Turn On, iPod won't turn on, iPod has no power.
Battery Safety & Shipping
⚠️ Lithium-Ion / Li-Po Battery Safety. This product contains (or is) a rechargeable lithium-ion/lithium-polymer battery. Charge only with a compatible charger and unplug once fully charged. Avoid charging or storing in direct sunlight or other high-heat environments. Stop using and stop charging immediately if the battery swells, bulges, gets unusually hot, hisses, smokes, or leaks. Do not puncture, crush, bend, short-circuit, or try to "deflate" a swollen cell, and never press a lifted screen or case back down — it can rupture the cell. If electrolyte contacts your eyes, flush with clean water for 15 minutes without rubbing and seek medical care; on skin, wash with water and soap. Battery service should be done by a trained technician. Recycle through an electronics or universal-waste recycler, not household trash.
Shipping. A refurbished iPod shipped with its battery installed is handled as lithium-ion batteries contained in equipment (UN3481); a loose replacement cell is handled as a lithium-ion battery (UN3480). Carrier, packaging, and destination restrictions can vary, so follow the current checkout and shipping instructions for the offered route.
Worth Knowing
- This is a new custom aftermarket high-capacity battery path, not an Apple OEM capacity or Apple OEM part number.
- 3000mAh is a custom/supplier capacity label; confirm the physical battery dimensions and installed storage stack before ordering.
- High-capacity battery fitment requires a flash-storage build: the 3000mAh pack does not clear a stock hard drive (owner A8). Verify the installed backplate and storage stack before ordering.
- Do not use high-capacity battery search demand as proof of repair cause. A weak cell can cause short runtime, shutdowns, and very-low-battery loops, but charging cable, dock connector, battery ribbon seating, storage spin-up load, and board-level power faults can mimic battery failure.
- Apple did not publish original capacity for the thin 80GB / 120GB 616-0229 battery path; replacement-cell capacity varies by supplier.
- The 120GB MB562LL/A and MB565LL/A models are often described as Late 2008 / 7th Gen in parts catalogs, but their battery fitment follows this thin 616-0229 route.
- Stock Apple firmware supports flash storage up to about 128 GB usable; larger card totals require unsupported third-party firmware.
Won't Charge: What Owners Describe
On the iPod classic 6th Generation, Won't Charge can describe more than one observable problem. These paraphrased owner reports are anecdotal starting points for diagnosis, not proof that any single part failed.
Anecdotal owner reports (not a guarantee or authoritative proof): - One owner reported being stuck at the Please Wait, Low Battery screen. - Another owner reported that the Charging, Please Wait screen remained even after a battery replacement and multiple charging attempts.
Won't Turn On: What Owners Describe
On the iPod classic 6th Generation, Won't Turn On can describe more than one observable problem. These paraphrased owner reports are anecdotal starting points for diagnosis, not proof that any single part failed.
- One owner reported that a fully charged iPod abruptly stopped turning on, whether connected to power or not.
What Owners Report
These are anecdotal owner reports, not guarantees or authoritative proof that a particular part will fix a symptom. Use them as a troubleshooting starting point: confirm the symptom, run the quick checks, then match the fix.
Will not charge, odd charging icon, or charger-dependent behavior
Symptoms. No charging screen when plugged in; stuck on "Charging, please wait"; battery icon never fills or never shows full; works on a dock, car kit, or wall adapter but dies the moment it's unplugged; white "OK to disconnect" screen that won't clear; completely dark after months in a drawer.
Quick diagnosis.
- Flick the Hold switch to locked and back, then hold Menu + Center together for 6–10 seconds until the Apple logo appears. Repeat once or twice if nothing happens — this hard reset clears a surprising share of "dead" units.
- A white checkmark / "OK to disconnect" screen means the iPod is sitting in Disk Mode — the same reset brings it back.
- If the screen shows "Charging, please wait" or stays dark, leave it on a known-good power source for at least 30 minutes before judging anything. A deeply drained battery cannot even talk to the computer at first.
- Not all power sources are equal: unpowered keyboard and hub USB ports cannot charge this iPod. Use a rear (motherboard) USB port or a wall adapter.
- If it charges from the wall but not the computer (or the reverse), inspect the dock connector for lint, corrosion, and bent or broken pins; clean it with 90%+ isopropyl alcohol, a toothpick, and compressed air.
- Still nothing: the built-in diagnostic mode can help isolate battery vs. drive vs. board faults before you buy parts.
Fixes.
- Battery replacement — the most common outcome. A battery that only holds a charge while plugged in, drains overnight while switched off, or reads a healthy resting voltage yet dies under load is at end of life. Thin-case units (80GB and 120GB) take the thin battery; the 2007 thick 160GB takes the thick 850mAh battery. The two are not interchangeable — a thick battery forced into a thin case prevents the back from seating and presses on the display.
- Charger match — this model negotiates charge current over the cable's data lines, so bare-bones "dumb" 5V adapters may never start a charge. Apple-class USB adapters work; so do 12V FireWire-era adapters and docks, which charge (but never sync) this generation. Owners also report a FireWire-era 12V source waking units so deeply discharged that a computer USB port gets no response.
- Dock connector service — corroded, bent, or shorted pins reproduce every symptom above; cleaning fixes the mild cases and a connector replacement fixes the rest.
- Board-level charging fault — with a good battery, good cable, and clean connector, a unit that still won't charge from USB usually has a failed power-management IC on the logic board. That is a board-level repair or a donor-board job, not a battery problem.
Cautions.
- The battery connector on this series is fragile and is known for tearing off the logic board — pry gently and mind the locking clasp.
- After any battery swap, seat the ribbon exactly as it came out; a reversed or half-seated ribbon reproduces "Charging, please wait" indefinitely.
- Water- or sweat-exposed units: clean the board with isopropyl alcohol before condemning parts — corrosion mimics every charging fault in this list.
- A resting multimeter reading can look normal on a battery that fails under load; don't rule the battery out on voltage alone.
Community signal. Reported by 52 owners — the most-reported battery issue on this model.
Dead device or will not turn on
Symptoms. Screen black mid-use and never comes back; totally unresponsive to buttons or cable; shows only the Apple logo; reboots every few seconds on power; runs only while connected to power; got hot and died.
Quick diagnosis.
- Toggle Hold, then hold Menu + Center 6–10 seconds for the Apple logo; repeat if needed. Sudden one-minute-to-the-next deaths are often just a locked-up controller.
- If the reset does nothing, put it on a wall (AC) charger for a full hour, then repeat. Wall adapters supply more current than most USB ports, and a battery drained past its threshold will not charge from a weak port at all.
- From "please wait — low battery": toggle Hold a couple of times, hold Select + Play to enter Disk Mode, plug it in, let it charge 20–60 minutes, then reset with Menu + Select.
- Check the dock connector — bent, broken, or corroded pins and pocket lint account for many "dead" units.
- If it runs while plugged in but dies instantly when unplugged, the battery can no longer hold a charge — replace it.
- If it stays dead on wall power with a clean connector, replace the battery anyway before condemning the board: it is the cheapest way to establish a known-good starting point.
Fixes.
- Battery replacement first (see E01 for thin/thick pairing).
- Fell in water, sink, tub, or drink: do not keep trying to charge it. Disassemble fully, clean the logic board and every connector with 90%+ isopropyl alcohol and a soft brush, watch for white or green residue, replace the battery (lithium cells react badly to moisture), then re-evaluate. The hard drive may also have taken damage.
- Repeated 2-second boot loops on power with a long-dead battery: replacement battery, then wall-charge before first judgment.
- After all of that, a unit that still shows no sign of life on any power source has a logic-board fault — board repair or replacement.
Cautions.
- Overheating while on a car adapter or third-party dock can cook the battery and, in bad cases, the board — owners report faulty adapters delivering sustained over-voltage. If a unit got hot before dying, inspect the adapter before reusing it.
- After any repair, a unit that won't power up usually has a connector problem, not a new fault: re-check that every ribbon (battery, display, click wheel, hard drive) is fully seated and that no board connector came off with the cable.
Community signal. Reported by 18 owners.
Won't charge after a battery swap / new battery misbehaves
Symptoms. Brand-new battery shows full after a minute then drains; won't charge at all after a battery, jack, or hold-switch repair; still won't hold a charge after replacement; gets warm under the click wheel while plugged in; only charges in the car.
Quick diagnosis.
- Re-open the case and check the battery ribbon first: fully inserted, straight, to the marking on the cable, locking clasp down. A half-seated ribbon is the single most common cause after any repair.
- Check the battery connector itself — this series is plagued by a badly designed battery connector that corrodes and tears off the logic board. Confirm it is still firmly attached and makes contact.
- Swap in a known-good cable and a different charger before blaming parts.
- Give a new battery its first charge on a wall adapter, and allow 15–30 minutes before expecting any sign of life.
- Clean and inspect the dock connector (isopropyl alcohol, compressed air, no bent pins).
Fixes.
- Exchange the battery — replacement batteries are routinely duds or old stock. If the iPod runs on the original battery yet stays dead on the replacement, the replacement cell is bad: exchange it. Cheap no-name batteries also cause charge-indicator nonsense and short run times.
- Connector repair — a battery connector that has separated from the board needs to be re-soldered or the board replaced; no battery will fix that.
- Board-level fault — heat concentrated under the click wheel while charging points at a short circuit, worst case in the power-management IC; that is a logic-board repair.
- New-battery break-in: charge to full, leave it plugged a couple of hours, run it down once, then use normally. Leaving it plugged in a few hours longer than the instructions say does no harm.
Cautions.
- Battery percentage on a fresh battery varies hugely with backlight, volume, and bitrate settings; 25–28 hours of continuous play is normal behavior, not a defect.
- "New to you" is not new: old-stock batteries deplete on the shelf.
