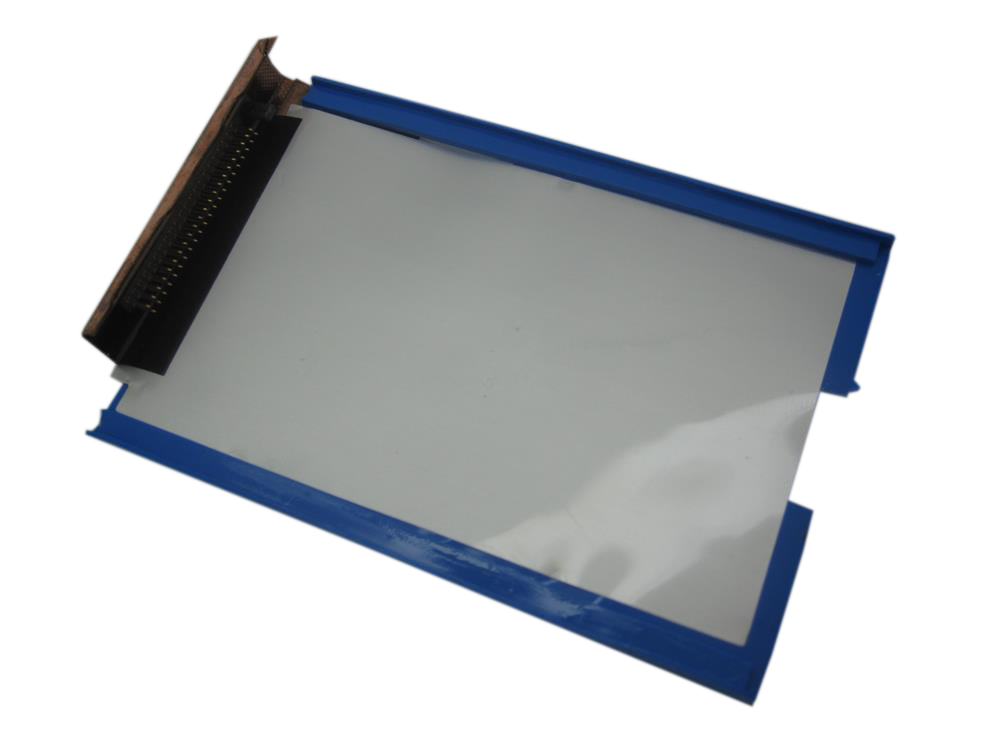

Replacement internal cable for iPod 3G. Use it when the flex or ribbon is torn, creased, loose, or failing at the connector before blaming the whole attached assembly.
Product Overview
This cable listing covers Hard Drive IDE Ribbon Cable and its own connector path on the iPod 3rd Generation.
Use the Compatible Variants table below to confirm capacity, color, case, or order-number fitment.
Choose this part when your iPod shows Folder Icon, Clicking Noise, Corrupted Data, or iTunes Error; the checks below help confirm the right part before you order.
One cable serves both case depths. The 10/15/20GB thin build and the 30/40GB thick build take the same 50-pin ribbon, so there is nothing to match here but the generation — which is not true of the drive, the bumpers or the backplate, where depth decides the part.
Check how you are charging it before you blame the storage. The 3rd generation charges over FireWire only. A USB dock cable fits the 30-pin port and syncs, but it cannot put a charge in — Apple’s own user guide for this iPod says "You can’t charge iPod using USB." A drive that "will not spin up on USB" is very often a flat battery rather than a failed drive.
When the ribbon is the likelier suspect than the drive: the symptom changes when you reseat or press near the connector; a known-good drive behaves the same way; the ribbon is creased, torn or discoloured where it folds; or a restore fails straight after drive work. Ribbon micro-fracture is named in the record as the top genuine hardware failure behind drive-symptom reports.
What Is Included
Condition: Used factory-original part. Quantity and exclusions: The listed part, set, pair, or configuration above is supplied with exactly one plastic pry tool. No other parts, tools, adhesives, or materials are included unless they are explicitly listed above.
Quick Buying Check
Buy this when
- Hard Drive Failure: Use the cable check when reseating, connector inspection, or a known-good drive points to the storage ribbon instead of the drive itself.
Diagnose first when
- Confirm the capacity match before ordering: 10GB, 15GB, 20GB, 30GB, 40GB.
- Confirm the case thickness before ordering: thick, thin.
- Try a known-good cable, charger, and computer port before opening the iPod.
- Inspect the dock connector for debris, bent pins, corrosion, or looseness.
Specifications & Fitment
Part Details
| Detail | Value |
|---|---|
| Model Number | A1040 |
| EMC | EMC 1961 |
| Condition | Used — factory original Apple part. Normal cosmetic wear expected. |
| Interface | Parallel ATA (IDE) ribbon; 50-pin Toshiba MCD-D50 storage connector |
| Type | Flat ribbon cable |
Compatible Variants
| Order Number | Capacity | Color | Case | Compatible | Notes |
|---|---|---|---|---|---|
| M8976LL/A | 10GB | White | thin | Yes | — |
| M8946LL/A | 15GB | White | thin | Yes | — |
| M9460LL/A | 15GB | White | thin | Yes | — |
| M9244LL/A | 20GB | White | thin | Yes | — |
| M8948LL/A | 30GB | White | thick | Yes | — |
| M9245LL/A | 40GB | White | thick | Yes | — |
Diagnostic Failure Cards
Use these model-specific failure cards to decide whether this cable is the right part, a nearby part needs checking first, or escalation makes more sense after simpler checks.
| Symptom | What it means & what to check |
|---|---|
| Symptom remains after basic checks |
What you may see: The iPod still points back to Hard Drive IDE Ribbon Cable after cable seating, battery stability, and nearby connector checks. Check first: Retest with known-good cables or adjacent parts where practical before ordering. Check next: A nearby cable, connector, battery, storage device, display path, audio path, or board path can mimic a bad cable. |
| Symptom changes when touched or reseated |
What you may see: The symptom changes after moving the part, reseating a cable, or applying light pressure near the connector path. Check first: Inspect the connector, latch, flex, solder joints, and nearby board area for damage or corrosion. Check next: This can still be a connection issue rather than a failed cable alone. |
| Problem began after another repair |
What you may see: The issue started immediately after opening the iPod, replacing another part, or disturbing an internal cable. Check first: Reopen only as far as needed and inspect the exact area touched during the previous repair. Check next: Post-repair symptoms often trace to seating, latch, screw, or cable issues before Hard Drive IDE Ribbon Cable itself is confirmed bad. |
| Sad iPod, clicking, restore, or storage trouble |
What you may notice
Diagnose first when
Similar issues to separate
Check another part first
Repair or replacement paths
|
| Cable ribbon, connector, or contact path |
What you may notice
Diagnose first when
Similar issues to separate
Check another part first
Repair or replacement paths
|
| Dock, USB, sync, or charging connection trouble |
What you may notice
Diagnose first when
Similar issues to separate
Check another part first
Repair or replacement paths
|
| Symptoms changed after repair or reassembly |
What you may notice
Diagnose first when
Similar issues to separate
Check another part first
Repair or replacement paths
|
Repair considerations
Run these checks before replacing the cable — they confirm the cable is the right fix and not a nearby fault:
- Restore/format steps can erase data or indicate storage failure
- Treat ribbons, tabs, and connectors as fragile
- Use reset, Disk Mode, restore, or iTunes/Finder behavior as a software/storage check
- Reseat or inspect ribbon cable and connector seating
- Check drive noise, SMART/data signs, or storage recognition
- Replace storage or convert to flash storage
Do Not Buy / Problems This Cable Does Not Fix
| Situation | Start here instead |
|---|---|
| You have an iPod 5th Gen Video, 6th Gen or 7th Gen Classic | Use that model's hard-drive cable listing; those models use a different ribbon-cable connector, not this 50-pin IDE/ATA cable. |
| You have an iPod Mini | Use the Mini hard-drive cable listing; the Mini's CompactFlash-type microdrive uses a different cable. |
| You see a folder icon, clicking noise, or restore failure | A folder with an exclamation mark means the iPod cannot find its storage — the drive, this ribbon, or the software on the drive; a sad-face icon and a red X say the same thing in different styles. Check the drive or flash media, storage cable, adapter seating, formatting, and restore path before replacing any part. |
| Cable, computer, sync, or port behavior is the primary problem | Check the matching drive, cable seating, and board-side connector before ordering. |
| Recent service or connector disturbance is the main clue | Inspect and reseat the cable, latch, or connector path disturbed during service before buying another part. |
| A symptom points to a different part | Start with battery for power/runtime symptoms; the hard drive that matches your capacity and case depth (10GB, 15GB, 20GB, 30GB, 40GB) for folder, clicking, or restore symptoms; LCD screen for display-only symptoms; headphone jack for audio or Hold-switch symptoms; touch-wheel cable for touch-wheel or control symptoms; logic board for board-side damage or multi-system symptoms before buying this part. |
| Variant or capacity does not match this listing | There is no variant to match on this page: one ribbon serves every 3rd-generation capacity and both case depths. Confirm the generation (A1040, four touch buttons above the wheel) and order. |
Install Overview
Before You Start
Turn Hold off and confirm the model and variant before opening the iPod. Reset it the way this generation resets: slide Hold on and then off, then hold Menu + Play/Pause until the Apple logo appears. This is a touch-wheel iPod, one generation before the click wheel, so Menu + Play/Pause is its reset — the Menu + Select combination belongs to the later click-wheel iPods and is not the reset on this model.
Treat case opening as the highest handling risk. Work around the seams gently and stop if the shell, clips, or internal stack resist.
Do not pull the halves apart or side-load board sockets. Reseat nearby ribbons and connectors before blaming a replacement cable.
Check drive-ribbon seating and bumper placement while the iPod is open.
Repair steps
Documented repair-procedure steps for replacing the cable on this model (from teardown guides; confirm against your unit before starting):
- Carefully disconnect the white battery connector from the logic board. Be sure to pull only on the connector itself and not on the cables.
- Lift up the hard drive with one hand and carefully disconnect the hard drive ribbon from the logic board.
- Peel back the metallic tape connecting the hard drive ribbon to the blue mounting bracket.
- Peel up the metallic tape holding the hard drive ribbon to the blue mounting bracket.
- Slide a spudger beneath the orange headphone jack cable and use it to pry the cable up from the rear panel.
- Use a spudger to carefully disconnect the orange ribbon cable from the hard drive.
Disassembly Guide
Disassembly guide summary: iPod 3rd Generation Hard Drive Cable Replacement.
Show all 10 installation steps
Before you open the iPod, confirm that the hold switch is in the locked setting. The orange bar should be showing, indicating hold is active.
Move an opening pick as far as possible into the gap between the plastic front and the metal back panel, on the right edge of the iPod. You may have to rock the pick back and forth to move it in farther. With the opening pick, lever up against the plastic front panel and release 5 retaining tabs. Slide the pick along the iPod edge and keep levering gently until the remaining retaining tabs release. In this step, after all five tabs along the right edge are free, the case should open easily.
The iPod case is now open, but do not separate the two halves yet. An orange ribbon cable still connects the headphone jack to the logic board. With the dock connector at the top, open the case like a book and set the rear panel beside the iPod front half.
With a plastic tool or your fingernails, carefully detach the orange headphone jack cable. Make sure to draw straight up on the connector, not the cable itself. The headphone jack connector is unusually tall. When levering, keep the lower plastic connector body attached to the ribbon cable. Lever between the connector and socket, not between the connector halves.
Raise the hard drive with one hand while carefully detaching the hard drive ribbon from the logic board. Raise the hard drive out of the iPod.
Peel back the metallic tape where it joins the hard drive ribbon to the blue mounting bracket.
With a spudger, carefully detach the orange ribbon cable from the hard drive. In this step, if the cable doesn't come free easily, it may be useful to gently wiggle the cable from side to side.
Raise the hard drive mounting bracket and cable off the hard drive.
In this step, peel up the metallic tape securing the hard drive ribbon to the blue mounting bracket.
Peel up and back the black tape that secures the hard drive ribbon to the mounting bracket. In this step, the hard drive ribbon is now free from the iPod.
Product-specific placement, reassembly, and check
- Prepare and access. Confirm the exact model and listing fit first. Use the existing steps as a disassembly guide, gather the specified tools, disconnect power where applicable, and keep screws and cable positions organized.
- Place Hard Drive IDE Ribbon Cable. Seat the exact storage part, cable, or adapter in the original storage path and match its orientation, case depth, and supported configuration.
- Reassemble without force. Reverse only the access steps needed for this repair, keep cables clear of case edges and screw posts, and close clips in stages.
- Validate before final closure. Before final closure, verify detection, Disk Mode or restore behavior as applicable, and stable startup without repeat clicking or a loose connection.
Stop condition: Stop if a connector, latch, screw, clip, housing edge, or the replacement part resists normal alignment. Recheck model fit, orientation, cable routing, and trapped hardware instead of forcing it.
After This Repair
| Check | What to do |
|---|---|
| Test the connected part | Confirm the assembly on both ends of the cable behaves normally before closing the iPod. |
| Still not working? | Inspect the latch, cable orientation, and board-side connector before replacing another part. |
Worth Knowing
- Same cable fits both thin (10/15/20GB) and thick (30/40GB) case variants.
- Interface identity: this is the 50-pin parallel-ATA path, not a ribbon-connector (ZIF) cable and not 44-pin. Cables for the 5th, 6th and 7th generations use a different connector entirely.
- This model charges over FireWire only — a USB dock cable syncs but never charges it. Rule that out before you suspect any part of the storage path.
- Cable runs between the hard drive and the logic board — prone to damage during case opening.
What Owners Report
These are anecdotal owner reports, not guarantees or authoritative proof that a particular part will fix a symptom. Use them as a troubleshooting starting point: confirm the symptom, run the quick checks, then match the fix.
Hard-drive upgrade paths and drive compatibility
Symptoms. Owner wants to move a 15 GB unit to a 40 GB drive and asks what else must change; an earlier 40 GB drop-in attempt was never recognized; a tired unit with a failing battery and display prompts the "upgrade or retire?" question.
Quick diagnosis.
- Interface identity first: the 3G's drive interface is 50-pin parallel ATA with a press-fit connector — not a ribbon-cable connector, and not 44-pin, whatever a listing says. Toshiba drives with a ribbon-cable connector belong to later iPod families and are not established drop-ins here.
- Case depth decides how far a swap plan can go: 10/15/20 GB units are the thin build around a 5 mm single-platter drive; 30/40 GB units are the thick build with a deeper backplate for 8 mm dual-platter drives. A 40 GB (8 mm) drive does not go into a thin 15 GB case — the move needs the thick backplate and matching bumper set.
Fixes.
- Era 50-pin swap (the documented lane) — the era's Toshiba 50-pin 1.8-inch drives serve this model; the factory matrix ran MK1003GAL (10GB), MK1504GAL (15GB), MK2004GAL (20GB) in the thin build and MK3004GAH (30GB), MK4004GAH (40GB) in the thick build. Supplier titles are loose about the 10GB number in particular, so match 50-pin fitment and drive height rather than a model number alone: 5 mm thin, 8 mm thick.
- Restore completes the job — a fresh drive carries no iPod software; after installation the unit asks for iTunes and a restore finishes the swap.
- Flash conversion — the direct-fit adapter used in our flash kit works in this model; the adapter maker recommends its converter-plus-Solo route instead, because the direct fit puts greater stress on the hard-drive ribbon, and lists 128GB as the maximum for this model with its adapters. Owners report that FireWire sync stops after a flash conversion while FireWire charging continues — plan cables accordingly.
Cautions.
- The 128GB figure is the adapter maker's for its own parts, not a measured limit of the iPod. The documented practical constraint is the stock firmware's track database (about 20,000 tracks tied to its 32 MB of RAM); third-party firmware bypasses that.
- MK4007GAL (40 GB, 5 mm) as a thin-case path is contested in the record and best treated as untested; MK2006GAL-class later drives carry an explicit vendor warning that not every 3G supports them — neither is a safe blind buy, and neither is stocked here for this model.
- Owner reports of larger-drive installs put an 8 mm-class bigger drive in thick-case units only — a report worth heeding for fit, not a compatibility guarantee.
Community signal. Reported by 2 owners; drive-matrix guidance is among the best-established facts on the model.
Restore fails with error 1429 after a drive swap
Symptoms. Years-dead unit gets a replacement hard drive; iTunes then fails the restore with error 1429; Disk Utility hangs indefinitely at "Partitioning"; internal diagnostics pass, including the drive surface scan; the computer intermittently sees the unit and once even mounted it; with the unit plugged in over FireWire the computer itself becomes slow to respond.
Quick diagnosis.
- Run the standard restore prerequisites first — fresh cable seating, a restart of computer and iPod, and a current music app on the host (on Windows that is iTunes for Windows, or the newer Apple Devices app). The error-1429 family is a restore-communication failure, not a specific dead part.
- A computer that hangs whenever the unit is plugged in is a diagnostic signal in itself — suspect the drive or its ribbon path disturbing the bus before blaming the software.
Fixes.
- Reformat outside iTunes, then restore — the reported path for this stuck state: the owner formatted the drive to FAT in Disk Utility, then let iTunes for Windows restore it over USB; any clean format works because the restore rebuilds the iPod's own layout. Copy anything still readable off the drive first — the format and the restore both erase it.
- Ribbon check before a second drive — with restore failures after drive work, reseat and inspect the drive ribbon; ribbon micro-fracture is named in the record as the top genuine hardware failure behind drive-symptom reports, and this model's troubleshooting guide puts a cable swap before a second drive.
Cautions.
- Let iTunes do the final formatting. Manual partitioning tools stalling (as here) is part of the symptom picture, not the repair path — on this platform a Windows restore yields FAT32 and a Mac restore yields the Mac format, and either is correct when iTunes produces it.
Community signal. Reported by 1 owner; an experienced fixer's walkthrough anchors the entry.
Drive readable, then stalls after minutes of copying
Symptoms. It still mounts and shows its files, but every copy freezes a minute or two in; the unit had been used as an external drive.
Rescue first. Copy what you care about in the minutes the drive still gives you, most-wanted first, in small batches. Any format, restore or swap erases the disk.
Then test. Toggle Hold on and off, reset with Menu and Play/Pause until the Apple logo appears, then listen as it starts: clicking or grinding means a failing drive.
The fix. Reseat and inspect the 50-pin ribbon first: a cracked one makes the same stalls. If the ribbon is sound and the test fails, the drive is done — replace it with a drive matched to your case depth, or convert to flash. One owner kept a dying drive going in an enclosure — a stopgap.
Community signal. Reported by 1 owner.
Frequently Asked Questions
Use these questions to narrow the part path before ordering. They keep each answer focused on a different diagnostic or fitment decision.
Restore & sync
Does a USB dock cable charge this iPod?
No. The 3rd generation charges over FireWire only. A USB dock cable fits the 30-pin port and syncs perfectly well, but Apple’s own user guide for this iPod says plainly: "You can’t charge iPod using USB." Use a FireWire wall adapter, a computer FireWire port, or the FireWire side of Apple’s combination cable — and note Apple’s own warning not to plug that cable’s USB and FireWire ends into the same computer at the same time. An iPod that seems dead on USB is very often only flat.
How do I reset this iPod, and how do I put it in Disk Mode?
Reset: slide Hold on and then off, then hold Menu + Play/Pause until the Apple logo appears. Disk Mode: do that reset, and as the logo appears hold Previous + Next until the Disk Mode screen shows; Menu + Select leaves Disk Mode again. This is a touch-wheel iPod, so the Menu + Select reset and the Center + Play/Pause Disk Mode that later click-wheel iPods use do nothing here.
My iPod shows a dock-connector picture after a restore
That picture is the iPod asking for a connection it has not been given. This model charges over FireWire only and every USB connection is sync-only, so a battery that went flat during restore trouble can look dead on USB indefinitely.
After a restore over USB the iPod shows the dock-connector picture until it gets FireWire power — a FireWire wall adapter or FireWire port finishes it; some older iTunes versions refused to restore this model over USB at all. Put it on FireWire power, give a flat battery time to take a charge, and let the restore cycle finish with FireWire power available throughout.
The battery in these stuck-restore cases is usually just flat, not worn out, because it never received a charge from the USB connections that were tried. Charge it properly before ordering parts.
Choosing and fitting this cable
Is 632-0219-A this cable?
No. 632-0219-A is the 3rd generation's touch-wheel and four-button flex, which belongs to the front panel, not to the storage path. This drive ribbon carries no printed Apple number of its own, so identify it by shape: a flat orange ribbon running from the logic board to the 50-pin connector on the drive.
How do I choose the right hard-drive cable?
There is one hard-drive cable for this model — it serves every capacity and both case depths. Identify it by shape: a flat orange ribbon running from the logic board to the 50-pin connector on the drive.
When is the cable more likely than the drive?
A cable becomes more likely when it is torn, creased, loose, corroded, or fails after reseating, especially if known-good storage still behaves the same way.
When is this cable the right fix for sad iPod, clicking, or restore trouble?
Listen for repeated drive clicking and note whether the iPod reaches disk mode. Reseat the hard-drive ribbon and inspect the storage connector or retaining latch before buying another storage part. Try restore only after cable seating and power behavior are stable enough to complete the process. Compare with a known-good drive, cable, or flash adapter when available. Listen for repeat clicking or repeated spin-up attempts before replacing storage parts.
What should I check before replacing this cable?
Reseat the storage ribbon squarely and confirm the latch is closed before replacing the storage device again. Check adapter orientation, case clearance, and capacity/format expectations when using a flash path. Inspect the relevant ribbon and board connector before replacing the part. Look for lifted latches, bent contacts, debris, corrosion, creases, or torn flex material. Check whether the symptom changes after careful reseating.
Is this an iPod Classic?
Apple's 'Classic' branding started with the 6th Generation (2007). This is the iPod 3rd Generation (2003), model A1040. Apple's official name for this model is iPod (Dock Connector).
My iPod won't start up, just displays apple symbol. Fixable?
Use the Quick Buying Check, Failure Signs, and Do Not Buy sections together before ordering. The symptom should still point to this cable after nearby parts and fitment are separated.
Some buyers search for "iPod classic 3rd generation" or "My iPod won’t start up"; confirm the checks above point to this same part before ordering.
Why people land on this part
Some buyers search for "replaced hard drive and restore fails with error 1429"; confirm the checks above point to this same part before ordering.
Also searched as: iPod 3rd Generation Hard Drive IDE Ribbon Cable, Folder Icon, Clicking Noise, Corrupted Data, iTunes Error, Stuck on Apple Logo, Won't Restore, Hard Drive Failure, hard drive dead, hard drive broken, clicking sound, one click sound, hard drive restore fails, drive 15gb, drive formatted, ipod third generation.
