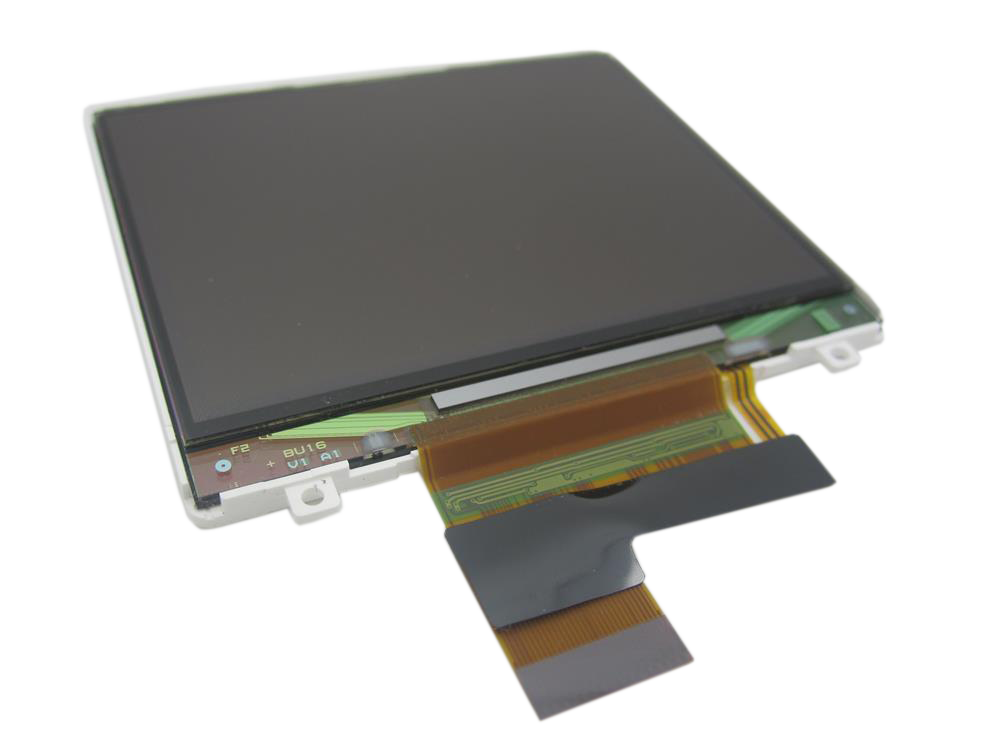

Replacement internal LCD panel for iPod Video 5.5G Enhanced. Use it for cracked, blank, lined, or backlight-related display problems after separating screen damage from ribbon seating and board-side faults.
Product Overview
This screen listing covers Factory Original LCD Screen (5.5G Enhanced) and its own connector path on the iPod 5th Generation (Video).
Use the Compatible Variants table below to confirm capacity, color, case, or order-number fitment.
Use the fitment and inspection checks below before ordering, especially when the same model family has thin/thick case or connector variants.
- Back up all data before formatting or restoring
- This erases all data and reinstalls factory firmware
- For iFlash conversions: reformat SD card to FAT32 with all partitions deleted
- Intermittent restore screen often indicates firmware loss from a failing hard drive
Choose Your Option
This part comes in multiple variants. Confirm your iPod's capacity, case depth, and order number before ordering.
For enhanced 2006 brighter display assemblies.
You're viewing this optionWhat Is Included
Quick Diagnosis: Is It The Factory Original LCD Screen (5.5G Enhanced)?
Start here before ordering. Work through the checks in order; a symptom alone does not prove this screen is bad until nearby parts, cables, fitment, or install issues are separated.
Before you order this screen
- Try a force restart first. Toggle Hold on and off, then hold Menu + Select/Center for 6 to 10 seconds.
- Separate display-only symptoms. Identify original vs Enhanced before ordering. Original models are 30GB/60GB; Enhanced models are 30GB/80GB and have the brighter screen.
- Try Disk Mode or restore isolation. Confirm the iPod still plays, charges, or is recognized so the screen symptom can be separated from a dead device.
- Reseat and inspect the connector path. Inspect the display ribbon and connector if the iPod has been opened or dropped.
- Use this listing only after the checks still point here. If the symptom still points here after those checks, compare Compatible Variants before ordering this screen.
Specifications & Fitment
Part Details
| Detail | Value |
|---|---|
| Model Number | A1136 |
| EMC | EMC 2065 |
| Condition | Used — factory original Apple part. Normal cosmetic wear expected. |
| Release family | 5.5G Enhanced / 2006 |
| Display note | Enhanced 5.5G screen family; public sources describe the enhanced panel as brighter |
| Display Size | 2.5" |
| Resolution | 320x240 (QVGA) |
| Type | Color transflective LCD |
| Color Depth | over 260,000 colors |
| Backlight | White LED |
Compatible Variants
| Order Number | Capacity | Color | Case | Compatible | Notes |
|---|---|---|---|---|---|
| MA146LL/A | 30GB | Black | thin (0.43 in) | Yes— compatible | Stock match |
| MA446LL/A | 30GB | Black | thin (0.43 in) | Yes | — |
| MA664LL/A | 30GB | Black/Red | thin (0.43 in) | Yes | — |
| MA452LL/A | 30GB | U2 Special | thin (0.43 in) | Yes— compatible | Stock match |
| MA002LL/A | 30GB | White | thin (0.43 in) | Yes— compatible | Stock match |
| MA444LL/A | 30GB | White | thin (0.43 in) | Yes | — |
| MA147LL/A | 60GB | Black | thick | Yes— compatible | Stock match |
| MA003LL/A | 60GB | White | thick | Yes— compatible | Stock match |
| MA450LL/A | 80GB | Black | thick | Yes | — |
| MA448LL/A | 80GB | White | thick | Yes | — |
Failure Signs
Use these checks to decide whether this screen is the right part, whether a nearby part should be checked first, or whether the symptom needs more diagnosis.
Blank, white, black, lined, or backlight display
What you may see: People describe a blank screen, white or black display, missing backlight, lines, or a display that changes after impact or repair.
- Blank screen, white or black display, missing backlight, or lines on the screen.
Check first: Identify original vs Enhanced before ordering. Original models are 30GB/60GB; Enhanced models are 30GB/80GB and have the brighter screen.
- Confirm the iPod still plays, charges, or is recognized so the screen symptom can be separated from a dead device.
- Inspect the display ribbon and connector if the iPod has been opened or dropped.
- Look for cracks, liquid residue, display discoloration, or connector damage before ordering.
- Confirm the iPod still plays, charges, or syncs, then reseat the LCD ribbon and inspect the display connector.
Most likely cause: The 5G was produced in original and Enhanced/5.5G display variants. The Enhanced display is brighter and higher contrast, and display fitment must match the correct variant.
- The display can be damaged, but display ribbon seating, connector condition, liquid history, or board-side display circuitry may need checking first.
- Check display / backlight route, connector seating, and board-side damage before ordering.
- Choose this display only when the display symptom is tied to this part or its connection path.
- Choose this screen when the symptom remains isolated to this assembly, its ribbon, or its connector path after first checks.
- The 5G and 5.5G Enhanced use the same 2.5-inch QVGA LCD family. The 5.5G Enhanced panel is brighter and supports software brightness control.
- If the symptom appeared after opening the iPod or replacing a part, inspect and reseat nearby ribbon cables and connectors before assuming the replacement part is bad.
- Replace the display only after seating, fitment, and adjacent-part checks still point to that assembly.
- Use display-panel replacement when the panel, backlight, or display flex is visibly damaged; continue connector, liquid-damage, or board diagnosis when the display changes after reseating.
Look elsewhere when: Check ribbon seating, liquid history, and board connector damage before treating the display as a guaranteed fix.
Display ribbon, connector, or contact path
What you may see: People describe symptoms that change after opening the iPod, reseating parts, or disturbing nearby flex cables.
- A symptom starts after opening the iPod or disturbing an internal flex cable.
Check first: Inspect the relevant ribbon and board connector before replacing the part.
- Look for lifted latches, bent contacts, debris, corrosion, creases, or torn flex material.
- Check whether the symptom changes after careful reseating.
Most likely cause: The display may be fine while its ribbon, connector, latch, or contact path is loose, dirty, damaged, or not fully seated.
- Connector seating, ribbon damage, or ground-path issues can involve this part, a nearby connector, or a board path.
- Choose this display only when the part's own flex or contact path is damaged.
- Reseat or clean only where the repair procedure supports it.
- Replace the display when the flex, connector tail, or assembly contact path is physically damaged.
Look elsewhere when: Check the board-side connector or adjacent cable first when the damage is not on the replaceable assembly.
Liquid, corrosion, or residue context
What you may see: Symptoms follow liquid exposure, dirty contacts, corrosion, or residue.
Check first: Inspect for liquid, corrosion, residue, torn flex material, or connector damage.
Most likely cause: Liquid or corrosion can involve this part, a nearby connector, or a board path.
Look elsewhere when: Check the Replacement Battery (Thin — 30GB) when power, charging, runtime, or swollen-battery behavior is the main problem.
- Check the Replacement Click Wheel (White) when controls, wheel, center/select, menu, hold, or unresponsive-button symptoms are the main problem.
Fitment or model-variant mismatch
What you may see: People ask whether a similar-looking part from another model, capacity, or generation will work.
Check first: Match the exact model, generation, capacity, and case style shown for the product.
- Do not use a symptom to override fitment: a wrong-variant part can create new symptoms after installation.
Most likely cause: This display may help only when it matches the model and variant being repaired.
- Use the display variant matched to the exact iPod.
- Recheck fitment before diagnosing a newly installed part as defective.
Look elsewhere when: Check fitment before replacing nearby parts or ordering another copy of the same wrong variant.
Symptoms changed after repair or reassembly
What you may see: People describe a new problem appearing immediately after battery, storage, display, audio, or control work.
- A new symptom appeared after battery, storage, audio, display, or control work.
Check first: Reopen only as far as needed to inspect the areas touched during the repair.
- Compare the new symptom with what worked before the repair.
- Check cable seating, latch position, and part variant before replacing a second part.
Most likely cause: A post-repair symptom can involve the display, but disturbed ribbons, latches, grounding, connector seating, or the wrong variant part are common checks before ordering again.
- Check post-repair regression, connector seating, and board-side damage before ordering.
- Choose this display only when the part itself was torn, creased, or damaged during service.
- Correct seating, latch, or variant problems first.
- Replace the display when the repair damaged that assembly or its flex path.
Look elsewhere when: Check the exact connector or assembly disturbed during the repair before treating the new part as failed.
Do Not Buy This Screen Yet If...
| Situation | Start here instead |
|---|---|
| Cable, computer, sync, or port behavior is the primary problem | Start with the dock connector, cable, host, or port checks when sync or port behavior is the main problem. |
| Variant or capacity does not match this listing | Use the matching storage, audio, power, or controls listing when the display itself is not involved. |
| The problem is the Hold switch or headphone jack, not this part | Verify the Hold slider, lock indicator, and shared headphone/Hold cable before replacing this part. |
| Recent service or connector disturbance is the main clue | Inspect and reseat the cable, latch, or connector path disturbed during service before buying another part. |
| Charging, swelling, runtime, or power is the primary problem | Start with the battery, charger, and power checks when charging, runtime, swelling, or no-power behavior is the main problem. |
| A symptom points to a different part | thick, thin. |
Install Overview
Before You Start
For pre-open diagnosis, unlock Hold and use this generation's reset sequence if needed. Before opening, lock the Hold switch so the orange bar is visible, then confirm the model and variant.
Treat case opening as the highest handling risk. Work around the seams gently and stop if the shell, clips, or internal stack resist.
Do not pull the halves apart or side-load board sockets. Reseat nearby ribbons and connectors before blaming a replacement screen.
Open ribbon-cable latches only as described; over-lifting or side-loading the latch can damage the connector. Do not fully separate the case halves until the remaining ribbons are released; the back panel can still be connected by ribbon cables. Reseat and protect the display ribbon during reassembly before assuming the panel itself is bad.
Repair Guide
Repair guide summary: iPod 5th Generation (Video) Display Replacement.
Show all 16 installation steps
Before opening the iPod, confirm that the hold switch is locked. With the iPod screen-side down and facing you, the slider should sit all the way to the right.
Do not get discouraged if the iPod takes several opening attempts; work slowly until the case releases. Release the first bottom retainer clip with the plastic opening tool. Point the tool edge toward the metal rear case to avoid scratching the plastic front.
Use these retaining clip locations: four along each side, one on top, and two along the bottom. This helps avoid frustration and reduces the chance of scratching the plastic cover.
Each side of the iPod has four retaining clips. Use a plastic opening tool to separate the plastic front from the metal rear case. Slide the plastic opening tool into the iPod's left side with the tool edge pointed toward the metal rear case. A small guitar pick can help with opening. Place it in the seam and slide it around the case to release the clips more smoothly. Gently enlarge the existing crevice by wiggling the plastic opening tool and moving it to the left. Keep working this way until the entire side of the iPod is loose. Then slide a plastic opening tool to the right of the Hold button. Work very carefully while inserting the tool because the display is fragile.
Gently glide the plastic opening tool on the top of the display, making sure to release the retaining clips. The other sides of the iPod should now release easily. If they do not, work plastic opening tools along the right side the same way you did on the left side. In this step, separate the front of the device from the back about an inch (or a couple of centimeters). The iPod casing is now open, but do not fully separate the two halves yet. Two ribbon cables still connect the back panel to the remaining iPod assembly.
With angled tweezers or a plastic opening tool, slide the brown connector latch upward where it secures the orange battery ribbon cable. Pull from both sides of the latch. Lift it only about 1-2 mm to release the cable; do not lift farther or remove it, or the white connector may come with it. Do not raise the assembly very far; lifting too high could pull the battery connector out of the logic board. If that board connector is damaged, start with board-level service rather than treating the LCD as the fix. Move the brown connector straight upward. It is fragile and can break if shifted to the side. Hooks at the bottom hold the cable in place. If an arm breaks, reinstalling the battery cable becomes difficult; put the cable in the slot and press the brown holder into place to stop the cable from slipping out. Take the cable out of the connector.
At this stage there should be one orange ribbon cable still attaching the front housing to the back. At this stage you are able to take out and replace the blue rubber bumpers, or keep going with separating the case. You can replace the battery without separating the case, but opening it farther can make the work easier. Doing so requires one extra cable removal and adds some damage risk.
Raise the hard drive so the headphone jack ribbon connector is exposed. If the hard drive bumpers come loose, put them back with the notch seated in its original orientation.
With the plastic opening tool, gently raise the brown tab of the headphone ribbon cable connector. The tab can rotate up 90 degrees, releasing the ribbon cable. With your fingers, draw out the headphone jack ribbon cable.
The front and rear case halves should now be fully separated.
With a small plastic opening tool, release the black hinge clamping the hard drive ribbon cable. Rotate the tab upward 90 degrees toward the logic board to free the ribbon cable. With your forefinger, hold the ribbon cable in place; detach the drive from the ribbon cable. Confirm that the hard drive rubber side bumpers are installed on the drive. Use the side bumper installation guide for placement. If needed, transfer the blue foam padding from the hard drive to the replacement drive.
Take out the 3 black Phillips screws securing the front panel to the metal framework. Turn the iPod laterally 180 degrees and take out the three black Phillips screws that secure the front panel to the metal framework on the opposite side.
You may meet some resistance near the center of the device as you will find a mild adhesive used to help hold the two parts together. Carefully work along the iPod edge to separate the front panel from the metal framework. Lift the full framework away from the front panel; it carries the display, logic board, and click wheel. Confirm the click wheel button is seated before reinstalling the framework in the front panel.
The front panel should now be released from the remaining iPod assembly.
In this step, rotate the device so the black plastic tab is more accessible to you. Use a small plastic opening tool or fingernail to lift the black plastic tab that secures the display ribbon. The tab rotates upward 90 degrees toward the display and releases the ribbon cable. Use your finger to prevent the cable from lifting upwards. Rock the display loose from the frame, and next, draw it gently outwards to release the display's ribbon cable. You may have to raise the cable away from the 2 white pegs that poke through it near the side of the frame.
The display should now be released from the remaining iPod assembly. During reassembly, it is usually easier to seat the screen between the front panel and framework before connecting the cable. A new screen cable can be stiff enough to loosen the screen while the cable is being reconnected.
After This Repair
| Check | What to do |
|---|---|
| Test image and backlight | Check the display before closing the case fully, then confirm brightness and image stability after reassembly. |
| Watch for pressure | New spots, lines, or bowing after closing usually means the internal stack or ribbon routing needs another look. |
| Still not working? | Reseat the display ribbon and inspect the connector before treating the replacement screen as bad. |
Frequently Asked Questions
Use these questions to narrow the part path before ordering. They keep each answer focused on a different diagnostic or fitment decision.
Is this new or used?
This non-custom replacement is factory-original Apple hardware in used condition. Custom-color new exterior parts use separate custom-color pages.
What should I check before replacing this screen?
Reseat the display ribbon and inspect the latch before replacing the LCD. Check whether the iPod still plays or syncs so a display-only symptom stays separate from a dead-device route. Inspect the relevant ribbon and board connector before replacing the part. Look for lifted latches, bent contacts, debris, corrosion, creases, or torn flex material. Check whether the symptom changes after careful reseating. Reseat the display ribbon and inspect the connector before replacing the screen. Choose this screen only when the display panel or flex remains the isolated failure. Choose this display only when the part's own flex or contact path is damaged. Check disturbed ribbon and connector paths first when the symptom began after service. Check the board-side connector or adjacent cable first when the damage is not on the replaceable assembly. Case pressure or fitment marks are supporting context; do not use them as the only reason to replace the screen.
Should I choose by symptom alone?
No. Match the variant, order number, and visible part details first; symptoms alone are not enough to choose a board or screen.
Could another part cause the same symptom?
Use the Quick Buying Check, Failure Signs, and Do Not Buy sections together before ordering. The symptom should still point to this screen after nearby parts and fitment are separated.
Why people land on this part
Use the checks above to separate this screen from nearby parts before ordering.
For dark spots and lines, check battery swelling, ribbon routing, and internal stack pressure before ordering a replacement LCD.
Some buyers search for "broken screen"; confirm the checks above point to this same part before ordering.
Also searched as: black screen or backlight not working, iPod video 5th gen factory original LCD screen (5.5g enhanced) replacement, iPod video screen repair, iPod video white screen, iPod video LCD replacement, iPod video screen size, dim green vertical line, pixel lines on screen, screen goes black, screen went half black, vertical lines appear, vertical lines on screen, replaced screen, dead pixels, 5.5g screen replacement, A1136 LCD, A1136 screen, backlight check, backlight failure, backlight out, black screen but backlight on, black screen but lit, blank white display, iPod video screen resolution, LCD connector, glitch screen, screen battery, iPod 5th generation video screen, LCD screen enhanced replacement, blank screen.
Worth Knowing
- Display: 2.5" QVGA transflective LCD, 320x240, over 260,000 colors
- Enhanced 5.5G display is described as brighter with software brightness control.
You May Also Want
Inspect the battery and display connector while the iPod is open.
Related: Flash Storage Mod (iFlash Adapter + SD Card)Flash storage is the common upgrade path while the iPod is already open.
Related: Replacement Hard Drive (30GB)Use a hard drive only when restoring original-style storage; flash adapters are also a valid upgrade path for 5G/5.5G.
