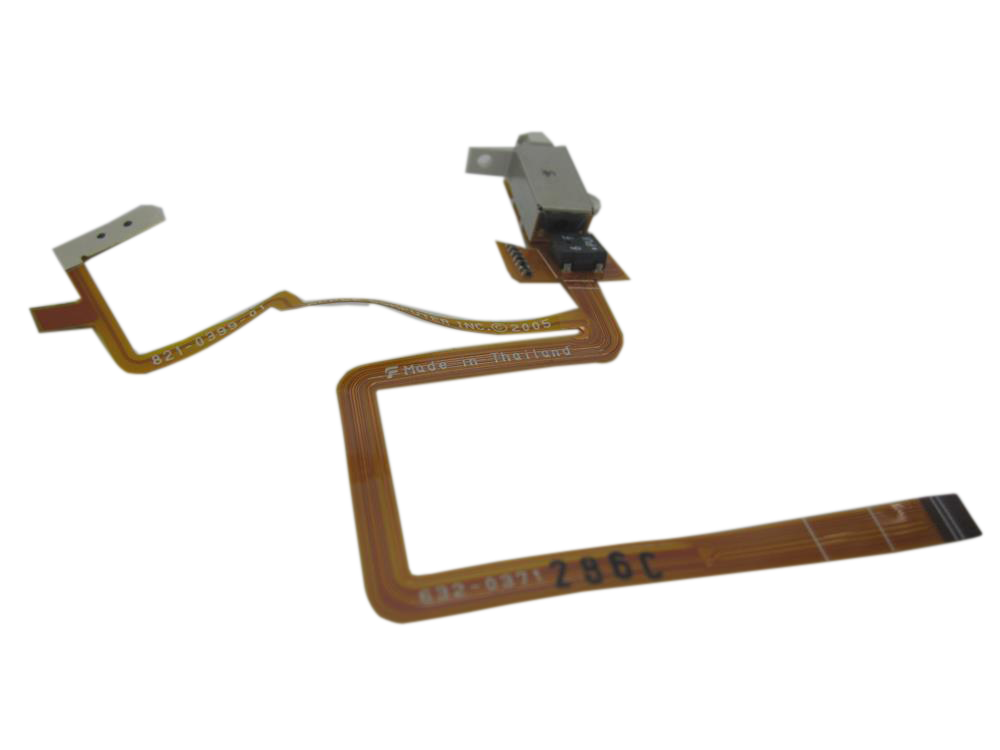

iPod Video 5G — Replacement Headphone Jack & Hold Switch (Thin - 30GB)

No Sound, One Ear Only, Crackling Audio: What Actually Fails on the iPod Video.

When an iPod Video (A1136, 5th generation) loses its audio, it is almost always one of two parts — and you can usually tell which one without opening the case. This model is specifically known for a solder fault under the audio chip on the logic board that mimics a broken headphone jack, which is why so many owners replace the jack once or even twice and still have silence. The tell is simple: a bad jack only kills headphone audio, while a board fault kills the headphone jack and the dock line-out together.

What owners describe: - The most repeated complaint is sound in one ear only with the headphone jack feeling loose. Owners report music through one earbud no matter which headphones they try, sound returning to both ears only with the plug pulled halfway out or angled and held. One owner asked if a loose jack can simply be tightened — it can't; there is nothing adjustable inside the assembly, and once it stops gripping the plug reliably, replacing the jack assembly is the fix. - A three-year-old unit played fine until the sound started dropping out into heavy static — and the owner discovered that squeezing the lower-right corner of the case brought the music back for exactly as long as the pressure was held. The display showed the song still playing the whole time, and the symptom was identical through headphones and through a dock. Several other owners independently reported the same 'pinch the bottom right corner to get sound' behavior. That squeeze is pressing on the audio chip's cracked solder joints. - Two owners found the strangest version of this fault: cold fixes it. One got sound back briefly after a few minutes in the refrigerator, only to lose it again once the iPod warmed up; another reported twenty minutes in the freezer made the iPod work perfectly until it thawed. That behavior fits the audio chip's known cracked-solder fault — temperature shifts the broken joint's contact, so cooling can briefly restore sound. A related report had buzzing audio at power-on that faded to silence as the unit warmed. - Many owners replaced the headphone jack and still had no sound — one had replaced it on two separate 30GB units, another bought a new jack and hold switch together and got nothing. The detail they all eventually noticed: the dock connector was silent too, while the click wheel's clicker still chirped from inside the iPod. That clicker comes from a tiny beeper on the board, not the music path, so hearing clicks proves nothing about the audio circuit — and silence on both outputs means the jack was never the problem. - A buyer of a used 5G found everything working except the music: nothing through the headphones but a faint background hiss at maximum volume. They had already restored it in iTunes, pressed under the click wheel corner, and tried the freezer with no luck — the pattern of a board-level audio failure that has progressed past the stage where pressure can bridge it. Another owner described the same end state as 'no audio, just a little static' that got louder and quieter with the volume setting. - One-ear problems that appear right after a jack replacement usually point at the installation, not the iPod. One owner's dead side actually switched — left-only before the repair, right-only after — which matches a mis-seated ribbon or a defective replacement rather than a deeper fault. Another replaced the jack for a dead left channel and noticed both channels played fine through a dock, narrowing it to the new jack's seating in the board connector or the part itself.

How it usually progresses: - The board-level failure follows a recognizable arc on this model: it usually starts as occasional crackling, static, or dropouts in one or both ears, advances to pure static, then fades to complete silence on both the headphone jack and the dock output. Heat accelerates an episode — owners describe sound dying within minutes as the unit warms — while pressure on the lower-right corner or a stint in the fridge revives it briefly. Once it reaches the silent stage, even the pressure test may no longer bring sound back. - Jack wear has its own slower arc: it begins with one channel cutting in and out when the plug moves, then needing the plug half-seated or angled to get both ears, and ends with a channel fully dead or no sound from the jack at all — while dock audio stays perfectly normal the whole way. That dock check is what separates this track from the board failure at every stage.

What typically causes it: - Cracked solder under the audio chip is this model's signature audio failure. The Wolfson audio chip sits at the lower-right corner of the logic board, and years of warm-up/cool-down cycles plus normal case flex fatigue the tiny solder joints underneath it until a micro-crack opens. The music path then cuts in and out, turns to static, and finally goes silent on both the headphone jack and dock line-out — while the screen, menus, syncing, and the clicker all keep working. Pressing the lower-right case corner squeezes the crack closed, which is why the pressure test is so telling on this iPod. - Two small capacitors in the board's audio path are the other board-level culprit. The audio signal passes from the chip through small surface-mount coupling capacitors — repair communities know them by their board markings, C145 and C146 — and when one fails or shorts, the music disappears even though playback continues on screen. repair guide experts report that a failed one can sometimes be spotted just by looking at the board. From the outside this looks identical to the chip solder fault, but it matters to a board shop: the capacitors get checked before any heat is applied. One caution if you shop for parts yourself: the capacitance value quoted in audiophile modding guides is the aftermarket upgrade value, not the factory one, so a competent shop measures the originals rather than trusting a forum number. - Worn jack contacts cause the one-ear and loose-jack complaints. The contacts inside the 3.5mm jack fatigue and oxidize with years of plug insertions, so one channel loses contact unless the plug is angled, half-inserted, or held. The jack is part of the combined headphone jack and hold switch assembly mounted in the rear panel — nothing on it can be tightened or adjusted, so once jiggling the plug becomes routine, the assembly is the fix. A few owners caught it early: rapidly plugging and unplugging a few times or a puff of electronics cleaner freed a stuck contact and bought time. - The orange ribbon cable is the assembly's weak point — and a common casualty of other repairs. The jack and hold switch connect to the logic board through a thin orange ribbon that cracks where it bends and snaps if mishandled; repair guides specifically warn it breaks easily during battery and rear-panel work. One owner's ribbon tore while prying up a glued-down battery; another accidentally damaged their iPod and found the ribbon snapped right at the angle where it bends — headphone audio gone while dock audio survived. The brown latch that clamps the ribbon to the board is also fragile, and a broken latch means the ribbon can't seat properly — a frequent hidden reason a brand-new jack 'doesn't work.'

Handle it safely: - If you open the iPod to check the jack ribbon, treat the orange ribbon cables and the brown ribbon latch as the most breakable things inside. The latch flips up gently; forcing it snaps it off, and there is no separate replacement — owners who break it end up improvising with tape, which makes intermittent audio worse, not better. A careful first repair prevents the second fault. - The do-it-yourself 'reflow' for the audio chip — pressing on the chip with a wooden dowel while heating it with a heat gun — is a real community method with documented successes, but it puts uncontrolled heat on a board full of small components, and quick reflows often fail again once the original stress returns. If the iPod or its library matters to you, a replacement board or professional rework is the durable path; save the heat gun for a board you're prepared to lose.
