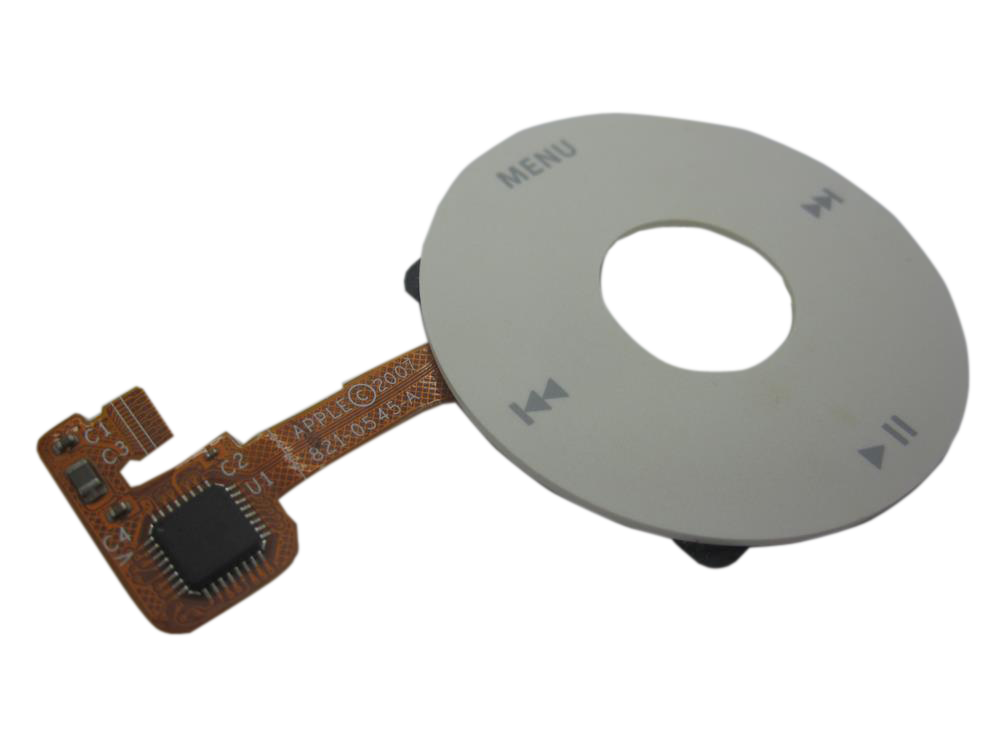

Replacement control input part for iPod Classic 7G. Use it when the wheel, buttons, center Select area, or flex is physically damaged or still fails after Hold state, frozen software state, and connector seating are checked.
Product Overview
Choose this click wheel listing to restore wheel, button, and center-Select input on the iPod Classic 7th Generation when the control assembly or its flex is damaged or unresponsive.
Use Part Details for the confirmed part-number reference. Use the Compatible Variants table below to confirm capacity, color, case, or order-number fitment.
Choose this part when your iPod shows Hold Switch Stuck, Frozen / Unresponsive, or Click Wheel Not Working; the checks below help confirm the right part before you order.
This can also be a customization choice. Click wheels and center buttons may be offered in custom non-OEM finishes, so buyers may replace working controls for a coordinated custom build as long as the control fitment matches the model.
- Manually depress the center switch with a pencil eraser to bypass the click wheel for testing
Choose Your Option
This part comes in multiple variants. Confirm your iPod's capacity, case depth, and order number before ordering.
Used factory original Apple white click wheel for iPod Classic 7th Generation. Center button cap is a separate add-on option.
You're viewing this optionWhat Is Included
Quick Buying Check
Buy this when
- Frozen / Unresponsive: Use the controls check after checking Hold state, force-restart behavior, ribbon seating, and whether the issue affects the whole wheel or just one button.
Diagnose first when
- Confirm the capacity match before ordering: 160GB.
- Confirm the case thickness before ordering: thin.
- Confirm Hold is off.
- Check whether any buttons work, whether scrolling works, and whether the center button fails separately.
Do not buy for
- Do not use this part for: Opposite front-color check when a color-matched exterior is required.
- Do not use this part for: Center button cap only - use the center-button check or add-on.
- Check Hold switch, logic-board connector damage, and liquid/corrosion evidence before treating the click wheel as a guaranteed fix.
- If the lock symbol is active or the Hold slider is not behaving correctly, check the headphone jack / hold-switch assembly before blaming the click wheel.
- Post-repair control failures often come from a disturbed ribbon or ground strap before the whole wheel is bad.
Specifications & Fitment
Part Details
| Detail | Value |
|---|---|
| Model Number | A1238 |
| EMC | EMC 2173 |
| Condition | Used — factory original Apple part. Normal cosmetic wear expected. |
| OEM Part |
631-0457, 631-0457-A, 821-0545-A
|
Customization Options
Compatible Variants
| Order Number | Capacity | Color | Case | Compatible | Notes |
|---|---|---|---|---|---|
| MB150LL/A | 120GB | Black | thin | Yes— compatible | Color swap — physically fits, different color from original |
| MB565LL/A | 120GB | Black | thin | Yes— compatible | Color swap — physically fits, different color from original |
| MC040LL/A | 120GB | Silver | thin | Yes— compatible | Color swap — physically fits, different color from original |
| MB147LL/A | 160GB | Black | thin | Yes— compatible | Color swap — physically fits, different color from original |
| MC066LL/A | 160GB | Black | thin | Yes— compatible | Color swap — physically fits, different color from original |
| MC297LL/A | 160GB | Black | thin | Yes— compatible | Color swap — physically fits, different color from original |
| MB145LL/A | 160GB | Silver | thin | Yes— compatible | Color swap — physically fits, different color from original |
| MC044LL/A | 160GB | Silver | thin | Yes | — |
| MC062LL/A | 160GB | Silver | thin | Yes | — |
| MC238LL/A | 160GB | Silver | thin | Yes | — |
| MC293LL/A | 160GB | Silver | thin | Yes | — |
is not compatible with
- Opposite front-color route when a color-matched exterior is required
- Center button cap only - use the center-button route or add-on
- iPod Video 5th Generation / 5.5G A1136
Failure Signs
Use these checks to decide whether this click wheel is the right part, whether a nearby part should be checked first, or whether the symptom needs more diagnosis.
Center / Select button does not respond or stops clicking
What you may see: People describe the center, middle, or Select button as no longer clicking, selecting, or responding.
- This can happen even when the scroll ring still responds.
- The center, middle, or Select button feels stuck, sits low, or stops selecting.
Check first: Confirm Hold is off before judging the controls.
- Separate center-button-only behavior from a dead scroll ring or multiple failed buttons.
- If the iPod has been opened, inspect the click-wheel ribbon, seating, and ground path before ordering another part.
- Separate center-button-only failure from a dead scroll ring or multiple failed buttons.
- Inspect click-wheel ribbon seating, latch position, and ground path after reassembly.
- Turn Hold off and separate wheel, center/select, Menu, and ribbon-seat behavior before replacing the controls.
Most likely cause: A button-only symptom can involve the click-wheel assembly, contact path, board-side switch, or how the assembly is seated.
- If several controls are dead, treat it as a whole click-wheel or connection problem instead of a center-button-only problem.
- Choose this click wheel only when the assembly, flex, or button path is damaged or no longer making reliable contact.
- Choose this click wheel when the symptom remains isolated to this assembly, its ribbon, or its connector path after first checks.
- Button-only work may involve reseating or replacing the click-wheel path, while board-side switch work belongs in escalation context.
- Replace the full click wheel when inspection points to the assembly, flex, contact path, or ribbon rather than only the board-side switch.
- Replace the click wheel when the assembly or flex remains damaged after seating checks.
Look elsewhere when: If the lock symbol is active or the Hold slider is not behaving correctly, check the headphone jack / hold-switch assembly before blaming the click wheel.
- Check the headphone/hold assembly for confirmed Hold switch faults before blaming the click wheel.
Hold switch can look like click-wheel failure
What you may see: The iPod may appear locked, ignore controls, or behave differently when the Hold switch position changes.
- The iPod appears locked or the Hold switch does not match the device behavior.
Check first: Check whether the lock indicator changes when the Hold switch moves.
- Inspect the headphone/hold ribbon if the symptom began after opening the iPod.
Most likely cause: On this model the Hold switch belongs to the headphone jack / hold-switch assembly, not the click wheel.
- This click wheel may help only after the Hold switch path is ruled out.
- Use the headphone jack / hold-switch assembly for confirmed Hold switch faults.
- Continue click-wheel checks only if the Hold path is working and the wheel still fails.
Look elsewhere when: Check the headphone jack / hold-switch assembly first when the device is locked or the Hold slider is suspect.
Ribbon, ZIF, connector, or ground-path checks
What you may see: A symptom starts after opening the iPod or disturbing an internal flex cable.
Check first: Inspect for liquid, corrosion, residue, torn flex material, or connector damage.
Most likely cause: Connector seating, ribbon damage, or ground-path issues can involve this part, a nearby connector, or a board path.
Look elsewhere when: Check the Replacement Headphone Jack when headphone audio, one-ear sound, crackling, or hold-switch behavior is the main problem.
- Check the Replacement Battery (160GB) when power, charging, runtime, or swollen-battery behavior is the main problem.
Symptoms changed after repair or reassembly
What you may see: A new symptom appeared after battery, storage, audio, display, or control work.
Most likely cause: Check post-repair regression, connector seating, and board-side damage before ordering.
Repair considerations
Repair specialists who work on this model consistently flag these checks before replacing the click wheel — they help confirm the click wheel is the right fix and not a nearby fault:
- Avoid over-gluing or blocking button travel
- Confirm Hold switch state before replacing controls
- Press the underlying switch directly to isolate button path
- Replace Click Wheel or control assembly
- Recenter or sparingly reattach a shifted rubber button pad
- If switch tests good, logic board replacement is needed
- Clean the logic board with rubbing alcohol and a soft paintbrush
- Mid-song stopping with Apple logo indicates corrupted files or early drive degradation
- Defragment using a disk utility, treating the iPod as an external drive
- Clean logic board with 90%+ isopropyl alcohol
Do Not Buy This Click Wheel Yet If...
| Situation | Start here instead |
|---|---|
| A symptom points to a different part | Start with the neighboring part or diagnostic that matches your symptom (storage, cable, battery, screen, audio, or board) before buying this part. |
| Variant or capacity does not match this listing | This is a different model — check your order number and generation before ordering. |
| You see a folder icon, clicking noise, or restore failure | Confirm restore behavior, storage fit, and setup state before ordering this part. |
| Charging, swelling, runtime, or power is the primary problem | If the battery is swollen, replace it for safety before ordering control parts. |
| The problem is the Hold switch or headphone jack, not this part | Start with the headphone/Hold assembly when the lock state or Hold slider is suspect. |
Install Overview
Before You Start
Turn Hold off, use the reset sequence for this generation, and confirm the model and variant before opening the iPod.
Treat case opening as the highest handling risk. Work around the seams gently and stop if the shell, clips, or internal stack resist.
Do not pull the halves apart or side-load board sockets. Reseat nearby ribbons and connectors before blaming a replacement click wheel.
Confirm the click-wheel button is seated before reinstalling the framework. Avoid over-bending the click-wheel cable during removal. Do not fully separate the case halves until the remaining ribbons are released; the back panel can still be connected by ribbon cables.
Repair Guide
Repair guide summary: iPod Classic Click Wheel Replacement.
Show all 38 installation steps
This iPod case is unusually hard to open without damaging major components. Its metal faceplate, metal backing, and thirteen metal clips make disassembly especially demanding. Caution: this opening method can significantly damage the iPod beyond its current condition. Keep a few extra plastic opening tools nearby, since they are easy to ruin while opening the case. Confirm that the hold switch is locked before you open the iPod.
Opening this iPod is challenging, so do not get discouraged if it takes a few tries. Watch the plastic opening tool tip angle as you insert it into the iPod; keep it as vertical as possible while still clearing the rear panel edge. Guide a plastic opening tool into the seam between the front and rear of the iPod.
Slide a second plastic opening tool into the seam between the iPod front and rear, keeping the two tools at least 1.5 inches apart.
Working at an angle, carefully slide a putty knife about 1/8 inch into the gap between the two opening tools. You will find thin metal rails running along the inside of the back panel, so work very carefully when inserting the putty knife. After the putty knife clears the rear panel lip, rotate it vertical and carefully but firmly work it straight down through the opening tool gap.
Press on the rear panel behind the putty knife with your fingers to reduce bending. Slowly flex the putty knife so most metal tabs along this side of the iPod release. The idea is to control how the rear panel bends instead of trying to prevent all bending. Any side bend should draw the rear panel lip away from the iPod, not push outward on the curved surface. This also releases as many side clips as possible.
Take the putty knife out, then place it closer to the iPod corner and use the same gentle wiggle method. If possible, do not bend the rear panel corner.
Near the headphone jack, guide a plastic opening tool into the seam between the front and rear of the iPod. It may be easier to flex the putty knife downward carefully to create more room for the opening tool. Be careful not to bend the rear panel corner.
Near the display center, carefully slide a metal spudger into the gap made by the plastic opening tool. A visible bump can form here in the rear panel and is hard to repair. When levering the tab free, pivot the metal spudger on the rear panel edge instead of bending the rear panel outward. With the metal spudger, release the single clip at the iPod top edge.
Near the other top corner, guide a plastic opening tool into the seam between the front and rear of the iPod
On the other side, use the opening tool to start the same case-opening gap. It may help to angle the tool stuck in the top corner to create enough room.
Take the opening tool out of the top corner, then slide it into the seam between the iPod front and rear. Keep at least 1.5 inches between the two tools, as on the opposite side.
Working at an angle, carefully slide a putty knife about 1/8 inch into the gap between the two opening tools. Again, you will find thin metal rails running along the inside of the back panel, so work very carefully when inserting the putty knife. After the putty knife passes the rear panel lip, turn it vertical and carefully but firmly work it straight down through the gap between the plastic opening tools. Press on the rear panel behind the putty knife with your fingers to reduce bending. Flex the putty knife just enough to make sure most metal tabs along this side of the iPod release.
The metal clips near the corners grip the front panel tightly. Release these clips before opening the iPod. Carefully slide a metal spudger into the area beside the stubborn metal clip.
Gently work the metal spudger downward until it is fully seated in the rear panel.
Gently start releasing the clip from the front panel. A visible bump can form here in the rear panel and is hard to repair. When levering the tab free, pivot the metal spudger on the rear panel edge instead of bending the rear panel outward.
Use the metal spudger to apply upward pressure under the front panel until the metal clip releases.
You will find two ribbon cables connecting the rear panel to the remaining iPod assembly. In the following step, take care not to damage these ribbon cables. In this step, grasp the front-panel assembly with one hand and the back panel with the other. Pause for a moment before continuing. Very gently release the remaining rear-panel clips by pulling the tops of the front and rear panels apart, using the iPod bottom as a hinge. Take great care not to damage the ribbon cables joining the two halves.
With a spudger, slide the connector upward where it holds the orange battery ribbon. Lift the locking bar only about 2 mm to release the cable. Move the orange battery ribbon out of its connector.
Set the rear panel beside the iPod, taking care not to strain the orange headphone jack cable.
Raise the hard drive with one hand to expose the headphone jack ribbon underneath. With a spudger, flip up the plastic tab securing the headphone jack ribbon in place. The tab can rotate up 90 degrees, releasing the ribbon cable. Move the orange headphone jack ribbon out of its connector. The rear panel is now released from the iPod.
After opening, check the lower-case clips. If any clip bent upward, press it back down gently so the rear case can close cleanly.
Use the broad, flat face of the metal spudger to press the clip downward. Work carefully so the thin metal rail does not tear away from the rear panel. While shaping these clips, take care not to damage any headphone jack parts.
Set the rear panel on its side on a clean, hard surface. Carefully but firmly press it downward, rolling the full lip edge back into place. You may need to repeat this several times to straighten the sides well. Slightly overcorrecting the case edges inward is better than leaving them too far out, because reseating the front panel will bend the rear panel back into alignment. Once the rear panel is restored to good condition, continue with the iPod repair.
Rotate the hard drive out of the framework, then set it with the connector facing upward. With a spudger, lift the small black locking tab for the orange hard drive ribbon. The tab rotates upward 90 degrees and frees the ribbon cable.
Move the orange hard drive ribbon cable straight out of its connector. If the replacement hard drive did not include rubber mounting brackets or foam padding, transfer those parts from the old drive.
Take out the three Phillips screws that secure the front panel to the metal framework.
Rotate the iPod 180 degrees and take out the 3 Phillips screws holding the front panel to the metal framework on the other edge.
In this step, gently work around the edges of the device to separate the front panel from the gray metal framework. You may meet some resistance, as you will find a mild adhesive used to help hold the two parts together.
Lift the full framework away from the front panel; it carries the screen, logic board, and click wheel. Confirm the click wheel button is seated before reinstalling the framework in the front panel.
The front panel is now released from the iPod.
With a spudger, lift the plastic tab that holds the orange display ribbon. The tab rotates upward 90 degrees toward the display and releases the ribbon cable.
Move the orange display ribbon cable directly out of its connector.
Raise the framework assembly up, and move the display and LCD metal backplate out of the framework assembly.
Take out the two Phillips screws securing the logic board to the framework.
Carefully press the logic board away from the metal framework. Mild adhesive secures the logic board to the framework. Take care not to bend the logic board by pushing too hard in one spot.
Move the click wheel out from under the logic board until its icons are visible. With a spudger, flip up the plastic tab securing the orange click wheel ribbon in place. The tab can rotate up 90 degrees, releasing the ribbon cable.
With a spudger, raise the click wheel cable off the logic board. Take care not to over-bend the cable, since its electronics can be damaged. When reinstalling the click wheel, make sure the click wheel cable is fully seated in its connector.
Move the click wheel cable out of its connector. Raise the click wheel assembly away from the logic board. Do not forget the click wheel button when putting your iPod back together.
After This Repair
| Check | What to do |
|---|---|
| Test every control | Check Menu, Select, Play/Pause, Previous, Next, scrolling, and Hold behavior before closing the case fully. |
| If controls are still odd | Reseat the control ribbon, confirm the Hold switch is off, and inspect any ground strap or latch touched during service. |
Frequently Asked Questions
Use these questions to narrow the part path before ordering. They keep each answer focused on a different diagnostic or fitment decision.
What Replacement Click Wheel (White) models does this fit?
This Replacement Click Wheel (White) fits: MC293LL/A (160GB Silver), MC238LL/A (160GB Silver), MC062LL/A (160GB Silver), MC044LL/A (160GB Silver).
Do I need to solder?
No, this installation does not require soldering. Difficulty: Very Difficult. Estimated time: 30 minutes - 1 hour.
How do I know if this click wheel needs replacement?
Symptoms that can point to this click wheel include: Hold Switch Stuck, Frozen / Unresponsive, Click Wheel Not Working. Check fitment, connectors, and nearby parts before treating symptoms as proof.
What if only the center or Select button fails?
Confirm Hold is off. Separate center-button-only behavior from a dead scroll ring or multiple failed buttons. Inspect the click-wheel ribbon and ground path if the iPod was opened. Confirm Hold is off before judging the controls. Separate center-button-only behavior from a dead scroll ring or multiple failed buttons. If the iPod has been opened, inspect the click-wheel ribbon, seating, and ground path before ordering another part. When safely accessible, press or continuity-test the underlying microswitch to separate a button-depth problem from a board-side switch problem. Choose this click wheel only when the control assembly or flex path is the failing route. Choose this click wheel only when the assembly, flex, or button path is damaged or no longer making reliable contact. Check the headphone/hold assembly first when the lock indicator or Hold slider is suspect. If the lock symbol is active or the Hold slider is not behaving correctly, check the headphone jack / hold-switch assembly before blaming the click wheel. Connector damage, microswitch failure, or board-level work should stay framed as escalation rather than routine click-wheel installation.
Why is my iPod stuck on the "HP dectect test" screen?
Use the Quick Buying Check, Failure Signs, and Do Not Buy sections together before ordering. The symptom should still point to this click wheel after nearby parts and fitment are separated.
