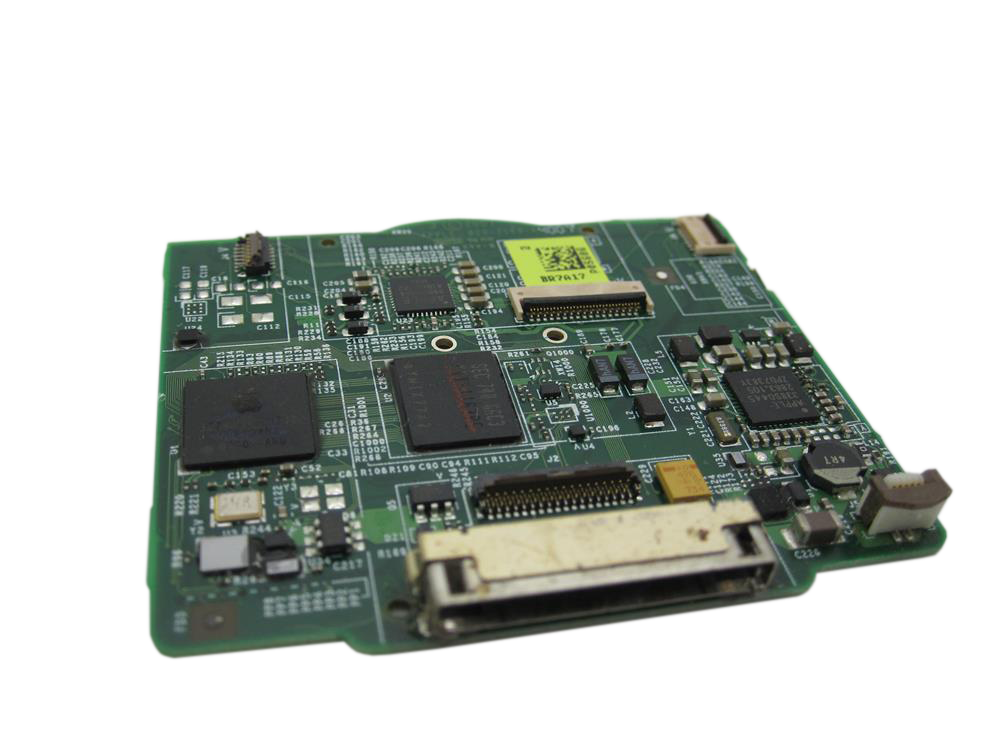

Replacement logic board for iPod Classic 6G. It ties together power, storage, connection, display, audio, and controls, so use it after the easier connected parts, cables, and connectors have been checked.
Product Overview
This logic board listing covers Factory Original Logic Board (2007 80GB/160GB) and its own connector path on the iPod Classic 6th Generation.
Use Part Details for the confirmed part-number reference. Use the Compatible Variants table below to confirm capacity, color, case, or order-number fitment.
Choose this part when your iPod shows Red X Icon, Water Damage, Physical Damage, or Dropped / Not Working; the checks below help confirm the right part before you order.
If known-good cable, power, storage/ribbon, connection, and restore or Disk Mode checks still fail, the logic board remains a suspect, especially when corrosion or board-side connector damage is visible.
- Initialize disk format: HFS Plus (Mac) or FAT32 (Windows)
- Data is preserved through the reset.
- Apple logo stuck may be caused by macOS HFS+ format incompatibility
Choose Your Option
This part comes in multiple variants. Confirm your iPod's capacity, case depth, and order number before ordering.
For 2007 Classic 6G 80GB thin and 160GB thick units using the 820-2168-A board family.
You're viewing this optionWhat Is Included
Quick Buying Check
Buy this when
- Red X Icon: Use the logic-board check only after battery, storage, display, controls, audio/Hold, dock, and connector assemblies are ruled out on this model.
- Use this route only for 2007 80GB/160GB Classic 6G boards in the 820-2168-A family. Late-2008 120GB / 6.5G boards need the 820-2437-A route.
- Do not use this part for: Late-2008 120GB / 6.5G Classic 820-2437-A route.
- Confirm the capacity match before ordering: 160GB, 80GB.
- Confirm the case thickness before ordering: thick, thin.
- 820-2168-A is the 2007 Classic 6G board family for 80GB and original thick 160GB units.
Specifications & Fitment
Part Details
| Detail | Value |
|---|---|
| Model Number | A1238 |
| EMC | EMC 2173 |
| Condition | Used — factory original Apple part. Normal cosmetic wear expected. |
| Board family | 820-2168-A |
| Release family | 2007 6G |
| Capacity route | 80GB thin or 160GB thick |
Compatible Variants
| Order Number | Capacity | Color | Case | Compatible | Notes |
|---|---|---|---|---|---|
| MB147LL/A | 80GB | Black | thin (0.41 in) | Yes | — |
| MB029LL/A | 80GB | Silver | thin (0.41 in) | Yes | — |
| MB150LL/A | 160GB | Black | thick (0.53 in) | Yes | — |
| MB145LL/A | 160GB | Silver | thick (0.53 in) | Yes | — |
| MC297LL/A | 160GB (Late 2009) | Black | thin | Yes— compatible | Stock match |
| MC293LL/A | 160GB (Late 2009) | Silver | thin | Yes— compatible | Stock match |
| MB565LL/A | 120GB | Black | thin (0.41 in) | No— wrong generation | Late-2008 120GB / 6.5G Classic 820-2437-A route Use Factory Original Logic Board (Late 2008 120GB / 6.5G) instead. |
| MB562LL/A | 120GB | Silver | thin (0.41 in) | No— wrong generation | Late-2008 120GB / 6.5G Classic 820-2437-A route Use Factory Original Logic Board (Late 2008 120GB / 6.5G) instead. |
Diagnostic Failure Cards
Use these model-specific failure cards to decide whether this logic board is the right part, a nearby part needs checking first, or escalation makes more sense after simpler checks.
Check before ordering
Hold, lock, or input state can mimic another failure
What you may notice
- People describe controls or device behavior that changes with the Hold switch, lock icon, or input state.
- The iPod appears locked or the Hold switch does not match the device behavior.
Diagnose first when
- Move the Hold switch and watch whether the lock indicator changes.
- Check related input or hold-switch assemblies if the symptom began after opening the iPod.
- Confirm Hold is off before judging the controls.
- Separate center-button-only failure from a dead scroll ring or multiple failed buttons.
- Inspect click-wheel ribbon seating, latch position, and ground path after reassembly.
- Checks before ordering replaceable assemblies, connector seating, and recent repair disturbance before choosing the logic board.
Similar issues to separate
- The symptom may be routed through the Hold/input path rather than the logic board itself.
- Click-wheel assembly, button pad, or flex path.
- This logic board may help only if the symptom remains after hold/input behavior is ruled out.
Where this logic board does not fit
Check another part first
- Check the Hold switch path first when the device appears locked or ignores input.
- Check the headphone/hold assembly for confirmed Hold switch faults before blaming the click wheel.
Repair or replacement paths
- Repair the hold/input path when that switch or ribbon is the confirmed fault.
- Use logic board replacement only after the hold/input path is ruled out.
- Replace the click wheel when the assembly or flex remains damaged after seating checks.
Logic Board appears unresponsive or intermittent
What you may notice
- People describe behavior where the logic board seems dead, intermittent, or only partly responsive.
- A part or control path is dead, intermittent, or only partly responsive.
Diagnose first when
- Inspect nearby connectors and flex paths if the iPod has been opened.
Similar issues to separate
- The logic board can be involved, but connector seating, adjacent cables, power state, or board-side paths can produce similar symptoms.
- Choose this logic board only when the failing behavior follows the part or its own connection path.
Repair or replacement paths
- Replace the logic board when inspection or repeat testing points to that assembly.
- Continue adjacent-part diagnosis when the symptom follows a connector, cable, or board path instead.
Power, charging, or runtime symptoms
What you may notice
- People describe short runtime, charging trouble, sudden shutoff, or an iPod that will not reliably power on.
- Short runtime, charging trouble, sudden shutoff, or a device that will not reliably power on.
Diagnose first when
- Test with a known-good charger and cable before opening the iPod.
- Note whether the iPod shows charging, briefly powers on, shuts down under load, or never wakes at all.
- If the symptom began after service, inspect the battery connector and nearby flex paths before replacing another part.
Similar issues to separate
- The logic board can be the cause, but charging, dock, storage, or board paths can create similar power behavior.
- Check power / charge / runtime route, connector seating, and board-side damage before ordering.
- Choose this logic board only when the power, charging, or runtime pattern is tied to this part or its connector path.
Check another part first
- Check charger/cable behavior, dock connector condition, storage startup clues, and board damage when the symptom is not isolated to battery performance.
Repair or replacement paths
- Replace the logic board when inspection or repeat testing points to this part as the failing path.
- Keep dock connector, storage, and board diagnosis in scope when charging behavior is inconsistent or no power path is confirmed.
- Advanced or board-level cases
Blank, white, black, lined, or backlight display
What you may notice
- People describe a blank screen, white or black display, missing backlight, lines, or a display that changes after impact or repair.
- Blank screen, white or black display, missing backlight, or lines on the screen.
Diagnose first when
- Confirm the iPod still plays, charges, or is recognized so the screen symptom can be separated from a dead device.
- Inspect the display ribbon and connector if the iPod has been opened or dropped.
- Look for cracks, liquid residue, display discoloration, or connector damage before ordering.
- Checks before ordering the LCD panel, display ribbon, and connector seating before treating a display-only symptom as logic-board evidence.
- If the symptom changes when the plug, cable, case, or logic board is gently moved, treat that as an intermittent-connection clue and inspect the relevant connector or ribbon before replacing parts.
Similar issues to separate
- The logic board can be damaged, but display ribbon seating, connector condition, liquid history, or board-side display circuitry may need checking first.
- Display / Check backlight route, connector seating, and board-side damage before ordering.
- Choose this logic board only when the display symptom is tied to this part or its connection path.
Check another part first
- Check ribbon seating, liquid history, and board connector damage before treating the display as a guaranteed fix. Check the screen and display-ribbon path first when the iPod still powers, plays, charges, or syncs. If the clue repeats after the connector and ribbon are seated, continue with board-level diagnosis.
Repair or replacement paths
- Replace the logic board when inspection or repeat testing points to this part's role in the display path.
- Use display-panel replacement when the panel, backlight, or display flex is visibly damaged; continue connector, liquid-damage, or board diagnosis when the display changes after reseating.
Dock, USB, sync, or charging connection trouble
What you may notice
- People describe charging, USB recognition, sync, or dock-connector behavior that is intermittent or missing.
- Charging, USB recognition, sync, or dock behavior is intermittent or missing.
Diagnose first when
- Try a known-good cable, charger, and computer port before opening the iPod.
- Inspect the dock connector for debris, bent pins, corrosion, or looseness.
- Separate charging-only failure from computer-recognition or sync failure when choosing a part.
Similar issues to separate
- The logic board can be involved, but cable condition, port contamination, battery state, storage behavior, or board damage can create overlapping symptoms.
- Check dock / usb / sync route, connector seating, and board-side damage before ordering.
- Choose this logic board only when charging, sync, or dock behavior is tied to this part or its connector path.
Check another part first
- Check cable, charger, battery, storage restore state, and board condition when the dock path is not clearly isolated.
Repair or replacement paths
- Replace the logic board when inspection points to this part's role in the dock, USB, sync, or charging path.
- Continue battery, storage, or board diagnosis when the port looks healthy but power or sync still fails.
Fitment or model-variant mismatch
What you may notice
- People ask whether a similar-looking part from another capacity, case thickness, or generation will work.
- A similar-looking part may not match the exact capacity, case thickness, generation, or color.
Diagnose first when
- Match the exact model, generation, capacity, and case style shown for the product.
- Do not use a symptom to override fitment: a wrong-variant part can create new symptoms after installation.
Similar issues to separate
- The logic board may differ by model, case style, connector, cable length, bracket, or firmware/storage expectation.
- Check fitment / model variant boundary, connector seating, and board-side damage before ordering.
- This logic board may help only when it matches the model and variant being repaired.
Check another part first
- Check fitment before replacing nearby parts or ordering another copy of the same wrong variant. If the clue repeats after the connector and ribbon are seated, continue with board-level diagnosis.
Repair or replacement paths
- Use the logic board variant matched to the exact iPod.
- Recheck fitment before diagnosing a newly installed part as defective.
Liquid, corrosion, or residue near this part
What you may notice
- People describe symptoms after liquid exposure, dirty contacts, corrosion, or residue around internal parts.
- Symptoms follow liquid exposure, dirty contacts, corrosion, or residue.
Diagnose first when
- Look for corrosion, residue, lifted contacts, or darkened connector areas.
- Check whether damage is on the replaceable part or on the board-side connector.
- Inspect for liquid, corrosion, residue, torn flex material, or connector damage.
Similar issues to separate
- Corrosion can affect the logic board, its connector, or a nearby board path, so liquid history is a reason to inspect before assuming one part is bad.
- Liquid or corrosion can involve this part, a nearby connector, or a board path.
- Choose this logic board only when corrosion damaged the part or its flex.
- Choose this logic board when the symptom remains isolated to this assembly, its ribbon, or its connector path after first checks.
Check another part first
- Check the board connector and nearby assemblies first when corrosion is not limited to this part.
Repair or replacement paths
- Replace the logic board when liquid damage is on that assembly or flex path.
- Continue board or connector repair diagnosis when corrosion is outside the replaceable part.
Logic Board ribbon, connector, or contact path
What you may notice
- People describe symptoms that change after opening the iPod, reseating parts, or disturbing nearby flex cables.
- A symptom starts after opening the iPod or disturbing an internal flex cable.
Diagnose first when
- Inspect the relevant ribbon and board connector before replacing the part.
- Look for lifted latches, bent contacts, debris, corrosion, creases, or torn flex material.
- Check whether the symptom changes after careful reseating.
Similar issues to separate
- The logic board may be fine while its ribbon, connector, latch, or contact path is loose, dirty, damaged, or not fully seated.
- Connector seating, ribbon damage, or ground-path issues can involve this part, a nearby connector, or a board path.
- Choose this logic board only when the part's own flex or contact path is damaged.
Check another part first
- Check the board-side connector or adjacent cable first when the damage is not on the replaceable assembly.
Repair or replacement paths
- Reseat or clean only where the repair procedure supports it.
- Replace the logic board when the flex, connector tail, or assembly contact path is physically damaged.
Cautions
- Keep this option as advanced or professional diagnosis unless replaceable parts have been ruled out.
Storage warning symptoms usually start with drive or cable checks
What you may notice
- People may see a sad iPod, red X, folder icon, clicking drive, restore loop, or storage-recognition problem, especially after drive, flash, cable, or board work.
- Sad iPod, red X, clicking drive, restore loop, or disk-mode trouble.
Diagnose first when
- Reseat the hard-drive or ZIF ribbon at both the logic-board end and the drive or adapter end before considering a board replacement.
- Test with known-good storage and the correct cable or adapter setup, then retry restore or disk mode when available.
- Inspect the board-side storage connector for torn pins, latch damage, corrosion, or impact damage only after the replaceable storage path has been checked.
Similar issues to separate
- Most storage-warning symptoms start with the hard drive, hard-drive cable or ZIF seating, flash adapter setup, formatting, or battery load before they point to the logic board.
- A logic board becomes a stronger suspect only when a known-good drive or adapter and known-good cable still fail, the board-side storage connector is damaged, or the symptom began immediately after a board swap.
- Check storage / restore route, connector seating, and board-side damage before ordering.
- This logic board may help only when the board-side storage connector or storage controller path remains suspect after known-good drive, cable, adapter, power, and restore checks.
Check another part first
- Check the hard drive, hard-drive cable or ZIF ribbon, flash adapter, formatting, and battery spin-up/load before treating sad iPod, red X, folder, clicking, or restore symptoms as a board failure.
Repair or replacement paths
- Replace the drive, drive cable, or flash adapter first when those checks isolate the storage path.
- Use logic-board replacement or board repair only when the board-side storage path remains the isolated failure after known-good storage and cable checks.
Symptoms changed after repair or reassembly
What you may notice
- People describe a new problem appearing immediately after battery, storage, display, audio, or control work.
- A new symptom appeared after battery, storage, audio, display, or control work.
Diagnose first when
- Reopen only as far as needed to inspect the areas touched during the repair.
- Compare the new symptom with what worked before the repair.
- Check cable seating, latch position, and part variant before replacing a second part.
Similar issues to separate
- A post-repair symptom can involve the logic board, but disturbed ribbons, latches, grounding, connector seating, or the wrong variant part are common checks before ordering again.
- Check post-repair regression, connector seating, and board-side damage before ordering.
- Choose this logic board only when the part itself was torn, creased, or damaged during service.
Check another part first
- Check the exact connector or assembly disturbed during the repair before treating the new part as failed. If the clue repeats after the connector and ribbon are seated, continue with board-level diagnosis.
Repair or replacement paths
- Correct seating, latch, or variant problems first.
- Replace the logic board when the repair damaged that assembly or its flex path.
Fitment and post-repair traps
Fitment and inspection notes
Symptom remains after basic checks
What you may see: The iPod still points back to Factory Original Logic Board (2007 80GB/160GB) after cable seating, battery stability, and nearby connector checks.
Check first: Retest with known-good cables or adjacent parts where practical before ordering.
Check next: A nearby cable, connector, battery, storage device, display path, audio path, or board path can mimic a bad logic board.
Symptom changes when touched or reseated
What you may see: The symptom changes after moving the part, reseating a cable, or applying light pressure near the connector path.
Check first: Inspect the connector, latch, flex, solder joints, and nearby board area for damage or corrosion.
Check next: This can still be a connection issue rather than a failed logic board alone.
Problem began after another repair
What you may see: The issue started immediately after opening the iPod, replacing another part, or disturbing an internal cable.
Check first: Reopen only as far as needed and inspect the exact area touched during the previous repair.
Check next: Post-repair symptoms often trace to seating, latch, screw, or cable issues before Factory Original Logic Board (2007 80GB/160GB) itself is confirmed bad.
Repair considerations
Repair specialists who work on this model consistently flag these checks before replacing the logic board — they help confirm the logic board is the right fix and not a nearby fault:
- Escalate board-level soldering or connector damage
- Replace or professionally rework logic board
Do Not Buy / Problems This Logic Board Does Not Fix
| Situation | Start here instead |
|---|---|
| Variant or capacity does not match this listing | Use the Factory Original Logic Board (Late 2008 120GB / 6.5G) listing instead. |
| A replaceable attached-part path is isolated | Test the likely battery, storage, screen, audio, cable, or connector path first. |
| Recent service or connector disturbance is the main clue | Reopen carefully, reseat the part that was disturbed, and inspect its latch before buying a board. |
| You see a folder icon, clicking noise, or restore failure | Use the matching screen, storage, audio, or control part page before replacing the logic board. |
| The problem is the Hold switch or headphone jack, not this part | Start with the headphone jack / Hold switch assembly check. |
| Only the screen is affected and everything else works | Start with the screen, display ribbon, and backlight path before replacing the logic board. |
| Cable, computer, sync, or port behavior is the primary problem | Use the nearby battery, storage, screen, audio, cable, or connector listing that matches the symptom first. |
Install Overview
Before You Start
Turn Hold off, use the reset sequence for this generation, and confirm the model and variant before opening the iPod.
Treat case opening as the highest handling risk. Work around the seams gently and stop if the shell, clips, or internal stack resist.
Do not pull the halves apart or side-load board sockets. Reseat nearby ribbons and connectors before blaming a replacement logic board.
Test known-good replaceable assemblies first so the board is not blamed for a battery, storage, cable, control, screen, or audio path.
Do not fully separate the case halves until the remaining ribbons are released; the back panel can still be connected by ribbon cables.
Repair Guide
Repair guide summary: iPod Classic Logic Board Replacement.
Show all 41 installation steps
This iPod case is unusually hard to open without damaging major components. Its metal faceplate, metal backing, and thirteen metal clips make disassembly especially demanding. Caution: this opening method can significantly damage the iPod beyond its current condition. Keep a few extra plastic opening tools nearby, since they are easy to ruin while opening the case. Confirm that the hold switch is locked before you open the iPod.
Opening this iPod is challenging, so do not get discouraged if it takes a few tries. Watch the plastic opening tool tip angle as you insert it into the iPod; keep it as vertical as possible while still clearing the rear panel edge. Guide a plastic opening tool into the seam between the front and rear of the iPod.
Slide a second plastic opening tool into the seam between the iPod front and rear, keeping the two tools at least 1.5 inches apart.
Working at an angle, carefully slide a putty knife about 1/8 inch into the gap between the two opening tools. You will find thin metal rails running along the inside of the back panel, so work very carefully when inserting the putty knife. After the putty knife clears the rear panel lip, rotate it vertical and carefully but firmly work it straight down through the opening tool gap.
Press on the rear panel behind the putty knife with your fingers to reduce bending. Slowly flex the putty knife so most metal tabs along this side of the iPod release. The idea is to control how the rear panel bends instead of trying to prevent all bending. Any side bend should draw the rear panel lip away from the iPod, not push outward on the curved surface. This also releases as many side clips as possible.
Take the putty knife out, then place it closer to the iPod corner and use the same gentle wiggle method. If possible, do not bend the rear panel corner.
Near the headphone jack, guide a plastic opening tool into the seam between the front and rear of the iPod. It may be easier to flex the putty knife downward carefully to create more room for the opening tool. Be careful not to bend the rear panel corner.
Near the display center, carefully slide a metal spudger into the gap made by the plastic opening tool. A visible bump can form here in the rear panel and is hard to repair. When levering the tab free, pivot the metal spudger on the rear panel edge instead of bending the rear panel outward. With the metal spudger, release the single clip at the iPod top edge.
Near the other top corner, guide a plastic opening tool into the seam between the front and rear of the iPod
On the other side, use the opening tool to start the same case-opening gap. It may help to angle the tool stuck in the top corner to create enough room.
Take the opening tool out of the top corner, then slide it into the seam between the iPod front and rear. Keep at least 1.5 inches between the two tools, as on the opposite side.
Working at an angle, carefully slide a putty knife about 1/8 inch into the gap between the two opening tools. Again, you will find thin metal rails running along the inside of the back panel, so work very carefully when inserting the putty knife. After the putty knife passes the rear panel lip, turn it vertical and carefully but firmly work it straight down through the gap between the plastic opening tools. Press on the rear panel behind the putty knife with your fingers to reduce bending. Flex the putty knife just enough to make sure most metal tabs along this side of the iPod release.
The metal clips near the corners grip the front panel tightly. Release these clips before opening the iPod. Carefully slide a metal spudger into the area beside the stubborn metal clip.
Gently work the metal spudger downward until it is fully seated in the rear panel.
Gently start releasing the clip from the front panel. A visible bump can form here in the rear panel and is hard to repair. When levering the tab free, pivot the metal spudger on the rear panel edge instead of bending the rear panel outward.
Use the metal spudger to apply upward pressure under the front panel until the metal clip releases.
You will find two ribbon cables connecting the rear panel to the remaining iPod assembly. In the following step, take care not to damage these ribbon cables. In this step, grasp the front-panel assembly with one hand and the back panel with the other. Pause for a moment before continuing. Very gently release the remaining rear-panel clips by pulling the tops of the front and rear panels apart, using the iPod bottom as a hinge. Take great care not to damage the ribbon cables joining the two halves.
With a spudger, slide the connector upward where it holds the orange battery ribbon. Lift the locking bar only about 2 mm to release the cable. Move the orange battery ribbon out of its connector.
Set the rear panel beside the iPod, taking care not to strain the orange headphone jack cable.
Raise the hard drive with one hand to expose the headphone jack ribbon underneath. With a spudger, flip up the plastic tab securing the headphone jack ribbon in place. The tab can rotate up 90 degrees, releasing the ribbon cable. Move the orange headphone jack ribbon out of its connector. The rear panel is now released from the iPod.
After opening, check the lower-case clips. If any clip bent upward, press it back down gently so the rear case can close cleanly.
Use the broad, flat face of the metal spudger to press the clip downward. Work carefully so the thin metal rail does not tear away from the rear panel. While shaping these clips, take care not to damage any headphone jack parts.
Set the rear panel on its side on a clean, hard surface. Carefully but firmly press it downward, rolling the full lip edge back into place. You may need to repeat this several times to straighten the sides well. Slightly overcorrecting the case edges inward is better than leaving them too far out, because reseating the front panel will bend the rear panel back into alignment. Once the rear panel is restored to good condition, continue with the iPod repair.
Rotate the hard drive out of the framework, then set it with the connector facing upward. With a spudger, lift the small black locking tab for the orange hard drive ribbon. The tab rotates upward 90 degrees and frees the ribbon cable.
Move the orange hard drive ribbon cable straight out of its connector. If the replacement hard drive did not include rubber mounting brackets or foam padding, transfer those parts from the old drive.
Take out the three Phillips screws that secure the front panel to the metal framework.
Rotate the iPod 180 degrees and take out the 3 Phillips screws holding the front panel to the metal framework on the other edge.
In this step, gently work around the edges of the device to separate the front panel from the gray metal framework. You may meet some resistance, as you will find a mild adhesive used to help hold the two parts together.
Lift the full framework away from the front panel; it carries the screen, logic board, and click wheel. Confirm the click wheel button is seated before reinstalling the framework in the front panel.
The front panel is now released from the iPod.
With a spudger, lift the plastic tab that holds the orange display ribbon. The tab rotates upward 90 degrees toward the display and releases the ribbon cable.
Move the orange display ribbon cable directly out of its connector.
Raise the framework assembly up, and move the display and LCD metal backplate out of the framework assembly.
Take out the two Phillips screws securing the logic board to the framework.
Carefully press the logic board away from the metal framework. Mild adhesive secures the logic board to the framework. Take care not to bend the logic board by pushing too hard in one spot.
Move the click wheel out from under the logic board until its icons are visible. With a spudger, flip up the plastic tab securing the orange click wheel ribbon in place. The tab can rotate up 90 degrees, releasing the ribbon cable.
With a spudger, raise the click wheel cable off the logic board. Take care not to over-bend the cable, since its electronics can be damaged. When reinstalling the click wheel, make sure the click wheel cable is fully seated in its connector.
Move the click wheel cable out of its connector. Raise the click wheel assembly away from the logic board. Do not forget the click wheel button when putting your iPod back together.
With a spudger, flip up the plastic tab securing the orange hard drive ribbon in place. The tab can rotate up 90 degrees, releasing the ribbon cable.
Move the orange hard drive ribbon cable straight out of its connector. If adhesive holds the cable to the logic board, carefully pull up on the cable to loosen it.
The logic board is the remaining assembly.
After This Repair
| Check | What to do |
|---|---|
| Run the full function check | Verify power, USB sync, storage, display, audio, controls, and charging before treating the repair as finished. |
| Still not working? | Go back through the connected battery, storage, display, dock, audio, and control paths one at a time. |
Worth Knowing
- Samsung/Apple S5L8702 — SoC — ARM-based application processor, Apple-designed Samsung-fabbed
- Cirrus Logic CS42L55 — Audio CODEC — stereo DAC with headphone amplifier
- NXP/Philips PCF50635 — Power management IC — successor to PCF50607
- Linear Technology LTC4066 — USB power manager with Li-Ion charger
Disk Mode on the iPod Classic: Stuck In It, or Can't Get Into It.
Disk mode is the iPod Classic 6th generation's built-in fallback: a bare USB-drive mode that loads before the normal software, so a computer can reach the hard drive even when the iPod itself won't boot. That is why it shows up in two opposite complaints — iPods that get stuck living in disk mode (the "Do Not Disconnect" / "OK to Disconnect" screens), and iPods with a red X that refuse to enter disk mode at all. On this hard-drive-based model, what disk mode does or doesn't do is the single most telling at-home test of whether the drive, the ribbon cable, or the logic board is your problem.
What owners describe: - An owner's 80GB Classic got stuck in disk mode: the computer saw it as a drive, but iTunes never recognized it, and the PC could not format it no matter what. That half-alive state — visible as a disk, but unable to complete a format — is the classic signature of a drive with failing sectors rather than a software glitch. - A 2008 6th generation worked fine until it was plugged into a Windows laptop, then dropped into what the owner called permanent disk mode — no button combination would get it out. After converting to an SD-card flash board, iTunes would finish a restore and then immediately ask to restore again, looping forever. - Another owner's 80GB Classic showed the red X in a circle and would not go into disk mode at all, asking if that meant the hard drive was bad. The expert answer: on the 6th generation classics, red X plus no disk mode is usually exactly that — a hard drive failure; if it still charges you already know the battery isn't the issue. - A thick 2007 160GB owner did the homework before buying: Apple logo, then red X, disk mode refused, but diagnostic mode opened — and the drive-health test (HDSMARTData) hung forever at 'Open Device'. The reliable way to split drive vs cable vs board before buying anything: plug the drive into a computer with a USB-to-ZIF adapter. If the drive works there, you're shopping for a cable or a board; if it doesn't, start with the drive. - A 160GB thick owner replaced his hard drive ribbon cable with what he thought was the right 160GB part — and got the red X with diagnostics reporting no hard drive at all. He had hit the trap on this model: the original 2007 thick 160GB takes its own longer cable, made for its CE-ATA drive and not interchangeable with the thin 80GB/120GB ribbon, and the wrong one leaves the drive completely undetected. - One 80GB owner went all the way down the rabbit hole: restores completed in Disk Mode and then the iPod demanded restoring again, the original drive would not format even when removed and tested on a computer directly — and a known-good drive also refused to restore, throwing errors 1430/1431. Every other diagnostic test passed. When a working drive still won't restore, the logic board moves to the top of the suspect list. - A cautionary one: an owner set his iPod down on a laptop keyboard cover's magnetic closure and it instantly shut off, started clicking, and booted to a red X from then on. It still entered diagnostic mode and held a charge — the magnet had taken out the spinning hard drive, nothing else.
How it usually progresses: - The won't-enter-disk-mode track usually builds in stages: songs start skipping or freezing mid-track, the drive gets audibly noisy or clicky, iTunes begins freezing when the iPod is plugged in — then one day the boot stops at a red X, and disk mode won't take. End stage is diagnostic mode reporting it cannot open the drive at all ('Can't Open Device' or an 'Open Device' hang on the drive-health screen). - The stuck-in-disk-mode track often starts with an interrupted or failed sync, format, or restore: the iPod retreats to the 'Do Not Disconnect' / restore screen and stays there through resets. Restores may appear to finish and then loop right back — a sign the drive is no longer committing what iTunes writes to it. - A flat battery can mimic the worst stage: an iPod that reboots every couple of seconds resets too fast to hold any button combination, so disk mode and diagnostic mode both seem broken. Apple's own disk-mode procedure starts with verifying the iPod is charged — owners who charge 20–60 minutes first often find the modes work again.
What typically causes it: - Why an iPod gets stuck in disk mode: disk mode lives in the early boot stage, before the normal iPod software loads from the hard drive. When the software can't load — failing drive sectors, corrupted files from an interrupted sync, or a restore that never actually commits — the iPod keeps falling back to disk mode or the restore screen every time it starts. - Why 'won't enter disk mode' points at the drive: even disk mode needs to reach the storage. A red X means the iPod cannot reach a usable storage path, and when disk mode refuses on top of it, the path itself — drive, ribbon cable, or its connector — is down. Repair veterans confirm the drive by plugging it into a computer with a ZIF-to-USB adapter before buying anything. - The two-cable trap: thin 80GB and 120GB Classics use one ribbon cable; the original 2007 thick 160GB uses a different, longer cable built for its CE-ATA drive. The two are not interchangeable — install the wrong one and the drive simply never appears: no disk mode, no drive in diagnostics, red X at boot. - Restore loops aren't always hardware: error 1439 is the most common restore failure on this generation, and its documented causes include third-party USB cables, USB hubs, USB 3.0 ports, and security software — alongside a genuinely failing drive. Before condemning parts, retry with an original Apple 30-pin cable on a direct rear USB 2.0 port, and force disk mode for the restore. - On flash-converted iPods, disk-mode loops and red X errors are frequently the SD card, not the iPod: certain some SD card/controller combinations models are documented troublemakers on the 6th generation, and incompatible cards produce exactly the restore-then-back-to-disk-mode loop owners describe. Also know that the drive-health (SMART) screen in diagnostics is meaningless on a flash board — it was built to question a mechanical hard drive; use the drive-specs screen instead to confirm the adapter is seen.
Handle it safely: - Restoring wipes the iPod completely. If your music exists only on the iPod, get into disk mode first and copy your files to a computer — the music folder is hidden but can be unhidden from the computer side — before you let iTunes restore anything. And if a stuck drive starts responding again after a reset or a tap, copy immediately: experts who see drives revive that way call it temporary, not fixed. - Keep this iPod away from magnets — laptop and tablet magnetic closures included. One owner's unit went from working to clicking with a red X the moment it touched a magnetic keyboard cover. The spinning hard drive is the casualty; the rest of the iPod usually survives. - If the iPod is resetting every few seconds, don't fight the buttons — charge it on a wall adapter or computer for 20–60 minutes first. The disk-mode and diagnostic combos need the iPod to stay up long enough to register the hold, and Apple's procedure starts with a charged iPod for exactly that reason.
Owners searching for this describe it as: ipod classic stuck in disk mode, ipod classic won't go into disk mode, ipod classic disk mode itunes not recognizing, ipod classic 6th gen disk mode boot loop, ipod classic do not disconnect screen stuck, ipod classic ok to disconnect stuck, ipod classic red x disk mode, ipod classic diagnostic mode hard drive test, ipod classic restore loop disk mode.
Frequently Asked Questions
Use these questions to narrow the part path before ordering. They keep each answer focused on a different diagnostic or fitment decision.
What iPod Classic 6th Generation models does this fit?
This Factory Original Logic Board (2007 80GB/160GB) fits: MB029LL/A (80GB Silver), MB147LL/A (80GB Black), MB145LL/A (160GB Silver), MB150LL/A (160GB Black).
Do I need to solder?
No, this installation does not require soldering. Difficulty: Very Difficult. Estimated time: 1 - 2 hours.
How do I know if this factory original logic board needs replacement?
Symptoms that can point to this factory original logic board include: Red X Icon, Water Damage, Physical Damage, Dropped / Not Working, Sad iPod Icon. Check fitment, connectors, and nearby parts before treating symptoms as proof.
What else should I replace at the same time?
Flash storage upgrade replaces the mechanical hard drive; check board storage cap before purchasing. Battery is commonly replaced during the same repair while the iPod is open. ZIF ribbon cable connects the hard drive or flash adapter to the logic board.
How should I use power, charging, or runtime symptoms to choose this logic board?
Check battery variant, battery connector, FireWire power, charger/cable behavior, and storage spin-up load before board replacement. Board diagnosis is stronger when the iPod remains dead or unstable after known-good battery, cable, dock, and storage checks. Test with a known-good charger and cable before opening the iPod. Note whether the iPod shows charging, briefly powers on, shuts down under load, or never wakes at all. If the symptom began after service, inspect the battery connector and nearby flex paths before replacing another part. Choose this logic board only when the failure is isolated to the board path after external and replaceable-part checks. Choose this logic board only when the power, charging, or runtime pattern is tied to this part or its connector path. Check the nearby part path first when the symptom still fits a battery, storage, display, dock, headphone/hold, or click-wheel assembly. Check charger/cable behavior, dock connector condition, storage startup clues, and board damage when the symptom is not isolated to battery performance. Board-level rework and component diagnosis belong in advanced or professional repair context.
Could another part cause the same symptom?
Use the Quick Buying Check, Failure Signs, and Do Not Buy sections together before ordering. The symptom should still point to this logic board after nearby parts and fitment are separated.
Why people land on this part
Also searched as: iPod classic 6th generation <code> 820-2168-A </code> logic board replacement, iPod classic 6th Generation Factory Original Logic Board, iPod classic 6th generation motherboard, Overheating, dead logic board, no power logic board, won't turn on logic board, motherboard, completely dead, won't charge, replaced logic, Water Damage, Physical Damage, Dropped / Not Working.
You May Also Want
Battery is commonly replaced during the same repair while the iPod is open.
Related: Flash Storage Mod Kit (iFlash Adapter)Flash storage upgrade replaces the mechanical hard drive; check board storage cap before purchasing.
Related: Hard Drive ZIF CableZIF ribbon cable connects the hard drive or flash adapter to the logic board.
