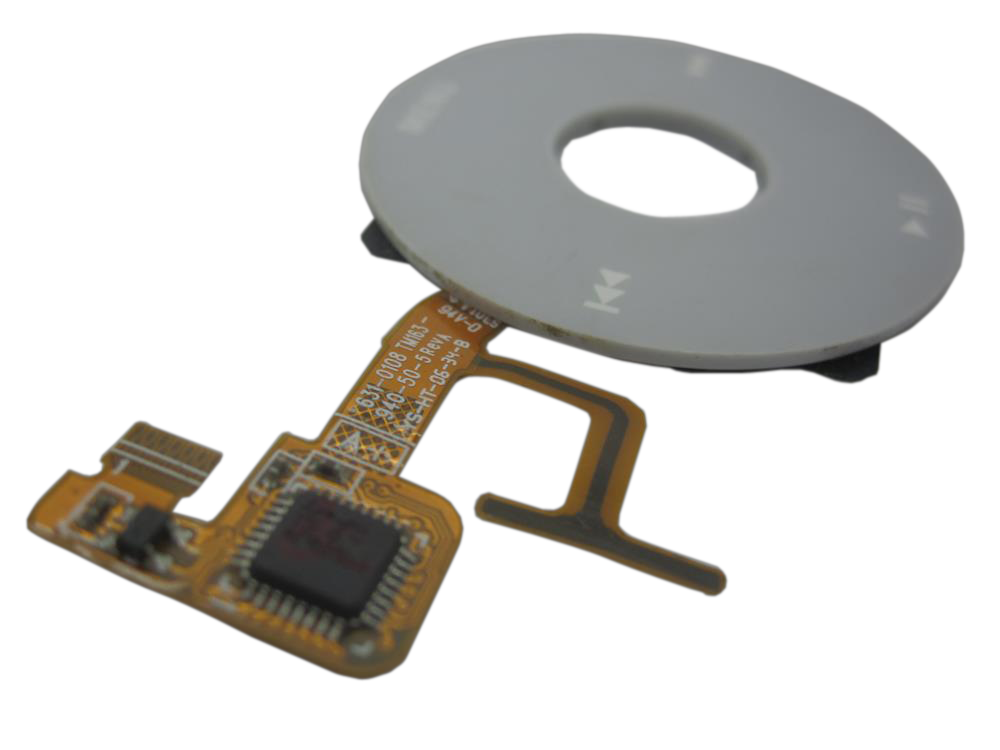

Replacement control input part for iPod Video 5G. Use it when the wheel, buttons, center Select area, or flex is physically damaged or still fails after Hold state, frozen software state, and connector seating are checked.
Product Overview
Choose this click wheel listing to restore wheel, button, and center-Select input on the iPod 5th Generation (Video) when the control assembly or its flex is damaged or unresponsive.
This is the working input assembly with its ribbon — the part that actually registers a press — supplied in a custom finish. The visible center-button cap is a separate listing and is not included.
Use Part Details for the confirmed part-number reference. Use the Compatible Variants table below to confirm capacity, color, case, or order-number fitment.
Use the fitment and inspection checks below before ordering, especially when the same model family has thin/thick case or connector variants.
This can also be a customization choice. Click wheels and center buttons may be offered in custom non-OEM finishes, so buyers may replace working controls for a coordinated custom build as long as the control fitment matches the model.
What Is Included
Condition: New custom replacement part. Quantity and exclusions: The listed part, set, pair, or configuration above is supplied with exactly one plastic pry tool. No other parts, tools, adhesives, or materials are included unless they are explicitly listed above.
Quick Buying Check
Buy this when
- Scroll ring or button failure: Click-wheel faults can show up as missing scroll input, failed buttons, or intermittent control response.
- Center or Select button stuck: A stuck, sunken, or center-button-only failure often points to the rubber pad, membrane contact, or click-wheel ribbon.
- Post-repair input trouble: The click-wheel ribbon and latch can be disturbed during internal work.
Diagnose first when
- Confirm the hold switch is unlocked before diagnosing the click wheel.
- Use the built-in diagnostics: reset first (unlock Hold, hold Menu + Select until the Apple logo), then hold Previous + Center as the logo appears — you are in when the Apple logo comes up backwards. The KEY and WHEEL tests exercise the buttons and the scroll ring, which is what separates one dead button from a dead wheel. Disk Mode, if you need it, is a reset followed by Center + Play/Pause.
- Reseat the click-wheel ribbon and inspect the latch before ordering.
- Check for liquid damage or corrosion on the click-wheel flex if the whole wheel is intermittent or dead.
Do not buy for
- Choose custom options only after confirming model generation and physical fitment. Do not use customization demand as proof of electronics failure.
- A stuck hold switch can make the controls appear unresponsive.
- Clicking feedback while scrolling is the separate piezo sound, not a failed click-wheel button.
- Post-repair control failures often come from a disturbed ribbon or ground strap before the whole wheel is bad.
Specifications & Fitment
Part Details
| Detail | Value |
|---|---|
| Model Number | A1136 |
| EMC | EMC 2065 |
| Condition | New custom click wheel |
| OEM Part | 821-0372-A |
| Also Listed As | 821-0372 |
| Interface | ZIF ribbon cable |
| Available color/finish options | black, blue, clear, gray, green, purple, red, white, yellow |
Compatible Variants
| Order Number | Capacity | Case | Compatible | Notes |
|---|---|---|---|---|
| MA146LL/A | 30GB | thin (0.43 in) | Yes | — |
| MA446LL/A | 30GB | thin (0.43 in) | Yes | — |
| MA452LL/A | 30GB | thin (0.43 in) | Yes | Owner-verified: fits U2 Special Edition; custom finish differs from the original U2 look |
| MA664LL/A | 30GB | thin (0.43 in) | Yes | Owner-verified: fits U2 Special Edition; custom finish differs from the original U2 look |
| MA002LL/A | 30GB | thin (0.43 in) | Yes | — |
| MA444LL/A | 30GB | thin (0.43 in) | Yes | — |
| MA147LL/A | 60GB | thick | Yes | — |
| MA003LL/A | 60GB | thick | Yes | — |
| MA450LL/A | 80GB | thick | Yes | — |
| MA448LL/A | 80GB | thick | Yes | — |
is not compatible with
- iPod Classic 6G / 7G (A1238) click wheel, part 821-0545-A — not cross-compatible; the iPod Video wheel is 821-0372-A
Failure Signs
Use these checks to decide whether this click wheel is the right part, whether a nearby part should be checked first, or whether the symptom needs more diagnosis.
| Symptom | What it means & what to check |
|---|---|
| Center / Select button does not respond or stops clicking |
What you may see: The center, middle, or Select button feels stuck, sits low, or stops selecting.
Check first: Separate center/select-button-only failure from a dead scroll ring or multiple failed buttons.
Most likely cause: On the 5G Video, the top repair signal of center button failure is a shifted rubber button pad. The small rubber bumper between the click wheel membrane and the dome switch can shift out of alignment, preventing the button from registering presses even though the scroll ring still works.
Look elsewhere when: If the lock symbol is active or the Hold slider is not behaving correctly, check the headphone jack / hold-switch assembly before blaming the click wheel.
Cautions: Do not treat a 5G center/select-button-only failure as battery-swelling pressure unless separate LCD pressure marks or dark spots are present. |
| Hold switch can look like click-wheel failure |
What you may see: The iPod may appear locked, ignore controls, or behave differently when the Hold switch position changes.
Check first: Check whether the lock indicator changes when the Hold switch moves.
Most likely cause: On this model the Hold switch belongs to the headphone jack / hold-switch assembly, not the click wheel.
Look elsewhere when: Check the headphone jack / hold-switch assembly first when the device is locked or the Hold slider is suspect. Cautions: Disconnecting the flex with Hold engaged leaves the player locked; unplugging it is not a way to release Hold. |
| Click wheel is partly or fully unresponsive |
What you may see: People describe the scroll ring, buttons, or the whole control area as intermittent, partly responsive, or completely dead.
Check first: Confirm Hold is off.
Most likely cause: Whole-wheel symptoms can involve the click-wheel assembly, ribbon seating, ground path, or contamination on contacts.
Look elsewhere when: Check Hold switch, logic-board connector damage, and liquid/corrosion evidence before treating the click wheel as a guaranteed fix. |
| Ribbon, connector, or ground path needs checking |
What you may see: Some control failures show up as a dead or intermittent wheel after the iPod has been opened or handled internally.
Check first: Inspect the click-wheel ribbon and connector for clean seating.
Most likely cause: The click wheel depends on a seated ribbon connection and a reliable ground path through the assembly and frame.
Look elsewhere when: If the connector on the logic board is broken, the click wheel alone may not solve the controls. |
| Controls stopped responding after a repair |
What you may see: A common repair pattern is that the iPod powers up after battery, hold-switch, or click-wheel work, but the controls no longer move or select normally.
Check first: Reopen only as far as needed to inspect ribbon seating and latch position.
Most likely cause: Post-repair control failure can point to a disturbed click-wheel ribbon, loose latch, missing ground path, or nearby hold-switch ribbon issue.
Look elsewhere when: If the symptom began during battery or headphone/hold work, inspect those disturbed ribbons before ordering another click wheel. |
Repair considerations
Run these checks before replacing the click wheel — they confirm the click wheel is the right fix and not a nearby fault:
- Avoid over-gluing or blocking button travel
- Confirm Hold switch state before replacing controls
- Press the underlying switch directly to isolate button path
- Replace Click Wheel or control assembly
- Recenter or sparingly reattach a shifted rubber button pad
- Add button depth or spacer material when the switch path is short
Do Not Buy This Click Wheel Yet If...
| Situation | Start here instead |
|---|---|
| Variant or capacity does not match this listing | This is a different model — check your order number and generation before ordering. |
| You see a folder icon, clicking noise, or restore failure | Check the drive or flash media, storage cable, adapter seating, formatting, and restore path before replacing any part. A folder with an exclamation mark means the iPod cannot find its storage — the drive, its ribbon cable, or the software on it; a red X or a sad-face iPod is the same message in another style. |
| Charging, swelling, runtime, or power is the primary problem | If the battery is swollen, replace it for safety before ordering control parts. On the 5G Video the pack lies in the rear case directly behind the display, so swelling shows as a pressure mark or bowed screen and a case that will not sit flat — not as a stiff wheel or center button, which is the older 4th-generation and Photo layout. |
| The problem is the Hold switch or headphone jack, not this part | Diagnose the exact-model headphone-jack/Hold assembly and its connector before choosing another part. |
| Recent service or connector disturbance is the main clue | Reseat the control ribbon, latch, and ground path before replacing the control assembly. |
| A symptom points to a different part | Start with battery (thin 30GB) for power/runtime symptoms; hard-drive cable (Toshiba) or (Hitachi) — match the drive brand for folder, clicking, or restore symptoms; LCD screen (5G) for display-only symptoms; headphone jack (thin 30GB) for audio or Hold-switch symptoms; click wheel (white) for click-wheel or control symptoms; logic board — read your board number and memory first; this model has four for board-side damage or multi-system symptoms before buying this part. |
Install Overview
Before You Start
Turn Hold off, use the reset sequence for this generation, and confirm the model and variant before opening the iPod.
Treat case opening as the highest handling risk. Work around the seams gently and stop if the shell, clips, or internal stack resist.
Do not pull the halves apart or side-load board sockets. Reseat nearby ribbons and connectors before blaming a replacement click wheel.
Do not force the case closed if the replacement battery or cable routing feels too snug. Recheck battery position, wire routing, and nearby boards before reassembly.
Confirm the click-wheel button is seated before reinstalling the framework. Handle the ground strap carefully; it is fragile. Detach only the thin click-wheel ground tab at that stage; do not pull the wider click-wheel ribbon. Avoid over-bending the click-wheel cable during removal. Open ribbon-cable latches only as described; over-lifting or side-loading the latch can damage the connector. Do not fully separate the case halves until the remaining ribbons are released; the back panel can still be connected by ribbon cables.
Disassembly Guide
Disassembly guide summary: iPod 5th Generation (Video) Click Wheel Replacement.
Show all 19 installation steps
Before opening the iPod, confirm that the hold switch is locked. With the iPod screen-side down and facing you, the slider should sit all the way to the right.
Do not get discouraged if the iPod takes several opening attempts; work slowly until the case releases. Release the first bottom retainer clip with the plastic opening tool. Point the tool edge toward the metal rear case to avoid scratching the plastic front.
Use these retaining clip locations: four along each side, one on top, and two along the bottom. This helps avoid frustration and reduces the chance of scratching the plastic cover.
Each side of the iPod has four retaining clips. Use a plastic opening tool to separate the plastic front from the metal rear case. Slide the plastic opening tool into the iPod's left side with the tool edge pointed toward the metal rear case. A small guitar pick can help with opening. Place it in the seam and slide it around the case to release the clips more smoothly. Gently enlarge the existing crevice by wiggling the plastic opening tool and moving it to the left. Keep working this way until the entire side of the iPod is loose. Then slide a plastic opening tool to the right of the Hold button. Work very carefully while inserting the tool because the display is fragile.
Gently glide the plastic opening tool on the top of the display, making sure to release the retaining clips. The other sides of the iPod should now release easily. If they do not, work plastic opening tools along the right side the same way you did on the left side. In this step, separate the front of the device from the back about an inch (or a couple of centimeters). The iPod casing is now open, but do not fully separate the two halves yet. Two ribbon cables still connect the back panel to the remaining iPod assembly.
With angled tweezers or a plastic opening tool, slide the brown connector latch upward where it secures the orange battery ribbon cable. Pull from both sides of the latch. Lift it only about 1-2 mm to release the cable; do not lift farther or remove it, or the white connector may come with it. Do not raise the assembly very far; lifting too high could pull the battery connector out of the logic board. Move the brown connector straight upward. It is fragile and can break if shifted to the side. Hooks at the bottom hold the cable in place. If an arm breaks, reinstalling the battery cable becomes difficult; put the cable in the slot and press the brown holder into place to stop the cable from slipping out. Take the cable out of the connector.
At this stage there should be one orange ribbon cable still attaching the front housing to the back. At this stage you are able to take out and replace the blue rubber bumpers, or keep going with separating the case. You can replace the battery without separating the case, but opening it farther can make the work easier. Doing so requires one extra cable removal and adds some damage risk.
Raise the hard drive so the headphone jack ribbon connector is exposed. If the hard drive bumpers come loose, put them back with the notch seated in its original orientation.
With the plastic opening tool, gently raise the brown tab of the headphone ribbon cable connector. The tab can rotate up 90 degrees, releasing the ribbon cable. With your fingers, draw out the headphone jack ribbon cable.
The front and rear case halves should now be fully separated.
With a small plastic opening tool, release the black hinge clamping the hard drive ribbon cable. Rotate the tab upward 90 degrees toward the logic board to free the ribbon cable. With your forefinger, hold the ribbon cable in place; detach the drive from the ribbon cable. Confirm that the hard drive rubber side bumpers are installed on the drive. Use the side bumper installation guide for placement. If needed, transfer the blue foam padding from the hard drive to the replacement drive.
Take out the 3 black Phillips screws securing the front panel to the metal framework. Turn the iPod laterally 180 degrees and take out the three black Phillips screws that secure the front panel to the metal framework on the opposite side.
You may meet some resistance near the center of the device as you will find a mild adhesive used to help hold the two parts together. Carefully work along the iPod edge to separate the front panel from the metal framework. Lift the full framework away from the front panel; it carries the display, logic board, and click wheel. Confirm the click wheel button is seated before reinstalling the framework in the front panel.
The front panel should now be released from the remaining iPod assembly.
In this step, rotate the device so the black plastic tab is more accessible to you. Use a small plastic opening tool or fingernail to lift the black plastic tab that secures the display ribbon. The tab rotates upward 90 degrees toward the display and releases the ribbon cable. Use your finger to prevent the cable from lifting upwards. Rock the display loose from the frame, and next, draw it gently outwards to release the display's ribbon cable. You may have to raise the cable away from the 2 white pegs that poke through it near the side of the frame.
The display should now be released from the remaining iPod assembly. During reassembly, it is usually easier to seat the screen between the front panel and framework before connecting the cable. A new screen cable can be stiff enough to loosen the screen while the cable is being reconnected.
In this step, peel up the black tape holding the silver ground strap to the metal framework. The ground strap is very fragile, so make sure it does not break.
Turn the iPod over, then peel up the orange click wheel ground tab from the metal framework. Detach the thin ground tab only; do not detach the wider click wheel ribbon. Carefully press the logic board away from the metal framework, using the squares as push points. Mild adhesive secures the board to the framework, so avoid bending it by pushing too hard in one spot. The framework should now be free from the remaining iPod assembly.
With a small plastic opening tool, flip up the black plastic tab securing the orange click wheel ribbon in place. The black tab can rotate up 90 degrees, releasing the ribbon cable. With a small plastic opening tool, loosen the click wheel cable from the logic board. Take care not to over-bend the cable, since its electronics can be damaged. Detach the click wheel cable from its connector, and raise the entire click wheel assembly away from the logic board. The click wheel should now be separate from the remaining iPod assembly.
Product-specific placement, reassembly, and check
- Prepare and access. Confirm the exact model and listing fit first. Use the existing steps as a disassembly guide, gather the specified tools, disconnect power where applicable, and keep screws and cable positions organized.
- Place New Custom Click Wheel. Align the control part with its locating features and seat only the matching ribbon or mechanical interface for this listing.
- Reassemble without force. Reverse only the access steps needed for this repair, keep cables clear of case edges and screw posts, and close clips in stages.
- Validate before final closure. Before final closure, test navigation and every affected button; reopen the fit if a control binds, sits low, or does not register consistently.
Stop condition: Stop if a connector, latch, screw, clip, housing edge, or the replacement part resists normal alignment. Recheck model fit, orientation, cable routing, and trapped hardware instead of forcing it.
After This Repair
| Check | What to do |
|---|---|
| Test every control | Check Menu, Select, Play/Pause, Previous, Next, scrolling, and Hold behavior before closing the case fully. |
| If controls are still odd | Reseat the control ribbon, confirm the Hold switch is off, and inspect any ground strap or latch touched during service. |
Frequently Asked Questions
Use these questions to narrow the part path before ordering. They keep each answer focused on a different diagnostic or fitment decision.
Is there a separate page for every custom option?
No. This is the single page for the custom option set; choose color/finish after confirming model fitment.
Is this original Apple OEM?
No. Custom exterior parts are new non-OEM parts. Original factory Apple parts are used OEM and stay on the separate non-custom pages.
Why does the 5G Video center, middle, or Select button feel stuck, sit pushed down, or stop clicking?
Treat a center-button-only or middle-button-only symptom as a Click Wheel assembly diagnosis before replacing unrelated parts. First confirm the Hold switch is not locked, then separate a sunk, low, or no-click center button from a whole-wheel failure. If scrolling still works, inspect the center-button rubber dome or pad, rubber-contact centering, and membrane contact before choosing a full Click Wheel assembly. If the entire wheel or several controls are unresponsive, reseat the Click Wheel ZIF ribbon and verify the ground wire, ground strap, and hold-switch ribbon path, especially after battery, headphone/hold, or Click Wheel service.
How should I use click wheel is partly or fully unresponsive to choose this click wheel?
Confirm Hold is off. Inspect click-wheel ribbon seating, connector cleanliness, and the ground path. If the symptom began after service, check only the disturbed areas before replacing another part. Check whether any buttons work, whether scrolling works, and whether the center button fails separately. Inspect ribbon seating, connector cleanliness, and the ground path if the iPod was opened.
Is this an iPod Classic?
Apple's 'Classic' branding started with the 6th Generation (2007). This is the iPod 5th Generation (Video) / iPod with Video family, model A1136. Apple's official name for this model is iPod (Video) / iPod with Video.
Everything sounds muffled since I cleaned it — is the speaker damaged?
This iPod has no music speaker. Sound comes out of the headphone jack, or through the dock's line-out; the only sound-maker inside is a small clicker on the board for the wheel and the alarm. Apple's own documentation for this era draws the same distinction — a playlist alarm needs speakers or headphones connected before you can hear it.
So muffled or scratchy music is the headphone path: try another set of headphones and another source, then look at the jack and its assembly. If dock line-out is clean and headphones are not, the headphone assembly is the likely part.
If it is the clicker that sounds different after a repair, we would rather hear it than diagnose it from a description: a changed sound is not automatically harmless, and we will not name a failed component on this evidence. Settings has a Clicker option worth checking before ordering anything. Reported by 1 owner.
Why is my iPod5 not turning on?
Use the Quick Buying Check, Failure Signs, and Do Not Buy sections together before ordering. The symptom should still point to this click wheel after nearby parts and fitment are separated.
Why people land on this part
Use the checks above to separate this click wheel from nearby parts before ordering.
Some buyers search for "mismatched"; confirm the checks above point to this same part before ordering.
Also searched as: freezes, iPod video 5th gen new custom click wheel replacement, iPod video click wheel replacement, iPod video center button stuck, scroll wheel stuck, clickwheel, click wheel button feels stuck, click wheel ground not sticking, stuck apple, iPod frozen hd new, clickwheel battery, iPod classic 5th generation click wheel, click wheel unresponsive, stuck hold.
Worth Knowing
- Supplier listings may omit the suffix: 821-0372
- Color-matched (white or black). Interchangeable between thin and thick of same color.
- Capacitive touch with mechanical center button. Single assembly.
Click Wheel Not Working: What Owners Describe
On the iPod 5th Generation Video, Click Wheel Not Working can describe more than one observable problem. These paraphrased owner reports are anecdotal starting points for diagnosis, not proof that any single part failed.
Anecdotal owner reports (not a guarantee or authoritative proof): - One owner reported that every front button stopped responding after a screen replacement, while the Hold switch still worked.
Owners searching for this describe it as: iPod 5th Generation Video Click Wheel Not Working, iPod click wheel not working, iPod buttons not responding.
What Owners Report
These are anecdotal owner reports, not guarantees or authoritative proof that a particular part will fix a symptom. Use them as a troubleshooting starting point: confirm the symptom, run the quick checks, then match the fix.
Wheel or center button unresponsive — grounding tab, seating, and worn buttons
Owners describe it as: wheel and buttons dead; the wheel physically sticking under the front panel; a center button that stops clicking after years of use; music playing while the screen has frozen; not being able to turn the iPod off.
Check first. Unlock Hold and force restart with Menu + Select for about eight seconds. Then look at seating: the click-wheel ribbon has an orange ground tab that peels up from the metal framework, and a lifted tab or a wheel off its seat presses nothing. Rubber spacers carry the wheel and center button onto switches on the board — one owner's dead center button was a spacer that had slipped.
What fixes it. Re-seat the ribbon, latch and ground tab; re-center or sparingly re-stick a shifted button pad; replace the wheel assembly when the ribbon is damaged or nothing changes.
Caution. On this build the battery sits behind the display, not behind the wheel: swelling shows as pressure on the screen. Replace a swollen cell before ordering control parts. Reported by 6 owners.
Stuck on Hold — the flex, the switch, and false locks
Owners describe it as: the iPod reports Hold permanently; it powers on but goes no further; the icon claims "charged" while nothing is plugged in; the backlight is dead.
Check first. Work the slider back and forth several times and look into the slot for lint. With Hold on, this iPod ignores every input on the click wheel and refuses to do anything, so a real lock and a false one look identical from outside — which is why a locked iPod is so often mistaken for a dead wheel.
What fixes it. The Hold switch is part of the headphone-jack assembly, so a failed switch or flex is serviced by replacing that assembly, matched to your case: thin for the 30GB, thick for the 60/80GB. Nothing sold on the click-wheel page cures a Hold state.
Caution. That ribbon runs under the battery and tears easily during battery work, which is where many of these start. Accounts of running with the flex unplugged stay reports, not a repair we recommend. Reported by 5 owners.
Click wheel or buttons stop responding after a repair
Owners describe it as: the wheel and buttons were fine before an open-and-repair (a screen swap, hold-switch work) and dead afterwards; only the Hold switch responds; the reset with Menu + Center still works but nothing registers past it; the language-selection screen cannot be advanced.
Check first. A working reset is a real clue — those buttons reach the electronics — so start with what the repair disturbed. Press every ribbon you touched fully home and close its latch. Check the wheel's seat and its ground tab against the metal frame: a lifted tab or a wheel slightly off its seat presses nothing.
What fixes it. Re-seating, most of the time, at no cost; a barely damp alcohol swab on the contact faces, dried fully; the wheel assembly when the ribbon is damaged or nothing else changes.
Caution. Work the latches gently — a torn ribbon turns a free re-seat into a bought part — and run the scroll ring and all five buttons before closing the case. Reported by 3 owners.
Click wheel unresponsive at the language screen after a reformat
Owners describe it as: after reformatting or restoring, the iPod boots to the language-selection screen and goes no further — the wheel seems dead, yet the soft reset (Menu + Center) works perfectly.
What it usually is. A working reset shows those buttons responded. It does not prove the wheel is healthy: same-model troubleshooting notes that a click wheel which is not seated correctly can stop this iPod booting properly. So treat it as a software presentation first, then check the seating.
What to try. Run the restore again, from a different computer if you have one — the owner who tracked this across several same-model units found a fresh restore elsewhere cleared it. Their other standing tip is a spell on a wall charger before anything more invasive. If it still will not advance, re-open and check the wheel's seat, its ribbon and its ground tab.
Community signal. Reported by 1 owner.
