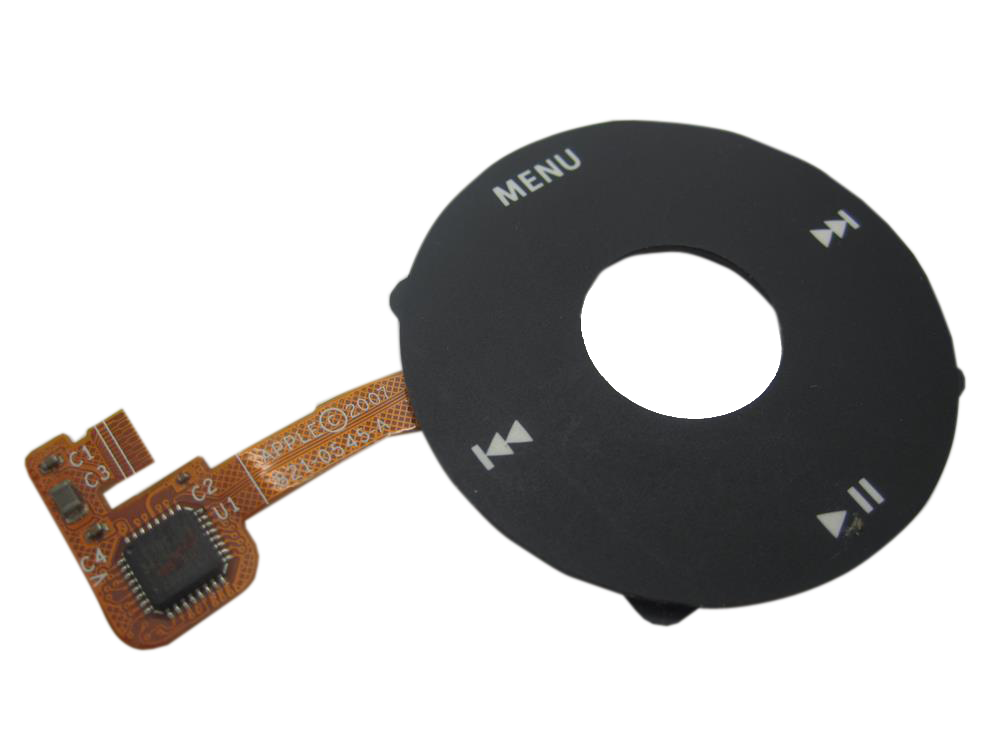

Replacement black wheel click wheel for iPod Classic 6th Generation models. Use it when the wheel, ribbon cable, or connector path remains faulty after Hold, reset, and seating checks pass. Add the matching center button only if the visible cap also needs replacement.
Product Overview
It also covers ipod classic 6th gen click wheel searches when the buyer needs the black wheel assembly.
The base listing includes the click wheel assembly only. The center button cap is available separately if the visible cap also needs replacement.
These identifiers help confirm the cable family, but the product contents and color still matter.
The click wheel is an active control-input part. It can help when the scroll ring, ribbon cable, or connector path stays faulty after Hold, reset, and seating checks pass.
For a stock-looking repair, pair this black control assembly with the matching faceplate color. Color swaps are possible when the faceplate and click wheel are chosen together.
Choose Your Option
This part comes in multiple variants. Confirm your iPod's capacity, case depth, and order number before ordering.
What Is Included
Quick Buying Check
Buy this when
- Your iPod Classic 6G has a black front and the click wheel surface is physically damaged, broken, stuck, worn, or unresponsive after Hold, connector, and reset checks pass.
- You are doing a cosmetic color swap and want the black wheel look; add the matching center button only if the visible cap also needs replacement.
Diagnose first when
- Before ordering, check that the click wheel ribbon cable is fully seated in its ZIF connector and that the latch is locked. A loose cable or unlatched connector is the most common cause of click wheel symptoms after repair.
- Confirm your iPod matches one of the Compatible Variants rows below.
What Brings People Here
Click wheel stopped responding
The touch surface no longer responds to finger movement after Hold is off and reset checks pass.
Center / Select input is isolated
If the visible cap is damaged, the center button cap is available separately. If Select still fails after cap seating and ribbon checks, the wheel path may be involved.
Scroll ring no longer navigates
The scroll ring is partly responsive, erratic, or dead after the ribbon cable has been reseated.
Controls changed after repair
Recent opening work can disturb the click-wheel cable, ZIF latch, ground path, or button seating.
Broken visible control surface
The click wheel is cracked, broken, worn through, or physically damaged.
Cosmetic color swap
Buyers sometimes pair a different color wheel with a matching faceplate for a coordinated exterior.
Post-repair reseat did not fix controls
If reseating the ribbon cable and locking the connector does not help, the assembly itself may be the next part to test.
Specifications & Fitment
The black wheel fits both thin and thick cases; case depth does not affect selection.
Part Details
| Detail | Value |
|---|---|
| Model Number | A1238 |
| EMC | EMC 2173 |
| Condition | Used — factory original Apple part. Normal cosmetic wear expected. |
| OEM Part |
631-0457-A, 821-0545-A
|
Customization Options
This can also be a customization choice. Click wheels and center buttons may be offered in custom non-OEM finishes, so buyers may replace working controls for a coordinated custom build as long as the control fitment matches the model.
Compatible Variants
| Order Number | Capacity | Color | Case | Compatible | Notes |
|---|---|---|---|---|---|
| MB147LL/A | 80GB | Black | thin (0.41 in) | Yes | — |
| MB029LL/A | 80GB | Silver | thin (0.41 in) | Yes— color swap | Silver-front models with a white wheel and silver center button |
| MB565LL/A | 120GB | Black | thin (0.41 in) | Yes | — |
| MB562LL/A | 120GB | Silver | thin (0.41 in) | Yes— color swap | Silver-front models with a white wheel and silver center button |
| MB150LL/A | 160GB | Black | thick (0.53 in) | Yes | — |
| MB145LL/A | 160GB | Silver | thick (0.53 in) | Yes— color swap | Silver-front models with a white wheel and silver center button |
| MC297LL/A | 160GB (Late 2009) | Black | thin | Yes— compatible | Stock match |
| MC293LL/A | 160GB (Late 2009) | Silver | thin | Yes— compatible | Color swap — physically fits, different color from original |
is not compatible with
- Silver front models with white wheel
- 6.5G Space Gray models with a charcoal center button - fitment with this part has not been confirmed
- iPod Video 5th Generation / 5.5G
- Late 2009 160GB MC293LL/A or MC297LL/A until 7th-generation fitment is verified
Failure Signs / When This Click Wheel Helps
Touch surface is unresponsive
Use this part when the click wheel surface does not respond to finger touch after Hold is off, reset has been tried, and the ribbon cable is seated.
Center / Select button is isolated
The center button is physically dead or stops clicking, and the problem is isolated from Hold-switch behavior.
Scroll ring is erratic after reseat
The scroll ring stays partly responsive, jumpy, or intermittent after the click-wheel ribbon cable is reseated and the ZIF latch is closed.
Physical click-wheel damage
The visible wheel is cracked, broken, worn, or damaged enough that the control assembly should be replaced.
Liquid or corrosion isolated to the wheel path
Controls can fail after liquid damage only when inspection points to the wheel, ribbon cable, contact, or connector path rather than the board.
Software freeze separated from hardware
Try a hard reset: hold Menu + Select for 8-10 seconds. If the iPod resets and controls work normally, the freeze was software, not a click wheel issue. If the iPod can reset and enter Disk Mode, the Menu / Select / Play button path is responding. Check storage or software next, but still test scrolling and the other click-wheel buttons before ruling out the wheel.
Center / Select button does not respond or stops clicking
What you may see: People describe the center, middle, or Select button as no longer clicking, selecting, or responding
- This can happen even when the scroll ring still responds
Check first: Confirm Hold is off before judging the controls
- Separate center-button-only behavior from a dead scroll ring or multiple failed buttons
- If the iPod has been opened, inspect the click-wheel ribbon, seating, and ground path before ordering another part
Related checks
- Replacement Headphone Jack (Thin — 80GB / 120GB): check this part first when the nearby headphone jack / Hold switch check matches the symptom better.
- Hard Drive Cable (Thin — 80GB / 120GB): check this part first when the nearby hard-drive cable check matches the symptom better.
Repair considerations
Repair specialists who work on this model consistently flag these checks before replacing the click wheel — they help confirm the click wheel is the right fix and not a nearby fault:
- Avoid over-gluing or blocking button travel
- Confirm Hold switch state before replacing controls
- Press the underlying switch directly to isolate button path
- Replace Click Wheel or control assembly
- Recenter or sparingly reattach a shifted rubber button pad
- Pressure test on right lower side between click wheel and bottom corner confirms audio IC failure
- Loose ribbon cable is a simple cause of Red X
- Start with battery replacement as cheaper fix
- Errors after battery replacement more likely indicate hard drive failure
Do Not Buy This Click Wheel Yet If...
| Situation | Start here instead |
|---|---|
| Your iPod has a silver front with white wheel | Use the opposite wheel-color listing. |
| Charcoal-center 6.5G variant | Fitment not confirmed - contact us or start a free diagnostic. |
| iPod Video 5G / 5.5G | Use the iPod Video click-wheel path; that model uses a different control part. |
| iPod Mini, iPod Nano, or iPod Touch | Use the matching model-family page; this click wheel is for iPod Classic 6G / 6.5G only. |
| Late 2009 160GB MC293LL/A or MC297LL/A models | Fitment with the Late 2009 thin 160GB model is unverified on this listing; use the model selector or contact us before ordering. |
| Lock icon is active, Hold slider misbehaves, or "How do I unlock?" is the main question | Check the headphone jack / Hold-switch assembly first - the Hold slider and headphone jack share a ribbon cable on this model. |
| No sound, static, or audio pauses in lock mode | Start with headphone jack / Hold-switch diagnostics before ordering this part. |
| Red X, Folder Icon, stuck disk, or internal clicking/grinding | Start with hard drive, drive cable, or flash-mod diagnostics - these are storage symptoms. |
| Stuck charging, "Please Wait Very Low Battery," will not charge, or swollen battery | Start with battery or charging diagnostics - not this click wheel. |
| Center button is dead but the board-side tactile switch is also dead when pressed directly | Board-level repair is needed - replacing the click wheel alone will not fix a failed board-side microswitch. |
| Click wheel still fails after post-repair ribbon reseat and connector inspection | Inspect the ZIF connector for damage, check the ground path, and clean contacts with 90%+ IPA. If the connector or board is damaged, use board-level diagnosis. |
Install Overview
For diagnosis, keep the Hold switch off with no orange visible. For disassembly, lock the Hold switch on before opening the case.
Case opening risk
Very Difficult. 13 metal clips. Opening often bends the rear panel. Have spare plastic opening tools ready.
Battery safety
If the battery appears swollen, hot, or punctured when you disconnect it, stop until the battery is safely addressed.
Ribbon cables
Battery ribbon at step 18, headphone jack ribbon at step 20, hard drive ribbon at step 24, display ribbon at steps 31-32, and click-wheel ribbon at steps 36-38 must all be handled carefully. ZIF latches are fragile.
Click wheel cable seating
The ZIF latch on the click-wheel connector must be fully open before pulling the ribbon cable and fully closed after reinserting. A loose cable or unlatched connector is the number one cause of post-repair click wheel failure.
Test before closing
Confirm scroll ring, Menu, Select, Play/Pause, Previous, Next, and Hold all respond before snapping the rear panel shut.
Repair Guide
Repair guide summary: iPod Classic Click Wheel Replacement.
Show all 38 installation steps
This iPod case is unusually hard to open without damaging major components. Its metal faceplate, metal backing, and thirteen metal clips make disassembly especially demanding. Caution: this opening method can significantly damage the iPod beyond its current condition. Keep a few extra plastic opening tools nearby, since they are easy to ruin while opening the case. Confirm that the hold switch is locked before you open the iPod.
Opening this iPod is challenging, so do not get discouraged if it takes a few tries. Watch the plastic opening tool tip angle as you insert it into the iPod; keep it as vertical as possible while still clearing the rear panel edge. Guide a plastic opening tool into the seam between the front and rear of the iPod.
Slide a second plastic opening tool into the seam between the iPod front and rear, keeping the two tools at least 1.5 inches apart.
Working at an angle, carefully slide a putty knife about 1/8 inch into the gap between the two opening tools. You will find thin metal rails running along the inside of the back panel, so work very carefully when inserting the putty knife. After the putty knife clears the rear panel lip, rotate it vertical and carefully but firmly work it straight down through the opening tool gap.
Press on the rear panel behind the putty knife with your fingers to reduce bending. Slowly flex the putty knife so most metal tabs along this side of the iPod release. The idea is to control how the rear panel bends instead of trying to prevent all bending. Any side bend should draw the rear panel lip away from the iPod, not push outward on the curved surface. This also releases as many side clips as possible.
Take the putty knife out, then place it closer to the iPod corner and use the same gentle wiggle method. If possible, do not bend the rear panel corner.
Near the headphone jack, guide a plastic opening tool into the seam between the front and rear of the iPod. It may be easier to flex the putty knife downward carefully to create more room for the opening tool. Be careful not to bend the rear panel corner.
Near the display center, carefully slide a metal spudger into the gap made by the plastic opening tool. A visible bump can form here in the rear panel and is hard to repair. When levering the tab free, pivot the metal spudger on the rear panel edge instead of bending the rear panel outward. With the metal spudger, release the single clip at the iPod top edge.
Near the other top corner, guide a plastic opening tool into the seam between the front and rear of the iPod
On the other side, use the opening tool to start the same case-opening gap. It may help to angle the tool stuck in the top corner to create enough room.
Take the opening tool out of the top corner, then slide it into the seam between the iPod front and rear. Keep at least 1.5 inches between the two tools, as on the opposite side.
Working at an angle, carefully slide a putty knife about 1/8 inch into the gap between the two opening tools. Again, you will find thin metal rails running along the inside of the back panel, so work very carefully when inserting the putty knife. After the putty knife passes the rear panel lip, turn it vertical and carefully but firmly work it straight down through the gap between the plastic opening tools. Press on the rear panel behind the putty knife with your fingers to reduce bending. Flex the putty knife just enough to make sure most metal tabs along this side of the iPod release.
The metal clips near the corners grip the front panel tightly. Release these clips before opening the iPod. Carefully slide a metal spudger into the area beside the stubborn metal clip.
Gently work the metal spudger downward until it is fully seated in the rear panel.
Gently start releasing the clip from the front panel. A visible bump can form here in the rear panel and is hard to repair. When levering the tab free, pivot the metal spudger on the rear panel edge instead of bending the rear panel outward.
Use the metal spudger to apply upward pressure under the front panel until the metal clip releases.
You will find two ribbon cables connecting the rear panel to the remaining iPod assembly. In the following step, take care not to damage these ribbon cables. In this step, grasp the front-panel assembly with one hand and the back panel with the other. Pause for a moment before continuing. Very gently release the remaining rear-panel clips by pulling the tops of the front and rear panels apart, using the iPod bottom as a hinge. Take great care not to damage the ribbon cables joining the two halves.
With a spudger, slide the connector upward where it holds the orange battery ribbon. Lift the locking bar only about 2 mm to release the cable. Move the orange battery ribbon out of its connector.
Set the rear panel beside the iPod, taking care not to strain the orange headphone jack cable.
Raise the hard drive with one hand to expose the headphone jack ribbon underneath. With a spudger, flip up the plastic tab securing the headphone jack ribbon in place. The tab can rotate up 90 degrees, releasing the ribbon cable. Move the orange headphone jack ribbon out of its connector. The rear panel is now released from the iPod.
After opening, check the lower-case clips. If any clip bent upward, press it back down gently so the rear case can close cleanly.
Use the broad, flat face of the metal spudger to press the clip downward. Work carefully so the thin metal rail does not tear away from the rear panel. While shaping these clips, take care not to damage any headphone jack parts.
Set the rear panel on its side on a clean, hard surface. Carefully but firmly press it downward, rolling the full lip edge back into place. You may need to repeat this several times to straighten the sides well. Slightly overcorrecting the case edges inward is better than leaving them too far out, because reseating the front panel will bend the rear panel back into alignment. Once the rear panel is restored to good condition, continue with the iPod repair.
Rotate the hard drive out of the framework, then set it with the connector facing upward. With a spudger, lift the small black locking tab for the orange hard drive ribbon. The tab rotates upward 90 degrees and frees the ribbon cable.
Move the orange hard drive ribbon cable straight out of its connector. If the replacement hard drive did not include rubber mounting brackets or foam padding, transfer those parts from the old drive.
Take out the three Phillips screws that secure the front panel to the metal framework.
Rotate the iPod 180 degrees and take out the 3 Phillips screws holding the front panel to the metal framework on the other edge.
In this step, gently work around the edges of the device to separate the front panel from the gray metal framework. You may meet some resistance, as you will find a mild adhesive used to help hold the two parts together.
Lift the full framework away from the front panel; it carries the screen, logic board, and click wheel. Confirm the click wheel button is seated before reinstalling the framework in the front panel.
The front panel is now released from the iPod.
With a spudger, lift the plastic tab that holds the orange display ribbon. The tab rotates upward 90 degrees toward the display and releases the ribbon cable.
Move the orange display ribbon cable directly out of its connector.
Raise the framework assembly up, and move the display and LCD metal backplate out of the framework assembly.
Take out the two Phillips screws securing the logic board to the framework.
Carefully press the logic board away from the metal framework. Mild adhesive secures the logic board to the framework. Take care not to bend the logic board by pushing too hard in one spot.
Move the click wheel out from under the logic board until its icons are visible. With a spudger, flip up the plastic tab securing the orange click wheel ribbon in place. The tab can rotate up 90 degrees, releasing the ribbon cable.
With a spudger, raise the click wheel cable off the logic board. Take care not to over-bend the cable, since its electronics can be damaged. When reinstalling the click wheel, make sure the click wheel cable is fully seated in its connector.
Move the click wheel cable out of its connector. Raise the click wheel assembly away from the logic board. Do not forget the click wheel button when putting your iPod back together.
After This Repair
| Check | What to do |
|---|---|
| Test every control | Check Menu, Select, Play/Pause, Previous, Next, scrolling, and Hold behavior before closing the case fully. |
| If controls are still odd | Reseat the control ribbon cable, confirm the Hold switch is off, and inspect any ground strap or latch touched during service. |
| Button seating | Confirm the center button cap is physically seated in the faceplate before final closure. |
| Connector inspection | If the wheel still fails, inspect the ZIF connector for latch damage or lifted pads before ordering another wheel. |
Frequently Asked Questions
Does this fit both thin and thick cases?
Yes. The click wheel is the same for thin 80GB and 120GB models and thick 160GB models. Choose by front color and wheel color, not case depth.
Does this include the center button?
No. The base listing is for the black wheel click wheel assembly only. The center button cap is available separately if the visible cap also needs replacement.
iPod Classic click wheel not working - what should I check first?
Confirm Hold is off with no orange visible. Try a hard reset with Menu + Select for 8-10 seconds. If controls work after reset, the problem was software. If still unresponsive, open the iPod and reseat the click-wheel ribbon cable in its ZIF connector. Order a replacement only after those checks fail.
How do I unlock my iPod Classic?
Slide the Hold switch so no orange stripe is visible. If the lock icon stays on screen after toggling, the Hold switch assembly may need attention. That is part of the headphone jack / Hold-switch assembly, not this click wheel.
My center button stopped working after a repair - is the wheel bad?
Not necessarily. Reseat the click-wheel ribbon cable, confirm the ZIF latch is fully closed, and check that the center button cap is physically seated in the faceplate. If the symptom started during service, the cable or connector is the most likely cause.
Can I use this on a silver iPod for a color swap?
Yes. The click wheel shape is the same. Match the faceplate color to the black or silver wheel for a consistent look, and add the matching center button only if the cap is also being replaced.
Why people land on this part
Also searched as: Frozen / Unresponsive or Hold Switch Stuck, iPod classic 6th Generation Click Wheel, hold button, black click wheel with black center button, jack hold switch, locked up, click wheel connector, 6G black click wheel, A1238 click wheel, Black Button, Center button not working, central button, click wheel flex, screen frozen, stuck apple, stuck on charging please wait, lock switch, ipod classic black click wheel replacement, Click Wheel Not Working, clickwheel, scroll wheel, stuck disk, click wheel assembly, click-wheel cable.
You May Also Want
If your diagnosis points to the Hold switch rather than the click wheel, check this assembly first. The Hold switch shares a ribbon cable with the headphone jack on this model.
Related: Replacement Center ButtonAdd the matching center button if the visible cap is also damaged.
Related: Replacement Battery (Thin — 80GB / 120GB)You disconnect the battery ribbon at step 18 of this repair; if the battery is old or weak, replacing it now avoids opening the case again.
Some buyers search for "clickwheel", "scroll wheel", or "custom build"; confirm the checks above point to this same part before ordering.
